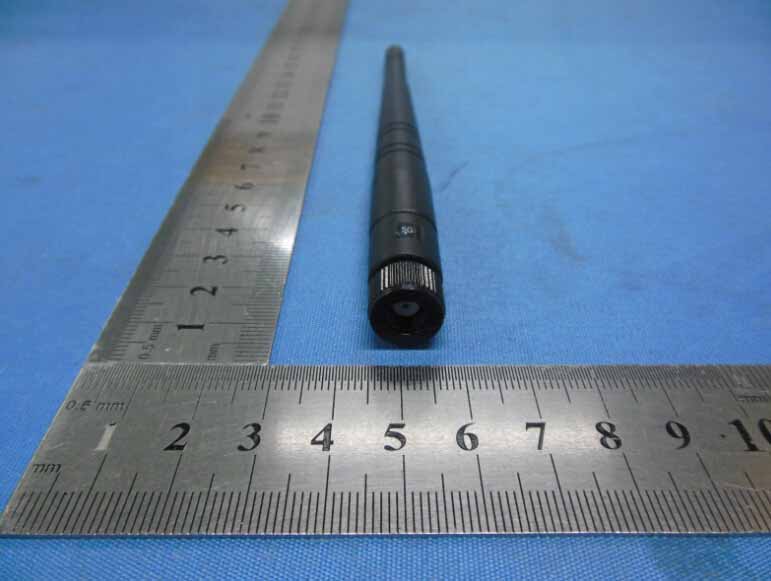

3dBi antenna professional installation instructions 1 Technical Parameters 3dbi antenna mainly apply to outdoor application scenarios， connect to outdoor AP 5GHz RF port by using a SMA type connector. Fig.1-1 3dbi antenna appearing diagram. Chart 1-1 Technical Parameters Electrical Specifications Model AG-011420-0220-A0-0000 Frequency range 5.15~5.8G Impedance(Ω) 50Ω VSWR ≤2.0 Gain 3.0dBi Maximum input power 1w Electric Strength test 1KV Polarization Vertical Radiation direction Omni Connector RPSMA‐J Mechanical Specifications Antenna Dimension 155±3mm Coaxial‐cable RG178 Operating temperature ‐30°C~65°C Storage temperature ‐30°C~75°C Below is the far-field pattern in horizontal direction and in vertical direction. 2 Safety Precautions Warning! Antenna installation is dangerous to some extent, please read over the below safety precautions before installation, so to avoid unnecessary injuries and deaths. Please set the antenna location far away from electricity such as power supply wire, street lamp or power supply box. Installer must pay attention not to touch the power supply wire, otherwise it may cause severe casualty. To choose a safe location where get far away from the power line or other cable. This is to avoid electric shock and danger caused by cable winding. To avoid install the antenna by just one installer. The install location and steps need to be confirmed by several installer before installation. When need to erect poles, pay attention to cooperation between installers. Must pay attention to: Do not use metal ladder；Not to install in wet or wind weather, in the mean time, isolative cloths, shoes and glove must be wear-on by installer. If the antenna, RF cable or other spare parts falling from the high place, please elude as quickly as you can, so as to avoid unnecessary injury and deaths. When the antenna need to power up, please let the professional to do it, do not connect by yourself. Any emergency such as electric shock must seek help at once. 3 Installation Precautions 3dbi antenna is indoor fan-shape covered that suitable for radiating around the indoor ceiling. We suggest installing it in the middle of ceiling for windows or doors may harm the signal quality. According to signal quality requirement, installer must figure out how many 3dbi antennas should be installed at certain distance intervals. At the same time, the install location should be far away from the metal obstacles or wall shielding net, etc. 4 Proper locations to install 3dbi antenna. 3dbi antennas mainly apply to indoor ceiling such as halls, meeting room and corridor, at the mean time the antenna location be far away from the obstacles or metal objects such as central heating or metallic conduit. Generally speaking, the higher it be, the more area it will cover, so the more effective it will be. Please use short cable (as shorter as possible) to connect antenna and AP. 5 Antenna Installation 3dbi antenna is mainly installed indoors, while other tools such as monkey wrench, cross screw driver and “-”type screw driver need to be prepared by yourself. 5.1 Installation Tools 1、 monkey wrench 2、“+”type screw driver and “-”type screw driver 5.2 RF cable requirements Generally we adopt the RF cable as short as possible. We suggest adopting high quality and low loss RF cable. The wastage of coaxial-cable will be magnified if to increase the frequency, the signal will also be decay in a large amount. So the length of cable should be as shorter as it can be, so to avoid unnecessary wastage. 5.3 Antenna installing steps. Step 1. Attach the unit by a two screws on a wall and push it downwards until it clicks into position: Step 2. Connect omni antennas (item C in the 错误！未找到引用源。), power cord, PoE (item D and E in the 错误！未找到引用源。), and Ethernet cables to the APC: 6 Antenna Power-level Setting This document provides mandatory radio power-level settings that must be configured to ensure that your device complies with regulatory requirements in your region. 6.1 Radio power-level setting 1.LOGIN he default product address is 192.168.2.66. The default administrator login settings are: User：admin Password：admin01 2 Radio Power Tx Power（dBm）:3dBi 3 Different Frequency of the power setting 5150-5250MHZ:28dBi 5725-5850MHZ:28dBi 4 Select save and apply Click on the Save changes and apply.

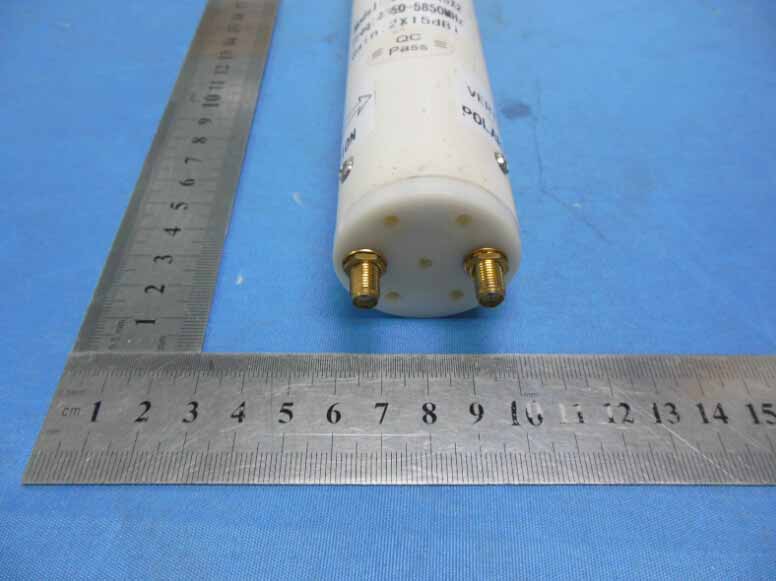

15dBi antenna professional installation instructions 1 Technical Parameters 15dbi antenna mainly apply to outdoor application scenarios， connect to outdoor AP 5GHz RF port by using a SMA type connector. Fig.1-1 15dbi antenna appearing diagram. Chart 1-1 Technical Parameters Below is the far-field pattern in horizontal direction and in vertical direction. 2 Safety Precautions Warning! Antenna installation is dangerous to some extent, please read over the below safety precautions before installation, so to avoid unnecessary injuries and deaths. Please set the antenna location far away from electricity such as power supply wire, street lamp or power supply box. Installer must pay attention not to touch the power supply wire, otherwise it may cause severe casualty. To choose a safe location where get far away from the power line or other cable. This is to avoid electric shock and danger caused by cable winding. To avoid install the antenna by just one installer. The install location and steps need to be confirmed by several installer before installation. When need to erect poles, pay attention to cooperation between installers. Must pay attention to: Do not use metal ladder；Not to install in wet or wind weather, in the mean time, isolative cloths, shoes and glove must be wear-on by installer. If the antenna, RF cable or other spare parts falling from the high place, please elude as quickly as you can, so as to avoid unnecessary injury and deaths. When the antenna need to power up, please let the professional to do it, do not connect by yourself. Any emergency such as electric shock must seek help at once. 3 Installation Precautions 15dbi antenna can covered all directions in outdoor, so we suggest to install at the top of buildings or mountains, also the antenna location should be far away from the obvious obstacles. 4 Proper location to install 15dbi antenna. 15dbi antennas mainly apply to outdoor such as the top of buildings and mountains. Generally speaking, the higher it be, the more area it will cover, so the more effective it will be. 5 Antenna Installation 15dbi antenna is packed with all kinds of spare parts, while other tools such as monkey wrench, cross screw driver and “-” type screw driver need to be prepared by yourself. 5.1 Installation Tools 1、 monkey wrench 2、“+”type screw driver and “-”type screw driver 5.2 RF cable requirements Generally we adopt the RF cable as short as possible. We suggest adopting high quality and low loss RF cable. The wastage of coaxial-cable will be magnified if to increase the frequency, the signal will also be decay in a large amount. So the length of cable should be as shorter as it can be, so as to avoid unnecessary wastage. 5.3 Antenna installing steps. 如图1‐3 6 Antenna Power-level Setting This document provides mandatory radio power-level settings that must be configured to ensure that your device complies with regulatory requirements in your region. 6.1 Radio power-level setting 1.LOGIN he default product address is 192.168.2.66. The default administrator login settings are: User：admin Password：admin01 2 Radio Power Tx Power（dBm）:15dBi 3 Different Frequency of the power setting 5150-5250MHZ:19dBi 5725-5850MHZ:26dBi 4 Select save and apply Click on the Save changes and apply.

19dBi antenna professional installation instructions 1 Technical Parameters 19dbi antenna mainly apply to outdoor application scenarios， connect to outdoor AP 5GHz RF port by using a MCX type connector. Fig.1-1 19dbi antenna appearing diagram Chart 1-1 Technical Parameters Below is the far-field pattern in horizontal direction and in vertical direction. 2 Safety Precautions Warning! Antenna installation is dangerous to some extent, please read over the below safety precautions before installation, so to avoid unnecessary injuries and deaths. Please set the antenna location far away from electricity such as power supply wire, street lamp or power supply box. Installer must pay attention not to touch the power supply wire, otherwise it may cause severe casualty. To choose a safe location where get far away from the power line or other cable. This is to avoid electric shock and danger caused by cable winding. To avoid install the antenna by just one installer. The install location and steps need to be confirmed by several installer before installation. When need to erect poles, pay attention to cooperation between installers. Must pay attention to: Do not use metal ladder；Not to install in wet or wind weather, in the mean time, isolative cloths, shoes and glove must be wear-on by installer. If the antenna, RF cable or other spare parts falling from the high place, please elude as quickly as you can, so as to avoid unnecessary injury and deaths. When the antenna need to power up, please let the professional to do it, do not connect by yourself. Any emergency such as electric shock must seek help at once. 3 Installation Precautions 19dbi antenna is outdoor fan-shape covered and suitable for using at fan-shaped overlapping region. So we suggest it should be used at top of the building or mountain. No restraining mass should be place before the location of 19dbi antenna. 4 Proper location to install 19dbi antenna. 19dbi antenna mainly used in outdoor such as top of building or top of the mountain. Generally speaking, the higher it be, the more area it will cover, so the more effective it will be. 5 Antenna Installation 19dbi antenna is packed with all kinds of spare parts, while other tools such as monkey wrench, cross screw driver and “-”type screw driver need to be prepared by yourself. 5.1 Installation Tools 1、 monkey wrench 2、“+”type screw driver and “-”type screw driver 5.2 RF cable requirements Generally we adopt the RF cable as short as possible. We suggest adopting high quality and low loss RF cable. The wastage of coaxial-cable will be magnified if to increase the frequency, the signal will also be decay in a large amount. So the length of cable should be as shorter as it can be, so to avoid unnecessary wastage. 5.3 Antenna installing steps. Assembling and Mounting the APC The APC 5M-90 units are supplied with mounting hardware for pole with diameters in the range 30mm to 55mm installations. Follow the steps for APC assembling: Step 1. Make sure that the APC unit is powered-off. Step 2. Open the unit’s cover and insert the UTP cable into the unit’s ETH port as displayed in the picture below: It is recommended to use shielded STP Ethernet cable to reduce exposure of the electromagnetic noise. Step 3. Close the unit’s cover and fix it with the cover’s bolt: Step 4. Attach the mounting hardware to the device: first fix mounting hardware part 1 with four Hex bolts M4x5 (items C and L in the Figure 1 – Package Contents), then attach the mounting hardware part 2 and fix it with four Hex bolts M5x10 (items D and K in the). It is recommended not to tighten the unit to its mounting bracket until the alignment process of the antenna is complete. Step 5. For wall mounting simply fix the unit’s mounting hardware on the wall with bolts (not included in the package). For pole mounting attach mounting hardware part 3 (item E in the) and the unit on a pole and fix them with M6 bolts and nuts (items I and J in the): Step 6. Ground the APC unit. The unit must be properly grounded to protect against lightning. The grounding wire must be attached to the grounding stud and tightened with the nut (item H in the): Step 7. Connect PoE and power cord (items F and G in the) together with UTP cables as displayed in the picture below: IMPORTANT: Deliberant APC 5M-90 maximum input voltage is 24V. Step 8. Power-up the unit. The green power LED must be on (refer at the respective section). Depending on link quality, up to four yellow LEDs will switch on, indicating that link between two units was established successfully. Step 9. After the link was established, align antenna for the maximum performance: loosen bolts on unit’s frame, run the Antenna Alignment tool in the Web management interface (or observe the RSSI LEDs) and move the unit in the vertical and horizontal panes until the maximum RSSI visible on the Antenna Alignment graph is achieved. After the maximum RSSI level is reached, tighten down frame’s bolts in the optimal position. Avoid standing directly in front of an operating antenna while aligning. 6 Antenna Power-level Setting This document provides mandatory radio power-level settings that must be configured to ensure that your device complies with regulatory requirements in your region. 6.1 Radio power-level setting 1.LOGIN he default product address is 192.168.2.66. The default administrator login settings are: User：admin Password：admin01 2 Radio Power Tx Power（dBm）:19dBi 3 Different Frequency of the power setting 5150-5250MHZ:15dBi 5725-5850MHZ:23dBi 4 Select save and apply Click on the Save changes and apply.

23dBi antenna professional installation instructions 1 Technical Parameters 23dbi antenna mainly apply to outdoor application scenarios， connect to outdoor AP 5GHz RF port by using a MCX type connector. Fig.1-1 23dbi antenna appearing diagram Chart 1-1 Technical Parameters Below is the far-field pattern in horizontal direction and in vertical direction. 2 Safety Precautions Warning! Antenna installation is dangerous to some extent, please read over the below safety precautions before installation, so to avoid unnecessary injuries and deaths. Please set the antenna location far away from electricity such as power supply wire, street lamp or power supply box. Installer must pay attention not to touch the power supply wire, otherwise it may cause severe casualty. To choose a safe location where get far away from the power line or other cable. This is to avoid electric shock and danger caused by cable winding. To avoid install the antenna by just one installer. The install location and steps need to be confirmed by several installer before installation. When need to erect poles, pay attention to cooperation between installers. Must pay attention to: Do not use metal ladder；Not to install in wet or wind weather, in the mean time, isolative cloths, shoes and glove must be wear-on by installer. If the antenna, RF cable or other spare parts falling from the high place, please elude as quickly as you can, so as to avoid unnecessary injury and deaths. When the antenna need to power up, please let the professional to do it, do not connect by yourself. Any emergency such as electric shock must seek help at once. 3 Installation Precautions 23dbi antenna is outdoor fan-shape covered and suitable for using at fan-shaped overlapping region. So we suggest it should be used at top of the building or mountain. No restraining mass should be place before the location of 19dbi antenna. 4 Proper location to install 23dbi antenna. 23dbi antenna mainly used in outdoor such as top of building or top of the mountain. Generally speaking, the higher it be, the more area it will cover, so the more effective it will be. 5 Antenna Installation 23dbi antenna is packed with all kinds of spare parts, while other tools such as monkey wrench, cross screw driver and “-”type screw driver need to be prepared by yourself. 5.1 Installation Tools 1、 monkey wrench 2、“+”type screw driver and “-”type screw driver 5.2 RF cable requirements Generally we adopt the RF cable as short as possible. We suggest adopting high quality and low loss RF cable. The wastage of coaxial-cable will be magnified if to increase the frequency, the signal will also be decay in a large amount. So the length of cable should be as shorter as it can be, so to avoid unnecessary wastage. 5.3 Antenna installing steps. Mounting the LigoPTP 5-23 PRO Mounting bracket of LigoPTP 5-23 PRO unit is designed to make installation on a wall or a pipe easy. The unit is attached and its position is fixed with the single bolt. Mounting on a Pole The PTP units are supplied with mounting hardware for pole with diameters in the range 10mm to 70mm installations. Follow the steps for LigoPTP 5-23 PRO installation on a pole: Step 1. Make sure that the unit is powered-off. Step 2. Ground the unit. The unit must be properly grounded to protect against lightning. The grounding wire must be attached to the grounding stud on the unit. If the unit is attached to a metal pole which is earth-grounded, no further grounding is required. Step 3. Connect the unit to the bracket together and tighten up with the screws: It is recommended not to tighten the unit’s mounting bracket details until the alignment process of the antenna is complete. Step 4. Attach the mounting bracket and the pole clamp with the bolts and nuts. The clamp’s orientation will differ according the pole’s diameter as displayed below: Step 5. Power-up the unit. It is recommended to use shielded Ethernet cable to reduce exposure of the electromagnetic noise. Step 6. Run the Antenna Alignment tool on Web management interface or on OLED display and move the antenna in the horizontal and vertical planes until the maximum RSSI visible on the Antenna Alignment graph is achieved. Avoid standing directly in front of an operating antenna while aligning. Figure 1 – Antenna Alignment Tool on Web Figure 2 – Antenna Alignment Tool on OLED Step 7. After the maximal RSSI is reached, tighten the unit’s bracket in the optimum position. Mounting on a Wall The mounting bolts for unit installation on the wall are not included in the package. For mounting LigoPTP 5-23 PRO unit on the wall, first mount one half of the bracket to the wall and then connect the two halves of the bracket together and tighten the nut and bolt. Step 1. Make sure that the unit is powered-off. Step 2. Ground the LigoPTP 5-23 PRO unit. The unit must be properly grounded to protect against lightning. The grounding wire must be attached to the grounding stud on the unit. Step 3. Dismantle mounting bracket into the two parts for easier attachment to the wall: Ste 4 s Ste sc r Ste ti g p 4. Atta crews as p 5. Att a rews (not p 6. Con n ghten up: ach the fol displayed ach the sec included) nect the m llowing par d below: cond part as displ mounting b rt of the m of the mou layed belo bracket to mounting b unting bra ow: ogether as bracket to acket to t s displaye the unit w he wall us ed below a with sing and It is recommended not to tighten the units to its mounting brackets until the alignment process of the antenna is complete. Step 7. Power-up the LigoPTP 5-23 PRO unit. It is recommended to use shielded Ethernet cable to reduce exposure of the electromagnetic noise. Step 8. Run the Antenna Alignment tool on Web management interface ( Figure 1 – Antenna Alignment Tool on Web) or on OLED screen (Figure 2 – Antenna Alignment Tool on OLED) and move the antenna in the horizontal and vertical planes until the maximum RSSI visible on the Antenna Alignment graph is achieved. Avoi…

Text truncated - open the document above for the full version.

30dBi antenna professional installation instructions 1 Technical Parameters 30dbi antenna mainly apply to outdoor application scenarios， connect to outdoor AP 5GHz RF port by using a N type connector. Fig.1-1 30dbi antenna appearing diagram Chart 1-1 Technical Parameters Below is the far-field pattern in horizontal direction and in vertical direction. 2 Safety Precautions Warning! Antenna installation is dangerous to some extent, please read over the below safety precautions before installation, so to avoid unnecessary injuries and deaths. Please set the antenna location far away from electricity such as power supply wire, street lamp or power supply box. Installer must pay attention not to touch the power supply wire, otherwise it may cause severe casualty. To choose a safe location where get far away from the power line or other cable. This is to avoid electric shock and danger caused by cable winding. To avoid install the antenna by just one installer. The install location and steps need to be confirmed by several installer before installation. When need to erect poles, pay attention to cooperation between installers. Must pay attention to: Do not use metal ladder；Not to install in wet or wind weather, in the mean time, isolative cloths, shoes and glove must be wear-on by installer. If the antenna, RF cable or other spare parts falling from the high place, please elude as quickly as you can, so as to avoid unnecessary injury and deaths. When the antenna need to power up, please let the professional to do it, do not connect by yourself. Any emergency such as electric shock must seek help at once. 3 Installation Precautions 30dbi antenna is outdoor fan-shape covered and suitable for using at fan-shaped overlapping region. So we suggest it should be used at top of the building or mountain. No restraining mass should be place before the location of 19dbi antenna. 4 Proper location to install 30dbi antenna. 30dbi antenna mainly used in outdoor such as top of building or top of the mountain. Generally speaking, the higher it be, the more area it will cover, so the more effective it will be. 5 Antenna Installation 30dbi antenna is packed with all kinds of spare parts, while other tools such as monkey wrench, cross screw driver and “-”type screw driver need to be prepared by yourself. 5.1 Installation Tools 1、 monkey wrench 2、“+”type screw driver and “-”type screw driver 5.2 RF cable requirements Generally we adopt the RF cable as short as possible. We suggest adopting high quality and low loss RF cable. The wastage of coaxial-cable will be magnified if to increase the frequency, the signal will also be decay in a large amount. So the length of cable should be as shorter as it can be, so to avoid unnecessary wastage. 5.3 Antenna installing steps. Step 1 Part 1 and part 2 assembly first, Parts with a nut fixed tightly. Step 2 The module connected to the part 3. Step 3 Part 4 and part 5 connection dishes. Step 4 Use of part 6, 7, 8, 9 fixed dishes with parts Step 5 The parts 10, 11, 12, 13 fixed the antenna .The fixed link The fixed rod through the U between code ring. Nut and tighten, tighten the antenna on the fixed link. 6 Antenna Power-level Setting This document provides mandatory radio power-level settings that must be configured to ensure that your device complies with regulatory requirements in your region. 6.1 Radio power-level setting 1.LOGIN he default product address is 192.168.2.66. The default administrator login settings are: User：admin Password：admin01 2 Radio Power Tx Power（dBm）:30dBi 3 Different Frequency of the power setting 5150-5250MHZ:4dBi 5725-5850MHZ:20dBi 4 Select save and apply Click on the Save changes and apply.

Regulatory Information (additional) FCC (USA): Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Professional Installation: This equipment shall be installed by a trained professional installer, understanding the maximum permitted power settings for each type of antenna supported by this device. RF Exposure: A distance of 20 cm shall be maintained between the antenna and users, and the transmitter may not be co-located with any other transmitter or antenna. Industry Canada: pending..
