UB8-FWBD1907Broadband Digital Transmission Module

DLB software manual User’s Guide Revision 1.0 deliberant Page 2 Copyright © 2014 Deliberant This user’s guide and the software described in it are copyrighted with all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of Deliberant. Notice Deliberant reserves the right to change specifications without prior notice. While the information in this manual has been compiled with great care, it may not be deemed an assurance of product characteristics. Deliberant shall be liable only to the degree specified in the terms of sale and delivery. The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject to written authorization from Deliberant. FCC Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. Refering to the multi-transmitter policy, multiple-transmitter(s) and module(s) can be operated simultaneously without C2P. IMPORTANT NOTE: This module is intended for OEM integrator only and limited to host with brand: Deliberant LLC and model: DLB 2. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for a population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. deliberant Page 3 USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: UB8- FWBD1907 ". The FCC part 15.19 statement below has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. IC Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à 11 peuvent être exploités. Sélection d'autres canaux n'est pas possible. This device and its antenna(s) must not be co-located with any other transmitters except in accordance with IC multi-transmitter product procedures. Refering to the multi-transmitter policy, multiple-transmitter(s) and module(s) can be operated simultaneously without reassessment permissive change. Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnement en association avec une autre antenne ou transmetteur. IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm betwee…

Text truncated - open the document above for the full version.

Page No. : 24 Limited Module Approval Request Letter Subject: Module Approval Date: 2014/10/6 FCC ID: UB8-FWBD1907 Dear Reviewer, We, Sporton International Inc., are authorized by Deliberant LLC to have their state-of-the-art Broadband Digital Transmission Module approved under module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in CFR47 Part 15.212 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 3. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 4. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 5. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Below items have not been fulfilled in module approval request: 1. The requirement of stand-alone test configuration: The EUT is limited to be intalled on the system (brand: Deliberant LLC / Model Name: DLB 2). Thus, the EUT was intalled on the system during the test. 2. The requirement of buffered inputs: There’s no buffered data inputs stage for the EUT. However, the EUT is limited to the system and buffered data inputs stage has been integrated in EN25Q128-104FIP on the system 3. The requirement of power supply regulation: For the EUT, no power regulator can provide stability power source. However, the EUT is limited to the system and there’s a power regulator: AOZ1212AI on the system. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

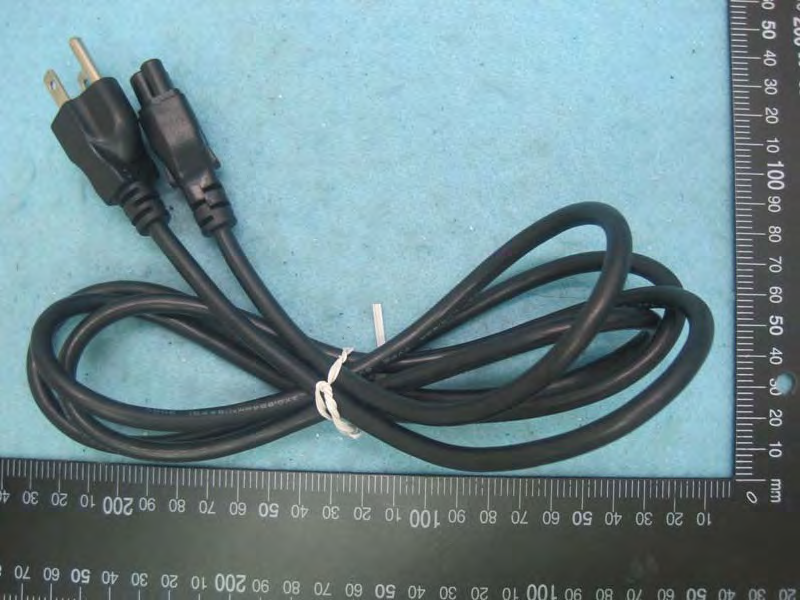

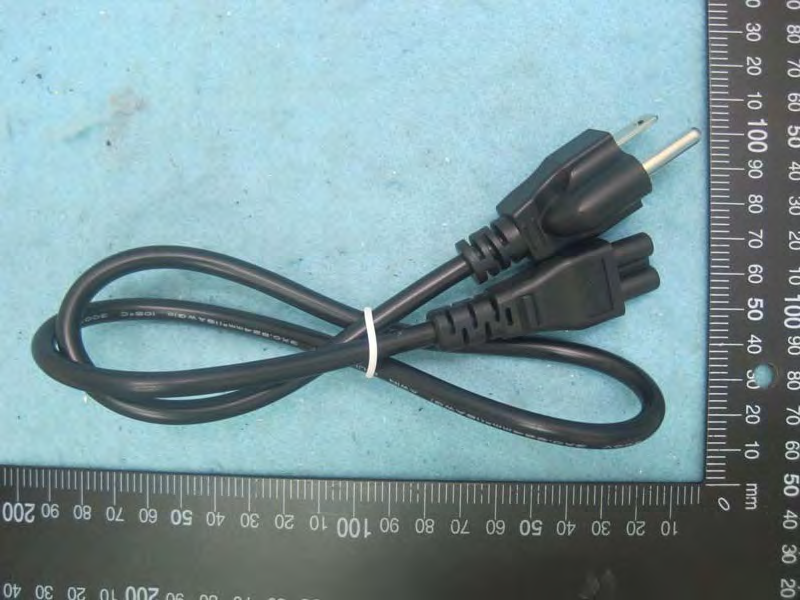

Report No.:482630 SPORTON International Inc. PAGE NUMBER : 1 OF 13 TEL : 886-3-327-3456 ISSUED DATE : Oct. 06, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.:482630 SPORTON International Inc. PAGE NUMBER : 2 OF 13 TEL : 886-3-327-3456 ISSUED DATE : Oct. 06, 2014 FAX : 886-3-327-0973 Report No.:482630 SPORTON International Inc. PAGE NUMBER : 3 OF 13 TEL : 886-3-327-3456 ISSUED DATE : Oct. 06, 2014 FAX : 886-3-327-0973 PoE 1 Model No.: GRT-240050 Report No.:482630 SPORTON International Inc. PAGE NUMBER : 4 OF 13 TEL : 886-3-327-3456 ISSUED DATE : Oct. 06, 2014 FAX : 886-3-327-0973 Report No.:482630 SPORTON International Inc. PAGE NUMBER : 5 OF 13 TEL : 886-3-327-3456 ISSUED DATE : Oct. 06, 2014 FAX : 886-3-327-0973 PoE 2 Model No.: AY012E-ZF243 Report No.:482630 SPORTON International Inc. PAGE NUMBER : 6 OF 13 TEL : 886-3-327-3456 ISSUED DATE : Oct. 06, 2014 FAX : 886-3-327-0973 Report No.:482630 SPORTON International Inc. PAGE NUMBER : 7 OF 13 TEL : 886-3-327-3456 ISSUED DATE : Oct. 06, 2014 FAX : 886-3-327-0973 OMNI Antenna Report No.:482630 SPORTON International Inc. PAGE NUMBER : 8 OF 13 TEL : 886-3-327-3456 ISSUED DATE : Oct. 06, 2014 FAX : 886-3-327-0973 Report No.:482630 SPORTON International Inc. PAGE NUMBER : 9 OF 13 TEL : 886-3-327-3456 ISSUED DATE : Oct. 06, 2014 FAX : 886-3-327-0973 Panel Antenna Report No.:482630 SPORTON International Inc. PAGE NUMBER : 10 OF 13 TEL : 886-3-327-3456 ISSUED DATE : Oct. 06, 2014 FAX : 886-3-327-0973 Report No.:482630 SPORTON International Inc. PAGE NUMBER : 11 OF 13 TEL : 886-3-327-3456 ISSUED DATE : Oct. 06, 2014 FAX : 886-3-327-0973 Sector Antenna Report No.:482630 SPORTON International Inc. PAGE NUMBER : 12 OF 13 TEL : 886-3-327-3456 ISSUED DATE : Oct. 06, 2014 FAX : 886-3-327-0973 Report No.:482630 SPORTON International Inc. PAGE NUMBER : 13 OF 13 TEL : 886-3-327-3456 ISSUED DATE : Oct. 06, 2014 FAX : 886-3-327-0973 Power Cable 1 Power Cable 2

Label: (Size: 37.0*18.0mm) Label here

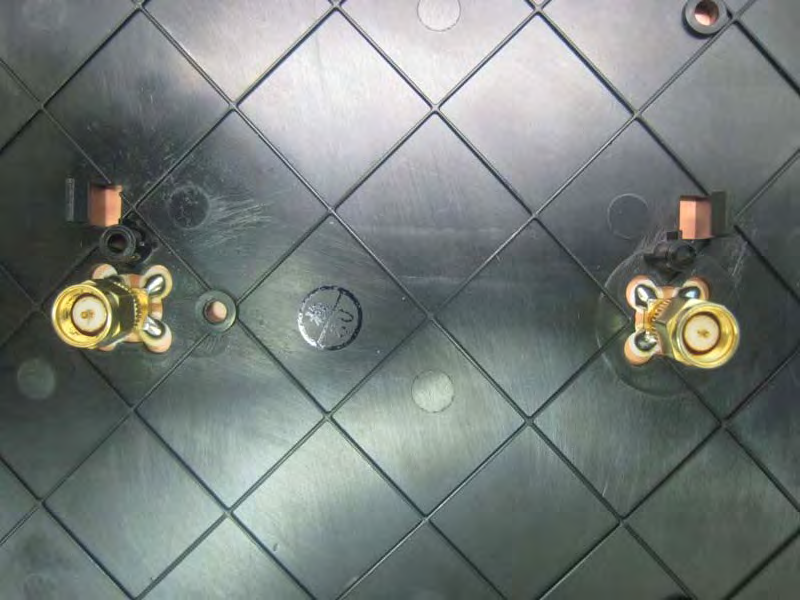

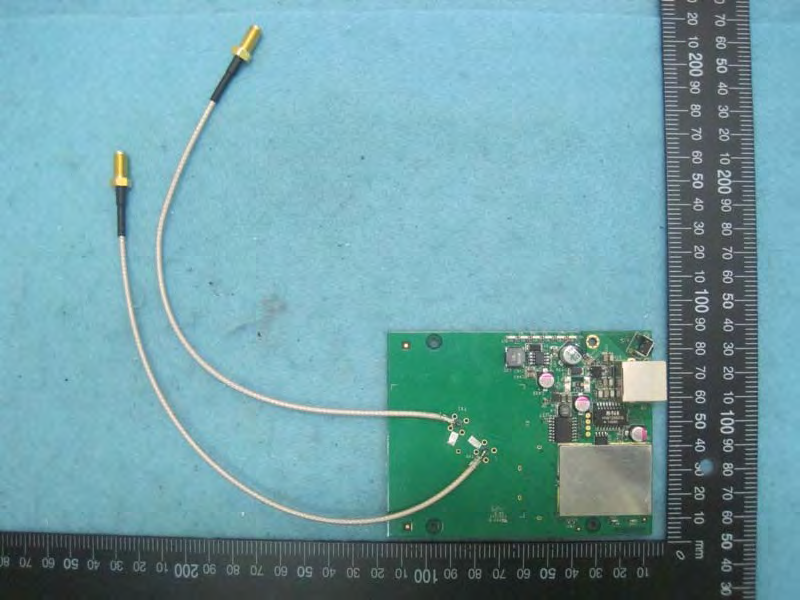

Report No.:482630 SPORTON International Inc. PAGE NUMBER : 1 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Oct. 06, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.:482630 SPORTON International Inc. PAGE NUMBER : 2 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Oct. 06, 2014 FAX : 886-3-327-0973 Report No.:482630 SPORTON International Inc. PAGE NUMBER : 3 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Oct. 06, 2014 FAX : 886-3-327-0973 Report No.:482630 SPORTON International Inc. PAGE NUMBER : 4 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Oct. 06, 2014 FAX : 886-3-327-0973 Report No.:482630 SPORTON International Inc. PAGE NUMBER : 5 OF 5 TEL : 886-3-327-3456 ISSUED DATE : Oct. 06, 2014 FAX : 886-3-327-0973

Report No.: FR482630 FCC ID: UB8-FWBD1907 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR482630 FCC ID: UB8-FWBD1907 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR482630 FCC ID: UB8-FWBD1907 Page No. : B3 of B3 1.3. Calculated Result and Limit Antenna Type : OMNI Antenna Conducted Power for IEEE 802.11b: 17.68 dBm Average Output Power Distance (m) Antenna Gain Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 12.00 15.8489 17.6809 58.6255 0.184942 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: Rev. 01 FCC RADIO TEST REPORT Applicant’s company Deliberant LLC Applicant Address 138 Mountain Brook Dr Canton, GA 30115 United States FCC ID UB8-FWBD1907 Manufacturer’s company Deliberant LLC Manufacturer Address 138 Mountain Brook Dr Canton, GA 30115 United States Product Name Broadband Digital Transmission Module Brand Name Deliberant Model No. 1907-H Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Aug. 11, 2014 Final Test Date Sep. 01, 2014 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v03r02 and KDB 662911 D01 v02r01. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR482630 Report Format Version: Rev. 01 Page No. : i of ii FCC ID: UB8-FWBD1907 Issued Date : Sep. 15, 2014 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................6 3.4. Table for Carrier Frequencies .............................................................................................................................................................7 3.5. Table for Test Modes ...........................................................................................................................................................................8 3.6. Table for Testing Locations..................................................................................................................................................................9 3.7. Table for Supporting Units .................................................................................................................................................................10 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................11 3.9. EUT Operation during Test .................................................................................................................................................................12 3.10. Duty Cycle ........................................................................................................................................................................................13 3.11. Test Configurations ...........................................................................................................................................................................14 4. TEST RESULT ................................................................................................................................................... 17 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................17 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................21 4.3. Power Spectral Density Measurement ..............................................................................................................................................29 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................49 4.5. Radiated Emissions Measurement ....................................................................................................................................................62 4.6. Emissions Measurement ..................................................................................................................................................................105 4.7. Antenna Requirements ...................................................................................................................................................................155 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................. 156 6. MEASUREMENT UNCERTAINTY........................................................................................................................ 158 APPENDIX A. TEST PHOTOS ......................................................................…

Text truncated - open the document above for the full version.

Report No.: FR482630 FCC ID: UB8-FWBD1907 Page No. : A1 of A7 Appendix A. Test Photos Report No.: FR482630 FCC ID: UB8-FWBD1907 Page No. : A2 of A7 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR482630 FCC ID: UB8-FWBD1907 Page No. : A3 of A7 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz /Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR482630 FCC ID: UB8-FWBD1907 Page No. : A4 of A7 Test Configuration: 30MHz~1GHz / Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR482630 FCC ID: UB8-FWBD1907 Page No. : A5 of A7 Test Configuration: Above 1GHz / Test Mode: Ant.1 FRONT VIEW REAR VIEW Report No.: FR482630 FCC ID: UB8-FWBD1907 Page No. : A6 of A7 Test Configuration: Above 1GHz / Test Mode: Ant.2 FRONT VIEW REAR VIEW Report No.: FR482630 FCC ID: UB8-FWBD1907 Page No. : A7 of A7 Test Configuration: Above 1GHz / Test Mode: Ant.3 FRONT VIEW REAR VIEW
