Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to isotropic R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:25.28(dBm) Maximum peak output power at antenna input terminal:337.3(mW) Antenna gain(typical):7.77(dBi) Maximum antenna gain:5.984(numeric) Prediction distance:20(cm) Sourse Based Time Average Duty Cycle:100(%) Prediction frequency:2437(MHz) MPE limit for uncontrolled exposure at prediction frequency:1.000(mW/cm^2) Power density at prediction frequency:0.40154(mW/cm^2) Power density at prediction frequency:4.0154(W/m^2) Margin of Compliance:3.96(dB) Sum power density of 2.4 GHz and 5.8 GHz : 0.40154+0.26530 = 0.66684 < 1 mW/cm^2 2 4R PG S p =

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to isotropic R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:23.48(dBm) Maximum peak output power at antenna input terminal:222.8(mW) Antenna gain(typical):7.77(dBi) Maximum antenna gain:5.984(numeric) Prediction distance:20(cm) Sourse Based Time Average Duty Cycle:100(%) Prediction frequency:5745(MHz) MPE limit for uncontrolled exposure at prediction frequency:1.000(mW/cm^2) Power density at prediction frequency:0.26530(mW/cm^2) Power density at prediction frequency:2.6530(W/m^2) Margin of Compliance:5.76(dB) Sum power density of 2.4 GHz and 5.8 GHz : 0.40154+0.26530 = 0.66684 < 1 mW/cm^2 2 4R PG S p =

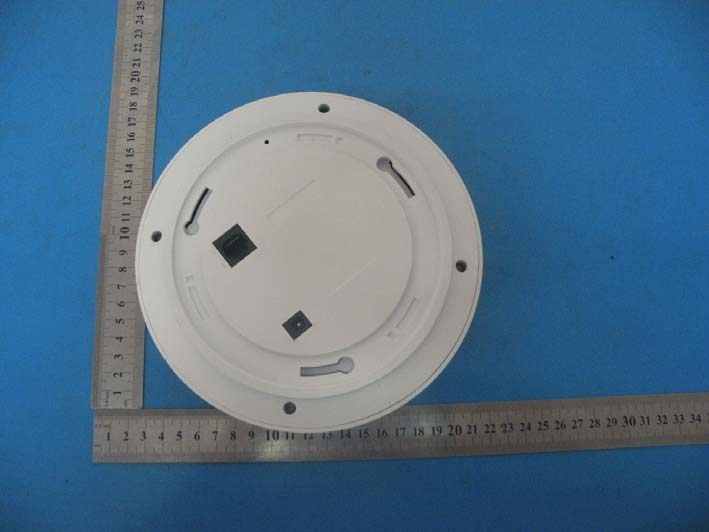

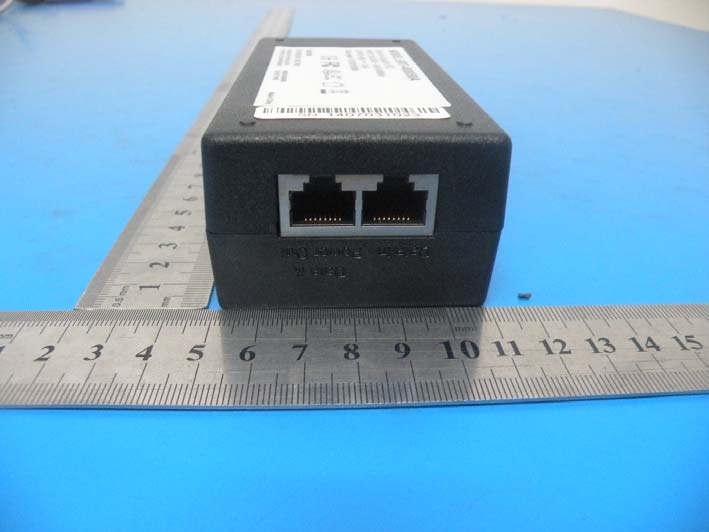

Shenzhen Certification Technology Service Co., Ltd 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2nd Road, Bao'an District, Shenzhen 518126, P.R. China. FCC ID: UB8-NFT2N / IC: IC 6607A-NFT2N Page 1 of 160 TEST REPORT FCC ID: UB8-NFT2N / IC: 6607A-NFT2N Applicant : Deliberant LLC Address : 138 Mountain Brook Dr Canton, GA 30115 United States Equipment under Test (EUT): Name : Broadband Digital Transmission System Model : NFT 2N Standards : FCC PART 15, SUBPART C : 2013 (Section 15.247) / IC RSS-210 ISSUE 8 with amendment June 2010 Report No. : CST-TCB140718041 Date of Test : July 30- August 6, 2014 Date of Issue : August 6, 2014 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.: CST-TCB140718041 FCC ID: UB8-NFT2N / IC: 6607A-NFT2N Page 2 of 160 TABLE OF CONTENT Description Page 1 General Information --------------------------------------------------------------------------------------- 4  1.1Description of Device (EUT) --------------------------------------------------------------------- 4 1.2Description of Test Facility ----------------------------------------------------------------------- 5 2 EMC Equipment List ------------------------------------------------------------------------------------ 6 3 Test Procedure ------------------------------------------------------------------------------------------- 7 4Summary of Measurement ---------------------------------------------------------------------------- 8 4.1Summary of test result ---------------------------------------------------------------------------- 8 4.2Test connection ------------------------------------------------------------------------------------- 8 4.3Assistant equipment used for test ---------------------------------------------------------------- 9 4.4Test mode ------------------------------------------------------------------------------------------- 9 4.5Channel list --------------------------------------------------------------------------------------- 10 4.6Test Conditions ----------------------------------------------------------------------------------- 11 4.7Measurement Uncertainty (95% confidence levels, k=2)----------------------------------- 11 5Spurious Emission ---------------------------------------------------------------------------------- 12 5.1Radiation Emission ------------------------------------------------------------------------------ 12 5.1.1Radiation Emission Limits(15.209) ----------------------------------------------------------- 12 5.1.2Test Setup ----------------------------------------------------------------------------------------- 12 5.1.3Test Procedure ------------------------------------------------------------------------------------ 14 5.1.4Test Equipment Setting For emission test Result -------------------------------------------- 15 5.1.5Test Condition ------------------------------------------------------------------------------------ 15 5.1.6Test Result ---------------------------------------------------------------------------------------- 15 6POWER LINE CONDUCTED EMISSION ------------------------------------------------------- 38 6.1Conducted Emission Limits(15.207) ---------------------------------------------------------- 38 6.2Test Setup ----------------------------------------------------------------------------------------- 38 6.3Test Procedure ------------------------------------------------------------------------------------ 39 6.4Test Results --------------------------------------------------------------------------------------- 39 7Conducted Maximum Output Power ----------------------------------------------------------- 42 7.1Test limit ------------------------------------------------------------------------------------------ 42 7.2Test Procedure ------------------------------------------------------------------------------------ 42 7.3Test Setup ----------------------------------------------------------------------------------------- 42 7.4Test Results --------------------------------------------------------------------------------------- 42 8PEAK POWER SPECTRAL DENSITY ---------------------------------------------------------- 49 8.1Test limit ------------------------------------------------------------------------------------------ 49 8.1.1 Please refer section15.247. -------------------------------------------------------------------- 49 8.2Method of measurement ------------------------------------------------------------------------ 49 8.3Test Setup ----------------------------------------------------------------------------------------- 49 8.4Test Results --------------------------------------------------------------------------------------- 50 9Bandwidth ---------------------------------------------------------------------------------------------- 88 9.1Test limit ------------------------------------------------------------------------------------------ 88 9.2Method of measurement ------------------------------------------------------------------------ 88 9.3Test Setup ----------------------------------------------------------------------------------------- 88 9.4Test Results --------------------------------------------…

Text truncated - open the document above for the full version.

Report No.: CST-TCB140718041 FCC ID: UB8-NFT2N / IC: 6607A-NFT2N Page 81 of 160 CH Hig: IEEE 802.11n HT20 with 5.8G: CH Low : Report No.: CST-TCB140718041 FCC ID: UB8-NFT2N / IC: 6607A-NFT2N Page 82 of 160 CH Mid: CH Hig: Report No.: CST-TCB140718041 FCC ID: UB8-NFT2N / IC: 6607A-NFT2N Page 83 of 160 IEEE 802.11n HT40 with 5.8G: CH Low : CH Hig: Report No.: CST-TCB140718041 FCC ID: UB8-NFT2N / IC: 6607A-NFT2N Page 84 of 160 From 1G-25GHz with port 2 antenna IEEE 802.11a with 5.8G: CH Low : CH Mid: Report No.: CST-TCB140718041 FCC ID: UB8-NFT2N / IC: 6607A-NFT2N Page 85 of 160 CH Hig: IEEE 802.11n HT20 with 5.8G: CH Low : C Report No.: CST-TCB140718041 FCC ID: UB8-NFT2N / IC: 6607A-NFT2N Page 86 of 160 H Mid: CH Hig: Report No.: CST-TCB140718041 FCC ID: UB8-NFT2N / IC: 6607A-NFT2N Page 87 of 160 IEEE 802.11n HT40with 5.8G: CH Low : CH Hig: Report No.: CST-TCB140718041 FCC ID: UB8-NFT2N / IC: 6607A-NFT2N Page 88 of 160 9 Bandwidth 9.1Test limit Please refer section15.247 For direct sequence systems, the minimum 6dB bandwidth shall be at least 500kHz. 9.2Method of measurement Details see the KDB558074 D01 Meas Guidance a)The bandwidth is measured at an amplitude level reduced 20dB from the reference level. The reference level is the level of the highest amplitude signal observed from the transmitter at the fundamental frequency. Once the reference level is established, the equipment is conditioned with typical modulating signal to produce the worst-case (i.e. the widest) bandwidth. b) The test receiver set RBW = 1-5 % EBW, VBW3RBW, Sweep time set auto, detail see the test plot. 9.3Test Setup 9.4Test Results PASS. Detailed information please see the following page. EUT Spectrum Analyzer Report No.: CST-TCB140718041 FCC ID: UB8-NFT2N / IC: 6607A-NFT2N Page 89 of 160 Channel Frequency (MHz) 6dB Bandwidth (MHz) 99% Occupied Bandwidth (MHz) Limit (MHz) Result IEEE 802.11b: Low 2412 9.629 14.2303 0.5 PASS Mid 2437 10.097 14.1226 0.5 PASS High 2462 10.067 14.0283 0.5 PASS IEEE 802.11g: Low 2412 15.674 16.5202 0.5 PASS Mid 2437 15.651 16.5314 0.5 PASS High 2462 15.797 16.4385 0.5 PASS IEEE 802.11n/HT20 with 2.4G: Low 2412 16.949 17.6907 0.5 PASS Mid 2437 16.775 17.6074 0.5 PASS High 2462 16.792 17.5753 0.5 PASS IEEE 802.11n/HT40 with 2.4G: Low 2422 35.258 35.8088 0.5 PASS Mid 2437 35.300 35.7605 0.5 PASS High 2452 35.293 35.7209 0.5 PASS Note: This test with port 0 antenna. Report No.: CST-TCB140718041 FCC ID: UB8-NFT2N / IC: 6607A-NFT2N Page 90 of 160 Channel Frequency (MHz) 6dB Bandwidth (MHz) 99% Occupied Bandwidth (MHz) Limit (MHz) Result IEEE 802.11b: Low 2412 10.056 14.2217 0.5 PASS Mid 2437 10.075 14.0549 0.5 PASS High 2462 10.091 14.0264 0.5 PASS IEEE 802.11g: Low 2412 15.849 16.5354 0.5 PASS Mid 2437 15.331 16.5184 0.5 PASS High 2462 15.664 16.4636 0.5 PASS IEEE 802.11n/HT20 with 2.4G: Low 2412 17.091 17.6117 0.5 PASS Mid 2437 16.723 17.6101 0.5 PASS High 2462 16.780 17.5830 0.5 PASS IEEE 802.11n/HT40 with 2.4G: Low 2422 35.444 35.8130 0.5 PASS Mid 2437 35.300 35.7667 0.5 PASS High 2452 35.296 35.7746 0.5 PASS Note: This test with port 1 antenna. Report No.: CST-TCB140718041 FCC ID: UB8-NFT2N / IC: 6607A-NFT2N Page 91 of 160 Channel Frequency (MHz) 6dB Bandwidth (MHz) 99% Occupied Bandwidth (MHz) Limit (MHz) Result IEEE 802.11b: Low 2412 10.050 14.2212 0.5 PASS Mid 2437 10.076 14.0450 0.5 PASS High 2462 10.095 14.0260 0.5 PASS IEEE 802.11g: Low 2412 15.841 16.5355 0.5 PASS Mid 2437 15.331 16.5185 0.5 PASS High 2462 15.661 15.4634 0.5 PASS IEEE 802.11n/HT20 with 2.4G: Low 2412 17.043 17.6927 0.5 PASS Mid 2437 17.021 17.6162 0.5 PASS High 2462 16.908 17.5811 0.5 PASS IEEE 802.11n/HT40 with 2.4G: Low 2422 35.157 35.7904 0.5 PASS Mid 2437 35.287 35.7413 0.5 PASS High 2452 35.296 35.7746 0.5 PASS Note: This test with port 2 antenna. Report No.: CST-TCB140718041 FCC ID: UB8-NFT2N / IC: 6607A-NFT2N Page 92 of 160 Channel Frequency (MHz) 6dB Bandwidth (MHz) 99% Occupied Bandwidth (MHz) Limit (MHz) Result IEEE 802.11a with 5.8G: Low 5745 16.3060 17.1800 0.5 PASS Mid 5785 16.404 16.8959 0.5 PASS High 5825 16.347 16.8749 0.5 PASS IEEE 802.11n/HT20 with 5.8G: Low 5745 17.524 17.9122 0.5 PASS Mid 5785 17.351 17.9354 0.5 PASS High 5825 16.975 17.7881 0.5 PASS IEEE 802.11n/HT40 with 5.8G: Low 5755 35.340 36.0637 0.5 PASS High 5795 34.903 36.0138 0.5 PASS Note: This test with port 0 antenna. Channel Frequency (MHz) 6dB Bandwidth (MHz) 99% Occupied Bandwidth (MHz) Limit (MHz) Result IEEE 802.11a with 5.8G: Low 5745 16.294 19.9503 0.5 PASS Mid 5785 16.358 17.0037 0.5 PASS High 5825 16.385 16.6506 0.5 PASS IEEE 802.11n/HT20 with 5.8G: Low 5745 17.045 19.0942 0.5 PASS Mid 5785 16.358 17.0037 0.5 PASS High 5825 17.380 17.7504 0.5 PASS IEEE 802.11n/HT40 with 5.8G: Low 5755 35.014 36.0361 0.5 PASS Report No.: CST-TCB140718041 FCC ID: UB8-NFT2N / IC: 6607A-NFT2N Page 93 of 160 High 5795 34.353 36.1366 0.5 PASS Note: This test with port 1 antenna. Channel Frequency (MHz) 6dB Bandwidth (MHz) 99% Occupied Bandwidth (MHz) Limit (MHz) Result IEEE 802.11a with 5.8G: Low 5745 16.266 19.9533 0.5 PASS Mid 5785 16.353 17.7030 0.5 PASS High 5825 16.855 16.6566 0.5 PASS IEEE 802.11n/HT20 with 5.8G: Low 5745 17.545 19.0922 0.5 PASS Mid 5785 16.388 17.0030 0.5 PASS High 5825 17.382 17.7505 0.5 PASS IEEE 802.11n/HT40 with 5.8G: Low 5755 35.414 36.0161 0.5 PASS High 5795 34.355 36.1333 0.5 PASS Note: This test with port 2 antenna. Report No.: CST-TCB140718041 FCC ID: UB8-NFT2N / IC: 6607A-NFT2N Page 94 of 160 From 1G-25GHz with port 0 antenna IEEE 802.11b: CH Low : CH Mid : Report No.: CST-TCB140718041 FCC ID: UB8-NFT2N / IC: 6607A-NFT2N Page 95 of 160 CH High : IEEE 802.11g: CH Low : Report No.: CST-TCB140718041 FCC ID: UB8-NFT2N / IC: 6607A-NFT2N Page 96 of 160 CH Mid : CH High : Report No.: CST-TCB140718041 FCC ID: UB8-NFT2N / IC: 6607A-NFT2N Page 97 of 160 IEEE 802.11n/HT20 with 2.4G: CH Low : CH Mid : Report No.: CST-TCB140718041 FCC ID: UB8-NFT2N / IC: 6607A-NFT2N Page 98 of 160 CH High : IEEE 802.11n/HT40 with 2.4G: CH L…

Text truncated - open the document above for the full version.

Report No.: CST-TCB140718041 FCC ID: UB8-NFT2N / IC: 6607A-NFT2N Page 154 of 160 12 Photographs of Test Setup Photographs-Radiated Emission Test Setup in Chamber Below 1G Report No.: CST-TCB140718041 FCC ID: UB8-NFT2N / IC: 6607A-NFT2N Page 155 of 160 Above 1G Photographs-Conducted Emission Test Setup
