UBBRCKT07RWireless Tablet Receiver X860/X861

Hardware Quick Start Guide English / Deutsch / Français / Italiano / Español / Nederlands/Português The R&TTE Directive We, the manufacturer hereby declare that this equipment, model RCK- T07 is in compliance with the essential requirements and other relevant provisions of Directive 1995/5/EC. FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/ TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. RF exposure warning The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment. The equipment must not be co-located or operating in conjunction with any other antenna or transmitter. ● ● ● ●  English Congratulation on purchase of Wireless Tablet Wireless Tablet is a 2.4 G wireless solution table. Without complicated wireless software installation, just install tablet driver and plug our wireless receiver dongle to your PC and you use it freely any where. Moreover, Wireless tablet support Windows Vista TM . If you do not want to use these extra hot key, volume adjustment and Macro Key function, you can even do not need to install any driver. Just follow this quick guide and enjoy your e-life with our Wireless Tablet. 1. Package content Tablet *1▲ New boss pen*1▲ Receiver dongle*1▲ Li-ion battery *1▲ pen tip*2▲ Pen tweezers*1▲ CD*2▲ Quick guide*1▲ Application manual*1 ▲ English  2. Hardware introduce Tablet: Front side Pen slot power button LCD Volume adjustment circle Active area Macro key area Page up/ Page down Back side Dongle storage Battery storage  English Receiver Dongle ▪ Binding button ▪ LED Pen How to change battery 1. 2. 3. English  How to change pen tip 1. 2. 3. LCD introduce Power on: After press the power button 3 seconds, this icon is showed. Battery Indicator : There are four levels battery indicator. Active: Tablet will get into power saving mode if the pen is off the active area 3 seconds later and this icon will be hidden. Connecting: After you bind successful, the icon is showed. It means that your Tablet have connected to PC successful. Token right: It means that your tablet is authorized by the receiver dongle to send the package.  English The interaction between pen and tablet: Blanking: Pen gets in to the detectable active area. Still: Pen tip on the active area. Volume adjustment indicator : you can use the pen on the volume adjustment circle to adjust the volume. Clockwise: adjust volume louder Anticlockwise: adjust volume down Tablet number : One receiver dongle can connect to more than one wireless tablet. Therefore, if you connect more than one wireless Tablets, you can distinguish which tablet it is. 4. Installation Windows Vista Home Premium above Wireless Tablet is a Windows Vista plug and Play device. You can use the basic tablet function without installing any driver, just plug- n- play. However, our patented macro key function provides you an efficient and productive way to operate application. Moreover, the hot key of Page up/Page down and volume adjustment circle will require driver (included in Macro Key Manager). Therefore, you can install Macro Key Manager to make the macro keys and these hot keys work. Windows 2000 / XP / Vista Home basic Under Windows 2000 / XP / Vista Home basic, you have installed driver (included in Macro Key Manager). Therefore, please install Macro Key Manager before the device is plugged to your PC. Once Macro Key Manager is installed successfully, Wireless Tablet can work and the macro key and the hot keys work also. ● ● ● ● ● ● English  5. Star Use Plug receiver dongle to your PC Press at least 3 seconds to power on Wireless Tablet Press the biding button on the back side of the tablet and biding button of the receiver dongle at the same time. The LCD of Tablet will blank and the blue LED of receiver dongle blank also. Once the binding is successful, the number on the LCD will show 000 to 001 or others (if binding more than one Wireless Tablet). Since there are power saving design with our pen, please always have our pen to tip on any area of the tablet first to wake up the pen before you start use tablet. Check it the information of LCD indictor is display correctly. If yes, you can start to use it freely. 1. 2. 3. 4. 5. 6. 7. 8.  English 6. Specification Solution Wireless 2.4G RF Dimension278*282*20mm active area7.84”*5.92” Resolution 2000lpi Report rate 120 rpst Pen pressure 1024 levels Macro key16( top of active area) Hot keyPage up / page down LCD typeTN LCD LCD size17.7*40.9mm LCD Icon content battery status – 4 levels; charged; / connection mode ; connection power status/ volume status /Tablet number Battery typeNokia BL5C Li-ion rechargeable battery battery capacity800mA battery life16 hrs continuing mode power sourceUSB charged power buttonelectrical power button power consumptionmax 50 mA( operation mode ) Receiver dongleYes Hardware Qu…

Text truncated - open the document above for the full version.

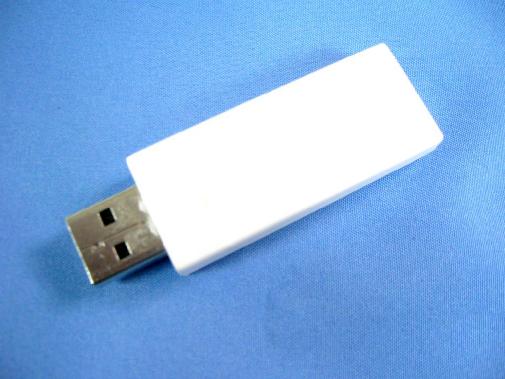

Report No： 074H015-RFUSP05V01 Page: 77 of 81 Version:1.0 (17) EUT Photo (Dongle) (18) EUT Photo

WALTOP International Corp. 6F,No.19-1 Industry E.Rd.IV,Hsinchu Science Park ,Hsin-Chu 30077,Taiwan,R.O.C. +886-3-5786388 Dongle: UBBRCKT07R FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below. Dongle: Wireless Tablet Receiver X860/X861 Dongle: RCK-T07R, RCK-T07RS F F C C C C I I D D : : UBBRCKT07R This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Report No： 074H015-RFUSP05V01 Page: 78 of 81 Version:1.0 (19) EUT Photo Report No： 074H015-RFUSP05V01 Page: 79 of 81 Version:1.0 (20) EUT Photo Report No： 074H015-RFUSP05V01 Page: 80 of 81 Version:1.0 (21) EUT Photo Report No： 074H015-RFUSP05V01 Page: 81 of 81 Version:1.0 (22) EUT Photo

Report No： 074H015-RFUSP05V01 Page: 7 of 81 Version:1.0 1.2. Operational Description Plug receiver dongle to your PC，Press at least 3 seconds to power on Wireless Tablet，Press the biding button on the back side of the tablet and biding，button of the receiver dongle at the same time，The LCD of Tablet will blank and the blue LED of receiver dongle blank also，Once the binding is successful, the number on the LCD will show 000 to 001 or others (if binding more than one Wireless Tablet). Since there are power saving design with our pen, please always，have our pen to tip on any area of the tablet first to wake up the pen before you start use tablet，Check it the information of LCD indictor is display correctly，If yes, you can start to use it freely.

Report No. 074H015-RF Exposure Page: 1 of 3 Version:1.0 RF Exposure Evaluation declaration Product Name ： Wireless Tablet Receiver X860/X861 Model No. ： RCK-T07R, RCK-T07RS FCC ID. ： UBBRCKT07R Applicant : WALTOP International Corp. Address : 6F,No.19-1 Industry E.Rd.IV,Hsinchu Science Park ,Hsin-Chu 30077,Taiwan,R.O.C. Date of Receipt : 2007/04/03 Date of Declaration : 2007/04/27 Report No. : 074H015-RF Exposure The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 074H015-RF Exposure Page: 2 of 3 Version:1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 074H015-RF Exposure Page: 3 of 3 Version:1.0 1.3. Test Result of RF Exposure Evaluation Product Wireless Tablet Receiver X860/X861 Test Mode Mode 2: Transmit (Dongle) Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is –3.67dBi or 0.430 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2402.00 0.1112 0.00001 39 2440.00 0.0871 0.00001 78 2479.00 0.1014 0.00001 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

Report No： 074H015-RFUSP05V01 Page: 1 of 81 Version:1.0 Test Report Product Name ： Tablet: Wireless Tablet X860/X861; Dongle: Wireless Tablet Receiver X860/X861 Model No. ： Tablet: RCK-T07, RCK-T07S; Dongle: RCK-T07R, RCK-T07RS FCC ID. ： Tablet: UBBRCKT07, Dongle: UBBRCKT07R Applicant ： WALTOP International Corp. Address ： 6F,No.19-1 Industry E.Rd.IV,Hsinchu Science Park ,Hsin-Chu 30077,Taiwan,R.O.C. Date of Receipt： 2007/04/03 Issued Date ： 2007/04/27 Report No. ：074H015-RFUSP05V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 074H015-RFUSP05V01 Page: 2 of 81 Version:1.0 Test Report Certification Issued Date : 2007/04/27 Report No. : 074H015-RFUSP05V01 Product Name ： Tablet: Wireless Tablet X860/X861; Dongle: Wireless Tablet Receiver X860/X861 Applicant ： WALTOP International Corp. Address ： 6F,No.19-1 Industry E.Rd.IV,Hsinchu Science Park ,Hsin-Chu 30077,Taiwan,R.O.C. Manufacturer ： WALTOP International Corp. Model No. ： Tablet: RCK-T07, RCK-T07S; Dongle: RCK-T07R, RCK-T07RS FCC ID. ： Tablet: UBBRCKT07, Dongle: UBBRCKT07R Rated Voltage : AC 120 V / 60 Hz EUT Voltage : AC 120 V / 60 Hz Trade Name ： WALTOP Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2005 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Sandy Chuang ) Reviewed By : ( Sheena Huang ) Approved By ： ( Roy Wang ) Report No： 074H015-RFUSP05V01 Page: 3 of 81 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information ..................................................................................................... 5 1.1. EUT Description ............................................................................................................. 5 1.2. Operational Description .................................................................................................. 7 1.3. Test Mode ....................................................................................................................... 8 1.4. Tested System Details .................................................................................................... 9 1.5. Configuration of tested System .................................................................................... 10 1.6. EUT Exercise Software ................................................................................................ 12 1.7. Test Facility................................................................................................................... 13 2. Peak Power Output .................................................................................................... 14 2.1. Test Equipment............................................................................................................. 14 2.2. Test Setup .................................................................................................................... 14 2.3. Limits ............................................................................................................................ 14 2.4. Test Specification.......................................................................................................... 14 2.5. Uncertainty ................................................................................................................... 14 2.6. Test Result.................................................................................................................... 15 3. Conducted Emission.................................................................................................. 17 3.1. Test Equipment............................................................................................................. 17 3.2. Test Setup .................................................................................................................... 17 3.3. Limits ............................................................................................................................ 18 3.4. Test Procedure ............................................................................................................. 18 3.5. Test Specification.......................................................................................................... 18 3.6. Uncertainty ................................................................................................................... 18 3.7. Test Result.................................................................................................................... 19 3.8. Test Photo .................................................................................................................... 27 4. Radiated Emission ..................................................................................................... 29 4.1. Test Equipment............................................................................................................. 29 4.2. Test Setup .................................................................................................................... 29 4.3. Limits ............................................................................................................................ 30 4.4. Test Procedure ............................................................................................................. 30 4.5. Test Specification.......................................................................................................... 30 4.6. Uncertainty ................................................................................................................... 30 4.7. Test Result.................................................................................................................... 31 4.8. Test Photo ................................…

Text truncated - open the document above for the full version.

Report No： 074H015-RFUSP05V01 Page: 28 of 81 Version:1.0 Test Mode ： Mode 2: Transmit (Dongle) Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 2: Transmit (Dongle) Description： Back View of Conducted Emission Test Setup Report No： 074H015-RFUSP05V01 Page: 49 of 81 Version:1.0 Test Mode ： Mode 2: Transmit (Dongle) Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 2: Transmit (Dongle) Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No： 074H015-RFUSP05V01 Page: 50 of 81 Version:1.0 Test Mode ： Mode 2: Transmit (Dongle) Description： Front View of Radiated Emission Test Setup (Horn)
