UBBSBPKL10Maker Pen

SBP-KL10 Pen Quick Start Guide Specification ‧ Battery: CR-2032 Battery ‧ Battery life: Continuing writing 1.5 months ‧ Power saving function: Get into auto sleeping mode while pen is covered. How to change battery 1. 2. 3. Placing the CD driver Place the installation CD in your CD driver Click on the tablet icon at the bottom right oh the tool bar (The tablet icon appears when the cable is plugged in.) You enter the Tablet screen. To select function, click on buttons on the tool bar. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

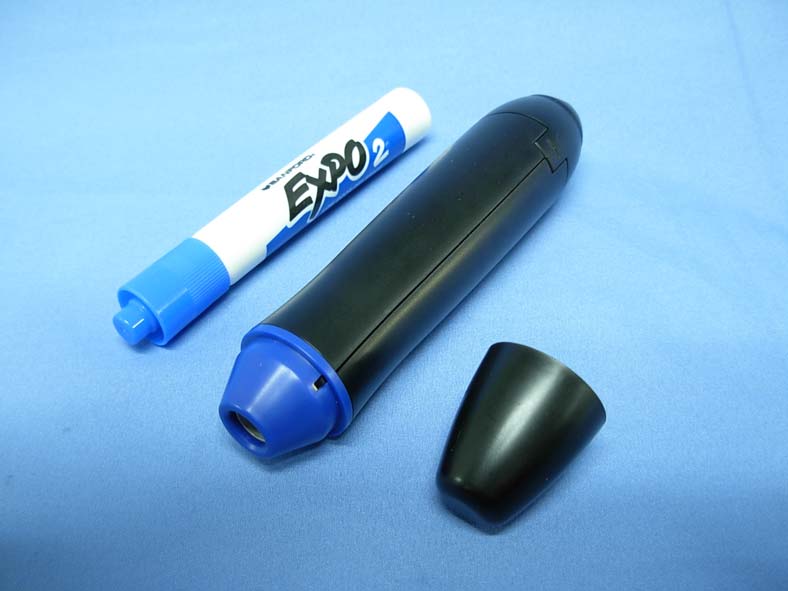

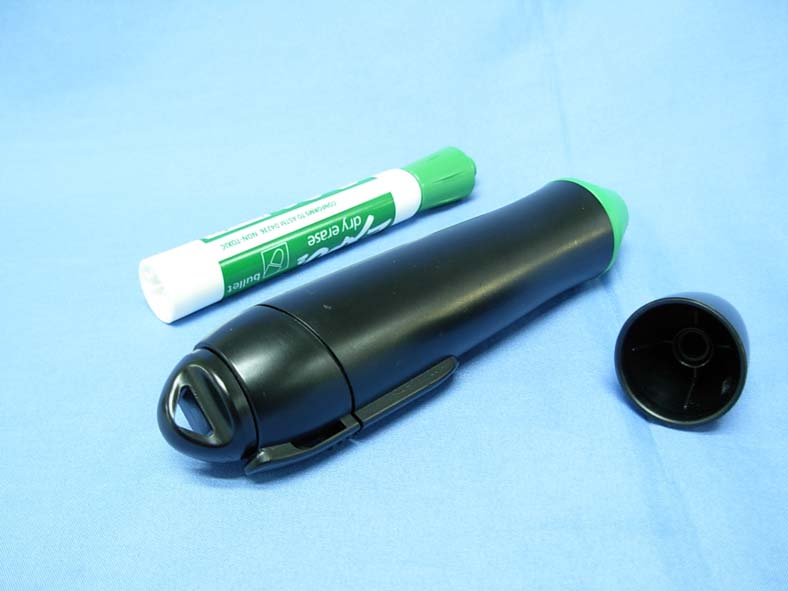

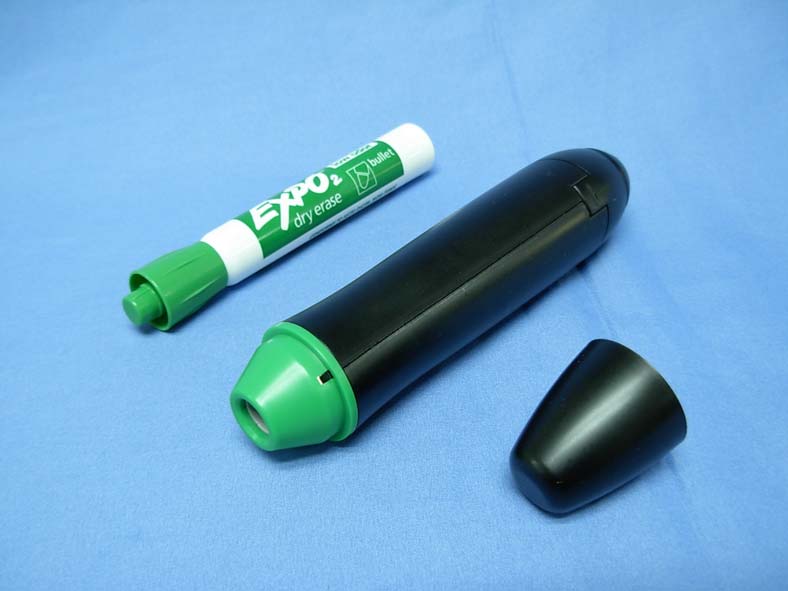

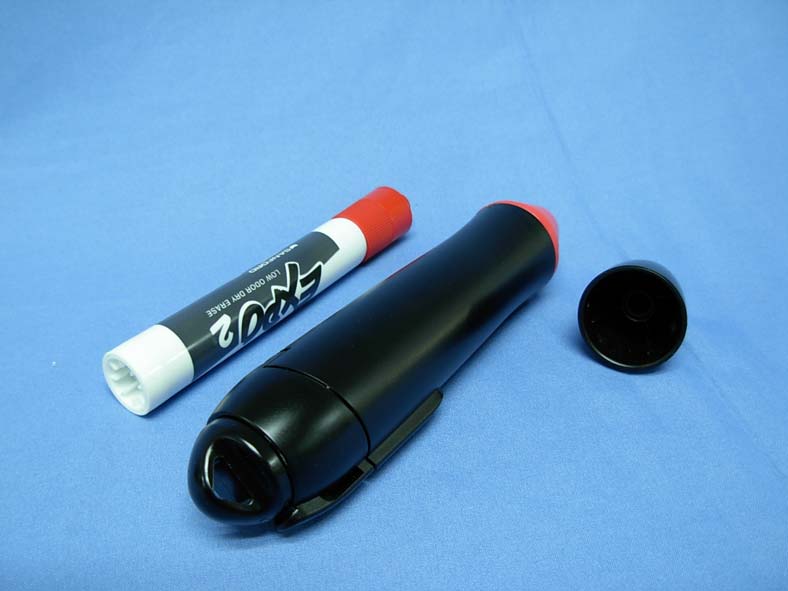

Report No：09B469R-RFUSP38V01 Page: 21 of 30 Attachement EUT Photograph (1) EUT Photo (Color: Black) (2) EUT Photo Report No：09B469R-RFUSP38V01 Page: 22 of 30 (3) EUT Photo (Color: Red) (4) EUT Photo Report No：09B469R-RFUSP38V01 Page: 23 of 30 (5) EUT Photo (Color: Green) (6) EUT Photo Report No：09B469R-RFUSP38V01 Page: 24 of 30 (7) EUT Photo (Color: Blue) (8) EUT Photo

FCC ID.: UBBSBPKL10 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below. FCC ID.: UBBSBPKL10

FCC ID.: UBBSBPKL10 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below. FCC ID.: UBBSBPKL10

Report No：09B469R-RFUSP38V01 Page: 25 of 30 (9) EUT Photo (10) EUT Photo Report No：09B469R-RFUSP38V01 Page: 26 of 30 (11) EUT Photo (12) EUT Photo Report No：09B469R-RFUSP38V01 Page: 27 of 30 (13) EUT Photo (14) EUT Photo Report No：09B469R-RFUSP38V01 Page: 28 of 30 (15) EUT Photo Report No：09B469R-RFUSP38V01 Page: 29 of 30 (16) EUT Photo Report No：09B469R-RFUSP38V01 Page: 30 of 30 (17) EUT Photo

Report No：09B469R-RFUSP38V01 Page: 1 of 30 Test Report Product Name：Maker Pen Model No. ：SBP-KL10 FCC ID. ：UBBSBPKL10 Applicant ： WALTOP International Corp. Address ： 6F,No.19-1 Industry E.Rd.IV,Hsinchu Science Park,Hsin-Chu 30077,Taiwan,R.O.C. Date of Receipt：2009/11/25 Issued Date ：2009/12/11 Report No. ：09B469R-RFUSP38V01 Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No：09B469R-RFUSP38V01 Page: 2 of 30 Test Report Certification Issued Date : 2009/12/11 Report No. : 09B469R-RFUSP38V01 Product Name : Maker Pen Applicant : WALTOP International Corp. Address : 6F,No.19-1 Industry E.Rd.IV,Hsinchu Science Park,Hsin-Chu 30077,Taiwan,R.O.C. Manufacturer : WALTOP International Corp. Model No. : SBP-KL10 FCC ID. : UBBSBPKL10 Rated Voltage : DC 3.0V (Power by Battery) Trade Name : WALTOP Applicable Standard : FCC CFR Title 47 Part 15 Subpart C 15.209: 2008 Test Result : Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Demi Chang / Engineering Adm. Specialist ) Reviewed By : ( Halu Chung / Assistant Engineer ) Approved By : ( Roy Wang / Manager ) Report No：09B469R-RFUSP38V01 Page: 3 of 30 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ............................................................................................ 4 1.1. EUT Description ............................................................................................................. 4 1.2. Operational Description.................................................................................................. 5 1.3. Test Mode....................................................................................................................... 6 1.4. Tested System Details .................................................................................................... 7 1.5. Configuration of tested System ...................................................................................... 7 1.6. EUT Exercise Software .................................................................................................. 7 1.7. Test Facility..................................................................................................................... 8 2. Conducted Emission.................................................................................................... 9 2.1. Test Equipment............................................................................................................... 9 2.2. Test Setup ...................................................................................................................... 9 2.3. Limits ............................................................................................................................ 10 2.4. Test Procedure ............................................................................................................. 10 2.5. Test Specification.......................................................................................................... 10 2.6. Test Result.................................................................................................................... 11 3. Radiated Emission ..................................................................................................... 12 3.1. Test Equipment............................................................................................................. 12 3.2. Test Setup .................................................................................................................... 12 3.3. Limits ............................................................................................................................ 13 3.4. Test Procedure ............................................................................................................. 13 3.5. Test Specification.......................................................................................................... 14 3.6. Test Result.................................................................................................................... 15 3.7. Test Photo .................................................................................................................... 19 Attachement......................................................................................................................................... 21 EUT Photograph........................................................................................................... 21 Report No：09B469R-RFUSP38V01 Page: 4 of 30 1. GENERAL INFORMATION 1.1. EUT Description Product Name Maker Pen Trade Name WALTOP Model No. SBP-KL10 FCC ID UBBSBPKL10 EUT Voltage DC 3.0V Frequency Range 160KHz~200KHz Channel Number 8 Antenna Type Integrated Loop Antenna Frequency of Each Channel: Color Channel Frequency Black Channel 1: 165KHz Channel 2: 168KHz Red Channel 3: 173KHz Channel 4: 177KHz Green Channel 5: 183KHz Channel 6: 187KHz Blue Channel 7: 193KHz Channel 8: 197KHz Note: 1. This device is a 160~200kHz device included transmitting function. 2. The major measurement is middle channel 183kHz. It’s pen point is pressed retentively, and bring the operating mode of the continue transmit signal. 3. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15 Subpart C Paragraph 15.209. Report No：09B469R-RFUSP38V01 Page: 6 of 30 1.3. Test Mode QuieTek has verified the construction and function in typical operation. All the test modes were carried out with the EUT in normal operation, which was shown in this test report and defined as: Pre-Test Mode TX Mode1: Transmit Final Test Mode TX Mode1: Tra…

Text truncated - open the document above for the full version.

Report No：09B469R-RFUSP38V01 Page: 19 of 30 3.7. Test Photo Test Mode ： Mode1: Transmit Description： Front View of Radiated Emission (under 30M) Test Mode ： Mode1: Transmit Description： Back View of Radiated Emission (under 30M) Report No：09B469R-RFUSP38V01 Page: 20 of 30 Test Mode ： Mode1: Transmit Description： Front View of Radiated Emission (30M~1G) Test Mode ： Mode1: Transmit Description： Back View of Radiated Emission (30M~1G)
