UC3INTECH-M-216Wireless Mouse
Intech Electronics Corp.
Click to zoom
Application Details
- Equipment Class
- DXX - Part 15 Low Power Communication Device Transmitter
- Date of Grant
- Jun 30, 2006
- Application Purpose
- Original Equipment
- Date of Application
- Jun 27, 2006
- Equipment Note
- Wireless Mouse
- Frequency Range
- 27.04500000 - 27.04500000
- Company
- Intech Electronics Corp.
- Country
- China
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Block Diagram
PCB ANT 18.432MHZ sensor DC jack power BAT 3V charge 5V/300mA TX 27.045MHZ 76.8KHZ RF mouw controuer MA6221 EPROM... 93LC46 Bonttom
External Photos

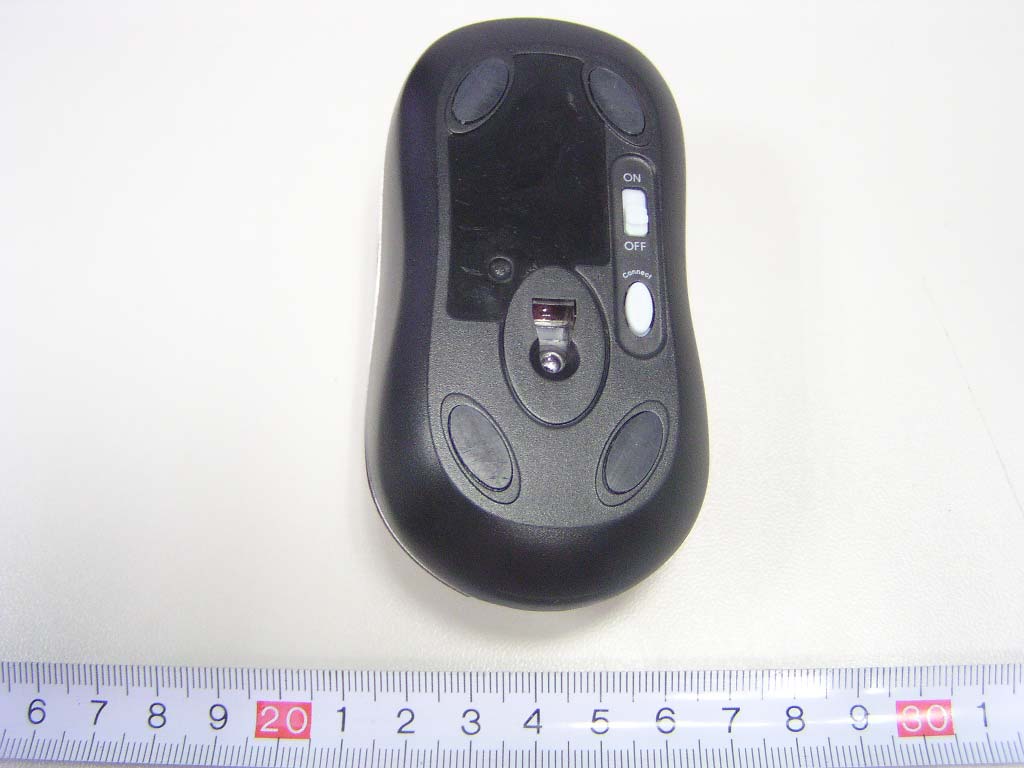

External Photos EUT- Top View EUT- Bottom View
ID Label/Location Info
ID Label Label FCC ID: UC3INTECH-M-216
ID Label/Location Info
ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label Location FCC ID: UC3INTECH-M-216
Internal Photos
Internal Photos EUT-Battery Location View EUT-Uncovered View EUT-Inside View EUT-Mainboard Top View EUT-Mainboard Bottom View
Operational Description
M-216 Circuit Description 1 Power supply to the optical IC and key press. 2 After the signal of key press stored by MA6221 IC code and 93LC46, it transmits a radio frequency (27.045MHz) with the antenna.
Operational Description
M-216 Technical Specification Frequency Characteristics: 27.045MHz Output Power (ERP): -13dBm Type of Modulation: FSK Number of Channels: 1 channel Antenna: Integral antenna (default±3KHz) Antenna Type: PCB
Schematics
YX216s7kV1.sch-1 - Wed Oct 12 11:07:46 2005
Test Report
Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.227 EMI MEASUREMENT AND TEST REPORT For INTECH ELECTRONICS CORP. Hall B3 , Yuan-Hu Industry Park , Golf Blvd., Song-Yuan Village, Guan-Lan , Shenzhen , China FCC ID: UC3INTECH-M-216 June 12, 2006 This Report Concerns: Original Report Equipment Type: Transmitter, wireless mouse Test Engineer: William Chan Report No.: RSZ06060201 Test Date: June 7- 8, 2006 Reviewed By: Boni Baniqued Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 INTECH ELECTRONICS CORP. FCC ID: UC3INTECH-M-216 Report # RSZ06060201 Page 2 of 14 FCC PART 15.227 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EUT EXERCISE SOFTWARE..........................................................................................................................................5 SPECIAL ACCESSORIES.................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS...............................................................................................................................7 §15.203 - ANTENNA REQUIREMENT......................................................................................................................8 STANDARD APPLICABLE..............................................................................................................................................8 §15.205, §15.209, §15.227(A) - RADIATED EMISSIONS TEST ..............................................................................9 MEASUREMENT UNCERTAINTY....................................................................................................................................9 EUT SETUP..................................................................................................................................................................9 EMI TEST RECEIVER SETUP.........................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................10 TEST RESULTS SUMMARY..........................................................................................................................................10 TEST DATA................................................................................................................................................................11 §15.227(B) - OUT OF BAND EMISSION .................................................................................................................13 EMI TEST RECEIVER SETUP.......................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 TEST PROCEDURE......................................................................................................................................................13 TEST DATA................................................................................................................................................................13 INTECH ELECTRONICS CORP. FCC ID: UC3INTECH-M-216 Report # RSZ06060201 Page 3 of 14 FCC PART 15.227 Report GENERAL INFORMATION Product …
Text truncated - open the document above for the full version.
Test Setup Photos
Test Setup Photos Radiated Emissions-Front View Radiated Emissions-Rear View
Contact Information
Applicant
Haijun Zhang(Manager)
Test Firm
Bay Area Compliance Laboratory Corp. (Shenzhen)John Chan
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 27.045 MHz - 27.045 MHz | - |
