UCFURC350AREMOTE CONTROL

Contec, LLC / Contec Division, WorldWide Digital Division & Contec de Mexico Division 1011 State Street, Schenectady, NY 12307 1 1-800-382-2723 Confidential & Proprietary Mar. 6, 2007 Federal Communications Commission Authorization and Evaluation Division Re: Confidentiality Request regarding application for certification of FCC ID: UCFURC350A To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams Operational Description Pursuant to DA 04-1705 June 15, 2004 of the Commission's public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Interior photos Exterior photos Test set-up photos User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Gene W. Griesau Product Manager – Remote Controls Contec LLC Attached: Copy of FCC Confidentiality Policy

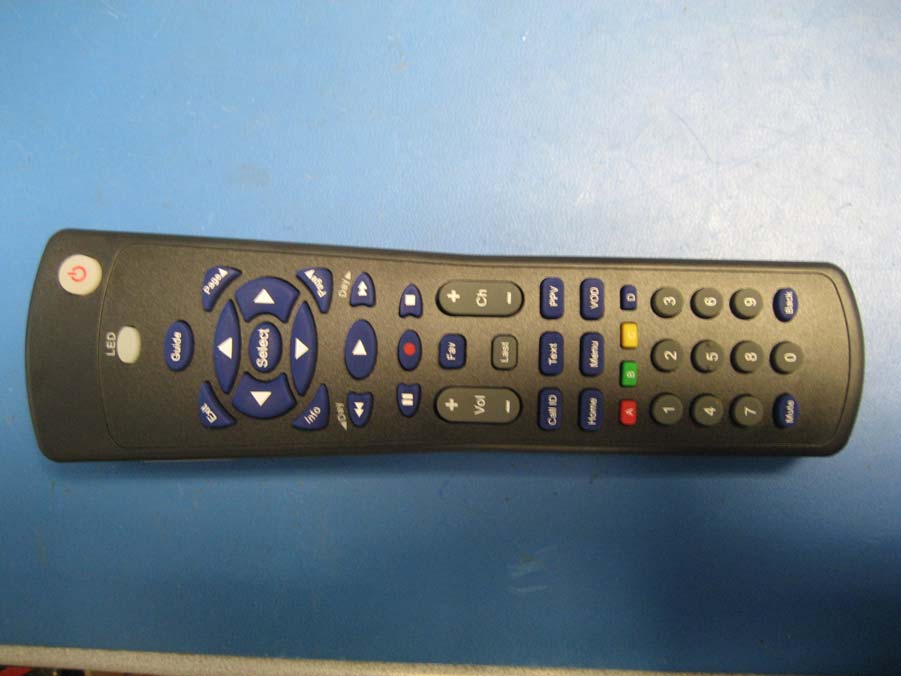

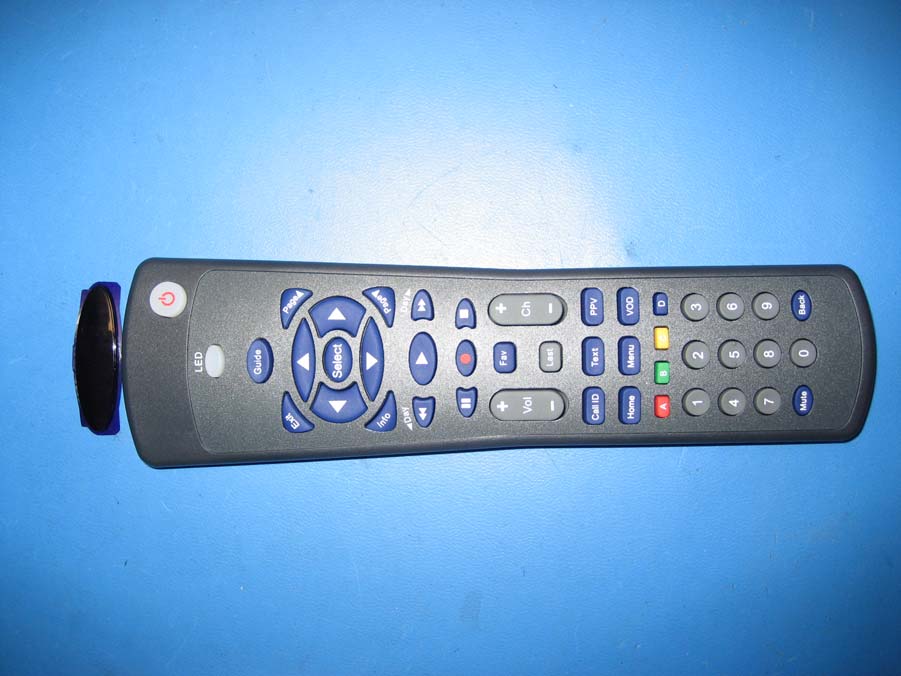

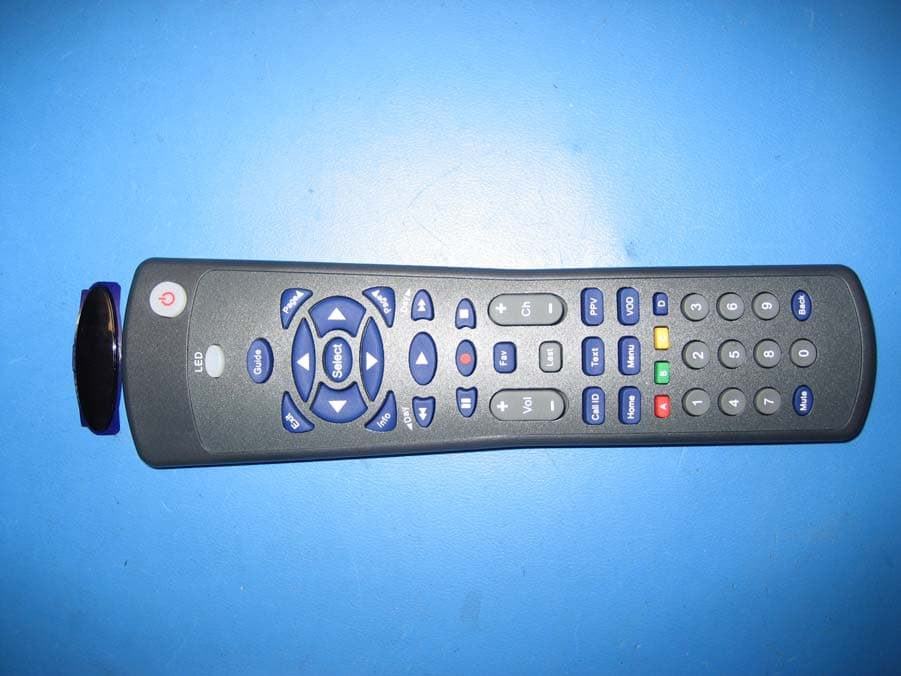

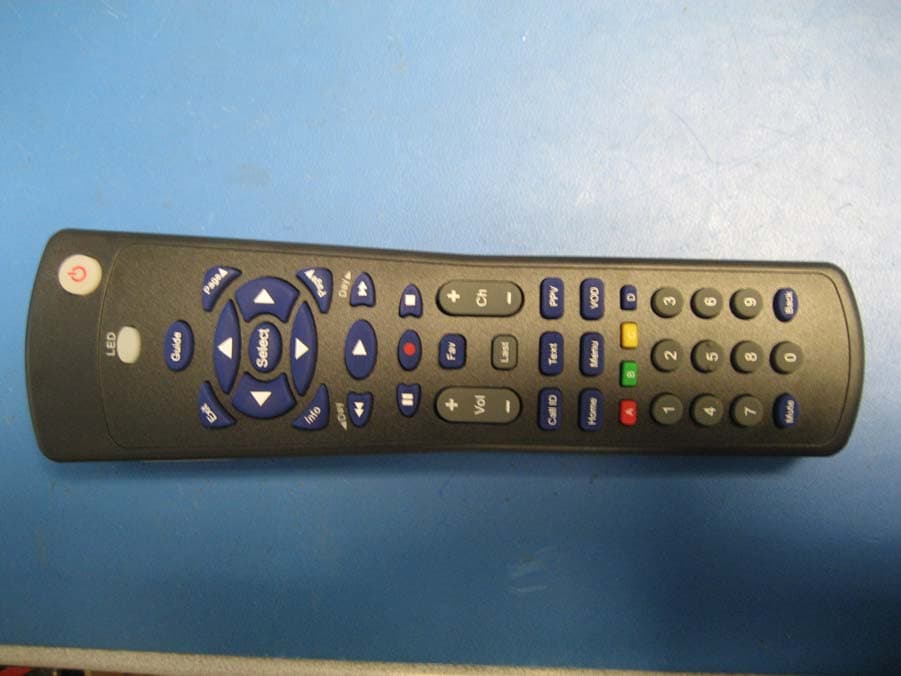

CONTEC HOLDINGS, LLC FCC ID: UCFURC350A EXTERNAL PHOTOS

Contec, LLC / Contec Division, WorldWide Digital Division & Contec de Mexico Division 1011 State Street, Schenectady, NY 12307 1 1-800-382-2723 Confidential & Proprietary

CONTEC HOLDINGS, LLC FCC ID: UCFURC350A INTERNAL PHOTOS

FCC TEST REPORT PART 15.231 APPLICANT CONTEC HOLDINGS, LLC ADDRESS 1011 & 1023 STATE STREET SCHENECTADY NY 12307 USA FCC ID UCFURC350A MODEL NUMBER URC350A PRODUCT DESCRIPTION REMOTE CONTROL DATE SAMPLE RECEIVED 2/23/2007 DATE TESTED 2/26/2007 TESTED BY NAM NGUYEN, JOSEPH SCOGLIO APPROVED BY MARIO DE ARANZETA TIMCO REPORT NO. C\CONTEC_UCF\409ZUT7\409ZUT7TestReport.doc TEST RESULTS PASS FAIL TOTAL PAGES 12 THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM APPLICANT: CONTEC HOLDINGS, LLC FCC ID: UCFURC350A REPORT: C\CONTEC_UCF\409ZUT7\409ZUT7TestReport.doc Page 2 of 12 TABLE OF CONTENTS GENERAL INFORMATION ......................................................... 3 EMC EQUIPMENT LIST.......................................................... 5 TEST PROCEDURE............................................................ 6 RADIATION INTERFERENCE................................................... 7 CALCULATION OF DUTY CYCLE................................................ 9 OCCUPIED BANDWIDTH....................................................... 11 APPLICANT: CONTEC HOLDINGS, LLC FCC ID: UCFURC350A REPORT: C\CONTEC_UCF\409ZUT7\409ZUT7TestReport.doc Page 3 of 12 GENERAL INFORMATION EUT Specification The test results relate only to the items tested. FCC ID UCFURC350A Model Number URC350A Product Description REMOTE CONTROL Operating Frequency 433.9 MHz Prototype Pre-Production Test Item Production Fixed Mobile Type of Equipment Portable Test standards FCC Part 15, Subparts C ANSI C63.4 – 2003 Modification to the DUT None Test exercise The EUT was set in continuous transmit mode of operation. Test Facility Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669. APPLICANT: CONTEC HOLDINGS, LLC FCC ID: UCFURC350A REPORT: C\CONTEC_UCF\409ZUT7\409ZUT7TestReport.doc Page 4 of 12 COMPLIANCE WITH PART 15.231(a) Part 15.231(a): • Continuous operation: Yes No • Control signal only: Yes No • Data transmission with a control signal Yes No N/A Description of control signal: _______________(notes: indicate whether such info is included in supporting exhibit such as operation description page xx) Part 15.231(a)(1): • Manually operated device: Yes No • Does it meet the 5s deactivation requirement after the switch is being released: Yes No Description: _______________(notes: a plot showing the pulse train does not necessarily constitute an objective evidence of compliance with the deactivation requirement. A plot should be accompanied by an explanation and/or statement of compliance, if not otherwise clearly stated in supporting documentation e.g. operation description page xx) Part 15.231(a)(2): • Automatically operated device: Yes No • Does it meet the 5s deactivation requirement after being activated: Yes No Description: _______________(notes: a plot showing the pulse train does not necessarily constitute an objective evidence of compliance with the deactivation requirement. A plot should be accompanied by an explanation and/or statement of compliance, if not otherwise clearly stated in supporting documentation e.g. operation description page xx) Part 15.231(a)(3): • Periodic transmission at regular predetermined intervals: Yes No N/A Description: ________________ • Polling or supervision transmissions, including data, to check system integrity check requires a total transmission time not exceeding 2s per hour: Yes No N/A Part 15.231(a)(4): Operation involving fire, security, or safety of life, when activated to signal an alarm, may operate during the pendency of the alarm condition. Does the transmitter meet the condition? Yes No N/A APPLICANT: CONTEC HOLDINGS, LLC FCC ID: UCFURC350A REPORT: C\CONTEC_UCF\409ZUT7\409ZUT7TestReport.doc Page 5 of 12 EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 12/7/05 12/7/07 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 12/7/05 12/7/07 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 12/8/05 12/8/07 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 12/8/05 12/8/07 Analyzer Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 Analyzer Blue Tower RF Preselector HP 85685A 2926A00983 CAL 9/5/05 9/5/07 Analyzer Blue Tower Quasi- Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Analyzer Silver Tower Spectrum Analyzer HP 8566B Opt 462 3552A22064 3638A08608 CAL 10/30/06 10/30/08 Analyzer Silver Tower RF Preselector HP 85685A 2620A00294 CAL 10/30/06 10/30/08 Analyzer Silver Tower Quasi- Peak Adapter HP 85650A 3303A01844 CAL 10/30/06 10/30/08 Analyzer Open- Frame Tower Preamplifier HP 8449B 3008A01075 CAL 8/8/05 8/8/07 Antenna: Biconnical Electro-Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Antenna: Biconnical Eaton 94455-1 1096 CAL 10/11/06 10/11/08 Antenna: Biconnical Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Antenna: Log- Periodic Electro-Metrics LPA-25 1122 CAL 12/1/06 12/1/08 APPLICANT: CONTEC HOLDINGS, LLC FCC ID: UCFURC350A REPORT: C\CONTEC_UCF\409ZUT7\409ZUT7TestReport.doc Page 6 of 12 TEST PROCEDURE RADIATION INTERFERENCE: The test procedure used was ANSI standard C63.4-2003 using a spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the DUT was 98.3ºF with a humidity of 40%. FORMULA OF CONVERSION FACTORS: The field strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to th…
