UCFURC550UNIVERSAL REMOTE CONTROL

Models IRC 550 * / URC 550 * Universal Remote Control Programming and Operating Instructions To have a clearer idea of the features and capabilities of your remote control, take a moment to read these instructions. Save for future reference. © 2006 Contec Holdings, LLC, Rev. 05/06 1. Introduction Your IRC550 and URC550 universal remote controls are simple to program, easy to use, and can operate up to five (5) devices , which include: SAT Satellite receivers TV Televisions DVD DVD AUDIO Audio receivers, amplifiers, CD players AUX VCRs, 2 nd TV, 2 nd DVD, 2 nd Audio device * Model IRC550 transmits to each of the above electronic devices using an infrared (IR) signal. Model URC550 transmits both infrared (IR) and radio-frequency (RF) signals to your DSR receiver, but IR-only signals to all your other devices. The RF capability of the URC550 permits it to remotely operate a DSR receiver that’s enclosed in a home-entertainment unit or located where an unobstructed line-of-site between the remote and DSR is not possible. Model URC550 is supplied is with the premium-featured HD / DVR DSR500 series receivers. The remote is ready to use with your Star Choice satellite receiver, but before you can use your remote control to operate the other devices listed above, it must first be programmed (set-up). 2. Before Getting Started Some of the special features and buttons on your remote control are as follows: Point and Press ® Programming Lets you program your TV, VCR, DVD, AUDIO devices without codes. For more information, see Sections 5 and 14. Memory Guard ® Eliminates reprogramming after battery changes. Time Out If the same button is pressed and held for 30- seconds, your remote control will turn itself off automatically. This extends the battery life should the remote become lodged under or between heavy objects, for example sofa cushions. 3. Installing. Replacing Batteries Install two (2) new “AA” batteries as indicated by the diagram in the battery compartment. When the batteries become low and need to be replaced, the [SAT] button will blink several times and the remote control will not transmit the function for the button t hat was pressed. When this happens, simply replace the existing batteries with two (2) new “AA” batteries to restore normal operation to the remote control. 4. If You Have More Than One Satellite Receiver Your remote control is set at the factory to control all of the functions on your Moto rola satellite receiver. However, if you have more than one satellite receiver, you may want to prevent the remote control in one room from affecting the sa tellite receiver in another room. To prevent this kind of interference, you must "pair" each remote control with each receiver by assigning a new "address" to each combination. This “address” assignment is made using your remote control as follows: 1. Press the [SAT] button to select the remote control’s SAT mode. 2. Press the [Options] button to display the Options screen on your TV. 3. On the Options screen, use the [ ▲ ], [ ▼ ], [ ◄ ], [ ► ] buttons to highlight the Change System Settings / System Setup option, then press [Enter]. 4. On the Systems Setting / Setup screen, use the [ ▲ ], [ ▼ ], [ ◄ ], [ ► ] buttons to highlight the Change Installation Settings / System Settings (applies to DSR 5xx, 207, 317 receiver s) option, then press [ENTER]. 5. On the System Settings (applies to DSR 5xx, 207, 317 receivers) screen, use the [ ▲ ], [ ▼ ], [ ◄ ], [ ► ] buttons to highlight the Installation Settings option, then press [ENTER] 6. On the Installation Settings screen, use the [ ▲ ], [ ▼ ], [ ◄ ], [ ► ] buttons to highlight the Remote Control Address option, then press [ENTER] 7. Once you are on the Remote Control Address screen, disregard the instructions on the screen and follow these steps using the remote control keypad.... a. In this order, press and hold the [MUTE] button, then the [ENTER] button. Hold both buttons down together until the mode buttons illuminate in rotation (i.e. SAT Æ TV Æ DVD Æ AUDIO Æ AUX Æ SAT...). Release both buttons as soon as the mode buttons illuminate. b. Enter any one of the following addresses: [000], [001], [002], [003 ], [004], [005], [006], [007]. Entry of the 3-digit of each address stores the address automatically and causes the mode buttons to blink and go out. c. Press the [ENTER] button to set the same address in your Satellite Receiver. The new address will be displayed in the upper right corner of your TV screen. d. Exit from the Remote Control Address screen. 5. Programming Your TV, DVD, AUDIO Devices Code-Entry Programming 1. Turn on all the electronic devices (TV, DVD, AUDIO) you want to program the remote to operate. Using the remote control keypad.... 2. In this order, press and hold the [ENTER] button, then the [MUTE] bu tton. Hold both buttons down together until the mode buttons illuminate in rotation (i.e. SAT Æ TV Æ DVD Æ AUDIO Æ AUX Æ SAT...). Release both buttons as soon as the mode buttons illuminate. 3. a. To program your TV, locate the 3-digit code for your brand in the TV Setup Code list and enter it on the keypad of the remote control. Entry of the correct code will cause your TV to turn off. If multiple codes are listed for your brand, you may have to enter several different codes until your TV turns off. b. As soon as you have entered a 3-digit code that turns your TV off, press [MUTE]. 1. If the TV turns back on, press [ENTER] to lock in the code. The mode buttons will blink 3-times and go out. Or 2. If the TV does not turn back on, enter a different 3-digit setup code until your TV turns back on. Then press [ENTER] to lock in the code. The mode buttons will blink 3-times and go out. 4. To program your DVD , refer to the DVD Setup Code lists and repeat steps 2 and 3 above. 5. To program your AUDIO devices, refer to the AUDIO Setup Code list and repeat steps 2 and 3 above. Point and Press ® Programming This method allows you to program your remote control without codes …

Text truncated - open the document above for the full version.

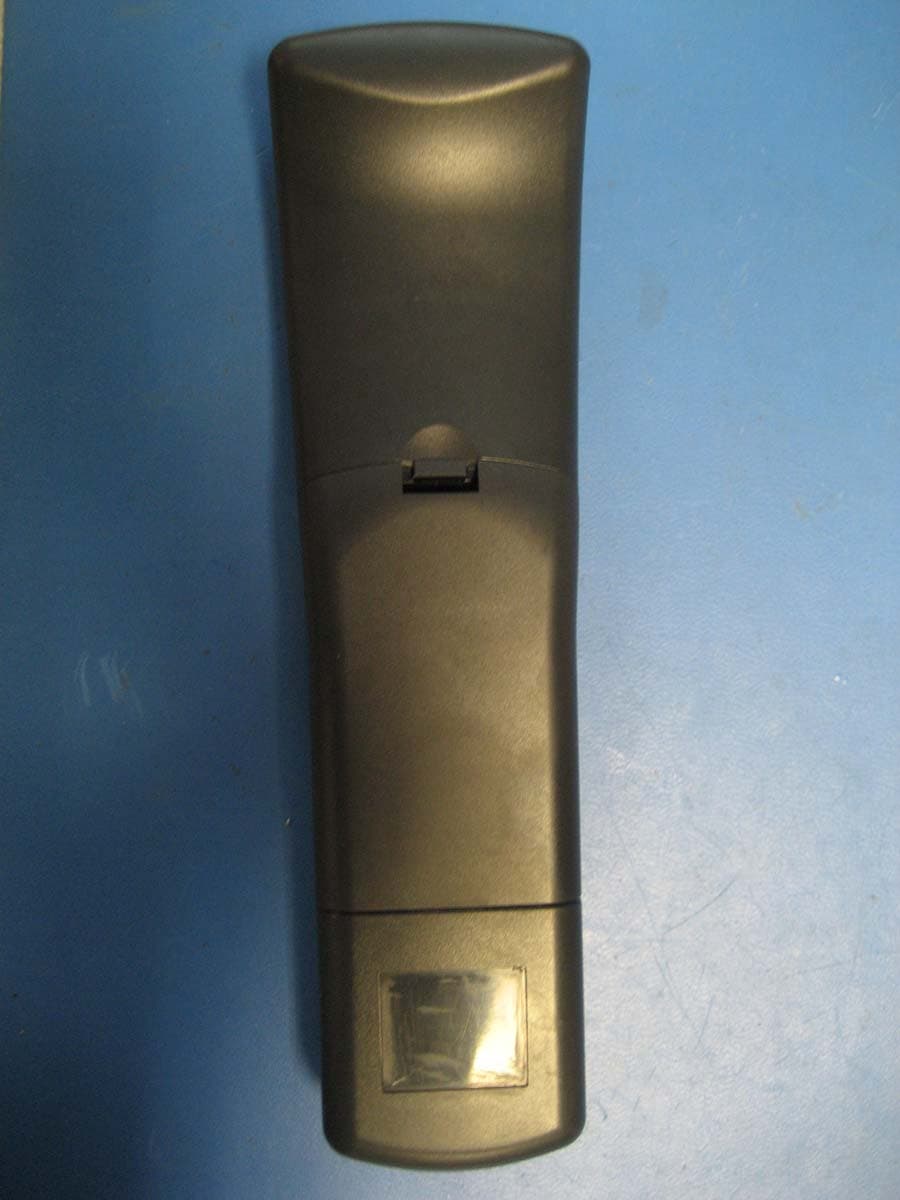

CONTEC HOLDINGS, LLC. FCC ID: UCFURC550 EXTERNAL PHOTOS

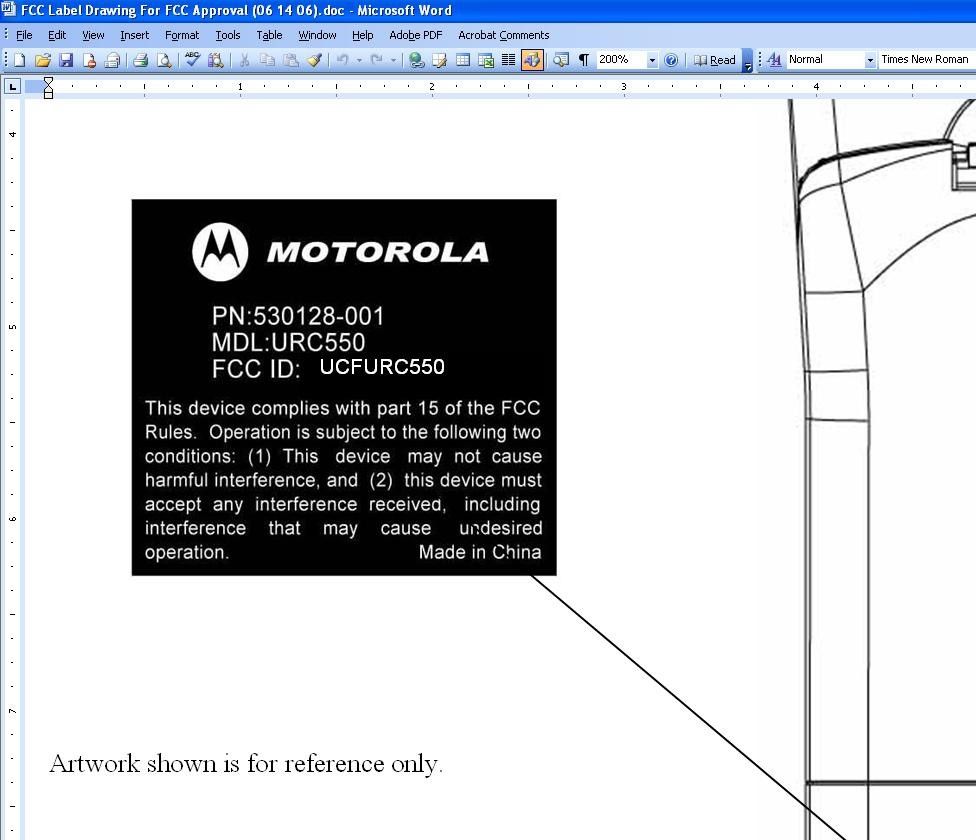

Artwork shown is for reference only. FCC ID LABEL LOCATION

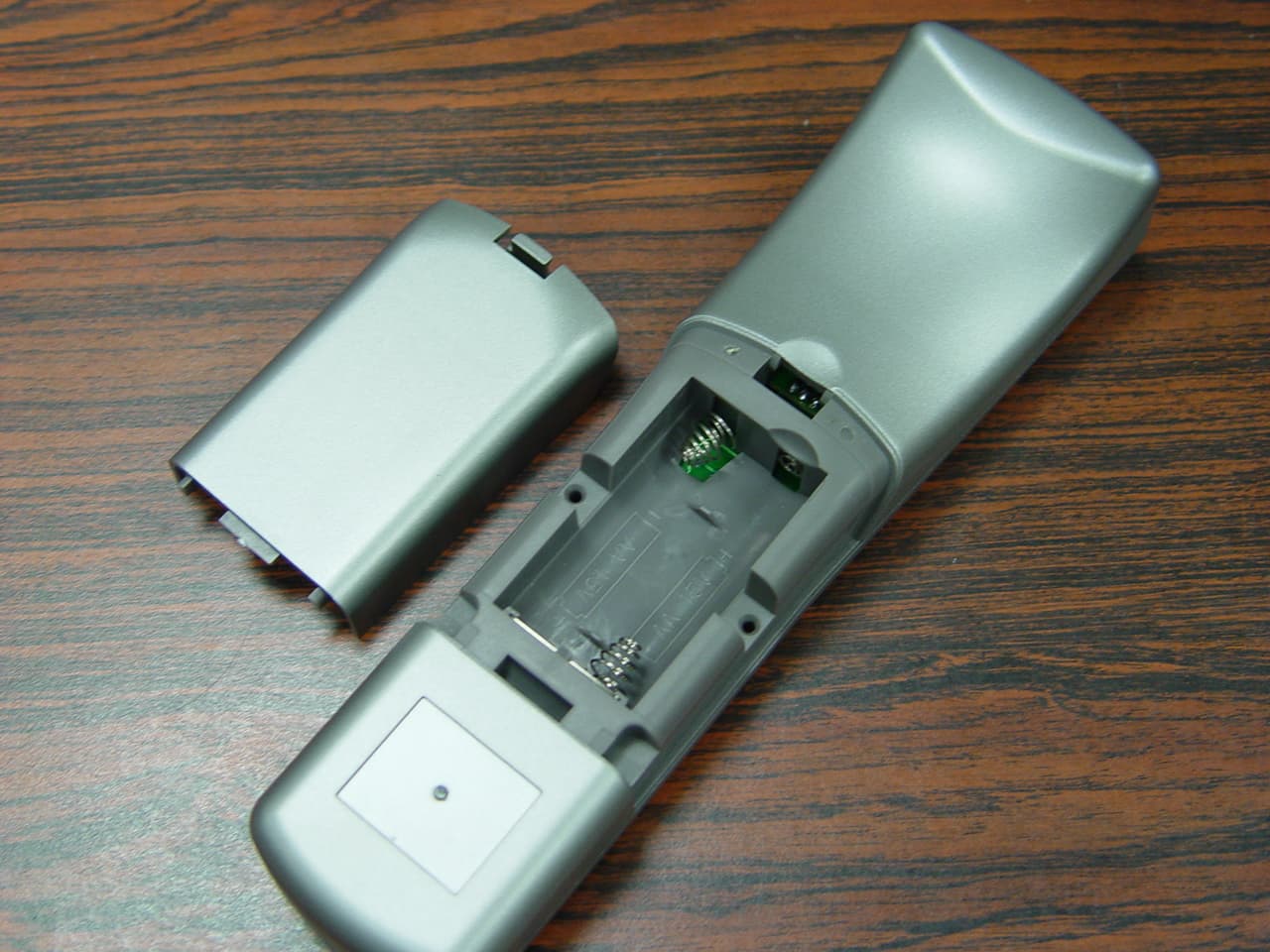

CONTEC HOLDINGS, LLC. FCC ID: UCFURC550 INTERNAL PHOTOS

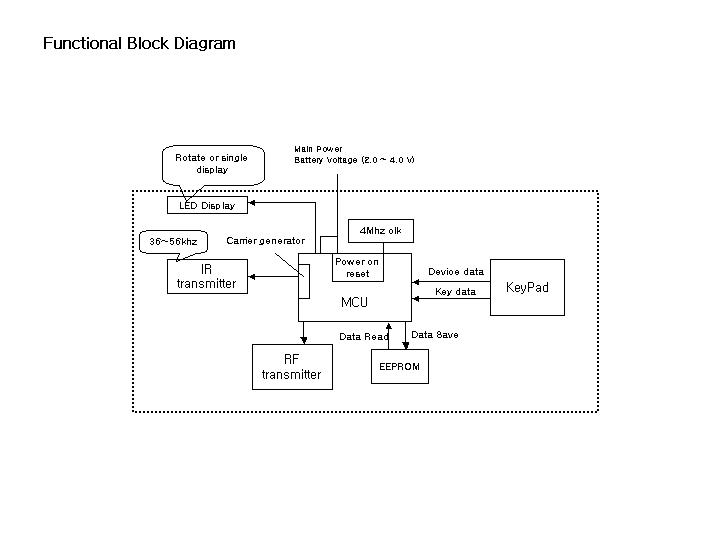

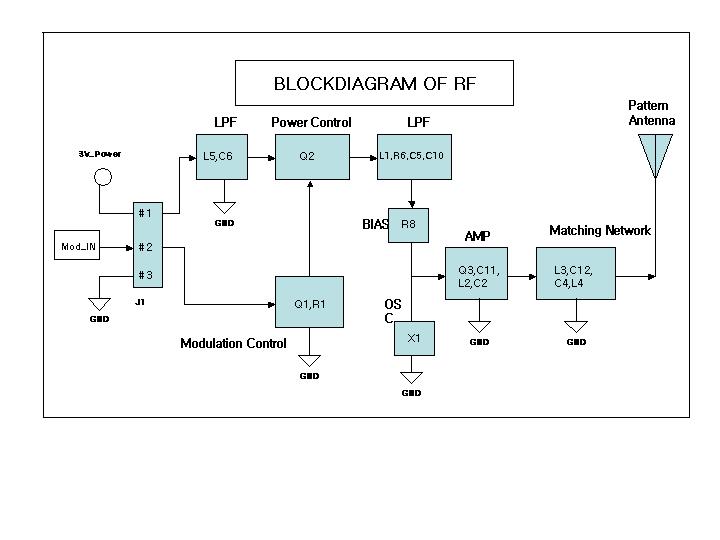

FCC ID: UCFURC550 CONTEC HOLDINGS, LLC. CIRCUIT DESCRIPTION 1. Block diagram 1) This device is a low-power ASK transmitter designation for UHF band (Amplitude Shift Key). 2) This remote transmits IR & RF signal only in SAT mode, other device mode (TV, DVD, AUDIO, AUX) transmits IR signal only. 5 mode buttons do not transmit any data. 3) In stand-by state, Mod_in Port(J1, Pin #2) is in Low(Logic “0”). In case of a button pressed, Q1 & Q2 are turned on if Mod_in ≥1V(Logic= “1”). So, 3V power is supplied to Resonator X1 and Amp Q3 by R8 and L3 through Low Pass Filter (L1, R6, C5, C10). Wireless pulse in the range of UHF is generated and amplified in Amp Q3 by L2, C2, C11 and radiate the signals to antenna through matching netwrok. 4) In case of mode_in ≤ 1 V(Logic= “0”), Q1 and Q2 are turned off. This case does not generate any RF signal. 2. Other Questions - If the EUT is a transmitter explain what is transmitted(data, live data, voice) and the type of modulation(AM, FM, SSB, PULSE, DSS, FHSS) that is used. Explain any transmit or modulation duty cycles. RF method of this remote uses AM. Please see attached data format. - Describe the antenna intended for use with device. Answer : This remote use pattern antenna on the pcb itself (no external antenna). - For Spread Spectrum devices, please provide the following information: - Bit Rate - Chipping Rate - Data Rate - Spreading Rate No relations with above (BSS & FHSSare related with above).

sbjd-6100-1002-2bd_0429.sch-1 - Thu May 04 13:59:40 2006

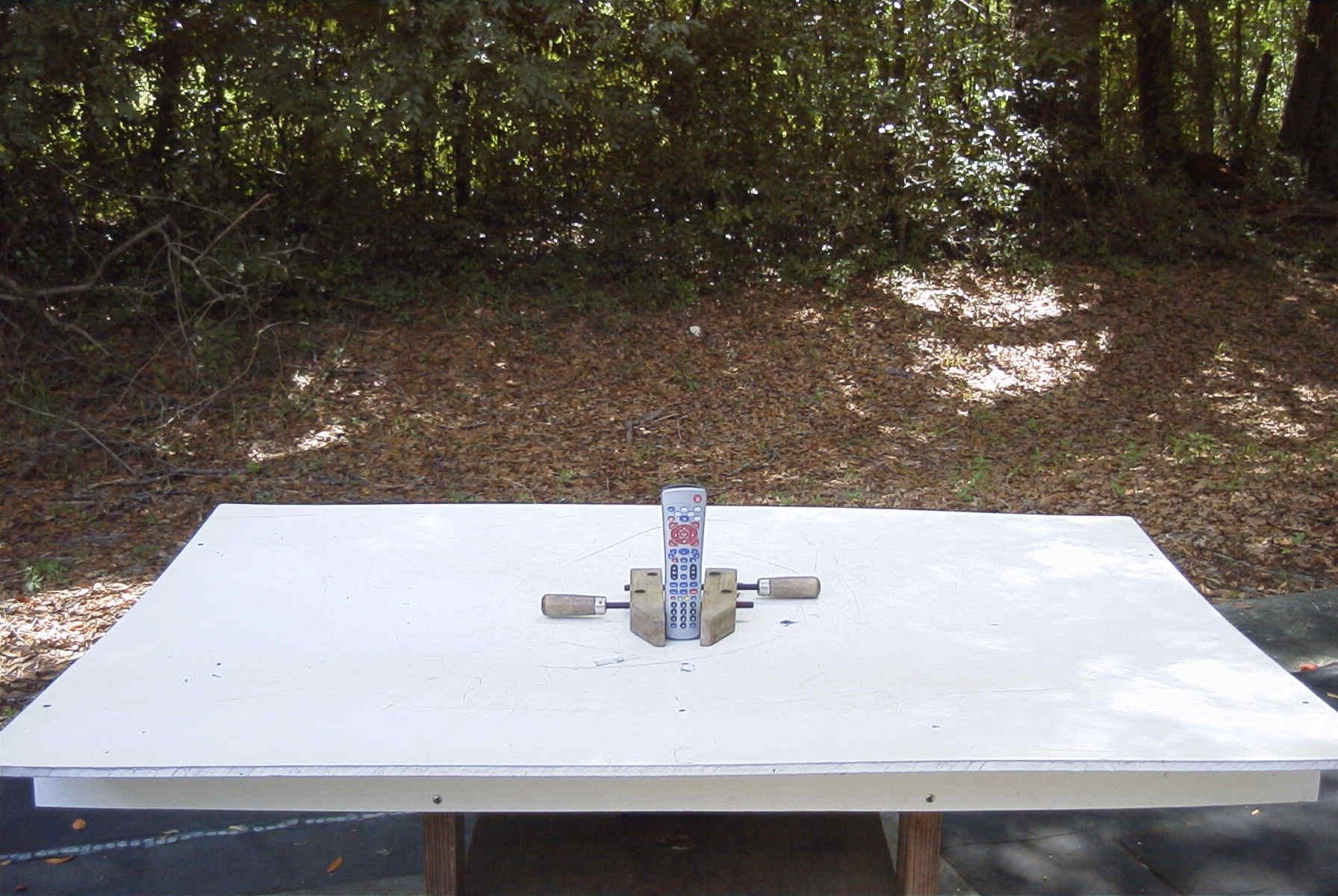

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: CONTEC HOLDINGS, LLC FCC ID: UCFURC550 REPORT #: C\CONTEC\1056UT6\1056UT6TestReport.doc COVER SHEET Test Report Product Name: UNIVERSAL REMOTE CONTROL FCC ID: UCFURC550 Applicant: CONTEC HOLDINGS, LLC 1011 & 1023 STATE STREET SCHENECTADY NY 12307 USA Date Receipt: 5/18/2006 Date Tested: 6/2/2006 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: CONTEC HOLDINGS, LLC FCC ID: UCFURC550 REPORT #: C\CONTEC\1056UT6\1056UT6TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS APPLICANT: CONTEC HOLDINGS, LLC FCC ID: UCFURC550 TEST REPORT CONTAINING: PAGE 1..............TEST EQUIPMENT LIST PAGE 2..............TEST PROCEDURE PAGE 3-5............RADIATED EMISSIONS TEST DATA PAGE 6..............CALCULATION OF DUTY CYCLE PAGE 7-8............DUTY CYCLE PLOTS PAGE 9..............OCCUPIED BANDWIDTH PAGE 10.............OCCUPIED BANDWIDTH PLOT EXHIBIT INCLUDING: BLOCK DIAGRAM SCHEMATIC PARTS LIST INSTRUCTION MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPH TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: CONTEC HOLDINGS, LLC FCC ID: UCFURC550 REPORT #: C\CONTEC\1056UT6\1056UT6TestReport.doc Page 1 of 10 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 12/7/05 12/7/07 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 12/7/05 12/7/07 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 12/8/05 12/8/07 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 12/8/05 12/8/07 Analyzer Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 Analyzer Blue Tower RF Preselector HP 85685A 2926A00983 CAL 9/5/05 9/5/07 Analyzer Blue Tower Quasi- Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Analyzer Silver Tower Spectrum Analyzer HP 8566B Opt 462 3552A22064 3638A08608 CAL 12/8/04 12/8/06 Analyzer Silver Tower RF Preselector HP 85685A 2620A00294 CAL 4/27/04 12/8/06 Analyzer Silver Tower Quasi- Peak Adapter HP 85650A 3303A01844 CAL 12/8/04 12/8/06 Analyzer Open- Frame Tower Preamplifier HP 8449B 3008A01075 CAL 8/8/05 8/8/07 Antenna: Biconnical Electro-Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Antenna: Biconnical Eaton 94455-1 1096 CAL 8/17/04 8/17/06 Antenna: Biconnical Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Antenna: Log- Periodic Electro-Metrics LPA-25 1122 CAL 8/26/04 8/26/06 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: CONTEC HOLDINGS, LLC FCC ID: UCFURC550 REPORT #: C\CONTEC\1056UT6\1056UT6TestReport.doc Page 2 of 10 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2003 using a HEWLETT PACKARD spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 98.3ºF with a humidity of 40%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + CL + ACF = FS 33 20 dBuV + 10.36 dB + 0.69 = 31.05 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The UUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The UUT was placed in the center of the table. The table used for radiated measurements is capable of continuous rotation. The spectrum was scanned from 30 MHz to 10th harmonic of the fundamental. Peak readings were taken in three (3) orthogonal planes and the highest readings were converted to average readings based on the duration of "ON" time. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. Measurements were made by TIMCO ENGINEERING INC. at the registered open field test site located at 849 N.W. State Road 45, Newberry, Fl 32669. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: CONTEC HOLDINGS, LLC FCC ID: UCFURC550 REPORT #: C\CONTEC\1056UT6\1056UT6TestReport.doc Page 3 of 10 APPLICANT: CONTEC HOLDINGS, LLC FCC ID: UCFURC550 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.231 REQUIREMENTS: Fundamental Field Strength Field Strength of Frequency of Fundamental Harmonics and Spurious MHz dBuV Emissions (dBuV/m @ 3m) 40.66 to 40.70 67.04 47.04 70 to 130 61.94 41.94 130 to 174 61.94 to 71.48 41.94 to 51.48 174 to 260 71.48 51.48 260 to 470 71.48 to 81.94 51.48 to 61.94 470 and above 81.94 61.94 THE LIMIT FOR AVERAGE FIELD STRENGTH dBuV/m FOR THE FUNDAMENTAL FREQUENCY = 80.83 dBuV/m. NO FUNDAMENTAL IS ALLOWED IN THE RESTRICTED BANDS. THE LIMIT FOR AVERAGE FIELD STRENGTH dBuV/m FOR THE HARMONICS AND SPURIOUS FREQUENCIES = 60.83 dBuV/m. SPURIOUS …

Text truncated - open the document above for the full version.
