UDAE2BLUETOOTH HEADSET

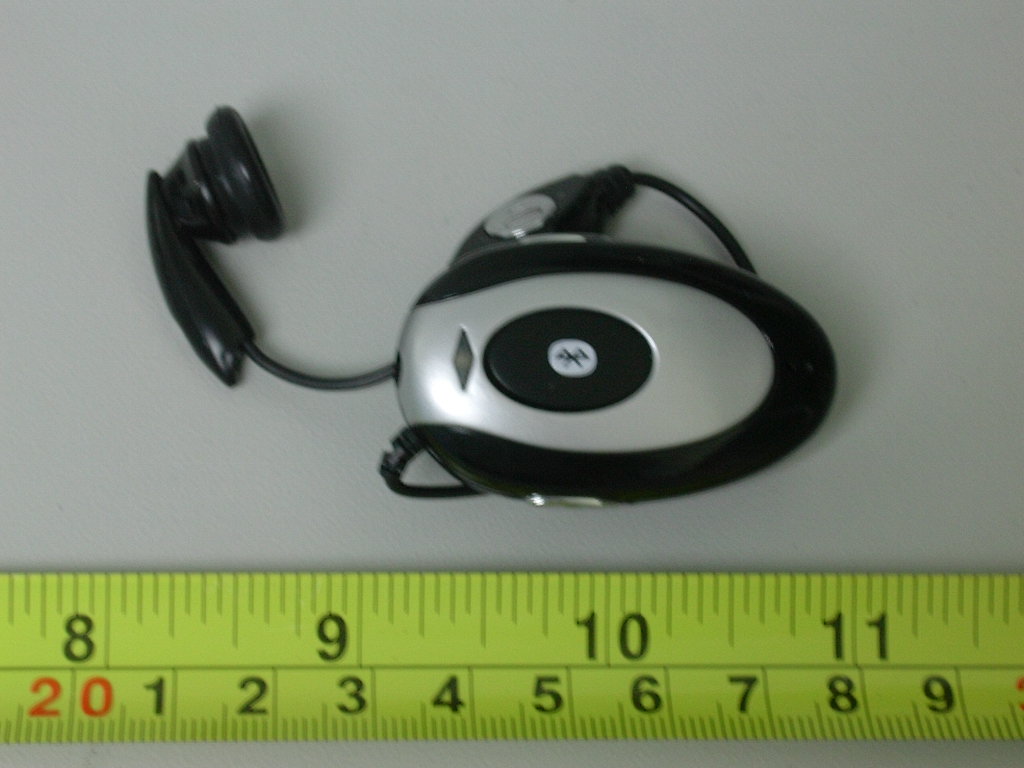

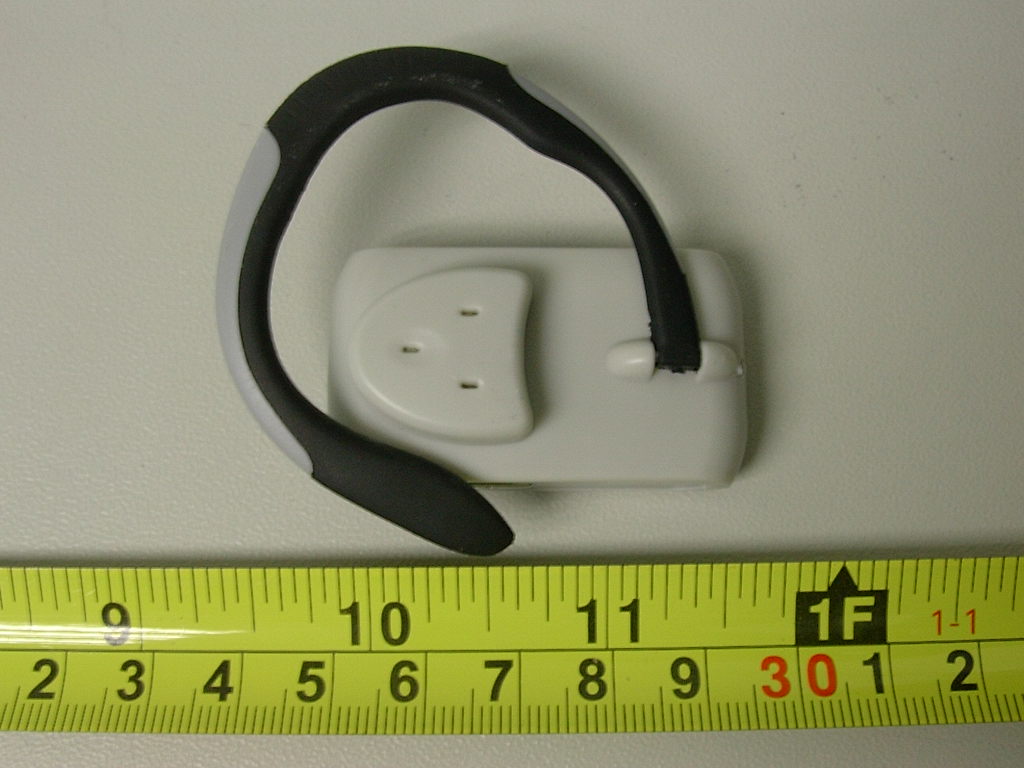

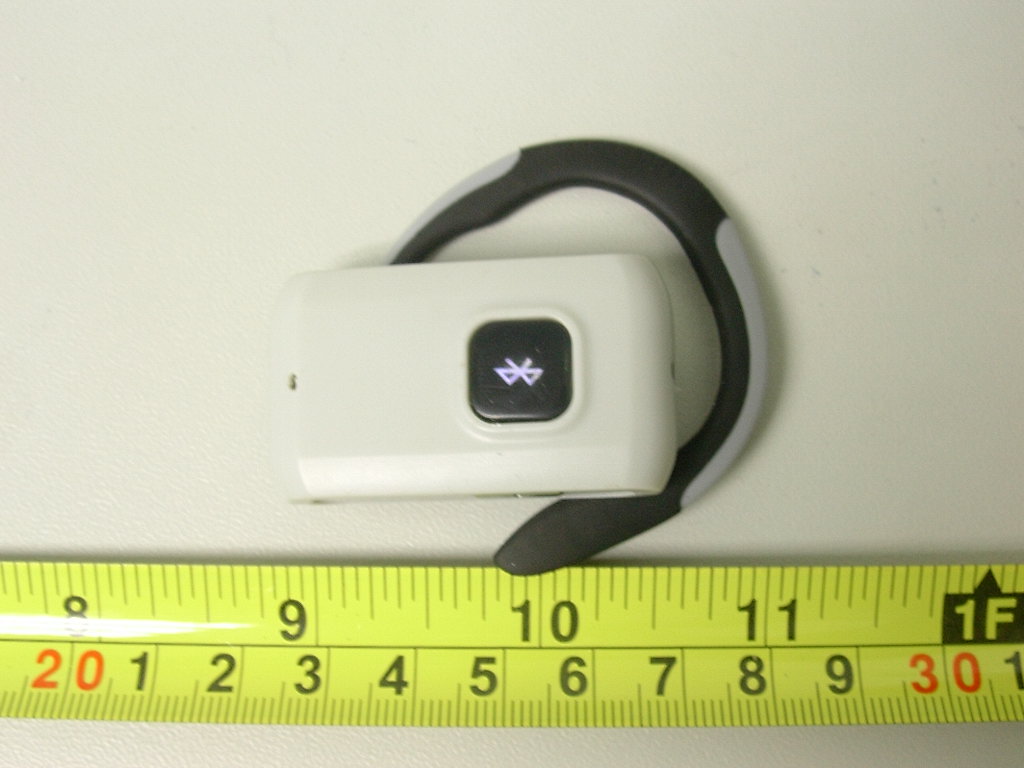

EXTERIOR PHOTOGRAPHS EUT VIEW 1 (E2) EUT VIEW 2 (E2) EUT VIEW 3 (T2) EUT VIEW 4 (T2) EUT VIEW 5 (TDS601) EUT VIEW 6 (TDS601)

Label Location Information FCC ID: UDAE2 Label Location

Label Location Information FCC ID: UDAE2 Label Location

INTERIOR PHOTOGRAPHS

Guangzhou Tendystar Telecom Co., Ltd Model: E2 FCC Part 15C Measurement and Test Report For Guangzhou Tendystar Telecom Co., Ltd Rm1701-1702, New Century Commercial Trade Center, No.2-6 HongDe Load, Guangzhou, China Report Concerns: Equipment Type: Bluetooth Headset Original Report E2 Model: STR06068005E-3 Report No.: Test/Witness Engineer: Alex Lee 2006-06-30 Test Date: Prepared By: Shenzhen SEM.Test Compliance Service Co., Ltd Room 609-610, Baotong Building, Baomin 1 st Road, Baoan District, Shenzhen, Guangdong, P.R.C. (518133) Approved & Authorized By: Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . FCC ID: UDAE2 Report No.: STR06068005E-3 1 FCC ID: UDAE2 Guangzhou Tendystar Telecom Co., Ltd Model: E2 TABLE OF CONTENTS 1. LETTER OF EXPLANATION ................................................................................................................................3 2. GENERAL INFORMATION ...................................................................................................................................4 2.1 Product Description for Equipment Under Test (EUT) ................................................................................................ 4 2.2 Test Standards .............................................................................................................................................................. 4 2.3 Test Methodology......................................................................................................................................................... 5 2.4 Test Facility.................................................................................................................................................................. 5 3. EMC EQUIPMENT LIST AND DETAILS ............................................................................................................6 4. SUMMARY OF TEST RESULTS ...........................................................................................................................7 5. TEST PROCEDURE.................................................................................................................................................8 6. ANTENNA REQUIREMENT ..................................................................................................................................9 7. NUMBER OF HOPPING CHANNELS AND CHANNEL SPACING ...............................................................10 8. DWELL TIME OF A HOPPING CHANNEL ......................................................................................................12 9. 20-DB BANDWIDTH ..............................................................................................................................................14 10. POWER OUTPUT.................................................................................................................................................15 11. FIELD STRENGTH OF SPURIOUS EMISSIONS ...........................................................................................16 12. RADIATED SPURIOUS EMISSIONS INTO ADJACENT RESTRICTED BAND .......................................20 TEST SETUP PHOTO................................................................................................................................................22 EXHIBIT INCLUDING: REQUEST FOR CONFIDENTIALITY LETTER BLOCK DIAGRAM SCHEMATIC LABEL SAMPLE LABEL LOCATION USERS MANUAL EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPHS Report No.: STR06068005E-3 2 FCC ID: UDAE2 Guangzhou Tendystar Telecom Co., Ltd Model: E2 1. LETTER OF EXPLANATION June 24, 2006 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC ID: UDAE2 To Whom It May Concern: The attached application is for a portable device that employs a bluetooth device. The unit employs internal antenna. The Bluetooth antenna has a gain of +1.1 dBi. Should you have any questions or require any further information with regards to this, please feel free to contact me. Sincerely, Engineer MRD/sh Encl. Report No.: STR06068005E-3 3 FCC ID: UDAE2 Guangzhou Tendystar Telecom Co., Ltd Model: E2 2. GENERAL INFORMATION 2.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: Guangzhou Tendystar Telecom Co., Ltd. Address of applicant: Rm1701-1702, New Century Commercial Trade Center, No.2-6 HongDe Load, Guangzhou, China Manufacturer: Guangzhou Tendystar Telecom Co., Ltd Address of manufacturer: Rm1701-1702, New Century Commercial Trade Center, No.2-6 HongDe Load, Guangzhou, China General Description of E.U.T Items Description EUT Description: Bluetooth Headset Trade Name: Tendystar Model No.: E2 Rated Voltage: DC 3.6V battery Max. Output Power 2.5mW Frequency range: 2402-2480MHz Number of channels: 79 Size: 8.00 cm L x 2.00 cm W x 2.50 cm H Channel Separation: 1MHz Type of Antenna: Permanently attached antenna Note: The Model of T2 and TDS601 have the same internal construction and they have only different appearance. All the tests of this report are carried on Model E2. For more information refer to the circuit diagram form and the user’s manual. The test data gathered are from a production sample, provided by the manufacturer. 2.2 Test Standards The following report of is prepared on behalf of the Guangzhou Tendystar Telecom Co., Ltd. in accordance with FCC rules, sec 15.247, sec 15.205, sec 15.209 and sec 15.35. All measurements contained in this report were conducted with ANSI C63.4-2003, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz. The objective of the manufacturer is to determine compliance with FCC rules, sec 15.247, sec 15.205, sec 15.209…

Text truncated - open the document above for the full version.

Guangzhou Tendystar Telecom Co., Ltd Model: E2 TEST SETUP PHOTO RADIATION TEST (30MHz to 1GHz) RADIATION TEST (1MHz to 25GHz) Report No.: STR06068005E-3 1 FCC ID: UDAE2
