UDV-1009092010008

Shanghai Simcom Ltd.

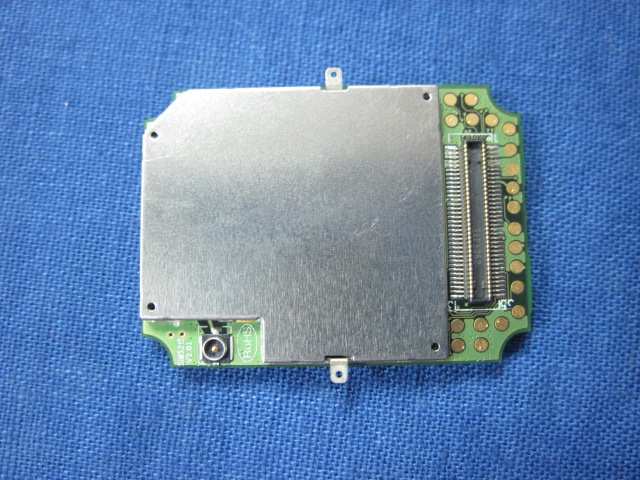

GSM/GPRS/EDGE/WCDMA/HSDPA module

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Nov 04, 2010
Application Purpose: Original Equipment
Date of Application: Nov 04, 2010
Equipment Note: GSM/GPRS/EDGE/WCDMA/HSDPA module
Frequency Range: 1852.40000000 - 1907.60000000
Company: Shanghai Simcom Ltd.
Country: China

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
6	24E	1.85 GHz - 1.91 GHz	230.00 mW	4M20F9W	47 Hz

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Output power listed is conducted. This device is to be used in mobile or fixed applications only. Antenna gain including cable loss must not exceed 7.2 dBi in the 850 MHz Cellular band and 3.5 dBi in the PCS 1900 MHz band, for the purpose of satisfying the requirements of 2.1043 and 2.1091, 22-H, 24-E. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operated in conjunction with any antenna or transmitter. The final product operating with this transmitter must include operating instructions and antenna installation instructions, for end-users and installers to satisfy RF exposure compliance requirements. Compliance of this device in all final product configurations is the responsibility of the Grantee. Installation of this device into specific final products may require the submission of a Class II permissive change application containing data pertinent to RF Exposure, spurious emissions, ERP/EIRP, and host/module authentication, or new application if appropriate. This device contains GSM functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations.
