SIM5320A_Hardware Design_V1.01 Smart Machine Smart Decision Document Title SIM5320A Hardware Design Version 1.01 Date 2011-2-29 Status Release Document Control ID SIM5320A_Hardware Design_V1.01 General Notes SIMCom offers this information as a service to its customers, to support application and engineering efforts that use the products designed by SIMCom. The information provided is based upon requirements specifically provided to SIMCom by the customers. SIMCom has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession. Furthermore, system validation of this product designed by SIMCom within a larger electronic system remains the responsibility of the customer or the customer’s system integrator. All specifications supplied herein are subject to change. NOTICE: This device complies with Part 15 of the FCC Rules [and with RSS-210 of Industry Canada]. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications made to this equipment not expressly approved by SIMCOM may void the FCC authorization to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This Class [B] digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada. Smart Machine Smart Decision SIM5320A_Hardware Design_V1.01 2011-2-29 3 Radiofrequency radiation exposure Information: The module does not contain antenna. It has an antenna PIN. The module is to be used in mobile or fixed applications only. For other antenna(s) selection, the antenna gain including cable loss must not exceed 7.2 dBi in the 850 MHz Cellular band and 3.5 dBi in the PCS 1900 MHz band, for the purpose of satisfying the requirements of FCC 2.1043 and 2.1091. The antenna used for this module must be installed to provide a separation distance of at least 20 cm from all persons, and must not be co-located or operating in conjunction with other antennas or transmitters within a host device, except in accordance with FCC multi-transmitter product procedures. Compliance of this module in all final product configurations is the responsibility of the Grantee. OEM integrators must be provided with specific information required to satisfy RF exposure compliance for all final host devices and installations. OEM integrators can replace the antenna by themselves. They should comply with Consideration for antenna selection and Consideration for antenna installation. Copyright This document contains proprietary technical information which is the property of SIMCom Limited, copying of this document and giving it to others and the using or communication of the contents thereof, are forbidden without express authority. Offenders are liable to the payment of damages. All rights reserved in the event of grant of a patent or the registration of a utility model or design. All specification supplied herein are subject to change without notice at any time. Copyright © Shanghai SIMCom Wireless Solutions Ltd. 2011 Smart Machine Smart Decision SIM5320A_Hardware Design_V1.01 2011-2-29 4 Contents Revision History ........................................................................................................................................ 10 1 Introduction .........................................................................................................................................11 1.1 Product Outline ...............................................................................................................................11 1.2 Hardware Interface Overview.........................................................................................................11 1.3 Hardware Diagram......................................................................................................................... 12 1.4 Functional Overview...................................................................................................................... 12 2 Package Information .......................................................................................................................... 14 2.1 Pin Configuration........................................................................................................................... 14 2.2 Pin description ............................................................................................................................... 16 2.3 Package Dimensions ...................................................................................................................... 19 2.4 Footprint Recommendation ........................................................................................................... 20 3 Application Interface Specif…

Text truncated - open the document above for the full version.

Smart Machine Smart Decision SIM5320A_Hardware Design_V1.01 2011-2-29 12 ● Power Supply ● USB Interface ● Serial Interface ● Analog Audio Interfaces ● SIM Interface ● GPIO ● ADC ● LDO Power Output ● Sink Current Source ● PCM Interface ● Keypad Interface ● SPI Interface ● RTC ● I2C Interface 1.3 Hardware Diagram The global architecture of the SIM5320A Embedded module is described in the figure below. Figure 1: SIM5320A functional architecture 1.4 Functional Overview Table 2: General Feature Feature Implementation Smart Machine Smart Decision SIM5320A_Hardware Design_V1.01 2011-2-29 13 Power supply Single supply voltage 3.3～4.2V Transmission data ● Dual-mode UMTS/HSDPA/EDGE/GPRS operation ● GPRS Class B, multislot class 12 operation, Supports coding scheme: CS1-4 ● EDGE multislot class 12 operation, Supports coding schemes MSC1-9 ● UMTS R99 data rates-384 kbps DL/UL ● HSDPA Category 5/6 -3.6 Mbps Category12-1.8 Mbps ● CSD feature: 9.6, 14.4, 64 kbps UL/DL GPS ● Mobile-Assisted mode ● Mobile-based mode ● Standalone mode SMS ● MT, MO, CB, Text and PDU mode ● SMS storage: SIM card ● Support transmission of SMS alternatively over CSD or GPRS. User can choose preferred mode. SIM interface Support identity card: 1.8V, 3V. Audio features(optional) Speech codec modes: ● Half Rate (ETS 06.20) ● Full Rate (ETS 06.10) ● Enhanced Full Rate (ETS 06.50 / 06.60 / 06.80) ● AMR (WCDMA) ● AMR+QCP (GSM) ● A5/1, A5/2, and A5/3 ciphering Serial interface ● Serial Port standard or null modem mode on Serial Port Interface ● Serial Port can be used to control module by sending AT command USB Support USB2.0 Slave mode Phonebook management Support phonebook types: SM, FD, LD, RC, ON, MC. SIM application toolkit Support SAT class 3, GSM 11.14 Release 98 Support USAT Real Time Clock Support RTC Timer function Programmable by AT command Physical characteristics Size:30*30*2.9mm Weight:5.6g Firmware upgrade Firmware upgrade over USB interface PCM Multiplex on GPIOs. 3 kinds of coding formats: 8 bit (υ-law or A-law) and 16 bit (linear). Temperature range ● Operation temperature: -30°C to +80°C ● Storage temperature -40°C to +85°C

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 <2011-4-19> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name UDV-1103022011008 SIM5320A For the product stated above, we request that the following information be held confidential: 1. Circuit diagrams, BOM, and PCBs submitted as Equipment Authorization Electronic Filing attachment: "schematics”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: “block diagram”. 3. Operational description submitted as Equipment Authorization Electronic Filing attachment: “operational description” 4. Parts List / Tune Up Info submitted as Equipment Authorization Electronic Filing attachment: “Parts List / Tune Up Info” The above exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Yongsheng Li Company: Shanghai Simcom Ltd. Address: Building A, SIM Technology Building No.633，Jinzhong Road，Changning Disdrict，Shanghai P.R. China 200335 Phone: 86-21-32523134 Fax: 86-21-32533020 Email: [email protected]

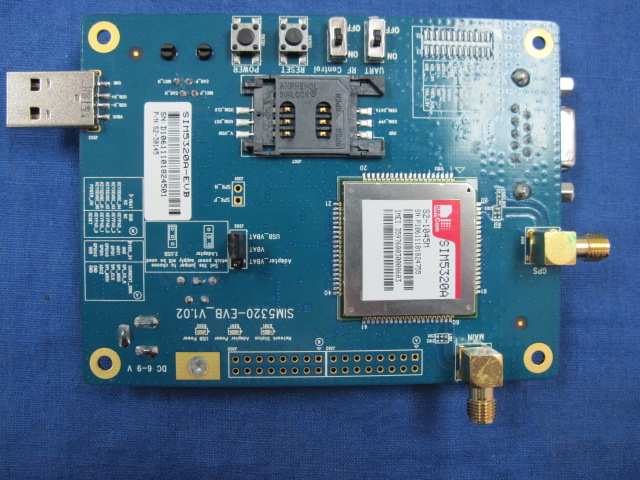

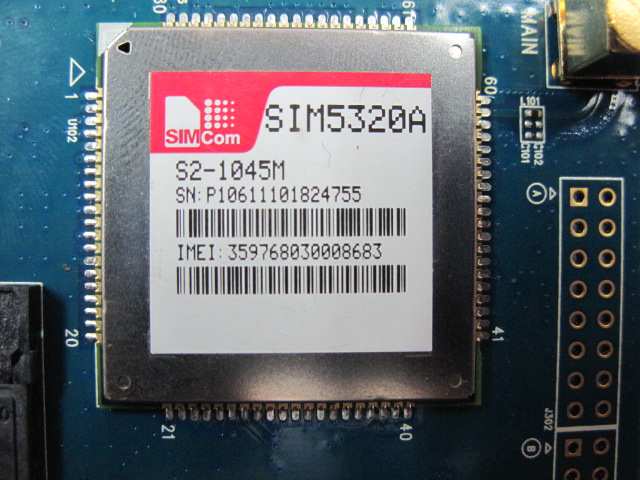

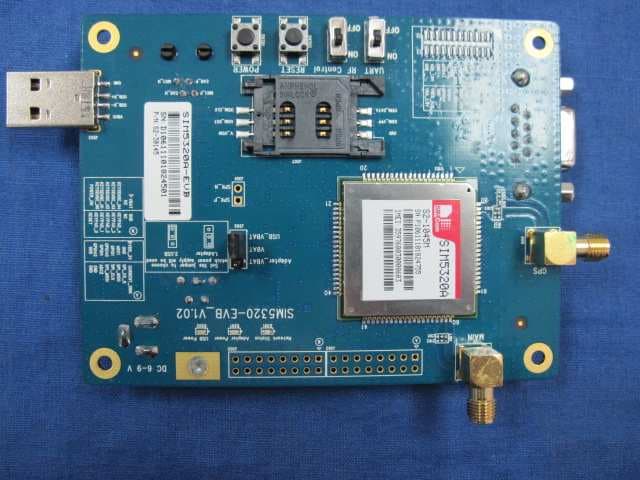

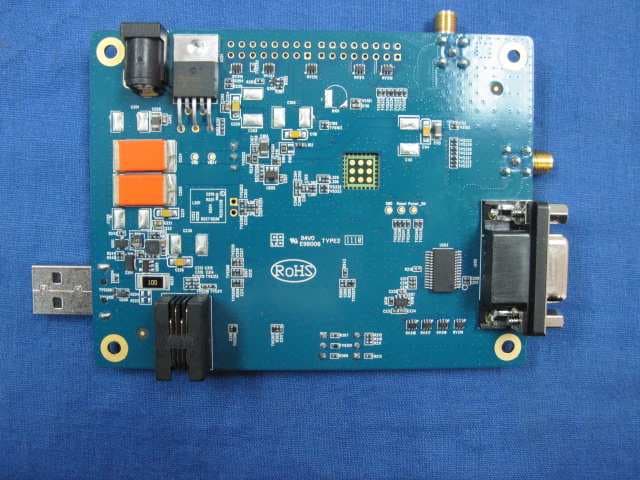

Report No 112S009R-HP-US-P07V01 Page: 76 of 77 Appendix 2 – EUT Photograph (1) EUT Photo (2) EUT Photo Report No 112S009R-HP-US-P07V01 Page: 77 of 77 (3) EUT Photo (4) EUT Photo

Report No 112S009R-HP-US-P07V01 Page: 77 of 77 (3) EUT Photo (4) EUT Photo

RF Exposure Evaluation Declaration Product Name : Module Model No. : SIM5320A FCC ID : UDV-1103022011008 IC 8460A-20110302008 Applicant : Shanghai Simcom Ltd. Address : Building A, SIM Technology Building, No. 633, Jinzhong Road, Changning Disdrict, Shanghai P.R. China 200335 Date of Receipt : Feb. 16, 2011 Issued Date : Feb. 22, 2011 Report No. : 112S009R-RF-US Report Version : V2.2 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, NVLAP, NIST or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 112S009R-RF-US Page: 2 of 7 Test Report Certification Issued Date : Feb. 22, 2011 Report No. : 112S009R-RF-US Product Name : Module Applicant : Shanghai Simcom Ltd. Address : Building A, SIM Technology Building, No. 633, Jinzhong Road, Changning Disdrict, Shanghai P.R. China 200335 Manufacturer : Shanghai Simcom Ltd. Address : Building A, SIM Technology Building, No. 633, Jinzhong Road, Changning Disdrict, Shanghai P.R. China 200335 Model No. : SIM5320A FCC ID : UDV-1103022011008 IC 8460A-20110302008 EUT Voltage : 3.7V/3.4V/4.2V Trade Name : SIMCom Applicable Standard : FCC OET Bulletin 65, ICNIRP Guidelines RSS-102: Issue 4, 2010 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392, IC Lab Code: 4075B Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Senior Engineer: Robin Wu) Approved By : (Engineering Supervisor: Marlin Chen) Report No： 112S009R-RF-US Page: 3 of 7 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5-22, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou (China) Testing Laboratory : No. 99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou,China. TEL : +86-512-6251-5088 / FAX : +86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI Report No： 112S009R-RF-US Page: 4 of 7 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No： 112S009R-RF-US Page: 5 of 7 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. 1.3. Test Result of RF Exposure Evaluation 1.3.1. Conducted Power Analysis Table 1: Duty Cycle of TDMA Signal No. of timeslots 1 2 3 4 Duty Cycle 1 : 8 1 : 4 1 : 2.66 1 : 2 Timebased avg. power compared to slotted avg. power -9 dB -6 dB -4.25 dB -3 dB The following table shows the conducted power measured and time based average power calculated: Report No： 112S009R-RF-US Page: 6 of 7 Table 2 Frequency BandModulation Timeslots Avg. Burst Power (dBm) Time based average power (Calculated) GSM850 GMSK 1 32.30 23.30 GSM850 GMSK 2 29.80 23.80 GSM850 GMSK 3 28.80 24.55 GSM850 GMSK 4 27.80 24.80 GSM850 8PSK 1 26.50 17.50 GSM850 8PSK 2 26.00 20.00 GSM850 8PSK 3 26.40 22.15 GSM850 8PSK 4 26.40 23.40 PCS1900 GMSK 1 30.00 21.00 PCS1900 GMSK 2 28.50 22.50 PCS1900 GMSK 3 26.50 22.25 PCS1900 GMSK 4 25.60 22.60 PCS1900 8PSK 1 26.20 17.20 PCS1900 8PSK 2 26.10 20.10 PCS1900 8PSK 3 26.00 21.75 PCS1900 8PSK 4 25.50 22.50 FDD II (1900) QPSK --- 23.60 23.60 FDD V (850) QPSK --- 23.85 23.85 Report No： 112S009R-RF-US Page: 7 of 7 1.3.2. Host Platform Analysis The MPE calculation was performed for the maximum antenna gain maybe used of stand-alone condition. According to FCC Part2.1091(c) requirement, the maximum ERP (below 1.5GHz) is 1.5W and (above 1.5GHz) is 3W. Conjunction with …
