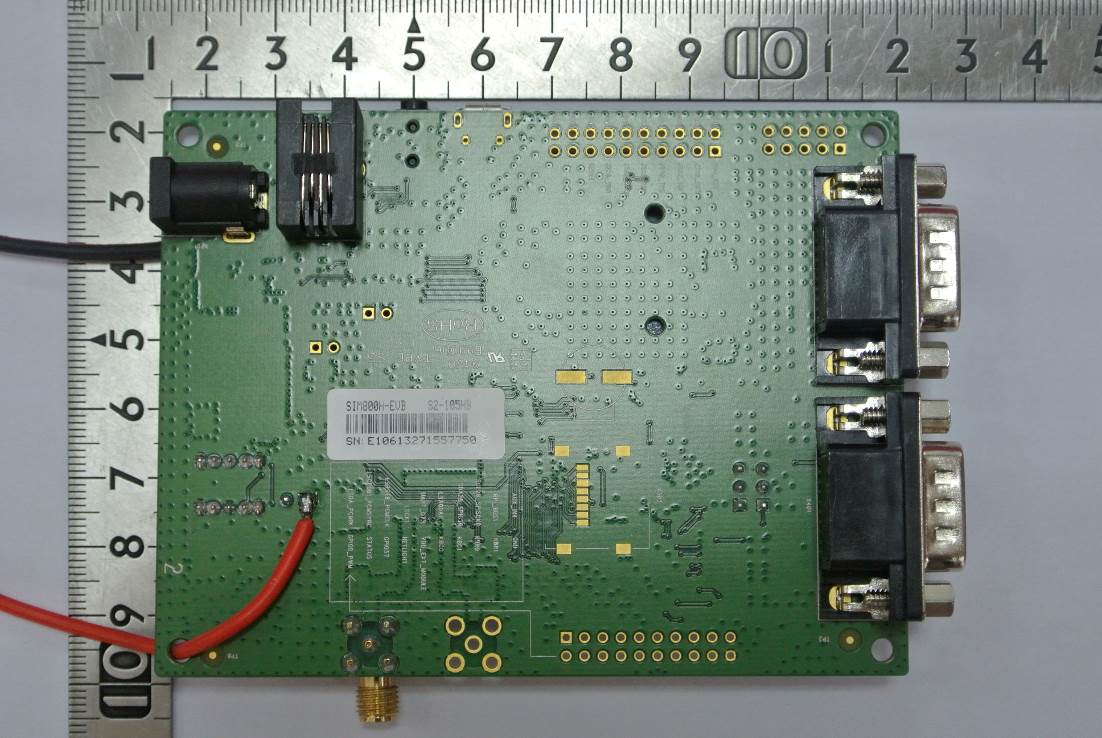

UDV-2013072401GSM/GPRS/BT Wireless Data Module

SIM800H Document - 1 - SIM800H User Manual Compliance Information FCC Compliance Statement: This device complies with Part 15 of the FCC Rules . Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This device must accept any interference received, including interference that may cause undesired operation. Product that is a radio transmitter is labeled with FCC ID. FCC Caution: (1)Exposure to Radio Frequency Radiation. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. (2) Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. (3) This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. (4) Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. (5) the modules FCC ID is not visible when installed in the host, or (6) if the host is marketed so that end users do not have straight forward commonly used methods for access to remove the module so that the FCC ID of the module is visible; then an additional permanent label referring to the enclosed module: Contains Transmitter Module FCC ID: UDV-2013072401 or Contains FCC ID: UDV-2013072401 must be used. 1. SIM800H Description 1.1. Summarize SIM800H designed by SIMCom is a quad band module which supports GSM/GPRS. The baseband circuit is based on MTK and RF circuit is based on RFMD. It works at quad bands------GSM850, EGSM900, DCS1800, and PCS1900. CPU clock is based on 26MHz crystal. The main IC includes MT6260D and RF7176. 1.2. Feature ƽQuad-Band 850/900/1800/1900MHz ƽGPRS multi-slot class 12/10 ƽGPRS mobile station class B ƽBluetooth output power class 1 ƽBluetooth v3.0 with data rates 3.0Mbps ƽCompliant to GSM phase 2/2+ SIM800H Document - 2 - – Class 4 (2 W @ 850/900 MHz) –Class 1 (1 W @ 1800/1900MHz) ƽDimensions: 15.8*17.8*2.4 mm ƽWeight: 1.25 g ƽControl via AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands) ƽSupply voltage range 3.6~4.2 V ƽLow power consumption ƽOperation temperature:-30~80ć ƽ88 LGA pads include –Interface to external SIM 3V/1.8V –Analog audio interface –RTC backup –Serial interface –USB interface –Keypad interface –LCD interface –Antenna pad –PCM –GPIO –ADC SIM800H Document - 3 - 1.3. Pin GND VBAT VBAT GPIO 1 GND GND ISINK0 USB_DP USB_ DP GND GND STATUS ISINK1 VBUS ADC RESET GND PCMIN PCM CLK GPIO 3 ROW4 ROW0 ROW1COL2 COL0 GND PWM COL4 ROW3ROW2 COL3 COL1 VRTC ANT RXD PWR KEY CTS TXDRTS SCL SDA UART _DTR BPI_ BUS1 UART _DCD UART_ RI PCM OUT PCM SYNC NETLI GHT SPK1P MIC1P MIC1N MIC2P MIC2N GND VSIM SIM_ RST SPK1NSPK2N SPK2P BT_ ANT SIM_ CLK SIM PRE SIM_ DATA VDD EXT GND 868584 GND878883 GND 80 81 82 1 2 3 4 5 6 7 8 9 10 FM_ ANT_N FM_ ANT_P USB_ DM GNDGND GND GNDGND GND GND GND 78 79 21 22 30 3142 GPIO 2 11121314151617181920 23 24 25 26 27 28 29 4039383736353433 3241 77 SIM800H Document - 4 - 1.4. Picture Figure 1: Top and Bottom view of SIM800H 1.5. Dimension Figure 2: Dimention FCC ID:2013-072401 FCC ID:UDV-2013072401 SIM800H Document - 5 - 2. Detail Block Diagram Analog base band Digital base band Power management unit Radio Frequency Power supply Analog Interface Digital Interface UART SIM GPIOs RTC Audio ADC RF BT FM USB KEY Figure 3: Block diagram of SIM800H 3. Electrical and Reliability Characteristics 3.1. Absolute Maximum Ratings The absolute maximum ratings stated in following table are stress ratings under non-operating conditions. Stresses beyond any of these limits will cause permanent damage to SIM800H. Table 1: Absolute maximum ratings SymbolParameterMinTy p MaxUnit VBAT Power supply voltage - - 4.5 V VBUS - - 30 V VBUS I I * Input current - - 8 mA I O * Output current - - 8 mA * These parameters are for digital interface pins, such as keypad, GPIO, I 2 C, UART, LCD and DEBUG. 3.2. Digital Interface Characteristics Table 2: Digital interface characteristics SIM800H Document - 6 - SymbolParameterMinTy p MaxUnit I IH High-level input current 2.1 - 3.1 V I IL Low-level input current -0.3 - 0.7 V V OH High-level input voltage 2.4 - - V V OL Low-level input voltage - - 0.4 V * These parameters are for digital interface pins, such as keypad, GPIO, I 2 C, UART, LCD, PWMs and DEBUG. 3.3. SIM Card Interface Characteristics Table 3: SIM card interface characteristics SymbolParameterMinTy p MaxUnit I IH High-level input current -1 - 1 uA I IL Low-level input current -1 - 1 uA V IH High-level input voltage 1.4 - - V 2.4 - - V V IL Low-level input voltage - - 0.27 V 0.4 V V OH High-level output voltage 1.62 - - V 2.7 - - V V OL Low-level output voltage - - 0.36 V - - 0.4 V 3.4. SIM_VDD Characteristics Table 4: SIM_VDD characteristics SymbolParameterMinTy p MaxUnit V O Output voltage 2.70 2.80 2.90 V I O Output current - - 50 mA 3.5. VRTC Characteristics Table 5: VRTC characteristics SymbolParameterMinTy p MaxUnit V RTC-IN VRTC input voltage 2.8 V I RTC-IN VRTC input current - 3 - uA V RTC-OUT VRTC output voltage - 2.8 - V SIM800H Document - 7 - I RTC-OUT VRTC output current - 2 mA 3.6. Current Consumption (VBAT = 3.8V) Table 6: Current consumption SymbolParameterConditionsValue Unit I VRTC VRTC current VBAT disconnects. Backup battery is 3 V 2 uA I VBAT VBAT current Power down mode 50 uA Sleep mode BS-PA-MFRMS=9 1.0 mA BS-PA-MFRMS=5 1.2 BS-PA-MFRMS=2 1.8 Idle mode GSM 850 19 m…
