UDV-SIM900EGSM/GPRS module

Shanghai Simcom Ltd.
GSM/GPRS module - FCC ID UDV-SIM900E - Shanghai Simcom Ltd.
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Jul 06, 2013
Application Purpose
Original Equipment
Date of Application
Jul 03, 2013
Equipment Note
GSM/GPRS module
Frequency Range
1850.20000000 - 1909.80000000
Company
Shanghai Simcom Ltd.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗
↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

SIM900E Document - 1 - User Manual 1. SIM900E Description 1.1. Summarize SIM900E designed by SIMCom is a quad-band module which supports GSM/GPRS. The baseband circuit is based on STE and RF circuit is based on RFMD. It works at quad bands------GSM 850MHz, EGSM 900MHz, DCS 1800MHz and PCS 1900MHz. CPU clock is based on 26MHz crystal. The main IC includes PNX4851, RF7176 and Flash, etc. 1.2. Feature ● Quad-band 900/1800/850/1900MHz ● GPRS multi-slot class 10/8 ● GPRS mobile station class B ● Compliant to GSM phase 2/2+ – Class 4 (2W) at GSM 850 and EGSM 900 – Class 1 (1W) at DCS 1800 and PCS 1900 ● Dimensions: 19.8*19.8*2.7mm ● Weight: 2.4 g ● Control via AT commands (GSM 07.07 ,07.05 and SIMCom enhanced AT Commands) ● Supply voltage range 3.2V ~ 4.8V ● Low power consumption ● Operation temperature: -30°C ~ +80°C ● 69 SMT pads include – Interface to external SIM 3V/1.8V – Analog audio interface – RTC backup – Serial interface – LCD interface – Antenna pad – GPIO – ADC SIM900E Document - 2 - 1.3. Pin Name and IO Characters Pin No. Pin Name I/O Pin No. Pin Name I/O 1 GND 35 VDD_EXT O 2 SPK_P O 36 PWRKEY I 3 SPK_N O 37 ADC I 4 GND 38 GPIO12 IO 5 MIC_N I 39 SDA IO 6 MIC_P I 40 SCL IO 7 GND 41 DBG_RXD I 8 NETLIGHT O 42 DBG_TXD O 9 GND 43 VRTC IO 10 SIM_CLK O 44 SIM_PRESENCE I 11 SIM_DATA IO 45 GPIO8/KBC2 IO 12 SIM_RST I 46 GPIO1/KBR4 IO 13 SIM_VDD O 47 GPIO9/KBC1 IO 14 STATUS O 48 GPIO6/KBC4 IO 15 NRESET I 49 GPIO7/KBC3 IO 16 RXD I 50 GPIO5/KBR0 IO 17 TXD O 51 GPIO4/KBR1 IO 18 GND 52 GPIO2/KBR3 IO 19 RTS I 53 GPIO3/KBR2 IO 20 CTS O 54 GPIO10 IO 21 DTR I 55 PWM2 O 22 RI O 56 PWM1 O 23 DCD O 57 DISP _CLK O 24 GPIO11 IO 58 DISP _CS O 25 GND 59 DISP_DATA O 26 GND 60 DISP _D/C IO 27 GND 61 GND 28 RF_ANT IO 62 GND 29 GND 63 GND 30 VBAT I 64 GND 31 VBAT I 65 GND 32 VBAT I 66 GND 33 GND 67 GND 34 GND 68 GND 69 GND SIM900E Document - 3 - 1.4. Pictures Figure 1: Top view of SIM900E Figure 2: Bottom view of SIM900E SIM900E Document - 4 - 1.5. Dimension Figure 3: Dimention SIM900E Document - 5 - 2. Detail Block Diagram Figure 4: Block diagram of SIM900E 3. Electrical and Reliability Characteristics 3.1. Absolute Maximum Ratings The absolute maximum ratings stated in following table are stress ratings under non-operating conditions. Stresses beyond any of these limits will cause permanent damage to SIM900E . Table 1: Absolute maximum ratings Symbol Parameter Min Ty p Max Unit VBAT Power supply voltage - - 5.5 V V I * Input voltage -0.3 - 3.1 V I I * Input current - - 10 mA I O * Output current - - 10 mA * These parameters are for digital interface pins, such as keypad, GPIO, I 2 C, UART, LCD and DEBUG. SIM900E Document - 6 - 3.2. Digital Interface Characteristics Table 2: Digital interface characteristics Symbol Parameter Min Ty p Max Unit I IH High-level input current -10 - 10 uA I IL Low-level input current -10 - 10 uA V IH High-level input voltage 2.4 - - V V IL Low-level input voltage - - 0.4 V V OH High-level output voltage 2.7 - - V V OL Low-level output voltage - - 0.1 V * These parameters are for digital interface pins, such as keypad, GPIO, I 2 C, UART, LCDand DEBUG. 3.3. SIM Card Interface Characteristics Table 3: SIM card interface characteristics Symbol Parameter Min Ty p Max Unit I IH High-level input current -10 - 10 uA I IL Low-level input current -10 - 10 uA V IH High-level input voltage 1.4 - - V 2.4 - - V V IL Low-level input voltage - - 0.4 V 2.4 V V OH High-level output voltage 1.7 - - V 2.7 - - V V OL Low-level output voltage - - 0.1 V - - 0.1 V 3.4. SIM_VDD Characteristics Table 4: SIM_VDD characteristics Symbol Parameter Min Ty p Max Unit V O Output voltage 2.75 2.9 3.00 V 1.65 1.80 1.95 I O Output current - - 10 mA SIM900E Document - 7 - 3.5. VRTC Characteristics Table 5: VRTC characteristics Symbol Parameter Min Ty p Max Unit V RTC-IN VRTC input voltage 2.00 3.00 3.15 V I RTC-IN VRTC input current - 2 - uA V RTC-OUT VRTC output voltage - 3.00 - V I RTC-OUT VRTC output current - 10 - uA 3.6. Current Consumption (VBAT = 3.8V) Table 6: Current consumption Symbol Parameter Conditions Va l u e Unit I VRTC VRTC current VBAT disconnects. Backup battery is 3 V 2 uA I VBAT VBAT current Power down mode 30 uA Sleep mode BS-PA-MFRMS=9 1.0 mA BS-PA-MFRMS=5 1.2 BS-PA-MFRMS=2 1.5 Idle mode GSM 850 22 mA EGSM 900 DCS 1800 PCS 1900 Voice call GSM 850 EGSM 900 PCL=5 240 mA PCL=12 108 PCL=19 81 DCS 1800 PCS 1900 PCL=0 176 PCL=7 94 PCL=15 76 Data mode GPRS(1Rx,1Tx) GSM 850 EGSM 900 PCL=5 240 mA PCL=12 110 PCL=19 83 DCS 1800 PCS 1900 PCL=0 170 mA PCL=7 95 PCL=15 80 Data mode GPRS(4Rx,1Tx) GSM 850 EGSM 900 PCL=5 223 mA PCL=12 150 PCL=19 120 SIM900E Document - 8 - DCS 1800 PCS 1900 PCL=0 166 mA PCL=7 130 PCL=15 115 Data mode GPRS(3Rx,2Tx) GSM 850 EGSM 900 PCL=5 410 mA PCL=12 185 PCL=19 130 DCS 1800 PCS 1900 PCL=0 300 mA PCL=7 155 PCL=15 122 I VBAT-peak Peak current During Tx burst 2 A 3.7. Electro-Static Discharge SIM900E is an ESD sensitive component, so more attention should be paid to the procedure of handling and packaging. The ESD test results are shown in the following table. Table 7: The ESD characteristics (Temperature: 25°C, Humidity: 45 %) Pin Contact discharge Air discharge VBAT ±5KV ±10KV GND ±4KV ±10KV RXD, TXD ±3KV ±6KV Antenna port ±5KV ±10KV SPK_P/ SPK_N MIC_P/ MIC_N ±2KV ±6KV PWRKEY ±1KV ±6KV 3.8. Recommended Operating Conditions Table 8: Recommended operating conditions Symbol Parameter Min Ty p Max Unit VBAT Power supply voltage 3.6 4.0 4.2 V T OPER Operating temperature -40 +25 +85 °C T STG Storage temperature -45 +90 °C SIM900E Document - 9 - 4. Radio Characteristics 4.1. Module RF Output Power The following table shows the module conducted output power, it is followed by the 3GPP TS 05.05 technical specification requirement. Table 9: SIM900E GSM850 and EGSM900 conducted RF output power GSM850 and EGSM900 PCL Nominal output power (dBm) Tolerance (dB) for conditions Normal Extreme 5 33 ±3 ±4 6 31 ±3 ±4 7 29 ±3 ±4 8 27 ±3 ±4 9 25 ±3 ±4 10 23 ±3 ±4 11 21 ±3 ±4 12 19 ±3 ±4 13 17 ±3 ±4 14…

Text truncated - open the document above for the full version.

Cover Letter(s)

Modular Approval Checklist FCC ID: UDV-SIM900E Item Requirements EUT 1 The radio elements must have the radio frequency circuitry shielded Module RADIO elements are shielded. Please see submitted external photograph exhibits 2 The module must have buffered modulation/data inputs Module chipset design incorporates integrated buffer circuitry 3 The module must contain power supply regulation on the module Module chipset incorporates voltage regulation to transceiver circuitry 4 The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s) No applicable to licensed modules 5 The module must demonstrate compliance in a stand-alone configuration EUT conformance testing was performed in a standalone configuration 6 The licensed module must have a FCC ID label on the module itself. That FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily removed. If not, a second label must be placed on the outside of the final device that contains the following text: Contains “FCC ID: UDV-SIM900E” Please refer to FCC ID label format. Labeling instruction has been provided in the user manual exhibit(s). 7 The module must comply with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions to explain compliance requirements The Module is compliant with all applicable FCC rules. Compliance requirements are stated in the user manual exhibit(s). 8 The module must comply with RF exposure requirements Compliance with RF exposure requirements is addressed in RF exposure report

External Photos

SIM900E Accessories Photos

External Photos

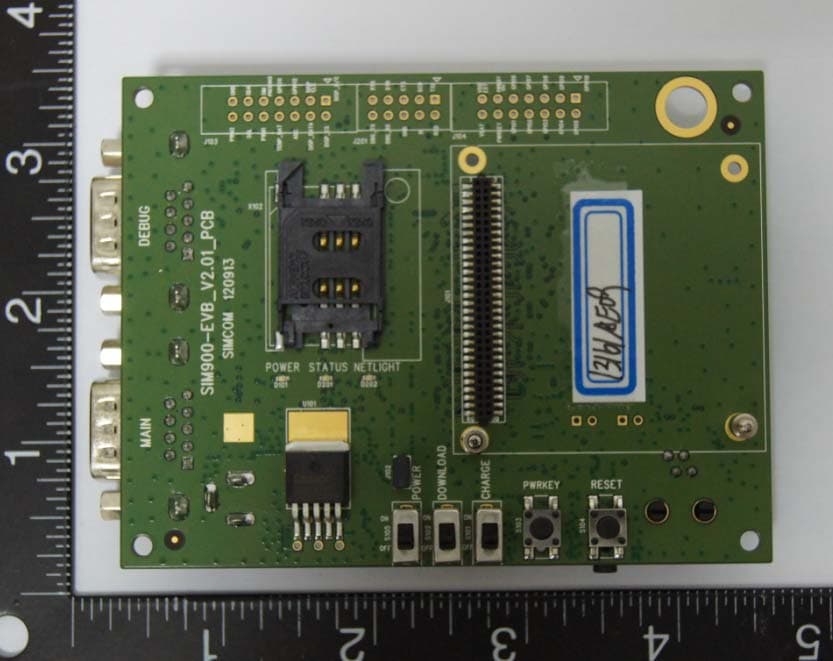

SIM900E_External Photos The Final Photo of SIM900E is like Pic1 and Pic2 of the document. The actual test sample provided by applicant is like Pic3 and Pic4 of the document, applicant fixed SIM900E onto the PCB to assure lab perform testing. Pic1 Pic2 Pic3 Pic4

ID Label/Location Info

SIM900E Label & Location

Internal Photos

SIM900E Internal Photos

RF Exposure Info

Report No. 2013SAR185 Page 2 of 13 V3.0 Applicable Standard FCC RULES 47 CFR2.1091: Radiofrequency radiation exposure evaluation: mobile device OET65C-97-01: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Test Results Pass Report No. 2013SAR185 Page 3 of 13 V3.0 Change History Version Change Contents Author Date V1.0 First edition Yin xiaoming 2013-06-03 V2.0 Page10, add detailed calculation for MPE. Yin xiaoming 2013-06-27 V3.0 Page10, update antenna gain for evaluation. Yin xiaoming 2013-07-04 Report No. 2013SAR185 Page 4 of 13 V3.0 CONTENTS: CHANGE HISTORY............................................................................................................. 3 1. TEST LABORATORY ...................................................................................................... 5 1.1 TESTING LOCATION: ................................................................................................................. 5 1.2 LABORATORY ENVIRONMENT .................................................................................................... 5 1.3 TESTING DATE .......................................................................................................................... 5 2. CLIENT INFORMATION .................................................................................................. 6 2.1 APPLICANT INFORMATION ......................................................................................................... 6 2.2 MANUFACTURER INFORMATION................................................................................................. 6 3.EQUIPMENT UNDER TEST (EUT) AND ACCESSORY EQUIPMENT (AE) ............... 7 3.1 INFORMATION OF EUT .............................................................................................................. 7 4. REFERENCE DOCUMENTS ....................................................................................... 8 4.1 REFERENCE DOCUMENTS FOR TESTING ............................................................... 8 4.2 RF EXPOSURE LIMIT ................................................................................................... 8 5. FRIIS FORMULA ......................................................................................................... 9 6. CLASSIFICATION ........................................................................................................ 9 7. TEST RESULTS ......................................................................................................... 10 ANNEX A: EUT PHOTOGRAPH....................................................................................... 11 ANNEX B: TEST INSTRUMENTS .................................................................................... 13 ANNEX C: MEASUREMENT UNCERTAINTY ................................................................. 13 Report No. 2013SAR185 Page 5 of 13 V3.0 1. Test Laboratory 1.1 Testing Location: Company: Shanghai Tejet Communications Technology Co., Ltd Testing Center. Address: Room 6205-6208, Building 6, No.399 Cailun Rd. Zhangjiang Hi-Tech Park, Shanghai, China Post Code : 210203 Tel: +86-21-61650880 Fax: +86-21-61650881 Website: www.tejet.cn 1.2 Laboratory Environment Temperature 20°C~ 25 °C Relative humidity 20%~70% 1.3 Testing date Test Date: 2012-05-27 Report No. 2013SAR185 Page 6 of 13 V3.0 2. Client Information 2.1 Applicant information Company Name: Shanghai Simcom Ltd. Address: Building A, SIM Technology Building,No.633 Jinzhong Road, Changning District,Shanghai Contact : xing chen Email: xing chen @sim.com Tel: 021-32523300 Fax: 021-32523020 2.2 Manufacturer Information Company Name: Shanghai Simcom Ltd. Address: Building A, SIM Technology Building,No.633 Jinzhong Road, Changning District,Shanghai Contact : xing chen Email: xing chen @sim.com Tel: 021-32523300 Fax: 021-32523020 Report No. 2013SAR185 Page 7 of 13 V3.0 3.Equipment Under Test (EUT) and Accessory Equipment (AE) 3.1 Information of EUT Device type Initial model Product name GSM/GPRS module Device operation configuration: IMEI or S/N 860718020000705 Operating mode(s): GSM850 GSM1900 Test modulation (GSM)GMSK Rated output power GSM 850:33dBm GSM1900: 30dBm Operating frequency range(s): Band Tx(MHz) GSM850 824.2~848.8 GSM1900 1850.2~1909.8 Power class GSM850: 4,test with power level 5 GSM1900: 1,test with power level 0 Report No. 2013SAR185 Page 8 of 13 V3.0 4. Reference Documents 4.1 Reference Documents for testing The following documents listed in this section are referred for testing. Reference Title Version OET65C Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields 1997-01 4.2 RF Exposure Limit According to OET65C: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation 。 The maximum permissible exposure for GSM850/1900 is. BAND The maximum permissible exposure GSM850 0.55 W/ m 2 GSM1900 1 W/ m 2 Report No. 2013SAR185 Page 9 of 13 V3.0 5. Friis Formula Friis transmission formula : Pd = (Pout*G) *DutyFactor / (4*Pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE. If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Of GSM Duty Factor=1:8.3. 6. Classification The product under normal use condition is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No. 2013SAR185 Page 10 of 13 V3.0 7. Test Results 7.1 Output Power Into Antenna & RF Exposure value at distance 20cm For maximum EIRP, GSM850=38dBm, GSM1900=33dBm Maximum Antenna Gain, GSM850=38 -33.5 =4.5 dBi GSM1900=33-30.5=2.5 dBi So ,the connected antenna gain should be l…

Text truncated - open the document above for the full version.

Test Report

Report No.: RXA1305-0050RF01R2 Page 1of 36 TESTING No. L2264 Part 22 TEST REPORT Product Name GSM/GPRS module Model Name SIM900E Marketing Name SIM900E FCC ID UDV-SIM900E Client Shanghai Simcom Ltd Manufacturer Shanghai Simcom Ltd Date of issue July 1, 2013 TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1305-0050RF01R2 Page 2of 36 GENERAL SUMMARY Reference Standard(s) FCC CFR47 Part 2 (2012) Frequency Allocations And Radio Treaty Matters; General Rules And Regulations FCC CFR 47 Part 22H (2012) Public Mobile Services(850MHz) ANSI/TIA-603-C(2004) Land mobile FM or PM Communications Equipment Measurements and Performance Standards. Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 2 of this test report are below limits specified in the relevant standards. General Judgment: Pass Comment The test result only responds to the measured sample. Approved by Director Revised by RF Manager Performed by RF Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1305-0050RF01R2 Page 3of 36 TABLE OF CONTENT 1. General Information .................................................................................................................. 4 1.1. Notes of the test report ...................................................................................................... 4 1.2. Testing laboratory .............................................................................................................. 5 1.3. Applicant Information ......................................................................................................... 5 1.4. Manufacturer Information ................................................................................................... 5 1.5. Information of EUT ............................................................................................................. 6 1.6. Test Date ........................................................................................................................... 7 2. Test Information ........................................................................................................................ 8 2.1. Summary of test results ..................................................................................................... 8 2.2. RF Power Output ............................................................................................................... 9 2.3. Effective Radiated Power ................................................................................................. 11 2.4. Occupied Bandwidth ........................................................................................................ 13 2.5. Band Edge Compliance ................................................................................................... 18 2.6. Frequency Stability .......................................................................................................... 22 2.7. Spurious Emissions at Antenna Terminals ...................................................................... 25 2.8. Radiates Spurious Emission ............................................................................................ 29 3. Main Test Instruments ............................................................................................................. 34 ANNEX A: EUT Appearance and Test Setup .................................................................................. 35 A.1 EUT Appearance ............................................................................................................. 35 A.2 Test Setup ........................................................................................................................ 36 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1305-0050RF01R2 Page 4of 36 1. General Information 1.1. Notes of the test report TA Technology (Shanghai) Co., Ltd. has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L2264. TA Technology (Shanghai) Co., Ltd. has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 428261. TA Technology (Shanghai) Co., Ltd. has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 8510A. TA Technology (Shanghai) Co., Ltd. guarantees the reliability of the data presented in this test report, which is the results of measurements and tests performed for the items under test on the date and under the conditions stated in this test report and is based on the knowledge and technical facilities available at TA Technology (Shanghai) Co., Ltd. at the time of execution of the test. TA Technology (Shanghai) Co., Ltd. is liable to the client for the maintenance by its personnel of the confidentiality of all information related to the items under test and the results of the test. This report only refers to the item that has undergone the test. This report standalone dose not constitute or imply by its own an approval of the product by the certification Bodies or competent Authorities. This report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of TA Technology (Shanghai) Co., Ltd. and the Accreditation Bodies, if it applies. If the electrical report is inconsistent with the printed one, it should be subject to the latter. TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1305-0050RF01R2 Page 5of 36 1.2. Testing laboratory Company: TA Technology (Shanghai) Co., Ltd. Address: No.145, Jintang Rd, Tangzhen Industry Park, Pudong City: Shanghai Post code: 201201 Country: P. R. China Contact: Yang Weizhong Telephone: +86-021-50791141/2/3 Fax: +86-021-50791141/2/3-8000 Website:…

Text truncated - open the document above for the full version.

Test Report

Report No.: RXA1305-0050RF02R2 Page 1of 39 TESTING No. L2264 Part 24 TEST REPORT Product Name GSM/GPRS module Model Name SIM900E Marketing Name SIM900E FCC ID UDV-SIM900E Client Shanghai Simcom Ltd Manufacturer Shanghai Simcom Ltd Date of issue July 1 , 2013 TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Registration Num:428261 Report No.: RXA1305-0050RF02R2 Page 2of 39 GENERAL SUMMARY Reference Standard(s) FCC CFR47 Part 2 (2012) Frequency Allocations And Radio Treaty Matters; General Rules And Regulations FCC CFR47 Part 24E (2012) Personal Communications Services ANSI/TIA-603-C(2004) Land mobile FM or PM Communications Equipment Measurements and Performance Standards. Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 2 of this test report are below limits specified in the relevant standards. General Judgment: Pass Comment The test result only responds to the measured sample. Approved by Director Revised by RF Manager Performed by RF Engineer TA Technology (Shanghai) Co., Ltd. Test Report Registration Num:428261 Report No.: RXA1305-0050RF02R2 Page 3of 39 TABLE OF CONTENT 1. General Information ..................................................................................................................... 4 1.1. Notes of the test report ......................................................................................................... 4 1.2. Testing laboratory ................................................................................................................. 5 1.3. Applicant Information ............................................................................................................ 5 1.4. Manufacturer Information ...................................................................................................... 5 1.5. Information of EUT ................................................................................................................ 6 1.6. Test Date .............................................................................................................................. 7 2. Test Information ........................................................................................................................... 8 2.1. Summary of test results ........................................................................................................ 8 2.2. RF Power Output .................................................................................................................. 9 2.3. Effective Isotropic Radiated Power ..................................................................................... 11 2.4. Occupied Bandwidth ........................................................................................................... 13 2.5. Band Edge Compliance ...................................................................................................... 18 2.6. Frequency Stability ............................................................................................................. 22 2.7. Spurious Emissions at Antenna Terminals ......................................................................... 25 2.8 Radiates Spurious Emission ............................................................................................... 32 3. Main Test Instruments ................................................................................................................ 37 ANNEX A: EUT Appearance and Test Setup ..................................................................................... 38 A.1 EUT Appearance ................................................................................................................ 38 A.2 Test Setup ........................................................................................................................... 39 TA Technology (Shanghai) Co., Ltd. Test Report Registration Num:428261 Report No.: RXA1305-0050RF02R2 Page 4of 39 1. General Information 1.1. Notes of the test report TA Technology (Shanghai) Co., Ltd. has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS), and accreditation number: L2264. TA Technology (Shanghai) Co., Ltd. has been listed on the US Federal Communications Commission list of test facilities recognized to perform electromagnetic emissions measurements. The site recognition number is 428261. TA Technology (Shanghai) Co., Ltd. has been listed by industry Canada to perform electromagnetic emission measurement. The site recognition number is 8510A. TA Technology (Shanghai) Co., Ltd. guarantees the reliability of the data presented in this test report, which is the results of measurements and tests performed for the items under test on the date and under the conditions stated in this test report and is based on the knowledge and technical facilities available at TA Technology (Shanghai) Co., Ltd. at the time of execution of the test. TA Technology (Shanghai) Co., Ltd. is liable to the client for the maintenance by its personnel of the confidentiality of all information related to the items under test and the results of the test. This report only refers to the item that has undergone the test. This report standalone dose not constitute or imply by its own an approval of the product by the certification Bodies or competent Authorities. This report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of TA Technology (Shanghai) Co., Ltd. and the Accreditation Bodies, if it applies. If the electrical report is inconsistent with the printed one, it should be subject to the latter. TA Technology (Shanghai) Co., Ltd. Test Report Registration Num:428261 Report No.: RXA1305-0050RF02R2 Page 5of 39 1.2. Testing laboratory Company: TA Technology (Shanghai) Co., Ltd. Address: No.145, Jintang Rd, Tangzhen Industry Park, Pud…

Text truncated - open the document above for the full version.

Test Setup Photos

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1305-0050RF01 Page 35of 36 ANNEX A: EUT Appearance and Test Setup A.1 EUT Appearance a: EUT Picture 1 EUT and Auxiliary TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1305-0050RF01 Page 36of 36 A.2 Test Setup Picture 2: Radiated Spurious Emissions Test setup

Test Setup Photos

TA Technology (Shanghai) Co., Ltd. Test Report Registration Num:428261 Report No.: RXA1305-0050RF02 Page 38of 39 ANNEX A: EUT Appearance and Test Setup A.1 EUT Appearance a: EUT Picture 1 EUT and Auxiliary TA Technology (Shanghai) Co., Ltd. Test Report Registration Num:428261 Report No.: RXA1305-0050RF02 Page 39of 39 A.2 Test Setup Picture 2: Radiated Spurious Emissions Test setup

Contact Information

Applicant

yongsheng Li(Deputy General Manager)
[email protected]+86 21 32523134Fax: +86-21-32533020

Technical Contact

Shanghai Tejet Communications Technology Co., Ltd.Xiang Meixiu
[email protected]+86-21-61650880

Room 6205-6208, Building 6, No.399 Cailun Rd. · Shanghai · China

Test Firm

TA Technology (Shanghai) Co., Ltd.Zhihui Liu
[email protected]86-21-50791141Fax: 86-21-50791141

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
224E1.85 GHz - 1.91 GHz912.00 mW300KGXW0.1 ppm
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Single Modular Approval. Power out is conducted at the antenna terminal. ERP for part 22 is 32.87 dBm and EIRP for part 24 is 27.23 dBm. This device is to be used only for mobile and fixed application. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. OEM integrators must insure that the end user has no manual instructions to remove or install the SIM900E module. For mobile and fixed operating configurations the antenna gain, including cable loss, must not exceed 2.5 dBi at 1900 MHz and 4.5 dBi at 850 MHz as defined in 2.1091 for satisfying RF exposure compliance. Under no condition may an antenna gain be used that would exceed the 7W erp Part 22 and the 2W eirp Part 24 power limits. The Grantee is responsible for providing the documentation required for modular use.
