UF8N4600PORTABLE NAVIGATION WITH BLUETOOTH AND FM TX

#337-17, Wonchun-Dong, Yoengtong-gu, Suwon-city, Kyunggi-do, Korea January 25, 2008 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA ATTESTATION LETTER for FCC P2.925(d) To whom it may concern: The internal battery pack will be supplied to end user without installing in the device. Therefore end user can see FCC ID label when installing the battery pack in the device. Sincerely, Han-Gyoon, Kim Chief Engineer

#337-17, Wonchun-Dong, Yoengtong-gu, Suwon-city, Kyunggi-do, Korea January 02, 2008 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize Harvey Sung of Digital EMC Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID:UF8N4600 including signing of all documents relating to these matters. Any and all acts carried out by Harvey Sung of DIGITAL EMC Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Elentec Co., Ltd. Sincerely, Han-Gyoon, Kim Chief Engineer

#337-17, Wonchun-Dong, Yoengtong-gu, Suwon-city, Kyunggi-do, Korea January 02, 2008 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA In re: Elentec Co., Ltd. FCC ID: UF8N4600 Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, Elentec Co., Ltd. hereby requests confidentiality of the Block diagram(Block Diagram_UF8N4600.pdf), Schematics(Schematic_ UF8N4600.pdf), Parts list(Part List_ UF8N4600.pdf) and Operational description(Operational Description_ UF8N4600.pdf). These documents contain detailed system and equipment description and related information about the product which Elentec Co., Ltd. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Elentec Co., Ltd. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Han-Gyoon, Kim Chief Engineer

#337-17, Wonchun-Dong, Yoengtong-gu, Suwon-city, Kyunggi-do, Korea January 02, 2008 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA In re: Elentec Co., Ltd. FCC ID: UF8N4600 Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.457 and 0.459 of CFR 47, Elentec Co., Ltd. requests short-term confidentiality of following sections of this application for a period of 45 days after grant is issued. Test setup photos(Test Photo_ UF8N4600.pdf) External photos(Ext Photo__ UF8N4600.pdf) Internal photos(Int Photo_ _ UF8N4600.pdf)) User’s manual(User Manual__ UF8N4600.pdf)) These documents contain detailed system and equipment descriptions and related information about the product, which Elentec Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Elentec Co., Ltd. feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Han-Gyoon, Kim Chief Engineer

1. How does the device Operate? This device is operated from 88.1MHz to 107.9MHz for FM transm itting. It transmits the audio signal from an audio on the SD memory card. 2. Provide information on the device and its antenna. This device should use Cigar Jack by antenna. Any other ant ennas can not be attached to this device. 3. How is it installed? Power of this device is supplied from battery and cigar jack. Turn on the device. And after select FM transmitter . Adjust frequency with buttons on the touch screen. Set the enable button. Then this device transmits the audio signal. ( In the condition of the FM TX mode s p eaker and ear phone audio out are disabled.) 4. What test procedure was used? The power line conducted emission test was not performed bec ause this device is only powered by battery or cigar jack. The field strength of emissions was measured in accordance w ith FCC Part §15.239 and ANSI C The EUT was placed on a 0.8m high wooden table inside a shielded semi-anechoic chamber. An antenna was placed at 3m distance from EUT. 5. If tested in a car, how was it configured? The test was not performed in a car. The tests were performe d in a semi-anechoic chamber. 6. Was the tuning range properly verified? The test lab should indicate in the report that the tuning controls were manually adjusted to verify the maximum tuning range. The of this device mentions that the operating frequenc 88.1 ~ 107.9MHz. This operating frequencies were verified manually before the tests using frequency selecting button of the menu screen. 7. Was the bandwidth properly tested with the maximum audio inp ut? The test lab should describe the audio input signal (use a typical audio file fro m a typical device) - DO NOT use 1kHz tone from signal generator as specified under ETSI EN 30 1 357-1) The input audio signal was delivered internally from N4600. A nd the input audio signal level was maximum volume level of the N4600. A mp3(Rock Song) file was used for test. 8. Does the device operate in a vehicle? Please state that this was verified. Yes, this device is used in a car. This device can be powered by cigar jack and operated in a ve hicle.

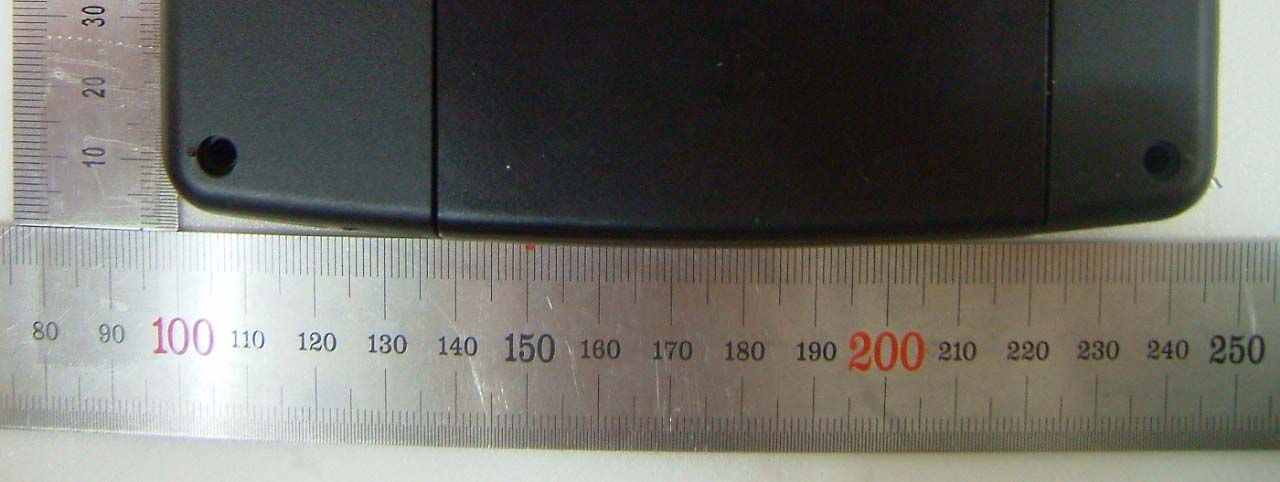

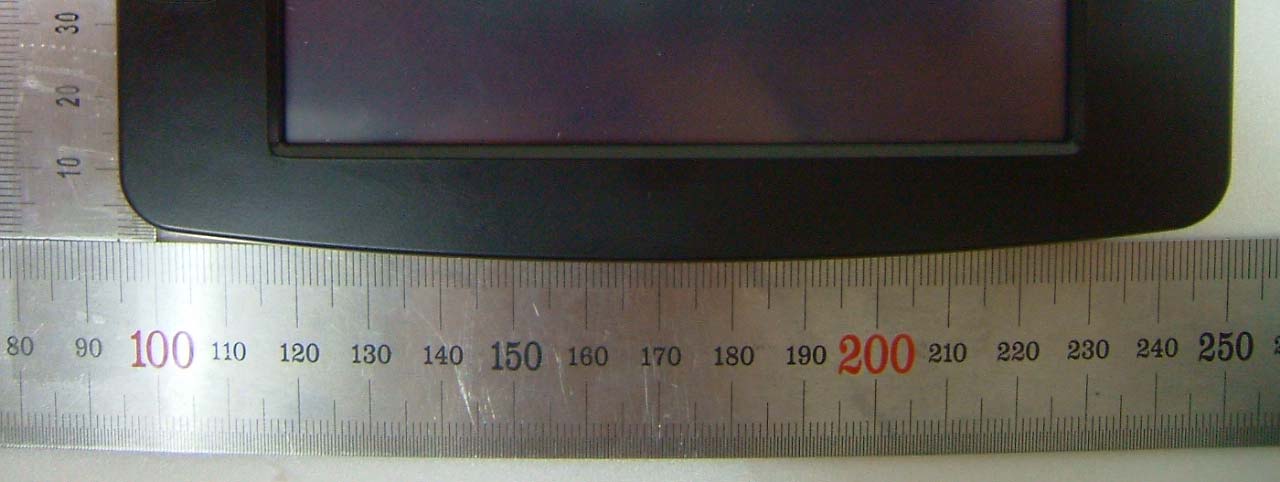

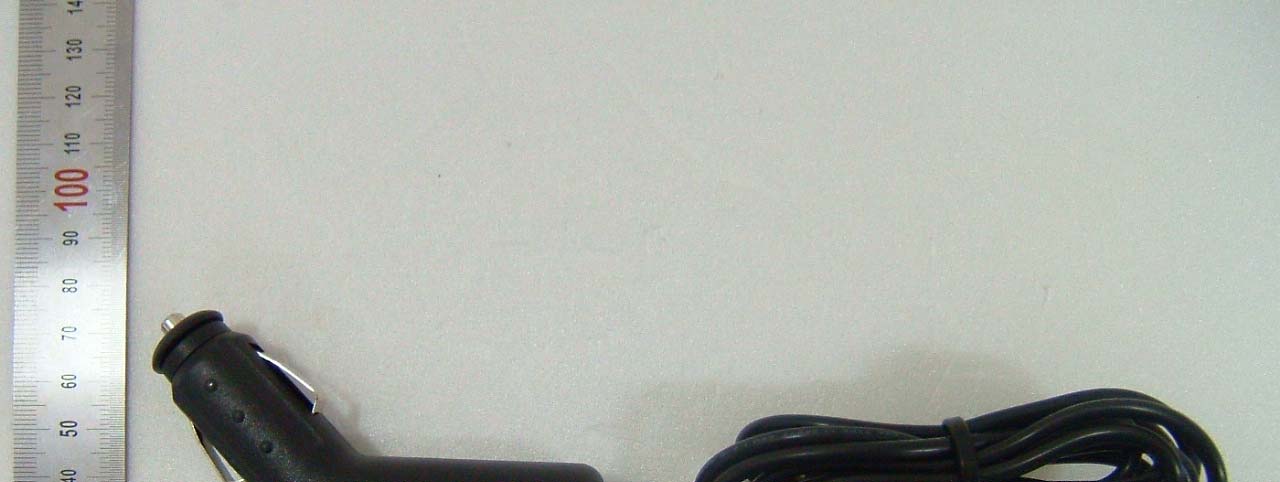

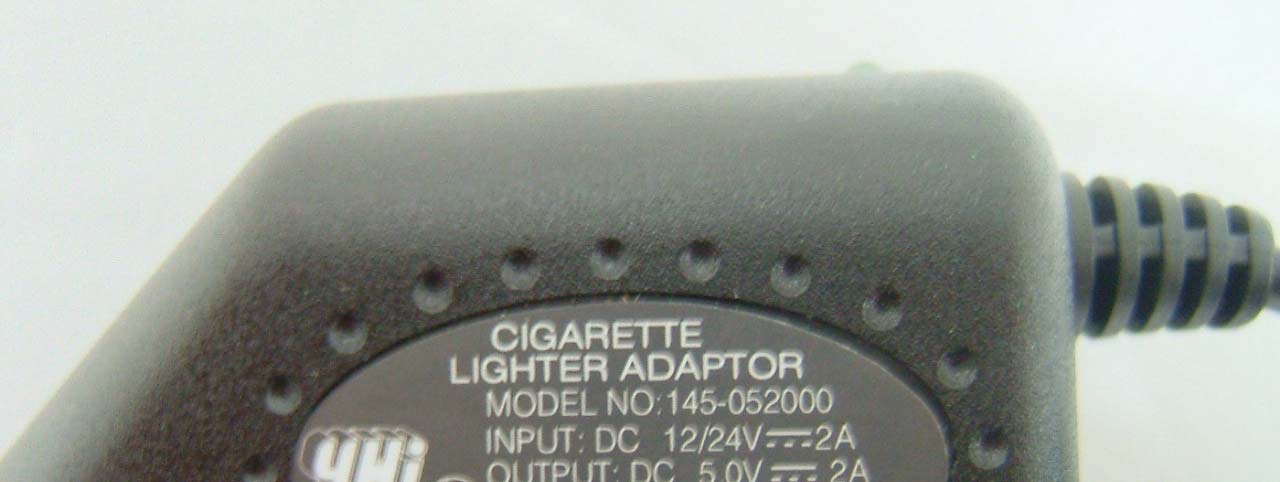

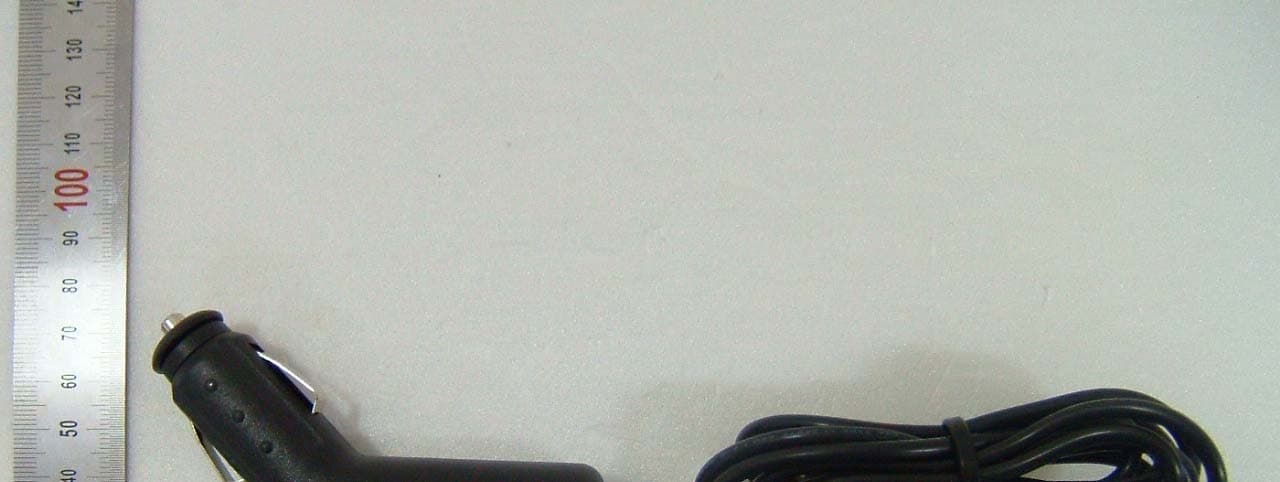

FCCID: UF8N4600 Copyright Ⓒ 2008, DIGITAL EMC Co., Ltd. View 1 FCCID: UF8N4600 Copyright Ⓒ 2008, DIGITAL EMC Co., Ltd. View 2 FCCID: UF8N4600 Copyright Ⓒ 2008, DIGITAL EMC Co., Ltd. View 3 FCCID: UF8N4600 Copyright Ⓒ 2008, DIGITAL EMC Co., Ltd. View 4

FCC ID: UF8N4600 FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase

FCC ID: UF8N4600 Copyright Ⓒ 2008, DIGITAL EMC Co., Ltd. View 1 FCC ID: UF8N4600 Copyright Ⓒ 2008, DIGITAL EMC Co., Ltd. View 2 FCC ID: UF8N4600 Copyright Ⓒ 2008, DIGITAL EMC Co., Ltd. View 3 FCC ID: UF8N4600 Copyright Ⓒ 2008, DIGITAL EMC Co., Ltd. View 4 FCC ID: UF8N4600 Copyright Ⓒ 2008, DIGITAL EMC Co., Ltd. View 5 FCC ID: UF8N4600 Copyright Ⓒ 2008, DIGITAL EMC Co., Ltd. View 6 FCC ID: UF8N4600 Copyright Ⓒ 2008, DIGITAL EMC Co., Ltd. View 7

AMOTECH MULTILAYER CHIP ANTENNA 1. Introduction Bluetooth chip antenna is a component which should be used with matching circuit composed of L or C. This means that you have to match the antenna with your main board to get the best performance. When you get a matching process with L or C, center frequency would be getting down to 2.45 GHz. We offer several models which have different size and center frequency, therefore you can choose the most proper one according to your board condition. Part No. Fc (GHz) Gain (max. dBi) Size (mm) Application ALA321C2 2.7 ALA321C3 3.1 ALA321C4 3.5 0 3.2x1.6x1 Bluetooth handset ALA621C2 2.71 ALA621C3 3.05 ALA621C4 3.32 0 6x2x1 Bluetooth handset, Bluetooth device ALA931C2 2.89 ALA931C3 3.27 ALA931C4 3.50 ALA931C5 3.69 2 9x3x1 Bluetooth handset, Bluetooth device ALA131C1 2.70 ALA131C2 3.09 ALA131C3 3.51 2.2 11x3x1 Bluetooth device, DMB device * This frequency must be adjusted to 2.45GHz with matching circuit. AMOTECH MULTILAYER CHIP ANTENNA Antenna 321 series Front view 321 3.2±0.2 1.6±0.2 Side view Side 0.4±0.2 1.2±0.2 Antenna 621 series Front view 6.0±0.3 2.0±0.2 621 Side view 0.6±0.2 Side 1.2±0.2 Antenna 931 series Front view 9.0±0.3 3.0±0.2 931 Side view 0.7±0.2 Side 1.2±0.2 Antenna 131 series Front view 11.0±0.3 3.0±0.2 131 Side view 1.2±0.2 0.8±0.2 Side Fig. 1 Antenna dimension (Unit: mm) AMOTECH MULTILAYER CHIP ANTENNA 2. Recommended position & environment 1) Antenna direction Dummy side should be directed to the outside of PCB. Rounding PCB BT MOD BT MOD BT MOD BT MOD BT MOD BT MOD B C DE sharp angle PCB Dummy side Pad Position 1 Position 2 Fig. 2 Antenna position & dummy side - Position 1 is better than Position 2, if both have the same ‘no ground’ size 2) Environment Chip antenna should be placed far from conducting materials like, Battery, EMI shielding materials, Folder speaker, Metal case, etc. BatteryBatteryBattery GoodGoodBad = folder speaker Fig. 3 Recommended Antenna position AMOTECH MULTILAYER CHIP ANTENNA 3) No ground(clearance) size & antenna pad The larger ‘no ground area’, the better performance, you should place antenna at least 1mm far from the ground area. 321 series 621 series 100 45 931 series Unit : mm/10 : GND : No-ground : antenna land pad : via : via radius=(0.1~0.5 pi)mm, via spacing = 3*(via radius)mm Fig. 4 Required No-ground area & antenna pad dimension AMOTECH MULTILAYER CHIP ANTENNA 4) Required ‘no ground size’ P/N Antenna size (mm) No ground size(min.) (mm) ALA321C series 3.2 x 1.6 6 x 4 ALA621C series 6 x 2 10 x 4.5 ALA931C series 9 x 3 13.2 x 6 3. Matching circuit & component Chip antenna should be matched with PCB. Normally this process can be done with capacitor or inductor as follows, Component Description Value Series C 0.5 ∼ 10 pF Capacitor Through C 33, 100 pF Series L 1.0 ∼ 6nH Inductor Shunt L 1.0 ∼ 6nH * Series : Connected between antenna and feeding line in series Shunt : Connected between antenna and feeding line in parallel L – type T - type π- type Fig. 5 Matching circuit & component AMOTECH MULTILAYER CHIP ANTENNA 4. Measurement system Test Result Value Measurement(matching) S11 (HP8753ES network Analyzer) dB Measurement(radiation pattern) S21 (HP8753ES network Analyzer) dBi Radiation Test Condition Parameter Condition Unit Chamber size 8*4*4 m Temperature 21.5 °C Humidity 55 % Absorption rate -50dB under (over 2,000MHz) dB System software Midas (Orbit/FR) Version 3.6 5. Matching process Check S11 & Radiation Gain Choose the proper chip antenna for your product Matching with the value of L, C and stub length Test sensitivity of sound or data Yes No Yes No End in assmbled full devices Fig. 6 Matching process diagram AMOTECH MULTILAYER CHIP ANTENNA 6. Matching process example 1) Test PCB Reference Test Board 20 40 10 ANTENNA SMA(F) TOP VIA GND NO GND BOTTOM 2) Impedance matching value summary Matching component value 2) Model 0 f[GHz] 1) series shunt 931C5 3.88GHz 2.2nH 2.2nH 931C4 3.63GHz 1.8nH 1.8nH 931C3 3.24GHz 1.2nH 1.8nH 621C4 3.35GHz 2.2nH 1.8nH 621C3 3.18GHz - 2.2nH 321C4 3.65GHz 3.3nH 1.2nH 321C3 3.05GHz 2.7nH 1.2nH 321C2 2.81GHz 1.8nH 1.8nH 1) 0 f : Initial frequency of antenna before matching process 2) These components are needed to get an impedance matching at 2.45 GHz But the value could be different according to the board condition . AMOTECH MULTILAYER CHIP ANTENNA 2) Impedance adjustment process (Example : 931C3) Series L Shunt L 1) Violet line : initial impedance curve 2) Series L direction - Impedance follows this curve with series L 3) Shunt L direction - Impedance follows this curve with shunt L [Step 1 : 931C3 ideal matching process on Smith Chart] L1=1.2nH Antenna A M A N P 3 [Step 2 : Lumped series L= 1.2nH] L1=1.2nH Antenna A M A N P 3 L2=1.8nH [Step 3 : Lumped shunt L = 1.8nH] AMOTECH MULTILAYER CHIP ANTENNA 931size phone 적용 layout 참고 자료 a, b : SMD 공정상의 최소 이격 거리를 지키면 됨 c : 최소 1mm 이상이여야 하며 1mm이하 부터 주파수 대역폭이 가 파르게 좁아짐 d: 오른쪽 면이 open된 구조 일 경우 1mm 이하도 가능 open 되어 있지 않고 GND가 있을 경우 1.5mm 이상 필요함 stub: stub는 최 외각에 위치 시킴 길이는 1~3mm(허용 범위내) 폭 은 1mm~2mm 사이 적용 1) T type & bottom feed 1 45 a stub b c d 100 feed 2) T type & bottom feed 2 100 45 a stub b c d feed AMOTECH MULTILAYER CHIP ANTENNA 3) side feed 1 100 45 stub b c d a feed 4) side feed 2 100 stub b c d a feed 45

DEMC#DR50110801M FCC ID: UF8N4600 Copyright ○ c 2008, DIGITAL EMC Co., Ltd. Page 1 of 16 DIGITAL EMC CO., LTD. 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATION OF COMPLIANCE Elentec Co., Ltd. #337-17 Wonchun-Dong, Yoengtong-gu Suwon-city kyunggi-do Korea Dates of Tests: December 21 2007 ~ January 03, 2008 Test Report S/N: DR50110801M Test Site : DIGITAL EMC CO., LTD. FCC ID APPLICANT FCC Classification : Low Power Communication Device Transmitter Device name : Portable Navigation Bluetooth System with FM Transmitter Manufacturer : Elentec Co., Ltd. Model (Brand name) : N4600 (BlueNavi) Add Model (Brand name) COOLNAVI430 Premium (COOLNAVI) TG-430E (NAVIBANK), AUF N4600 (DAUF) Test Device Serial number : Identical prototype FCC Rule Part(s) : FCC Part 15 Subpart C ANSI C-63.4-2003 Frequency Range : 88.1 ~ 107.9 MHz Data of issue : January 14, 2008 I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. UF8N4600 Elentec Co., Ltd. DEMC#DR50110801M FCC ID: UF8N4600 Copyright ○ c 2008, DIGITAL EMC Co., Ltd. Page 2 of 16 TABLE OF CONTENTS 1. GENERAL INFORMATION ---------------------------------------------------------------------------- 2. INFORMATION ABOUT TEST ITEM ---------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TEST REQUIREMENTS ----------------------------------------------------------------------------- 3.2.1 FIELD STRENGTH OF FUNDAMENTAL AND EMISSIONS WITHIN PERMITTED BAND. -- 3.2.2 RADIATED EMISSIONS ----------------------------------------------------------------------------------- 3.2.3 AC CONDUCTED EMISSION ---------------------------------------------------------------------------- 3.2.4 OCCUPIED CHANNEL BANDWIDTH ----------------------------------------------------------------- 3.2.5 ANTENNA REQUIREMENT ------------------------------------------------------------------------------ APPENDIX I TEST EQUIPMENT USED FOR TESTS --------------------------------------------- 3 4 5 5 6 6 7 9 10 13 14 DEMC#DR50110801M FCC ID: UF8N4600 Copyright ○ c 2008, DIGITAL EMC Co., Ltd. Page 3 of 16 1. General Information This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail : [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. This laboratory is accredited by NVLAP and NVLAP Lab. Code is 200559-0. Test operator: engineer January 14, 2008 Dong -Chul CHA Data Name Signature Report Reviewed By: manager January 14, 2008 Harvey Sung Data Name Signature Ordering party: Company name : Elentec Co.,Ltd Address : #337-17 Wonchun-Dong, Yoengtong-gu City/town : Suwon-city Country : Korea Date of order : November 26, 2007 DEMC#DR50110801M FCC ID: UF8N4600 Copyright ○ c 2008, DIGITAL EMC Co., Ltd. Page 4 of 16 2. Information about test item UF8N4600 2.1 Equipment information Equipment model name N4600 Type of equipment Portable Navigation Bluetooth System with FM Transmitter Frequency band 88.1 ~107..9 MHz Type of antenna Wire Antenna Power DC 3.7 V 2.2 Tested environment Temperature : 15 ~ 35 ( o C) Relative humidity content : 20 ~ 75 % Air pressure : 86 ~ 103 kPa Details of power supply : DC 3.7 V 2.3 Tested frequency Frequency TX RX Low frequency 88.1 MHz - Middle frequency 98.0 MHz - High frequency 107.9 MHz - Note 1. The operating frequency range was verified manually using frequency selection switch. 2.4 EMI Suppression Device(s)/Modifications EMI suppression device(s) added and/or modifications made during testing -> None DEMC#DR50110801M FCC ID: UF8N4600 Copyright ○ c 2008, DIGITAL EMC Co., Ltd. Page 5 of 16 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) 15.239 Field Strength of Fundamental and Emissions within permitted band. < 250 uV/m @ 3m Radiated C 15.209 Radiated Emission < FCC 15.209 limits Radiated C 15.207 AC Conducted Emissions < FCC 15.207 limits Line Conducted NA note 2 15.239 Occupied channel bandwidth < 200kHz Radiated C 15.203 Antenna Requirement FCC 15.203 - C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: Conducted emission test isn’t applicable because the power of the EUT is DC voltage from battery or cigar jack. Note 3: The sample was tested according to the following specification: FCC Parts 15.239; ANSI C-63.4-2003 DEMC#DR50110801M FCC ID: UF8N4600 Copyright ○ c 2008, DIGITAL EMC Co., Ltd. Page 6 of 16 3.2 TEST requirements 3.2.1 Field Strength of Fundamental and Emissions within permitted band. Procedure: The field strength of emissions from intentional radiators operated within the bands 88.1 ~107.9MHz was measured in accordance with FCC Part §15.239. The test set-up was made according to ANSI C 63.4:2003. The EUT was placed on a 0.8m high wooden table inside a shielded semi-anechoic chamber. An antenna was placed at 3m distance from EUT and measurements of frequencies and amplitudes of field strengths were recorded. Type of Test : Low Power Communication Device Transmitter FCC ID : UF8N4600 Operating Condition : Transmit the rock song. Measurement Data: Frequency (MHz) Detector Mode Pol Read Level (dBuV) Ant. Factor (dB/m) Cable Loss (dB) Preamp Gain (dB) Level (dBuV/m) Limit (dBuV/m) Margin (dB) 88.1 PK V 59.3 8.6 1.1 223 46.7 48 1.3 98.0…
