UF8PMP2500PORTABLE MULTIMEDIA PLAYER WITH BLUETOOTH

1 User Manual Thank you for purchasing our product. Please read this manual carefully before use for your safety and convenience. This product may change at any time without notice for better quality and performance. 2 ■Contents BEFORE USE Safety Instructions3 Components and Features5 Charging Battery 6 Safe use of Battery 7 BASIC FUNCTIONS Turning On/Off 8 Compatible files 9 PLAY/RESUME PLAY Menu 10 Setting out of Browser display 11 Browser Pop up Menu 12 Playing Video files 13 Setting Options for playing Video files Playing Audio files 15 Setting Options for playing audio files16 Viewing Images 18 Viewing Texts 19 RECORDING Connecting External Devices for recording 20 Recording 21 Setting Options for Recording 22 SET UP General setting out23 Display24 System25 Bluetooth26 ADDITIONAL FEATURES Installing USB driver 27 Upgrading Firmware 28 USB Hosting 29 Connecting player to PC 30 Playing PMP file with PC 31 Managing Hard Disk32 Using as Portable Mass Storage 32 TRANSCODER Before using Transcorder 33 Installing Transcorder 34 Using Transcorder 35 Converting file 37 Converting part of file 38 DVD PLAYER –Playing DVD40 Using DVD Converter 41 Converting DVD file42 Advanced DVD Converter 43 TROUBLESHOOTING47 SPECIFICATIONS49 PORTABLE MULTIMEDIA PLAYER 3 ■ Safety Instructions Do not bend electric cord or touch with wet hand, which may cause fire or electric shock. Placing product in wet and dusty place may cause malfunction. Do not dissemble, repair, or reconstruct without authorized technician. Avoid putting heavy objects, cup, cosmetics, chemicals, or vessel with water on it. Avoid using multiple buttons at one time. This may cause malfunction or failure of product. Avoid multiple power connection into one power point and gently plug it out with firmly holding it. Incomplete connection to power point may cause fire. Avoid any heat generating metal product from the power point. Avoid water or chemicals and use dried cloth for cleaning. This is to prevent damages on user’s property and to secure user safety. Please read carefully for safe use. BEFORE USE coffee THINNER 4 ■ Safety Instructions It is user’s responsibility for losing downloaded file or contents. Back up all your data into your PC safely. Prevent metallic objects such as coins or hair pins, or flammable materials from getting into the product. Keep the product away from too hot/cold or wet place. Keep it away from direct sunlight or heat generating objects. Do not dry wet product with heater or microwave. Dry avoiding direct sunlight after removing moisture. Do not drop it from height. This may cause damage to the internal hard disk. Dropping from height or external shock may cause data loss and failure. Avoid shock or impact on the product and keep it away from magnetic or vibration. Connect USB, earphone and plugs correctly as instructed. BEFORE USE 5 ■ Components and Features Accessories BEFORE USE Earphone ChargerUser manualPawer cable USB cableAV RCA cableUSB host cable 6 ■Charging Battery Charge the battery or use adapter when Battery is low (Low battery icon will be shown in the screen) Charging with USB •For charging, connect USB cable between product and PC. •Charging with USB may take longer than Adapter. Red lamp is on during charging battery. •Turn the power off during charging battery when you use PC link function. •Set function does not work during USB connected but works when connected to PC. •Make sure to connect USB cable firmly to both PC and PMP for smooth data transfer. Connecting adapter will automatically charge battery. •Discharge battery completely once a month and recharge it for long life. •Charging time after complete discharging Adaptor : About 5 hrs USB : About 6 hrs •Charging lamp Red : in charging colorless: charging completed BEFORE USE 7 ■ Safe use of Battery Battery contains 3.7v 4100mAh Lithium Polymer. Read below carefully for safe use of product and longer battery life. •Dropping from height may cause failure, overheating and explosion. •Do not separate battery from the product. •Keeping product near heat generating objects may cause overheating and explosion. •Using non-recommended battery may cause overheating, explosion and failure. •Keeping the product sealed hot place such as interior of car getting direct sunlight may cause deformation of product and explosion. Keep it between 0°C ~ +40°C. •When your skin gets contaminated with liquid from broken battery, wash your skin sufficiently with running water for 1~2 minutes. •Avoid impact or shock by sharp object. It may cause explosion. •Excessive use during charging may interrupt charging and may cause explosion by overheating. •Battery is a consumable with limited life. •Visit authorized service centre and use authorized battery. •Do not use battery for other purposes. It may cause unexpected incident. BEFORE USE 8 ■ Turning On/Off Slide down power button to start the main screen. ■Main screen Turning off •Slide down power button to turn it off. •PLAYEdit or play in the file browser. •RESUMEContinuous play of VIDEO, AUDIO and TEXT files. •RECRecord with A/V, LINE, VOICE mode. •SETUPChange product configuration and register with Blue tooth deviceor upgrade Firmware. •STATUS ICON Battery status/adapter connection, Volume(0~40), Mute, speaker/earphone/blue tooth output, hold. Use arrow button to show sub menus. BASIC FUNCTIONS STATUS ICON PLAY RESUME REC SETUP 9 ■ Compatible files Incompatible files can be converted via Transcoder to be played with our product. Enjoy animations or movies with Transcoder technology. (Please refer to page 34) •Animation / movies - recorded files with our products. - File Format : AVI, ASF, WMV, MPG, MP4, M1V, M2V, MPV - Video Codec : Divx 3.11/4/5, XviD, MPEG4, WMV9 MP@LL, H.264, MPEG2 •Music - MP3, WMA, OGG, WAV •Other file formats can also be played with our Transcoder technology. BASIC FUNCTIONS Installation program Installation program is pre-installed in this product when its purchase. Connect USB cable to c…

Text truncated - open the document above for the full version.

337-17 Wonchun-Dong, Youngtong-gu, Suwon-city, Kyunggi-do, Korea July 24, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Elentec Co.,Ltd. FCC ID : UF8PMP2500 Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, Elentec Co.,Ltd. hereby requests confidentiality of the Block diagram, Schematics, Parts list and Operational description of the attached test report. These documents contain detailed system and equipment description and related information about the product which Elentec Co.,Ltd. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Elentec Co.,Ltd. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, M.R Lee / Manager

337-17 Wonchun-Dong, Youngtong-gu, Suwon-city, Kyunggi-do, Korea July 24, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Elentec Co., LTD. FCC ID: UF8PMP2500 Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Elentec Co., LTD requests short-term Confidentiality of following sections of this application for a period of 45 days after grant is issued. Test setup photos External photos Internal photos, and User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which Elentec Co., LTD considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Elentec Co., LTD feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, M.R Lee / Manager

FCC ID: UF8PMP2500 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 1 FCC ID: UF8PMP2500 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 2 FCC ID: UF8PMP2500 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 3

FCC ID: UF8PMP2500 FCC ID SAMPLE LABEL & LOCATION MODEL NAME: PMP2500 LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase FCCID: UF8PMP2500 Model Name: PMP2500 This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received. Including interference that may cause undesired operation.

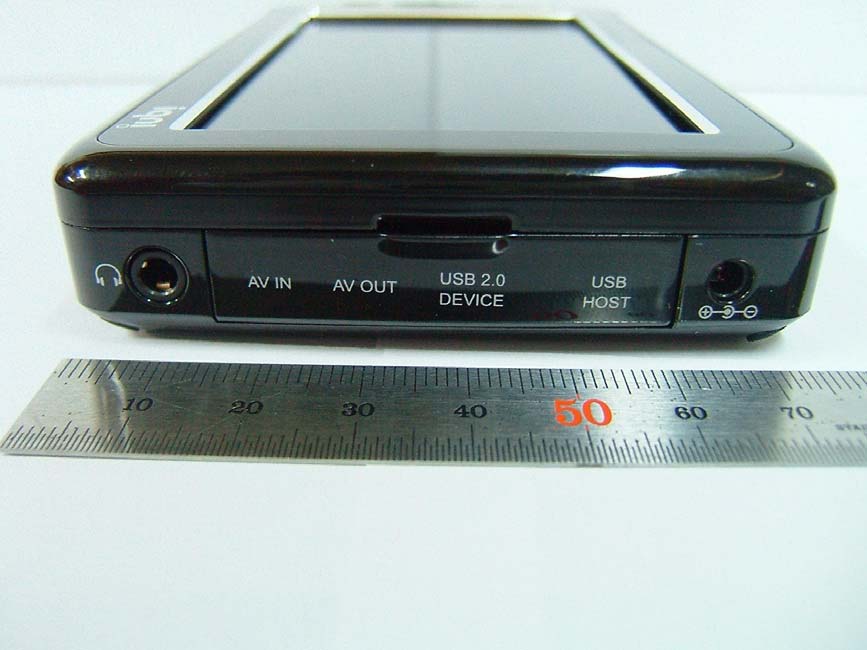

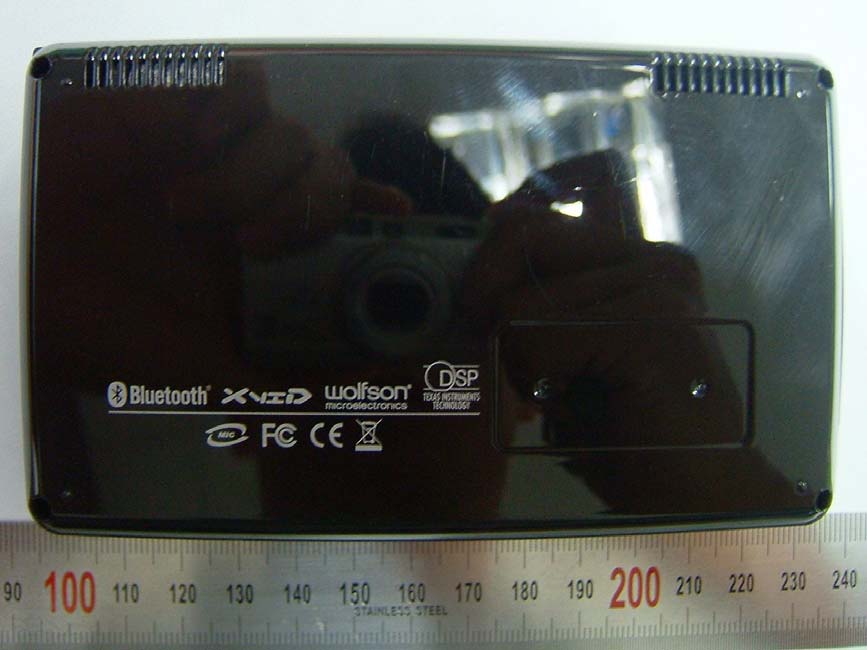

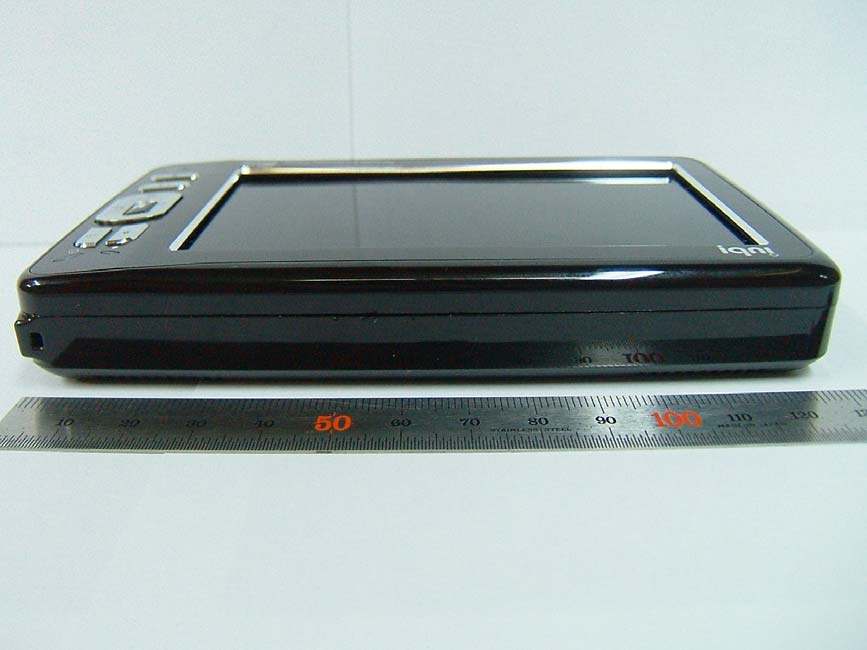

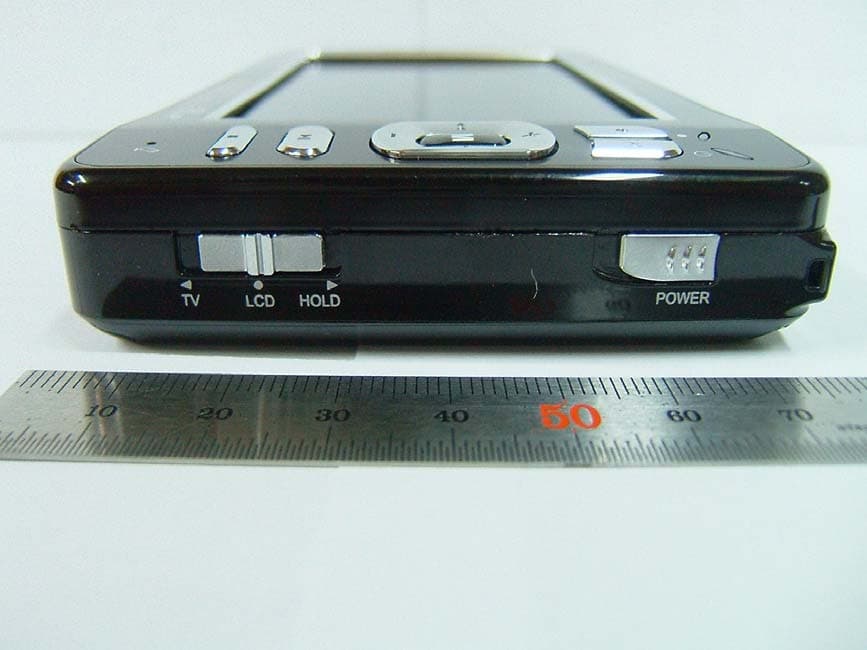

FCC ID: UF8PMP2500 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 1 FCC ID: UF8PMP2500 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 2 FCC ID: UF8PMP2500 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 3 FCC ID: UF8PMP2500 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 4 FCC ID: UF8PMP2500 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 5 FCC ID: UF8PMP2500 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 6 FCC ID: UF8PMP2500 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 7 FCC ID: UF8PMP2500 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 8 FCC ID: UF8PMP2500 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 9 FCC ID: UF8PMP2500 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 10 FCC ID: UF8PMP2500 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 11 FCC ID: UF8PMP2500 Copyright Ⓒ 2006, DIGITAL EMC Co., Ltd. View 12(Antenna)

DR50110607B Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 1 of 41 DIGITAL EMC CO., LTD. 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATION OF COMPLIANCE Elentec Co.,Ltd. 337-17 Wonchun-Dong, Youngtong-gu, Suwon-city, Kyunggi-do, Korea Dates of Tests: July 11 ~ 19, 2006 Test Report S/N: DR50110607B Test Site : DIGITAL EMC CO., LTD. FCC ID APPLICANT FCC Classification : Frequency Hopping Spread Spectrum (FHSS) Device name : Portable Multimedia Player with Bluetooth Manufacturer : Elentec Co., Ltd. FCC ID : UF8PMP2500 Model name : PMP2500 Test Device Serial number : Identical prototype FCC Rule Part(s) : FCC Part 15.247 Subpart C ANSI C-63.4-2003 Frequency Range : 2402 ~ 2480 MHz Max. Output power : 4.93dBm Conducted Data of issue : July 21, 2006 I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. UF8PMP2500 Elentec Co., Ltd. DR50110607B Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 2 of 41 TABLE OF CONTENTS 1. GENERAL INFORMATION -------------------------------------------------------------------------- 2. INFORMATION ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TRANSMITTER REQUIREMENTS --------------------------------------------------------------- 3.2.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.2.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.2.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.2.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.2.5 PEAK OUTPUT POWER ----------------------------------------------------------------------- 3.2.6 CONDUCTED SPURIOUS EMISSIONS ---------------------------------------------------- 3.2.7 RADIATED EMISSIONS --------------------------------------------------------------------------- 3.2.8 AC LINE CONDUCTED EMISSIONS ------------------------------------------------------- APPENDIX TEST EQUIPMENT FOR TESTS -------------------------------------------------------- 3 4 5 5 6 6 8 11 14 18 21 27 34 39 DR50110607B Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 3 of 41 1. General information This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail : [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competent of calibration and testing laboratory”. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200559-0. Test operator: engineer July 21, 2006 Dong -Chul CHA Data Name Signature Report Reviewed By: manager July 21, 2006 Harvay Sung Data Name Signature Ordering party: Company name : Elentec Co., Ltd. Address : 337-17 Wonchun-Dong, Youngtong-gu, Suwon-city, City/town : Kyoungki-Do Country : Korea Zip code : 443-822 Date of order : May 30, 2006 DR50110607B Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 4 of 41 2. Information about test item UF8PMP2500 2.1 Equipment information Equipment model no. PMP2500 Equipment serial no. Identical prototype Type of equipment Portable Multimedia Player with Bluetooth Frequency band 2402 ~ 2480 MHz Type of Modulation GFSK Channel Access Protocol Frequency Hopping Channel Spacing 1.0 MHz Type of antenna Chip Antenna 2.2 Tested frequency Frequency TX RX Low frequency 2402MHz 2402MHz Middle frequency 2441MHz 2441MHz High frequency 2480MHz 2480MHz 2.3 Tested environment Temperature : 15 ~ 35 ( o C) Relative humidity content : 20 ~ 75 % Air pressure : 86 ~ 103 kPa Details of power supply : 3.7 VDC 2.4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer Earphone N/A N/A N/A Termination cable (AV IN) N/A N/A N/A Termination cable (AV OUT) N/A N/A N/A - - - - - - - - 2.5 EMI Suppression Device(s)/Modifications EMI suppression device(s) added and/or modifications made during testing -> None DR50110607B Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 5 of 41 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) I. Test Items Carrier Frequency Separation > 25 kHz C Number of Hopping Frequencies > 75 hops C 20 dB Bandwidth < 1 MHz C 15.247(a) Dwell Time 0.4 seconds within a 30 second period per any frequency C 15.247(b) Transmitter Output Power < 1Watt C Band-edge /Conducted C 15.247(c) Conducted Spurious Emissions The radiated emission to any 100 kHz of outband shall be at least 20dB below the highest inband spectral density. Conducted C 15.205 15.209 Radiated Emissions FCC 15.209 Limits Radiated C 15.207 AC Conducted Emissions EN 55022 AC Line Conducted C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable The sample was tested according to the following specification: FCC Parts 15.247; ANSI C-63.4-2003 DR50110607B Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 6 of 41 3.2 Transmitter requirements 3.2.1 Carrier Frequency Separation Procedure: The carrier frequency separation was measured with a spectrum analyzer connected to the antenna terminal, while EUT had its hopping function enabled. After the trace being stable, the reading value between the peaks of the adjacent channels using the marker-delta function was recorded as the measurement results. The spectrum analyzer is set to: Span = 3 MHz (wide enough to capture the peaks of two adjacent ch…
