UFW-AM200GPR AM200

IDS Geo Radar Srl MNG/2020/002 Rev. 1.0 User Manual AM200 Version 1.0 User Manual AM200 – Ver. 1.0 – User Manual Mod: MDM/011/M2 Rev 6 IDS GeoRadar Srl User Manual MNG/2020/002 Rev. 1.0 1/ 17 Legal Notices Use of the Manual This Manual is intended to be used solely by authorized user of IDS GeoRadar Systems. It is specific for internal business purpose only. If you are not an authorized user, you are NOT allowed to read this Manual and you must return it to IDS GeoRadar as soon as possible. Access to and use of this Manual is also provided subject to the acceptance of the Disclaimer set out below. Disclaimer About the Manual This Manual has been drafted by IDS GeoRadar with the due care in order to ensure the accuracy and completeness. However, please note that no warranty is provided about the fact that the Manual will be free from error or omission and about the accuracy and/or fitness to the purpose of any information contained herein. Any representation and/or statement contained herein has been written in good faith and on the basis that, due to negligence, lack of care or otherwise, IDS GeoRadar is not liable for any loss, including direct, indirect or consequential losses, in contract or in tort for any misstatement or omission contained herein which has occurred or may occur with reference to any representation and/or statement contained in the Manual. User shall also acknowledge that some information contained in the Manual may not be up to date. IDS GeoRadar may amend the information contained in the Manual from time to time and IDS GeoRadar shall not be deemed liable in the event that damages arise with reference to changed circumstances or other information which may affect the accuracy of any information contained in this version of the Manual. About the Product All products designed, produced and distributed by IDS GeoRadar, its Subsidiaries, Affiliated and authorized Distributors (Products) shall not be used, in the design, development, production or use of chemical, biological, nuclear ballistic weapons. Buyer/ User will defend, indemnify and hold IDS GeoRadar harmless against any liability (including attorney’s fees) for non-compliance with the terms of this paragraph. If IDS GeoRadar requires that Buyer/User shall carry out a training with reference to some Product categories, no operation or use of the Products shall be started before its designated Operator/s has got the User Certificate, as defined by IDS GeoRadar specific procedure which the Buyer confirms to know and accept. For Products which include specific “Operational” software with automatic data processing and analysis “Tools”, e.g. RockSpot, IBIS Products; Hydra Products, User shall be aware that the results provided by these “Tools” may be not error free. User that completely relies on the outcomes provided by these Tools only, does it at his own risk. In no event IDS GeoRadar shall be liable for special, direct, indirect, incidental, exemplary, punitive or consequential damages including, but not limited to, loss of profits or revenue, caused by the missed or incomplete observance of the instructions and prescriptions for the use of the Products, either separately or in combination with other products. This paragraph provides only a non-exhaustive summary of the full Product disclaimer. Please see the full Product disclaimer included into the relevant section of this Manual for detailed information. Confidentiality This Manual is strictly confidential and may be subject to legal and other privilege. IDS GeoRadar specifically reserves its rights in relation to this Manual. None of these rights or any other rights subsisting in the Manual are waived if you have received this Manual in error or without permission. No parts of this Manual may be copied, translated or reduced to any electronic medium, or machine-readable form, nor photographed or recorded in any way, without the prior written consent of IDS GeoRadar. AM200 – Ver. 1.0 – User Manual Mod: MDM/011/M2 Rev 6 IDS GeoRadar Srl User Manual MNG/2020/002 Rev. 1.0 2/ 17 INDEX 1 INTRODUCTION .............................................................................................................................................................................................................................. 3 1.1 Purpose ................................................................................................................................................................................................................................. 3 1.2 Intended readership ............................................................................................................................................................................................................. 3 2 HOW TO READ THE MANUAL ......................................................................................................................................................................................................... 4 2.1 Manual Layout ...................................................................................................................................................................................................................... 4 2.2 SYMBOLS ............................................................................................................................................................................................................................... 4 3 SAFETY DIRECTIONS ........................................................................................................................................................................................................................ 5 3.1 Description............................................................................................................................................................................................................................ 5 3.2 Definition of Use ...…

Text truncated - open the document above for the full version.

Transmitter board TX dipole RX dipole Receiver board Antenna connector board Transmitter board TX dipole RX dipole Receiver board Metallic shield + RAM layers Metallic Shield Ethernet Port Digital Port IN Power Port Digital Port OUT Ethernet Port LED & Power button 100MHz Control board ch1 ch2 50MHz VCO

IDS GeoRadar s.r.l. - Codice Fiscale 02216580502 – VAT n° IT 02216580502 - RAEE N° IT16060000009358 Legal office Via Carducci n. 32, 20123 Milano (MI) Italy Registered at the Milano Chamber of Commerce, R.E.A. 2115412 - Pec [email protected] Share capital Euro 20.000 fully paid A company with a sole shareholder, subject to the coordination and control of Hexagon Geosystems Services S.p.a. Cornegliano Laudense (LO) Via Codognino 10, 26854, Cod. Fiscale 09430450966 FCC AND IC AUTHORIZATION LETTER (FCC ID: UFW-AM200 IC: 8991A-AM200) PRODUCT NAME: AM-200 Date: 2020 February, the 10 th To whom it may concern: We, the undersigned, hereby authorize Wei Li at Advanced Compliance Lab, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Advanced Compliance Lab on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Advanced Compliance as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; IDS GeoRadar Headquarters Via A. Righi, 6, 6A, 8 56121 Pisa (PI) Italy Tel. +39.050.8934.100 Fax +39.050.7912.130 [email protected] www.idsgeoradar.com IDS GeoRadar s.r.l. - Codice Fiscale 02216580502 – VAT n° IT 02216580502 - RAEE N° IT16060000009358 Legal office Via Carducci n. 32, 20123 Milano (MI) Italy Registered at the Milano Chamber of Commerce, R.E.A. 2115412 - Pec [email protected] Share capital Euro 20.000 fully paid A company with a sole shareholder, subject to the coordination and control of Hexagon Geosystems Services S.p.a. Cornegliano Laudense (LO) Via Codognino 10, 26854, Cod. Fiscale 09430450966 g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Regards, Guido Manacorda Director R&D

IDS GeoRadar s.r.l. - Codice Fiscale 02216580502 – VAT n° IT 02216580502 - RAEE N° IT16060000009358 Legal office Via Carducci n. 32, 20123 Milano (MI) Italy Registered at the Milano Chamber of Commerce, R.E.A. 2115412 - Pec [email protected] Share capital Euro 20.000 fully paid A company with a sole shareholder, subject to the coordination and control of Hexagon Geosystems Services S.p.a. Cornegliano Laudense (LO) Via Codognino 10, 26854, Cod. Fiscale 09430450966 REQUEST FOR CONFIDENTIALITY Date: 13 February 2020 Subject: Confidentiality Request for: __UFW-AM200 __UFW-AM600 Pursuant to FCC 47 CRF 0.457(d), the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent User’s Manual Note: these materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. The devices pictured in the documents “AM200-internal pictures.pdf” and “AM600-internal pictures.pdf” are sealed and potted unit that cannot be opened after manufacturing without destroying the contents. Specifically in order to view inside the product to which this request refers, one would have to carry out the following steps: 1. Use a special key to remove the screws securing the cover. This special key is not available to the general public. Moreover, these screws have to be removed in a specific order not to cause irreparable damages. The information on the removal order is available to IDS GeoRadar and to authorized repair centers only. 2. Inside the unit, electromagnetic absorbers cannot be removed without damage and will have to be replaced with new ones when re-assembling. This material is custom built and not available to the public or to a competitor. 3. De-solder the transmitter AND the receiver from the antenna flares to initiate access to certain electronics of the antenna. Then carefully disconnect and withdraw the assemblies from the shield /construct assembly. When these steps are done improperly the electronics can be severely damaged. IDS GeoRadar has never released instructions on how to disassemble its units, and does not answer questions on how to do so. This information is kept internal to the company. If a unit arrives at the company's repair facility showing evidence of such tampering, the company does not repair it, but charges the customer for a new unit plus freight costs. The Commission's posting of the photographs as well as of the schematics and components list, would allow a competitor to bypass this difficult and expensive disassembly. From the photographs, a competitor can also estimate: IDS GeoRadar Headquarters Via A. Righi, 6, 6A, 8 56121 Pisa (PI) Italy Tel. +39.050.8934.100 Fax +39.050.7912.130 [email protected] www.idsgeoradar.com IDS GeoRadar s.r.l. - Codice Fiscale 02216580502 – VAT n° IT 02216580502 - RAEE N° IT16060000009358 Legal office Via Carducci n. 32, 20123 Milano (MI) Italy Registered at the Milano Chamber of Commerce, R.E.A. 2115412 - Pec [email protected] Share capital Euro 20.000 fully paid A company with a sole shareholder, subject to the coordination and control of Hexagon Geosystems Services S.p.a. Cornegliano Laudense (LO) Via Codognino 10, 26854, Cod. Fiscale 09430450966 1. the costs of manufacturing the printed circuit boards and mechanical housing; 2. the man-hours required to assemble the device; 3. any compatibility problems the manufacturer will have in designing new systems; and 4. the age of the electronic design (which gives valuable competitive information on upgrade and R&D efforts). Access to interior photographs would almost permit a competitor to conduct a complete reverse engineering, to the point of producing a schematic. We are also noting that The Commission has previously granted confidentiality under similar conditions to several applications concerning GPR devices: e.g. QF7350HS QF742600 QF7MINIXT QLA450MHZHDR QLA160MHZHDR QLA750MHZHDR QLA80MHZHDR We are also reminding that the unit will not be made available for sale to the general public. Marketing will be limited to law enforcement, fire fighting, emergency rescue, scientific research institutions, commercial mining companies, construction companies and those parties providing services to these entities pursuant to CFR 47, Part 15, Subpart F, 15.509 Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: ____________R&D Manager_ Guido Manacorda (Signature/Title) (Print name)

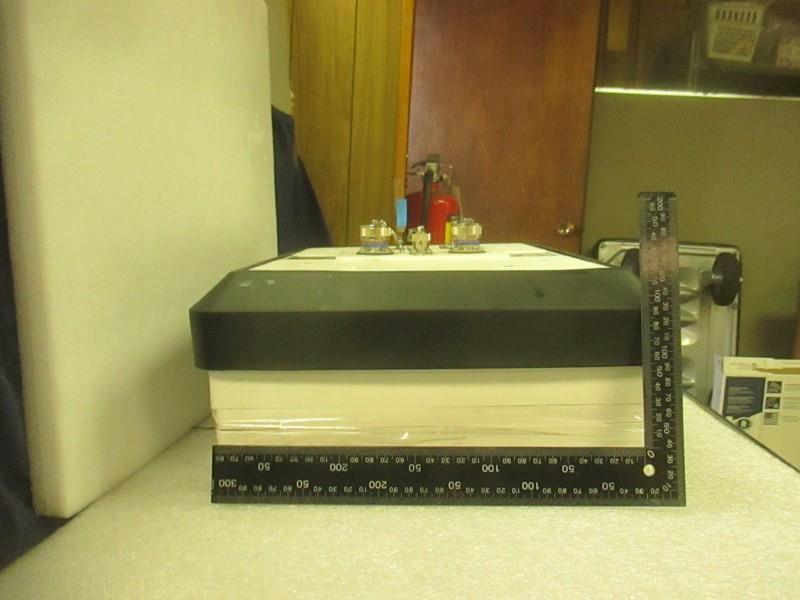

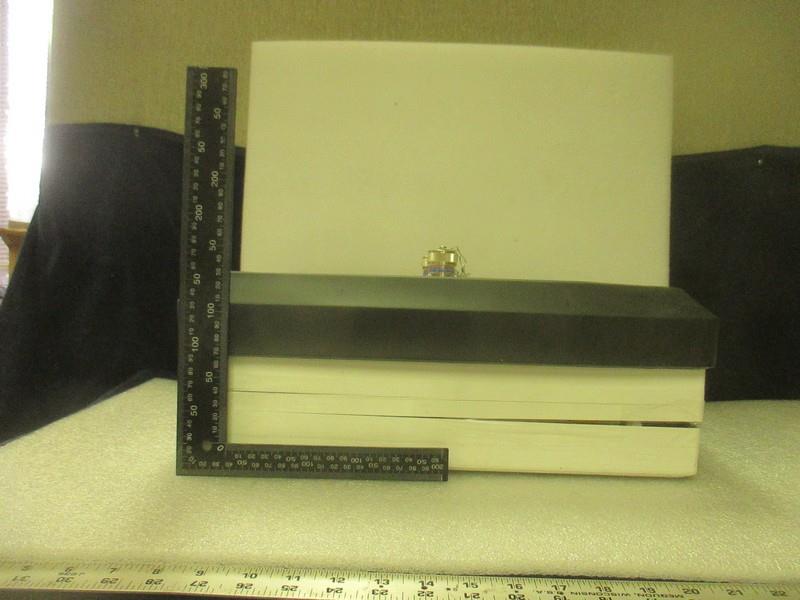

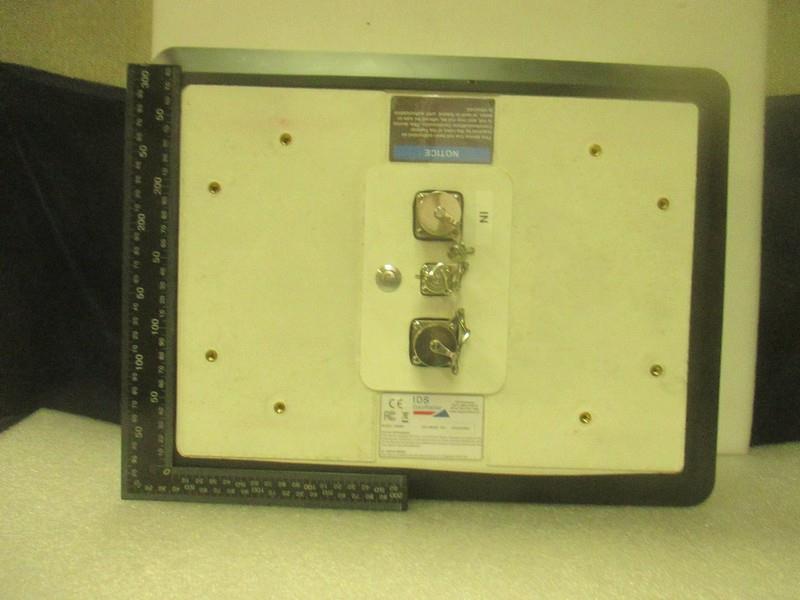

EUT: GPR Model: AM200 FCC ID: UFW-AM200 IC:8991A-AM200 Report Number: 0048-200127-01 Page 47 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 7. EUT Photos This section provides different external views of the EUT. EUT Top View EUT Bottom View EUT: GPR Model: AM200 FCC ID: UFW-AM200 IC:8991A-AM200 Report Number: 0048-200127-01 Page 48 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, Tel: (908) 927 9288 EUT Back Side View EUT_ Left Side View EUT: GPR Model: AM200 FCC ID: UFW-AM200 IC:8991A-AM200 Report Number: 0048-200127-01 Page 49 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, Tel: (908) 927 9288 EUT Right Side View EUT Front View ----Internal Photos shall be provided by Applicant (confidential)

EUT: GPR Model: AM200 FCC ID: UFW-AM200 IC:8991A-AM200 Report Number: 0048-200127-01 Page 44 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 5. FCC & IC ID Labeling FCC/IC ID Label (The statement may be shown in its User Manual) FCC/IC ID Label Location IDS GeoRadar GPR Model No.: AM200 FCC ID: UFW-AM200 IC:8991A-AM200 This device complies with Part 15, Subpart F of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; (2) This device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3(A)/NMB-3(A) FCC/IC ID Label

Electromagnetic Emission Compliance Test Report Equipment Under Test (EUT) Model GPR AM200 Applicant IDS GeoRadar srl In Accordance With FCC Part 15, Subpart F Industry Canada RSS-220 (Issue 1/2009) Tested by Advanced Compliance Laboratory, Inc. 210 Cougar Court Hillsborough, New Jersey 08844 Authorized by Wei Li Lab Manager Signature Date February 12, 2020 AC Lab Report Number 0048-200127-02 The test result in this report is supported and covered by the NVLAP accreditation. Lab Code:200101-0 Advanced Compliance Laboratory 210 Cougar Court Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 EUT: GPR Model: AM200 FCC ID: UFW-AM200 IC:8991A-AM200 Report Number: 0048-200127-01 Page 2 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, Tel: (908) 927 9288 Table of Contents Section 1. Summary of Test Results ............................................................................... 3 Section 2. General Equipment & Test Configuration ...................................................... 6 Section 3. Test Methodology & Facilities ....................................................................... 8 Section 4. Measurement Data ......................................................................................... 9 Section 5. FCC ID Labeling ......................................................................................... 44 Section 6. Setup Photos ................................................................................................ 45 Section 7. EUT Photos ................................................................................................. 47 EUT: GPR Model: AM200 FCC ID: UFW-AM200 IC:8991A-AM200 Report Number: 0048-200127-01 Page 3 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 1. Summary of Test Results Manufacturer: IDS GeoRadar srl Product Name: GPR Model/Parts No. : AM200 Part No. 906198 S/N: 020-20-00002 General: All measurements are traceable to national standards These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15, Sub Part F and Industry Canada RSS-220 (Issue 1/2009). New Submission Production Unit Class I Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. “See Summary of Test Data” NVLAP LAB CODE: 200101-0 Advanced Compliance Laboratory, Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Advanced Compliance Laboratory, Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. EUT: GPR Model: AM200 FCC ID: UFW-AM200 IC:8991A-AM200 Report Number: 0048-200127-01 Page 4 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, Tel: (908) 927 9288 Summary of Test Data Compliance Requirement FCC & IC Rule Part Test No. in Section 4 Result Cross Reference 15.505 &RSS-GEN 1 Complies Marketing of UWB Equipment 15.507 &RSS-GEN 2 Complies Pulse Repetition Frequency(PRF) 15.509 &RSS-220 6.2 3 Complies UWB Bandwidth 15.509(a) &RSS-220 6.2.1(a) 4 Complies General Operational Requirements for LF Imaging System 15.509(b) &RSS-220 6 5 Complies Spurious Radiated Emissions≤960MHz 15.509(d) 15.209 &RSS-220 3.4, 6.2(c), 6.2(d) 6 Complies Spurious Radiated Emissions>960MHz 15.509(d) 15.209 &RSS-220 3.4, 6.2(c), 6.2(d) 7 Complies Radiated Emissions in GPS Bands 15.509(e) 15.209 &RSS- 220 6.2(e) 8 Complies Highest Radiated Emission at f M 15.509(f) 15.209 &RSS- 220 6.2(g) 9 Complies Technical Requirements Applicable to All UWB Devices 15.521 10 Complies Coordination Requirement 15.525 11 N/A Antenna Requirement 15.203/204 &RSS-GEN 7.1.4 12 Complies Radio Frequency Exposure FCC OET Bulletin 65 &RSS-GEN 13 N/A Conducted Emissions 15.507 &RSS-GEN 14 * Transmission Duration 15.509(c) 15 ** * NOT APPLICABLE to the EUT as it is a battery-powered device; ** NOT APPLICABLE to the EUT as it is not a handheld device. EUT: GPR Model: AM200 FCC ID: UFW-AM200 IC:8991A-AM200 Report Number: 0048-200127-01 Page 5 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, Tel: (908) 927 9288 The estimated uncertainty of the test result is given as following. The method of uncertainty calculation is provided in Advanced Compliance Lab. Doc. No. 0048-01-01. Prob. Dist. Uncertainty(dB) Uncertainty(dB) Uncertainty(dB) 30-1000MHz 1-6.5GHz Conducted Combined Std. Uncertainty u c norm. ±2.36 ±2.99 ±1.83 Wei Li Date: February 12, 2020 Lab Manager Advanced Compliance Lab EUT: GPR Model: AM200 FCC ID: UFW-AM200 IC:8991A-AM200 Report Number: 0048-200127-01 Page 6 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 2. General Equipment & Test Configuration 2.1. EUT Specification EUT GPR Model No. AM200 manufactured by IDS GeoRadar srl is an ultra-wide band ground penetrating radar (GPR) intended for geophysical surveying and non-destructive testing. Supply Voltage 12.0 VDC, provided by Lithium Ion Rechargeable Battery Operating Frequency 126.1MHz -826.0MHz -10dB UWB Bandwidth 699.9 MHz Modulation Type 100KHz Pulse Repetition Frequency (PRF) Peak Emissions in a 50 MHz Bandwidth Max. peak emissions is under 1GHz Antenna Dipole Antenna Hardware Version (Model No.) AM200 Software Version 01.01.001 2.2. Description of Operation The system performs time domain reflectometry by radiating a radio frequency impulse with a repetition frequency of 100KHz from a transmitting dipole (TX dipole). Transitions between materials exhibitin…

Text truncated - open the document above for the full version.

EUT: GPR Model: AM200 FCC ID: UFW-AM200 IC:8991A-AM200 Report Number: 0048-200127-01 Page 45 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 6. Setup Photos Radiated Emissions in OATS Under 960MHz Above 1GHz ( 1m measurement for low emission signals) EUT: GPR Model: AM200 FCC ID: UFW-AM200 IC:8991A-AM200 Report Number: 0048-200127-01 Page 46 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, Tel: (908) 927 9288 Radiated Emissions in OATS EUT Positions with 45 Degree Interval
