TG Series Indoor Repeater Installation Guide Table of Content 1. Safety ........................................................................................ 1 2. Product Introduction................................................................. 2 3. Site Survey and Installation Planning ....................................... 2 4. Cable Installation Planning....................................................... 3 5. Link Budget Calculation........................................................... 3 6. Gain Adjustment ....................................................................... 4 7. Mounting and Installation......................................................... 4 8. Testing ...................................................................................... 5 9. Troubleshooting ........................................................................ 5 - 1 - FCC Regulations: This equipment complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced RF (radio frequency) technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. 1. Safety Any personnel involved in an installation, operation or service of the Coiler TG series must understand and obey the following: 1. Coiler TG series must be used exclusively for its application described in this guide’s product introduction and nothing else. 2. For your safety, please beware of power lines at all times during the installation and use. Please make sure to take appropriate safety measures for protection. Contact with high-voltage power lines can cause death and/or serious injury. 3. Please handle the equipment with care. Mechanical shock due to drop or mishandling can permanently damage sensitive RF components. 4. The TG series are designed for indoor applications and should be kept away from water and humidity. 5. The primary AC power range for the repeater is AC110-240V. It is possible to damage the repeater if the primary AC power is outside this range. 6. An external lightening protector is recommended when the antenna is installed outdoors. - 2 - 2. Product Introduction The Coiler TG series is designed to improve cell phone signal coverage and enhance reception in the indoor areas where mobile signal is limited or compromised due to construction structures or natural obstacles. This device is a perfect choice for network operators seeking a quick and cost-effective coverage solution for large area indoors. This product delivers the most reliable mobile performance in office and residential areas, restaurants, shops and VIP rooms, offering a power output up to +25dBm and a maximum gain of 60dB. This device is designed as a bi-directional amplifier that receives and amplifies signals from one or more base stations and retransmits the signals to one or more mobile phones. The repeater also receives signals from one or more mobile phones, amplifies and retransmits the signals to the base stations. This repeater supports customizable bandwidth which can boost RF signal for a continuous frequency segment. It offers adjustable gain for UL and DL to enable flexible adoption to various mobile environments. 3. Site Survey and Installation Planning Please inspect outdoor and indoor environments in order to identify the best locations for the installation of the donor antenna, the repeater unit and service antennas. Do not physically mount any equipment at this moment. 1. The donor antenna should be located in the strongest signal reception area and away from any barriers, such as hills and mountains, high buildings or signboards. That may be on the rooftop or the side of the building, or inside the building close to the window. You may use mobile phone or spectrum analyzer to measure received strength signal intensity (RSSI). A perfect location should have outdoor signal strength greater than -80 dBm. Ideally the donor antenna should face the base station of the operator that signal it is intended to amplify. Depending on the application and the environment, donor antenna used can be omnidirectional, panel yagi. (please contact Coiler for optional accessories) 2. Please determine the possible number of the service antennas via calculation regarding the indoor area needs coverage, the building construction and the signal path loss. For the best performance, service antennas should be installed on the ceiling or on the wall at least two meters from the floor. Installation on the wall may however obstruct the signal and shorten the signal range. The antennas should be ideally placed centrally in the area requires coverage. Please mind the antenna isolation between the donor antenna and the service a…

Text truncated - open the document above for the full version.

Rev. 1/1/03 Coiler Corporation Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: UG8C-2007-19. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block Diagram Should be TG-1900 BlkDia.pdf Schematics Should be TG-1900 Schem.pdf Operation Description Should be TG-1900 OpDes.pdf Parts List Should be TG-1900 PartsLst.pdf Tune-Up Procedure Should be TG-1900 TunPro.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Barts Lin Coiler Corporation 8F-4, No. 75, Sec. 1, Hsin Tai Wu Road, His-Chih City (221), Taipei Hsien, Taiwan Tel: +886226982618 Fax: +886226982627 e-mail: [email protected] Attached: Copy of FCC Confidentiality Policy

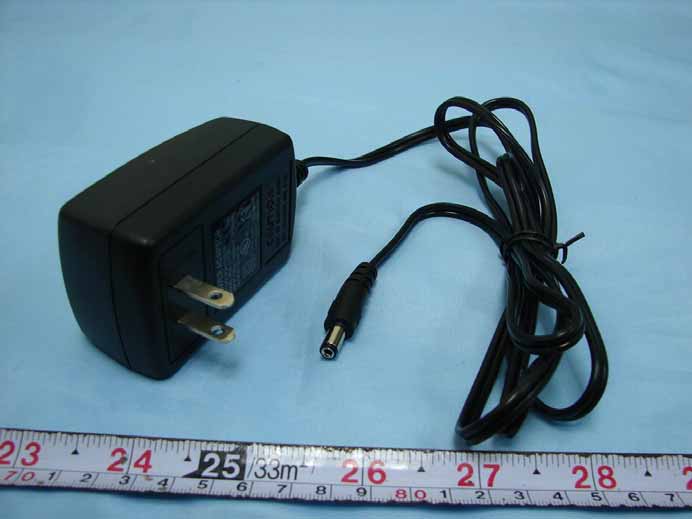

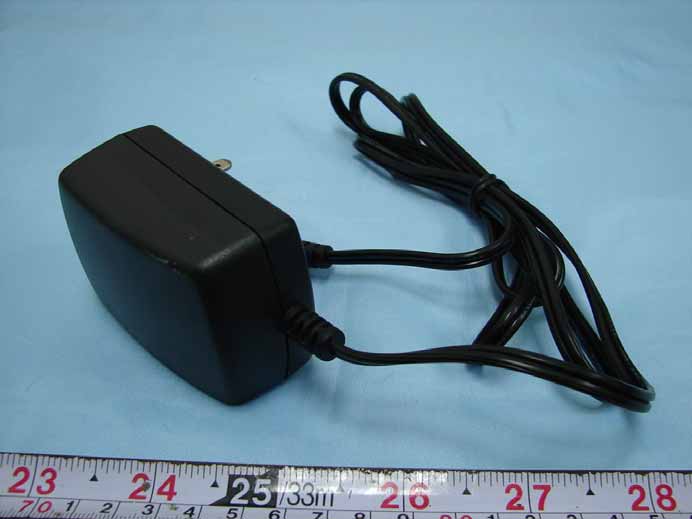

FCC TEST REPORT REPORT NO. : FG721401 SPORTON International Inc. Page Number : A1 OF A7 TEL : 886-2-2696-2468 Report Issued Date : Mar. 20, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 APPENDIX A. External Photographs of EUT APPENDIX A. External Photographs of EUT APPENDIX A. External Photographs of EUT 721401 FCC TEST REPORT REPORT NO. : FG721401 SPORTON International Inc. Page Number : A2 OF A7 TEL : 886-2-2696-2468 Report Issued Date : Mar. 20, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 721401 FCC TEST REPORT REPORT NO. : FG721401 SPORTON International Inc. Page Number : A3 OF A7 TEL : 886-2-2696-2468 Report Issued Date : Mar. 20, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 721401 FCC TEST REPORT REPORT NO. : FG721401 SPORTON International Inc. Page Number : A4 OF A7 TEL : 886-2-2696-2468 Report Issued Date : Mar. 20, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 721401 FCC TEST REPORT REPORT NO. : FG721401 SPORTON International Inc. Page Number : A5 OF A7 TEL : 886-2-2696-2468 Report Issued Date : Mar. 20, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 721401 FCC TEST REPORT REPORT NO. : FG721401 SPORTON International Inc. Page Number : A6 OF A7 TEL : 886-2-2696-2468 Report Issued Date : Mar. 20, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 721401 FCC TEST REPORT REPORT NO. : FG721401 SPORTON International Inc. Page Number : A7 OF A7 TEL : 886-2-2696-2468 Report Issued Date : Mar. 20, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 721401

Label Location FCC label will be put on the bottom side of the repeater. Label Location

FCC label sample Company: Coiler CorporationModel: TG-1900Serial No: XXXXXXXXXXXFrequency: UL 1850 ~ 1910 MHz DL 1930 ~ 1990 MHz FCC ID: UG8C-2007-19

FCC TEST REPORT REPORT NO. : FG721401 SPORTON International Inc. Page Number : B1 OF B2 TEL : 886-2-2696-2468 Report Issued Date : Mar. 20, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 APPENDIX B. Internal Photographs of EUT 721401 FCC TEST REPORT REPORT NO. : FG721401 SPORTON International Inc. Page Number : B2 OF B2 TEL : 886-2-2696-2468 Report Issued Date : Mar. 20, 2007 FAX : 886-2-2696-2255 Report Version : Rev.01 721401

Document No.: 721401 RF Exposure Test Report Date: Mar. 26, 2007 FCC ID: UG8C-2007-19 Sporton International Inc. This report man not be reproduced, expect in full, without the prior written consent of Sporton International Inc. RF Exposure Test Report for Coiler Corporation TG-1900 Equipment : Repeater Trade Name : Coiler Model No. : TG-1900 FCC ID : UG8C-2007-19 Filing Type : Certification Applicant : Coiler Corporation 8F-4, No. 75, Sec. 1, Hsin Tai Wu Road, Hsi-Chih City (221), Taipei Hsien, Taiwan ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. Document No.: 721401 RF Exposure Test Report Date: Mar. 26, 2007 FCC ID: UG8C-2007-19 Sporton International Inc. Maximum Permissible Exposure Test Report for TG-1900 1.0 Introduction The report has been prepared on behalf of Coiler Corporation TG-1900 to show compliance with the RF Exposure. 1.1 Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows: ƒ Fixed installation: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters. ƒ Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitters’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091. ƒ Portable Devices: a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) For this test report the Coiler Corporation TG-1900 is being done as a mobile device and the MPE is evaluated at the 20cm test distance. The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/Controlled Document No.: 721401 RF Exposure Test Report Date: Mar. 26, 2007 FCC ID: UG8C-2007-19 Sporton International Inc. Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: ƒ Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplcae or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks. ƒ General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. Members of the general public would come under this category when exposure is not employment-related; for example, in the case of a wireless transmitter that exposes persons in its vicinity. Warning labels placed on low-power consumer devices such as cellular telephones are not considered sufficient to allow the device to be considered under the occupational/controlled category, and the general population/uncontrolled exposure limits apply to these devices. Since there are no warnings or training associated with this unit and it can be used by anyone, Repeater is evaluated to the General Population / Uncontrolled Exposure limits. 1.2 Radio Frequency Radiation Exposure Evaluation According to 1.1310 of the FCC rules, the power density limit for General Population/Uncontrolled Exposure is 1mW/cm 2 . As this is a mobile application the MPE shall be calculated at 20cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: Where: Document No.: 721401 RF Exposure Test Report Date: Mar. 26, 2007 FCC ID: UG8C-2007-19 Sporton International Inc. S = Power Density P = Output Power at Antenna Terminals G = Gain of Transmit Antenna (linear gain) R = Distance from Transmitting Antenna For this device, the calculation is as follows: Because the EUT belongs to General Population/ Uncontrolled Exposure, the limit of power density is 1.0 mW/cm². Frequency Antenna Gain (dBi) Antenna Gain (numberic) Peak output power (dBm) Peak output power (mW) Calculated RF Exposure at 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) 1850.2 9.00 7.94 24.96 313.33 0.4954 1 1880 9.00 7.94 24.95 312.61 0.4943 1 Uplink 1909.8 9.00 7.94 24.99 315.50 0.4988 1 1930.2 9.00 7.94 16.99 50.00 0.0791 1 1960 9.00 7.94 16.97 49.77 0.0787 1 Downlink 1989.8 9.00 7.94 16.98 49.89 0.0789 1 Based on the above calculation at 20cm the Repeater is below the Power Density limit of 1mW/cm 2 .

SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Report Version: Rev. 02 FCC TEST REPORT Report No. : FG721401 FCC TEST REPORT for 47 CFR Part 24E Equipment : Repeater Trade Name : Coiler Model No. : TG-1900 FCC ID : UG8C-2007-19 Uplink Frequency Range : PCS : 1850.2~1909.8MHz Downlink Frequency Range : PCS : 1930.2~1989.8MHz Max. EIRP Power : PCS : 2.5061W Emission Designator : 300 KGXW Applicant : Coiler Corporation 8F-4, No. 75, Sec. 1, Hsin Tai Wu Road, Hsi-Chih City (221), Taipei Hsien, Taiwan ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsed by NVLAP or any agency of U.S. government. ‚ The data shown in this test report were carried out on Mar. 14, 2007 at Sporton International Inc. LAB. ‚ Report No.: FG721401, Report Version: Rev. 02 Roy Wu Deputy Manager SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i TEL : 886-2-2696-2468 Report Issued Date : Mar. 20, 2007 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC ID : UG8C-2007-19 FCC TEST REPORT Report No. : FG721401 Table of Contents History of this test report....................................................................................................................................ii 1. General Information ........................................................................................................................................1 1.1. Applicant ........................................................................................................................................................................................1 1.2. Manufacturer ..................................................................................................................................................................................1 1.3. Basic Description of Equipment under Test ...................................................................................................................................1 1.2 Feature of Equipment under Test ..................................................................................................................................................2 1.3 Report Date ....................................................................................................................................................................................2 2. Test Configuration of Equipment under Test ...............................................................................................3 2.1 Test Manner ...................................................................................................................................................................................3 2.2 Test Mode ......................................................................................................................................................................................3 2.3 Connection Diagram of Test System .............................................................................................................................................3 2.4 Ancillary Equipment List.................................................................................................................................................................4 3. General Information of Test Site ....................................................................................................................5 3.1 Test Voltage ...................................................................................................................................................................................5 3.2 Test in Compliance with .................................................................................................................................................................5 3.3 Frequency Range Investigated ......................................................................................................................................................5 3.4 Test Distance .................................................................................................................................................................................5 4. Test Data and Test Result...............................................................................................................................6 4.1 List of Measurements and Examinations .......................................................................................................................................6 4.2 RF Output Power ...........................................................................................................................................................................7 4.3 Occupied Bandwidth and Band Edge Measurement .....................................................................................................................8 4.4 Conducted Emission & Out of Band Rejection: Filter Frequency response & Intermodulation ...................................................15 4.4 Field Strength of Spurious Radiation ...........................................................................................................................................69 5. List of Measurement Equipments ..............................................................................................................109 6. Uncertainty Evaluation................................................................................................................................110 Appendix A. Photographs of EUT External Appendix B. Photographs of EUT Internal Appendix C. Photographs of Setup SPORTON International Inc. Page No. : ii TEL : 886-2-2696-24…
