UG8C-2024-08Indoor CDMA Booster System

Broadband Repeater TX Series GSM / DCS / PCS / CDMA / WCDMA User Manual 1 About This Manual This user’s manual is produced for use of Coiler TX Series by Coiler personnel, licensees, and customers. Due to continued progress in methodology, design and manufacturing the contents of this document are subject to revision without notice. Coiler assumes no legal responsibility for any error or damage resulting from the use of this document. Your comments are welcome – they help us improve our products and documentation. Please address your comments to Taiwan Coiler International Corporate headquarters in Taipei, Taiwan, or call us at +886 2 26982618. Edition 1 st Edition, June 2006 Copyright The information contained herein is the property of Coiler. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose without the express written permission of Coiler. Copyright © 2006 All rights reserved Trademarks All trademarks identified by TM or ® are trademarks or registered trademark of Coiler Corporation. All other trademarks belong to their respective owners. 2 8F-4, No. 75, Sec. 1, Hsin Tai Wu Road, Hsi-Chin City (221), Taipei Hsien, Taiwan. +882 2 26982618 +886 2 26982627 http://www.coiler.com.tw/ [email protected] Coiler Coiler is a leading supplier of wireless solutions that enable mobile voice and data communication and wireless Internet access throughout any facility. The company’s EQ Series provides mobile users with highly reliable access high quality voice and wireless data via cellular networks throughout any private (corporation, university, hospital) or public (airport, convention center, subway) facility. Coiler EQ Series supports all global wireless access standards including GSM900, DCS1800, CDMA and iDEN. Coiler also offers a full range of professional services to ensure cost effective and timely deployment of wireless networks. Your comments can assist us in improving our products and documentation. Please address them to Taiwan Coiler International Corp. Taiwan Coiler International Corp. Address Phone Fax URL e-mail 3 Contents Abbreviations .................................................................. 4 1. Safety ........................................................................... 5 2. Introduction ................................................................. 6 3. Repeater Types............................................................ 7 4. Installation ................................................................... 8 4.1 Siting the Repeater......................................................... 10 4.2 Dimensions and Weights................! 4.3 Mounting ......................................................................... 11 4.4 Connection...................................................................... 12 5. Commissioning ......................................................... 13 5.1 Starting the Repeater ..................................................... 13 5.2 Indicators ........................................................................ 13 5.3 UP/DW Gain Adjustment................................................ 14 6. Functional Description ............................................. 15 6.1 Block Diagram ................................................................ 16 6.2 Alarm ............................................................................... 17 7. Repeater Application ................................................ 18 7.1 Installation Attention ...................................................... 18 7.2 Installation Procedure.................................................... 19 7.3 Testing ............................................................................. 20 7.4 Trouble Shooting............................................................ 21 4 Meaning Automatic Gain Control Base Transceiver Station Mobile Station Uplink Downlink Global System for Mobile Communications Code Division Multiple Access Universal Mobile Telecommunications System Wideband Code Division Multiple Access Low Noise Amplifier Power Amplifier Power Supply Unit Radio Frequency Abbreviation AGC BTS MS UL DL GSM CDMA UMTS W-CDMA LNA PA PSU RF Abbreviations 5 1. Safety Any personnel involved in installation, operation or service of the Coiler TX Series must understand and obey the following: 1. Coiler TX Series is designed to receive and amplify signals from one or more base stations and retransmit the signals to one or more mobile station. Also, the repeater is designed to receive signals from one or more mobile stations, amplify and retransmit to the base stations. The repeater must be used exclusively for these purposes and nothing else. 2. Coiler TX Series supplied from the mains must be connected to grounded outlets and in conformity with any local regulations. 3. The power supply unit in repeaters supplied from the mains contains dangerous voltage level, which can cause electric shock. Switch the mains off prior to any work in such a repeater. Any local regulations are to be followed when servicing a repeater. Authorized service personnel only are allowed to service the repeater while the main is switched on. 4. When working on a repeater on high ground, be careful not to drop parts or the entire repeater. Falling parts can cause serious personal injury. 5. Any repeater, including this repeater, will generate radio signals and thereby give rise to electromagnetic fields that may be hazardous to the health of any person who is extensively exposed to the signals at the immediate proximity of the repeater and the repeater antennas. 6 2. Introduction Coiler TX Series is a very useful equipment that can provide highly reliable, high quality mobile communications in cellular network. Especially, it is used to fill out uncovered areas in cellular mobile system, such as base station fringe areas, business and industrial buildings, etc. This one-person-one-phone c…

Text truncated - open the document above for the full version.

1) Form 731 Section III, item 4(a) should cite TNB as equipment type. Answer: Revised the Form731 to be TNB type. 2) Please justify the use of the DoC labeling information (FCC Logo). This labeling is reserved for particular approvals that do not appear to apply to this application (PC Peripheral, Stand alone RX, etc.) 3) The label contains the information for 15.19(a)(3). However it would seem the information required by 15.19(a)(1) would be more appropriate. Please review and correct as necessary. Answer:Keep the logo and statement. 4) The schematics may be incomplete. Please confirm the RF circuitry is included in the schematics. Answer: Pls find the file “Spec & Schematics” The RF circuitry for downlink and uplink portions are shown in the sheet 1 and 2 . 5) Please provide a Tune up procedure over the power range provided (2.1033(c)(9)). Answer:Pls find the file “Coiler Turn on procedure”. 6) The manual appears to cover several modulations, however only one modulation appears to be tested in entirity. For many tests, the FCC expects each type of modulation to be tested, it the device is being approved for those modulations. Please refer to the attached information. Will this device be used for other modulations? If so, tests such as Power and input/output bandwidth should be included for each intended modulation. Answer: No,the device under test only supports the CDMA2000 system. The User Manual “Broadband Repeater TX Series GSM / DCS / PCS / CDMA / WCDMA” is an universal manual for a series of repeater produced by coiler. The model of TX-800 only supports the CDMA 2000 whose the working frequency range for up-link is 824~849 MHz, and 869~894 MHz for down-link.. The detailing information about the operation is found by “OPERATIONAL DESCRIPTION OF TX-800”. Additionally, some tests in the test report mentions GSM. Please explain. Answer: Revised the test report. The input signal was CDMA for testing, not GSM. 7) Please provide information regarding both antenna’s used with the device (including the gain). Please note that the back of the manual suggests 9 dBi for the donner antenna. Answer: Pls respectively find the files ” Tx 800 ANT SPEC ” and “Tx 800 Donor ANT SPEC” for internal and external antenna gain. 8) Per FCC guidelines for repeaters and boosters (see attached), please justify the input drive level used (why was the level selected, was it the maximum input rating and maximum gain set and then used for all tests). Please confirm testing was done as maximum output levels the device is cable of. Answer: Yes,all of test items were based on the maximum output power. Before all testings, firstly adjusted the gain by pushing the keypads either in up-link or down-link. to hit the maximum gain checked by network anaylzer,(See the figure in test report:Out of band Rejection: Filter Frequency Response),then recoreded the setting values for maximum gain. Followed by this value,compared the measured maximum output power with specification for maximum input level. Prevent saturation method: There is also a methods of Auto Shut Down (ASD) preventing the EUT operation from saturation,while the maximum output power exceed the spec.of shuntdown as shown in “TX-800 schem”.For example,the DUT will automatically shut down once the output power exceeds the +8dBm at downlink path .More detail information about the SAD function,pls see the manual “OPERATIONAL DESCRIPTION OF TX-800”. 9) The application does not appear to contain information regarding both DC voltages AND currents applied into the several elements of the final radio frequency amplifying device for normal operation over the power range been provided? (2.1033(c)(8)). Answer: Pls find the test report. 10) In the past, typically these types of devices were listed as conducted power. However recently, the FCC has been insistent that these should be reported as ERP. Please update the report to also show ERP based upon conducted power and antenna gains. Optionally, please measure ERP. Answer: Pls find the test report. 11) FCC requires applicant to understand their responsibilities under Sections 22.383 for related booster/inbuilding operations. Please confirm applicant understands their responsibilities under this section of the rules. Answer: Pls find the file ”Declaration “. 12) FYI....Please review amplifier/booster/repeater guidance from the FCC and ensure all information is provided within the application as required. Answer: Yes. 13) Please confirm if power is single channel or composite power. If necessary, please explain how the device handles multi-channel power (i.e. power per channel is reduced, but composite power is constant). Please provide or kindly explain. Answer: Composite power . There is an Auto Shut Down (ASD) function so as to prevent over driving form DUT . More detail information about the SAD function,pls see the manual “OPERATIONAL DESCRIPTION OF TX-800”.

1) The Tune Up Procedure requested appears to be uploaded as a “Turn On Procedure”. Given the small amount of information given in this exhibit provided, it can not be determined if this is actually the appropriate exhibit for the Tune-Up Procedure. The Tune-Up Procedure should explain how the device was tuned up prior to test if relevant. Please review. Answer:Revised the turn-up procedure. 2) The response mentions GSM was not a “tested” modulation. However the test report sections 4.2 & 4.4 show a GSM Signal Generator. Please explain. Answer:Document error. Revised it to be a “Signal Generator”, because the CMU200 has lots of functions,including the CDMA2000 ,GSM , and CW siganl. 3) Page 10 of the revised report appears to be incorrectly labeled in a few columns for W and dBm. Please review. Answer: Swapped the two colums for correction. 4) For ERP radiated measurements, please note that the received power should be measured with a RBW >> than the emissions bandwidth to ensure power is actually measured. Please confirm that this was done or correct as necessary. Answer:Yes,the RBW set is greater than the emissions bandwidth . 5) FYI......The DoC logo does not appear to be properly justified. The manufacturer should consider removing this. Answer: Yes,inform the manufacturer about this .

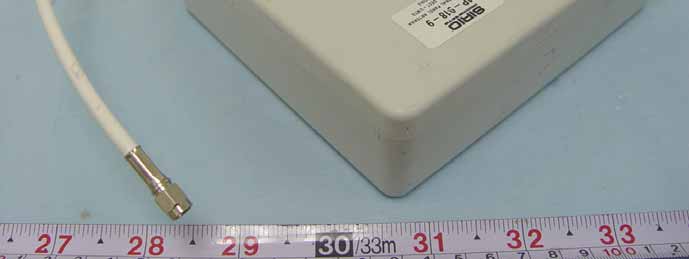

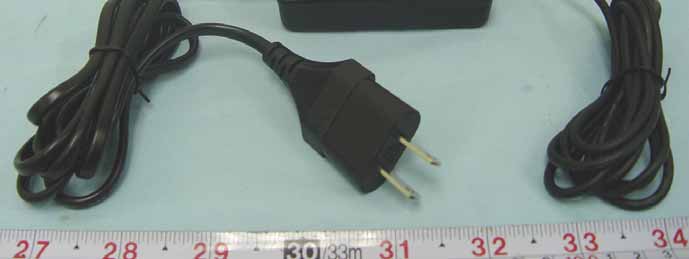

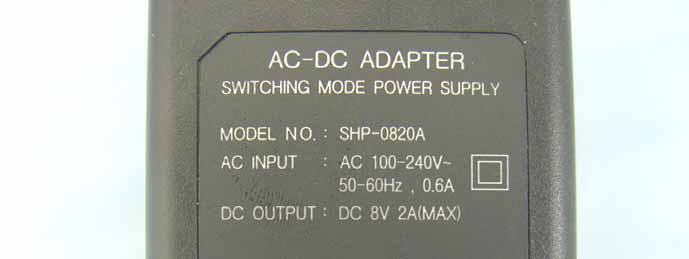

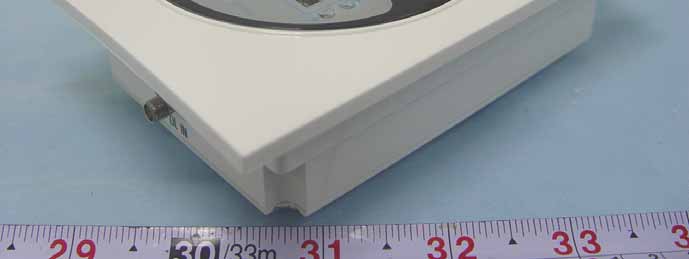

FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : A1 OF A9 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 APPENDIX A. External Photographs of EUT APPENDIX A. External Photographs of EUT APPENDIX A. External Photographs of EUT 690517 FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : A2 OF A9 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 690517 FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : A3 OF A9 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 690517 FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : A4 OF A9 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 690517 FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : A5 OF A9 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 690517 FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : A6 OF A9 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 690517 FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : A7 OF A9 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 690517 FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : A8 OF A9 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 690517 FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : A9 OF A9 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 690517

FCC label sample FCC ID: UG8C-2024-08 This device complies with Part 15 of the FCC Rules. Operation issubject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference t hat may cause undesired operation. Label Location + DI GI T_ 1 U2 Q2 R15 POWER Q1 DC 1 RVS ARM R1 8 R3 R2 3 R2 0 R2 2 R17 C2 R1 6 C1 U6 R5 D3 R1 D2 Q4 DI GI T_10 U3 R19 DI GI T_ 1 U1 FWD R7 + R8 D3 R21 R2 5 R2 FWD ARM SW 3 FWD_ UP DC2 D2 R1 2 R9 D1 SW4 FWD_DOWN JP1 Q3 R6 D1 R1 0 C ON2 0 A U5 R4 + SW1 RVS _UP DI GI T_10 U4 RVS R13 R24 R1 4 SW2 RV S _DOWN R11 Display Board Antenna ServiceRF port Donor RF port Wall mount bracket Body Rear cover Label Location FCC label will be put on the bottom side of the repeater. Bottom side of the unit

FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : B1 OF B18 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 APPENDIX B. Internal Photographs of EUT 690517 FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : B2 OF B18 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 690517 FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : B3 OF B18 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 690517 FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : B4 OF B18 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 690517 FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : B5 OF B18 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 690517 FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : B6 OF B18 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 690517 FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : B7 OF B18 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 690517 FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : B8 OF B18 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 690517 FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : B9 OF B18 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 690517 FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : B10 OF B18 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 690517 FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : B11 OF B18 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 690517 FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : B12 OF B18 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 690517 FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : B13 OF B18 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 690517 FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : B14 OF B18 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 690517 FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : B15 OF B18 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 690517 FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : B16 OF B18 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 690517 FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : B17 OF B18 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 690517 FCC TEST REPORT REPORT NO. : FG690517 SPORTON International Inc. Page Number : B18 OF B18 TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 690517

Tx 800 ANT SPEC. ELECTRICAL SPECIFICATIONS MODEL AA-CI-0000 FREQUENCY RANGE(MHz) 824-894 GAIN (dBi) 0 -3dB BEAMWIDTH(H-PLANE) N/A -3dB BEAMWIDTH(E-PLANE) N/A VSWR 2 :1 IMPEDANCE 50Ω POLARIZATION VERTICAL MECHANICAL SPECIFICATIONS DIMENSION(mm) 78(W)x78(H)x11.6(D) CONNECTOR TYPE SMB-female OPERATING TEMPERATURE(°C) -30~ +60(°C)

Tx 800 TURN ON PROCEDURE EUT Tune-up 1.Connecting cable and DC wire as shown in FIG.1&2 2.Turn on DC power (DC: + 8V /900mA) 3. Adjust the maximum gain +55dB by pushing the keypads either in up-link or down-link. 4.Warm up at least 30 mins .5.Increase +1dB input signal step by step for up- link or down-link port. 6.Prevent the maxi input signal over > -33dBm7.Take data for up-link or down-link. 8.Turn off DC power Down Link (FIG. 1) RF Network Analyzer EUT RF OUT RF IN 30 dB Attenuator I/P SMA (F) Donor O/P SMB (M) Service S.G 30 dB Attenuator EUT I/P SMB (M) Service O/P SMA (F) Donor Power Meter DC Source DC:+8V/900mA DC Source DC:+8V/900mA • TEST ITEM ： – Down link gain – Down link return loss– Down link Maximum output power • TURN ON PROCEDURE ： – 1. Connecting cable and DC wire as shown in FIG.1 – 2. Turn on DC power (DC: + 8V /900mA) – 3. Take data ( PWR = 6.5 ± 0.5 dBm, gain=55 ± 2 dB) – 4. Turn off DC power Up Link (FIG. 2) RF Network Analyzer 30 dB Attenuator RF OUT RF IN EUT I/P SMB (M) Service O/P SMA (F) Donor S.G 30 dB Attenuator EUT I/P SMB (M) Service O/P SMA (F) Donor Power Meter DC Source DC:+8V/900mA DC Source DC:+8V/900mA • TEST ITEM ： – Up link gain – Up link return loss– Up link Maximum output power • TURN ON PROCEDURE ： – 1. Connecting cable and DC wire as shown in FIG.2 – 2. Turn on DC power (DC: + 8V /900mA) – 3. Take data ( PWR = 9.5 ± 0.5 dBm, gain=55 ± 2 dB) – 4. Turn off DC power

Document No.: 690517 RF Exposure Test Report Date: Oct. 12, 2006 FCC ID: UG8C-2024-08 Sporton International Inc. This report man not be reproduced, expect in full, without the prior written consent of Sporton International Inc. RF Exposure Test Report for Coiler Corporation TX-800 Equipment : Broad Band Repeater Trade Name : Coiler Model No. : TX-800 FCC ID : UG8C-2024-08 Filing Type : Certification Applicant : Coiler Corporation 8F-4, No. 75, Sec. 1, Hsin Tai Wu Road, Hsi-Chih City (221), Taipei Hsien, Taiwan ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. Document No.: 690517 RF Exposure Test Report Date: Oct. 12, 2006 FCC ID: UG8C-2024-08 Sporton International Inc. Maximum Permissible Exposure Test Report for TX-800 1.0 Introduction The report has been prepared on behalf of Coiler Corporation TX-800 to show compliance with the RF Exposure. 1.1 Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows: ƒ Fixed installation: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters. ƒ Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091. ƒ Portable Devices: a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) For this test report the Coiler Corporation TX-800 is being done as a mobile device and the MPE is evaluated at the 20cm test distance. The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/Controlled Document No.: 690517 RF Exposure Test Report Date: Oct. 12, 2006 FCC ID: UG8C-2024-08 Sporton International Inc. Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: ƒ Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplcae or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks. ƒ General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. Members of the general public would come under this category when exposure is not employment-related; for example, in the case of a wireless transmitter that exposes persons in its vicinity. Warning labels placed on low-power consumer devices such as cellular telephones are not considered sufficient to allow the device to be considered under the occupational/controlled category, and the general population/uncontrolled exposure limits apply to these devices. Since there are no warnings or training associated with this unit and it can be used by anyone, Broad Band Repeater is evaluated to the General Population / Uncontrolled Exposure limits. 1.2 Radio Frequency Radiation Exposure Evaluation According to 1.1310 of the FCC rules, the power density limit for General Population/Uncontrolled Exposure is 1mW/cm 2 . As this is a mobile application the MPE shall be calculated at 20cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: Where: Document No.: 690517 RF Exposure Test Report Date: Oct. 12, 2006 FCC ID: UG8C-2024-08 Sporton International Inc. S = Power Density P = Output Power at Antenna Terminals G = Gain of Transmit Antenna (linear gain) R = Distance from Transmitting Antenna For this device, the calculation is as follows: Because the EUT belongs to General Population/ Uncontrolled Exposure, the limit of power density is 1.0 mW/cm². Frequency Antenna Gain (dBi) Antenna Gain (numberic) Peak output power (dBm) Peak output power (mW) Calculated RF Exposure at 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) 824.7 9 7.94 9.86 9.68 0.0153 1 836.52 9 7.94 9.92 9.82 0.0155 1 Uplink 848.31 9 7.94 9.86 9.68 0.0153 1 869.7 0 1.00 6.96 4.97 0.0010 1 881.52 0 1.00 6.93 4.93 0.0010 1 Downlink 893.31 0 1.00 6.94 4.94 0.0010 1 Based on the above calculation at 20cm the Broad Band Repeater is below the Power Density limit of 1mW/cm 2 .

SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Report Version: Rev. 02 FCC TEST REPORT Report No. : FG690517 FCC TEST REPORT for 47 CFR Part 22H Equipment : Broad Band Repeater Trade Name : Coiler Model No. : TX-800 FCC ID : UG8C-2024-08 Uplink Frequency Range : CDMA2000 850 : 824~849 MHz Downlink Frequency Range : CDMA2000 850 : 869~894 MHz Max. ERP Power : CDMA2000 850 : 0.0499W Emission Designator : 1M25F9W Applicant : Coiler Corporation 8F-4, No. 75, Sec. 1, Hsin Tai Wu Road, Hsi-Chih City (221), Taipei Hsien, Taiwan ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsed by NVLAP or any agency of U.S. government. ‚ The data shown in this test report were carried out on Oct. 24, 2006 at Sporton International Inc. LAB. ‚ Report No.: FG690517, Report Version: Rev. 02 Roy Wu Deputy Manager SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i TEL : 886-2-2696-2468 Report Issued Date : Sep. 28, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 02 FCC ID : UG8C-2024-08 FCC TEST REPORT Report No. : FG690517 Table of Contents History of this test report....................................................................................................................................ii 1. General Information ........................................................................................................................................1 1.1. Applicant ........................................................................................................................................................................................1 1.2. Manufacturer ..................................................................................................................................................................................1 1.3. Basic Description of Equipment under Test ...................................................................................................................................1 1.2 Feature of Equipment under Test ..................................................................................................................................................2 1.3 Report Date ....................................................................................................................................................................................2 2. Test Configuration of Equipment under Test ...............................................................................................2 2.1 Test Manner ...................................................................................................................................................................................2 2.2 Test Mode ......................................................................................................................................................................................2 2.3 Connection Diagram of Test System .............................................................................................................................................2 2.4 Ancillary Equipment List.................................................................................................................................................................2 3. General Information of Test Site ....................................................................................................................2 3.1 Test Voltage .............................................................................................................................…
