UG8C-2024-19BROAD BAND REPEATER

INSTALLATION GUIDE TX Repeater System Please read this guide before installing the Coiler TX Repeater System Warning For your safety, please beware of power lines at all times during the installation. Please make sure to take appropriate safety measures for protection. Contact with high-voltage power lines can cause death and/or serious injury. Warning Please handle the equipment with care. Mechanical shock due to drop or mishandling can permanently damage sensitive RF components. FCC Regulations This equipment complies with part 24 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced RF (radio frequency) technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. CAUTION: The antenna (s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Mobile Devices: -The Donor antennas used for this transmitter must not exceed an antenna gain of 9 dBi. -A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091. Failure to observe these restrictions will result in exceeding the FCC RF exposure limits. 1. Product Description The Coiler TX Repeater System is designed to improve cell phone signal coverage and enhance reception in the indoor areas where mobile signal is limited or compromised due to construction structures or natural obstacles. The TX Repeater System has been optimized to provide cellular signal coverage and improve voice quality and service range in areas up to 250 square meters of empty space. It is perfect for the installation in homes, small offices, conference rooms and small shops. Coiler TX Repeater System with Panel Antenna is designed for use in areas where adequate mobile signal is available on the roof or side of the building. 2. Package Contents. Please contact the dealer if any part is missing. Donor Panel Antenna, Main Repeater Unit with Integrated Indoor Antenna, Coaxial Cable (10m), Power Supply Adaptor and Mains Cable, User Manual, Mounting Kit 3. Repeater Parts Identification Power LED Downlink (DL) Alarm LED Uplink (UL) Alarm LED DL Gain Display UL Gain Display DL Gain Adjustment Buttons UL Gain Adjustment Buttons DC12V Plug SMA Cable Connector 4. Site Inspection and Installation Planning Please inspect outdoor and indoor environments in order to identify the best locations for the installation of the donor antenna and the repeater unit. Do not physically mount any equipment at this time. 1. The donor antenna should be located in the strongest signal reception area (where the mobile phone shows the highest number of bars) and away from any barriers, such as hills and mountains, high buildings or signboards. That may be on the rooftop or the side of the building, or inside the building close to the window. If the donor antenna is to be installed inside the building, please keep the maximum distance between the donor antenna and the main repeater unit. Back-to-back positioning will guarantee the best performance. 2. The main repeater unit will be located inside the building near to the weakest signal area (where the mobile phone shows the lowest number of bars or does not work). Please see Repeater Unit Installation to determine the best location for the unit. 3. Please temporarily connect the antenna to the repeater and verify that the antenna is receiving signal in its installed position. You may need to adjust the antenna’s location or direction (see Donor Antenna Installation). 5. Donor Antenna Installation Mount the antenna in the previously selected location. Use mounting kit to fasten the donor antenna bracket first. You may need to reposition or rotate the donor antenna to find the direction providing the strongest signal strength. Ideally the donor antenna should face the nearest Base Station. A perfect location should have outdoor signal strength greater than -80 dBm (full signal bar on a mobile phone). 6. Repeater Unit Installation 1. When selecting a location for a repeater’s installation, please follow the instructions: a. A repeater should be installed in a constant – temperature, ventilated room. Humidity and temperature changes may affect the repeater’s reliability. b. For the bes…

Text truncated - open the document above for the full version.

TIMCO ENGINEERING INC. TCB & FCB 849 NW State Road 45 FCC Approvals Newberry, Florida 32669 Industry Canada Approvals http://www.timcoengr.com Notified Body for Europe 888.472.2424 F 352.472.2030 email: [email protected] 8/23/2006 MR. DANIEL LEE SPORTON INTERNATIONAL INC.-BU5 886-2-2696-2468 X206 886-2-2692-2255 [email protected]; [email protected] SUBJECT: COILER CORPORATION - FCC ID: UG8C-2024-19 REFERENCE: JOB 2434TC6 Dear MR. LEE: This application is on hold until these questions are resolved. Please answer all question(s) together and only respond to [email protected]. Any other method will cause unnecessary delay. DO NOT HIT REPLY! Responses should also contain the Reference information, as shown at the top of this message. If acceptable response is not received within 2 week the job will be closed & there will be additional charges to reopen. Based upon our review of this application we have the following questions: Notes: Please see attached guidance document from the FCC 1. The following required exhibits were not received- Schematics, Operational Description, Tune Up Info and Parts List. Please submit these exhibits at your earliest convenience. Thanks. 2. BLOCK DIAGRAM: The Block diagram received file is corrupt. Please resubmit. Thanks. 3. Manual: Please include RF exposure info for indoor and outdoor antenna installation including Maximum antenna gain authorized for use with this device. 4. 731 form: Please include uplink band information. 5. RF exposure for donor antenna: Please provide RF exposure info outdoor installation. According to manual page 2/5 section 4. the donor antenna can be installed indoor. Please show compliance for the maximum gain and separation distance. 6. Please confirm that the device cannot operate in saturation. Are there means to control maximum power and to assure linear operation (use in system configuration may be necessary)? S:\TimcoOffice\ReportTemplate\Probonholdemail.doc Rev 1/5/06 7. How is saturation or over-modulation prevented for pulsed signal inputs? 8. Intermodulation spurious emissions: This device is a bi-directional booster/repeater transmitting and receiving uplink and downlink signals using radiated emissions. Therefore, Intermodulation test data are required. 9. Occupied bandwidth data – In/out bandwidth: It appears that no data was provided for uplink. 10. Output Power: Is the output power either composite of multichannels or per carrier? 11. Radiated and conducted spurious emissions are required at Low, Mid, and High channel in the uplink and downlink bands. 12. Please, make sure the you provide data for both uplink and downlink operations. Sincerely, Gretchen Torres & Bruno Clavier S:\TimcoOffice\ReportTemplate\Probonholdemail.doc Rev 1/5/06 Response from Sporton 1. This device do not have tune up procedure because it is repeater, not GSM phone. The other required exhibits were re-uploaded. 2. Resubmitted 3. Updated users manual was uploaded 4. Uploaded 5. Uploaded 6. Yes, the methods of Auto Shut Down (ASD) and Auto Turn On (ATO) prevent the EUT operation from saturation,while the maximum input power exceed following table values. Frequency (MHz) Input Power(dBm) Output Power(dBm) Output Power(W) 1850.2 -34.2 6.95 0.0050 1880 -35.8 6.91 0.0049 Uplink 1909.8 -29.6 6.91 0.0049 1930.2 -34 6.95 0.0050 1960 -38.9 6.96 0.0050 Downlink 1989.8 -39 6.83 0.0048 7. The same as item 6. 8. Intermodulation test data are updated in the report. 9. Uplink data is updated in the report. 10. The output power is measured by one GSM modultain carrier inputed 11. Data for radiated and conducted spurious emissions at Low, Mid, and High channel in the uplink and downlink bands are updated in the report. 12. Yes

TIMCO ENGINEERING INC From: Bruno Clavier [[email protected]] Sent: Wednesday, August 30, 2006 8:28 AM To: [email protected] Subject: FW: TIMCO-TCB/Request for additional info - COILER CORPORATION - FCC ID: UG8C- 2024-19 Importance: High -----Original Message----- From: ??? [mailto:[email protected]] Sent: Wednesday, August 30, 2006 4:37 AM To: Bruno Clavier Cc: Ivonne Wu (???); Daniel Lee (???); roy; Jim Tsai (???); Jay zhong (??) Subject: Fw: TIMCO-TCB/Request for additional info - COILER CORPORATION - FCC ID: UG8C-2024- 19 Importance: High Dear Bruno, Pls find the answers as below . 1. Intermodulation spurious emissions: This device is a bi-directional booster/repeater transmitting and receiving uplink and downlink signals using radiated emissions. Therefore, Intermodulation test data are required. The data provided are missing information. Please describe in the test report which method was used to test IM emissions (i.e. 2 or 3 signal method, etc.). It would be expected a plot for uplink and downlink band showing the two (or three) signals on each plots , etc. What was the amplitude of the input signals? The black and blue signals have different amplitude - please explain the two traces. The method was adpoted by two tests(high-,low-band edge) with two tones including a CW and CDMA signal , and the band edges and conducted spurios up to the 10th harmonics were measured for the intermodultaion . From page 53 to page 64 , those plots show the results of band edge and conducted spurious when two tones (GSM and CW) inputed. The signal of CDMA and GSM simultaneous input was same as above procedures and allocated from page 69 to 80 . Before testing intermodulation, we checked the input and output siganl level as shown in page 49 (For CW) and page 65 (For CDMA) That's why you saw the different amplitude in each plots. I summaried those results as attachment, Coiler Repeater Intermodulation. file:///V|/C/COILER/2434TC6/cust%20reply%20-%2060830.htm (1 of 2)8/31/2006 4:00:14 PM TIMCO ENGINEERING INC 2. Occupied bandwidth data – In/out bandwidth: Please indicate which signal is the Input. FYI - The FCC document states that “ The spectral shape of the output should look similar to input for all modulations.” It is difficult to determine whether the shapes are similar based on the plots provided. In the test setup, you should have included an attenuator (loss) of the value of the Gain at that frequency, so as to overlay the input and output signal when you remove the amplifier. In the report page No9 of 122, the input GSM signal was in Black color . I compared the input and out signal and approved that they are similar,please find the enclosed file,occupied bandwidth data . Thanks for your help . Jones Tsai Sporton EMC lab TEL : 886 3-327-3456 # 652 FAX : 886 3-328-4978 Skype: jones0331 Mobile :886-921-060-452 file:///V|/C/COILER/2434TC6/cust%20reply%20-%2060830.htm (2 of 2)8/31/2006 4:00:14 PM

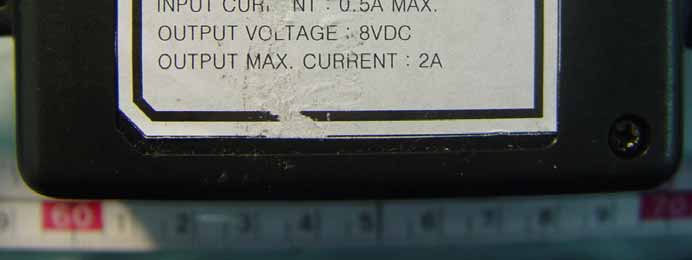

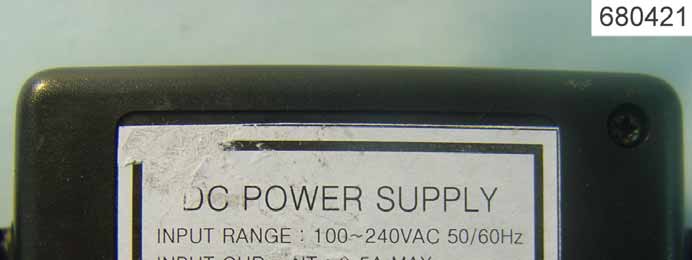

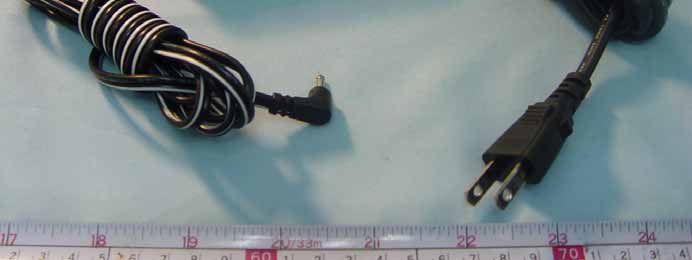

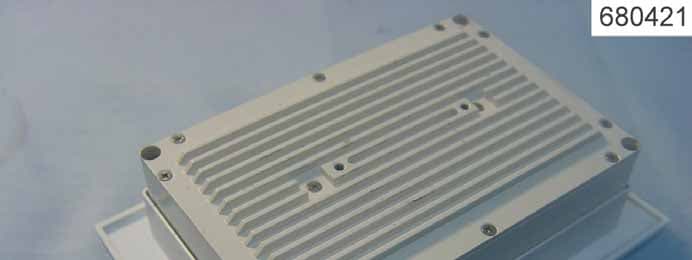

FCC TEST REPORT REPORT NO. : FG680421 SPORTON International Inc. Page Number : A1 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 16, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 APPENDIX A. External Photographs of EUT APPENDIX A. External Photographs of EUT APPENDIX A. External Photographs of EUT FCC TEST REPORT REPORT NO. : FG680421 SPORTON International Inc. Page Number : A2 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 16, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 FCC TEST REPORT REPORT NO. : FG680421 SPORTON International Inc. Page Number : A3 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 16, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 680421 FCC TEST REPORT REPORT NO. : FG680421 SPORTON International Inc. Page Number : A4 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 16, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 680421 FCC TEST REPORT REPORT NO. : FG680421 SPORTON International Inc. Page Number : A5 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 16, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 680421 FCC TEST REPORT REPORT NO. : FG680421 SPORTON International Inc. Page Number : A6 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 16, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 FCC TEST REPORT REPORT NO. : FG680421 SPORTON International Inc. Page Number : A7 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 16, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 FCC TEST REPORT REPORT NO. : FG680421 SPORTON International Inc. Page Number : A8 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 16, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01

FCC label sample FCC ID: UG8C-2024-19 This device complies with Part 15 of the FCC Rules. Operation issubject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference t hat may cause undesired operation. Label Location + DI GI T_ 1 U2 Q2 R15 POWER Q1 DC 1 RVS ARM R1 8 R3 R2 3 R2 0 R2 2 R17 C2 R1 6 C1 U6 R5 D3 R1 D2 Q4 DI GI T_10 U3 R19 DI GI T_ 1 U1 FWD R7 + R8 D3 R21 R2 5 R2 FWD ARM SW 3 FWD_ UP DC2 D2 R1 2 R9 D1 SW4 FWD_DOWN JP1 Q3 R6 D1 R1 0 C ON2 0 A U5 R4 + SW1 RVS _UP DI GI T_10 U4 RVS R13 R24 R1 4 SW2 RV S _DOWN R11 Display Board Antenna ServiceRF port Donor RF port Wall mount bracket Body Rear cover Label Location FCC label will be put on the bottom side of the repeater. Bottom side of the unit

FCC TEST REPORT REPORT NO. : FG680421 SPORTON International Inc. Page Number : B1 OF B8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 16, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 APPENDIX B. Internal Photographs of EUT FCC TEST REPORT REPORT NO. : FG680421 SPORTON International Inc. Page Number : B2 OF B8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 16, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 FCC TEST REPORT REPORT NO. : FG680421 SPORTON International Inc. Page Number : B3 OF B8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 16, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 FCC TEST REPORT REPORT NO. : FG680421 SPORTON International Inc. Page Number : B4 OF B8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 16, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 FCC TEST REPORT REPORT NO. : FG680421 SPORTON International Inc. Page Number : B5 OF B8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 16, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 FCC TEST REPORT REPORT NO. : FG680421 SPORTON International Inc. Page Number : B6 OF B8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 16, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 FCC TEST REPORT REPORT NO. : FG680421 SPORTON International Inc. Page Number : B7 OF B8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 16, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01 FCC TEST REPORT REPORT NO. : FG680421 SPORTON International Inc. Page Number : B8 OF B8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 16, 2006 FAX : 886-2-2696-2255 Report Version : Rev.01

Document No.: 680421 RF Exposure Test Report Date: Aug. 22, 2006 FCC ID: UG8C-2024-19 Sporton International Inc. This report man not be reproduced, expect in full, without the prior written consent of Sporton International Inc. RF Exposure Test Report for Coiler Corporation TX-1900 Equipment : Broad Band Repeater Trade Name : Coiler Model No. : TX-1900 FCC ID : UG8C-2024-19 Filing Type : Certification Applicant : Coiler Corporation 8F-4, No. 75, Sec. 1, Hsin Tai Wu Road, Hsi-Chih City (221), Taipei Hsien, Taiwan ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. Document No.: 680421 RF Exposure Test Report Date: Aug. 22, 2006 FCC ID: UG8C-2024-19 Sporton International Inc. Maximum Permissible Exposure Test Report for TX-1900 1.0 Introduction The report has been prepared on behalf of Coiler Corporation TX-1900 to show compliance with the RF Exposure. 1.1 Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows: ƒ Fixed installation: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters. ƒ Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091. ƒ Portable Devices: a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) For this test report the Coiler Corporation TX-1900 is being done as a mobile device and the MPE is evaluated at the 20cm test distance. The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/Controlled Document No.: 680421 RF Exposure Test Report Date: Aug. 22, 2006 FCC ID: UG8C-2024-19 Sporton International Inc. Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: ƒ Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplcae or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks. ƒ General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. Members of the general public would come under this category when exposure is not employment-related; for example, in the case of a wireless transmitter that exposes persons in its vicinity. Warning labels placed on low-power consumer devices such as cellular telephones are not considered sufficient to allow the device to be considered under the occupational/controlled category, and the general population/uncontrolled exposure limits apply to these devices. Since there are no warnings or training associated with this unit and it can be used by anyone, Broad Band Repeater is evaluated to the General Population / Uncontrolled Exposure limits. 1.2 Radio Frequency Radiation Exposure Evaluation According to 1.1310 of the FCC rules, the power density limit for General Population/Uncontrolled Exposure is 1mW/cm 2 . As this is a mobile application the MPE shall be calculated at 20cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: Where: Document No.: 680421 RF Exposure Test Report Date: Aug. 22, 2006 FCC ID: UG8C-2024-19 Sporton International Inc. S = Power Density P = Output Power at Antenna Terminals G = Gain of Transmit Antenna (linear gain) R = Distance from Transmitting Antenna For this device, the calculation is as follows: Because the EUT belongs to General Population/ Uncontrolled Exposure, the limit of power density is 1.0 mW/cm². Frequency Antenna Gain (dBi) Antenna Gain (numberic) Peak output power (dBm) Peak output power (mW) Calculated RF Exposure at 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) Uplink Downlink Based on the above calculation at 20cm the Broad Band Repeater is below the Power Density limit of 1mW/cm 2 .

Occupied bandwidth data – In/out bandwidth Test Procedure: 1. Measured directly the input GSM signal from the signal generator and recorded in a plot in Black color . 2. The EUT was connected respectively to the specturm analyzer and the signal generattor. 3. An attenuator which had a equivalent loss amount same as the amplified gain of EUT was inserted ahead of the EUT as above figure. 4. Set the EUT maximum gain and output power. 5. Measured the output GSM signal and recorded in a plot in Blue color .. Test Results for Occupied bandwidth data – In/out bandwidth: Att 20 dB * A Offset 8 dB LVL SWT 300 ms VIEW Ref -10 dBm Center 1.88 GHzSpan 1 MHz100 kHz/ 1 PK * * RBW 3 kHz VBW 30 kHz * * 2 PK VIEW -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 1 Marker 1 [T1 ] -36.89 dBm 1.880068000 GHz OBW232.000000000 kHz T1 Temp 1 [T1 OBW] -60.58 dBm 1.879884000 GHz T2 Temp 2 [T1 OBW] -61.60 dBm 1.880116000 GHz Date: 30.AUG.2006 15:28:39 Uplink 1880MHz input GSM signal in Black color and output signal in Blue color S.A EUT S.G Max Power Output and Max Gain Attenuator Att 20 dB * A Offset 8 dB LVL Ref -10 dBm 100 kHz/Center 1.96 GHzSpan 1 MHz * * RBW 3 kHz VBW 30 kHz SWT 300 ms * 1 PK VIEW 2 PK VIEW -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 1 Marker 1 [T1 ] -83.59 dBm 1.959500000 GHz OBW234.000000000 kHz T1 Temp 1 [T1 OBW] -62.90 dBm 1.959884000 GHz T2 Temp 2 [T1 OBW] -64.18 dBm 1.960118000 GHz Date: 30.AUG.2006 15:32:06 Downlink 1960MHz input GSM signal in Black color and output signal in Blue color

SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Report Version: Rev. 01 FCC TEST REPORT Report No. : FG680421 FCC TEST REPORT for 47 CFR Part 24E Equipment : Broad Band Repeater Trade Name : Coiler Model No. : TX-1900 FCC ID : UG8C-2024-19 Uplink Frequency Range : PCS : 1850.2~1909.8MHz Downlink Frequency Range PCS : 1930.2~1989.8MHz Max. EIRP Power : PCS : 0.00785W Emission Designator : 300 KGXW Applicant : Coiler Corporation 8F-4, No. 75, Sec. 1, Hsin Tai Wu Road, Hsi-Chih City (221), Taipei Hsien, Taiwan ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsed by NVLAP or any agency of U.S. government. ‚ The data shown in this test report were carried out on Aug. 24, 2006 at Sporton International Inc. LAB. ‚ Report No.: FG680421, Report Version: Rev. 01 Roy Wu Deputy Manager SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i TEL : 886-2-2696-2468 Report Issued Date : Aug. 25, 2006 FAX : 886-2-2696-2255 Report Version : Rev. 01 FCC ID : UG8C-2024-19 FCC TEST REPORT Report No. : FG680421 Table of Contents History of this test report....................................................................................................................................ii 1. General Information ........................................................................................................................................1 1.1. Applicant ........................................................................................................................................................................................1 1.2. Manufacturer ..................................................................................................................................................................................1 1.3. Basic Description of Equipment under Test ...................................................................................................................................1 1.2 Feature of Equipment under Test ..................................................................................................................................................2 1.3 Report Date ....................................................................................................................................................................................2 2. Test Configuration of Equipment under Test ...............................................................................................3 2.1 Test Manner ...................................................................................................................................................................................3 2.2 Test Mode ......................................................................................................................................................................................3 2.3 Connection Diagram of Test System .............................................................................................................................................3 2.4 Ancillary Equipment List.................................................................................................................................................................4 3. General Information of Test Site ....................................................................................................................5 3.1 Test Voltage ...................................................................................................................................................................................5 3.2 Test in Compliance with .................................................................................................................................................................5 3.3 Frequency Range Investigated ......................................................................................................................................................5 3.4 Test Distance .................................................................................................................................................................................5 4. Test Data and Test Result...............................................................................................................................6 4.1 List of Measurements and Examinations .......................................................................................................................................6 4.2 RF Output Power ...........................................................................................................................................................................7 4.3 Occupied Bandwidth and Band Edge Measurement .....................................................................................................................8 4.4 Conducted Emission & Out of Band Rejection: Filter Frequency response & Intermodulation ...................................................15 4.4 Field Strength of Spurious Radiation ...........................................................................................................................................81 5. List of Measurement Equipments ..............................................................................................................121 6. Uncertainty Evaluation................................................................................................................................122 Appendix A. Photographs of EUT External Appendix B. Photographs of EUT Internal Appendix C. Photographs of Setup SPORTON International Inc. Page No. : ii TEL : 886…
