UJA0002BSpread Spectrum Transmitter

Owner’s Manual Read and understand this entire manual before using! For assistance contact Pyramat. DO NOT RETURN TO STORE. Item Number: 10176601 10176613 PM450-WR Digital Wireless Sound Rocker with Rechargeable Battery WARNING: The Pyramat Sound Rocker is intended for indoor use only. TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. • Do not expose to direct sunlight or extreme temperatures. • Adult supervision is required for set-up. • Use only with the supplied power adapter. The power adapter is not a toy. • Battery contains sealed lead acid. Battery must be recycled. Please do not discard box as it contains important information. • Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. • Excessive use of audio equipment at high volume may lead to hearing loss. Listen responsibly and use common sense. • Children under 13 should not use this product without parental supervision. • DO NOT wash or soak the Sound Rocker with water. If cover becomes wet, disconnect power immediately and don’t use until totally dry. • To avoid injury or death from electrical shock, NEVER open the electrical cabinet or remove the cover. The Sound Rocker is compatible with: • All gaming consoles (including Xbox360, wII, and Playstation 3) • iPod and all other MP3 players • TVs, DVDs, VCRs • Portable gaming devices (including Nintendo DS, Nintendo DS Lite, and PSP) S AFETy WARNINGS Safety Warnings ............................................................1 Before You Begin ...........................................................2 Features .........................................................................2 Sound Rocker Set-Up ....................................................3 Wireless Transmitter Set-Up .........................................4 Wireless Multi-User Connection ....................................4 Wireless Connection Methods ...................................5-6 1 Need Help? Visit our website at www.pyramat.com, send an e-mail to [email protected] or call toll-free at 877-591-1012. C ONTENTS Congratulations on the purchase of your Pyramat PM450-WR Digital Wireless Sound Rocker. The Sound Rocker is a comfortable, rockable chair that delivers a powerful audio experience designed to intensify your enjoyment of games, movies, music and more. To ensure the best results, please read this manual completely before operating your Sound Rocker, and retain it for future reference. Direct Connection Methods .......................................7-8 Direct Multi-User Connection ........................................9 Portable Audio/Handheld Game Device Connection. ....9 Troubleshooting ...........................................................10 Warranty ......................................................................11 FCC Content ................................................................12 Remove the foam separators from the Sound Rocker and take unit out of box. Check to make sure you have all the parts shown below and that all items are in good condition. If any of these parts are missing, please contact the customer service department within 90 days of purchase by calling 877.591.1012 or emailing [email protected]. Replacement parts can also be purchased online at www.pyramat.com.” BEFOREYOU BEGIN 2 11 ft. male to female RCA audio cable FEATURES ON / OFF CHANNEL Power DC port Connect the supplied 12 volt/1.6 amp DC power adapter here. Input RCA audio ports Connect red and white RCA audio cable here from game consoles, home theater, satellite receiver and stereo receiver. Speakers Volume/power knob Twist to click on and power up and adjust the volume level. Source knob SelectIN for direct connections to the control panel. SelectW for wireless transmission. SelectMP3 for MP3 and portable device connections to the MP3 and portable device plug. Channel selector button Select the same channel as the transmitter by pressing the channel selector button. Bass knob Twist to adjust the bass to your preference. Multi-player RCA audio output ports Connect up to four Sound Rockers together for multi-user fun. Headphone port Connect headphones here. CAUTION:Keep fingers clear of the folding seam when opening the unit. Note: Replacement cables and mini adapters can be purchased at your local audio accessory dealer. 3.5mm mini plug Connect to an MP3 player, an IPOD, or a handheld game device such as Nintendo DS, Nintendo DS Lite, and PSP. Transmitter power adapterDigital wireless transmitter 9 ft. 12 volt/1.6 amp DC power adapter Digital Wireless Transmitter Control panel LED channel window Power on off switch Channel Selector RCA to 3.5mm mini cable SOUND ROCKERSET-UP 1 Unfold the top portion of the Sound Rocker until the backrest is flush with the seat portion. 2Place the Sound Rocker so that the control panel is less than 9 ft./2.75 meters from the power source. 3Connect the power adapter to the power DC port on the control panel. Then, plug the power adapter into an electrical outlet. 2 Charge the battery for 6 hours before attempting to unplug and use remotely. When the unit is fully charged the red lights will shut off. Note: Run time of the rechargeable battery is approximately 4-5 hours. 3 CAUTION:Keep fingers clear of the folding seam when folding or unfolding the rocker. Charging the Battery The Sound Rocker is equipped with rechargeable batteries. BLUE Blue light indicates the power adapter is connected and the power is on. RED Red light indicates the unit is charging when the power adapter is connected and the power is off. When the unit is fully charged the red light will shut off. FLASHING RED Flashing Red light indicates the batteries are running low. After 5 minutes of flashing red light the unit will automatically shut off and will need to be plugged in. Control Panel Indicator Lights 1Connect the power adapter to the power DC port on the control panel. The…

Text truncated - open the document above for the full version.

The 2.4GHz Transmitter use the nRF24L01 (Single Chip 2.4GHz Transceiver) to modulate the audio signal to 2.4GHz ISM band and as a result can transmit out the signal in wireless method. But the receiving function of nRF24L01 is disabled in this EUT. There’s 8 channels in all. The 8 channels are chosen from 126 channels of nRF24L01. Here is the channel list: Channel Central frequency (MHz) 1 2404 2 2429 3 2454 4 2479 5 2409 6 2434 7 2459 8 2474 The Transmitter is powered by an adapter: input 120V AV/60Hz 4W; output 6V DC 200mA.

Note: nRF24L01is a Single Chip 2.4GHz Transceiver. In this EUT, only transmitter function is applied and receiver function is disabled.

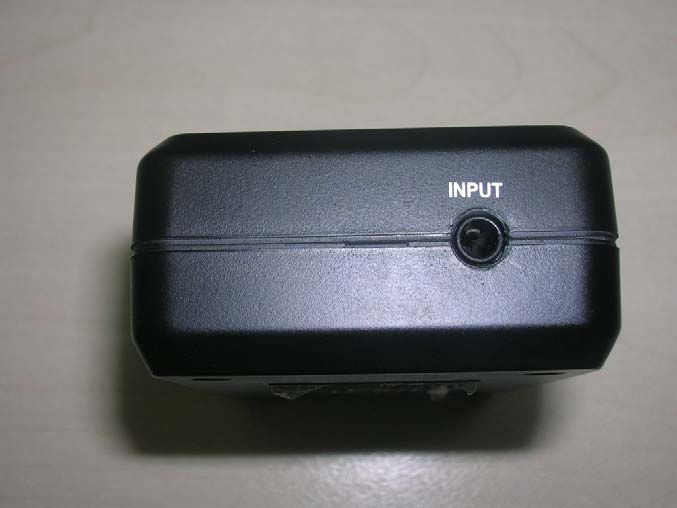

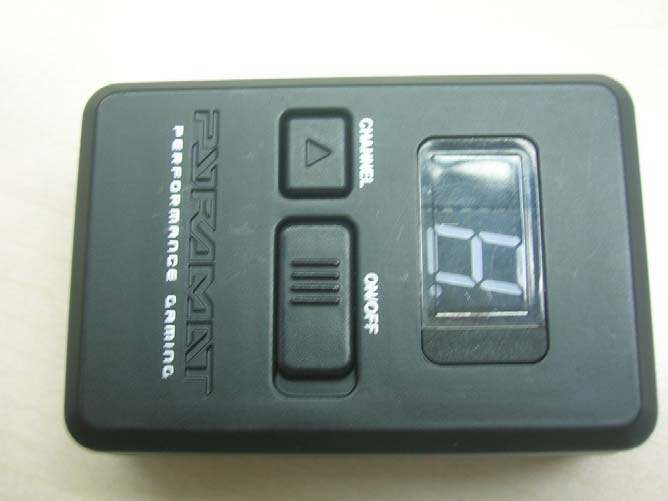

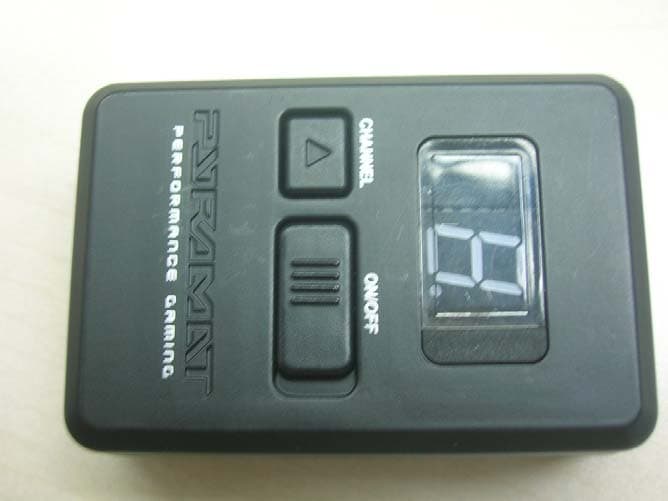

FCC ID: UJA0002B Page 1 of 3 External Picture FCC ID: UJA0002B Page 2 of 3 FCC ID: UJA0002B Page 3 of 3

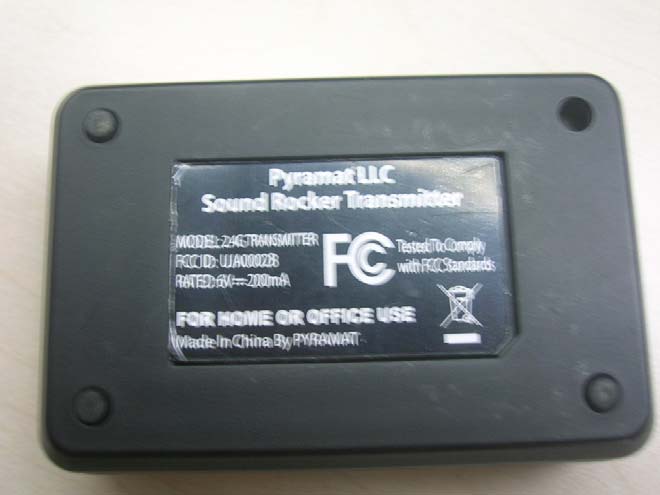

FCC ID: UJA0002B Page 1 of 3 FCC ID Label FCC ID: UJA0002B Page 2 of 3 FCC ID: UJA0002B Page 3 of 3

FCC ID: UJA0002B Page 1 of 2 Internal Picture FCC ID: UJA0002B Page 2 of 2

Operation Description 1. Link the portable DVD to the input terminal of EUT. 2. Connect the RF output terminal of EUT to the spectrum analyzer or put the EUT into the semi-anechoic chamber according to the test item. 3. Turn on the EUT. 4. Make the DVD generate 1kHz audio signal. 5. Set the lowest channel of EUT according to the test requirements. 6. Test as the standard needs. 7. Repeat above test at middle channel and highest channel. 8. Test complete. 9. Turn off the EUT.

All rights reserved. Reproduction in whole or in part is prohibited without the prior written permission of the copyright holder. July 2007 nRF24L01 Single Chip 2.4GHz Transceiver Product Specification Key Features •Worldwide 2.4GHz ISM band operation •Up to 2Mbps on air data rate •Ultra low power operation •11.3mA TX at 0dBm output power •12.3mA RX at 2Mbps air data rate •900nA in power down •22μA in standby-I •On chip voltage regulator •1.9 to 3.6V supply range •Enhanced ShockBurst™ •Automatic packet handling •Auto packet transaction handling •6 data pipe MultiCeiver™ •Air compatible with nRF2401A, 02, E1 and E2 •Low cost BOM •±60ppm 16MHz crystal •5V tolerant inputs •Compact 20-pin 4x4mm QFN package Applications •Wireless PC Peripherals •Mouse, keyboards and remotes •3-in-one desktop bundles •Advanced Media center remote controls •VoIP headsets •Game controllers •Sports watches and sensors •RF remote controls for consumer electronics •Home and commercial automation •Ultra low power sensor networks •Active RFID •Asset tracing systems •Toys Revision 2.0 Page 2 of 74 nRF24L01 Product Specification Liability disclaimer Nordic Semiconductor ASA reserves the right to make changes without further notice to the product to improve reliability, function or design. Nordic Semiconductor ASA does not assume any liability arising out of the application or use of any product or circuits described herein. All application information is advisory and does not form part of the specification. Limiting values Stress above one or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the specifications are not implied. Exposure to limiting values for extended periods may affect device reliability. Life support applications These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Nordic Semiconductor ASA cus- tomers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Nordic Semiconductor ASA for any damages resulting from such improper use or sale. Contact details Visit www.nordicsemi.no for Nordic Semiconductor sales offices and distributors worldwide Main office: Otto Nielsens vei 12 7004 Trondheim Phone: +47 72 89 89 00 Fax: +47 72 89 89 89 www.nordicsemi.no Data sheet status Objective product specificationThis product specification contains target specifications for product development. Preliminary product specification This product specification contains preliminary data; supplementary data may be published from Nordic Semiconductor ASA later. Product specificationThis product specification contains final product specifications. Nordic Semiconductor ASA reserves the right to make changes at any time without notice in order to improve design and supply the best possible product. Revision 2.0 Page 3 of 74 nRF24L01 Product Specification Writing Conventions This product specification follows a set of typographic rules that makes the document consistent and easy to read. The following writing conventions are used: •Commands, bit state conditions, and register names are written in Courier. •Pin names and pin signal conditions are written in Courier bold. •Cross references are underlined and highlighted in blue . Revision History DateVersionDescription July 20072.0 •Restructured layout in a new template •Added details of the following features: XDynamic Payload Length (DPL) XAcknowledgement Payload (ACK_PLD) XFeature register XACTIVATE SPI command XSelective Auto Acknowledgement (NO_ACK) Revision 2.0 Page 4 of 74 nRF24L01 Product Specification Contents 1Introduction ............................................................................................... 7 1.1Features ............................................................................................... 8 1.2Block diagram ...................................................................................... 9 2Pin Information .......................................................................................... 10 2.1Pin assignment..................................................................................... 10 2.2Pin functions......................................................................................... 11 3Absolute maximum ratings ...................................................................... 12 4Operating conditions ................................................................................ 13 5Electrical specifications ........................................................................... 14 5.1Power consumption.............................................................................. 14 5.2General RF conditions ......................................................................... 15 5.3Transmitter operation ........................................................................... 15 5.4Receiver operation ............................................................................... 16 5.5Crystal specifications ........................................................................... 17 5.6DC characteristics ................................................................................ 18 5.7Power on reset ..................................................................................... 18 6Radio Control ............................................................................................ 19 6.1Operational Modes ............................................................................... 19 6.1.1State diagram .................................................................................. 19 6.1.2Power Down Mode .......................................................................... 20 6.1.3Standby Modes.......................................................…

Text truncated - open the document above for the full version.

Part list Quantity Location 33nF Capacitor 2 C1 C2 0.1uF Capacitor 7 C3 C4 C5 C6 C7 C8 C9 1.0pF Capacitor 2 C11 C12 10uF Capacitor 7 C18 C19 C20 C21 C22 C23 C24 16MHz CRYSTAL OSCILLATORS 1 Y1 1KΩ Resistor 1 R8 1nH Inductor 2 L1 L2 1uF Capacitor 2 C25 C26 2.7nH Inductor 1 L3 2.2nF Capacitor 1 C27 22KΩ Resistor 1 R9 22nH Inductor 1 L4 22pF Capacitor 2 C27 C28 270KΩ Resistor 1 R10 3906 1 Q1 3.9pF Capacitor 1 C29 4.7KΩ Resistor 2 R11 R12 4.7pF Capacitor 3 C30 C31 C32 560Ω Resistor 2 R13 R14 5.1Ω Resistor 3 R15 R16 R17 6.8pF Capacitor 1 C33 BFG425W 1 U3 2.4G antenna 1 ANT1 nRF24L01 1 U2 CE2632 1 U4 XL9612 1 U1 PCB EB35E0TP V1.1 1

FCC ID: UJA0002B Page 1 of 1 Statement of compliance to Maximum Permissible Exposure (MPE) Equipment : Sound Rocker Transmitter Type/Model : 2.4GHz Transmitter Applicant : Pyramat LLC 16200-A Carmenita Rd., Cerritos, California, 90703, United States Manufacturer : Xiamen Comfort Science and Technology Group Co., Ltd. No.18 Longshan South Road, Xiamen 361009, China Here assuming a worst-case prediction of power density (100% reflection), then S = 4PG / (4πR²) = PG / (πR²). Where S = power density in mW/cm² P = transmit power in mW G = numeric gain of transmit antenna R = distance (cm) As we can see from the test report JSH007080380-001: The maximum P = -0.31dBm = 0.93mW G = 2.5dBi = 1.78mW R is chosen to be 1cm (worst case) S = PG / (πR²) = 0.93 * 1.78 / 3.14 = 0.53mW/cm² This level is below the 1 mW/cm² MPE for General Population / Uncontrolled Exposure as stated in OET BULLETIN 65 Edition 97-01. Conclusion: this EUT fulfills 47CFR Part 15.247(i) (2006). Date of issue: Sep 8, 2007 Prepared by: Reviewed by: Wakeyou Wang (Project engineer) Jonny Jing (Reviewer)

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 15-Jun-2006 Sheet of File: D:\4layers\EB35x\EB350TR.ddb Drawn By: AUX_RINAUX_LIN C16 C17 C25 C21 LRCK R4 VCC33 SCLKRESET VCC33 C5 SDIN VAD MCLK DATACS CLK1 CE PWR_UP VCC33 L4 VCC33 3.3VRF3.3VA SDOUT OSC L3 L6 C27 L5 C31 C30 C32 C18 C2C1 C24 3.3VA SDINLRCKSCLKMCLK CSDACSCL + C20 R2R3 R14R13 PA_DN PA_DN C3 C7 X1 1 G 2 G 4 X2 3 Y1 SDASCLIO1IO2 12345678 J1 R1R5 R12 C6 C22 R11R9 R8R7 C19 R10 VAD VAD VAD AUX_LIN ANT 1 ANT1 R16 C28 R6 L2L1 C15 C12 C13 C8 CLK1DATA C9 3.3VRF CECSPWR_UP + C11 OSC C14 C10 SDASCLIO1IO2 CSDACSCL FI 1 FO 2 GND 0 LFB1 C4 PIN 4 PIN 21 PIN 22 PIN 12 PIN 13 PIN 25 PIN 26 PIN 5 PIN 19 PIN 10 PIN 15 PIN 14 PIN 16 PIN 8 PIN 28 PIN 1 PIN 2 PIN 27 PIN 3 PIN 17 PIN 18 PIN 11 PIN 9 PIN 24 PIN 7 PIN 20 PIN 6 PIN 23 PIN 29 PIN 30 PIN 32 PIN 31 U1 XL9611 SDIN 1 SCLK 2 MCLK/XTI 3 XTO 4 DCVDD 5 DGND 6 DBVDD 7 BCLK 8 DNC 9 DNC 10 ADCDAT 11 ADCLRC 12 NC 13 AVDD 14 AGND 15 VMID 16 RLINEIN 17 LLINEIN 18 MODE 19 CSB 20 U3 WM8739 1 2 34 U4 BFG425W DOUT2 4 ANT2 15 VSS_PA 16 VSS 10 XC2 11 CS 5 VDD_PA 13 DATA 8 XC1 12 VSS 20 CE 1 DR2 2 IREF 19 CLK2 3 DVDD 9 CLK1 7 VSS 18 ANT1 14 DR1 6 VDD 17 VDD 21 VSS 22 VDD 24 PWR_UP 23 U2NRF2401

Report No. JSH007080380-001 Page 1 of 31 EMC TEST REPORT No. JSH007080380-001 Applicant : Pyramat LLC 16200-A Carmenita Rd., Cerritos, California, 90703, United States Manufacturer : Xiamen Comfort Science and Technology Group Co., Ltd. No.18 Longshan South Road, Xiamen 361009, China Equipment : Sound Rocker Transmitter Type/Model : 2.4GHz Transmitter SUMMARY The equipment complies with the requirements according to the following standard(s): 47CFR Part 15 (2006): Radio Frequency Devices ANSIC63.4 (2003): American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz RSS-210 Issue 7 (June 2007): Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment RSS-Gen Issue 2 (June 2007): General Requirements and Information for the Certification of Radiocommunication Equipment Date of issue: Sep 8, 2007 Tested by: Reviewed by: Wakeyou Wang (Projector Engineer) Jonny Jing (Reviewer) Report No. JSH007080380-001 Page 2 of 31 Description of Test Facility Name: Intertek Testing Services Limited Shanghai Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 IC Assigned Code: 6201A Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 Report No. JSH007080380-001 Page 3 of 31 Content SUMMARY............................................................................................................................................. 1 DESCRIPTION OF TEST FACILITY............................................................................................................ 2 1. GENERAL INFORMATION............................................................................................................... 5 1.1 Applicant Information..........................................................................................5 1.2 Identification of the EUT .....................................................................................5 1.3 Technical specification ........................................................................................5 1.4 Mode of operation during the test / Test peripherals used...................................6 2. TEST SPECIFICATION..................................................................................................................... 7 2.1 Instrument list ......................................................................................................7 2.2 Test Standard .......................................................................................................7 3. MINIMUM 6DB BANDWIDTH.......................................................................................................... 9 3.1 Limit.....................................................................................................................9 3.2 Test Configuration ...............................................................................................9 3.3 Test Procedure and test setup...............................................................................9 3.4 Test Protocol ......................................................................................................10 3.5 Measurement uncertainty...................................................................................10 4. MAXIMUM PEAK OUTPUT POWER................................................................................................ 11 4.1 Test limit ............................................................................................................11 4.2 Test Configuration .............................................................................................11 4.3 Test procedure and test setup .............................................................................11 4.4 Test protocol ......................................................................................................12 4.5 Measurement uncertainty...................................................................................12 5. POWER SPECTRUM DENSITY........................................................................................................ 13 5.1 Test limit ............................................................................................................13 5.2 Test Configuration .............................................................................................13 5.3 Test procedure and test setup .............................................................................13 5.4 Test Protocol ......................................................................................................14 5.5 Measurement uncertainty...................................................................................14 6. SPURIOUS EMISSION..................................................................................................................... 15 6.1 Test limit ............................................................................................................15 6.2 Test Configuration .............................................................................................15 6.3 Test procedure and test setup .............................................................................15 6.4 Test protocol ......................................................................................................16 6.5 Measurement uncertainty...................................................................................17 7. RESTRICT BAND RADIATED EMISSION......................................................................................... 18 7.1 Test limit ............................................................................................................18 7.2 Test Configuration .............................................................................................18 7.3 Test procedure and test se…

Text truncated - open the document above for the full version.

FCC ID: UJA0002B Page 1 of 28 Test Data FCC ID: UJA0002B Page 2 of 28 1. Minimum 6dB bandwidth Channel 1 A Unit dBm RBW 100 kHz VBW 300 kHz SWT 5 ms IN1 Center 2.40393 GHzSpan 3 MHz300 kHz/ Ref Lvl 10 dBm Ref Lvl 10 dBm RF Att 40 dB 1VIEW1MA -80 -70 -60 -50 -40 -30 -20 -10 0 -90 10 1 2 2 Delta 2 [T1] -0.41 dB 541.08216433 kHz 2 [T1] -15.04 dBm 2.40375866 GHz 2 [T1] -0.41 dB 541.08216433 kHz 1 [T1] -9.24 dBm 2.40384884 GHz D1 -15.3 dBm Date: 6.SEP.2007 22:17:51 FCC ID: UJA0002B Page 3 of 28 Channel 3 A Unit dBmSWT 5 ms RBW 100 kHz VBW 300 kHz IN1 Center 2.454054108 GHzSpan 3 MHz300 kHz/ Ref Lvl 0 dBm Ref Lvl 0 dBm RF Att 30 dB 1MAX1MA -90 -80 -70 -60 -50 -40 -30 -20 -10 -100 0 1 2 2 Delta 2 [T1] -0.47 dB 547.09418837 kHz 2 [T1] -16.43 dBm 2.45374449 GHz 2 [T1] -0.47 dB 547.09418837 kHz 1 [T1] -10.68 dBm 2.45416533 GHz D1 -16.7 dBm Date: 6.SEP.2007 23:07:14 FCC ID: UJA0002B Page 4 of 28 Channel 4 A Unit dBm SWT 5 ms RBW 100 kHz VBW 300 kHz IN1 Center 2.479009018 GHzSpan 3 MHz300 kHz/ Ref Lvl 0 dBm Ref Lvl 0 dBm RF Att 30 dB 1VIEW1MA -90 -80 -70 -60 -50 -40 -30 -20 -10 -100 0 1 2 1 Delta 1 [T1] -0.99 dB 571.14228457 kHz 2 [T1] -18.09 dBm 2.47874749 GHz 1 [T1] -0.99 dB 571.14228457 kHz 1 [T1] -12.80 dBm 2.47900601 GHz D1 -18.8 dBm Date: 6.SEP.2007 23:03:27 FCC ID: UJA0002B Page 5 of 28 2. Power spectrum density Channel 1 A Unit dBm Center 2.403983968 GHzSpan 1 MHz100 kHz/ Ref Lvl 0 dBm Ref Lvl 0 dBm RF Att 30 dBRBW 3 kHz VBW 3 kHz SWT 280 ms IN1 1VIEW1MA -90 -80 -70 -60 -50 -40 -30 -20 -10 -100 0 1 Marker 1 [T1] -20.14 dBm 2.40392084 GHz 1 [T1] -20.14 dBm 2.40392084 GHz Date: 6.SEP.2007 22:58:27 FCC ID: UJA0002B Page 6 of 28 Channel 3 A Unit dBm RBW 3 kHz VBW 3 kHz SWT 280 ms IN1 Center 2.453990982 GHzSpan 1 MHz100 kHz/ Ref Lvl 0 dBm Ref Lvl 0 dBm RF Att 30 dB 1VIEW1MA -90 -80 -70 -60 -50 -40 -30 -20 -10 -100 0 1 Marker 1 [T1] -22.59 dBm 2.45398998 GHz 1 [T1] -22.59 dBm 2.45398998 GHz Date: 6.SEP.2007 22:57:12 FCC ID: UJA0002B Page 7 of 28 Channel 4 A Unit dBm Ref Lvl 0 dBm Ref Lvl 0 dBm RF Att 30 dB Center 2.479002004 GHzSpan 1 MHz100 kHz/ RBW 3 kHz VBW 3 kHz SWT 280 ms IN1 1VIEW1MA -90 -80 -70 -60 -50 -40 -30 -20 -10 -100 0 1 Marker 1 [T1] -21.74 dBm 2.47895090 GHz 1 [T1] -21.74 dBm 2.47895090 GHz Date: 6.SEP.2007 22:55:05 FCC ID: UJA0002B Page 8 of 28 3. Spurious Emission Channel 1, Horizontal 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] MES 0904_450_H_pre LIM FCC 15 F 3 QP Field Strength QP 30 40 50 60 70 80 90 100 Level [dB 礦/m] 1G2G3G4G5G6G8G10G18G Frequency [Hz] x x x MES 450_PK_H1_red MES 450_PK_H1_pre LIM FCC 2.4GHz PK FCC ID: UJA0002B Page 9 of 28 Channel 1, Vertical 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] MES 0904_450_V_pre LIM FCC 15 F 3 QP Field Strength QP 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 18G 19G 20G 21G22G23G24G25G Frequency [Hz] MES 450PK_1H_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: UJA0002B Page 10 of 28 30 40 50 60 70 80 90 100 110 Level [dB 礦/m] 1G2G3G4G5G6G8G10G18G Frequency [Hz] x x x MES 450_PK_V1_red MES 450_PK_V1_pre LIM FCC 2.4GHz PK 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 18G 19G 20G 21G22G23G24G25G Frequency [Hz] MES 450PK_1V_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: UJA0002B Page 11 of 28 Channel 3, Horizontal 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 30M 50M 70M 100M200M300M500M700M 1G Frequency [Hz] MES 0904_450_H3_pre LIM FCC 15 F 3 QP Field Strength QP 30 40 50 60 70 80 90 100 Level [dBμV/m] 1G 2G 3G4G5G6G8G10G18G Frequency [Hz] x x x MES 450_PK_H3_red MES 450_PK_H3_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: UJA0002B Page 12 of 28 Channel 3, Vertical 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 18G 19G 20G 21G22G23G24G25G Frequency [Hz] MES 450_PK_3H_pre LIM FCC 15 F 3 QP Field Strength QP 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 30M 50M 70M 100M200M300M500M700M 1G Frequency [Hz] MES 0904_450_V3_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: UJA0002B Page 13 of 28 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 18G 19G 20G 21G22G23G24G25G Frequency [Hz] MES 450_PK_3V_pre LIM FCC 15 F 3 QP Field Strength QP 30 40 50 60 70 80 90 100 Level [dBμV/m] 1G 2G 3G4G5G6G8G10G18G Frequency [Hz] x x x MES 450_PK_V3_red MES 450_PK_V3_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: UJA0002B Page 14 of 28 Channel 4, Horizontal 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] MES 0904_450_H4_pre LIM FCC 15 F 3 QP Field Strength QP 30 40 50 60 70 80 90 100 Level [dBμV/m] 1G 2G 3G4G5G6G8G10G18G Frequency [Hz] x x x MES 450_PK_H4_red MES 450_PK_H4_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: UJA0002B Page 15 of 28 Channel 4, Vertical 0 10 20 30 40 50 60 70 80 Level [dB 礦/m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] MES 0904_450_V4_pre LIM FCC 15 F 3 QP Field Strength QP 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 18G 19G 20G 21G22G23G24G25G Frequency [Hz] MES 450_PK_4H_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: UJA0002B Page 16 of 28 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 18G 19G 20G 21G22G23G24G25G Frequency [Hz] MES 450_PK_4V_pre LIM FCC 15 F 3 QP Field Strength QP 30 40 50 60 70 80 90 100 Level [dBμV/m] 1G 2G 3G4G5G6G8G10G18G Frequency [Hz] x x x MES 450_PK_V4_red MES 450_PK_V4_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: UJA0002B Page 17 of 28 Duty cycle for AV result evaluation FCC ID: UJA0002B Page 18 of 28 4. Restrict band radiated Emission Restrict band 2310MHz ~ 2390MHz, PK A Unit dB Ì V/m Ref Lvl 107 dB* Ref Lvl 107 dB* RF Att 10 dB TDF Start 2.31 GHzStop 2.458088176 GHz14.80881764 MHz/ RBW 1 MHz VBW 1 MHz SWT 5 ms IN1 1MAX D1 7 1MA 10 20 30 40 50 60 70 80 90 100 7 107 1 2 Marker 2 [T1] 67.18 dB Ì V/m 2.39000000 GHz 2 [T1] 67.18 dB Ì V/m 2.39000000 GHz 1 [T1] 102.64 dB Ì V/m 2.40408818 GHz D1 74 dB* Date: 6.SEP.2007 23:47:40 FCC ID: UJA0002B Page 19 of 28 Restrict band 2310MHz ~ 2390MHz, AV A Unit dB Ì V/m Ref Lvl 107 dB* Ref Lvl 107 dB* RF Att 10 dB TDF Start 2.31 GHzStop 2.458088176 GHz14.80881764 MHz/ RBW 1 MH…

Text truncated - open the document above for the full version.

FCC ID: UJA0002B Page 1 of 6 Test Setup FCC ID: UJA0002B Page 2 of 6 1. Minimum 6dB bandwidth & Power spectrum density & Emission outside the frequency band & Occupied Bandwidth & Maximum peak output power & Duty cycle FCC ID: UJA0002B Page 3 of 6 2. Spurious Emission & Restrict Band radiated Emission 30MHz-1000MHz FCC ID: UJA0002B Page 4 of 6 1GHz-18GHz FCC ID: UJA0002B Page 5 of 6 18GHz-25GHz FCC ID: UJA0002B Page 6 of 6 3. Conducted Emission
