ReliaGATE 10-10 Mini Gateway USER MANUAL Rev 1.5 – 2 April 2014 – REGATE-10-10_UsrMan_EN_1.5 © 2014 Eurotech Trademarks All trademarks both marked and unmarked appearing in this document are the property of their respective owners. Revision history Revision Description Date 1.5 First release 2 April 2014 ReliaGATE 10-10 User Manual Table of contents 3 REGATE-10-10_UsrMan_EN_1.5 Table of contents Trademarks .................................................................................................................................................................. 2 Revision history ........................................................................................................................................................... 2 Table of contents .......................................................................................................................................................... 3 Important user information .......................................................................................................................................... 5 Alerts that can be found throughout this manual ......................................................................................................... 5 Safety notices and warnings ........................................................................................................................................ 6 Do not operate in an explosive atmosphere .......................................................................................................... 6 Antistatic precautions ............................................................................................................................................. 6 Connection to power supply or other devices ........................................................................................................ 6 Installation .............................................................................................................................................................. 7 Ventilation............................................................................................................................................................... 7 Maintenance ........................................................................................................................................................... 7 Cleaning ................................................................................................................................................................. 7 Life support policy ........................................................................................................................................................ 8 Warranty ...................................................................................................................................................................... 8 CE and R&TTE compliance ......................................................................................................................................... 8 FCC information and compliance ................................................................................................................................ 9 WEEE .......................................................................................................................................................................... 9 REACH ........................................................................................................................................................................ 9 Technical assistance ................................................................................................................................................. 10 Transportation ...................................................................................................................................................... 10 Label location .............................................................................................................................................................. 11 Product overview ........................................................................................................................................................ 12 Product interfaces ....................................................................................................................................................... 13 Product specifications ................................................................................................................................................ 14 Make the connections ................................................................................................................................................. 15 Screw-type connector pinout ............................................................................................................................... 15 Perform the Boot Sequence ....................................................................................................................................... 16 Logging in .................................................................................................................................................................... 16 Hardware features ....................................................................................................................................................... 17 ReliaGATE 10-10 block diagram ............................................................................................................................... 17 AM335x processor ..................................................................................................................................................... 18 Real time clock .......................................................................................................................................................... 18 Watchd…

Text truncated - open the document above for the full version.

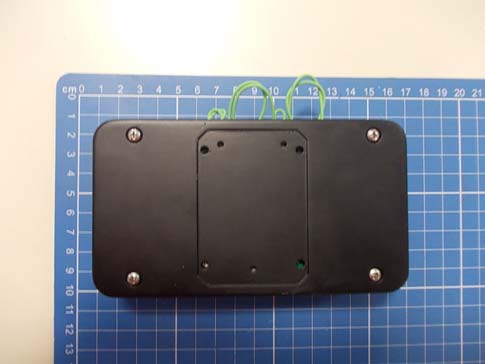

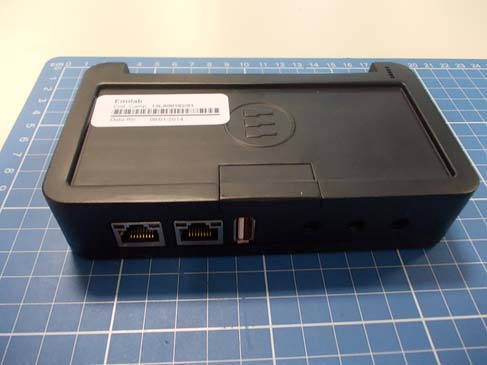

Page 1 of 1 Ref. to report No. 14-01413 Fotografie esterne dei campioni provati / DUT external detail pictures DUT front side DUT rear side DUT bottom side

ReliaGATE 10-10 labels location The ReliaGATE 10-10 is available in several versions identified by the code REGATE-10-10-xx, where the “xx” suffix specifies the version (for further information refer to the User Manual / Datasheet). The product labels are placed on the bottom of the device REGATE-10-10-00 Label REGATE-10-10-01 Label Label REGATE-10-10-03 Label FCC Disclaimer Label Ethernet and USB ports REGATE-10-10-xx LABEL FCC Disclaimer LABEL

Page 1 of 1 Ref. to report No. 14-01413 Fotografie interne dei campioni provati / DUT internal detail pictures Main board top side Main board bottom side Telit GSM module top side Telit GSM module bottom side

Band Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Max Antenna Gain (dB i ) distance at evaluation point (cm) Power Density (mW/cm²) DCS1800 / PCS1900 1710-1880 / 1850-1990 30.01000.05.6200.72

April 17, 2014FCC ID: Eurotech Spa 802.11 Protocol Data Rate (Mbps) Channel Frequency (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) Max Antenna Gain (dB i ) distance from DUT at evaluation point (cm) Power Density (mW/cm²) 2412.022.8191.0 220 0.060 2437.023.1203.7 220 0.064 2462.023.0199.5 220 0.063 2412.022.8191.4 220 0.060 2437.023.1203.2 220 0.064 2462.023.2206.5 220 0.065 2412.022.9196.8 220 0.062 2437.023.1206.1 220 0.065 2462.022.8190.5 220 0.060 2412.022.1160.3 220 0.051 2437.022.3170.2 220 0.054 2462.022.4171.8 220 0.054 2412.022.6180.7 220 0.057 2437.022.7184.5 220 0.058 2462.022.4171.8 220 0.054 2412.023.3211.8 220 0.067 2437.023.9243.2 220 0.077 2462.022.8189.7 220 0.060 2412.023.0197.7 220 0.062 2437.023.2207.0 220 0.065 2462.022.7186.6 220 0.059 2412.022.8189.2 220 0.060 2437.023.5224.4 220 0.071 2462.023.0199.1 220 0.063 MAX=0.077 ReliaGATE 10-10ATCB015366UKMMRG101003 n6.5 39 65 b1 11 g6 24 54

Page 1 of 93 Report Ref. No. 14-01431 TRF No. Emilab MD-23 rev.2 Emilab Srl – Amaro (UD) - Italy TEST REPORT Secondo i seguenti Standard / According to following Standards Test specification FCC Part 15: Subpart C Section 15.247 FCC Part 1 Subpart I Section 1.1307 Test plan:TP-13LA00163/01_140108_ REGATE-10-10-03 Maximum Peak Conducted Output Power, Section 15.247 (b) (3) Conforme/Compliant Maximum Power Spectral Density, Section FCC 15.247(e) Conforme/Compliant 6 dB Bandwidth, Section 15.247 (a) (2) Conforme/Compliant Band-edge Compliance, Section 15.247(d) Conforme/Compliant Conducted Spurious Emissions, Section 15.247(d) Conforme/Compliant AC Power Line Conducted Emissions, Section 15.207 Conforme/Compliant Spurious Radiated Emissions and Restricted Bands of Operation, Section 15.209 and 15.205 Conforme/Compliant RF exposure evaluation, FCC section 1.1307 (b)(1) Conforme/Compliant Richiedente / Applicant’s name .... : Eurotech Spa Indirizzo / Address ........................... : Via F.lli Solari 3/A – 33020 Amaro (UD) - Italy Produttore / Manufacturer ............. : Eurotech Spa Indirizzo / Address ........................... : Via F.lli Solari 3/A – 33020 Amaro (UD) - Italy Dispositivo sottoposto ai test/ Device Under Test .......................... : M2M compact Gateway (ReliaGATE family) model REGATE-10-10-XX where XX= 01, 03 Data di emissione/ Date of issue 08 th May 2014 Validità/ Validity Vedi sezione 1.1 / See section 1.1 Test report redatto da/ Author of Test report ..................... Loris Fruch Tecnico/i di prova Engineer/s ....................................... Loris Fruch Test manager: Giovanni Solari Approvato da (+ firma) Approved by (+ signature) ............. Silvano Chialina Responsabile del laboratorio/ Head of the Laboratory ..................................................... Laboratorio / Testing Laboratory . : Emilab Srl Indirizzo / Address ........................... : Via F.lli Solari 5/A – 33020 Amaro (UD) - Italy Page 2 of 93 Report Ref. No. 14-01431 TRF No. Emilab MD-23 rev.2 Emilab Srl – Amaro (UD) - Italy Index 1. INFORMAZIONI GENERALI / GENERAL INFORMATION 4 1.0 Laboratorio / Testing Laboratory 4 1.1 Campionamento e Documentazione / Sampling and Documentation 4 1.2 Specifiche del test / Test specifications 4 1.3 Svolgimento dei test e condizioni generali / Test scheduling and general condition 5 1.4 Espressione dei risultati finali / Test case of final verdicts 5 1.5 Incertezza / Uncertainty 5 1.6 Termini, Definizioni e Acronimi/ Terms, definitions and abbreviations 6 2. APPARECCHIATURA SOTTOPOSTA A TEST/ DEVICE UNDER TEST 7 3.0 MAXIMUM PEAK CONDUCTED OUTPUT POWER ‐ CONDIZIONI DI PROVA / TEST CONDITIONS 9 3.1 Apparecchiature utilizzate / Test Equipment Used – Maximum Peak Conducted Output Power 9 3.2 Fotografie del setup / Photo of the test setup – Maximum Peak Conducted Output Power 9 3.3 Risultati / Results ‐ Maximum Peak Conducted Output Power 10 3.3.1 Tabelle e grafici dei risultati / Tables and graphical repres. of data – Max Peak Conducted Output Power 10 4.0 MAXIMUM POWER SPECTRAL DENSITY‐ CONDIZIONI DI PROVA / TEST CONDITIONS 18 4.1 Apparecchiature utilizzate / Test Equipment Used – Maximum Power Spectral Density 18 4.2 Fotografie del setup / Photo of the test setup – Maximum Power Spectral Density 18 4.3 Risultati / Results ‐ Maximum Power Spectral Density 19 4.3.1 Tabelle e grafici dei risultati / Tables and graphical repres. of data – Maximum Power Spectral Density 19 5.0 6 DB BANDWIDTH ‐ CONDIZIONI DI PROVA / TEST CONDITIONS 27 5.1 Apparecchiature utilizzate / Test Equipment Used – 6 dB Bandwidth 27 5.2 Fotografie del setup / Photo of the test setup – 6 dB Bandwidth 27 5.3 Risultati / Results ‐ 6 dB Bandwidth 28 5.3.1 Tabelle e grafici dei risultati / Tables and graphical representation data – 6 dB Bandwidth 28 Page 3 of 93 Report Ref. No. 14-01431 TRF No. Emilab MD-23 rev.2 Emilab Srl – Amaro (UD) - Italy 6.0 BAND‐EDGE COMPLIANCE ‐ CONDIZIONI DI PROVA / TEST CONDITIONS 36 6.1 Apparecchiature utilizzate / Test Equipment Used – Band‐edge Compliance 36 6.2 Fotografie del setup / Photo of the test setup – Band‐edge Compliance 36 6.3 Risultati / Results ‐ Band‐edge Compliance 37 6.3.1 Tabelle e grafici dei risultati / Tables and graphical representation of data – Band‐edge Compliance 37 7.0 CONDUCTED SPURIOUS EMISSIONS ‐ CONDIZIONI DI PROVA / TEST CONDITIONS 42 7.1 Apparecchiature utilizzate / Test Equipment Used – Conducted Spurious Emissions 42 7.2 Fotografie del setup / Photo of the test setup – Conducted Spurious Emissions 43 7.3 Risultati / Results ‐ Conducted Spurious Emissions 43 7.3.1 Grafici dei risultati / Graphical representation data – Conducted Spurious Emissions 43 8.0 CONDUCTED EMISSION ‐ CONDIZIONI DI PROVA / TEST CONDITIONS 47 8.1 Apparecchiature utilizzate / Test Equipment Used – Conducted emission 47 8.2 Fotografie del setup / Photo of the test setup – Conducted emission 48 8.3 Risultati / Results ‐ Conducted emission 48 8.3.1 Grafici dei risultati / Graphical representation data – Conducted emission 49 9.0 SPURIOUS RADIATED EMISSIONS AND RESTRICTED BANDS OF OPERATION ‐ CONDIZIONI DI PROVA / TEST CONDITIONS 51 9.1 Appar utilizzate / Test Equipment Used – Spurious Radiated Emissions and Restricted Bands of Operation 52 9.2 Fotografie del setup / Photo of the test setup – Spurious Radiated Emissions and Restricted Bands of Operation 53 9.3 Risultati / Results ‐ Spurious Radiated Emissions and Restricted Bands of Operation 54 9.3.1 Tabelle e grafici dei risultati / Tables and graphical representation data – Spurious Radiated Emissions and Restricted Bands of Operation 54 10.0 VALUTAZIONE DELL’ESPOSIZIONE DELL’OPERATORE/RF EXPOSURE EVALUATION ‐ 91 10.1 Risultati del test / Test Results ‐ RF exposure evaluation 92 Allegato 2 / Annex 2: Incertezza / Uncertainty 93 Page 4 of 93 Report Ref. No. 14-01431 TRF No. Emilab MD-23 rev.2 Emilab Srl – Amaro (UD) - Italy 1. Informazioni Generali / General Information 1.0 Laboratorio / Test…

Text truncated - open the document above for the full version.

Page 1 of 4 Ref. to report No. 14-01413 Foto dei Setup di Prova / Pictures of the tests setup Spurious Radiated Emissions and Restricted Bands of Operation, Section 15.209 and 15.205 DUT with integral antennas: Radiated emissions test setup Measurements from 9KHz to 30MHz Note: measures were repeated with EUT oriented in the three coordinate directions X,Y,Z. Only measures with EUT oriented along X axis are depicted in the following page. PC is connected to DUT, but placed outside the semi-anechoic chamber. DUT in X Axis pos. DUT in Y Axis DUT in Z Axis Loop Antenna WLAN access point and downlink GSM antennas Page 2 of 4 Ref. to report No. 14-01413 Measure from 30MHz to 1GHz Measure from 1GHz to 6GHz Measure from 6GHz to 8.2GHz Measure from 8.2GHz to 12.4GHz Measure from 12.4GHz to 18GHz Measure from 18GHz to 25GHz Page 3 of 4 Ref. to report No. 14-01413 EUT N° 13LA00163/03 Measure from 30MHz to 1GHz AC port conducted emissions test setup AC Power Line Conducted Emissions, Section 15.207 DUT LISN PC Page 4 of 4 Ref. to report No. 14-01413 WLAN temporary antenna port conducted test set-up: DUT with antenna temporary output connected to the Spectrum Analyser DUT with temporary antenna port 10dB Attenuator Access Point WLAN
