NZB Datasheet r Draft 2007 pag 1 of 4 nanoZB - NanoZigBee features Module MCU-RF in a small package Scalable IEEE 802.15.4 and ZigBee Compliant Platform 2.4 GHz Low Power Transceiver for the IEEE 802.15.4 Standard 16 selectable channels Nominal output power 0dBm Receive sensitivity of -94 dBm (typ) Integrated or external antenna 6-channel 8-10 bit ADC (AD1Px) 2-UART 1 IIC bus (SCL, SDA) 5 general purpose input/output (GPIO) 1 general purpose output (GPO) 1–channel Input-Output Compare/PWM Field upgradeable 2V to 3.4V operating voltage Average current: less then 17A (stop mode at 85°C) Operating Temperature -40°C ~ +85°C overview This module is the right response at any low-data-rate, monitoring, control or automation application that requires long battery life and wireless connectivity. This module provides solutions for wireless sensing and control applications that require networks that support simple point-to-point solutions, to complete ZigBee compliant mesh networks. It is a stand-alone module with its MCU that is in field programmable and with many pins configurable for a flexible and adaptable use to every field. target applications Industrial automation Remote monitoring and control Domotic Remote sensors monitoring Medical equipment Active RF ID Localization certifications CE This device complies the EU directive 99/05/CE, 73/23/CEE, 2004/108/CE FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Module type : IEEE802.15.4/ZigBee MODEL nanoZB FCC-ID: UKMNZB01 This intends to inform you how to specify the FCC ID of our IEEE802.15.4/ZigBee MODEL nanoZB on your final product. Based on the Public Notice from FCC, the product into which the our transmitter module is installed mast display a label referring to the enclosed module. NZB Datasheet r Draft 2007 pag 2 of 4 Specifications Physical Dimension and Labeling Terminals 1. GND 16. GPIO/SCL 2. BKGD/GPO 17. GPIO/SDA 3. RST~ 18. GPIO 4. AD1P1 19. NC 5. AD1P2 20. GND 6. AD1P3 21. AD1P0 7. AD1P4 22. UART_CTS1 8. AD1P5 23. UART_RTS1 9. VDD 24. UART_TX1 10. GND 25. UART_RX1 11. UART_CTS 26. GPIO 12. UART_RTS 27. GPIO 13. UART_TX 28. GPIO 14. UART_RX 29. GPIO/TPM 15. GPIO 30. GND NZB Datasheet r Draft 2007 pag 3 of 4 Block diagram PTC5 17 PTC6 18 PTC7 19 GPIO6 25 GPIO7 26 PTD2/TPM1CH2 47 PTA6/KBI1P6 4 PTA7/KBI1P7 5 PTC0/TXD2 12 PTC1/RXD2 13 7 PTG0/BKGD/MS 11 RESET ̃ 52 PTB0/AD1P0 53 PTB1/AD1P1 54 PTB2/AD1P2 55 PTB3/AD1P3 56 PTB4/AD1P4 57 PTB5/AD1P5 62 PTA0/KBI1P0 63 PTA1/KBI1P1 20 PTE0/TXD1 21 PTE1/RXD1 15 PTC3/SCL1 14 PTC2/SDA1 9 VDD 1 GND 10 GND 20 GND 30 GND 32 GND 2 BKGD/GPO 3 RST ̃ 21 AD1P0 4 AD1P1 5 AD1P2 6 AD1P3 7 AD1P4 8 AD1P5 11 UART_CTS 12 UART_RTS 13 UART_TX 14 UART_RX 16 GPIO/SCL 17 GPIO/SDA GPIO 15 GPIO 18 GPIO 26 GPIO 27 GPIO 28 GPIO/TPM 29 NC 19 UART_CTS1 22 UART_RTS1 23 UART_TX1 24 UART_RX1 25 RF_ANT 31 MC1321x RF Internal antenna Optional external antenna NanoZigBee

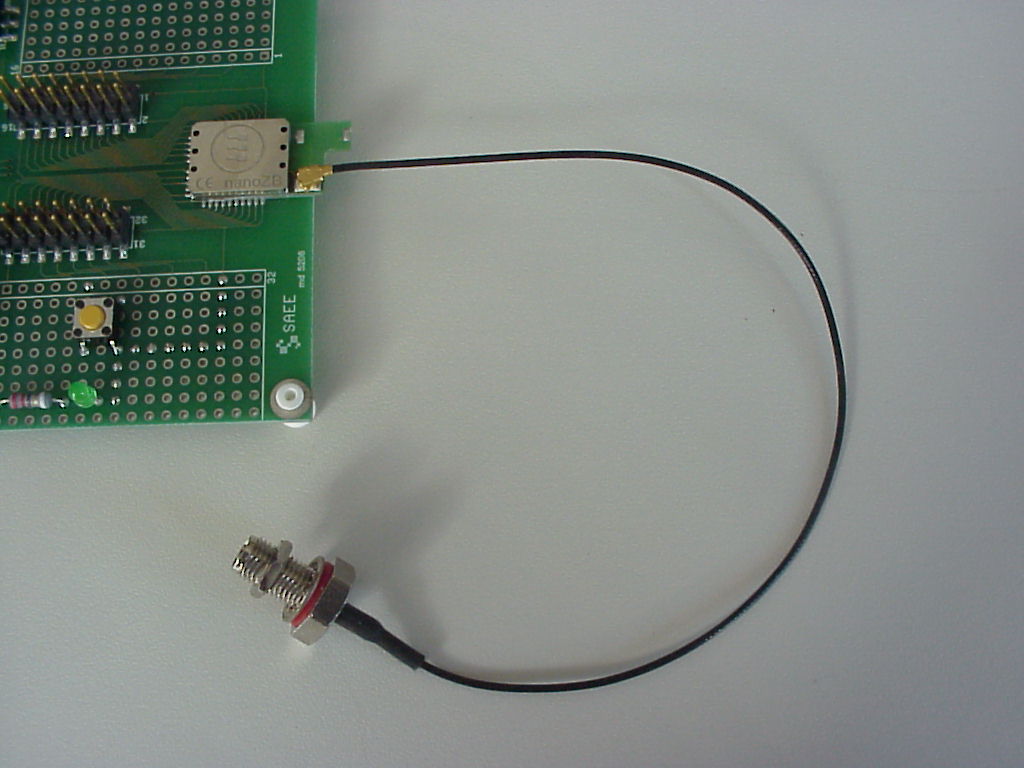

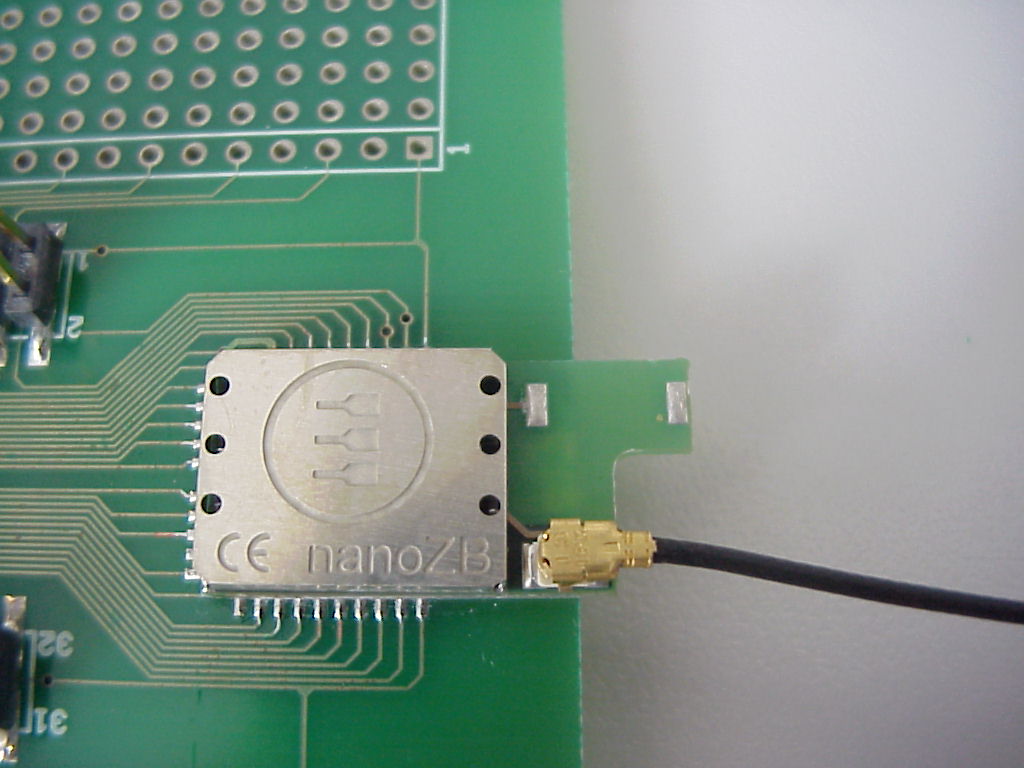

XTAL 16.000 MHz External dedicated antenna

DS029-1 Oct ‘06 ©2006 REG No 277 4001, ENGLAND. Page 1 2.4GHz Antenna A range of high quality antennae designed and manufactured for operation specifically with Low power short range telemetry systems. Using one of the following antennae will give optimum range and reliability to your application. Electrical Characteristics Min Typical Max Units Resonate Frequency 2.4 2.5 GHz Return Loss -10 dB Radiation Pattern Omnidirectional Polarization Vertical Standing Wave Ratio 2.0 Storage Temperature -30 80 °C Operating Temperature -30 60 °C Mini Helical Antenna • ANT-24G-HL90-SMA • Tuned to 2.4 - 2.5Ghz • Rugged Plastic Finish • 90 Degree SMA Fixing Mini Dipole Antenna • ANT-24G-DPL-FP • Tuned to 2.4 - 2.5Ghz • Rugged Plastic Finish • +2.1dBi Gain • 2.5 Metre Cable Mini Helical Antenna • ANT-24G-WHJ-SMA • Tuned to 2.4 - 2.5Ghz • Rugged Plastic Finish • 90 Degree Joint with SMA Fixing DS029-1 Oct ‘06 ©2006 REG No 277 4001, ENGLAND. Page 2 2.4GHz Antenna ANT-24G-HL90-SMA VSWR MECHANICAL DS029-1 Oct ‘06 ©2006 REG No 277 4001, ENGLAND. Page 3 2.4GHz Antenna ANT-24G-DPL-FP VSWR MECHANICAL DS029-1 Oct ‘06 ©2006 REG No 277 4001, ENGLAND. Page 4 2.4GHz Antenna ANT-24G-WPJ-SMA VSWR MECHANICAL R. F. Solutions Ltd., Unit 21, Cliffe Industrial Estate, South Street, Lewes, E Sussex, BN8 6JL. England Tel +44 (0)1273 898 000 Fax +44 (0)1273 480 661 Email [email protected] http://www.rfsolutions.co.uk RF Solutions is a member of the Low Power Radio Association

Bezeichnung : description : size7 x 2 A7,0 ± 0,2mm B2,0 ± 0,2mm C1,2 +0,1/-0,2mm D0,5 ± 0,3mm Feeding Point NC Eigenschaften / properties Wert / valueEinheit / unittol. Fre quenzbereich/ frequency range VSWR VSWR Im pedanz / impedance Antennengewinn / peak gain Antennengewinn / average gain Keramik / ceramic AWeVersion 104-10-11 NameÄnderung / modificationDatum / date (XZ-V) typ. A AdBi -0,5 typ. dBi Ω f 2400 ... 2500 MHz 2,0 SMD Antenne WE-MCA Chip-Antenna WE-MCA Z Spezifikation für Freigabe / specification for release DATUM / DATE : 2004-10-11 max. Testbedingungen / test conditions 7488940245 A Mechanische Abmessungen / dimensions: Kunde / customer : Artikelnummer / part number : Ag + Ni + Sn F Werkstoffe & Zulassungen / material & approvals Geprüft / checked ............................................... .................................................................................. Leistung/ power capacity : 3 W max. http://www.we-online.de Datum / date ........................................................................... Unterschrift / signature Kontrolliert / approved Würth Elektronik eiSos GmbH & Co.KG D-74638 Waldenburg · Max-Eyth-Str. 1 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400 .................................................. Würth Elektronik C Abbildung/ apperance: B Elektrische Eigenschaften / electrical properties: Lagerbedingung / storage conditions: 15°C ~ 35°C 2,0 (XZ-V) Basismaterial / base material: Kontakt Material / contact plating: D Prüfgeräte / test equipment: E Testbedingungen / test conditions: 50 Umgebungstemperatur / temperature: Agilent E5071A Freigabe erteilt / general release: Kunde / customer Betriebstemp. / operating temperature: -40°C ~ +85°C G Eigenschaften / general specifications: 45 ~ 75% RH Luftfeuchtigkeit / humidity: B C A D RoHS compliant LF 1 2 50 ~ 70% 20°C ~ 25°C 1 2 SEITE 1 VON 4 Bezeichnung : description : Without Matching Circuit: Without Matching Circuit: DATUM / DATE : 2004-10-11 Artikelnummer / part number : 7488940245 H Lötpadempfehlung / solder pads: SMD Antenne WE-MCA Chip-Antenna WE-MCA Spezifikation für Freigabe / specification for release Kunde / customer : http://www.we-online.de K Messdiagramme/ measuring diagrams: Würth Elektronik eiSos GmbH & Co.KG D-74638 Waldenburg · Max-Eyth-Str. 1 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400 11.522.533.54 20 15 10 5 0 Frequency (GHz) Return Loss S11 (dB) *Line width should be designed to match 50Ω characteristic impedance, depending on PCB material and thickness. 1 1 2 3 1: 2.3125 GHz -9.942 dB 2: 2.44 GHz -17.656 dB 3: 2.62 GHz -9.959 dB S 11 (f) f = 1 GHz ... 4 GHz RoHS compliant LF 2.0 8.0 5.5 1.0 * 3 2 SEITE 2 VON 4 Bezeichnung : description : Würth Elektronik eiSos GmbH & Co.KG D-74638 Waldenburg · Max-Eyth-Str. 1 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400 http://www.we-online.de Spezifikation für Freigabe / specification for release Kunde / customer : Artikelnummer / part number : 7488940245 DATUM / DATE : 2004-10-11 L Richtdiagramme / radiation patterns: SMD Antenne WE-MCA Chip-Antenna WE-MCA LF RoHS compliant XY-cut scanning direction 0° 180° 90° y x z 270° XZ-cut scanning direction 0° 180° 90° z x y 270° XY cut @ 2.45 GHz Vertical Horizontal XZ cut @ 2.45 GHz Vertical Horizontal YZ-cut scanning direction 90° 0° 180° y z x 270° YZ cut @ 2.45 GHz Vertical Horizontal 1 23 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179180 181 182183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 334 335 336 337 338 339 340 341 342 343 344 345 346 347 348 349 350 351 352 353 354 355 356 357 358 359360 1 23 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179180 181182 183184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332…
