UKMRFID13RFID Module

D at a s h eet RFI D 1 3 R0 1 1 3 .5 6 MH z Mu l t is t an d ar d RFI D t r an s c eiv er mo d u l e f o r Zy pad WL 1 x 1 x ETH_RFID13 R01_DS220507 E u r o t ec h S .p.A . e-ma il : s a l es @eu r o t ec h .it h t t p://www.eu r o t ec h .it Introduction The module is a multistandard RFID transceiver for use with the Zypad WL1x1x wearable computer family. It works at 13.56 MHz and supports the following standards: ISO 14443A, ISO 14443B and ISO 15693. The interface with the Zypad main unit is made through the serial port COM2. FCC information and compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Instruction manual for FCC ID labeling Module type: <RFID Transceiver Module> RFID 13 FCC-ID : UKMRFID13 This intends to inform you how to specify the FCC ID of our <RFID Transceiver Module> Module RFID13 on your final product. Based on the Public Notice from FCC, the product into which the our transmitter module is installed must display a label referring to the enclosed module. Example of label: “Contains FCC ID: UKMRFID13” Main features SMT (Surface Mount Technology) connections Firmware upgradeable via serial interface Possibility to connect an external SAM (Secure Access Module) RFI D 1 3 R0 1 D at as h eet ETH_RFID13 R01_DS220507 EuroTecH SpA a member of the Eurotech Group Via Fratelli Solari, 3/a 33020 Amaro (UD) - Italy E-mail: [email protected] Tel. +39 0433 485 411 - Fax. +39 0433 485 499 Note: The information in this document is subject to change without notice and should not be construed as a commitment by EuroTecH S.p.A. While reasonable precautions have been taken, EuroTecH S.p.A. assumes no responsibility for any error that may appear in this document. All trademarks or registered trademarks are the properties of their respective companies. DIGITAL TECHNOLOGIES FOR A BETTER WORLD www.eurotech.it Electrical features Parameter Value Notes Input power supply +3.3 Vdc @ 100mA (max) Serial interface line +3.3 Vdc Serial communication characteristics: Bit per second: 115200 Parity: None Data bits: 8 Stop bits: 1 Stand by input line +3.3 Vdc Active low signal Hardware reset input line +3.3 Vdc Active low signal Block diagram Main connections Stand by Input (3.3 Vdc level) Reset Input (3.3 Vdc level) ATMEL AT91SAM7S64 Microprocessor Connector to SAM Module SAM Module Interface 13.56 MHz RF Interface 13.56 MHz PCB Antenna Serial Interface (3.3 Vdc level) Step up 3.3 Vdc - 5 Vdc 3.3 Vdc 5 Vdc Tec h n ic a l D a t a s h eet L M S-Zy pa d-1 x 1 x 1 3 .5 6 M H z M u l t is t a n d a r d R FI D t r a n s c eiv er f o r Zy pa d WL 1 x 1 x ETH_LMS-Zypad-1x1x_TDS220507 Eu r o t ec h S .p.A . e-mail : s al es @eu r o t ec h .it h t t p://www.eu r o t ec h .it Functional description The device reads and writes transponders at a frequency of 13.56 MHz and supports the ISO 14443A, ISO14443B and ISO 15693 standards. The microprocessor is an ARM ATMEL AT91SAM7S64. The RF interface is based on the PHILIPS CLRC632 ‘Multiple contactless reader IC’ controller. The SAM interface is formed by the ON NCN4555 ‘SIM card power supply / level translator’ circuit. The power voltage is 3.3 Vdc and is used to supply the digital devices (such as: microprocessor and I/O). An internal MAX1724 DC/DC step-up converter allows you to obtain a +5V voltage to supply RF devices. A 1.8 Vdc voltage regulator is integrated inside the microprocessor and supplies the ARM core. The RF antenna is integrated on the PCB (Printed Circuit Board) of the module. The reset signal operates at a hardware level. The stand by signal is managed at a firmware level. The following table lists the supported tags: Tag Made by Standard Uid length MIFARE 1k Philips 14443A 4 bytes MIFARE 4k Philips 14443A 4 bytes MIFARE ultralight Philips 14443A 7 bytes ICODE2 Philips 15693 8 bytes TAG-IT HF-I Texas 15693 8 bytes EM4135 MEM 15693 8 bytes LRI64 / LRI512 ST 15693 8 bytes SR176 ST 14443B 8 bytes The following table lists the interfacing signals: Signal Description WL1x1x signal +3.3 Vdc Input power supply VDD GND Ground signal GND IN1 Stand by input (active low signal) GPIO IN2 Reset input (active low signal) RESET GND Ground signal GND RX Serial Input (3.3 Vdc line) TX TX Serial Output (3.3 Vdc line) RX

UKMRFID13 BLOCK DIAGRAM Oscillator 18.432 MHz Oscillator 13.56MHz

1 1 . . A A n n n n e e x x 2 2 _ _ R R F F I I D D - - R R 0 0 1 1 _ _ S S C C H H

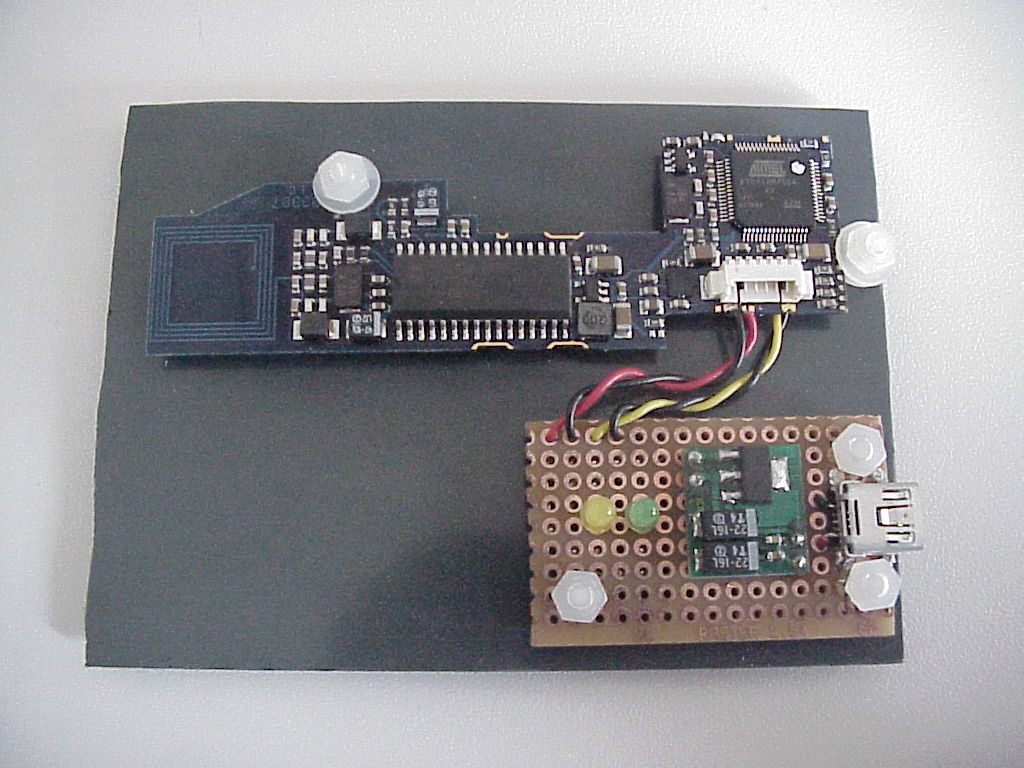

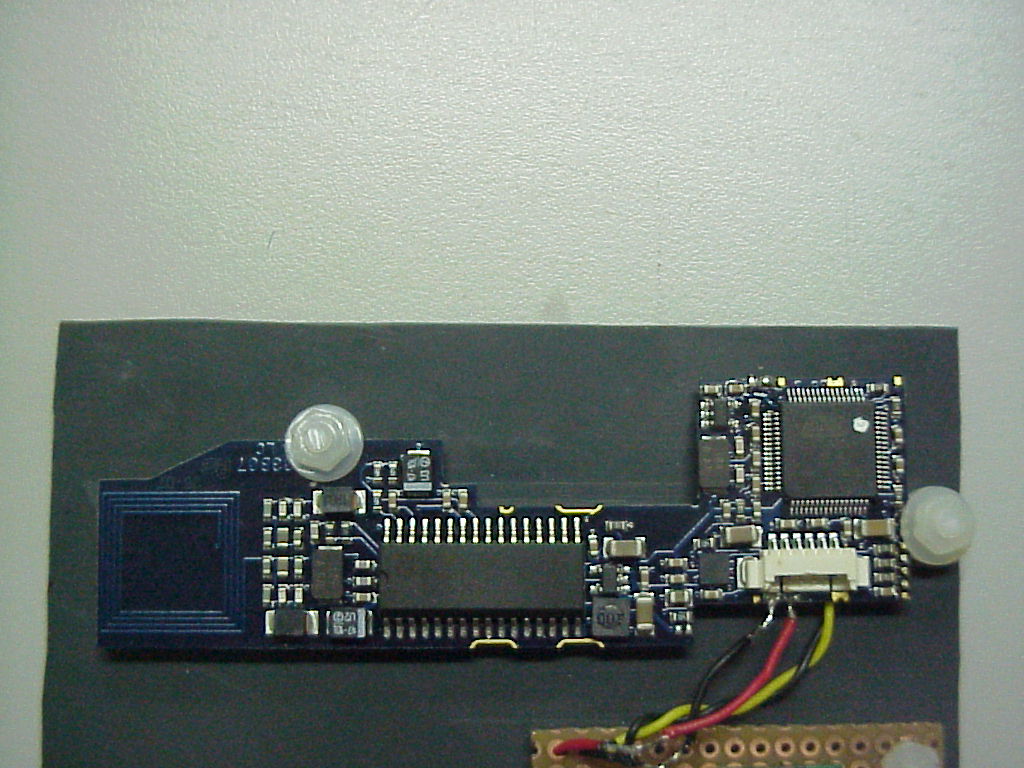

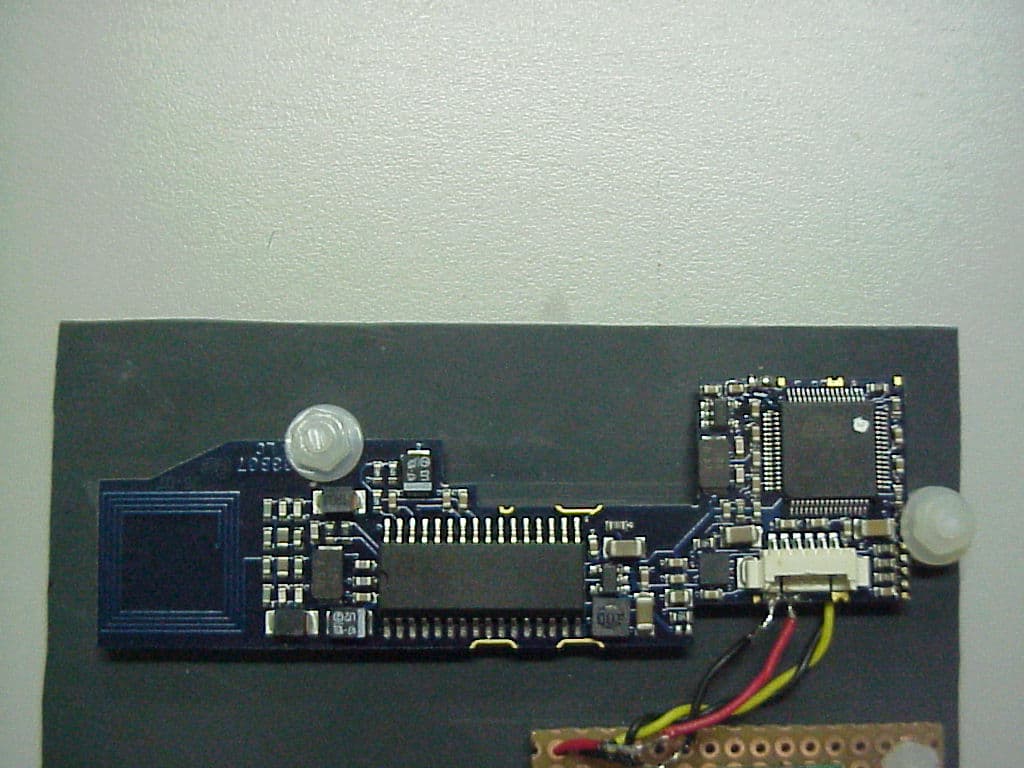

Pag. 1 of 1 UKMRFID13 - OPERATIONAL DESCRIPTION Application 13.56 MHz Multistandard RFID transceiver module for Zypad WL1x1x. General Description The module is a multistandard RFID transceiver for use with the Zypad WL1x1x wearable computer family. It works at 13.56 MHz and supports the following standards: ISO 14443A, ISO 14443B and ISO 15693. The interface with the Zypad main unit is made through the serial port COM2. Functional Description The device reads and writes transponders at a frequency of 13.56 MHz and supports the ISO 14443A, ISO14443B and ISO 15693 standards. The microprocessor is an ARM ATMEL AT91SAM7S64. The RF interface is based on the PHILIPS CLRC632 ‘Multiple contactless reader IC’ controller. The SAM interface is formed by the ON NCN4555 ‘SIM card power supply / level translator’ circuit. The power voltage is 3.3 Vdc and is used to supply the digital devices (such as: microprocessor and I/O). An internal MAX1724 DC/DC step-up converter allows you to obtain a +5V voltage to supply RF devices. A 1.8 Vdc voltage regulator is integrated inside the microprocessor and supplies the ARM core. The RF antenna is integrated on the PCB (Printed Circuit Board) of the module.

NOTICE: The results of tests and checks reported in this Test Report refer exclusively to the samples tested and described in the Report itself. This report shall not be reproduced partially or in its entirety without the written approval of IMQ S.p.A. IMQ S.p.A. - Via Quintiliano, 43 – I-20138 MILANO T E L E C O M M U N I C A T I O N S & T E L E M A T I C S F O R T R A N S P O R T S L A B O R A T O R Y Telecommunications & Telematics for Transports Lab. TEST REPORT Ref. No. ARSH00145/1 Date: 2007-11-15 According with: FCC Rules: Code of Federal Regulations (CFR) no. 47 - PART 15 – UNLICENSED MODULAR TRANSMITTER APPROVAL PUBLIC NOTICE: DA 00-1407 PRODUCT :RFID Transceiver Module TESTED MODEL :RFID 13 FCC ID :UKMRFID13 APPLICANT : EMILAB S.r.l. – Via Jacopo Linussio, 1- 33020 Amaro (UD) - Italy MANUFACTURER: EUROTECH S.p.A. – Via F. Solari, 3/A – 33020 Amaro (UD) - Italy TRADEMARK : EUROTECH OTHER INFORMATION Testing dates : 2007-11-12 ÷ 2007-11-13 Tested samples No. :1 Testing Laboratory : IMQ S.p.A. Via Quintiliano, 43 I-20138 MILANO Prepared by: R. Colombo (EMC and R&TTE Lab deputy) Signature: Revision Sheet Release No. Date Revision Description Rev. 0 2007-10-12 First emission TT&T Laboratory Test Report No. ARSH00145/1 Date: 2007-11-15 page 2 of 3 T E L E C O M M U N I C A T I O N S & T E L E M A T I C S F O R T R A N S P O R T S L A B O R A T O R Y REFERENCE STANDARDS According to : PUBLIC NOTICE : DA 00-1407 Part 15 Unlicensed Modular Transmitter Approval Released : June 26, 2000 MODULE-TYPE DEVICE APPROVAL OPTIONS: Modular Approval (MA) Limited Modular Approval (LMA) REQUIREMENTS The following requirements are fulfilled: 1) The modular transmitter must have its own RF shielding: The RF module board fulfils the emission requirements of the FCC rules without additional shielding. 2) The modular transmitter must have buffered modulation/data inputs: The module board has a memory management unit. 3) The modular transmitter must have its own power supply regulation: The IC contains an own voltage regulation. In case of changes in the supply voltage VCC (for example caused by temperature changes or other effects), the internal voltage will be stabilized. 4) The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204: The RF module board is for OEM (Original Equipment Manufacturer) integration only. The end-user product will be installed in such a manner that only the authorized printed antenna is used. 5) The modular transmitter must be tested in a stand-alone configuration: The RF module board was tested in a stand-alone configuration. 6) The modular transmitter must be labelled with its own FCC ID number: The RF module board will be labelled with its own FCC ID number. When the module is installed inside the end-product, the label is not visible. The OEM manufacturer is instructed how to apply the exterior label. TT&T Laboratory Test Report No. ARSH00145/1 Date: 2007-11-15 page 3 of 3 T E L E C O M M U N I C A T I O N S & T E L E M A T I C S F O R T R A N S P O R T S L A B O R A T O R Y 7) The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements: The EUT is compliant with all applicable FCC rules. Detail instructions are given in the product Users Guide. 8) The modular transmitter must comply with any applicable RF exposure requirements. The EUT operates at low power level so it does not exceed the Commission’s RF exposure guidelines limits. RF exposure limit warning or SAR test are not required. Special requirement for Limited Modular Approval: The compliance of the end product is assured only when the customer retain control over the final installation of the RF module board. Specific and restrictive installation instruction are described in the User Manual and Technical documentation furnished by the manufacturer (Grantee).

NOTICE: The results of tests and checks reported in this Test Report refer exclusively to the samples tested and described in the Report itself. This report shall not be reproduced partially or in its entirety without the written approval of IMQ S.p.A. IMQ S.p.A. - Via Quintiliano, 43 – I-20138 MILANO Telecommunications & Telematics for Transports Lab. TEST REPORT Ref. No. ARSH00145 Date: 2007-11-15 Measurements performed in accordance with: FCC Rules : Code of Federal Regulations (CFR) no. 47 - PART 15 – RADIO FREQUENCY DEVICES PRODUCT :RFID TRANSCEIVER MODULE TESTED MODEL :RFID 13 FCC ID :UKMRFID13 APPLICANT : EUROTECH S.p.A. – Via F. Solari, 3/A – 33020 Amaro (UD) - Italy MANUFACTURER: EUROTECH S.p.A. – Via F. Solari, 3/A – 33020 Amaro (UD) - Italy TRADEMARK : EUROTECH OTHER INFORMATION Testing dates : 2007-11-12 ÷ 2007-11-13 Tested samples No.:1 Testing Laboratory : IMQ S.p.A. Via Quintiliano, 43 I-20138 MILANO Tested by : R. Radice Signature: Date : 2007-11-15 Checked by: R. Colombo (EMC and R&TTE Lab. Deputy) Signature: Date : 2007-11-15 Revision Sheet Release No. Date Revision Description Rev. 0 2007-11-15 Test Results and Evaluation Report T E L E C O M M U N I C A T I O N S & T E L E M A T I C S F O R T R A N S P O R T S L A B O R A T O R Y TT&T Laboratory Test Report No. ARSH00145 Date 2007-11-15 page 2 of 28 T E L E C O M M U N I C A T I O N S & T E L E M A T I C S F O R T R A N S P O R T S L A B O R A T O R Y CONTENTS 1General Description of Equipment under Test ........................ 1-3 1.1 APPLICANT............................................................................... 1-3 1.2 MANUFACTURER..................................................................... 1-3 1.3 EQUIPMENT CLASSIFICATION ............................................... 1-3 1.4 BASIC DESCRIPTION OF EQUIPMENT UNDER TEST .......... 1-4 1.5 FEATURE OF EQUIPMENT UNDER TEST.............................. 1-5 2Test Configuration of Equipment under Test .......................... 2-6 2.1 ENVIRONMENTAL CONDITIONS ............................................ 2-6 2.2 DESCRIPTION OF SUPPORT EQUIPMENT............................ 2-6 2.3 INTERFACE IDENTIFICATION AND CONNECTION DIAGRAM OF TEST SYSTEM.......................................................................... 2-7 3Operation of Equipment under Test ......................................... 3-8 3.1 OPERATING TEST CONDITIONS............................................ 3-8 4Tests Identification and Results ............................................... 4-9 4.1 METHODS OF MEASUREMENT ............................................ 4-10 4.2 FREQUENCY RANGE INVESTIGATED ................................. 4-10 5Measurements and Tests Data................................................ 5-11 6Additional Technical Information............................................ 6-22 6.1 ELECTROMAGNETICALLY RELEVANT COMPONENTS: .... 6-22 6.2 RFI SUPPRESSION DEVICES: .............................................. 6-22 6.3 EMI PROTECTION DEVICES: ................................................ 6-22 7Technical Documentation........................................................ 7-23 8Photographic Documentation ................................................. 8-24 8.1 EUT IDENTIFICATION ............................................................ 8-24 8.2 TEST SET-UP ......................................................................... 8-26 9Measurement and Test Equipment Instrumentation............. 9-28 TT&T Laboratory Test Report No. ARSH00145 Date 2007-11-15 page 3 of 28 T E L E C O M M U N I C A T I O N S & T E L E M A T I C S F O R T R A N S P O R T S L A B O R A T O R Y 1 GENERAL DESCRIPTION OF EQUIPMENT UNDER TEST 1.1 APPLICANT NAME EUROTECH S.p.A. ADDRESS Via F. Solari, 3/A – 33020 Amaro (UD) COUNTRY ITALY 1.2 MANUFACTURER NAME EUROTECH S.p.A. ADDRESS Via F. Solari, 3/A – 33020 Amaro (UD) COUNTRY ITALY 1.3 EQUIPMENT CLASSIFICATION According to the definition 15.3 (o) EUT is a Intentional Radiator operating within the bands 13.553 - 13.567 MHz soit shall fulfil provisions of 47CFR Part 15 Subpart C – Intentional radiators – and Section 15.225 TT&T Laboratory Test Report No. ARSH00145 Date 2007-11-15 page 4 of 28 T E L E C O M M U N I C A T I O N S & T E L E M A T I C S F O R T R A N S P O R T S L A B O R A T O R Y 1.4 BASIC DESCRIPTION OF EQUIPMENT UNDER TEST Parameters Value Type of equipment :
RFID TRANSCEIVER MODULE Model :
RFID 13 FCC ID. :
UKMRFID13 Trade Name
EUROTECH Data cable :
/ Telecom cable :
/ Power supply type :
DC 3.3V, 100 mA max. AC power input cable :
/ DC power input cable :
/ TT&T Laboratory Test Report No. ARSH00145 Date 2007-11-15 page 5 of 28 T E L E C O M M U N I C A T I O N S & T E L E M A T I C S F O R T R A N S P O R T S L A B O R A T O R Y 1.5 FEATURE OF EQUIPMENT UNDER TEST Power specification:
3.3 V dc Operating frequency:
13.560 MHz Assigned frequency band:
13.553÷13.567 MHz Maximum RF output H/E field/ power :
< 15.848 μV/m at 30meter Modulation:
/ Antenna:

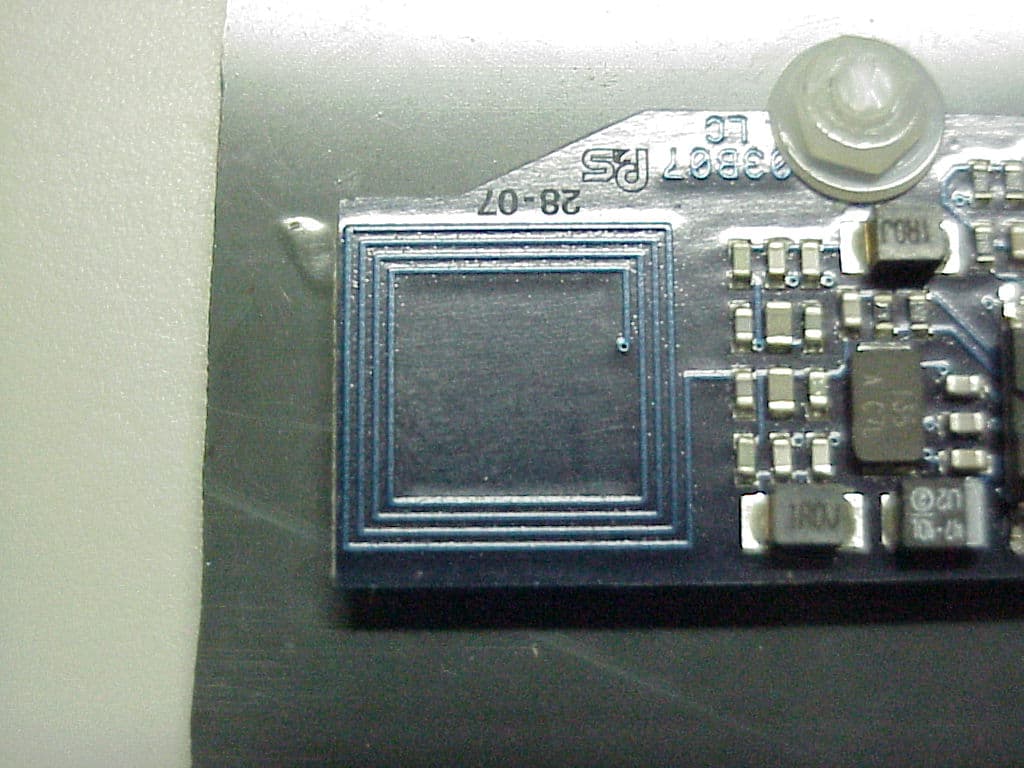

Integrated antenna with 4 loops (board 03B07) Microprocessor:
ATMEL AT91SAM7S64 RF Integrated:
Multiple Protocol Contactless Reader IC Philips type CL RC632 Quartz:
13.56MHz
18.432MHz Main SW identification
/ Main HW Board identification
/ Peripherals included (for system application)
None Interfaces :
None Integrated interfaces :
None AC adapter:
Power Supply SAC mod. SA115-05U Input 100-240V 50-60Hz 0.4A Output 5V 1A 5W TT&T Laboratory Test Report No. ARSH00145 Date 2007-11-15 page 6 of 28 T E L E C O M M U N I C A T I O N S & T E L E M A T I C S F O R T R A N S P O R T S L A B O R A T O R Y 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST 2.1 ENVIRONMENTAL CONDITIONS TEST CONDITIONSMEASURED Ambient Temperature 20 ÷25 °C Relative Humidity 50 ÷60 % Atmospheric Pressure 900 ÷1000 mbar 2.2 DESCRIPTION OF SUPPORT EQUIPMENT Here following the details concerning equipment needed for correct operation or loading of the EUT: EQUIPMENT MANUFACTURER MODEL AC/DC…
