GB Instruction manual System requirements ·IBM compatible system ·Win95/98/Me/2000/XP ·No need for driver ·USB port Install the battery ·You need two batteries AAA ·Press and release the battery door ·Put the batteries into the mouse ·Close the battery cover Install the receiver ·You can connect the receiver directly on the USB port of your notebook ·If you connect on the PS2 port, you have to use a PS2 to USB adapter ( Not provided ) ·You can use an USB cable in order to have the receiver on your desk ID Setup ·Put the receiver into the USB port of your computer ·Push the ID button of the receiver, the light will blink. Push the ID button under neat the mouse (within 10 seconds). The light of the receiver will blink quickly, and the connection between mouse and receiver is established. The light of the receiver will blink each time you move the mouse ( ID set up distance : 0.60 m to 1.50 m ). ·After having changed the batteries, you have to reconnect the mouse with the receiver ·In case of interference between equipment, change the signal codes. The interference between equipment only happens when several mice are used at the same time. ·Working distance : 0.60 m to 1.50 m Attention ·Reduce the distance between the mouse and the receiver if the mouse does not work ·If the mouse will not be used for a long time, please remove the batteries ·The mouse has a “sleep” function. Push any button to wake him up. ·If you want to activate the “power cut”, push 3 seconds on the ID button of the mouse. this will save the batteries. In order to activate the mouse, push again 3 seconds on the ID button. ·The mouse does not function on metallic or glass surface, nor on 3D mouse pad Remark: All trademarks and trade names are the property of their respective owners. FCC Warning Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user’s authority to operate the equipment. Any change to the equipment will void FCC grant. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.
UM-200 Series block diagram Power Battery 3V DC Sensor IC OM02 Convert IC MA6221 Transmit 27.045MHz PCB ANT 27.045MHz

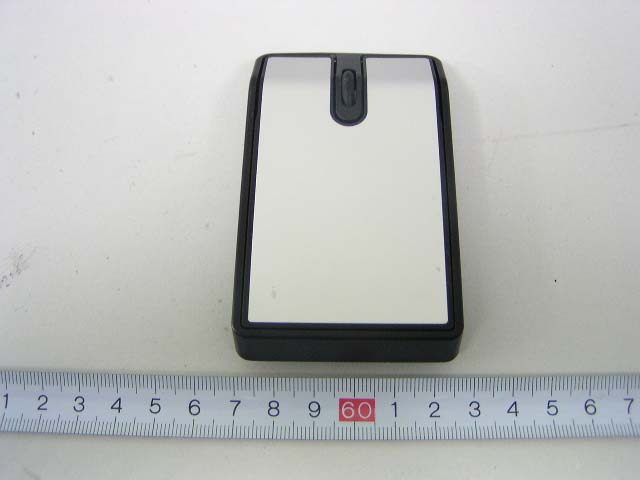

External Photos EUT-Front View EUT-Back View
ID Label Label FCC ID: UKWMANOVA-UM-200
ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label Location
Internal Photos EUT – Uncovered View EUT – Inside View EUT- PCB Top View EUT- PCB Back View
UM-200 Series circuit description When the Mouse is moved, the photoelectric IC OM02 can sense the optical signal through the optical sensor, and converted it into digital electric signal, and send the transmitter IC MA6221, then the digital signal will be encoded and programmed by IC MA6221, and is transmitted out through the antenna by the carrier of 27.045MHz modulation.
UM-200(7.25).sch-1 - Tue Jul 25 18:26:58 2006
Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.227 EMI MEASUREMENT AND TEST REPORT For MANOVA International Ltd. Flat A, 13 th Floor, Century Industrial Centre, 33-35 Au Pui Wan Street, Fo Tan, N.T., Hong Kong FCC ID: UKWMANOVA-UM-200 August 24, 2006 This Report Concerns: Original Report Equipment Type: SLIM MOUSE Test Engineer: Kamn Hu Report No.: RSZ06080803 Test Date: August 18, 2006 Reviewed By: EMC Manager: Boni Baniqued Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 MANOVA International Ltd. FCC ID: UKWMANOVA-UM-200 Report # RSZ06080803 Page 2 of 11 FCC PART 15.227 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 EUT EXERCISE SOFTWARE..........................................................................................................................................4 SPECIAL ACCESSORIES.................................................................................................................................................4 SCHEMATICS AND BLOCK DIAGRAM............................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS ...............................................................................................................................6 §15.203 - ANTENNA REQUIREMENT......................................................................................................................7 STANDARD APPLICABLE..............................................................................................................................................7 §15.205, §15.209, §15.227(A) - RADIATED EMISSIONS TEST ..............................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 EUT SETUP..................................................................................................................................................................8 EMI TEST RECEIVER SETUP.........................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................9 TEST RESULTS SUMMARY............................................................................................................................................9 TEST DATA..................................................................................................................................................................9 §15.227(B) - OUT OF BAND EMISSION .................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 TEST DATA................................................................................................................................................................11 MANOVA International Ltd. FCC ID: UKWMANOVA-UM-200 Report # RSZ06080803 Page 3 of 11 FCC PART 15.227 Report GENERAL INFORMATION Product Description for Equipment Under Test (EUT) The MANOVA International Ltd.’s product, model number: UM-200 series or the "EUT" as referred to in this report is a SLIM MOUSE. The EUT is measured approximately 10.0 cm L x 5.6 cm W x 2.0 cm H. rated input voltage: DC 3V battery. * The test data gathered are from production sample, serial …
