UL9WNAP6315802.11n Wireless Outdoor CPE

Copyright Copyright  2015 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET. PLANET makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not PLANET, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, PLANET reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes. All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders. Federal Communication Commission Interference Statement You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the re ceiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation of the device. I FCC Caution To assure continued compliance, use only shielded interface cables when connecting to computer or peripheral devices. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This Device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Federal Communication Commission (FCC) Radiation Exposure Statement 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) as of April 8, 2000. Safety This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment. National Restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reasons/remarks Bulgaria None General authorization required for outdoor use and public service France Outdoor use; limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy None If used outside of own premises, general authorization is required II Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation None Only for indoor applications Note: Please don’t use the product outdoors in France. WEEE regulation To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of …

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 2015/07/23 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Planet Technology Corporation hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product Name: 802.11n Wireless Outdoor CPE Model Name: WNAP-6315 FCC ID: UL9WNAP6315 Sincerely, Client’s signature Tom Shih / Chief Technology Officer 10F, No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 2015/07/23 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: UL9WNAP6315 We hereby request confidential treatment of information accompanying this application as outlined below: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name & title : Tom Shih / Chief Technology Officer Contact information / address: 10F, No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan

WIFI Channel 12 & 13 Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization in regard to 802.11b/g/n channel 12 & 13 operating capability for FCC ID : UL9WNAP6315 Please check Product hardware does not have the capability to operate on channel 12 & 13 Product hardware has the capability to operate on channel 12 & 13. However , these 2 channels will be disabled via software and user will not able to enable these 2 channels Product hardware has the capability to operate on channel 12 & 13. And meeting KDB 594280 D01 requirement. Pls explain detail here. _________________ Others Pls explain detail here. Signature : Name / Title : Tom Shih / Chief Technology Officer Company Name: Planet Technology Corporation Address : 10F, No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan Phone : +886-2-2219-9518 Email : [email protected] Date :2015/7/23

2015/07/23 Federal Communications Commission Authorization and Evaluation Division Dear Regulatory Authority, We, the undersigned, hereby declare that Declaration of Conformity procedures will be applied to the digital device portion of the following product: Product name: 802.11n Wireless Outdoor CPE Model: WNAP-6315 Test report: ISL-15LR170FB-MA ------------------------------------------------------------------------------------------------- ( Product Identification ) It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4 & FCC PART 15 regulations for the evaluation of electromagnetic compatibility. This Device complies with Part 15 of the FCC rules, operation is subject to the following two conditions. This device may not cause harmful interference and, This device must accept any interference received, including interference that may cause undesired operation. TEST LABORATORY International Standards Laboratory No. 120, Lane 180, Hsin Ho Rd., Lung-Tan Dist., Tao Yuan City 325, Taiwan FCC Registration Number: TW1036. TAF Accreditation No.: 0997; IC: IC4067B-3, BSMI MRA Test Lab. Sincerely, To m Shih Planet Technology Corporation

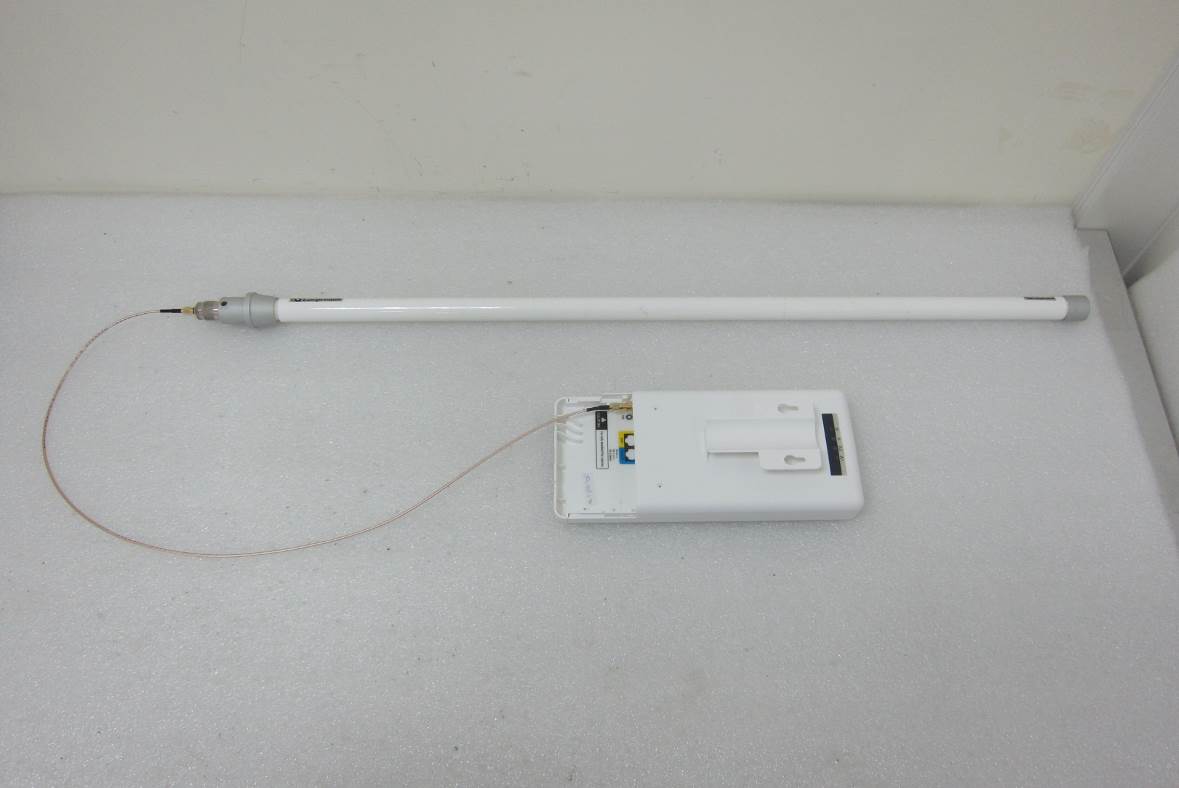

FCC ID: UL9WNAP6315 International Standards Laboratory Report Number: ISL-15LR170FCDTS-MA EXTERNAL PHOTOGRPHS OF EUT FCC ID: UL9WNAP6315 International Standards Laboratory Report Number: ISL-15LR170FCDTS-MA EUT 1 EUT 2 FCC ID: UL9WNAP6315 International Standards Laboratory Report Number: ISL-15LR170FCDTS-MA EUT 3 EUT 4 Dipole Antenna

ID LABEL FORMAT AND LOCATION Applicant: PLANET Technology Corporation FCC ID: UL9WNAP6315

FCC ID: UL9WNAP6315 International Standards Laboratory Report Number: ISL-15LR170FCDTS-MA INTERNAL PHOTOGRPHS OF EUT FCC ID: UL9WNAP6315 International Standards Laboratory Report Number: ISL-15LR170FCDTS-MA EUT 1 EUT 2 FCC ID: UL9WNAP6315 International Standards Laboratory Report Number: ISL-15LR170FCDTS-MA EUT 3 EUT 4 Patch Antenna FCC ID: UL9WNAP6315 International Standards Laboratory Report Number: ISL-15LR170FCDTS-MA EUT 5 Patch Antenna

FCC ID: UL9WNAP6315 International Standards Laboratory Report Number: ISL-15LR170FMPE-MA Maximum Permissible Exposure (MPE) Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Mobile device, the MPE is required. FCC: According to §1.1310 and §2.1091 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-15000 / / 1.0 30 F = frequency in MHz * = Plane-wave equipment power density Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna FCC ID: UL9WNAP6315 International Standards Laboratory Report Number: ISL-15LR170FMPE-MA Tune-Up Power and Tolerance: WLAN: 1TX, 1RX Wi-Fi Frequency Range (MHz) Channels Average Tune-Up Power Modulation Technology 802.11b 2412 – 2462(DTS) 11 Channel 1-11 13.0 dBm (AV) DSSS 802.11g 2412 – 2462(DTS) 11 Channel 1-11 8.0 dBm (AV) DSSS, OFDM 802.11n HT20 2412 – 2462(DTS) 11 OFDM HT40 2422 – 2452(DTS) 7 Channel 3-9 8.0 dBm (AV) Power Tolerance: +/- 1 dBm FCC ID: UL9WNAP6315 International Standards Laboratory Report Number: ISL-15LR170FMPE-MA Power measurement: Maximum Permissible Exposure (MPE) Evaluation: The worst case of Average power External Port with Dipole antenna: 802.11b Cable loss = 0 Output Power Limit CH Detector (dBm) PK AV (dBm) (dBm) Low 15.31 12.22 26 Mid 15.44 13.15 High 15.28 13.41 802.11g Cable loss = 0 Output Power Limit CH Detector (dBm) PK AV (dBm) (dBm) Low 17.41 7.34 26 Mid 17.27 7.42 High 18.12 8.35 802.11N HT20 Cable loss = 0 Output Power Limit CH Detector (dBm) PK AV (dBm) (dBm) Low 17.71 7.87 26 Mid 17.15 8.21 High 17.66 7.16 802.11N HT40 Cable loss = 0 Output Power Limit CH Detector (dBm) PK AV (dBm) (dBm) Low 17.21 7.42 26 Mid 17.71 7.15 High 17.37 7.72 FCC ID: UL9WNAP6315 International Standards Laboratory Report Number: ISL-15LR170FMPE-MA Internal Port with Patch antenna: 802.11b Cable loss = 0 Output Power Limit CH Detector (dBm) PK AV (dBm) (dBm) Low 15.09 12.71 23.75 Mid 15.76 13.39 High 15.54 13.19 802.11g Cable loss = 0 Output Power Limit CH Detector (dBm) PK AV (dBm) (dBm) Low 17.56 7.63 23.75 Mid 17.75 7.83 High 18.05 8.24 802.11N HT20 Cable loss = 0 Output Power Limit CH Detector (dBm) PK AV (dBm) (dBm) Low 17.48 7.97 23.75 Mid 17.58 8.16 High 17.86 7.59 802.11N HT40 Cable loss = 0 Output Power Limit CH Detector (dBm) PK AV (dBm) (dBm) Low 17.46 7.68 23.75 Mid 17.43 7.66 High 17.44 7.81 FCC ID: UL9WNAP6315 International Standards Laboratory Report Number: ISL-15LR170FMPE-MA MPE calculated: The Worst mode : 802.11 b mode Dipole Antenna: CH 1-11 Tune-Up power at antenna input terminal:13.00 (dBm) Tune-Up power at antenna input terminal:19.95 (mW) Tune-Up power Tolerance:1.00 dB Duty cycle:100.00 (%) Maximum Pav :25.12 (mW) Antenna gain (typical):10.00 (dBi) Maximum antenna gain:10.00 (numeric) Prediction distance:20.00 (cm) MPE limit for uncontrolled exposure at prediction frequency:1.00 (mW/cm^2) Power density at predication frequency at 20 (cm) distance0.0500 (mW/cm^2) Patch Antenna: CH 1-11 Tune-Up power at antenna input terminal:13.00 (dBm) Tune-Up power at antenna input terminal:19.95 (mW) Tune-Up power Tolerance:1.00 dB Duty cycle:100.00 (%) Maximum Pav :25.12 (mW) Antenna gain (typical):12.25 (dBi) Maximum antenna gain:16.79 (numeric) Prediction distance:20.00 (cm) MPE limit for uncontrolled exposure at prediction frequency:1.00 (mW/cm^2) Power density at predication frequency at 20 (cm) distance0.0839 (mW/cm^2) Result: The worst power density is 0.0839 mW/cm^2 which is less than 1 mW/cm^2. ~~ End ~~

Page: 1 of 75 TEST REPORT of FCC Part 15 Subpart C New Application; Class I PC; Class II PC Product : 802.11n Wireless Outdoor CPE Brand: PLANET Model: WNAP-6315 FCC ID: UL9WNAP6315 FCC Rule Part: §15.247, Cat: DTS Applicant: PLANET Technology Corporation Address: 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Test Performed by: International Standards Laboratory <Lung-Tan LAB> *Site Registration No. BSMI: SL2-IN-E-0013; MRA TW1036; TAF: 0997; IC: IC4067B-3; *Address: No. 120, Lane 180, Hsin Ho Rd. Lung-Tan Dist., Tao Yuan City 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-15LR170FCDTS-MA Issue Date : 2015/07/20 Test results given in this report apply only to the specific sample(s) tested and are traceable to na- tional or international standard through calibration of the equipment and evaluating measurement un- certainty herein. This report MUST not be used to claim product endorsement by TAF, NVLAP or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory. -2 of 75- FCC ID: UL9WNAP6315 International Standards Laboratory Report Number: ISL-15LR170FCDTS-MA VERIFICATION OF COMPLIANCE Applicant: PLANET Technology Corporation Product Description: 802.11n Wireless Outdoor CPE Brand Name: PLANET Model No.: WNAP-6315 Model Difference: N/A FCC ID: UL9WNAP6315 Date of test: 2015/04/10 ~ 2015/07/16 Date of EUT Received: 2015/04/10 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards de- scribed above and performed by an independent electromagnetic compatibility consultant, Interna- tional Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equip- ment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2015/07/20 Dino Chen / Engineer Prepared By: Date: 2015/07/20 Eva Kao / Asst. Supervisor Approved By: Date: 2015/07/20 Vincent Su / Technical Manager -3 of 75- FCC ID: UL9WNAP6315 International Standards Laboratory Report Number: ISL-15LR170FCDTS-MA Version Version No. Date Description 00 2015/07/20 Initial creation of document -4 of 75- FCC ID: UL9WNAP6315 International Standards Laboratory Report Number: ISL-15LR170FCDTS-MA Table of Contents 1 GENERAL INFORMATION .................................................................................................... 6 1.1 Related Submittal(s) / Grant (s) ..................................................................................................... 8 1.2 Test Methodology .......................................................................................................................... 8 1.3 Test Facility .................................................................................................................................... 8 1.4 Special Accessories ........................................................................................................................ 8 1.5 Equipment Modifications ............................................................................................................... 8 2 SYSTEM TEST CONFIGURATION ....................................................................................... 9 2.1 EUT Configuration ........................................................................................................................ 9 2.2 EUT Exercise ................................................................................................................................. 9 2.3 Test Procedure ................................................................................................................................ 9 2.4 Configuration of Tested System ................................................................................................... 10 3 SUMMARY OF TEST RESULTS .......................................................................................... 11 4 DESCRIPTION OF TEST MODES ....................................................................................... 11 5 CONDUCTED EMISSION TEST........................................................................................... 12 5.1 Standard Applicable: .................................................................................................................... 12 5.2 Measurement Equipment Used: ................................................................................................... 12 5.3 EUT Setup: ................................................................................................................................... 12 5.4 Measurement Procedure: ............................................................................................................. 13 5.5 Measurement Result: ................................................................................................................... 13 6 PEAK /AVERAGE OUTPUT POWER MEASUREMENT................................................. 16 6.1 Standard Applicable: .................................................................................................................... 16 6.2 Measurement Equipment Used: ................................................................................................... 17 6.3 Test Set-up: .................................................................................................................................. 17 6.4 Measurement Procedure: ............................................................................................................. 17 6.5 Measurement Result: ................................................................................................................... 18 7 6dB Bandwidth & 99% Bandwidth .............................…

Text truncated - open the document above for the full version.

FCC ID: UL9WNAP6315 International Standards Laboratory Report Number: ISL-15LR170FCDTS-MA PHOTOGRAPHS OF SET UP FCC ID: UL9WNAP6315 International Standards Laboratory Report Number: ISL-15LR170FCDTS-MA Radiated Emission Setup Photos FCC ID: UL9WNAP6315 International Standards Laboratory Report Number: ISL-15LR170FCDTS-MA FCC ID: UL9WNAP6315 International Standards Laboratory Report Number: ISL-15LR170FCDTS-MA Conducted Emission Set up Photo
