ULUAT-6101TWireless Camera

Model No.AT6101 Operation Manual Key Features 』Built-in 2.4GHz RF modules 』Transmitting Range :100m/300ft 』IP44 Waterproof camera with microphone 』Receiver can connect to DVD/VCR for recording 』Good for real time monitoring 』Package include camera bracket for easy installation 』Auto detecting and auto switching function enabled in receiver Parts lncluded with This System: 1. 2.4GHZ Wireless color camera * 1 PC 2. 2.4GHZ Wireless receiver * 1 PC 3. Camera Stand * 1 PC 4. 7.5V AC/DC Adaptor for camera and receiver * 2PCS 5. A/V Cable * 1 PC 2.4GHz wireless waterproof IP44 color camera 4 1 5 2 6 3 1.IR 4.Antenna 2.CDS 5.Channel select switch 3.Stand 6.DC input cord Set-up the camera 1. Connect the 7.5V/300mA adaptor cord into the DC input jack of the camera. 2. Plug the adaptor into a standard (110---240V AC ) outlet . 3. Be sure to select the same channel to both camera and receiver to display, and the camera is ready to use now. 1 54 3 2 1.Antenna 4.DC power input 2.4 Channels LED 5.Audio /Video output 3.Channel select switch Operation for receiver 1. Connect the 7.5V/300mA adaptor cord into the DC input. 2. Connect the A/V cable to the TV monitor. 3. Plug the adaptor into a standard (110---240Vac )outlet and power on the receiver .The receiver will auto detect the transmitter .When have more than one transmitter power on ,will set at auto scan and auto switch next channel each 5 seconds .For example ,have channel 1 and 3 power on ,it will auto switch between these two channels, as channel 1 Æ 5 seconds Æ channel 2 Æ 5 seconds --> channel 1 4. You can use the channel switch to select the channel that you want to show .Sequence as CH1 Æ CH2 Æ CH3 Æ CH4 Æ Auto detect ■Specifications Camera Receiver Frequency 2.4-2.4835GHz Transmitting Range 100m/300ft Channel 4 channels 4 channels with auto scan IR LED 11 N/A Video Format NTSC/PAL H Resolution 330 Horizontal TV Lines N/A Operation Temperature 14-122°F ～-10～50°C Power Supply 7.5V/300mA Adapter 7.5V DC/300mA Adapter Video Output N/A 1 Vp-p/75 ohm Audio Output N/A 1 Vp-p/600 ohm Size (mm) 54.1*50.4*54.1mm 74*61*20mm Weight 0.15Kg 0.1Kg Accessories 7.5V Adapter, Bracket With Swivel Base 7.5V DC Adapter Microphone Built-in N/A Channel selected Key select Key select ■IR Extender Lens Board Lens F6.0mm (64°)/F2.0 Image Sensor 1/3" Color CMOS Sensor Pixel 510x492(NTSC) or 628x582(PAL) Resolution 330 Lines Illumination <0 Lux E Shutter Speed 1/60-1/15000 second S/N Ratio >48 db FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment (Example – use only shielded interface cables when connecting to computer or peripheral devices). FCC ID: ULUAT-6101T THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. Made in China Brand Name: AROMA

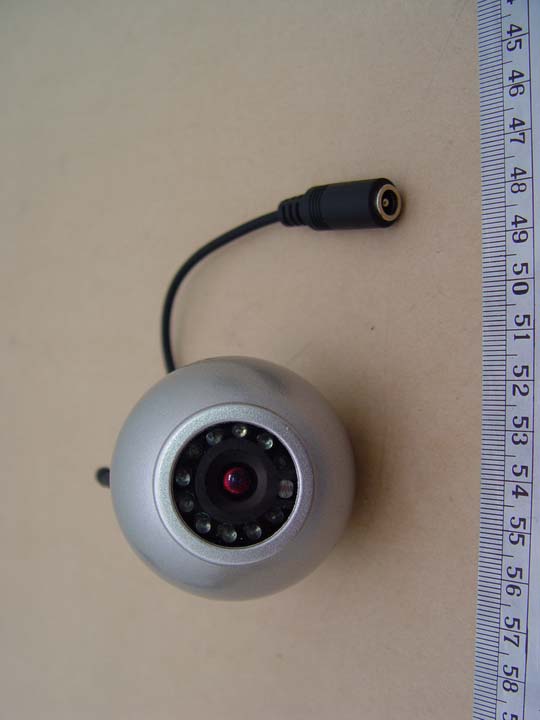

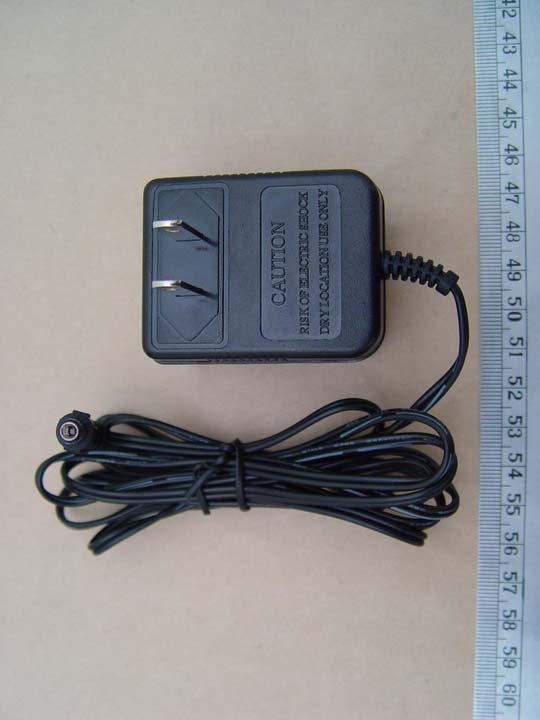

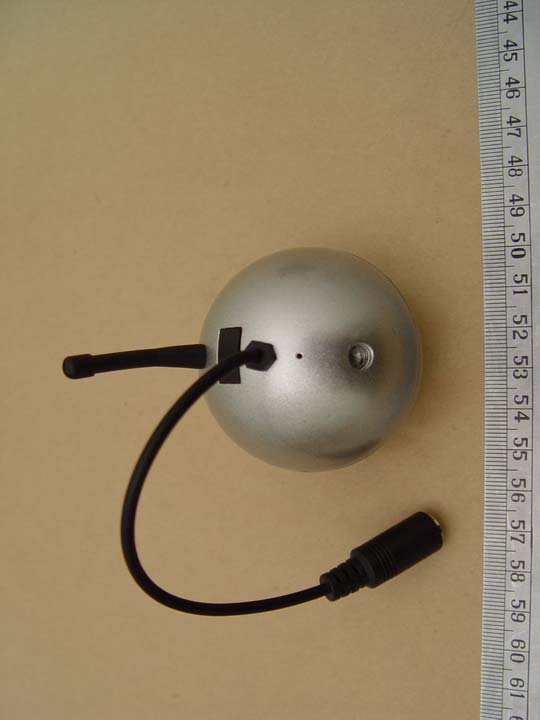

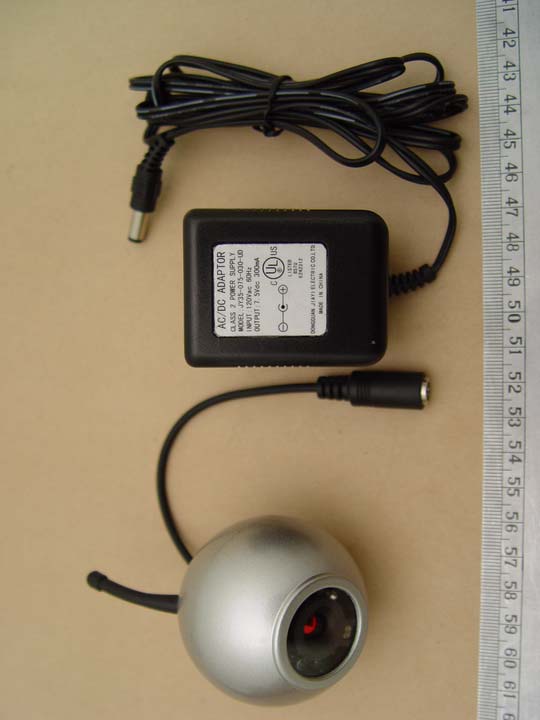

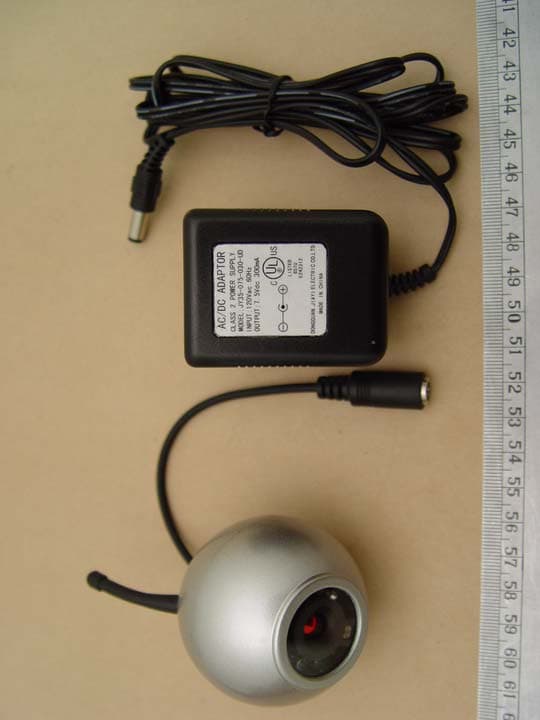

ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00001-P-15 FCC ID: ULUAT-6101T ETS Dr. Genz Taiwan PS Co., Ltd. External Photos ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00001-P-15 FCC ID: ULUAT-6101T ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00001-P-15 FCC ID: ULUAT-6101T ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00001-P-15 FCC ID: ULUAT-6101T ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00001-P-15 FCC ID: ULUAT-6101T ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00001-P-15 FCC ID: ULUAT-6101T ETS Dr. Genz Taiwan PS Co., Ltd.

FCC ID: ULUAT-6101T FCC label size : 0.5cm x 3cm

ETS Dr.Genz Taiwan PS Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 Accredited Testing Laboratory A2LA Cert.No.: 2300.01 PTCRB Accredited Type Certification Test House FCC TEST-REPORT FCC RULES PART 15 / SUBPART C § 15.249 FCC ID : ULUAT-6101T Test report no.: ETSTWM0608-00001-P-15 ETS DR.GENZ TAIWAN PS CO., LTD. 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU, TAIPEI 114, TAIWAN, R.O.C. PHONE 886-2-66068877 FAX 886-2-66068879 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: ETSTWM0608-00001-P-15 FCC ID: ULUAT-6101T ETS Dr. Genz Taiwan PS Co., Ltd. 1 of 27 TABLE OF CONTENTS 1GENERAL INFORMATION ................................................................................................... 2 1.1 N OTES................................................................................................................................... 2 1.2 T ESTING LABORATORY......................................................................................................... 3 1.2.1Location ....................................................................................................................... 3 1.2.2Details of accreditation status ..................................................................................... 3 1.3 D ETAILS OF APPROVAL HOLDER............................................................................................ 3 1.4 APPLICATION DETAILS.......................................................................................................... 4 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 4 1.6 T EST STANDARDS.................................................................................................................. 5 2TECHNICAL TEST .................................................................................................................. 6 2.1 S UMMARY OF TEST RESULTS................................................................................................. 6 2.2 T EST ENVIRONMENT.............................................................................................................. 6 2.3 T ESTEQUIPMENT LIST.......................................................................................................... 7 2.4 G ENERAL TESTPROCEDURE................................................................................................. 9 3TEST RESULTS (ENCLOSURE).......................................................................................... 10 3.1 P EAKOUTPUT POWER (TRANSMITTER) ............................................................................... 11 3.2 E QUIVALENT ISOTROPIC RADIATED POWER......................................................................... 11 3.2.1Transmitter.................................................................................................................12 3.3 RF E XPOSURE COMPLIANCE REQUIREMENTS..................................................................... 12 3.4 O UT OF BAND RADIATEDEMISSIONS.................................................................................. 12 3.5 S PURIOUS EMISSION (TX) .................................................................................................... 13 3.6 RADIATEDEMISSION FROM DIGITAL PART......................................................................... 17 3.7 RADIATEDEMISSION ON THE BANDEDGE.......................................................................... 18 3.8 P OWER LINE CONDUCTED EMISSION.................................................................................. 19 APPENDIX ....................................................................................................................................... 21 A PPENDIXA.................................................................................................................................... 22 A PPENDIXB .................................................................................................................................... 23 A PPENDIXC .................................................................................................................................... 24 A PPENDIXD.................................................................................................................................... 25 A PPENDIXE .................................................................................................................................... 26 A PPENDIXF .................................................................................................................................... 27 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: ETSTWM0608-00001-P-15 FCC ID: ULUAT-6101T ETS Dr. Genz Taiwan PS Co., Ltd. 2 of 27 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS DR. GENZ TAIWAN PS CO., LTD. Tester: September 11, 2006 Jay Chaing Date ETS-Lab. Name Signature Technical responsibility for area of tes…

Text truncated - open the document above for the full version.

ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00001-P-15 FCC ID: ULUAT-6101T ETS Dr. Genz Taiwan PS Co., Ltd. Set Up Photo ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00001-P-15 FCC ID: ULUAT-6101T ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00001-P-15 FCC ID: ULUAT-6101T ETS Dr. Genz Taiwan PS Co., Ltd.
