ULUAT-6202TWireless Camera

Model No.AT6202 Operation Manual Key Features 』Built-in 2.4GHz RF modules 』Transmitting Range :100m/300ft 』IP44 Waterproof camera with microphone 』Receiver can connect to DVD/VCR for recording 』Good for real time monitoring 』Package include camera bracket for easy installation 』Auto detecting and auto switching function enabled in receiver Parts lncluded with This System: 1. 2.4GHZ Wireless color camera * 1 PC 2. 2.4GHZ Wireless 2.5" TFT LCD receiver * 1 PC 3. Camera Stand * 1 PC 4. 7.5V AC/DC Adaptor for camera * 1 PC 5. 5V AC/DC switch power supply for the Receiver * 1 PC 6. A/V Cable * 1 PC 2.4GHz wireless waterproof IP44 color camera 1.IR 4.Antenna 2.CDS 5.Channel select switch 3.Stand 6.DC input cord Set-up the camera 1. Connect the 7.5V/300mA adaptor cord into the DC input jack of the camera. 2. Plug the adaptor into a standard (110---240V AC) outlet . 3. Be sure to select the same channel to both camera and receiver to display ,and the camera is ready to use now . 1 2 3 4 6 5 2.4GHz wireless 2.5”TFT LCD receiver 1. volume - 2.volume +8. 4 channels LED 3.Birghtness-9. Low power display 4.Brightness+10. Antenna 5.Power switch 11.DC power input 6.TFT LCD power switch12.Audio/Video output 7.Channel select Operation for receiver 1. Put down the power switch for power on,and up for power down. 2. Put down the TFT LCD power for turn on the TFT LCD power,and up to cut-off TFT LCD power. 3. Press the channel key to select the channel that your wish to show, and channel ID display that your selected. 4. Press volume- to decrease the output volume,and volume+ to increase. 5. Press birghtness- to decrease the brightness.and brightness+ to increase. 6. Press the channel key to select the channel 1 to 4 that your wish to show. The 5th with set to detect the transmitter.By this, if only one transmitter and will set at the same channel ,if more than one transmitter then set at auto scan mode,and switch to next channel each 5 secords, such as, if have two transmitters(CH2 and CH3 ),then as CH2 5 seconds CH3 5 seconds CH2. 1 2 3 5 6 7 4 8 9 10 11 12 ■Specifications CameraReceiver(Monitor) Frequency2.4-2.4835GHz Transmitting Range100m/300ft Channel4 channels4 channels with auto scan IR LED11N/A Video FormatNTSC/PAL H Resolution330 Horizontal TV LinesN/A Operation Temp 14-122°F ～-10～50°C Power Supply 7.5V/300mA Adaoter 5Vdc switch power Video OutputN/A A/V output(1 Vp-p/75 ohm) Audio OutputN/A 1 Vp-p/600 ohm Size (mm)92*39*36.5mm140*68*35.5mm Weight0.12Kg0.2Kg Accessories 7.5V Adapter,Bracket With Swivel Base 5Vdc switch power Microphone Built-inN/A ■IR Extender Lens Board Lens F6.0mm (64°)/F2.0 Image Sensor1/3" Color CMOS Sensor Pixel510x492(NTSC) or 628x582(PAL) Resolution330 Lines Illumination<0 Lux E Shutter Speed1/60-1/15000 second S/N Ratio>48 db FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment (Example – use only shielded interface cables when connecting to computer or peripheral devices). FCC ID: ULUAT-6202T THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. Made in China Brand Name: AROMA

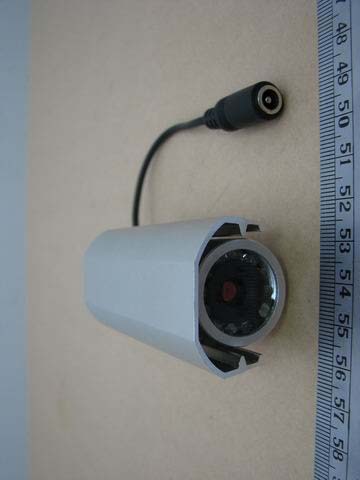

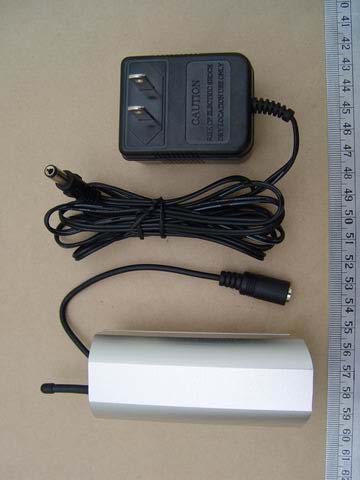

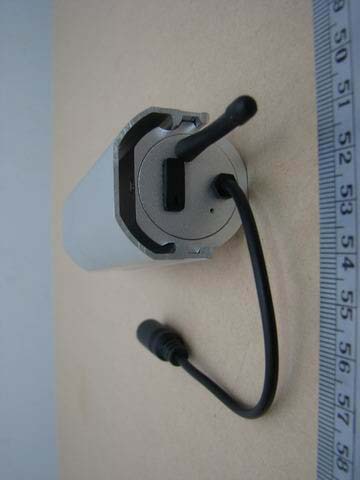

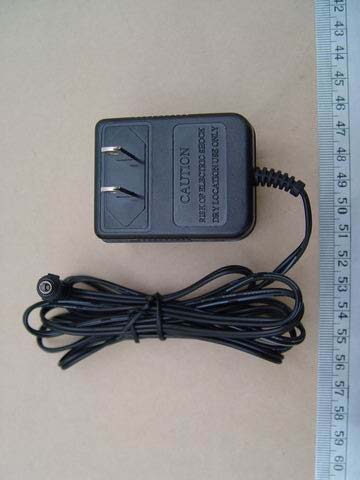

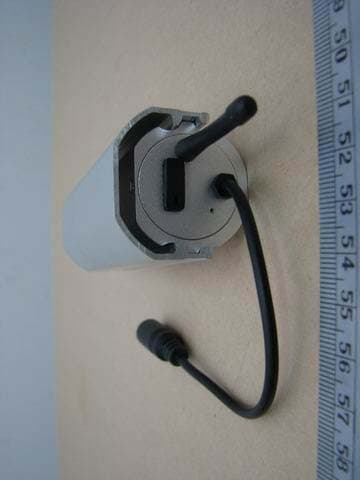

ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00002-P-15 FCC ID: ULUAT-6202T ETS Dr. Genz Taiwan PS Co., Ltd. External Photos ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00002-P-15 FCC ID: ULUAT-6202T ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00002-P-15 FCC ID: ULUAT-6202T ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00002-P-15 FCC ID: ULUAT-6202T ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00002-P-15 FCC ID: ULUAT-6202T ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00002-P-15 FCC ID: ULUAT-6202T ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00002-P-15 FCC ID: ULUAT-6202T ETS Dr. Genz Taiwan PS Co., Ltd.

FCC ID: ULUAT-6202T FCC label size : 0.5cm x 3cm

ETS Dr.Genz Taiwan PS Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 Accredited Testing Laboratory A2LA Cert.No.: 2300.01 PTCRB Accredited Type Certification Test House FCC TEST-REPORT FCC RULES PART 15 / SUBPART C § 15.249 FCC ID : ULUAT-6202T Test report no.: ETSTWM0608-00002-P-15 ETS DR.GENZ TAIWAN PS CO., LTD. 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU, TAIPEI 114, TAIWAN, R.O.C. PHONE 886-2-66068877 FAX 886-2-66068879 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: ETSTWM0608-00002-P-15 FCC ID: ULUAT-6202T ETS Dr. Genz Taiwan PS Co., Ltd. 1 of 25 TABLE OF CONTENTS 1GENERAL INFORMATION ................................................................................................... 2 1.1 N OTES................................................................................................................................... 2 1.2 T ESTING LABORATORY......................................................................................................... 3 1.2.1Location ....................................................................................................................... 3 1.2.2Details of accreditation status ..................................................................................... 3 1.3 D ETAILS OF APPROVAL HOLDER............................................................................................ 3 1.4 APPLICATION DETAILS............................................................................................................. 4 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 4 1.6 T EST STANDARDS.................................................................................................................. 5 2TECHNICAL TEST .................................................................................................................. 6 2.1 S UMMARY OF TEST RESULTS................................................................................................. 6 2.2 T EST ENVIRONMENT.............................................................................................................. 6 2.3 T ESTEQUIPMENT LIST.......................................................................................................... 7 2.4 G ENERAL TESTPROCEDURE................................................................................................. 9 3TEST RESULTS (ENCLOSURE).......................................................................................... 10 3.1 P EAKOUTPUT POWER (TRANSMITTER) ............................................................................... 11 3.2 E QUIVALENT ISOTROPIC RADIATED POWER......................................................................... 12 3.2.1Transmitter................................................................................................................. 12 3.3 RF E XPOSURE COMPLIANCE REQUIREMENTS..................................................................... 12 3.4 O UT OF BAND RADIATEDEMISSIONS.................................................................................. 12 3.5 S PURIOUS EMISSION (TX) .................................................................................................... 13 3.6 R ADIATEDEMISSIONS FROM DIGITALPART OF TRANSCEIVER............................................ 16 3.7 R ADIATEDEMISSION ON THE BAND EDGE........................................................................... 17 3.8 P OWER LINE CONDUCTED EMISSION.................................................................................. 18 APPENDIX ....................................................................................................................................... 19 A PPENDIXA.................................................................................................................................... 20 A PPENDIXB .................................................................................................................................... 21 A PPENDIXC .................................................................................................................................... 22 A PPENDIXD.................................................................................................................................... 23 A PPENDIXE .................................................................................................................................... 24 A PPENDIXF .................................................................................................................................... 25 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: ETSTWM0608-00002-P-15 FCC ID: ULUAT-6202T ETS Dr. Genz Taiwan PS Co., Ltd. 2 of 25 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS DR. GENZ TAIWAN PS CO., LTD. Tester: Sept. 11, 2006 Jay Chaing Date ETS-Lab. Name Signature Technical responsibility for area of testing: Sept…

Text truncated - open the document above for the full version.

ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00002-P-15 FCC ID: ULUAT-6202T ETS Dr. Genz Taiwan PS Co., Ltd. Set Up Photos ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00002-P-15 FCC ID: ULUAT-6202T ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00002-P-15 FCC ID: ULUAT-6202T ETS Dr. Genz Taiwan PS Co., Ltd.
