ULUAT-6703TWireless Camera

Model No.AT6703 Operation Manual Key Features: 』Built-in 2.4GHz RF modules 』Transmitting Range :100m/300ft 』Receiver can connect to DVD/VCR for recording 』Audio/Video input for TFT display 』Good for real time monitoring 』Package include camera bracket for easy installation 』Auto detecting and auto switching function enabled in receiver Parts lncluded with This System: 1. 2.4GHZ Wireless color camera * 1 PC 2. 2.4GHZ Wireless 7" TFT LCD display receiver * 1 PC 3. Camera Stand * 1 PC 4. Cigarette power switch for TFT receiver * 1 PC 5. 2.0M extended Antenna for receiver * 1 PC 6. 5M extended Antenna for camera * 1 PC 7. 2.4GHz Antenna * 2 PCS (Optional accessories) 8. A/V Cable * 1 PC 9. Power Control Cable * 1PC 2.4GHz wireless waterproof IP44 color camera 5 3 2 7 6 4 1 1.CDS 5. Reverse Polarized Antenna connector 2.IR 6.Channel switch 3.Extended Antenna 7.DC input cord 4.Stand Set up camera 1. Connect the DC input cord to your car .Fasten the bracket and adjust the camera look for a suitable view. 2. Select the channel( From left to right as CH1 -> CH2 -> CH3 -> CH4 ) that you want to show. 2.4GHz wireless 7”TFT LCD receiver 3 9 4 10 1 5 11 6 7 12 8 2 13 1.4Channels LED 8.Power switch 2.Power LED 9.Outside Power control 3.Function Key 10.Audio/video output 4.Volume + 11.Audio/video input 5.Volume- 12.DC power input 6.Display invert 13.SMA antenna 7.Channel select Operation for 2.4GHz wireless 7”TFT LCD 1. Plug the power (from 12 V DC to 24 V DC) into DC power input jack ,and the power identification LED will light on. 2. Press the power switch to turn on the system ,and will auto detect the transmitter. When have more than one transmitter power on ,will set at auto scan mode and auto switch next channel easy 5 seconds. For example ,have channel 1 and 3 power on ,it will auto switch between these two channels ,as channe1 1 --> 5 seconds --> channel 3 --> 5 seconds --> channel 1 . And then press to turn off power . 3. System power will auto turn on and auto detect the transmitter when outside power control from low to high level. And can press power switch to cut-off power only when the outside power control input at low level. 4. You can use channel select key to select the channel that you want to show ,as press first to display channel 1,and can continue press to select next channel ,and fifth to auto scan ( CH 1 --> CH 2 --> CH 3 --> CH 4 --> Auto). 5. You can use the function key with volume+ key and volume–- key to adjust bright ,color , contrast , tint . As press function key and with 3 seconds to press the volume+ to increase the bright ,and to press the volume– to decrease the bright .Function key sequence as bright next press color next press contrast next press tint. 6. You can use the volume+ key to increase the volume and volume- key to decrease the volume . 7. You can press the invert key to invert the display . 8. You can use the outside to turn on the power from outside power control jack .And high to turn on power and then to auto detect the transmitter .Use the power switch to turn off power (Note: for this ,power on outside power control jack must be at low level ,otherwise you cann’t turn off power). 9. With Audio/Video output for connecting to TV for larger screen display and to VCR for recording. 10. With Audio/Video input for connecting from DVD or other playback to display. ■Specifications Camera Receiver Frequency 2.4-2.4835GHz Transmitting Range 100m/300ft Channel 4 channels 4 channels with auto scan IR LED 12 N/A Video Format NTSC/PAL Operation Temperature -40 ~ 85°C Power Supply 12-24V DC 12-24V DC Video Output N/A 1 Vp-p/75 ohm Audio Output N/A 1 Vp-p/600 ohm Size (mm) 91*63*89mm 214*110*38mm Weight 0.53Kg 0.54Kg Channel selected Key select Key select ■IR Extender Lens Board Lens F2.8mm (120°)/F2.0 Image Sensor 1/3" Color CMOS Sensor Pixel 510x496(NTSC) or 628x586(PAL) Illumination <0 Lux E Shutter Speed 1/60-1/15000 second S/N Ratio >47 db FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment (Example – use only shielded interface cables when connecting to computer or peripheral devices). This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

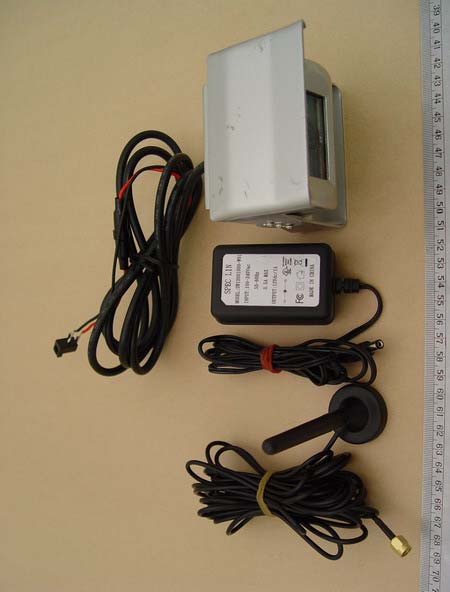

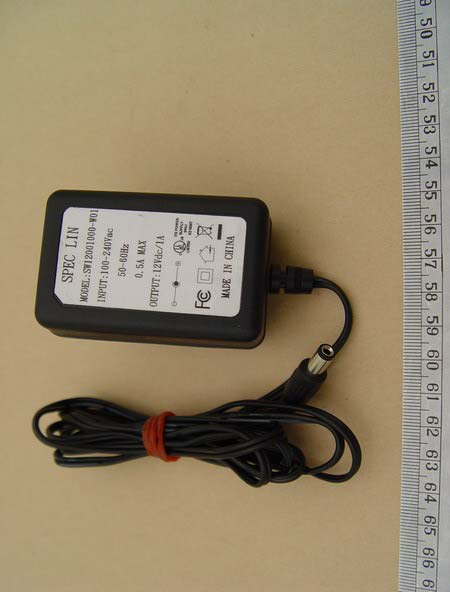

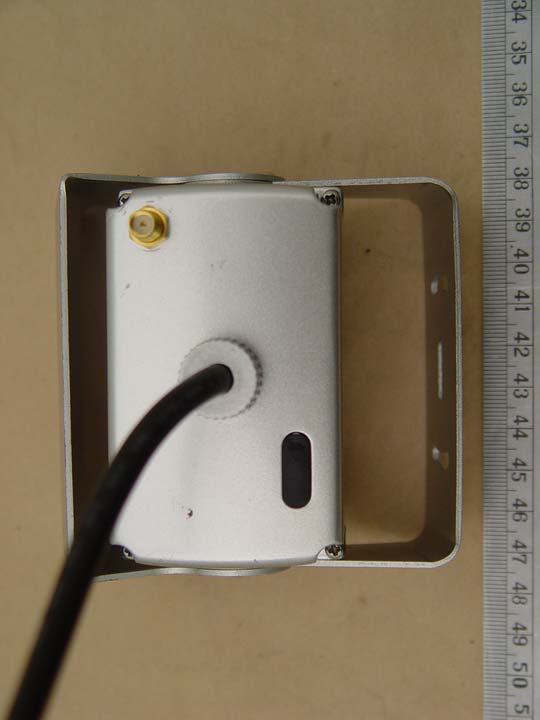

ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00003-P-15 FCC ID: ULUAT-6703T External Photos ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00003-P-15 FCC ID: ULUAT-6703T ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00003-P-15 FCC ID: ULUAT-6703T ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00003-P-15 FCC ID: ULUAT-6703T ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00003-P-15 FCC ID: ULUAT-6703T ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00003-P-15 FCC ID: ULUAT-6703T ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00003-P-15 FCC ID: ULUAT-6703T ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00003-P-15 FCC ID: ULUAT-6703T ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00003-P-15 FCC ID: ULUAT-6703T ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00003-P-15 FCC ID: ULUAT-6703T ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00003-P-15 FCC ID: ULUAT-6703T ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00003-P-15 FCC ID: ULUAT-6703T ETS Dr. Genz Taiwan PS Co., Ltd.

FCC ID: ULUAT-6703T THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED Made in China Brand Name: AROMA FCC label size : 2cm x 3cm

ETS Dr.Genz Taiwan PS Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 Accredited Testing Laboratory A2LA Cert.No.: 2300.01 PTCRB Accredited Type Certification Test House FCC TEST-REPORT FCC RULES PART 15 / SUBPART C § 15.249 FCC ID : ULUAT-6703T Test report no.: ETSTWM0608-00003-P-15 ETS DR.GENZ TAIWAN PS CO., LTD. 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU, TAIPEI 114, TAIWAN, R.O.C. PHONE 886-2-66068877 FAX 886-2-66068879 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: ETSTWM0608-00003-P-15 FCC ID: ULUAT-6703T ETS Dr. Genz Taiwan PS Co., Ltd. 1 of 25 TABLE OF CONTENTS 1GENERAL INFORMATION ................................................................................................... 2 1.1 N OTES................................................................................................................................... 2 1.2 T ESTING LABORATORY......................................................................................................... 3 1.2.1Location ....................................................................................................................... 3 1.2.2Details of accreditation status ..................................................................................... 3 1.3 D ETAILS OF APPROVAL HOLDER............................................................................................ 3 1.4 APPLICATION DETAILS............................................................................................................. 4 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 4 1.6 T EST STANDARDS.................................................................................................................. 5 2TECHNICAL TEST .................................................................................................................. 6 2.1 S UMMARY OF TEST RESULTS................................................................................................. 6 2.2 T EST ENVIRONMENT.............................................................................................................. 6 2.3 T ESTEQUIPMENT LIST.......................................................................................................... 7 2.4 G ENERAL TESTPROCEDURE................................................................................................. 9 3TEST RESULTS (ENCLOSURE).......................................................................................... 10 3.1 P EAKOUTPUT POWER (TRANSMITTER) ............................................................................... 11 3.2 E QUIVALENT ISOTROPIC RADIATED POWER......................................................................... 12 3.2.1Transmitter................................................................................................................. 12 3.3 RF E XPOSURE COMPLIANCE REQUIREMENTS..................................................................... 12 3.4 O UT OF BAND RADIATEDEMISSIONS.................................................................................. 12 3.5 S PURIOUS EMISSION (TX) .................................................................................................... 13 3.6 R ADIATEDEMISSIONS FROM DIGITALPART OF TRANSCEIVER............................................ 16 3.7 R ADIATEDEMISSION ON THE BAND EDGE........................................................................... 17 3.8 P OWER LINE CONDUCTED EMISSION.................................................................................. 18 APPENDIX ....................................................................................................................................... 19 A PPENDIXA.................................................................................................................................... 20 A PPENDIXB .................................................................................................................................... 21 A PPENDIXC .................................................................................................................................... 22 A PPENDIXD.................................................................................................................................... 23 A PPENDIXE .................................................................................................................................... 24 A PPENDIXF .................................................................................................................................... 25 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: ETSTWM0608-00003-P-15 FCC ID: ULUAT-6703T ETS Dr. Genz Taiwan PS Co., Ltd. 2 of 25 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS DR. GENZ TAIWAN PS CO., LTD. Tester: Sept.22, 2006 Jay Chaing Date ETS-Lab. Name Signature Technical responsibility for area of testing: Sept.…

Text truncated - open the document above for the full version.

ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00003-P-15 FCC ID: ULUAT-6703T Set Up Photos ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00003-P-15 FCC ID: ULUAT-6703T ETS Dr. Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: ETSTWM0608-00003-P-15 FCC ID: ULUAT-6703T ETS Dr. Genz Taiwan PS Co., Ltd.
