ULZ-PT004V2TPMS Programming Tool

TX-PT004 User Manual The TX-PT004 is controlled using an application installed either on an iOS or Android device through the “TPMS EXPRESS” application. Bluetooth capability is required for smartphones and tablets. To use the TX-PT004 1. Press and hold the power button for 3 seconds the device ON 2. Open the “TPMS EXPRESS” application 3. Select Create Sensor 4. Select Make, Model and Year of vehicle being serviced To program the MORESENSOR 1. Place MORESENSOR in front of TX-PT004 2. Click SUBMIT 3. Click PROGRAM Status LED Panel Power Button Power LED Panel  Solid Red-Battery is low Bluetooth The TX-PT004 can be controlled using a Bluetooth connection on an iOS or Android device. FCC ID: A8TBM70ABCDEFGH Tool Overview Batter Type AAA Battery*2 Operating temperature -20°C~60°C Storage temperature -20°C~60°C Environmental Notes Electronic tools and used batteries should be disposed of in an environmentally friendly manner. Do not expose the battery to fire or high temperatures. This device is not waterproof. FCC Notices This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. RF exposure warning: The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment. The equipment must not be co-located or operating in conjunction with any other antenna or transmitter.

RF_160_05 Declaration of Authorisation Date of issue 02-01-2023 Declaration of Authorization We Name: Mobiletron Electronics Co., Ltd. Address: 85, Sec.4, Chung-Ching Rd., Ta-Ya District, City: Taichung 428, Country: Taiwan Declare that: Name Representative of agent: Jerry Liu............. (1) Agent Company name: International Standards Laboratory Corp. Address: No. 120, Lane 180, Hsin Ho Rd., Lung-Tan Dist., City: Tao Yuan City 325. Country Taiwan is authorized to apply for Certification of the following product(s): Product description: TPMS Programming Tool Type designation: TX-PT004  Trademark: Mobiletron Validity/ expiry date on our behalf. Date: 2023/6/05.. City: Taichung.. Name: Jerry Lin .. (2) Function: Manager............................... Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent. Revision Record Sheet: Revision Section number Page number Date Remark(s) issued by 02 1 02-01-2023 History sheet added AG Issued/modified by : Axel Gase Function : Quality Manager Revision : 02 Date : 02-01-2023 Verified by : Willem Jan Jong Function : Team Lead Date : 02-01-2023 Released by : Axel Gase Function : Manager Quality Assurance Date of release: : 02-01-2023

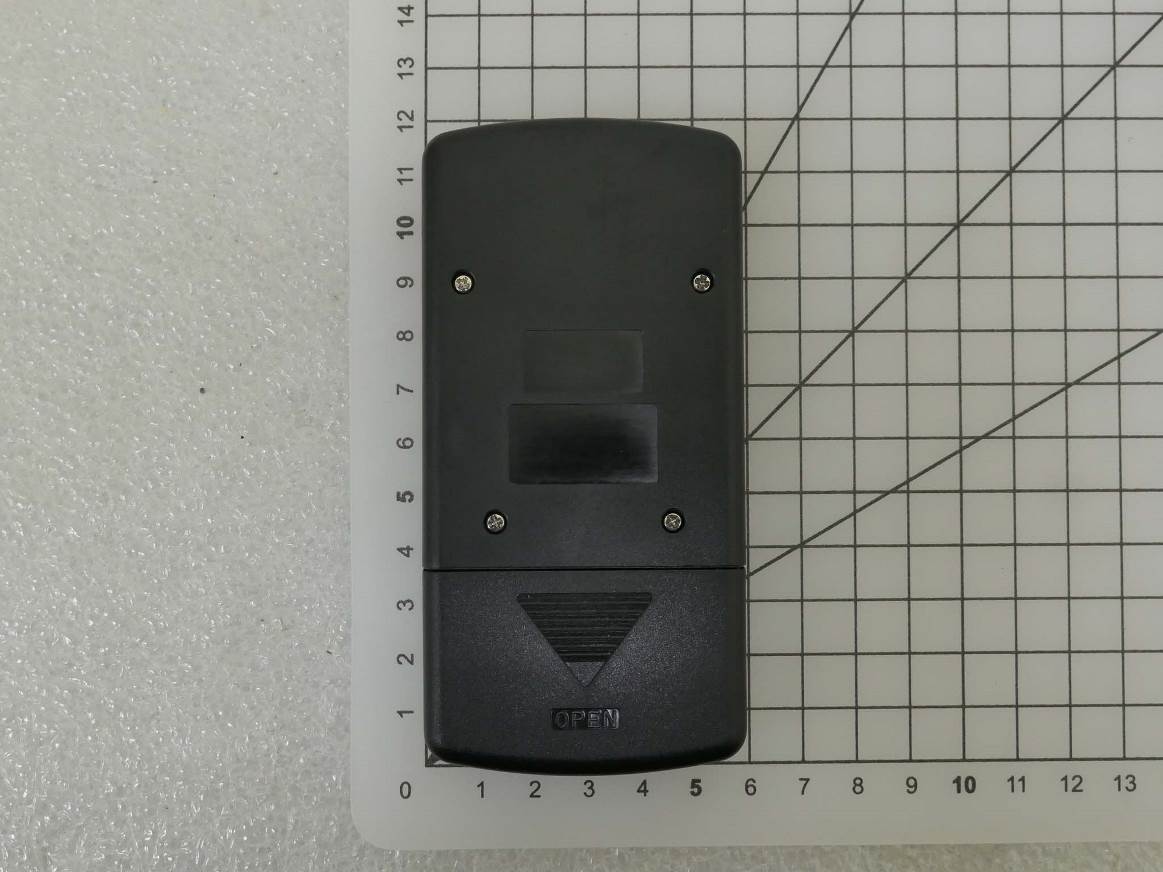

International Standards Laboratory Corp. Report Number: ISL-23LR0070P Appendix Photographs of EUT of Product Name TPMS Programming Tool Main Model TX-PT004 Series Model N/A Brand Mobiletron International Standards Laboratory Corp. Report Number: ISL-23LR0070P -1- EUT-1. EUT-2. International Standards Laboratory Corp. Report Number: ISL-23LR0070P -2- EUT-3. EUT-4. International Standards Laboratory Corp. Report Number: ISL-23LR0070P -3- EUT-5. EUT-6.

FCC ID FCC-sign 3V 75mA ULZ-PT004V2 202-SMD069

International Standards Laboratory Corp. Report Number: ISL-23LR0070P Appendix Photographs of EUT of Product Name TPMS Programming Tool Main Model TX-PT004 Series Model N/A Brand Mobiletron International Standards Laboratory Corp. Report Number: ISL-23LR0070P -1- EUT-1. EUT-2. International Standards Laboratory Corp. Report Number: ISL-23LR0070P -2- EUT-3. EUT-4. BLE module International Standards Laboratory Corp. Report Number: ISL-23LR0070P -3- EUT-5. BLE module EUT-6. 125k module

FCC ID: ULZ-PT004V2 International Standards Laboratory Corp. 1. Maximum Permissible Exposure (MPE) Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Mobile device, the MPE is required. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-15000 / / 1.0 30 F = frequency in MHz * = Plane-wave equipment power density FCC ID: ULZ-PT004V2 International Standards Laboratory Corp. Maximum Permissible Exposure (MPE) Evaluation Frequency Band (MHz) Conducted power (dBm) Antenna gain (dBi) Tune-Up Tolerance (dB) EIRP (dBm) MPE (mW/cm 2 ) LIMIT (mW/cm 2 ) 2402 - 2480 -2.379 1.69 1 0.311 0.0002 1 ~ End of Report ~

Description: 3216 2.4-2.5GHz Chip Antenna PART NUMBER: ANT3216A063R2400A In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. For more information: Pulse Worldwide Headquarters Pulse/Larsen Antennas Europe Headquarters Pulse (Suzhou) Wireless Products Co, Inc. 15255 Innovation Drive #100 Pulse GmbH & Do, KG 99 Huo Ju Road(#29 Bldg,4 th Phase San Diego, CA 92128 Vancouver, WA 98683 Zeppelinstrasse 15 Suzhou New District USA USA Herrenberg, Germany Jiangsu Province, Suzhou 215009 PR China Tel:1-858-674-8100 Tel: 1-360-944-7551 - Tel: 49 7032 7806 0 Tel: 86 512 6807 9998 18110 SE 34 th St Bldg 2 Suite 250 Features: Applications: •Size : 3.05x1.55x0.55 mm •Omni-directional Radiation •Tape & reel automaic mounting •Reflow process compatible •RoHS compliant • 2.4GHz WiFi device •Bluetooth gadget •Zigbee device •ISM band equipment 1 ELECTRICAL SPECIFICATIONS Working Frequency 2.45 GHz Bandwidth 200 MHz(Typ.) Return Loss 6.5 dB Max. Polarization Linear Azimuth Beamwidth Omni-directional Peak Gain 1.69 dBi (Typ.) Impedance 50 Ω Operating Temperature - 40~105 °C Maximum Power 1 W Termination Ni / Sn (Environmentally-Friendly Leadless) Resistance to Soldering Heats 260 °C , 10sec. NOTE 1. The specification is defined on Pulse evaluation board In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. Description: 3216 2.4-2.5GHz Chip Antenna PART NUMBER: ANT3216A063R2400A 2 MECHANICAL DRAWING Dimension L (mm) 3.05 ± 0.10 W (mm) 1.55 ± 0.10 T (mm) 0.55 ± 0.10 A (mm) 0.40 ± 0.10 Terminal name Function S1 Feeding Point S2 GND In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. Description: 3216 2.4-2.5GHz Chip Antenna PART NUMBER: ANT3216A063R2400A 3 REFERENCE DESIGN OF EVALUATION BOARD Outlook and dimension of evaluation board In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. Description: 3216 2.4-2.5GHz Chip Antenna PART NUMBER: ANT3216A063R2400A 4 REFERENCE DESIGN OF EVALUATION BOARD Dimension of footprint Radiation pattern Frequency= 2.45 GHz Max gain = 1.69 dBi MEG (mean effective gain)= -1.00 dBi Directivity (dB) = 2.18 Efficiency = - 0.49dB, 89.33% In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. Description: 3216 2.4-2.5GHz Chip Antenna PART NUMBER: ANT3216A063R2400A 5 ELECTRICAL PERFORMANCES Return loss Maker data 1. 2.39GHz, -10.00dB 2. 2.45GHz, -16.48dB 3. 2.50GHz, -10.00dB In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. Description: 3216 2.4-2.5GHz Chip Antenna PART NUMBER: ANT3216A063R2400A 6 REVISION HISTORY Revision Date Description Version 1 Nov. 20, 2020 - New issue

Page: 1 of 24 TEST REPORT of FCC Part 15 Subpart C New Application; Class I PC; Class II PC Product : TPMS Programming Tool Brand: Mobiletron Model: TX-PT004 Model Difference: N/A FCC ID: ULZ-PT004V2 FCC Rule Part: §15.209 Applicant: Mobiletron Electronics Co., Ltd. Address: 85, Sec.4, Chung-Ching Rd., Ta-Ya District, Taichung 428, Taiwan Test Performed by: International Standards Laboratory Corp. LT Lab. TEL: +886-3-263-8888 FAX: +886-3-263-8899 No. 120, Lane 180, Hsin Ho Rd., Lung-Tan Dist., Tao Yuan City 325, Taiwan Report No.: ISL-23LR0070FDXX Issue Date : May 24, 2023 Test results given in this report apply only to the specific sample(s) tested and are traceable to national or international standard through calibration of the equipment and evaluating measurement uncertainty herein. The uncertainty of the measurement does not include in consideration of the test result unless the customer required the determination of uncertainty via the agreement, regulation or standard document specification. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory Corp. -2 of 24- International Standards Laboratory Corp. Report Number: ISL-23LR0070FDXX VERIFICATION OF COMPLIANCE Applicant: Mobiletron Electronics Co., Ltd. Product Description: TPMS Programming Tool Brand Name: Mobiletron FCC ID: ULZ-PT004V2 Model No.: TX-PT004 Model Difference: N/A Date of test: March 20, 2023 ~ May 24, 2023 Date of EUT Received: March 20, 2023 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards described above and performed by an independent electromagnetic compatibility consultant, International Standards Laboratory Corp. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equipment tested as described in this report is in compliance with the limits of above standards. Test By: Date: May 24, 2023 Jason Chao / Senior Engineer Prepared By: Date: May 24, 2023 Gigi Yeh / Senior Engineer Approved By: Date: May 24, 2023 Jerry Liu / Assistant Manager -3 of 24- International Standards Laboratory Corp. Report Number: ISL-23LR0070FDXX Version Version No. Date Description 00 May 24, 2023 Initial creation of document Measurement Uncertainty ISO/IEC 17025 requires that an estimate of measurement uncertainties associated with the emissions test results be included in the report. The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)). Parameters Uncertainty (k=2) Conducted Emission (AC power line) ±0.852 dB Spurious emissions, radiated ±3.46 dB RF power, conducted ±1.386 dB Power Density ±1.432 dB RF Frequency ±0.00298% Time ±0.01% -4 of 24- International Standards Laboratory Corp. Report Number: ISL-23LR0070FDXX Table of Contents 1. GENERAL INFORMATION ........................................................................................... 5 1.1 PRODUCT DESCRIPTION ................................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................. 6 1.3 TEST METHODOLOGY ....................................................................................................................... 6 1.4 TEST FACILITY ................................................................................................................................. 6 1.5 SPECIAL ACCESSORIES ..................................................................................................................... 6 1.6 EQUIPMENT MODIFICATIONS ........................................................................................................... 6 2. SYSTEM TEST CONFIGURATION .............................................................................. 7 2.1 EUT CONFIGURATION ...................................................................................................................... 7 2.2 EUT EXERCISE ................................................................................................................................. 7 2.3 TEST PROCEDURE ............................................................................................................................. 7 2.4 LIMITATION ...................................................................................................................................... 8 2.5 CONFIGURATION OF TESTED SYSTEM ............................................................................................ 11 3. SUMMARY OF TEST RESULTS ................................................................................. 12 4. DESCRIPTION OF TEST MODES .............................................................................. 12 5. CONDUCED EMISSION TEST .................................................................................... 13 5.1 MEASUREMENT PROCEDURE: ........................................................................................................ 13 5.2 TEST SETUP .................................................................................................................................... 13 5.3 MEASUREMENT EQUIPMENT USED: ............................................................................................... 14 5.4 MEASUREMENT RESULT: ............................................................................................................... 14 6. RADIATED EMISSION TEST ....................................................................................... 15 6.1 MEASUREMENT PROCEDURE.......................................................................................................... 15 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ..................................…

Text truncated - open the document above for the full version.

-21 of 24- International Standards Laboratory Corp. Report Number: ISL-23LR0070FDXX 7. Appendix 7.1 Appendix 1: Photographs of Setup Radiated Emission Setup Photos -22 of 24- International Standards Laboratory Corp. Report Number: ISL-23LR0070FDXX -23 of 24- International Standards Laboratory Corp. Report Number: ISL-23LR0070FDXX
