ULZ-TXM001TPMS

TPMS TX-M Series User's Manual Frequency TX-M001 / TX-M003 315 MHz TX-M002 / TX-M004 433.92 MHz Pressure Range 100~900 kPa Temperature Range -40 ~125°C Operating Humidity Max. 95% Operating Temperature -40 ~105°C Storage Temperature -40 ~125°C (1) Dismount tire and sensor from the wheel. And clear valve stem hole in rim of Dismount tire and sensor from the wheel. Push the valve stem thru the rim, install the washer and nut, then tighten the nut to 36 in-lb Hold the sensor body against the rim and install then tighten the screw to 20 in-lb Mount the tire back to vehicle FCC Notices This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation of the device. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. RF exposure warning: The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment. The equipment must not be co-located or operating in conjunction with any other antenna or transmitter. IC statement:  Canada, Industry Canada (IC) This Class B digital apparatus complies with Canadian ICES-003 Cet appareil numérique de classe B est conforme à la norme NMB-003.  This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the Le present appareil est conforme aux CNR d'Industrie Canada applicables auxappareils radio exempts de licence.L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage adioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.  Conformité des appareils de radiocommunication aux limites d'exposition humaine aux radiofréquences (CNR-102) L'ordinateur utilise des antennes intégrales à faible gain qui n'émettent pas un champ électromagnétique supérieur aux normes imposées par Santé Canada pour la population. Consultez le Code de sécurité 6 sur le site Internet de Santé Canada à l'adresse suivante : http://www.hc-sc.gc.ca/ L'énergie émise par les antennes reliées aux cartes sans fil respecte la limite d'exposition aux radiofréquences telle que définie par Industrie Canada dans la clause 4.1 du document CNR-102, version 4.  ISED RF Radiation Exposure Statement: Cet équipement est conforme aux limites d'exposition aux rayonnements RSS 102 établies pour un environnement non contrôlé. Les utilisateurs finaux doivent suivre les instructions d'utilisation spécifiques pour satisfaire à la conformité d'exposition RF. Cet émetteur ne doit pas être co-localisé ou fonctionner en conjonction avec une autre antenne ou un autre émetteur.

RF_160_05 Declaration of Authorisation Date of issue 02-01-2023 Declaration of Authorization We Name: Mobiletron Electronics Co., Ltd. Address: 85, Sec.4, Chung-Ching Rd., Ta-Ya District, City: Taichung 428, Country: Taiwan Declare that: Name Representative of agent: Jerry Liu.......... (1) Agent Company name: International Standards Laboratory Corp. Address: No. 120, Lane 180, Hsin Ho Rd., Lung-Tan Dist., City: Tao Yuan City 325. Country Taiwan is authorized to apply for Certification of the following product(s): Product description: TPMS Type designation: TX-M001; TX-M002; TX-M003; TX-M004......... Trademark: Mobiletron Validity/ expiry date on our behalf. Date: 2026/07/09................................ City: Taichung ................................ Name: Jerry Lin................................ (2) Function: Manager............................... Signature: ............................... Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent. Revision Record Sheet: Revision Section number Page number Date Remark(s) issued by 02 1 02-01-2023 History sheet added AG Issued/modified by : Axel Gase Function : Quality Manager Revision : 0 2 Date : 02-01-2023 Verified by : Willem Jan Jong Function : Team Lead Date : 02-01-2023 Released by : Axel Gase Function : Manager Quality Assurance Date of release: : 02-01-2023

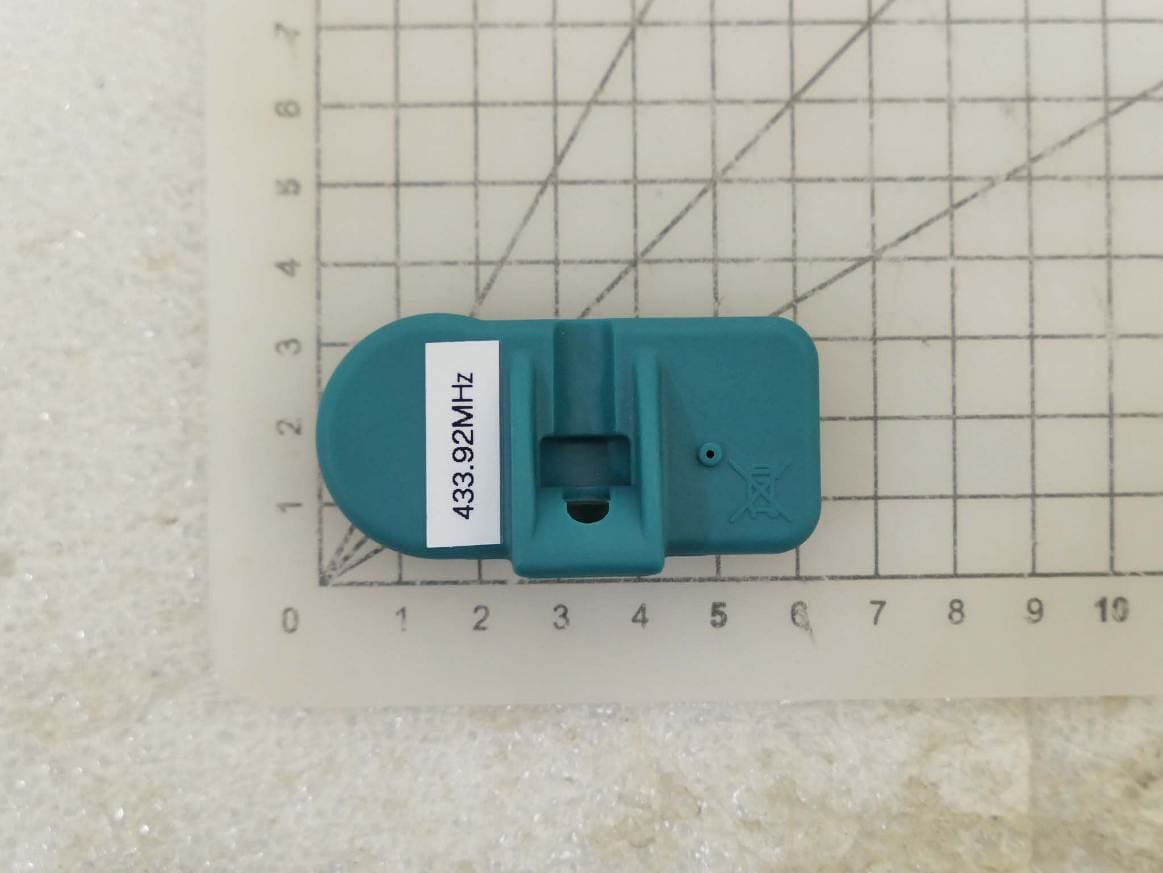

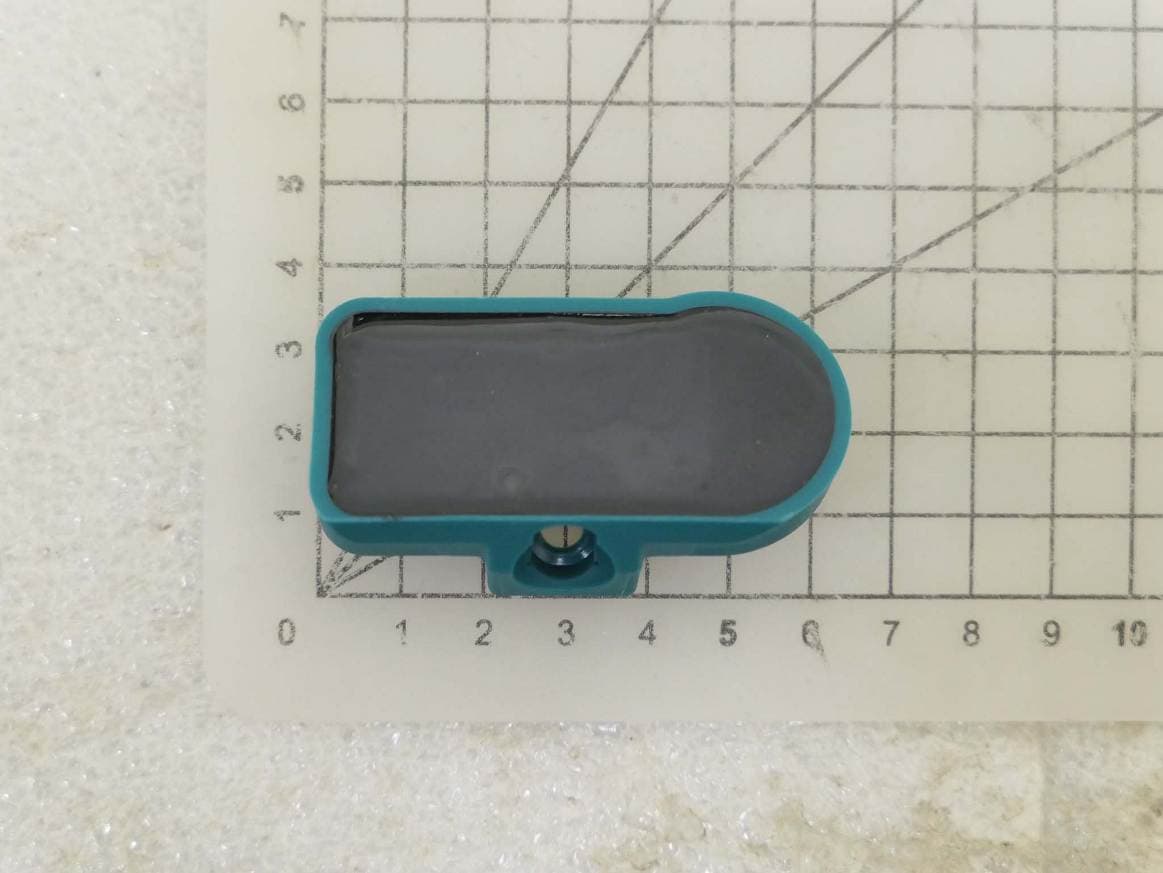

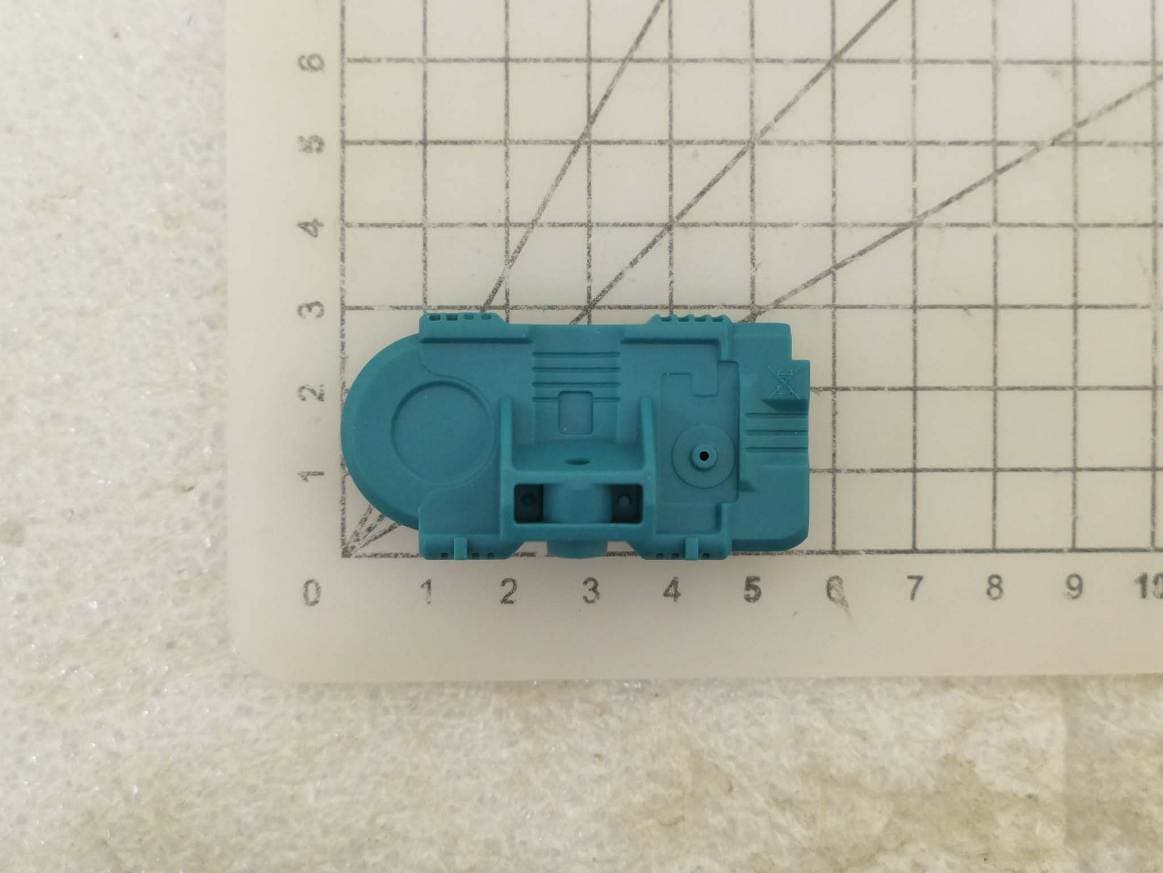

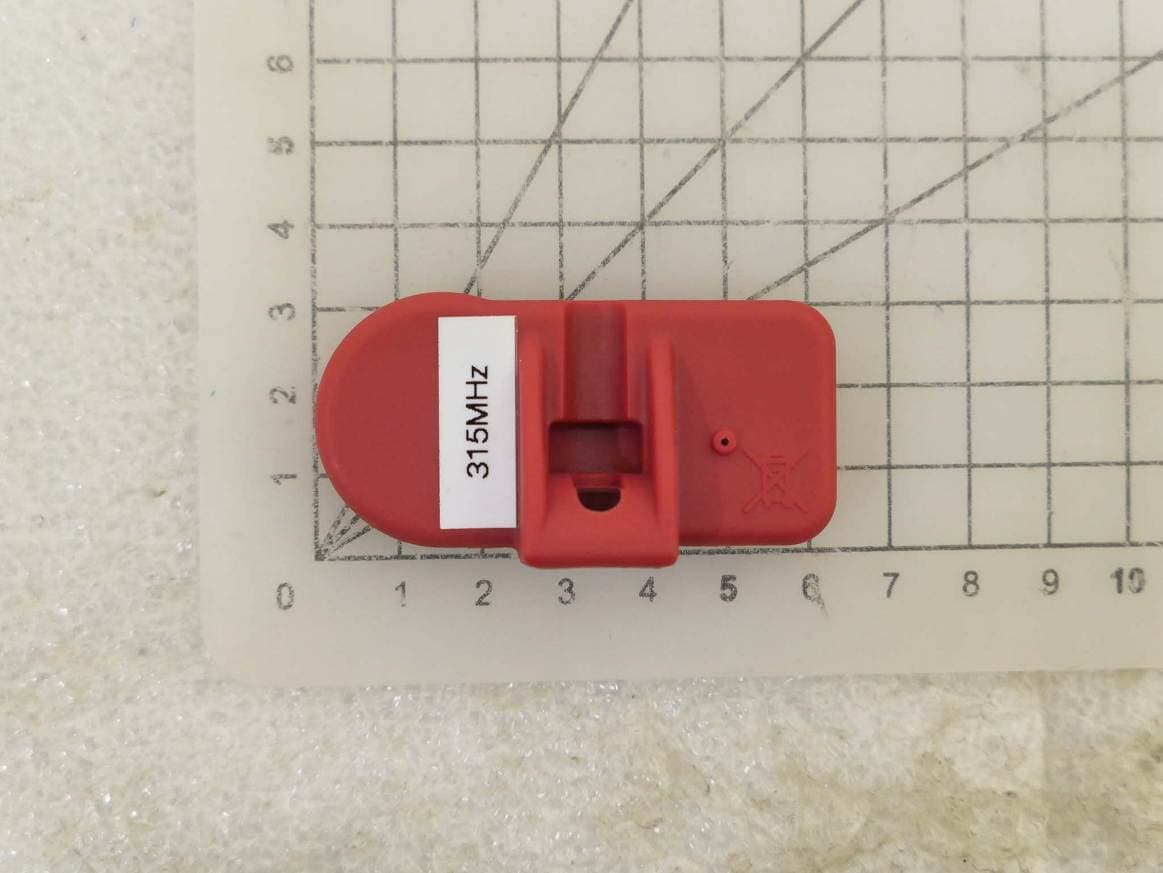

International Standards Laboratory Corp. Report Number: ISL-26LR0069P Appendix Photographs of EUT of Product Name TPMS Main Model TX-M001 Series Model TX-M002; TX-M003; TX-M004 Brand Mobiletron International Standards Laboratory Corp. Report Number: ISL-26LR0069P -1- EUT-1. TX-M001 EUT-2. TX-M001 International Standards Laboratory Corp. Report Number: ISL-26LR0069P -2- EUT-3. TX-M001 EUT-4. TX-M001 International Standards Laboratory Corp. Report Number: ISL-26LR0069P -3- EUT-5. TX-M001 EUT-6. TX-M001 International Standards Laboratory Corp. Report Number: ISL-26LR0069P -4- EUT-7. TX-M002 EUT-8. TX-M002 International Standards Laboratory Corp. Report Number: ISL-26LR0069P -5- EUT-9. TX-M002 EUT-10. TX-M002 International Standards Laboratory Corp. Report Number: ISL-26LR0069P -6- EUT-11. TX-M002 EUT-12. TX-M002 International Standards Laboratory Corp. Report Number: ISL-26LR0069P -7- EUT-13. TX-M003 EUT-14. TX-M003 International Standards Laboratory Corp. Report Number: ISL-26LR0069P -8- EUT-15. TX-M003 EUT-16. TX-M003 International Standards Laboratory Corp. Report Number: ISL-26LR0069P -9- EUT-17. TX-M003 EUT-18. TX-M004 International Standards Laboratory Corp. Report Number: ISL-26LR0069P -10- EUT-19. TX-M004 EUT-20. TX-M004 International Standards Laboratory Corp. Report Number: ISL-26LR0069P -11- EUT-21. TX-M004 EUT-22. TX-M004

FCC ID & IC ID LABEL FORMAT AND LOCATION Applicant: Mobiletron Electronics Co., Ltd. FCC ID: ULZ-TXM001 IC: 30249-TXM001

International Standards Laboratory Corp. Report Number: ISL-26LR0069P Appendix Photographs of EUT of Product Name TPMS Main Model TX-M001 Series Model TX-M002; TX-M003; TX-M004 Brand Mobiletron International Standards Laboratory Corp. Report Number: ISL-26LR0069P -1- EUT-1. TX-M001 EUT-2. TX-M002 International Standards Laboratory Corp. Report Number: ISL-26LR0069P -2- EUT-3. TX-M003 EUT-4. TX-M004 International Standards Laboratory Corp. Report Number: ISL-26LR0069P -3- EUT-5. EUT-6. International Standards Laboratory Corp. Report Number: ISL-26LR0069P -4- EUT-7. EUT-8. International Standards Laboratory Corp. Report Number: ISL-26LR0069P -5- EUT-9. RF module

FCC ID: ULZ-TXM001 International Standards Laboratory Corp. Report No.: ISL-26LR0069FCC Radio Frequency Exposure Evaluation Standard Applicable According to 447498 D04 Interim General RF Exposure Guidance v01 section 2.1.2, the available maximum time-average power not exceeding 1 mW is exempt from the test. 1-mW Test Exemption Frequency (MHz) Max E-Field (dBμV/m@3m) Max. Power EIRP (dBm) Tune-up tolerance (dB) EIRP Power Max Power Limit (mW) (dBm) (mW) 433.92 (ASK) 71.97 -23.23 1 -22.23 0.00598 1 433.92 (FSK) 71.99 -23.21 1 -22.21 0.00601 1 315 (ASK) 70.18 -25.02 1 -24.02 0.00396 1 315 (FSK) 70.42 -24.78 1 -23.78 0.00419 1 ~ End ~

Page: 1 of 60 TEST REPORT of FCC Part 15 Subpart C New Application; Class I PC; Class II PC Product: TPMS Brand: Mobiletron Main Model: TX-M001 Series Model: TX-M002; TX-M003; TX-M004 FCC ID: ULZ-TXM001 Model Difference: Model differences in valve type FCC Rule Part: §15.231 (e) Applicant: Mobiletron Electronics Co., Ltd. Address: 85, Sec.4, Chung-Ching Rd., Ta-Ya District, Taichung 428, Taiwan Test Performed by: International Standards Laboratory Corp. LT Lab. TEL: +886-3-263-8888 FAX: +886-3-263-8899 No. 120, Lane 180, Hsin Ho Rd., Lung-Tan Dist., Tao Yuan City 325, Taiwan Report No.: ISL-26LR0069FCC Issue Date : May 20, 2026 Test results given in this report apply only to the specific sample(s) tested and are traceable to national or international standard through calibration of the equipment and evaluating measurement uncertainty herein. The uncertainty of the measurement does not include in consideration of the test result unless the customer required the determination of uncertainty via the agreement, regulation or standard document specification. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory Corp. -2 of 60- FCC ID: ULZ-TXM001 International Standards Laboratory Corp. Report Number: ISL-26LR0069FCC VERIFICATION OF COMPLIANCE Applicant: Mobiletron Electronics CO., LTD. Equipment Under Test: TPMS Brand Name: Mobiletron Model: TX-M001 Serial Models: TX-M002; TX-M003; TX-M004 Model Difference: Model differences in valve type FCC ID: ULZ-TXM001 FCC Rule Part: §15.231 (e) Date of Test: 2026/4/ 14 ~2026/5/ 20 Date of EUT Received: 2026/4/ 14 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards described above and performed by an independent electromagnetic compatibility consultant, International Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equipment tested as described in this report is in compliance with the limits of above standards. Prepared By: Gigi Yeh Test By: Approved By: Jason Chao Jerry Liu / Manager -3 of 60- FCC ID: ULZ-TXM001 International Standards Laboratory Corp. Report Number: ISL-26LR0069FCC Version Version No. Date Description 00 2026/05/20 Initial creation of document Uncertainty of Measurement Parameter Uncertainty (k=2) Conducted Emission (AC power line) ± 1.6 dB Spurious emissions, radiated ± 4.8 dB RF power, conducted ± 2.2 dB Power Density ± 2.3 dB RF Frequency ± 1.5 % DC Voltage ± 2.2 % -4 of 60- FCC ID: ULZ-TXM001 International Standards Laboratory Corp. Report Number: ISL-26LR0069FCC Table of Contents 1. GENERAL INFORMATION ............................................................................................ 6 1.1 PRODUCT DESCRIPTION ................................................................................................................... 6 1.2 RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................. 8 1.3 TEST METHODOLOGY ....................................................................................................................... 8 1.4 TEST FACILITY ................................................................................................................................. 8 1.5 SPECIAL ACCESSORIES ..................................................................................................................... 8 1.6 EQUIPMENT MODIFICATIONS ........................................................................................................... 8 2. SYSTEM TEST CONFIGURATION ............................................................................... 9 2.1 EUT CONFIGURATION ...................................................................................................................... 9 2.2 EUT EXERCISE ................................................................................................................................. 9 2.3 TEST PROCEDURE ............................................................................................................................. 9 2.4 LIMITATION .....................................................................................................................................10 2.5 CONFIGURATION OF TESTED SYSTEM .............................................................................................12 3. SUMMARY OF TEST RESULTS .................................................................................. 13 4. DESCRIPTION OF TEST MODES .............................................................................. 13 5. AC CONDUCTED EMISSIONS TEST ......................................................................... 14 5.1 MEASUREMENT PROCEDURE: .........................................................................................................14 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................14 5.3 MEASUREMENT RESULT: ................................................................................................................14 6. DUTY CYCLE (AVERAGE CORRECTION FACTOR) MEASUREMENT ............ 15 6.1 MEASUREMENT PROCEDURE...........................................................................................................15 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................15 6.3 MEASUREMENT EQUIPMENT USED: ................................................................................................15 6.4 MEASUREMENT RESULTS: ...............................................................................................................15 7. RADIATED EMISSION TEST ........................................................................…

Text truncated - open the document above for the full version.

-56 of 60- FCC ID: ULZ-TXM001 International Standards Laboratory Corp. Report Number: ISL-26LR0069FCC 10. Appendix 10.1 Appendix 1: Photographs of Setup Radiated Emission Setup Photos -57 of 60- FCC ID: ULZ-TXM001 International Standards Laboratory Corp. Report Number: ISL-26LR0069FCC Radiated Emission Setup Photos -58 of 60- FCC ID: ULZ-TXM001 International Standards Laboratory Corp. Report Number: ISL-26LR0069FCC Radiated Emission Setup Photos -59 of 60- FCC ID: ULZ-TXM001 International Standards Laboratory Corp. Report Number: ISL-26LR0069FCC Radiated Emission Setup Photos -60 of 60- FCC ID: ULZ-TXM001 International Standards Laboratory Corp. Report Number: ISL-26LR0069FCC 10.2 Appendix 2: Photographs of EUT Please refer to the File of ISL-26LR0069P --- END ---
