UMQID937HUS DECT PHONE-- HEADSET

ΣΕ430_ΙΦΥ_ΕΝ.βοοκ Παγε 3 Φριδαψ, ∆εχεμβερ 16, 2005 1:15 ΠΜ User manual EN Use only rechargeable batteries. Charge the handset(s) 24 hours before use. ΣΕ430_ΙΦΥ_ΕΝ.βοοκ Παγε 3 Φριδαψ, ∆εχεμβερ 16, 20 05 1:15 ΠΜ 3 EN Safety information Equipment Approval Information Your telephone equipment is approved for connection to the Public Switched Telephone Network and is in compliance with parts 15 and 68, FCC Rules and Regulations and the Technical Requirements for Telephone Terminal Equipment published by ACTA. 1.Notification to the Local Telephone Company On the bottom of this equipment is a label indicating, among other information, the US number and Ringer Equivalence Number (REN) for the equipment. You must, upon request, provide this information to your telephone company. The REN is useful in determining the number of devices you may connect to your telephone line and still have all of these devices ring when your telephone number is called. In most (but not all) areas, the sum of the RENs of all devices connected to one line should not exceed 5. To be certain of the number of devices you may connect to your line as determined by the REN, you should contact your local telephone company. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details. Notes ï This equipment may not be used on coin service provided by the telephone company. ï Party lines are subject to state tariffs, and therefore, you may not be able to use your own telephone equipment if you are on a party line. Check with your local telephone company. ï Notice must be given to the telephone company upon permanent disconnection of your telephone from your line. ï If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this product does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. US Number is located on the cabinet bottom. REN Number is located on the cabinet bottom. 2.Rights of the Telephone Company Should your equipment cause trouble on y our line which may harm the telephone network, the telephone company shall, where practicable, notify you that temporary discontinuance of service may be required. Where prior notice is not practicable and the circumstances warrant such action, the telephone company may temporarily discontinue service immediately. In case of such temporary discontinuance, the telephone company must: (1) promptly notify you of such temporary discontinuance; (2) afford you the opportunity to correct the situation; and (3) inform you of your right to bring a complaint to the Commission pursuant to procedures set forth in Subpart E of Part 68, FCC Rules and Regulations. The telephone company may make changes in its communications facilities, equipment, operations or procedures where such action is required in the operation of its business and not inconsistent with FCC Rules and Regulations. If these changes are expected to affect the use or performance of your telephone equipment, the telephone company must give you adequate notice, in writing, to allow you to maintain uninterrupted service. ID9370_IFU_EN_US.book Page 3 Tuesday, February 13, 2007 12:48 PM 4 EN Safety information Interference Information This equipment generates and uses radio frequency energy which may interfere with residential radio and television reception if not properly installed and used in accordance with instructions contained in this manual. Reasonable protection against such interference is ensured, although there is no guarantee this will not occur in a given installation. If interference is suspected and verified by switching this equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient the radio/television receiverís antenna, relocate the equipment with respect to the receiver, plug the equipment and receiver into separate circuit outlets. The user may also wish to consult a qualified radio/television technician for additional suggestions. This equipment has been fully tested and complies with all limits for Class B computing devices pursuant to part 15 FCC Rules and Regulations. This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Privacy of Communications may not be ensured when using this product. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ï Reorient or relocate t…

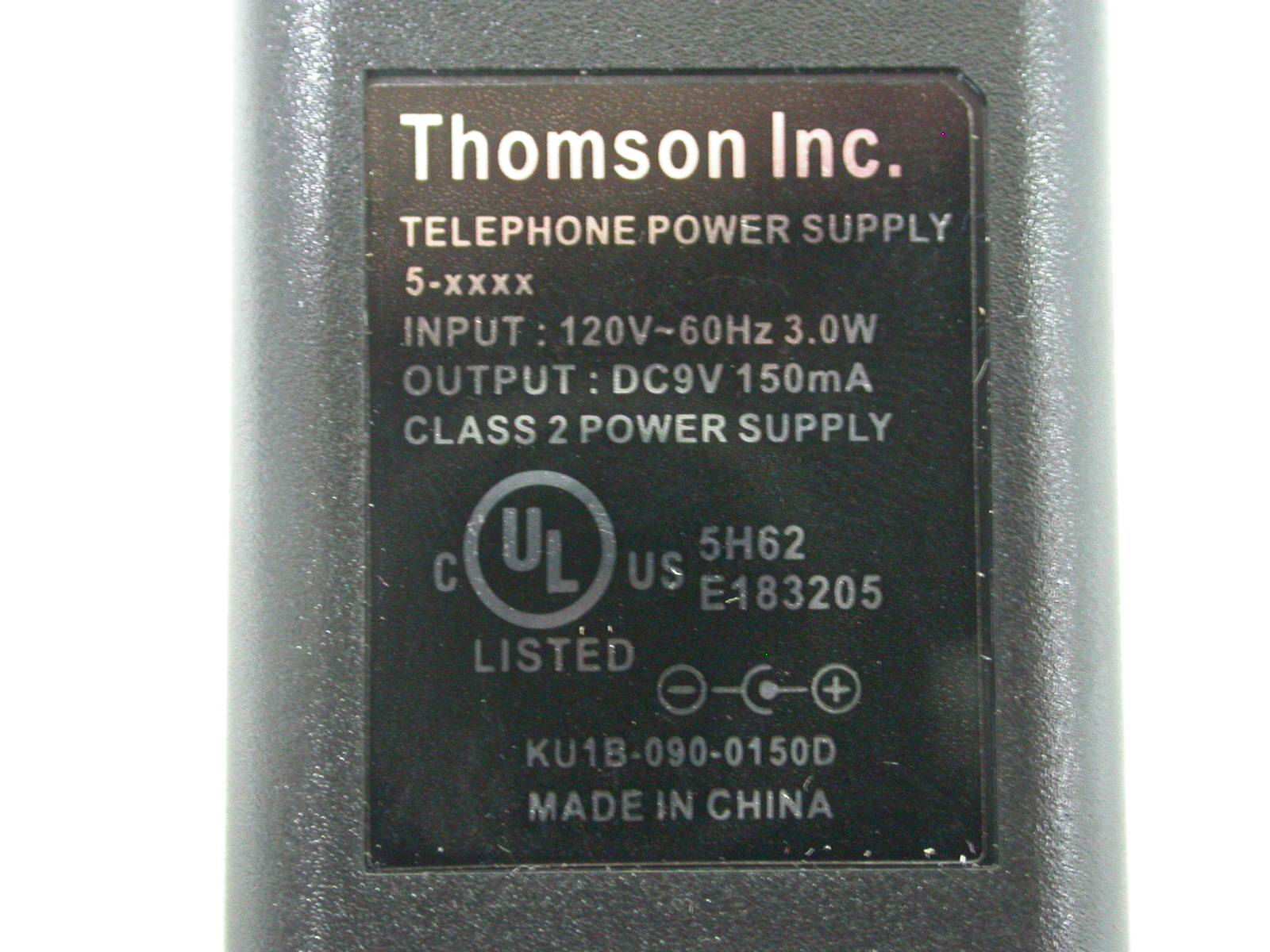

Text truncated - open the document above for the full version.

ID9370_IFU_EN_US.book Page 6 Tuesday, February 13, 2007 12:48 PM 7 EN 3Safety information 8Important Information 8For your safety 8Need Help? 9Configure your ID9370 9Install battery 10Language 10Registration 11Whatís in the box? 12Your ID9370 12Overview of the handset 14Install 15Call 17Personal Settings 22Advanced Settings 23Games 25Troubleshooting 27Information 29Index Contents ID9370_IFU_EN_US.book Page 7 Tuesday, February 13, 2007 12:48 PM 8 EN Important Information For your safety This equipment is not designed to make emergency calls in the event of a power failure. Alternative arrangements should be made for access to emergency calls. To avoid damage or malfunction: - Do not allow the product to come into contact with liquid. - Do not open it as you could be exposed to high voltages. - Never use any battery type other than the one supplied. - Do not hold the handset too close to your ear when the phone is ringing or when activating the loudspeaker as it may damage your hearing. - Do not expose the phone to excessive heat caused by heating equipment or direct sunlight. - Do not drop your phone or allow objects to fall on your phone. - Do not use any cleaning agents containing alcohol, ammonia, benzene, or abrasives as these may harm the set. - Active mobile phones in the vicinity may cause interference. About operating and storage temperatures: - Operate in a place where temperature is always between 0 and 35∫ C (32 to 95∫ F). - Store in a place where temperature is always between -20 and 45∫ C (-4 to 113∫ F). - Battery life may be shortened in low temperature conditions. Need Help? For more information on troubleshooting: Troubleshooting: page 25 Please refer to the following website for more information on Philips web support: Online Support www.philips.com/support ID9370_IFU_EN_US.book Page 8 Tuesday, February 13, 2007 12:48 PM 9 EN Configure your ID9370 Install battery Your ID9370 is supplied with 2 rechargeable batteries allowing approximately up to 12 hours of talk-time and up to 150 hours stand-by time. Before using the handset, the batteries have to be installed and fully charged. 1.Use the coin or screwdriver to unlock the battery cover. 2.Place the batteries as indicated and replace the cover. 3.Lock the battery cover. screw charger contact plate Bottom View Unlock anticlockwise charger contact plate screw Lock clockwise Bottom View Please use a coin or screwdriver that is the right shape and size for the screw that is used. Otherwise you may damage the screw when tightening it. ID9370_IFU_EN_US.book Page 9 Tuesday, February 13, 2007 12:48 PM 10 EN Configure your ID9370 Language Your ID9370 can support different display languages. To change the language 1.Press mMENU, scroll : to Personal Set and press mSELECT, scroll : to Lan- guage and press mSELECT. 2.Scroll : to your desired language and press mSELECT to confirm. A validation tone is emitted and the screen returns to previous menu. Registration The procedures described below are the procedures that you will find in your ID9370 handset. The procedures may vary according to the handset you want to register. In this case, please refer to the manufacturer of the additional handset. Additional handsets must be registered to the base unit before you can use them. Up to 6 handsets can be registered to one base station. Register your ID937 After charging it for a few minutes, the word WELCOME appears on a blue screen. Next, the idle screen appears. Follow these steps to register your handset: 1.In idle mode, the message ìPress Base page key for 3 secs. Press and hold mî will be prompted on the screen. Follow the screen instructions to start registration. 2.Enter PIN will be displayed on your screen. Enter the default Master PIN number - 0000. 3.Press mOK to confirm your registration. The Master PIN is required before you can register or unregister handsets. The default PIN is 0000. All the handset keys (except the m key) are deactivated until the above registration process is completed. ID9370_IFU_EN_US.book Page 10 Tuesday, February 13, 2007 12:48 PM 11 EN Whatís in the box? The following accessories are included: Power supply for base station User GuideWarranty card Handset2 AAA rechargeable NiMH batteries Splitter ID9370_IFU_EN_US.book Page 11 Tuesday, February 13, 2007 12:48 PM 12 EN Your ID9370 Overview of the handset LCD Screen Talk key Keypad lock key / Format key Up/Down Navigation keys Earpiece Right Soft key Hang-up key Alphanumeric keypad Case key / Pause key / Intercom key Loudspeaker key Event LED (top of the handset) Left Soft key Microphone ID9370_IFU_EN_US.book Page 12 Tuesday, February 13, 2007 12:48 PM 13 EN Your ID9370 Handset keys PressTo m Enter the main menu from stand-by mode. Select the function displayed on the handset screen directly above it. Activate mute function during a call. Switch on the backlight. > Go to redial list from stand-by mode. Select the function displayed on the handset screen directly above it. Initiate a second call, consult phonebook, call transfer or activate/deactivate HD Sound mode during a call. Switch on the backlight. r Answer an incoming external or internal call. Insert R for operator services when on the line. e Hang up a call. Return to stand-by mode. Long press in stand-by mode to switch off the handset, short press to switch on the handset again. u Access call log from stand-by mode. Scroll up a menu list or go to the previous phonebook or call log record. Increase earpiece volume during a call. Go to the previous character in editing mode. d Access phonebook from stand-by mode. Scroll down a menu list or go to the next phonebook or call log record. Decrease earpiece volume during a call. Go to the next character in editing mode. c Initiate an internal call in idle mode. Short press to initiate an internal call during a call or switch call between an internal and external call. Long press to initiate a conference call with an external call and another internal call. …

Text truncated - open the document above for the full version.

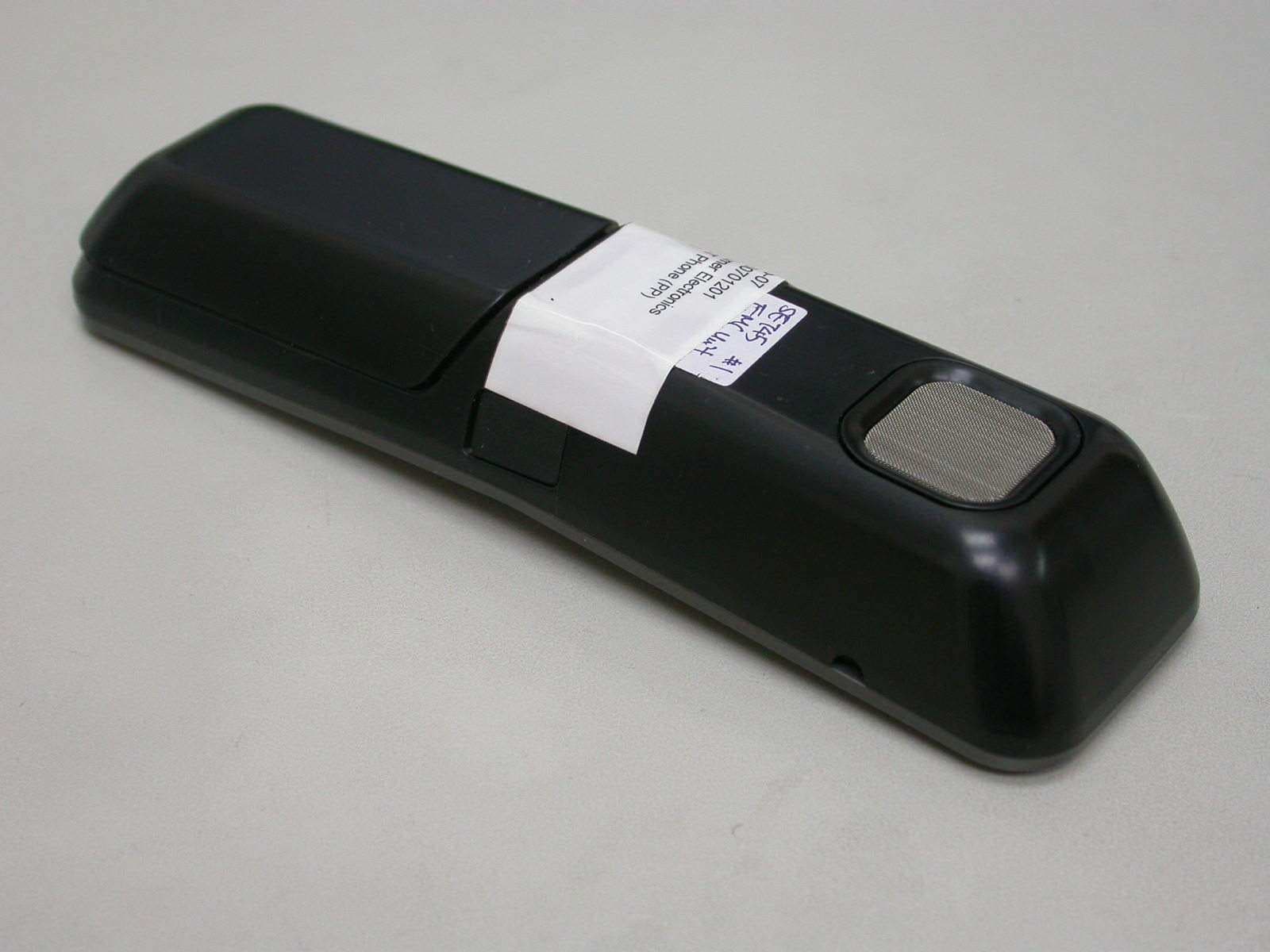

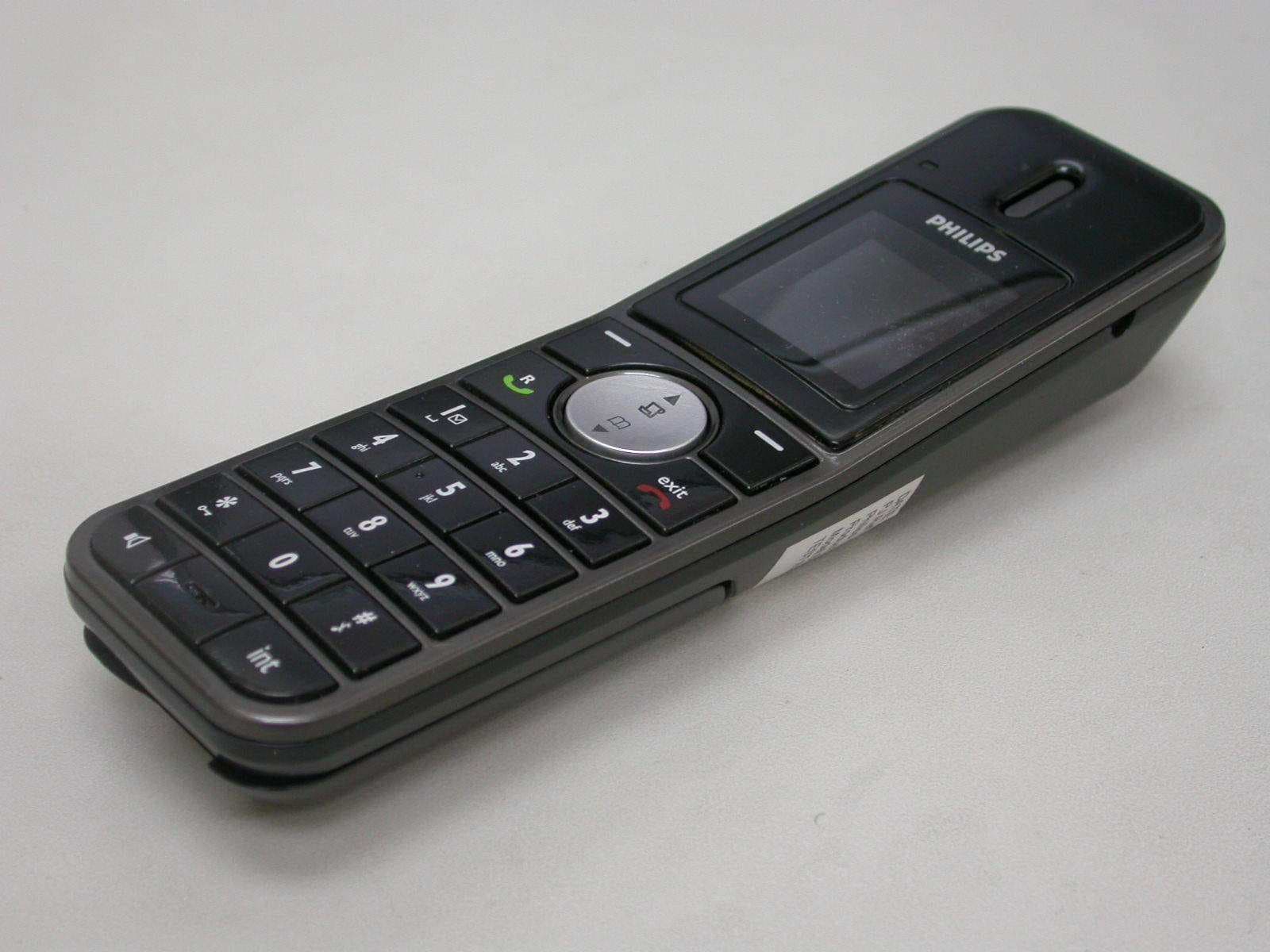

FCC ID: UMQID937H ETC Report No.: 07-01-MAS-138-01 IC ID: 1945A-ID937 Page A1 of A3 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT FCC ID: UMQID937H ETC Report No.: 07-01-MAS-138-01 IC ID: 1945A-ID937 Page A2 of A3 3. adaptor 4. adaptor FCC ID: UMQID937H ETC Report No.: 07-01-MAS-138-01 IC ID: 1945A-ID937 Page A3 of A3 5. adaptor

ID937 Handset ID Label_Location

FCC ID: UMQID937H ETC Report No.: 07-01-MAS-138-01 IC ID: 1945A-ID937 Page B1 of B6 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT FCC ID: UMQID937H ETC Report No.: 07-01-MAS-138-01 IC ID: 1945A-ID937 Page B2 of B6 3. Front view of PCB 4. Rear view of PCB FCC ID: UMQID937H ETC Report No.: 07-01-MAS-138-01 IC ID: 1945A-ID937 Page B3 of B6 5. Front view of PCB2 FCC ID: UMQID937H ETC Report No.: 07-01-MAS-138-01 IC ID: 1945A-ID937 Page B4 of B6 6. Outside view 1 of charger 7. Outside view 2 of charger FCC ID: UMQID937H ETC Report No.: 07-01-MAS-138-01 IC ID: 1945A-ID937 Page B5 of B6 8. Inside View of charger 9. Front view of PCB FCC ID: UMQID937H ETC Report No.: 07-01-MAS-138-01 IC ID: 1945A-ID937 Page B6 of B6 10. Rear view of PCB

Report No.: 07-01-MAS-138-03 Page 1 of 60 FCC ID: UMQID937H TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong FCC ID: UMQID937H Report No.: 07-01-MAS-138-03 Client: CCT Tech Advanced Products Limited Product: US DECT Handset Model: ID937 Manufacturer/supplier: Huiyang CCT Telecommunications Products Co. Ltd. Date test item received: 2007/01/17 Date test campaign completed: 2007/02/14 Date of issue: 2007/03/13 Test Result: ■ Compliance □ Not Compliance Statement of Compliance: The SAR values measured for the test sample are below the maximum recommended level of 1.6 mW/g averaged over any 1g tissue according to FCC OET Bulletin 65 Supplement C (Edition 01-01) and Industry Canada RSS-102 (Issue 2, 2005). The test result onl y corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 60 pages Test Engineer Eric Lin Checked by Joe Hsieh Approved by Winpo Tsai The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. SAR Evaluation Report for FCC OET Bulletin 65 Supplement C and Industry Standard RSS-102 Issue 2 Report No.: 07-01-MAS-138-03 Page 2 of 60 FCC ID: UMQID937H TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Applicant Information Client : CCT Tech Advanced Products Limited Address : 18/F, CCT Telecom Building, 11 Wo Shing Street, Fo Tan, Shatin, N.T., Hong Kong Contact : Ronilo Paredes Manufacturer : Huiyang CCT Telecommunications Products Co. Ltd. Address : CCT Technology Park, San He Economic Developmental Zone, Huiyang District, Huizhou City, Guangdong Province, PRC EUT : UPCS DECT Cordless Handset Trade Name : PHILIPS Model No. : ID937 Standard Applied : FCC OET 65 Supplement C (Edition 01-01, June 2001) Industry Standard RSS-102 Issue 2 (November 2005) IEEE Standard 1528-2003 Test Location : Electronics Testing Center, Taiwan (www.etc.org.tw) No.8, Lane 29, Wenming RD.,LeShan Tsuen, GuiShan Shiang,Taoyuan County 33383, Taiwan, R.O.C. The US DECT handset of ID937 is in compliance with the FCC Report and Order 93-326 and Health Canada Safety Code 6, and the tests were performed according to the FCC OET65c and RSS-102 Issue 2 for uncontrolled exposure. Report No.: 07-01-MAS-138-03 Page 3 of 60 FCC ID: UMQID937H TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Table of Contents EXECUTIVE SUMMARY........................................................................................................................ 5 1 GENERAL INFORMATION............................................................................................................. 6 1.1 Description of Equipment Under Test ..................................................................................... 6 1.2 Photograph of EUT .................................................................................................................. 6 1.3 Environment Conditions .......................................................................................................... 7 1.4 FCC Requirements for SAR Compliance Testing ................................................................... 7 1.4.1 RF Exposure Limits ..........................................................................................................................7 1.5 The SAR Measurement Procudure for Mobile ........................................................................ 8 1.5.1 General Requirements.......................................................................................................................8 1.5.2 Phantom Requirements .....................................................................................................................8 1.5.3 Test Positions ....................................................................................................................................8 1.5.4 Test Procedures ...............................................................................................................................10 2 D ESCRIPTION OF THE TEST EQUIPMENT.................................................................................. 11 2.1 Test Equipment List ............................................................................................................... 11 2.2 DASY4 Measurement System Diagram: ............................................................................... 12 2.3 DASY4 Measurement Server................................................................................................. 13 2.4 DAE (Data Acquisition Electronics)...................................................................................... 14 2.5 Phantom.................................................................................................................................. 15 2.6 Device Holder ........................................................................................................................ 15 2.7 Specifications of Probes ......................................................................................................... 16 2.8 SAR Measurement Procedures in DASY4 ............................................................................ 16 2.9 Simulating Liquids ................................................................................................................. 17 2.10 System Performance Check ................................................................................................... 17 2.10.1 Purpose .......................................................................................................................................17 2.10.2 System Performance Check Procedure…

Text truncated - open the document above for the full version.

FCC ID: UMQID937H Sheet 1 of 85 Sheets IC ID:1945A-ID937 ETC Report No.: 07-01-MAS-138-01 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong CONFORMANCE TEST REPORT FOR FCC Part 15, subpart D Industry Canada RSS-213, Issue 2 Report No.: 07-01-MAS-138-01 Client: (1) Philips Consumer Electronics (USA) (2) CCT Tech Advanced Products Limited (Canada) Product: US DECT PHONE - Handset (PP) Model: ID937 FCC ID: UMQID937H IC ID: 1945A-ID937 Manufacturer/supplier: Huiyang CCT Telecommunications Products Co. Ltd. Date test item received: 2007/01/19 Date test campaign completed: 2007/03/13 Date of issue: 2007/03/14 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 85 pages Total number of pages of photos: External photos 3 pages Internal photos 6 pages Setup photos 6 pages Test Engineer Checked By Approved By James Cheng Joe Hsieh Jeff Pong FCC ID: UMQID937H Sheet 2 of 85 Sheets IC ID:1945A-ID937 ETC Report No.: 07-01-MAS-138-01 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Table of Contents Page 1 GENARAL INFORMATION .........................................................................................................4 1.1 Testing Laboratory..................................................................................................................... 4 1.2 Client Information....................................................................................................................... 4 1.3 Manufacturer............................................................................................................................... 4 2 TEST INFORMATION ..................................................................................................................5 2.1 Description of Tested Device(s).............................................................................................. 5 2.2 Test Environment....................................................................................................................... 6 3 TEST REPORT SUMMARY ........................................................................................................7 3.1 Test Summary............................................................................................................................ 7 3.2 Other Comments........................................................................................................................ 8 4 TEST SETUP .................................................................................................................................9 4.1 Frequency and Timing Measurements................................................................................... 9 4.2 Conducted Emission Tests......................................................................................................9 4.3 Radiated Emission Tests........................................................................................................ 10 4.4 Power line Conducted Tests.................................................................................................. 10 4.5 Monitoring Tests....................................................................................................................... 11 5 TEST EQUIPMENT LIST ...........................................................................................................12 6 TEST RESULT ............................................................................................................................13 6.1 Coordination with fixed microwave........................................................................................ 13 6.2 Cross Reference...................................................................................................................... 14 6.3 Labeling Requirements........................................................................................................... 16 6.4 Power line Conducted Emissions.......................................................................................... 17 6.5 Antenna Requirement............................................................................................................. 20 6.6 Digital Modulation Techniques............................................................................................... 20 6.7 Peak Transmit Power.............................................................................................................. 21 6.8 Power Spectral Density........................................................................................................... 25 6.9 Antenna Gain............................................................................................................................ 29 6.10 Automatic discontinuation of transmission........................................................................ 29 6.11 Safety exposure levels.......................................................................................................... 30 6.12 Emission Bandwidth B.......................................................................................................... 31 6.13 Monitoring time....................................................................................................................... 35 6.14 Monitoring threshold.............................................................................................................. 36 6.15 Maximum transmit period..................................................................................................... 37 6.16 System Acknowledgement................................................................................................... 39 FCC ID: UMQID937H Sheet 3 of 85 Sheets IC ID:1945A-ID937 ETC Report No.: 07-01-MAS-138-01 TÜV Hong Kong Limited Room 601, InnoCentre, 72 Tat …

Text truncated - open the document above for the full version.

TUV Hong Kong Ltd. Room 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Kowloon, Hong Kong Tel. : +852 2776 1323 Fax : +852 2776 1372 Revised: January 27, 2006 FCC Part 15D - APPLICATION FORM & SELF-DECLARATION Applicant Name Philips Consumer Electronics Address 9, rue Maurice Trintignant - 72000 Le Mans - France Contact person Pascal Lobgeois Telephone No. 33 (0)2 44 02 78 21 Fax No.33 (0)6 13 49 42 07 Manufacturer Name Huiyang CCT Telecommunications Products Co. Ltd. Address CCT Technology Park, San He Economic Developmental Zone, Huiyang District, Huizhou City, Guangdong Province, PRC PP FP FCC ID UMQID937H UMQID937 Model Number ID937 ID937 HW version 4347141A 4347012A SW version V946 V946 Antenna Type Monopole Monopole Max. Antenna Gain (dBi) 1 1 Adapter Input AC 115 V Adapter Output DC 7.5 V Mains Power Voltage FP Input DC 7.5 V Battery Voltage DC 1.2 V Number of channels 5 Carriers frequency(MHz) 1921.536 1923.264 1924.992 1926.720 1928.448 Nominal Receive Bandwidth +/- 500 kHz Frame period (ms) 10 Timeslot Plan 24 timeslots per frame. First 12 timeslots used for PP transmissions and other 12 timeslots used for FP transmissions. Burst Length Range(us) Min 90 Max416 Operating Temperature Range (°C) Min 0 Max45 Does a system built with the EUT that implement the provisions of 47CFR 15.323(c)(5) enabling the use of the upper threshold for deferral? Ye s No According to 47CFR15.323(c)(5).4,does your model not use bandwidth in further cooperation with other devices at any range? Ye s No Does a system built using the EUT that operate under the provisions of 47CFR 15.323(c)(6) incorporating provisions for waiting for a channel to go clear? Ye s No According to 47CFR15.323(c)(8),does EUT use the same antennas for transmission and reception as for monitoring? Ye s No Does a system built with the EUT that operate under the provisions of 47CFR 15.323(c)(10) to test for deferral only in conjunction with a companion device? Ye s No Does a system built using the EUT that operate under the provisions of 47CFR 15.323(c)(11) enabling the access criteria check on the receive channel while in the presence of collocated interferers? Ye s No According to 47CFR15.323(c)(12),does EUT not work in a mode with denies fair access to spectrum for other devices. Ye s No Does your model have the monitoring made through the radio receiver used for communication? Ye s No Does your model transmit control and signaling channels? Ye s No According to 47CFR15.307(b), does the applicant have the affidavit from UTAM Inc.? Ye s No According to 47CFR15.319(b), do all transmissions use only digital modulation techniques? Ye s No Reaction of EUT Situation FP PP Switch-off compare device B A Hook-on by compare device B N Switch-off by EUT N C Hook-on at EUT side N C Remove Power from EUT A C The provisions within the EUT for self-check, by which compliance with 47CFR15.319(f) is obtained: A – Connection break down, cease of transmit B – Connection break down, EUT transmits signaling information C – Connection break down, compare device transmits signaling information N – Not possible Remove Powre from compare device B A DECLARED BY: 2007-3-1 Pascal Lobgeois Date Name (print)

FCC ID: UMQID937H ETC Report No.: 07-01-MAS-138-01 IC ID: 1945A-ID937 Page 1 of 6 Photos of Radiation Measuring Setup X-Axis FCC ID: UMQID937H ETC Report No.: 07-01-MAS-138-01 IC ID: 1945A-ID937 Page 2 of 6 Y-Axis Z-Axis FCC ID: UMQID937H ETC Report No.: 07-01-MAS-138-01 IC ID: 1945A-ID937 Page 3 of 6 Charging Mode FCC ID: UMQID937H ETC Report No.: 07-01-MAS-138-01 IC ID: 1945A-ID937 Page 4 of 6 Standby Mode FCC ID: UMQID937H ETC Report No.: 07-01-MAS-138-01 IC ID: 1945A-ID937 Page 5 of 6 Photos of Conduction Measuring Setup Charging Mode FCC ID: UMQID937H ETC Report No.: 07-01-MAS-138-01 IC ID: 1945A-ID937 Page 6 of 6 Standby Mode
