UP3PC50PC50 TIME & ATTENDANCE DATA TERMINAL

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Transmitter Certification Test Report FCC ID: UP3PC50 FCC Rule Part: CFR 47 Part 15.209 ACS Report Number: 06-0407-15C Applicant: LATHEM TIME CORP. Equipment Type: Time & Attendance Terminal Model(s): PC50 Users Manual *** PRELIMINARY *** P P C C 5 5 0 0 T T I I M M E E A A N N D D A A T T T T E E N N D D A A N N C C E E S S Y Y S S T T E E M M U U S S E E R R G G U U I I D D E E QUICK START • SOFTWARE INSTALLATION • HARDWARE INSTALLATION • PAYROLL MANAGEMENT Insert image of PC50 PC50 User Guide- 2 THIS EQUIPMENT COMPLIES WITH FCC CLASS-B REQUIREMENTS PURSUANT SUBPART J OF PART-15 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. NOTE:: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio TV technician for help. This Class B digital apparatus complies with Canadian ICES-003. Cet appariel numerique de la classe B est conforme a la norme NMB-003 du Canada. PC50 User Guide- 3 C C o o n n t t e e n n t t s s QUICK START GUIDE X-S TEP STARTUP W ELCOME PRODUCT OVERVIEW S YSTEM FEATURES PAYCLOCK EXPRESS PC50 TERMINAL P ACKAGE CONTENTS SYSTEM REQUIREMENTS FOR PAYCLOCK EXPRESS M INIMUM SYSTEM REQUIREMENTS RECOMMENDED SYSTEM REQUIREMENTS U PGRADES A CCESSORIES GETTING HELP P AYCLOCK INTERACTIVE HELP SYSTEM VIEWER TROUBLESHOOTING ONLINE AND EMAIL SUPPORT TELEPHONE SUPPORT ANNUAL SUPPORT AGREEMENTS G ENERAL MAINTENANCE SOFTWARE INSTALLATION INSTALLING THE PAYCLOCK EXPRESS SOFTWARE CD LOGGING IN CREATING AND CHANGING YOUR PASSWORD R EGISTERING YOUR PC50 LOGGING OUT HARDWARE SETUP C ONNECTING THE PC50 TO YOUR COMPUTER MOUNTING THE TERMINAL-MENTION EXTENSIONS FOR PURCHASE INSTALLING THE BIOMETRIC FINGERPRINT READER ATTACHMENT USING THE CLOCK AND BADGES P AYROLL MANAGEMENT NAVIGATE PAYCLOCK EXPRESS T HE HOME SCREEN C HANGING THE DISPLAY THE RIBBON BAR T HE EXPRESS TIMECARD THE INFORMATION AREA T HE PAYCLOCK SYSTEM BUTTON CREATE COMPANY PROFILE AND SETUP PAY PERIOD C REATE OVERTIME RULES C REATE ROUNDING RULES F ORMAT TIME AND DATE A DD, EDIT, AND MAINTAIN EMPLOYEES PC50 User Guide- 4 ADD EMPLOYEES V IEW AND EDIT EMPLOYEE INFORMATION FILTER EMPLOYEES E MPLOYEE LIST POP-UP MENU E DIT TIMECARDS ADD TIME OFF D ELETE PUNCHES REFRESH DATA FIND MISSING PUNCHES R UN REPORTS EMPLOYEE TIMECARD REPORT P ERIOD TOTALS REPORT A LL TIMECARDS REPORT EXPORT PAYROLL REPORTS P AYROLL EXPORT WIZARD CREATE A PAYROLL EXPORT FILE C LOSE A PAY PERIOD R EOPEN A PAY PERIOD R ECALCULATE DATA REFRESH DATA BACKUP DATA A RCHIVE DATA ADJUST AUDIO SETTINGS ENROLL FINGERPRINTS USE FEATURE WIZARD EXIT PAYCLOCK EXPRESS G LOSSARY INDEX Copyright © 2006 Lathem Time Corporation. All rights reserved. Reproduction of this document in whole or in part is strictly prohibited. This document may contain typographical or copy errors. PayClock, Lathem, the Lathem logo, and all other Lathem product names mentioned in this document are registered trademarks of Lathem Time Corporation. All other products, brand names, or company names mentioned in this document are properties and trademarks or registered trademarks of their respective companies. PC50 User Guide- 5 Q Q u u i i c c k k S S t t a a r r t t G G u u i i d d e e 1 1 Install PayClock Express -Verify Minimum System Requirements -Insert CD -Use Setup Tab to configure preferences 2 2 Setup your PC50 -Attach PC50 terminal to your computer -Mount your PC50 to the wall 3 3 Launch PayClock Express -Click on the PayClock Icon that now appears on your desktop -Use the Ribbon Bar to navigate software and add employees Payclock.lnk System Requirements PC50 User Guide- 6 W W e e l l c c o o m m e e PRODUCT OVERVIEW Congratulations on the purchase of your new Lathem PC50 Time and Attendance System. This system will allow you to record and manage employee attendance records with ease and simplicity. Included in packaging is the PayClock Express software, which you will use to manage data. This software will allow you to view, edit, sort, and print attendance records within one window. Should you desire software upgrades or system accessories in the future, information is available at www.Lathem.com. The PC50 utilizes a proximity badge system, meaning that employees will punch in and out by waving a badge in front of the clock’s sensor. The PC50 is “real-time”, so there is no polling this device. When an employee punches In or Out, the punch is immediately added to the database. The PC50 also offers a backlit LCD screen to display important attendance information. Upon receiving a punch, the screen will display the employee’s name, In/Out status, and total ho…

Text truncated - open the document above for the full version.

200 Selig Drive S.W. LATHEM TIME CORPORATION Atlanta, Georgia USA 30336-2033 Tel: 404.691.0400 FAX: 404.696.6048 www.Lathem.com TIME CLOCKS * TIME STAMPS * AUTOMATED TIME SYSTEMS * MASTER CONTROL SYSTEMS * WALL CLOCKS CONFIDENTIALITY REQUEST Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 October 24, 2006 Gentlemen: Lathem Time Corp. respectfully requests confidentiality of certain materials provided with the submission of the PC50 Time & Attendance Data Terminal under FCC ID: UP3PC50 in accordance with FCC Regulations 0.459. The confidentiality request applies to the Schematic, Block Diagram, Operational Description and Bill of Materials (Parts List) contained in this filing as submitted in exhibits 06-0407 – Schematics.pdf, 06-0407 – System Block Diagram.pdf, 06-0407 – Theory of Operation.pdf, and 06-0407 – Parts List.pdf. The PC50 Time & Attendance Data Terminal has been developed at considerable effort and expense by Lathem Time Corp.. These items are considered as Trade Secrets and therefore public access to the proprietary material could possibly result in duplication of equipment that could severely damage the company’s business advantage. I appreciate your assistance in this matter. Sincerely, Name: Ellery W. Potash Signature:________________________________________ Title: Senior Engineer Date: October 24, 2006

200 Selig Drive S.W.
  Atlanta, Georgia USA 30336-2033 Tel: 404.691.0400 FAX: 404.696.6048 www.Lathem.com TIME CLOCKS * TIME STAMPS * AUTOMATED TIME SYSTEMS * MASTER CONTROL SYSTEMS * WALL CLOCKS To whom it may concern Re: FCC filing of Part-15 Report for Model PC50 with Ferrite, per TCB Date: November 6, 2006 In accordance with the product modifications made with respect to successfully completing FCC Part-15 Testing of Lathem’s new PC50 Time & Attendance Terminal at the facilities of Advance Compliance Solutions, Inc., the following statement of intent is provided. All modifications made to the PC50 product that were “in place” during the successful testing procedure will be included in the final production assemblies of this new product. Specifically, this includes the addition of a Ferrite Torroid (
   clamped around the product’s USB Cable, near the Terminal end. [The test was performed with
     !"#   $%%& '() !"
&&                  *&+",
"*       - $.*)$/)*0(1,"

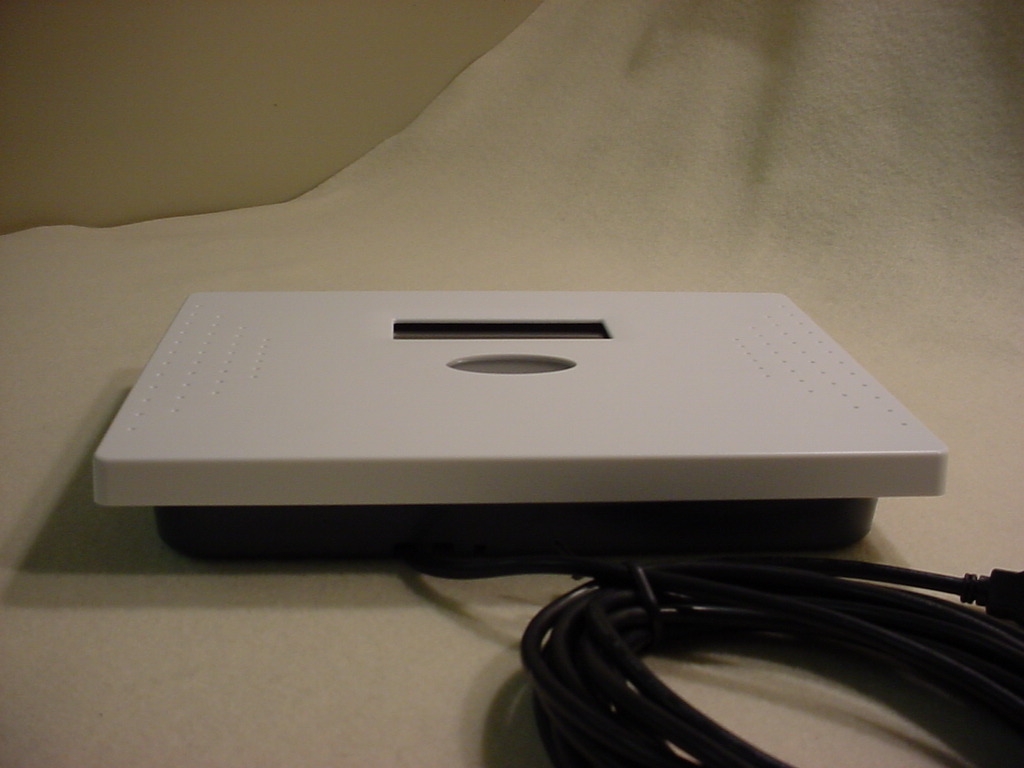

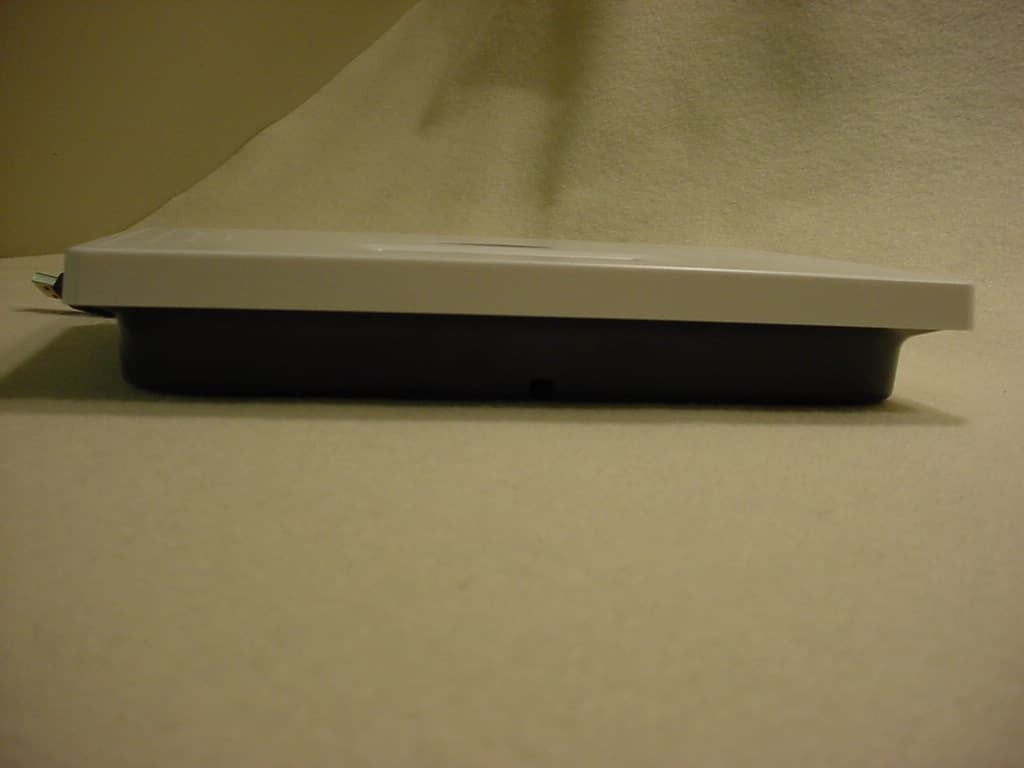

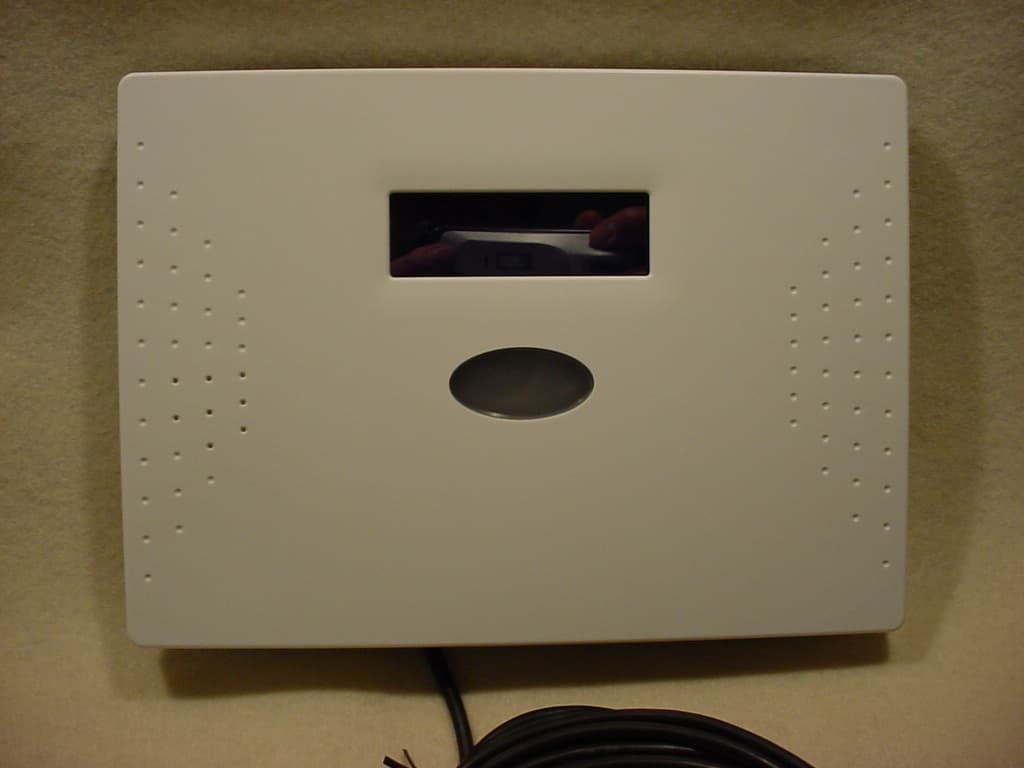

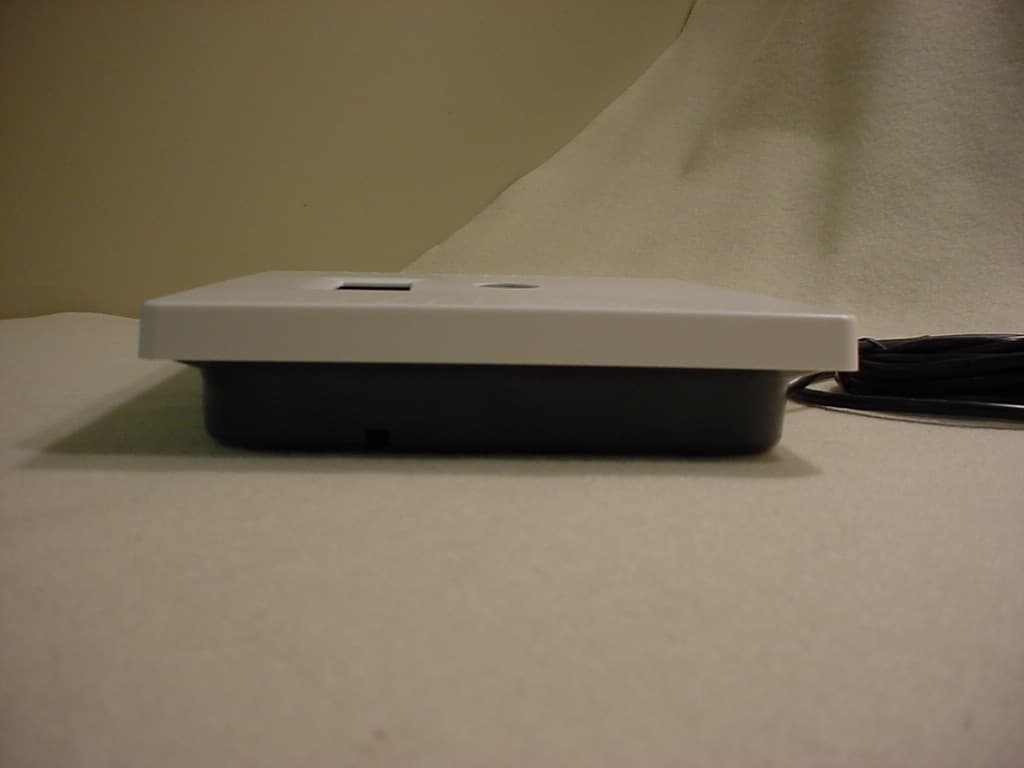

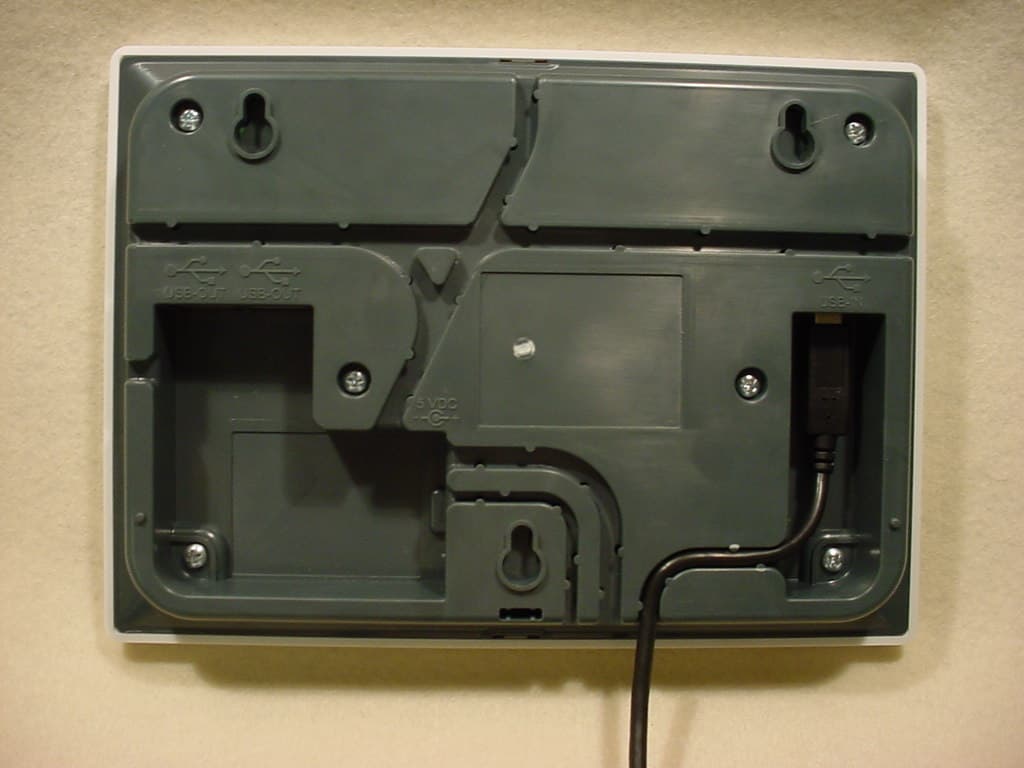

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Transmitter Certification Test Report FCC ID: UP3PC50 FCC Rule Part: CFR 47 Part 15.209 ACS Report Number: 06-0407-15C Applicant: LATHEM TIME CORP. Equipment Type: Time & Attendance Terminal Model(s): PC50 External Photographs Model: PC50 FCC ID: UP3PC50 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: External Photographs - Front Model: PC50 FCC ID: UP3PC50 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: External Photographs – Back Model: PC50 FCC ID: UP3PC50 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: External Photographs – Top Model: PC50 FCC ID: UP3PC50 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 4: External Photographs – Bottom Model: PC50 FCC ID: UP3PC50 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 5: External Photographs – Side

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Transmitter Certification Test Report FCC ID: UP3PC50 FCC Rule Part: CFR 47 Part 15.209 ACS Report Number: 06-0407-15C Applicant: LATHEM TIME CORP. Equipment Type: Time & Attendance Terminal Model(s): PC50 Label Information

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Transmitter Certification Test Report FCC ID: UP3PC50 FCC Rule Part: CFR 47 Part 15.209 ACS Report Number: 06-0407-15C Applicant: LATHEM TIME CORP. Equipment Type: Time & Attendance Terminal Model(s): PC50 Internal Photographs Model: PC50 FCC ID: UP3PC50 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: Internal Photographs – Assembled View Model: PC50 FCC ID: UP3PC50 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: Internal Photographs – Proximity Reader Module Front Model: PC50 FCC ID: UP3PC50 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: Internal Photographs – Proximity Reader Module Back Model: PC50 FCC ID: UP3PC50 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 4: Internal Photographs – Digital Front Model: PC50 FCC ID: UP3PC50 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 5: Internal Photographs – Digital Back Model: PC50 FCC ID: UP3PC50 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 6: Internal Photographs – LCD Front Model: PC50 FCC ID: UP3PC50 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 7: Internal Photographs – LCD Back

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Transmitter Certification Test Report FCC ID: UP3PC50 FCC Rule Part: CFR 47 Part 15.209 ACS Report Number: 06-0407-15C Applicant: LATHEM TIME CORP. Equipment Type: Time & Attendance Terminal Model(s): PC50 Test Begin Date: October 18, 2006 Test End Date: October 20, 2006 Report Issue Date: October 31, 2006 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 200612 Prepared by: Reviewed by: J. Kirby Munroe Manager Wireless Certifications ACS, Inc. R. Sam Wismer Engineering Manager ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 13 pages 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Table of Contents 1.0 General 3 1.1 Purpose 3 1.2 Product Description 3 1.2.1 General 3 1.2.2 Technical Specifications 3 1.3 Test Methodology and Considerations 3 1.4 EUT Modifications 4 2.0 Test Facilities 5 2.1 Location 5 2.2 Laboratory Accreditations/Recognitions/Certifications 5 2.3 Radiated Emissions Test Site Description 6 2.3.1 Semi-Anechoic Chamber Test Site 6 2.3.2 Open Area Tests Site (OATS) 7 2.4 Conducted Emissions Test Site Description 8 3.0 Applicable Standards and References 8 4.0 List of Test Equipment 9 5.0 Support Equipment 10 6.0 EUT Setup Block Diagram 10 7.0 Summary of Tests 11 7.1 Section 15.207 - Power Line Conducted Emissions 11 7.1.1 Test Methodology 11 7.1.2 Test Results 11 7.2 Section 15.209 – Radiated Spurious Emissions (Intentional Radiators) 11 7.2.1 Test Methodology 11 7.2.2 Distance Correction 12 7.2.3 Test Results 12 7.2.4 Sample Calculation 13 7.3 Section 15.109 – Radiated emissions (Unintentional Radiators) 13 7.3.1 Test Methodology 13 8.0 Conclusion 13 Model: PC50 FCC ID: UP3PC50 ACS Report: 06-0407-15C Advanced Compliance Solutions Page 3 1.0 GENERAL 1.1 Purpose The purpose of this report is to demonstrate compliance with Part 15, Subpart C of the FCC’s Code of Federal Regulations. 1.2 Product Description 1.2.1 General Lathem's PC50 Time & Attendance Terminal is connected to the customer's Host Computer via a USB Interface, from which it normally derives its power. The PC50 includes a LCD Character Display, LED Indicators, 125kHz Proximity Badge Reader, an Audio Speaker and a 2-Port USB down-stream Hub as main components. When connected to the Host, Firmware is down-loaded into the Terminal. The PC50 Terminal is intended for installation into business (office, industrial) environments. Users will present their Prox Badge within range of the internal Reader. The Badge Number will be read, and transmitted to the Host (running Lathem's PayClock Software) via the USB Interface. The Host will send to the Terminal Text, Audio and Indicator messages to provide transaction acknowledgement to the User. Manufacturer Information: LATHEM TIME CORP. 200 SELIG DRIVE SW ATLANTA, GA 30336 1.2.2 Technical Specifications Power: Input Power: 5.0vDC @ 500mA(max) through USB Interface Alt. Power: 5.0vDC @ 2.0Amps (from optional external Power Adapter) Radio Emissions: Unintentional: 12.0MHz, 11.0592Mhz, 4.0Mhz (fundamental), Intentional: 125kHz Continuous (Prox Reader) Antenna: Internal, Loop Coil type; Features: 4x20 LCD Character Display Audio Output for playing recorded speech, tones Proximity Badge Reader 2-Port USB Hub Tri-Color LED Indicators ABS Plastic Enclosure, meeting UL 94V2 flammability requirements USB Cable, 5m (15ft), Shielded 1.3 Test Methodology and Considerations The EUT contains a 125kHz proximity badge reader and is therefore subject to the emission requirements of CFR 47 Part 15.209. According to Part 15.33(a)(4) the frequency range investigated for this device shall be 125kHz-1000MHz. This frequency range meets both the intentional and unintentional radiator frequency range requirements. Considering the emission limits of Part 15.209 and Part 15.109(a) are equivalent and the radiated emissions were measured with both the 125kHz proximity reader and digital device operating simultaneously all emissions from both the unintentional and intentional radiators are reported in Section 7.3. Model: PC50 FCC ID: UP3PC50 ACS Report: 06-0407-15C Advanced Compliance Solutions Page 4 1.4 EUT Modifications For compliance a Steward 28A2736-0A2 snap on ferrite was added to the USB cable where the USB cable connects to the EUT. Detailed photographs are included below. Figure 1.4.1 – EUT Modifications Model: PC50 FCC ID: UP3PC50 ACS Report: 06-0407-15C Advanced Compliance Solutions Page 5 2.0 TEST FACILITIES 2.1 Location The radiated and conducted emissions test sites are located at the following address: Advanced Compliance Solutions 5015 B.U. Bowman Drive Buford, GA 30518 Phone: (770) 831-8048 Fax: (770) 831-8598 2.2 Laboratory Accreditations/Recognitions/Certifications The Semi-Anechoic Chamber Test Site, Open Area Test Site (OATS) and Conducted Emissions Site have been fully described, submitted to, and accepted by the FCC, Industry Canada and the Japanese Voluntary Control Council for Interference by information technology equipment. In addition, ACS is compliant to ISO 17025 as certified by the National Institute of Standards and Technology under their National Voluntary Laboratory Accreditation Program. The following certification numbers have been issued in recognition of these accreditations and certifications: FCC Registration Number: 89450 Industry Canada Lab Code: IC 4175 VCCI Member Number: 1831 ƒ VCCI OATS Registration Number R-1526 ƒ VCCI Conducted Emissions Site Registration Number: C-1608 NVLAP Lab Code: 200612-0 Model: PC50 FCC ID: UP3PC50 ACS Report: 06-0407-15C Advanced Compliance Solutions Page 6 2.3 Radiated Emissions Test Site Description 2.3.1 Semi-Anechoic Chamber Test Site The Semi-Anechoic Chamber Test Site consists of a 20’ x 30’ x 18’ shiel…
