UP4GWT-102FM Transmitter

Sound-On is a product that threads sound sources such as MP3P, CDP, MDP, PMP, and PDA into radio frequency, allowing the enjoyment of portable audio device music via car audio system or home audio equipment without the need for earphones or headsets. ○ Compact Design · The large LCD whose size is 1.5times that of existing products (33x14mm). · It received high approval ratings and provides a sense of openness and freshness to its users. In additions, it showcases its compact crafts form design. · By steering away from the color silver or black that has become standard for similar products, the pearl white color of Sound-On appeals as unique and smart. · The blue back light enhances the appearance of Sound-On with a feel of refinement. ○ Functions 1. Automatic Shut off : At 0 . 2 M Hz increments , supports up to 183 channels , can store up to 6 channels 3. Fast and accurate frequency tuning with its high-speed frequency search function : Its high-speed frequency search allows quick and easy change to desired frequency 4. 3-step battery level indicator : Prevents inconvenience of sudden power loss by indicating the leve l of residual battery life in 3 steps when using AAA batteries. 5. 3 level volume indicator of portable audio unit : Input volume from portable audio player is sensed and indicated in three steps of H (High), M (Medium), and L (Low), and plays at the most optimum range of M (Medium) with the most desirable quality of sound. 6. High approval rating with its large LCD (33x14mm) : Sound-On provides the largest LCD in its class of similar products, presenting a feel of openness 7. Refined and handsome design and blue back light : The smart design and the blue back light make Sound-On a perfect personal accessory. ○ Instructions 1. Connect Sound-On to portable audio pl ayer (MP3P, CDP, PMP, PDA, etc.) 2. Power on the radio and find and select a frequency that is not being used for broadcasting purposes. Then power on Sound-On and find the same frequency selected. 3. Power on the portable audio player after pr operly connecting Sound-On to the player unit. 4. Set the volume level of the portable audio unit to a reasonable level. The most optimum quality of sound can be enjoyed at level “M” among the th ree levels of H(High) M(Medium), and L(Low). Volume can then be controlled with volume control of the FM radio. ○ Instructions for storing frequencies 1. Select desired frequency using “up” “down” buttons. 2. Touch the power button once (Press ing the button powers off the unit) 3. Use the “up” “down” buttons to select desired memory address 4. Touching the power button onc e stores the selected frequency at the selected memory address and takes the user back to the main screen. ○ Instructions for retrie val of stored frequency 1. Touch the power button once. 2. Each following touch of the power button chang es the memory address and recalls the stored frequency for selection. 3. If the power button is not touched for more t han 2 seconds, the last recalled frequency is selected and takes the user back to the main screen. ○ SPECIFICATION INDEX SPECIFICATION DC5V ~ 12V POWER SUPPLY DC 1.5V (AAA) ALKALINE 1EA A UDIO INPUT RANGE 20Hz ~ 15KHz STEREO SEPARATION 40dB POWER CONSUMPTION 40mA TRANSFER MODE FM (F3E) OUTPUT POWER 500μV/m OUTPUT RANGE 10m OPERATING TEMP -10 ~+50 LIFE TINE 25hr SIZE 70mm×22mm×23mm WEIGHT 25g FCC Information This device complies with Part 15 of FCC Results. Operation is subject to the following two conditions: (1) This Device may not cause harmful, and (2) This device must accept any interference received, including interference that may undesired operation. WARNING Changes or modifications not expressly approv ed by the manufacturer could void the user ’ s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for CLASS B digital device, pursuant to Part 15 FCC Rules. Thes e limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and ca n radiate radio frequency energy and, if not installed and used in accordance with the instru ctions, may cause harmful interference to radio communications. However, there is no guarantee t hat interference will not occur in a particular installation. If this equipment does cause harmful in terference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measure: 1.1. Reorient or relocate the receiving antenna. 1.2. Increase the separation between the equipment and receiver. 1.3. Connect the equipment into an outlet on a circuit different from that to which receiver is connected. 1.4. Consult the dealer or experienced/TV technician for help.

Gaon Int Co., Ltd. Daelim Bldg., Suite 1406, 592-5, Dohwa1-dong, Nam-gu, Incheon, Korea Tel: +82-32-246-1800, Fax: +82-32-246-1805 Power of Attorney Date: October 23, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize ONETECH Corp., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ONETECH Corp on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ONETECH Corp., as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, _________________________ Mr. K. S. Im / General Manager Gaon Int Co., Ltd. Tel: +82-32-246-1800 Fax: +82-32-246-1805 E-Mail: [email protected]

#505 SK Apt. Factory, 223-28 Sangdaewon1-Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do 462-705 Korea [TEL]031-746-8500 [FAX]031-746-8700 CBTL -002 (Rev. 2) KOLAS www.onetech.co.k r Date : 2006. 10. 26 Ref. No : To : Application Examiner / Reviewing Engineer FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 CC : Subject : Request for confidentiality per Section 0.459 of FCC Rules Applicant: Gaon Int Co., Ltd., FCC ID: UP4GWT-102 To whom it may concern, Request is hereby submitted, on behalf of my client, Gaon Int Co., Ltd., to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Block Diagram Operational Description Rationale for request for confidentiality: Gaon Int Co., Ltd., has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. If you have questions or need further information, please contact the undersigned. Sincerely, Y.K. Kwon / Chief Engineer Onetech Corp. Email: [email protected]

1 Helen Zhao Subject:FW: Gaon Int Co., Ltd., FCC ID: UP4GWT-102, Assessment NO.: AN06T6381, Notice#1 From: Helen Zhao Sent: Monday, December 18, 2006 5:09 PM To: S. C. Hong (E-mail) Cc: Y. K. Gwon (E-mail) Subject: FW: Gaon Int Co., Ltd., FCC ID: UP4GWT-102, Assessment NO.: AN06T6381, Notice#1 Dear Mr. Hong, I have reviewed this application, below is my comment. Thank you, Helen -----Original Message----- Sent: Monday, December 18, 2006 5:07 PM Subject: Gaon Int Co., Ltd., FCC ID: UP4GWT-102, Assessment NO.: AN06T6381, Notice#1 Question #1: Page 6 of the test report indicates "Occupied Bandwidth Measurement: This measurement is performed with the antenna located close enough to give a full-scale deflection of the modulated carrier on the spectrum analyzer. The EUT has audio input ports, so the input ports were connected to a Two Channel Synthesizer and audio signal was supplied with 1 kHz modulation and then the EUT was transmitted with maximum audio level." Above statement does not agree with the description in section 3.2 on page 5 of the test report: 3.2 EUT exercise Software -. The Model, GWT-100 is included a FM transmitter designed to operate on function in the 88.1 ~ 107.9 MHz. The EUT has an audio input port, so the input ports were connected to mp3 player and than the EUT was transmitted MP3 music files which was saved in MP3 player with maximum audio output level during the test. -. The EUT was tested with new internal battery and external battery condition, but the worst test data was recorded in this test report. Please explain which is the procedure that you followed to perform the bandwidth test. Please note FCC does not accept 1KHz tone to be used for this test. Best Regards, Helen 2 The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

Helen Zhao From: Generic Office of Engineering Technology [[email protected]] Sent: Wednesday, January 17, 2007 7:04 AM To: Helen Zhao Subject: Response to Inquiry to FCC (Tracking Number 274250) 1/17/2007 Inquiry: Inquiry: Permit but Ask List #1. FM band modulators / transmitters operating under 15.239 of the FCC rules New Application Grantee: Gaon Int Co., Ltd. FCC ID: UP4GWT-102 EUT Description: FM Transmitter Equipment Class: DXX Rule Part: 15.239 Below is the answer to the following FCC questions: 1. How does this device operate? It shall be operated in home or car. 2. Provide information on the device and its antenna The device is consists of FM Transmitter portion and internal antenna. The device transmits sound sources such as MP3P, CDP, MDP, PMP, and PDA into radio frequency, allowing the enjoyment of portable audio device music via car audio system or home audio equipment without the need for earphones or headsets. 3. How is it installed? The device is installed with the radio mounted in a manner that avoids blocking the view of the road by the driver. 4. What test procedure was used? ANSI C 63.4. 5. If tested in a car, how was it configured/tested? It was not tested in a car, but it was tested in a open area test site and chamber, because the device does not have external transmitting antenna input port. 6. Was the tuning range properly verified? Yes, the lowest channel is 88.1MHz, and the highest channel is 107.9MHz. Please refer to the statement and test data on page 12 and 13 of the test report. 7. Was the bandwidth properly tested with maximum audio input? The EUT has audio input ports, so the input port was connected to MP3 player and than the EUT was transmitted MP3 music files which was saved in MP3 player with maximum audio output level during the test. 8. Provide a test report. The report is attached. Please advise if it is OK to file 731. Thank you, Helen Zhao Compliance Certification Services. ---Reply from Customer on 01/05/2007--- Attached please find two exhibits: 1) Antenna Photo 2) Test Report Please review. Thank you, Helen Zhao ---Reply from Customer on 01/09/2007--- The antenna used by the device is a curled audio input cable on the EUT and the end of cable was soldered on the PCB in the EUT. Please refer to the revised Test Report and antenna photos. Below is the modified answer to Question #2: 2. Provide information on the device and its antenna The device transmits sound sources such as MP3P, CDP, MDP, PMP, and PDA into radio frequency, allowing the enjoyment of portable audio device music via car audio system or home audio equipment without the need for earphones or headsets. The antenna for the device is an curled audio input cable. Thank you, ---Reply from Customer on 01/11/2007--- Wrong version. Regarding this issued, TCB sent out comments to the test lab on 12/18/2006 (see attachment). Before replying to FCC on 1/8/2007, I checked the revised report and did find this error, so the test report was updated again, don't know why the wrong version test report was still uploaded. Sorry about the confusion. See attached correct version. Response: Please go ahead and complete the filing. Submit a copy of this inquiry into the filing. Please ensure that all exhibits comply with all FCC rules and policies. Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry. 1/17/2007

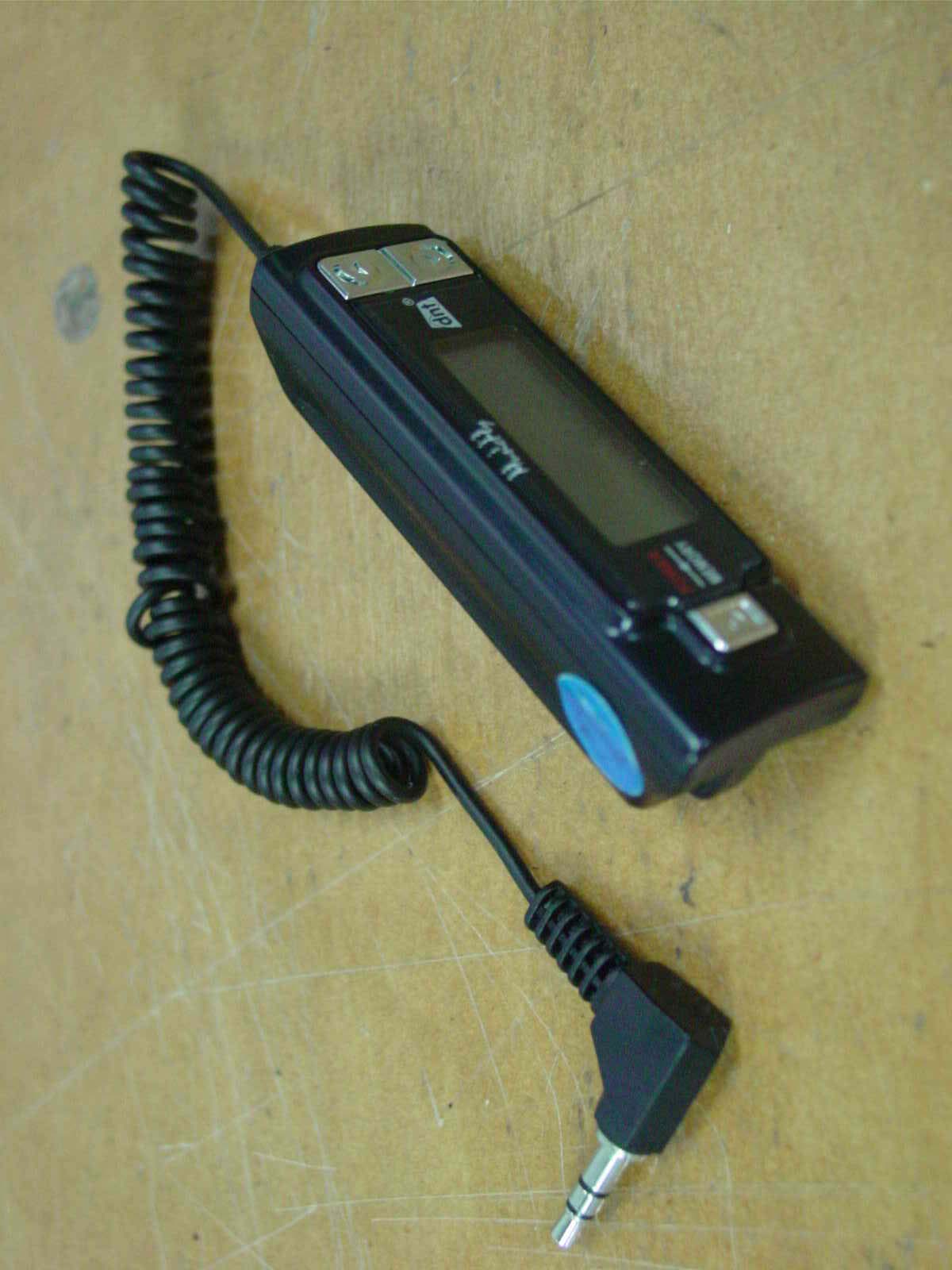

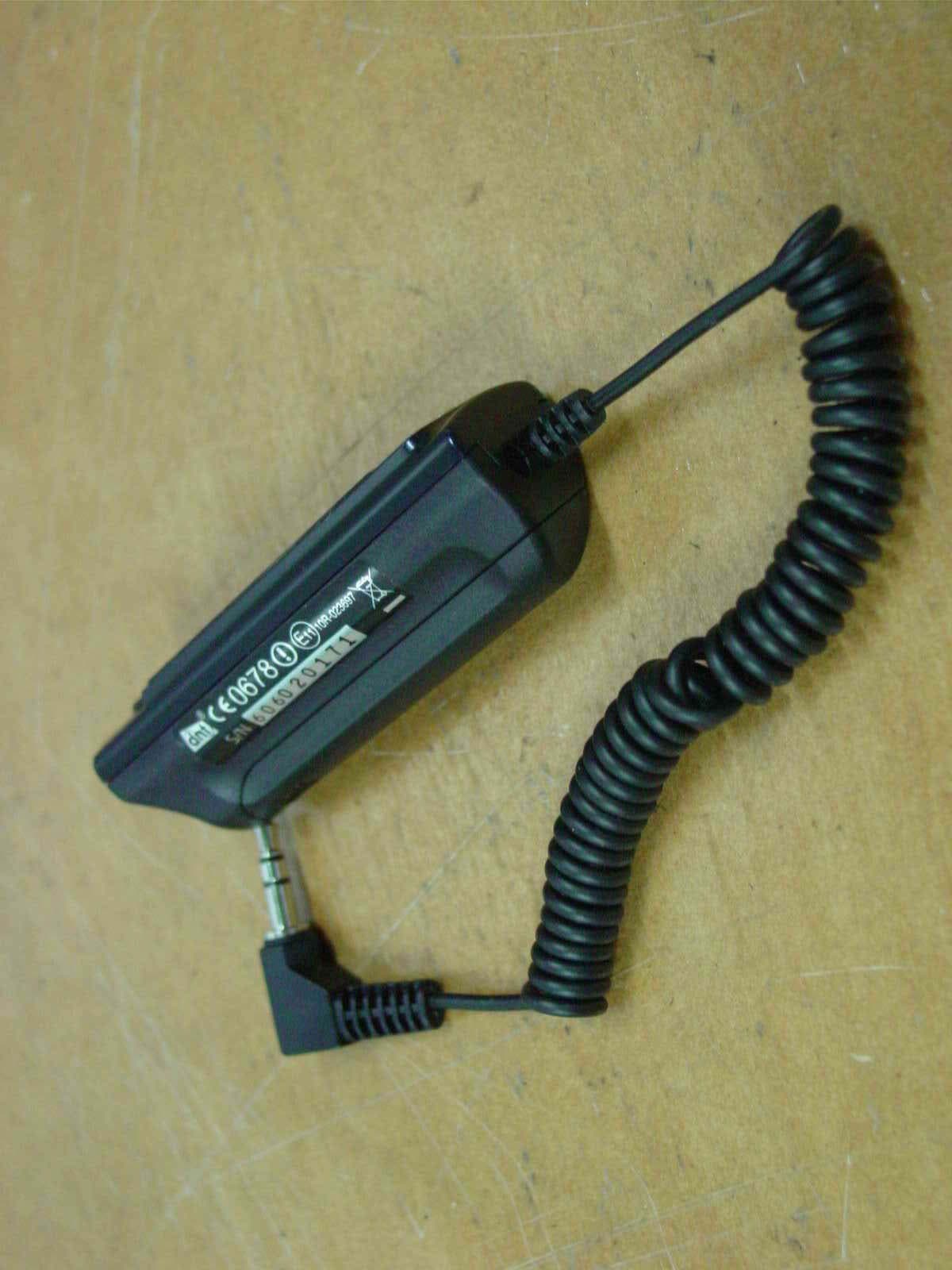

FCC ID. : UP4GWT-102 Report No. : E06OR-067 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : UP4GWT-102 Report No. : E06OR-067 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : UP4GWT-102 Report No. : E06OR-067 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904)

FCC ID. : UP4GWT-102 Report No. : E06OR-067 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) IDENTIFICATION LABEL: PROPOSED FCC ID LABEL The FCC ID shall be permanently affixed to the rear side of the equipment This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations. Made in Korea FCC ID : UP4GWT-102 FCC ID

FCC ID. : UP4GWT-102 Report No. : E06OR-067 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : UP4GWT-102 Report No. : E06OR-067 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : UP4GWT-102 Report No. : E06OR-067 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904)

Antenna Antenna

FCC ID. : UP4GWT-102 Page 1 of 15 Report No. : E06OR-067 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 3 0 7 -51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ELECTROMAGNETIC EMISSION C OMPLIANCE REPORT FOR LOW POWER, NON-LICENSED TRANSMITTER Test Report No. : E06OR-067 AGR No. : A069A-027 Applicant : Gaon Int Co., Ltd. Address : Daelim Bldg., Suite 1406, 592-5, Dohwa1-dong, Nam-gu, Incheon, Korea Manufacturer : FOUNDER TELECOMMUNICATION CORP., LTD. Address : Da Tang Tou, Zhn Shan, Dong Cheng District, Dong Guan, P.R.C. Type of Equipment : FM TRANSMITTER FCC ID. : UP4GWT-102 Model Name : GWT-100 Serial number : N/A Total page of Report : 15 pages (including this page) Date of Incoming : July 10, 2006 Date of Issuing : October 25, 2006 SUMMARY The equipment complies with the regulation of FCC CRF 47 PART 15, SUBPART C, SECTION 15.239. This test report contains only the results of a single test of the sample supplied for the examination. It is not a general valid assessment of the features of the respective products of the mass-production. Prepared by: Reviewed by: Young-Min, Choi / Project Engineer Y. K. Kwon / Director EMC Div. EMC Div. ONETECH Corp. ONETECH Corp. FCC ID. : UP4GWT-102 Page 2 of 15 Report No. : E06OR-067 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 3 0 7 -51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) CONTENTS Page 1. VERIFICATION OF COMPLIANCE .............................................................................................................................3 2. GENERAL INFORMATION............................................................................................................................................4 2.1 PRODUCT DESCRIPTION.................................................................................................................................................4 2.2 MODEL DIFFERENCES....................................................................................................................................................4 2.3 RELATED SUBMITTAL(S) / GRANT(S)............................................................................................................................4 2.4 TEST SYSTEM DETAILS..................................................................................................................................................4 2.5 TEST METHODOLOGY....................................................................................................................................................4 2.6 TEST FACILITY...............................................................................................................................................................4 3. SYSTEM TEST CONFIGURATION...............................................................................................................................5 3.1 JUSTIFICATION...............................................................................................................................................................5 3.2 EUT EXERCISE SOFTWARE............................................................................................................................................5 3.3 CABLE DESCRIPTION.....................................................................................................................................................5 3.4 EQUIPMENT MODIFICATIONS........................................................................................................................................5 3.5 CONFIGURATION OF TEST SYSTEM...............................................................................................................................6 3.6 ANTENNA REQUIREMENT..............................................................................................................................................6 4. PRELIMINARY TEST ......................................................................................................................................................6 4.1 AC POWER LINE CONDUCTED EMISSION TEST............................................................................................................6 4.2 RADIATED EMISSION TEST............................................................................................................................................6 5. FINAL RESULT OF MEASURMENT ............................................................................................................................7 5.1 RADIATED EMISSION TEST (WITHIN THE PERMITTED 200 KHZ BAND).......................................................................7 5.2 RADIATED EMISSION TEST (OUTSIDE OF THE SPECIFIED 200 KHZ BAND)...................................................................8 5.3 BANDWIDTH OF THE OPERATING FREQUENCY..............................................................................................................9 5.4 TUNING RANGE OF THE OPERATING FREQUENCY.......................................................................................................11 6. FIELD STRENGTH CALCULATION ..........................................................................................................................14 7. LIST OF TEST EQUIPMENT.............................................................................................................................…

Text truncated - open the document above for the full version.

FCC ID. : UP4GWT-102 Report No. : E06OR-067 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) Radiated Emission Test
