UP5-SC-BT1200IOBD2 mini Interpreter Dongle

Copyright (C) 2010 ATBS Technology Co. All rights reserved. R2.1 BT1200i User Guide 1 Introduction: The BT1200i OBD2 dongle is a multi- protocol decoder, providing with Bluetooth interface. iPod and iPhone with a Bluetooth can connect the device to read car information. Once your iPod, iPhone runs the OBD2 APP, it will provide the fuel system status, engine load, engine temperature, fuel pressure, intake manifold pressure, engine speed, vehicle speed, intake air temperature, air flow, throttle position, battery voltage, fault code, and other information sent to your phone via Bluetooth. More information and clear fault codes can be read by using professional diagnostic software. 2. Appearance: RESET: Clear protocol button. OBD: Communicate with car ECU, red LED. BT: Bluetooth working, blue LED. 3. Procedure: 3.1 Stop and turn off the engine. Vehicle moving not allowed to operate. 3.2 The OBD socket of vehicle was usually located under dashboard. Please find it out and plug BT1200i. 3.3 The BT1200i offers more than 25 protocols and supports hundreds of vehicle models. It is necessary to learn your vehicle's protocol successfully before it works normally. Once you plug BT1200i into OBD2 connector, it will try to communicate with car ECU. The red light starts flashing after the learning success. The blue light starts flashing and the learned protocol will be saved. The user can run into APP, Saving Fuel, to setting page, see the process of learning. When the protocol No. is stop, the device learn right protocol. 3.4 Note: the longest time of trying to connect is 300 seconds. If the learning connection is unsuccessful, please disconnect then plug it and press RESET to clear the memory to re-learn. 4. Compatible APPs and Features: The BT1200i is a OBD2 interpreter. What features you can have depended on what APPs you install on iPod touch, iPhone and iPad. There are a lot of commercial or free software are available to enable BT1200i, such as Saving Fuel, Safe Start, OBD2 Black Box. The features of the software differ from one another. User should choose his own software by his preference. For more details about the software, please consult the software vendors. The BT1200i Bluetooth ID is "ATBS OBD2". 5. Electrical specifications Wiring OBD2 connector Voltage Operation 10 ~16V Current Operation 50 mA， Sleeping < 3 mA Temperature Operation -30~ 85 °C Bluetooth Class 2 6. Troubleshooting 6.1 When the BT1200i goes to sleep, it only can be waked up by starting generator once you start the engine. If the red light does not light , please disconnect then plug it again, and check the OBD2 connector whether is loose. 6.2 To use this device on other vehicles, you have to re-learn new protocol. Please press RESET key to clear its memory first. 6.3 The first time BT1200i learns protocol, do not start the engine (just ACC ON). If the dashboard has strange display during learning period, it will return to normal after restarting engine. 6.4 When the blue led flash 15 seconds to put out, please start engine again, and press RESET switch on your iPhone. This time the BT1200i will learn next protocol, the user can see the process on your iPhone. 7.NOTE and CAUTION： 7.1 The information of BT1200i is for reference only. Do not operate it when you are driving. 7.2 Do not directly use water or chemical to clean it. 7.3 Do not place the unit at the dusty place. It could cause malfunction. OBD2 Copyright (C) 2010 ATBS Technology Co. All rights reserved. R2.1 7.4 Do not remove cover, or modify the product. Contact your local dealer to perform servicing such as inspection, adjustment, or repair work. 7.5 The product warranty for one year. Please correctly use the product. Other damages caused by natural and man-made disasters, drops, soak water, smolder, and non-normal power supply are excluded from the warranty. FCC Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.(Example – use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limit set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This devise must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

ATBS Technology Corporation FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name ATBS Technology Corporation Addresss 3F, No. 200, Kang-Chien Rd., City Taipei City Country Ta i w a n request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: UP5 -SC-BT1200I of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) x Operational Description x Block Diagrams x Schematics Diagrams Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) Taipei City, Taiwan 2012/12/25 Kelly Kuo Manager

ATBS Technology Corporation FCC Authorization Letter Number: CF304 Version: V01 Date: 01-02-2010 We, (the approval holder) Company name ATBS Technology Corporation Addresss 3F, No. 200, Kang-Chien Rd., City Taipei City Country Ta i w a n declare that the following representative (agent): Name (person) Baca Chen Company name Cerpass Technology Corporation Addresss No.3, 2F-11, YuanQu St., City Taipei City Country Taiwan is hereby authorized to apply the following equipment for certification on our behalf: Product Description OBD2 mini Interpreter Dongle Type or Model(s) BT12XXX (X= 0-9, A-Z, a-z or blank) Tradename or Brand(s) ATBS We also authorize Teleconformity, Mr. M. Koop, (address: Rietven 31, 7534NH Enschede, Netherlands) to process this application. Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) Taipei City, Taiwan 2012/12/25 Kelly Kuo Manager

CERPASS TECHNOLOGY CORP. Report No.: TEFB1206083 Cerpass Technology Corp. Issued Date : Nov. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A1 FCC ID : UP5-SC-BT1200I Appendix A. Photographs of EUT

Label & Location

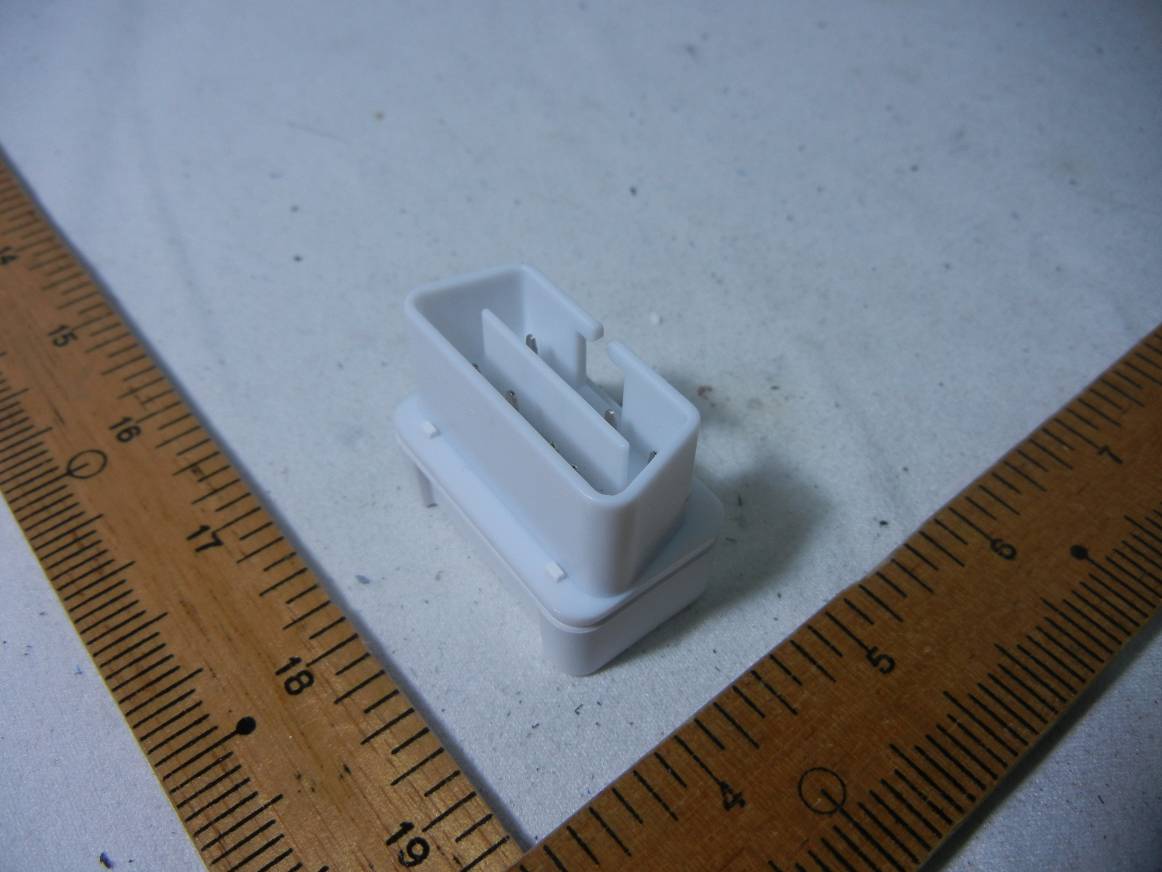

CERPASS TECHNOLOGY CORP. Report No.: TEFB1206083 Cerpass Technology Corp. Issued Date : Nov. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A3 FCC ID : UP5-SC-BT1200I Appendix A. Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: TEFB1206083 Cerpass Technology Corp. Issued Date : Nov. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A3 FCC ID : UP5-SC-BT1200I CERPASS TECHNOLOGY CORP. Report No.: TEFB1206083 Cerpass Technology Corp. Issued Date : Nov. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A3 of A3 FCC ID : UP5-SC-BT1200I

FCC RF Exposure FCC ID: UP5-SC-BT1200I Frequency: 2402-2480 MHz (79 channels) Mid-Channel Peak Power or Highest Peak Power, Conducted: -3.89 dBm == 0.41 mW Antenna Gain: G = 0 dBi Peak, Radiated = -3.89 dBm + 0 dBi = -3.89 dBm = 0.41 mW SAR Test Exclusion Thresholds specified in KDB447498 Appendix A: Evaluation: The maximum calculated peak radiated power of 0.41mW lies far under the 10mW at 5mm, however the device is typically used at > 20cm. Conclusion: This device emits far under the exposure limit for its typical use, and is excluded for SAR evaluation, so PASS.

CERPASS TECHNOLOGY CORP. Report No.: TEFB1206083 Cerpass Technology Corp. Issued Date : Nov. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 94 FCC ID : UP5-SC-BT1200I FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Applicant : ATBS Technology Corporation Address : 3F, No. 200, Kang-Chien Rd., Taipei, 11494, Taiwan Equipment : OBD2 mini Interpreter Dongle Model No. : BT12XXX (X= 0-9, A-Z, a-z or blank) FCC ID : UP5-SC-BT1200I Trade Name : ATBS ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Cerpass Technology Corp. the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFB1206083 Cerpass Technology Corp. Issued Date : Nov. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 94 FCC ID : UP5-SC-BT1200I Contents 1. Report of Measurements and Examinations .................................................................................... 6 1.1 List of Measurements and Examinations ................................................................................... 6 2. Test Configuration of Equipment under Test ................................................................................... 7 2.1 Feature of Equipment under Test ............................................................................................... 7 2.2 Carrier Frequency of Channels .................................................................................................. 7 2.3 Test Mode & Test Software ........................................................................................................ 8 2.4 Description of Test System ......................................................................................................... 8 2.5 General Information of Test ........................................................................................................ 9 2.6 Measurement Uncertainty .......................................................................................................... 9 3. Antenna Requirements ..................................................................................................................... 10 3.1 Standard Applicable ................................................................................................................. 10 3.2 Antenna Construction and Directional Gain ............................................................................. 10 4. Test of Conducted Emission ............................................................................................................ 11 4.1 Test Limit .................................................................................................................................. 11 4.2 Test Procedures ....................................................................................................................... 11 4.3 Typical Test Setup .................................................................................................................... 12 4.4 Test Result and Data ................................................................................................................ 12 5. Test of Radiated Emission ............................................................................................................... 13 5.1 Test Limit .................................................................................................................................. 13 5.2 Test Procedures ....................................................................................................................... 13 5.3 Typical Test Setup ................................................................................................................... 14 5.4 Measurement equipment ......................................................................................................... 14 5.5 Test Result and Data ................................................................................................................ 15 5.6 Test Photographs (30MHz~1000MHz) ..................................................................................... 45 5.1 Test Photographs (1000MHz~25000MHz) ............................................................................... 46 6. 20dB Bandwidth Measurement Data ............................................................................................... 47 6.1 Test Limit .................................................................................................................................. 47 6.2 Test Procedures ....................................................................................................................... 47 6.3 Test Setup Layout .................................................................................................................... 47 6.4 Measurement equipment ......................................................................................................... 47 6.5 Test Result and Data ................................................................................................................ 48 7. Frequencies Separation ................................................................................................................... 54 7.1 Test Limit .................................................................................................................................. 54 7.2 Test Procedures ....................................................................................................................... 54 7.3 Test Setup Layout .............................................................................................................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFB1206083 Cerpass Technology Corp. Issued Date : Nov. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 45 of 94 FCC ID : UP5-SC-BT1200I 5.6 Test Photographs (30MHz~1000MHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFB1206083 Cerpass Technology Corp. Issued Date : Nov. 15, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 46 of 94 FCC ID : UP5-SC-BT1200I 5.1 Test Photographs (1000MHz~25000MHz) Front View Rear View
