UP5-SC-LM6040CAR TPMS (Tire Pressure Monitoring System)

Copyright (C) ATBS Technology Co. R2.0 版權所有請勿翻印 Colorful TPMS LM6040 User Guide 1. Introduction This Tire Pressure Monitoring System (TPMS) was designed for increasing security, reliability, and understanding on tire conditions of your car. Once you properly install the TPMS, these sensors will automatically monitor pressures and temperatures of tires in real time, and send these data to display through wireless communications. When there is any abnormal pressure (under or over inflated) and/or temperature of tire detected, the LCM display will alert driver immediately through both flash light and voices alarm. This system could ensure you are driving in safety. About This Manual
The information in this manual is subject to change without notice.
This manual has been created with extra care. In case that you have any comments or questions regarding this manual, please contact your local dealer or our Customer Service Center.
Before operating this set, please fully understand the prerequisite such as specifications or constraints of the hardware and software. We are not responsible and have no liability for any loss, damage or injury as a result of misuse.
All other products and company names used in this manual are trademarks or registered trademarks of their respective owners. 2. Check Accessories Part Photo Qty LCM display 1 Power Cord & adaptor (12 to 5V) 1 Fixture: fix display at air condition outlet 1 AT68 sensor 4 Lock Nut Refer to 3.2.3 4 Tool Refer to 3.2.3 1 User Guide 1 3. Installation 3.1 Install LCM Display： ：： ： 3.1.1 Plug in USB adaptor and power on display . 3.1.2 Plug the Mini USB connecter in display. 3.1.3 Use fixture to fix LCM display. Set fixture at air outlet Fix LCM display 3.2 Install AT68 Sensor: 3.2.1 Install battery into sensor and tighten sensor top cap: Note: Be sure that the battery polarity was correct. 3.2.2 Check Sensor location: FL: Front Left tyre, FR: Front Right Tyre RL: Rear Left tyre, RR: Rear Right Tyre 3.2.3 Remove original valve cap and screw (1) lock nut first then (2) sensor onto valve stem. Copyright (C) ATBS Technology Co. R2.0 版權所有請勿翻印 3.2.4 Screw (1) lock nut back and using (3) Wrenches to lock tight. This two steps lock procedure can effectively prevents sensor from easy removing also in favor of sensor stationary. Note: User may ignore this fixture, when causing inflation hassle concerns. 3.2.5 Continue to install all other sensors with the same procedure. Note ： ：： ： (1) Clean up the valve stem surface before installation to ensure the conductivity between sensor and valve. (2) Sensor shall be tight lock at valve steam to avoid leak. (3) Please replace sensor battery in case voltage is low less than 2.7v. 5. LCM Display Function description 5.1 Keypad: Power switch：Power ON/OFF/ Backlight selection. Temperature unit: temperature unit selection/ Setting value decrease. Pressure unit: Pressure unit selection/ Setting value increase. Backlight：Turn ON/OFF backlight / Setting value confirmation. 5.2 Mini USB connector：Provide power input. 5.3 Display: The LCM Display of LM6040 has 4 operation modes: 1.) Normal Mode: This is the major display mode of LM6040. It shows sensor battery capacity, RF signal strength, pressure, temperature, running time. 2.) Alarm Mode: When an abnormal detected, this mode will be triggered automatically, user can pre-set trigger conditions. 3.) Setting Mode: It offers kinds of pressure and temperature display unit for selection, setting backlight and pre-set alarm trigger conditions. 4.) Learning Mode: It offers sensor’s ID scan and tyre match. 6. Normal Mode: Once the LM6040 power on, it will start to receive sensor data and show on LCM display. Data of four tyres will shown by turns, Including sensor battery capacity, RF signal strength, tyre pressure, and tyre temperature of single tyre will be shown in the same time, the tyre icon indicates which tyre is displaying. For example, the following figure indicates that front Left tyre pressure is 32 psi, temperature is 28°C, and running time is 6 minutes 35 seconds. Icon indicates sensor’s signal is receiving. Front Left tyre Copyright (C) ATBS Technology Co. R2.0 版權所有請勿翻印 7. Alarm Mode: Backlight color turns to red once abnormal events detected. For example when the alarm pre-set threshold were set as: low pressure threshold is 25.5 psi, high pressure threshold is 45.5 psi, and high temperature threshold is 65°C. 7.1 represents that Front Left tyre pressure was 12 psi, which was too low (<25.5psi) 7.2 Indicates Front Left tyre temperature is 68.0°C, which was higher than high temperature threshold. 8. Setting Mode: There are three thresholds can be adjusted to fit for individual user requirements. They are High temperature threshold, High pressure threshold, and Low pressure threshold. The backlight color can be adjusted also. 8.1 High temperature threshold setting: Press for 5 seconds to enter this setting mode, backlight color turns to blue and digits flash. Degrees of setting temperature in both Centigrade and Fahrenheit are shown in the same time. High temperature threshold of each individual tyre can be set independently with the following procedure: First, setting Front Left (FL) tyre high temperature threshold, and then Front Right (FR), Rear Right (RR), Rear Left ( RL) tyre. Keypad function: : - 1. : + 1. : Save and go to next tyre. After rear tyre saved system quit from setting mode automatically. Example: Fahrenheit temperature. Setting High temperature threshold to 176 °F 5sec 5sec 5sec 5sec + ++ +1 11 1 °F SAVE SAVE SAVE SAVE - -- -1 11 1 °F C C C Continue next tyre ( ontinue next tyre (ontinue next tyre ( ontinue next tyre ( FL FL FL FL- -- ->FR >FR>FR >FR- -- ->RR >RR>RR >RR- -- ->RL >RL>RL >RL- -- -> >> >EXIT EXITEXIT EXIT). ).). ). The original unit of temperature is Centigrade. Setting High temperature threshold to 80 °C 5sec 5sec 5sec 5sec + ++ +1 11 1 °C SAVE SAVE SAVE SAVE - -- -1 11 1 °C C C C Continue next tyre ( ontinue next tyre (ont…

Text truncated - open the document above for the full version.

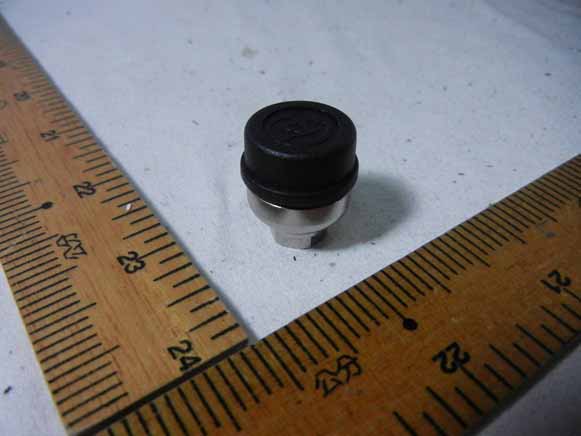

CERPASS TECHNOLOGY CORP. Report No.: TEFI1205176 Cerpass Technology Corp. Issued Date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A3 FCC ID. : UP5-SC-LM6040 Appendix A. Photographs of EUT

Label & Location

CERPASS TECHNOLOGY CORP. Report No.: TEFI1205176 Cerpass Technology Corp. Issued Date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A3 FCC ID. : UP5-SC-LM6040 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205176 Cerpass Technology Corp. Issued Date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A3 of A3 FCC ID. : UP5-SC-LM6040

CERPASS TECHNOLOGY CORP. Report No.: TEFI1205176 Cerpass Technology Corp. Issued date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 28 FCC ID. : UP5-SC-LM6040 FCC TEST REPORT According to FCC Part 15, Subpart C (15.231) / ANSI C63.4: 2009 Applicant : ATBS Technology Corporation Address : 3F-4, No. 200, Kang-Chien Rd., Taipei, 11494, T aiwan Equipment : CAR TPMS Model No. : LM6XXX FCC ID. : UP5-SC-LM6040 Trade Name : ATBS ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. CERPASS TECHNOLOGY CORP. Report No.: TEFI1205176 Cerpass Technology Corp. Issued date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 28 FCC ID. : UP5-SC-LM6040 Contents 1. Report of Measurements and Examinations .................................................................................... 4 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test ............................................................................................... 6 2.2 Test Mode and Test Software ..................................................................................................... 6 2.3 Description of Test System ......................................................................................................... 6 2.4 General Information of Test ........................................................................................................ 7 2.5 Measurement Uncertainty .......................................................................................................... 7 3. Antenna Requirements ....................................................................................................................... 8 3.1 Standard Applicable ................................................................................................................... 8 3.2 Antenna Construction and Directional Gain ............................................................................... 8 4. Test of Conducted Emission .............................................................................................................. 9 4.1 Test Limit .................................................................................................................................... 9 4.2 Test Procedures ......................................................................................................................... 9 4.3 Typical Test Setup .................................................................................................................... 10 4.4 Test Result and Data ................................................................................................................ 10 5. Test of Radiated Emission ............................................................................................................... 11 5.1 Test Limit .................................................................................................................................. 11 5.2 Test Procedures ....................................................................................................................... 12 5.3 Typical Test Setup .................................................................................................................... 14 5.4 Measurement Equipment ......................................................................................................... 14 5.5 Test Result and Data ................................................................................................................ 15 5.6 Test Photographs (30MHz~1GHz) ........................................................................................... 23 5.7 Test Photographs (Above 1GHz) ............................................................................................. 24 6. 20dB Occupied Bandwidth Measurement ...................................................................................... 25 6.1 Test Procedure ......................................................................................................................... 25 6.2 Test Setup Layout .................................................................................................................... 25 6.3 Limits of Band Edges Measurement ........................................................................................ 25 6.4 Measurement Equipment ......................................................................................................... 25 6.5 Test Result and Data ................................................................................................................ 25 7. Transmission Time Control .............................................................................................................. 27 7.1 Test Procedure ......................................................................................................................... 27 7.2 Test Setup Layout .................................................................................................................... 27 7.3 Test Limit .................................................................................................................................. 27 7.4 Measurement Equipment ......................................................................................................... 27 7.5 Test Result and Data ................................................................................................................ 27 Appendix A. Photographs of EUT...................................................................................A1 ~ A7 CERPASS TECHNOLOGY CORP. Report No.: TEF…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1205176 Cerpass Technology Corp. Issued date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 23 of 28 FCC ID. : UP5-SC-LM6040 5.6 Test Photographs (30MHz~1GHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1205176 Cerpass Technology Corp. Issued date : Jul. 11, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 24 of 28 FCC ID. : UP5-SC-LM6040 5.7 Test Photographs (Above 1GHz) Front View Rear View
