UP5-SC-T7004Tire Pressure Monitoring System

SC-T7004 Series TPMS Fast Installation Guide Bluewave Technology Co., LTD. Tel: 886-2-23451989 Fax: 886-2-23450177 2F.-1, No.5, Lane 178, Jhuangjing Rd., Sinyi District, Taipei City 110, Taiwan, R.O.C. http://www.7brains.com/ Email: [email protected] 2007/4/18 ѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧʳSC-T8000 Fast Installation Guide Installation 1.Check Components Receiver(Passenger)ʳ Receiver(Truck)ʳʳ T - Type Sensor ReceiverSensor SC-T8000 1 4 SC-T8060 1 6 SC-T8080 1 8 SC-T8100 1 10 SC-T8120 1 12 One Power Cord One Sucker & Fixture * attention: Four-wheeled passenger and truck’ s receivers are different. Please check the left-circle of receiver. 2.Check Sensor Identification Number (Sensor ID) and Set 2.1 Each sensor should be assigned a unique identification number (ID) which was marked on the top of sensor. 2.2The last two number of sensor ID has given the locating tire position, the order is as following: * SC-T7004 ID locating position 01:left-front tire02:rght-front tire 04:left-rear tire03:right-rear tire SC-T8060 IDlocating position 01:left-front tire02:rightΩfront tire 05:left-reartire right03:righr -reartire right 06:left-rreartire left04:righr-rear tire left 3. Install the Sensor into Wheel 3.1 Screw down the original valve cap. 3.2 Follow the ID’ s last two number to install the right tire (please refer to the 2.2 illustration) Note: Since sensors being electric isolation processed before shipping, it is recommended, for the first installation, to rotate sensor forward and backward several times to remove isolation coating and ensure the conductivity between sensor and valve stem. 3.3 Screwfixture: Prevent sensor from easy removing also in favor of sensor Welcome to Bluewave Super Cat T-Type8000 SeriesTire Pressure Monitoring System (SC-T7004 TPMS).This Fast installation Guide is intended to give you a fast overview of the key steps required to install yourSC-T7004SeriesTPMS. For more detailed information,please refer to theSC-T7004Series TPMSUser’sManual.(http://www.7brains.com ) ѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧʳSC-T8000 Fast Installation Guide stationary. Note: (1) User may ignore this fixture, when causing inflation hassle concerns. (2) To ensure LED template display correctly coincide with actual sensor position, Please follow step 4-Sensor alignment in order to get right pressure and temperature from right sensor. 4.Sensor alignment Plug the attached power cord into cigarette lighter directly, then activate the receiver. 4.1 Operation mode illustration SC-T7004series provides various operating mode to set different parameter, under normal condition, please follow the above illustration ϘKey4ΰExitαfor 0.5 second into different operating modes in order to make use of different functions and parameter sets. 4.2 Preset ID Under normal conditionΔ press Δcheck the first installed tire ID is righr or not, and then press Enter , check tire ID 2, 3, and 4. If the sensors ID are all correctly located, then you can ignore the next steps. (Section 4.3). 4.3 ID search and set under normal conditionΔdo as the followings: ÆPressʳ ʳ(for 0.5 second) Æ Press twice Æ Press into ID search Make sure the sensor is consistent with the main engine geared position then pressKey1 (Enter), ѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧѧʳSC-T8000 Fast Installation Guide follow step 3 to install the next sensor installation, after finishing pressKey4 (Exit). *attention: Finished installing, LED shows “red “, If you set different sensor ID in the same place, the LED will disappear, at this moment you must reset the sensor. Signal
1.Normal: When tires operate in normal condition, LED shows “green” light. Every 8 sec., the “orange” light takes turn to show each tire’ s condition. 2.Abnormal: When tire is in over-heated, over-pressured, or under-pressured condition, LED shows “red” light, locks on the position of over- heated tire with “beep” sound. NOTEΚTwo tires are abnormal at the same time, it will be fixed on the abnormal status. 3.Receiverdid not receive Data: If receiver can not receive updated tire messages over 10 mins., LED shows abnormal indication. Example: Left-front tire didn’t receive data, shows “ t l ----”. Right-front tire didn’t receive data, shows “ t2 ----”. Left-rear tire didn’t receive data, shows “ t3 ----”. Right-rear tire didn’t receive data, shows “ t4 ----”. *attention: The abnormal signal will be disappear after once messages received. If long time no new information, please check your sensor. FCC Notice
The changes or modifications not expressly approved by the party responsible for compliance could void the userϗs authority to operate the equipment. THIS DEVICE COMPLIES WITH PART 15 OF THE FCCRULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. Caution: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. 910805 2 FCC Notice: Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’ s authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’ s authority to operate the device. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

910805 1 ATBS Technology Co. 3F, No. 49, Lane 35, Jihu Rd., Neihu Chiu, Taipei, 114, Taiwan Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; 910805 2 f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Kelly Kuo / Manager ATBS Technology Co.

910805 1 ATBS Technology Co. 3F, No. 49, Lane 35, Jihu Rd., Neihu Chiu, Taipei, 114, Taiwan Federal Communications Commission FCC ID:UP5-SC-T7004 Product Name: Tire Pressure Monitoring System Model Name: SC-T7004 Trade Name: ATBS Dear Sir: In accordance with 47 C.F.R. Section 0.459, we would like to request confidentiality on some exhibits we submitted for above application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagram and Schematics and Operation Description. By: By: Kelly Kuo (Signature) (Printed) Title : Manager Applicant : ATBS Technology Co. Address : 3F, No. 49, Lane 35, Jihu Rd., Neihu Chiu, Taipei, 114, Taiwan Tel : 886-2-26562508 Fax: 886-2-26562506 Date : JAN. 23, 2008

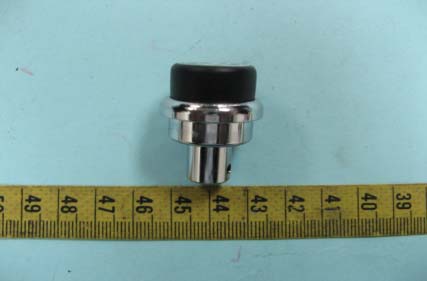

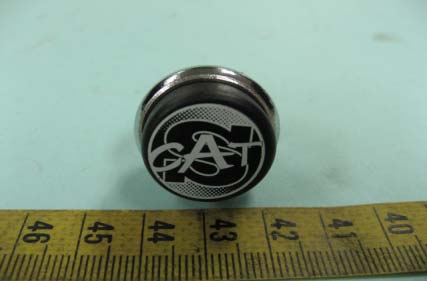

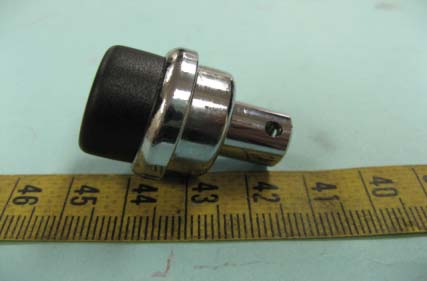

ETC Report No.: 08-01-RBF-059-01 FCC ID.: UP5-SC-T7004 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Top View of EUT Side View of EUT ETC Report No.: 08-01-RBF-059-01 FCC ID.: UP5-SC-T7004 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT . Front View of EUT Side View of EUT
