UP5AT8100Tire Pressure Monitoring System

Welcome to AT 8000 Series Tire Pressure Monitoring System (TPMS). This Fast installation Guide is intended to give you a fast overview of the key steps required to install your AT 8000 Serial TPMS. For more detailed information, please refer to the 8000 Serial TPMS Installation Guide. Installation steps: Step 1: Check components Step 2: Check identification number Each sensor should be assigned a unique identification number (ID), which was marked on the top of sensor. Step 3: Enable and Test sensors before installing To enable a sensor, it is only needed to pull out the jumper attached on sensor. After successfully enabled, sensor will start to measure environment air pressure and temperature and send them to receiver. Step 4: Set up the receiver Plug the attached power cord into Receiver and insert the other terminal to the cigarette electrical socket of vehicle. You can adjust parameters of receiver according to your requirement.
Only the first two and last four digitals of ID will show on panel of receiver, for example, if ID is 34125678, only345678 will be shown. Step 5: Installing one sensor into wheel Please get help from professional tire shops if necessary. 1. Remove the wheel from vehicle, Deflate, and separate rim and tire. 2. Fix sensor on rim. 3. Assemble rim and tire, inflate to typical pressures. 4. Balance wheel and install to vehicle. 5. Use receiver to search ID of this wheel again, and assign this ID to the position respect to this tire installation. Make sure that the sensor inside tire was keeping work well. Steps 6: Continue to install all other sensors with the same procedure. Install all tires to the right positions of vehicle. Using receiver to search and assign all IDs to correct position respect to tire installation. Steps 7: Setup pressure and temperature thresholds according to tire type.  Do not mix up each tire’s ID, or the detected tire parameter may not be correct!  It is easy to identify each tier’s ID by changing its pressure (slightly deflate) and monitor the receiver for checking this pressure variation and tire position.  Check all recorded tire IDs by press Key 1. Each single press on Key 1 can call one tire parameters out, including temperature, pressure, and identification code. Continually press on Key 1 can read tire parameters one by one.  Typical torque of new valve nut is 3~5 N-m(30~50 kgf-cm).  In order to guarantee sealing, be sure that the rubber rings are properly positioned between rim and valve. AT 8000 Series fast installation guide Key1 Key2 Key3 Key4 Valve nut Receiver Setting Panel Modes In order to integrate friendly operation interface and powerful parameter adjusting function, AT8000 contains four major operation modes, and it is easy to switch between them by press Key 4 over 0.5 second: Working mode ↓ ↓↓ ↓ Setup Temperature limits ↓ ↓↓ ↓ Setup Pressure limits ↓ ↓↓ ↓ Tire ID search and assign Working mode Key functions: Display Setup Temperature limits Setup Pressure limits Tire ID search and assign Step 1: Switch into ID search mode by: 1. Press Key 4 into Tire ID search and assign mode. 2. Press Key 1 confirm to search. Step 2: Waiting for ID search Step 3: Assign searched ID to exact position Key 1 Key 2 Key 4 Numeric row 1 Numeric row 2 Numeric row 3 Status displayer Temperature unit Pressure unit Alarm Receive Status Key 3 Alarm Tire 1 Tire 4 RF Symbol Tire 2 Tire 3 °F/°C Select tire Tire ID Temperature Pressure Graphic display Select tuning item + - Setting tire High/Low limit indication Temperature limit PSI/KPA Setting tire High/Low limit indication Pressure limit - + Select tuning item 2 2 2 1 1 1 Selected ID One ID had been searched First received ID was selected Select ID from ID buffer. The third of six ID. Selected Tire for assigning Press to assign ID ID assigned Tire Select Tire to assign ID 910805 2 FCC Notice: Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

910805 1 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; 910805 2 f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Kelly Kuo / Manager ATBS Technology Co.

910805 4 Federal Communications Commission FCC ID: UP5AT8100 Product Name: Tire Pressure Monitoring System Model Name: AT8100 Trade Name: ATBS Dear Sir: In accordance with 47 C.F.R. Section 0.459, we would like to request confidentiality on some exhibits we submitted for above application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagram and Schematics and Operation Description. By: By: Kelly Kuo (Signature) (Printed) Title : Manager Applicant : ATBS Technology Co. Address : 3F, No. 49, Lane 35, Jihu Rd., Neihu Chiu, Taipei, 114, Taiwan Tel : 886-2-26562508 Fax: 886-2-26562506 Date : Oct. 25, 2006

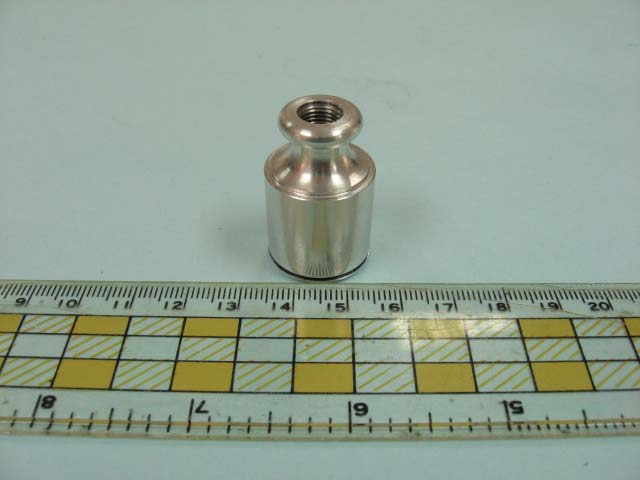

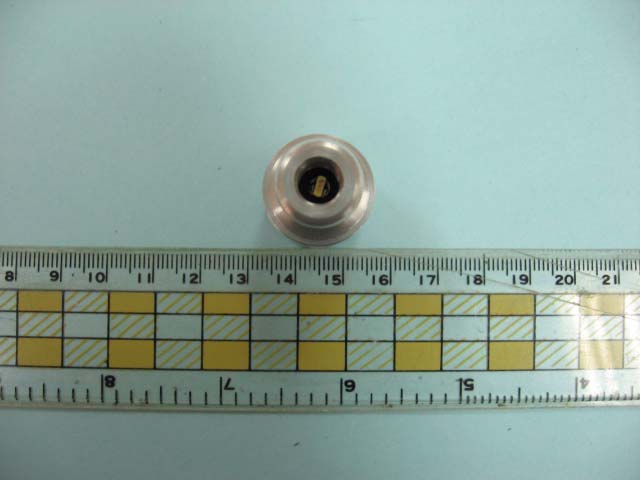

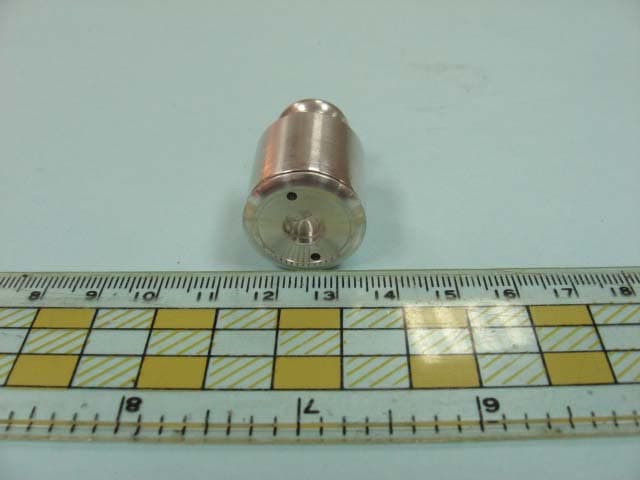

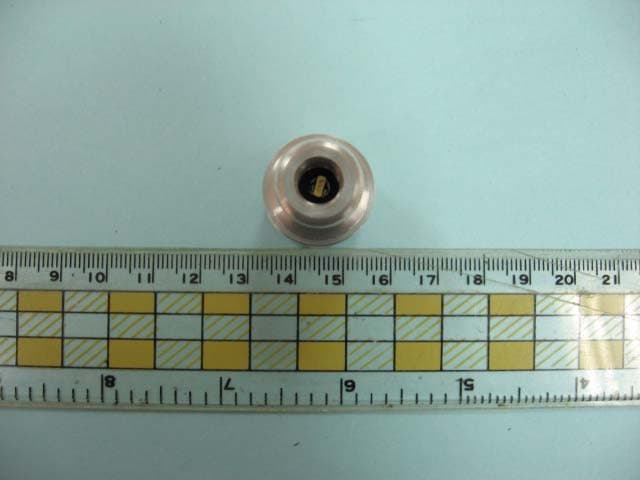

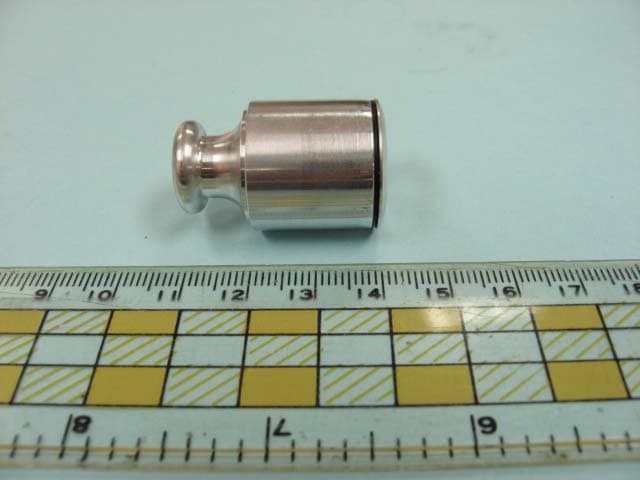

ETC Report No.:06-10-RBF-047-02 FCC ID.: UP5AT8100 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Top View of EUT Side View of EUT ETC Report No.:06-10-RBF-047-02 FCC ID.: UP5AT8100 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Bottom View of EUT Side View of EUT

AT8100 Model : AT8000 FCC ID : UP5AT8000 15mm 9mm

ETC Report No.:06-10-RBF-047-02 FCC ID.: UP5AT8100 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of Main PCB Solder View of Main PCB

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Tire Pressure Monitoring System FCC ID : UP5AT8100 MODEL : AT8100 Working Frequency : 433.920 MHz for APPLICANT : ATBS Technology Co. ADDRESS : 3F, No. 49, Lane 35, Jihu Rd., Neihu Chiu, Taipei, 114, Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 06-10-RBF-047-02 ETC Report No.:06-10-RBF-047-02 FCC ID.: UP5AT8100 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : ATBS Technology Co. 3F, No. 49, Lane 35, Jihu Rd., Neihu Chiu, Taipei, 114, Taiwan Manufacturer : ATBS Technology Co. 3F, No. 49, Lane 35, Jihu Rd., Neihu Chiu, Taipei, 114, Taiwan Description of EUT : a) Type of EUT : Tire Pressure Monitoring System b) Trade Name : ATBS c) Model No. : AT8100 d) FCC ID : UP5AT8100 e) Working Frequency : 433.920 MHz f) Power Supply : DC 3 V Battery Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2006) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Issued Date : Dec. 06, 2006 Test Engineer : ( Vincent Chang ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:06-10-RBF-047-02 FCC ID.: UP5AT8100 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ............................................................................................................................... 1 1.1 PRODUCT DESCRIPTION.......................................................................................................................................... 1 1.2 CHARACTERISTICS OF DEVICE: ...............................................................................................................................1 1.3 TEST METHODOLOGY............................................................................................................................................. 1 1.4 TEST FACILITY........................................................................................................................................................ 1 2. DEFINITION AND LIMITS ................................................................................................................................ 2 2.1 DEFINITION............................................................................................................................................................. 2 2.2 RESTRICTED BANDS OF OPERATION....................................................................................................................... 2 2.3 LIMITATION............................................................................................................................................................ 2 2.4 LABELING REQUIREMENT....................................................................................................................................... 4 2.5 USER INFORMATION............................................................................................................................................... 4 3 SYSTEM TEST CONFIGURATION ................................................................................................................... 5 3.1 JUSTIFICATION........................................................................................................................................................ 5 3.2 DEVICES FOR TESTED SYSTEM................................................................................................................................5 4. RADIATED EMISSION MEASUREMENT ...................................................................................................... 6 4.1 APPLICABLE STANDARD......................................................................................................................................... 6 4.2 MEASUREMENT PROCEDURE................................................................................................................................... 6 4.3 TEST DATA............................................................................................................................................................. 8 4.4 FIELD STRENGTH CALCULATION.......................................................................................................................... 10 4.5 ACTIVATE TIME.................................................................................................................................................... 10 4.6 CALCULATION OF DUTY FACTOR.......................................................................................................................... 10 4.7 RADIATED TEST EQUIPMENT................................................................................................................................12 4.8 MEASURING INSTRUMENT SETUP......................................................................................................................... 12 4.9 RADIATED MEASUREMENT PHOTOS...................................................................................................................... 13 5. BANDWIDTH OF EMISSION........................................................................................................................... 14 5.1 APPLICABLE STANDARD PLOT GRAPHIC OF BANDWIDTH..................................................................................... 14 5.2 BANDWIDTH TEST EQUIPMENT....................................................................…
