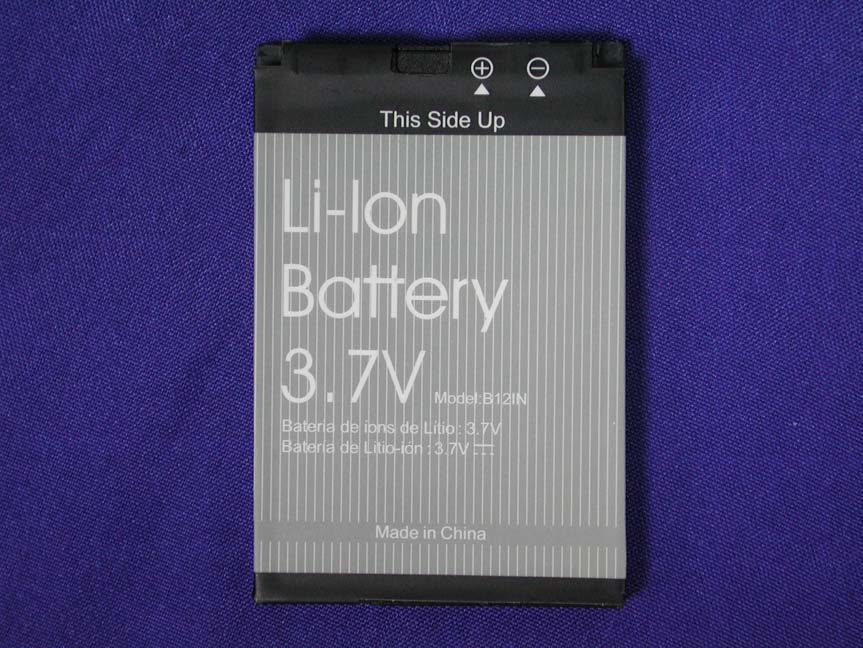

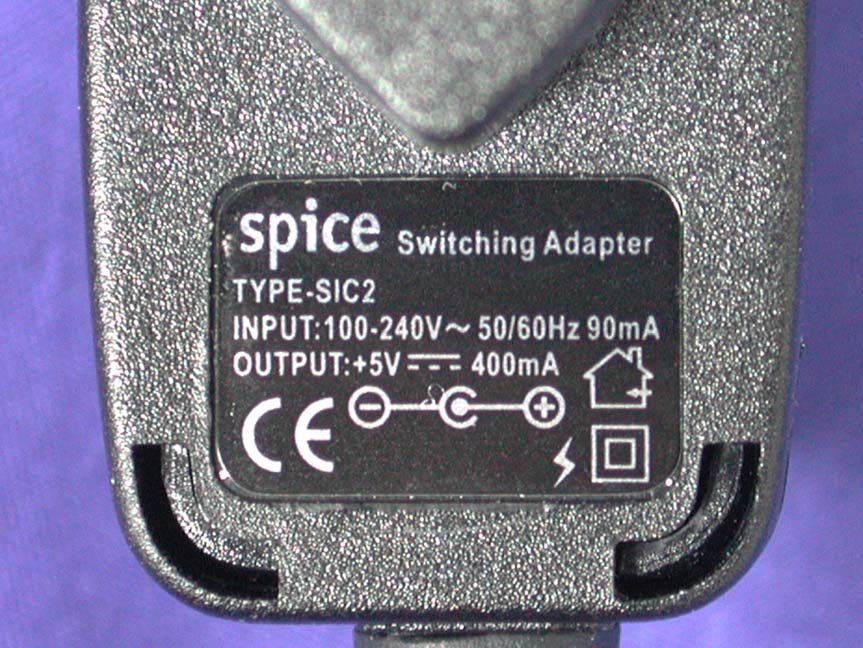

UPMCA11001CDMA Mobile Phone

Page 1 of 1 z Please read this manual before using your phone. z All illustrations in this user manual are for illustration only and may not accurately depict the actual phone. z We operate a policy of continuous development and reserve the right to make changes and improvements to any of the products described in this manual without prior notice. z In this manual, press a key means to press and release it immediately. Press and hold a key means to keep pressing it for about 2 seconds and then release it. Page 2 of 2 Table of Contents 1. Safety information.......................................................................................................................4 2. General information .................................................................................................................10 2.1 Checking the phone and accessories .................................................................................10 2.2 Illustrations of the phone and function..............................................................................10 2.3 Idle mode display .............................................................................................................. 11 2.4 Technical specifications ....................................................................................................12 2.5 Battery...............................................................................................................................12 2.5.1 Installing battery.....................................................................................................12 2.5.2 Removing battery ...................................................................................................13 2.5.3 Charging the battery ...............................................................................................13 2.6 Power the phone on/off .....................................................................................................14 2.7 Idle mode operations .........................................................................................................14 3. Basic Operations .......................................................................................................................15 3.1 Making a call.....................................................................................................................15 3.1.1 Making a call from idle ..........................................................................................15 3.1.2 Inserting a pause sign when dialing .......................................................................15 3.1.3 Call history dialing .................................................................................................15 3.1.4 Phone Book dialing ................................................................................................16 3.2 Answering/rejecting a call.................................................................................................16 3.3 Missed calls.......................................................................................................................16 3.4 During a call......................................................................................................................16 3.4.4 Searching for a number from the phonebook .........................................................16 3.6 Phone lock.........................................................................................................................16 3.7 Call waiting .......................................................................................................................17 4. Entering text ..............................................................................................................................17 4.1 Keypad mapping ...............................................................................................................17 5. The menus ..................................................................................................................................18 5.1 Menu Tree .........................................................................................................................18 5.2 Names ...............................................................................................................................20 5.2.1 Add name ...............................................................................................................20 5.2.2 Find ........................................................................................................................21 5.2.3 Groups ....................................................................................................................21 5.2.4 Erase all..................................................................................................................21 5.2.5 Speed dial ...............................................................................................................21 5.2.6 Memory status........................................................................................................21 5.3 Messages ...........................................................................................................................22 5.3.1 Write Message........................................................................................................22 5.3.2 Inbox ......................................................................................................................22 5.3.3 1234 service ...........................................................................................................23 5.3.4 Outbox....................................................................................................................23 5.3.5 Draft .......................................................................................................................23 5.3.6 Voice mail.........................…

Text truncated - open the document above for the full version.

2F, No.345, Xinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. TEL:+886-2-8792-6808 FAX:+886-2-8792-6628 Email:[email protected] http://www.quietek.com ATCB004200 | UPMCA11001 | Comments reply 1.) Please supply a parts list for this device. Answer: The parts list has upload to ATCB website. 2.) Please supply a tune up procedure for this device. Answer: We have supplied a tune up procedure of this device. 3.) Please supply a corrected Form 731 with an email address for the technical contact. Answer: We have supplied a corrected Form 731 with an email address for the technical contact. 4.) Please supply both frequency tolerance and emission designator on Form 731. Answer: We have supplied both frequency tolerance and emission designator on updated Form 731. 5.) The Manual contains none of the compliance information required for Licensed cellphones. Please review and provide. Answer: We have modify the user manual and upload to ATCB website. 6.) Please provide a more complete and detailed block diagram. Please pay particular attention to providing details for the “CDMA Module”. Answer: The more detail block diagram has upload to ATCB website. 7.) FYI: SAR reports should always go inside the “RF Exposure” folder, and not under “Test Reports”. 8.) Traditionally, IS-95/98 CDMA with 1.25MHz bandwidth will use a RBW of 30KHz when making occupied bandwidth measurements. The plots you provided in 4.5 use a RBW of 300KHz. Kindly revise this measurement while keeping the span at 5MHz. Answer: We have re-measured this item using a RBW of 30 KHz. Please see the updated report. 9.) Please provide the voltage and current through the final RF amplification device as specified in Part 2 of the Rules. Answer: Please see this information on section 1.7 of the page 7 of the updated report. 2F, No.345, Xinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. TEL:+886-2-8792-6808 FAX:+886-2-8792-6628 Email:[email protected] http://www.quietek.com 10.) Please provide a justification for any emission designator requested on Form 731 in the Test Report. Answer: We have put the emission designator on updated Form 731. 11.) The SAR reports have Z-axis plots which do not follow the classical fit curve. Usually this indicates that some problem may have occurred in the Test Setup with reflections inside the phantom, or from the surface of the fluid. Please review your data and comment. In addition, a Z-azis plot should be presented for both highest body and highest head SAR values. Answer: We have re-measured the SAR values for both body and head. 12.) The SAR report gives no indication of separation distance in the body-worn photographs. Answer: We have given the indication of separation distance on the body-worn photograph on Appendix C. Please see the updated Appendix C photographs.

4 Tune up procedure

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 27, 2006 RE: Inventec Appliances (Jiangning) Corporation FCC ID: UPMCA11001 I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) Please supply a parts list for this device. 2.) Please supply a tune up procedure for this device. 3.) Please supply a corrected Form 731 with an email address for the technical contact. 4.) Please supply both frequency tolerance and emission designator on Form 731. 5.) The Manual contains none of the compliance information required for Licensed cellphones. Please review and provide. 6.) Please provide a more complete and detailed block diagram. Please pay particular attention to providing details for the “CDMA Module”. 7.) FYI: SAR reports should always go inside the “RF Exposure” folder, and not under “Test Reports”. 8.) Traditionally, IS-95/98 CDMA with 1.25MHz bandwidth will use a RBW of 30KHz when making occupied bandwidth measurements. The plots you provided in 4.5 use a RBW of 300KHz. Kindly revise this measurement while keeping the span at 5MHz. 9.) Please provide the voltage and current through the final RF amplification device as specified in Part 2 of the Rules. 10.) Please provide a justification for any emission designator requested on Form 731 in the Test Report. 11.) The SAR reports have Z-axis plots which do not follow the classical fit curve. Usually this indicates that some problem may have occurred in the Test Setup with reflections inside the phantom, or from the surface of the fluid. Please review your data and comment. In addition, a Z-azis plot should be presented for both highest body and highest head SAR values. 12.) The SAR report gives no indication of separation distance in the body-worn photographs. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

(Classic501)BOM EE_1027 |-------------------------------------------------------------------------------| |Material DWG108ABCN01 CP22 Alt. Usage 1 | | D1,W,CN,01,ca11,B,SIR Valid 08/08/2006| |Reqd qty 1.000 EA Base Quant 1.000 EA | |Doc# | |-------------------------------------------------------------------------------| |Lv Item Component no. Gr Ve Doc# Pr S Usa Quant Un Ict Asm| | Description MS Change No. To Ex. | |-------------------------------------------------------------------------------| | 1 0010 6051A0609901 00 0 1.000 EA L | | COVER,DWG108A,BATTERY,01,BLK,A,GP,SINYON 02 12/31/9999 | | 1 0020 15101D14822A 00 0 1.000 EA L X | | 151,DWG108ABCN01,D1,CN,01 01 12/31/9999 | |-------------------------------------------------------------------------------| | 1 0000 15101D14822A 151,DWG108ABCN01,D1,CN,01 | | 2 0010 6051A0610301 00 0 1.000 EA L | | LENS,DWG108A,01,BLK,A,GP,DAJIN 02 12/31/9999 | | 2 0030 6054A0465701 00 0 1.000 EA L | | COVER,GWG108A,SCREW,01,SILICON,LEFT,GP 02 12/31/9999 | | 2 0040 6054A0465801 00 0 1.000 EA L | | COVER,DWG108A,SCREW,01,SILICON,RIGHT,GP 02 12/31/9999 | | 2 0050 6054A0218401 00 0 1.000 EA L | | RBHD,DW9022A,MIC,01,SILICON RUBBER,7.2x5 01 12/31/9999 | | 2 0060 6051A0612201 00 0 1.000 EA L | | KT,DWG108A,01,BLK,A,GP,SINCO 02 12/31/9999 | | 2 0080 6054A0466501 00 0 1.000 EA L | | FOAM,DWG108A,ANTENNA,01,PORON SRS-40P,3M 02 12/31/9999 | | 2 0090 6052A0019801 00 0 6.000 EA L | | SCREW,8T,14,3.5,M,WT,Zn,GP 01 500000016774 12/31/9999 | | 2 0100 6052A0035801 00 0 2.000 EA L | | SCREW,P,14,4.8,T,WT,Zn,GP 01 12/31/9999 | | 2 0110 6070A0274801 00 0 1.000 EA L X | | CASE-KT-TOP.SET,DWG108A,01,BLK,A,GP,SINY 02 12/31/9999 | | 2 0120 6070A0274901 00 0 1.000 EA L X | | CASE-KT-BOT.SET,DWG108A,01,SIR,A,BLK,GP, 02 12/31/9999 | | 2 0130 6039A0050701 00 0 1.000 EA L | | SPKR,YD-15C-56,GP,8ohm,0.8W,15x4.8,YUCHE 02 12/31/9999 | | 2 0140 6039A0053101 00 0 1.000 EA L | | MICP,B6022AL423-144,GP,-42dB,6x2.2,WEIFA 01 500000016786 12/31/9999 | | 2 0150 6042A0024901 00 0 1.000 EA L | | MOTOR,DM-YK614-2,N LF,3V,17.7x6.7x6.7,DM 01 12/31/9999 | | 2 0160 131MBD104823 00 0 1.000 EA L X | | 131,MB,DWG108ABCN01,D1,CN 01 12/31/9999 | | 2 0170 6017A0044601 00 0 1.000 EA L | | EARPHONE,ZX-RP2013-A,GP,DWG108A, 02 500000016786 12/31/9999 | | 2 0180 6041A0002901 00 0 1.000 EA L | | RECEIVER,SD-1206D-3,GP,32ohm,10mW,15.2x6 02 500000016786 12/31/9999 | |-------------------------------------------------------------------------------| | 2 0000 6070A0274801 CASE-KT-TOP.SET,DWG108A,01,BLK,A,GP,SINY | | 3 0010 6051A0609701 00 0 1.000 EA L | | CASE-KT-TOP,DWG108A,01,BLK,A,GP,SINYON 02 12/31/9999 | | 3 0020 6052A0020301 00 0 6.000 EA L | | SCREW,C,14,4,M,WT,Zn 02 500000016775 12/31/9999 | | 3 0030 6051A0610101 00 0 1.000 EA L | | PLATE,DWG108A,RECEIVER,01,A,GP,SINYON 02 12/31/9999 | | 3 0040 6053A0165601 00 0 1.000 EA L | | HOLDER,DWG108A,LCM,01,A,GP,XINCHUANG 02 500000016208 12/31/9999 | | 3 0050 6054A0466201 00 0 1.000 EA L | | FOAM,DWG108A,LCD,01,PORON SRS-40P,3M 467 02 500000016208 12/31/9999 | | 3 0060 6054A0471001 00 0 1.000 EA L | | FOAM,DWG108A,CASE-KT-TOP,01,3M 9888T,D,G 02 500000016208 12/31/9999 | |-------------------------------------------------------------------------------| | 2 0000 6070A0274901 CASE-KT-BOT.SET,DWG108A,01,SIR,A,BLK,GP, | | 3 0010 6051A0609801 00 0 1.000 EA L | | CASE-KT-BOT,DWG108A,01,SIR,A,GP,SINYON 02 12/31/9999 | | 3 0020 6051A0610201 00 0 1.000 EA L | | COVER,DWG108A,I/O,01,A,GP,SINYON 02 12/31/9999 | | 3 0030 6051A0610001 00 0 1.000 EA L | | PLATE,DWG108A,CASE-BOTTOM,01,BLK,A,GP,SI 02 12/31/9999 | | 3 0040 6054A0466301 00 0 1.000 EA L | | FOAM,DWG108A,SPEAKER,01,PORON SRS-40P,3M 02 12/31/9999 | | 3 0050 6054A0466401 00 0 1.000 EA L | | FOAM,DWG108A,MIC,01,PORON SRS-40P,3M 467 02 12/31/9999 | | 3 0060 6051A0637201 00 0 1.000 EA L | | COVER,DWG108A,EARPHONE,01,A,GP,SINYON 02 500000016208 12/31/9999 | 第 1 頁 (Classic501)BOM EE_1027 |-------------------------------------------------------------------------------| | 2 0000 131MBD104823 131,MB,DWG108ABCN01,D1,CN | | 3 0010 6053A0163801 00 0 1.000 EA L | | SHIELD,DWG108A,SHIELDING COVER,01,A,RF,G 02 12/31/9999 | | 3 0020 6053A0164001 00 0 1.000 EA L | | SHIELD,DWG108A,SHIELDING COVER,01,A,BB1, 02 12/31/9999 | | 3 0040 6024A0044101 00 0 1.000 EA L | | LCD,KGM347A0,GP,FSTN,34x52.5x2.7,GIANTPL 02 500000016115 12/31/9999 | | 3 0050 6053A0163701 00 0 1.000 EA L | | METAL.DOME,DWG108A,01,A,GP,QING 02 12/31/9999 | | 3 0060 111MBD104824 00 0 1.000 EA L X | | 111,MB,DWG108ABCN01,D1,CN 01 12/31/9999 | |-------------------------------------------------------------------------------| | 3 0000 111MBD104824 111,MB,DWG108ABCN01,D1,CN | | 4 0010 6013A0186101 00 0 19.000 EA L | | RES-CHIP,GP,0ohm,0402,5%,1/16W 02 500000016787 12/31/9999 | | 0001 R116 1.000 EA | | 0002 R302 1.000 EA | | 0003 R511 1.000 EA | | 0004 R804 1.000 EA | | 0005 RM104 1.000 EA | | 0006 RM205 1.000 EA | | 0007 RM206 1.000 EA | | 0008 RM215 1.000 EA | | 0009 RM217 1.000 EA | | 0010 RM218 1.000 EA | | 0011 RM221 1.000 EA | | 0012 RM303 1.000 EA | | 0013 RM304 1.000 EA | | 0014 RM311 1.000 EA | | 0015 R115 1.000 EA | | 0016 L501 1.000 EA | | 0017 L500 1.000 EA | | 0018 C512 1.000 EA | | 0019 C511 1.000 EA | | 4 0020 6013A0183901 00 0 4.000 EA L | | RES-CHIP,GP,1.2K,0402,5%,1/16W 01 12/31/9999 | | 0001 R110 1.000 EA | | 0002 R111 1.000 EA | | 0003 R112 1.000 EA | | 0004 R113 1.000 EA | | 4 0040 6013A0151301 00 0 3.000 EA L | | RES-CHIP,GP,2.2K,0402,5%,1/16W 02 500000016829 12/31/9999 | | 0001 R500 1.000 EA | | 0002 R805 1.000 EA | | 0003 RM102 1.000 EA | | 4 0050 6013A0238701 00 0 1.000 EA L | | RES-CHIP,GP,3.3Kohm,0402,1%,1/16W,YAGEO 02 500000016786 12/31/9999 | | 0001 RM211 1.000 EA | | 4 0060 6013A0151401 00 0 3.000 EA L | | RES-CHIP,GP,4.7K,0402,5%,1/16W 02 500000016829 12/31/9999 | | 0001 R106 1.000 EA | | 0002 R107 1.000 EA | | 0003 R709 1.000 EA | | 4 0070 6013A0184601 00 0 6.000 EA L | | RES-CHIP,GP,10K,0402,5%,1/16W 01 500000016787 12/31/9999 | | 0001 R708 1.000 EA …

Text truncated - open the document above for the full version.

Report No： 06AL075-HP-US-P04V01 Page: 1 of 21 Version:1.0 SAR Test Report Product Name：CDMA Mobile Phone Model No. ：Classic 501 Applicant ： Inventec Electronics (Nanjing) Co., Ltd. Address ： No. 100 Xian He Street. Nanjing 210006. P.R.China Date of Receipt ：2006/10/11 Issued Date ：2006/10/12 Report No. ：06AL075-HP-US-P04V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 06AL075-HP-US-P04V01 Page: 2 of 21 Version:1.0 Test Report Certification Issued Date: 2006/10/12 Report No.:06AL075-HP-US-P04V01 Product Name ： CDMA Mobile Phone Applicant ： Inventec Electronics (Nanjing) Co., Ltd. Address ： No. 100 Xian He Street. Nanjing 210006. P.R.China Manufacturer ： Inventec Electronics (Nanjing) Co., Ltd. Model No. ： Classic 501 Trade Name ： Classic Applicable Standard ： FCC Oet65 Supplement C June 2001 Test Result ： Max. SAR Measurement CDMA2000 (800MHz): 0.421W/kg Application Type Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By ： (Eva Huang) Tested By ： (Shine Hsu) Approved By ： (George Chen) Report No： 06AL075-HP-US-P04V01 Page: 3 of 21 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Test Environment ...........................................................................................................5 2. SAR Measurement System .................................................................. 6 2.1 ALSAS-10U System Description .................................................................................. 6 2.1.1 Applications ................................................................................................................ 6 2.1.2 Area Scans................................................................................................................... 6 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 7 2.1.4 ALSAS-10U Interpolation and Extrapolation Uncertainty......................................... 7 2.2 Isotropic E-Field Probe .................................................................................................. 7 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ................................................. 9 2.4 Daq-Paq (Analog to Digital Electronics) ..................................................................... 10 2.5 Axis Articulated Robot ................................................................................................ 10 2.6 ALSAS Universal Workstation.................................................................................... 11 2.7 Universal Device Positioner......................................................................................... 11 2.8 Phantom Types............................................................................................................. 11 2.8.1 APREL SAM Phantoms ........................................................................................... 12 2.8.2 APREL Laboratories Universal Phantom ................................................................. 12 3. Tissue Simulating Liquid ................................................................... 13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 14 4. SAR Measurement Procedure ........................................................... 15 4.1 SAR System Validation................................................................................................ 15 4.1.1 Validation Dipoles..................................................................................................... 15 4.1.2 Validation Result ....................................................................................................... 15 4.2 SAR Measurement Procedure ...................................................................................... 16 5. SAR Exposure Limits ......................................................................... 17 6. Test Equipment List............................................................................ 18 7. Measurement Uncertainty .................................................................. 19 Report No： 06AL075-HP-US-P04V01 Page: 4 of 21 Version:1.0 8. Test Results ......................................................................................... 20 8.1 SAR Test Results Summary ......................................................................................... 20 Appendix A. SAR System Validation Data........................................................................ 21 Appendix B. SAR measurement Data................................................................................ 21 Appendix C. Test Setup Photographs & EUT Photographs............................................... 21 Appendix D. Probe Calibration Data ................................................................................. 21 Appendix E. Dipole Calibration Data ................................................................................ 21 Report No： 06AL075-HP-US-P04V01 Page: 5 of 21 Version:1.0 1. General Information 1.1 EUT Description Product Name CDMA Mobile Phone Trade Name Classic Model No. Classic 501 FCC…

Text truncated - open the document above for the full version.

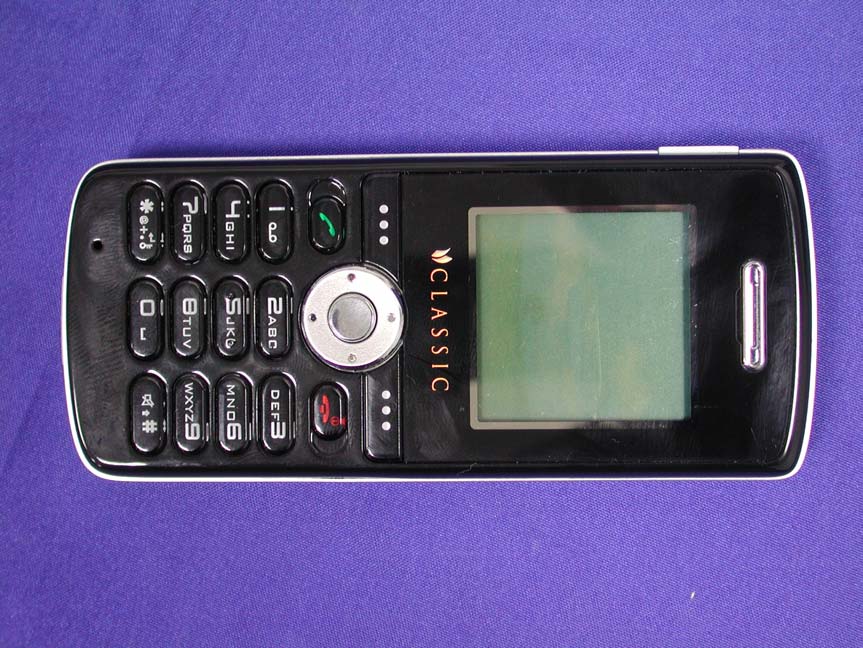

Report No.06AL075-HP-US-P10V01 Page: 1 of 32 Version:1.0 Test Report Product Name : CDMA Mobile Phone Model No : Classic 501 FCC ID : UMPCA11001 Applicant : Inventec Appliances (Nanjing) Co., Ltd. Address : No. 100 Xian He Street. Nanjing 210006. P.R.China Date of Receipt : 2006/10/11 Issued Date : 2006/10/12 Report No. : 06AL075-HP-US-P10V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No.06AL075-HP-US-P10V01 Page: 2 of 32 Version:1.0 Test Report Certification Issued Date: 2006/10/12 Report No.:06AL075-HP-US-P10V01 Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name : CDMA Mobile Phone Applicant : Inventec Appliances (Nanjing) Co., Ltd. Address : No. 100 Xian He Street. Nanjing 210006. P.R.China Manufacturer : Inventec Appliances (Nanjing) Co., Ltd. Model No. : Classic 501 Rated Voltage : AC 120V/60Hz Trade Name : Classic Measurement Standard : FCC CFR Title 47 Part2 22 Measurement Reference : TIA/EIA 603-A Test Result : Complied Documented By : (Eva Huang) Tested By : (Shine Hsu) Approved By : (George Chen) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No.06AL075-HP-US-P10V01 Page: 3 of 32 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ............................................................................................ 4 1.1. EUT Description ........................................................................................................... 4 1.2. Operational Description............................................................................................... 4 1.3. Configuration of tested System .................................................................................. 4 1.4. EUT Setup Procedures ................................................................................................ 6 1.5. Test Facility ...................................................................................................................6 1.6. Type of Emission .......................................................................................................... 7 1.7. DC voltages and DC currents ...................................................................................... 7 2. Peak Power Output ...................................................................................................... 8 2.1. Test Equipment............................................................................................................. 8 2.2. Test Setup .....................................................................................................................8 2.3. Limits ............................................................................................................................. 9 2.4. Test Procedure.............................................................................................................. 9 2.5. Test Specification ......................................................................................................... 9 2.6. Test Result of Peak Power Output ............................................................................ 10 3. Modulation Characteristics ....................................................................................... 12 3.1. Test Equipment........................................................................................................... 12 3.2. Test Setup ................................................................................................................... 12 3.3. Modulation Description.............................................................................................. 12 3.4. Test Specification ....................................................................................................... 13 3.5. Test Result of Modulation Characteristics............................................................... 14 4. Occupied Bandwidth.................................................................................................. 15 4.1. Test Equipment........................................................................................................... 15 4.2. Test Setup ................................................................................................................... 15 4.3. Test Procedure............................................................................................................ 15 4.4. Test Specification ....................................................................................................... 16 4.5. Test Result of Occupied Bandwidth ......................................................................... 17 5. Spurious Emission At Antenna Terminals (+/-1MHz) .............................................. 19 5.1. Test Equipment........................................................................................................... 19 5.2. Setup ...........................................................................................................................19 5.3. Limits ........................................................................................................................... 20 5.4. Test Procedure............................................................................................................ 20 5.5. Test Specification ....................................................................................................... 20 5.6. Spurious Emission At Antenna Terminals (+/-1MHz) .............................................. 21 6. Spurious Emission ..................................................…

Text truncated - open the document above for the full version.
