UQOLC-330CCURTAIN CONTROLLER

1 Product Name: Contact Driving Controller Model No. : LC-330C P/N: LC-330C_20130109 Specification: z RF : 433.92 MHz z Power: AC - 110V ~ 240V z AC Max. Power loading: 2A (~1/4HP) z Use remote to set ID & position. AC Mode Dry Contact Mode Application: Integrate various motor curtain, gas valve, door, lock..., etc. with control system. Features: z Touch, RF Remote, Power Control 3 in 1 design. z RF wireless receive function z Induction touch control: Open(Up), Stop, Close(Down) z Detachable Panel, self-expression under paper design. z Control Output ( Alternative ) - AC 100V～240V, forward/reverse control - DO dry contact output x 2 suites z Programmable route for power saving. z Installation: Standard European in-wall gang box Note! Please make sure the control mode of your equipment before installation to avoid from burning down CS-330C or your equipment. 2 Setting A. Set ID & Position 1. You may use any remote controller of to input (set) ID & position to LC-330C 2. Use haptor to remove the panel. (Please check appendix for the details) 3. Use setup stick to push & let go SET button, buzzer Bi a sound, LED indicator blink 3 times & turn off. Now it’s under learning mode 4. Pick up a remote controller, press a NO. key then press ON. (ex. Press Zone 1, No.1 & ON) 5. LC-330C will record the ID & position of the remote controller, buzzer Bi twice, LED indicator blink twice then goes off – the learning is done. 6. If you don’t press any button within 10 second, buzzer will make a long Bi then exit the learning mode. B. Route Setting：This is the way to control the period of motor spinning forward/reverse for the reason of power saving. 1. Enter Learning Mode: Use setup stick to push & let go SET button, buzzer Bi a sound, LED indicator blink 3 times & turn off. Now it’s under learning mode 2. Enter Route Learning Mode: Use setup stick to push & let go SET button again. At this moment, all LEDs are ON. 3. Touch Key 1(forward) once, buzzer will start to count the timing with Bi in every second & 3 LEDs blink. (The count will be going till 255 seconds Max.) 4. When the count reach the timing of you need, press STOP. Buzzer will Bi twice & LEDs stop blinking – the route is set. [Ex. 1] Set the route of curtain a. Enter Learning Mode b. Zero the curtain: Press key2 (Reverse) till the curtain completely open/close. b. Enter Route Learning Mode c. Start to set the route: Touch Key 1(forward) once, buzzer & LED will start to count. Touch STOP as the curtain completely close/open. [Ex. 2] Trigger other device – relay touch 1 second & recover (open) a. Enter Learning Mode b. Enter Route Learning Mode c. Set Relay Touch Time: Touch Key 1(forward) once, buzzer & LED will start to count. While LED blinks & buzzer Bi one time, touch STOP to stop the count. C. Set Relay Always Close (Cancel Route Time) a. Enter Learning Mode b. Enter Route Learning Mode c.Touch Key 1(forward) once & touch STOP before Buzzer & LED start to count. Note: This setting will makes the relay always close as you touch Forward/Reverse, unless you touch [STOP]. REMARK! 1. The Route Time is 1~255 second, the default is 90 second. 2. The Route Time of Forward /Reverse is same. 3. We strongly suggest LC-330C should be collocated with those product obtains limit switch function. 4. When all settings are completed. There are 30 seconds window for the touch sensor re-scan after front panel mount on. After 30 seconds, you may touch & control the panel normally. 3 -------------------------------------------------------------------------------------------------------------------------------- 1. Forward/Reverse: Touch [Forward]/[Reverse] the relay will close according the time you’ve set. 2. Press [Forward]; while the relay is still closing, touch [STOP] or [Reverse], relay will open. 3. Press [Reverse]; while the relay is still closing, touch [STOP] or [Forward], relay will open. 4. Follow [2.] & [3.], touch [Forward] or [Reverse], LC-330C will restart route counting till the action is interrupted or the time is up & the relay is recovered to the open mode. 5. Reverse Code control: some of e2-LiVE’s remote controllers can transmit reverse code to control LC-330C(ex. BT-100, CS-330T, MS-X0T, LS-X0T..., etc.) which can use only one key to control LC-330C. For example, One press the remote button, LC-330C the [Forward] relay is closed, will act reversely. Press the same remote button again, the relay will open. Press the same remote button, [Reverse] relay will close... 6. Control with an e2-LiVE remote controller: a.) choose Zone b.) choose position c.) press ON/OFF to control. Note: Remote controller has no STOP button, we use ON/OFF to remote control LC-330C. Ex.: Press ON – LC-330C’s the Forward relay is closing, press OFF the relay will open. Press OFF again the Reverse relay will close... Operation Annex A：Install / uninstall Panel [Uninstall] Put the sucker on the marked spot, press to squeeze out air & make sure the sucker is fixed, then pull out of the panel. [Install] There are 2 latches on the top of the panel, & a crystal in the buttom. there is 2 slot for those 2 latches & a magnet for crystal. PLS make sure the direction correctly. Slide latches into slots first then press the crystal side into the magnet side till the panel sink completely. Pull！ FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

LC-330C Circuit Block Diagram AC TO DC LED Indicator Buzzer RELAY TRIAC EEPROM MCU Capacitive Touch Switch RF Receiver Circuits

TECHCity Technology Co., Ltd. Model: LC-330C REPORT NO.: STR12108166I FCC PART 15B EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 TECHCity Technology Co., Ltd. Model: LC-330C REPORT NO.: STR12108166I FCC PART 15B EUT View 3 EUT View 4 TECHCity Technology Co., Ltd. Model: LC-330C REPORT NO.: STR12108166I FCC PART 15B EUT View 5 EUT View 6

TECHCity Technology Co., Ltd. Model: LC-330C REPORT NO.: STR12108166I FCC PART 15B EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: UQOLC-330C This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

TECHCity Technology Co., Ltd. Model: LC-330C REPORT NO.: STR12108166I FCC PART 15B EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: UQOLC-330C This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

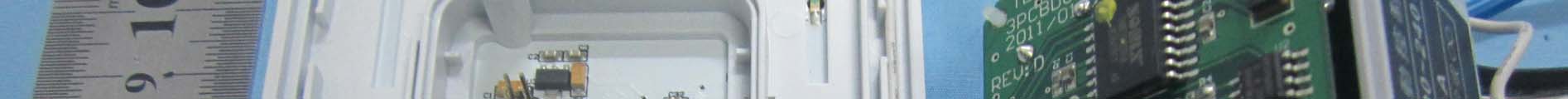

TECHCity Technology Co., Ltd. Model: LC-330C REPORT NO.: STR12108166I FCC PART 15B EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 TECHCity Technology Co., Ltd. Model: LC-330C REPORT NO.: STR12108166I FCC PART 15B Solder Board-Component View 2 Solder Board-Component View 3 RX Ant. 433.92MHz TECHCity Technology Co., Ltd. Model: LC-330C REPORT NO.: STR12108166I FCC PART 15B Solder Board-Component View 4 Solder Board-Component View 5 TECHCity Technology Co., Ltd. Model: LC-330C REPORT NO.: STR12108166I FCC PART 15B Solder Board-Component View 6 Solder Board-Component View 7 TECHCity Technology Co., Ltd. Model: LC-330C REPORT NO.: STR12108166I FCC PART 15B Solder Board-Component View 8

LC-330C Circuits Descriptions 1. AC power pass through AC Module, converting AC power as DC power (12V), then being converted as DC 5Vvia 78L05, to supply M board & T board. The circuit protection part of power board is a 4A fuse for current overload, & surge absorbers deployed at Hot & Load line to prevent sudden surge impact. When the 1 st second of switch ON, the TRIAC bears the big current then the relay take over to prevent the surge directly strike down the relay. 2. There are 2 ways to control the loading line: a.) Touch the capacitive sensing zone on T board to control. b.) Use an RF remote controller to transmit a series of specific digital radio frequency code to the receiver of the switch & the MCU decides to turn ON /STOP/OFF.

1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 19-Sep-2012 Sheet of File: D:\01 -s ong 資資資 \17C-DO-30R 窗窗窗窗窗 \02 -Layout\REV_ D_ 20 1101 27\MyDes ign\MyDesig n. d db Drawn By: REV:D 2011/01/27 5V 窗窗窗窗窗 通通通通 CRSTL1 1 VCC3 2 LN1 3 TAGC 4 GND 5 LNO 6 VCC2 7 MI 8 MIX 9 GND2 10 FSEL 11 IFO 12 GND1 13 VCC 14 LF 15 CSEL 16 LIM 17 LIMX 18 SLP 19 SLN 20 OPP 21 FFB 22 THRES 23 3VOUT 24 DATA 25 PDO 26 PDWN 27 CRSTL2 28 UA1 TDA5200 CA8 102P CA9 104 RA6 1K CA7 3pF CA5 100pF LA3 22nH CA6 100pF CA18472P CA17100P CA16 103P CA15 330P CA14 8.2pF CA13 15pF RA5 180K RA4 120K CA12 470pF CA11473P RA3 100K RA2 10K CA1100P CA26P LA1 33NH CA3NA ANT 5V X110.7M X2 433.92 MHZ 5V UP_LEDDown_LED JACKSON Triac Relay-1 Relay-2 1 2 3 4 5 6 7 8 J2HEADER 4X2 P5.3 9 P5.1 7 VSS 5 INT0/P0.0 3 RST/VPP/P1.5 4 P1.3 2 P5.5 11 P5.2 8 P5.4/BZ0/PWM0 10 VDD 14 P5.7 13 XIN 16 P5.0 6 P5.6 12 P1.1 18 P1.2 1 P1.0 17 XOUT/P1.4 15 SN8P2602B U1SN8P2602B R3220k R139K C1104 R2220K A0/WP 1 A2 3 GND 4 A1 2 TEST 7 VCC 8 SCL 6 SDA 5 U224C02/SOP R4220k SET C2104 4MHZXTAL SET_SW 6.6mA RF_RX SW1 BEEP 12 J3 BEEP Zero Zero 5V RF_RX 123456789 J1 CON9 KEY1 KEY1KEY2 KEY3 KEY2KEY3 Stop_LED ALL_LED R12220k R13220k R14220k R5 1.5K R7 1.5K R9 1.5K KEY1KEY2KEY3 ALL_LED A1 1 A2 4 A3 9 A4 12 B1 2 B2 5 B3 10 B4 13 Y1 3 Y2 6 Y3 8 Y4 11 VCC 14 GND 7 U374HC08 1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 19-Sep-2012 Sheet of File: D:\01 -s ong 資資資 \17C-DO-30R 窗窗窗窗窗 \02 -Layout\REV_ D_ 20 1101 27\MyDes ign\MyDesig n. d db Drawn By: REV: C 2010/11/15 C7 22u/25V 窗窗窗窗窗 C8 104 AC+IN AC-IN C9104 C10 47u/16V OUT IN GND A1 78L05 Z2 SMDJ12A JACKSON VCC VCC R7 220K Z16.2V R8 1M R6 2M C5472 最 最最最最 最最最最 最最最最 最最最 29mA 3 12 4 K2 DC12V 可可可 DC12V/120mA D6 1N4148 R15 10K Q33904R14 100 繼 繼繼繼最 最最最窗 窗窗窗最 最最最最 最最最 9.5V 28mA( 串 串串串 100R) 繼 繼繼繼最 最最最窗 窗窗窗最 最最最最 最最最 8.2V 25mA( 串 串串串 150R) D5 1N4148 AC+IN 3 12 4 5 K1 R10 330 2 1 3 Q1 TRIAC 6 13 4 2 5 MOC3010U2 KMOC3023 R91K C6103/630V Q23904R12 100 R13 10K S1 SW SPDT AC-POWER Motor 正正反正Neutral AC 模模 乾乾乾模模 乾乾乾模模乾 OFF 輸輸 乾乾乾模模乾 ON 輸輸 123456789 J2 CON9 4A ( 使使使窗使 2A ，避避避避避避最避避最 ) NCNO R1 10 1/2W 1 2 F1 FUSE_1 黑白 V1 470V/10mm DC12V 12 J1CON2 1234 J3 AC-POWER NeutralLine Line Neutral V2 470V/10mm 1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 3-Oct-2012 Sheet of File: D:\01 -SON G 資料夾 \01A2-LC-X0T\02-Layout\ 觸控板 \20110107-LC 最終版 \MyD es ig n\MyD es ig n.dd b Drawn By: LC Touch Panel(3KEY) JACKSON REV:J 2010/03/02 LED1 KEY1 KEY2 KEY3 LED2 LED3 ATmega48 ATmega48 KEY1KEY2KEY3 C5104 PD3 1 PD4 2 GND 3 VCC 4 GND 5 VCC 6 PB6 7 PB7 8 PD5 9 PD6 10 PD7 11 PB0 12 PB1 13 PB2 14 PB3 15 PB4 16 PB5 17 AVCC 18 AREF 20 ADC6 19 GND 21 ADC7 22 PC0 23 PC1 24 PC2 25 PC3 26 PC4 27 PC5 28 PC6 29 PD0 30 PD1 31 PD2 32 U1ATmega48_MLF-32 VCC VCC PD0PD1PD2RST VCC C2104 C3104 5V C4 10u/16V A_TYPE C1 10u/16V Vin 3 GND 2 Vout 1 U3AIC1722A-33CXTTR SOT89 3.3V 1 2 3 4 5 6 7 8 J1 HEADER 4X2 VCC 123456 J2CON6 RST 燒錄 Port MOSIMISOSCK 1 KEY1CON1 1 KEY2CON1 1 KEY3CON1 R31 1K R21 1K R11 1K C31 223 C21 223 C11 223 PD0PD1PD2 C32 223 C22 223 C12 223 Pin27 = SDAPin28 = SCL

TECHCity Technology Co., Ltd Model: LC-330C REPORT NO.: STR12108166I PAGE 1 OF 14 FCC PART 15B FCC Part 15B Measurement and Test Report For TECHCity Technology Co., Ltd. 4F., No.4, Aly. 1, Siwei Ln., Zhongzheng Rd., Xindian Dist., New Taipei City 231, Taiwan( R.O.C.) FCC ID: UQOLC-330C Test Standards: FCC Part 15 Subpart B Product Description: Curtain Controller Tested Model: LC-330C Report No.: STR12108166I Tested Date: 2012-10-22 to 2012-12-24 Issued Date: 2013-01-16 Tested By: Daniel Liu / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd TECHCity Technology Co., Ltd Model: LC-330C REPORT NO.: STR12108166I PAGE 2 OF 14 FCC PART 15B TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................4 1.3 TEST METHODOLOGY.............................................................................................................................................4 1.4 TEST FACILITY.......................................................................................................................................................4 1.5 EUT SETUP AND OPERATION MODE......................................................................................................................5 2. SUMMARY OF TEST RESULTS ...........................................................................................................................6 3. CONDUCTED EMISSIONS ....................................................................................................................................7 3.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 3.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 3.3 TEST PROCEDURE...................................................................................................................................................7 3.4 BASIC TEST SETUP BLOCK DIAGRAM.....................................................................................................................7 3.5 ENVIRONMENTAL CONDITIONS..............................................................................................................................8 3.6 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................8 3.7 CONDUCTED EMISSIONS TEST DATA......................................................................................................................8 4. RADIATED EMISSIONS .......................................................................................................................................11 4.1 MEASUREMENT UNCERTAINTY............................................................................................................................11 4.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................11 4.3 TEST PROCEDURE.................................................................................................................................................11 4.4 TEST RECEIVER SETUP.........................................................................................................................................12 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................12 4.6 ENVIRONMENTAL CONDITIONS............................................................................................................................12 4.7 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................12 TECHCity Technology Co., Ltd Model: LC-330C REPORT NO.: STR12108166I PAGE 3 OF 14 FCC PART 15B 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: TECHCity Technology Co., Ltd. Address of applicant: 4F., No.4, Aly. 1, Siwei Ln., Zhongzheng Rd., Xindian Dist., New Taipei City 231, Taiwan( R.O.C.) Manufacturer: TECHCity Technology Co., Ltd. Address of manufacturer: 4F., No.4, Aly. 1, Siwei Ln., Zhongzheng Rd., Xindian Dist., New Taipei City 231, Taiwan( R.O.C.) General Description of EUT Product Name: Curtain Controller Trade Name: e-live Model No.: LC-330C Adding Model(s): / Note: The test data is gathered from a production sample, provided by the manufacturer. Technical Characteristics of EUT Frequency Range: 433.92 MHz (Rx) Antenna Type: Integral Antenna Modulation: ASK Rated Voltage: AC 100~240V Rated Current: 2A Rated Power: 480W Lowest Internal Frequency: 4MHz TECHCity Technology Co., Ltd Model: LC-330C REPORT NO.: STR12108166I PAGE 4 OF 14 FCC PART 15B 1.2 Test Standards The following report is prepared on behalf of the TECHCity Technology Co., Ltd. in accordance with Part 2, Subpart J, and Part 15, Subparts A and B of the Federal Communication Commissions rules. The objective is to determine compliance with FCC Part 15, Subpart B,…

Text truncated - open the document above for the full version.

TECHCity Technology Co., Ltd. Model: LC-330C REPORT NO.: STR12108166I FCC PART 15B EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (Below 30MHz) TECHCity Technology Co., Ltd. Model: LC-330C REPORT NO.: STR12108166I FCC PART 15B Radiation Emission Test Setup (30MHz to 1GHz)
