UQUAT0306GPS Tracking Device

August 2006 GPRS Dual Band Asset Tracking Device (850/1900 MHz) Model: AT0303KE Owner’s Manual & Reference Guide AssetTrac © by Columbus Nova Technology Group, LLC All rights reserved — The Specifications and information regarding the products in this manual are subject to change without notice. All statements, information, and recommendations in this manual are believed to be accurate but are represented without warranty of any kind, express or implied. Users must take full responsibility for their applications of any Products. Reproduction of the contents of this manual, in whole or in part, without written permission of Columbus Nova Technology Group, LLC, is prohibited . Page 2 Important! Before installing, turning on or operating the NovaTrack AssetTrac™, ensure compliance with all safety regulations. ! Page 3 INDEX 1 - Introduction 5 Overview 5 2 - Features 6 Enhanced Features 6 Event Modes 7 Hardware & Software Requirements 7 3 - Hardware Installation 8 Before Installing 8 4 – Hardware Operation 9 Powering on the AssetTrac 9 Understanding the LEDs 9 Interference with Other Devices 9 5 - Specifications 10 6 – Accessories 12 7 – Warnings and Notes 13 8 – Trouble Shooting Guide 14 9 – Frequently Asked Questions 16 Notes 17 Page 4 Page 5 1. Introduction Overview CNTG’s AssetTrac™ provides a very low cost but powerful solution for asset tracking and other GPS (Global Positioning System) tracking applications. It is a compact, completely self-contained end-user device, which can operate on four AA batteries. It is encased in a durable, light, waterproof case and weighs about 8 ounces (without batteries) and 11.5 ounces with batteries installed. The AssetTrac™ combines GPS technology with GSM (Global System for Mobile Communication) cell phone networks, and was designed for multiple applications such as vehicle tracking, security, monitoring, recovery, remote control, and GPS data logging. The AssetTrac™ delivers a reliable, power-efficient, cost-effective solution for a wide range of situations where you need infrequent or occasional position updates. It is especially useful for tracking construction equipment, non-tethered trailers, etc. It works with any private or public IP network architecture. The AssetTrac™ locater periodically transmits position reports at a user-selectable interval while in motion, on demand, or at a regularly scheduled time. This makes the unit more efficient and reduces communications costs. Typically the AssetTrac™ will function in many areas inside of a vehicle. The AssetTrac™ may also be mounted with brackets inside or outside of the vehicle/asset or attached with a strong magnet. The AssetTrac™ requires no external antennas or connections. This flexibility reduces or eliminates the need for expensive installations. The AssetTrac™ is an event-driven system, i.e. messages are sent based on events, some of which can be pre-set based on certain parameters. Among these events are: • Time-based events - Reporting on a scheduled basis, commonly 1/day, 4/day, 8/day. • Motion-based events - The unit reports in when it sense motion, then will check for motion again after a set time. • Polling events - Unit remains active and will wake and report when it receives a message or phone call. Page 6 2. Features • Water-resistant • Built in Motion Sensor - saves battery life; only sends position reports when the vehicle/asset begins to move. This minimizes power consumption thereby reducing communication costs • Reporting Intervals - can be set to report in various intervals • Internal Antennas - no external wires; GSM and GPS Antennas are both internal. • Polling – When set, the unit will report in if it receives a phone call or text message. • Remote Updates - You can remotely change the reporting frequency from the internet, without having to remove the device from the car/asset. • Geo-fencing - Users are alerted when these vehicles cross 'geofence' boundaries that have been assigned to monitor and report their locations. • Uses four AA standard Batteries - cost effective - can last up to 9 months. • All-In-One Design - GPS Receiver, Cell Modem, Motion Sensor, Batteries and SIM card are all in one unit. Enhanced Features Users can poll the unit in real time to request the current location of the AssetTrac™ on- demand or receive a regularly scheduled report. For example, if you would like to keep costs down, the unit can be configured to periodically log, but not report, its current position. The user can also poll the device and it will compute a new position on-demand, or, if it has not moved since the last position was logged, it will immediately return its most recently logged position. Polling mode must be active to call the unit, while in polling mode the battery life will be shortened greatly. Alternately, it can be programmed to report on a regular daily or weekly schedule. The AssetTrac™ can operate for approximately one week on a set of four AA batteries during normal use with good GPS visibility. These easy-to-access batteries provide simple and low-cost maintenance and operation. The AssetTrac™ unit comes with the ability to gauge the battery level remaining in four AA batteries. This information is normally displayed as a percentage, 100% is full power and 0% for zero power. Note: Battery life can be greatly affected by the surrounding temperatures. Battery life decreases as the surrounding temperature decreases. Page 7 Event Modes • Time only Mode • Motion only Mode • Time and Motion Mode Hardware & Software requirements (for GPRS 850/1900): GSM/GPRS coverage for the USA, Canada, Mexico, and countries in Central and South America (except Brazil) is at 850/1900 MHz bands. The AssetTrac™ is delivered without a SIM card. SIM cards must be purchased and registered with your local GPRS carrier. GPRS works through SMS (Short Message Service) which is also commonly known as Text Messaging Service. Once you have the SIM Card, place it into the SIM card holder of As…

Text truncated - open the document above for the full version.

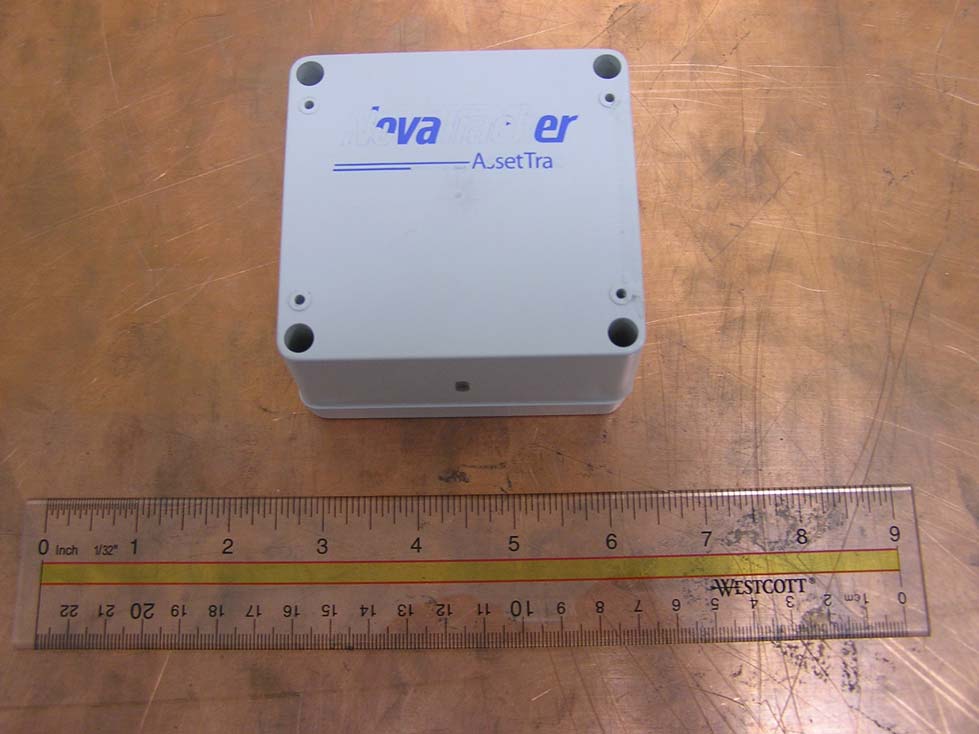

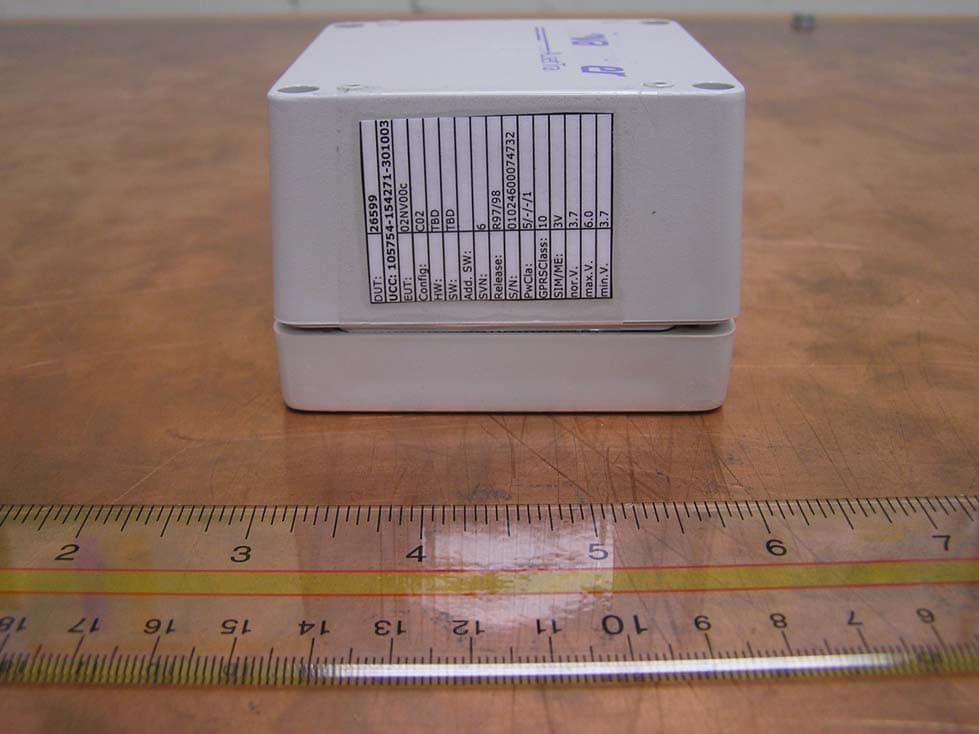

PAGE 1 OF 9 EUT External Photos FOR: GPS Tracking Device MODEL #: AT0303KE Columbus Nova Technology Group, LLC DBA NovaTracker 11 Commerce Drive. Lobby Floor Cranford, NJ 07016 USA FCC ID: UQUAT0306 TEST REPORT #: NOVA2_001_06001_FCC22_24 DATE: 2006-12-20 Bluetooth Qualification Test Facility (BQTF) FCC listed# 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May © Copyright by CETECOM PAGE 2 OF 9 Table of Contents .................................................................................................................................... 3 1ASSESSMENT .............................................................................................................. 4 2EUT EXTERNAL PHOTOS 2.1 .............................................................................................................................. 4 EUT TOP VIEW 2.2 ............................................................................................................................. 5 EUT SIDE VIEW 2.3 ............................................................................................................................. 6 EUT SIDE VIEW 2.4 ............................................................................................................................. 7 EUT SIDE VIEW 2.5 ............................................................................................................................. 8 EUT SIDE VIEW 2.6 ...................................................................................................................... 9 EUT BOTTOM VIEW This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. PAGE 3 OF 9 1 Assessment The following is in compliance with the applicable criteria specified in FCC rules Parts 2, 22 and 24 of Title 47 of the Code of Federal Regulations and in compliance with the applicable criteria specified in Industry Canada rules RSS132 and RSS133. Company Description Model # Columbus Nova Technology Group, LLC DBA NovaTracker GPS Tracking Device AT0303KE Date: 12/20/2006 Name: Peter Mu Title: Project Engineer Company: Cetecom Inc. Address: 411 Dixon Landing Rd, Milpitas, CA 95035, USA Phone: +1 408 586 6221 Email: [email protected] This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. PAGE 4 OF 9 2 EUT EXTERNAL PHOTOS 2.1 EUT Top View This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. PAGE 5 OF 9 2.2 EUT Side View This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. PAGE 6 OF 9 2.3 EUT Side View This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. PAGE 7 OF 9 2.4 EUT Side View This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. PAGE 8 OF 9 2.5 EUT Side View This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. PAGE 9 OF 9 2.6 EUT Bottom View This report shall not be reproduced except in full without the written approval of: CETECOM, Inc.

AT0303KE_Label_Location FCC ID: UQUAT0306

PAGE 1 OF 7 EUT Internal Photos FOR: GPS Tracking Device MODEL #: AT0303KE Columbus Nova Technology Group, LLC DBA NovaTracker 11 Commerce Drive. Lobby Floor Cranford, NJ 07016 USA FCC ID: UQUAT0306 TEST REPORT #: NOVA2_001_06001_FCC22_24 DATE: 2006-12-20 Bluetooth Qualification Test Facility (BQTF) FCC listed# 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May © Copyright by CETECOM PAGE 2 OF 7 Table of Contents .................................................................................................................................... 3 1ASSESSMENT ............................................................................................................... 4 2EUT INTERNAL PHOTOS This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. PAGE 3 OF 7 1 Assessment The following is in compliance with the applicable criteria specified in FCC rules Parts 2, 22 and 24 of Title 47 of the Code of Federal Regulations and in compliance with the applicable criteria specified in Industry Canada rules RSS132 and RSS133. Company Description Model # Columbus Nova Technology Group, LLC DBA NovaTracker GPS Tracking Device AT0303KE Date: 12/20/2006 Name: Peter Mu Title: Project Engineer Company: Cetecom Inc. Address: 411 Dixon Landing Rd, Milpitas, CA 95035, USA Phone: +1 408 586 6221 Email: [email protected] This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. PAGE 4 OF 7 2 EUT INTERNAL PHOTOS This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. PAGE 5 OF 7 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. PAGE 6 OF 7 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. PAGE 7 OF 7 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc.

FCC-ID UQUAT0306\ IC-ID (Industry Canada) PREDICTION OF MPE AT A GIVEN DISTANCE Calculations can be made to predict RF field strength and power density levels around typical RF sources using the general equations (3) and (4) on page 19 of the following FCC document: “OET Bulletin 65, Edition 97-01 - Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields”. These equations are generally accurate in the far field of an antenna but will over predict power density in the near field, where they could be used for making a “worst case” prediction. S = PG/4πR 2 (3) Where S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units e.g. mW) G = power gain of the antenna in the direction of interest relative to the isotropic radiator R = distance to the center of radiation of the antenna (appropriate units e.g. cm) or, S = EIRP/4πR 2 (4) Where EIRP = Equivalent Isotropically radiated power General Limits: §1.1307 Cellular Radiotelephone Service (subpart H of part 22) Non-building-mounted antennas: height above ground level to lowest point of antenna < 10 m and total power of all channels > 1000 W ERP (1640 W EIRP) §1.1307 Personal Communications Services (part 24) Broadband PCS (subpart E): non-building-mounted antennas: height above ground level to lowest point of antenna < 10 m and total power of all channels > 2000 W ERP (3280 W EIRP) §1.1310 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) (B) Limits for General Population/Uncontrolled Exposure 300–1500 MHz: f/1500 mW/cm² 1500–100,000 MHz: 1.0 mW/cm² §2.1091 No routine evaluation required when the device ...operate at frequencies of 1.5 GHz or below and their effective radiated power (ERP) is 1.5 watts or more, or if they operate at frequencies above 1.5 GHz and their ERP is 3 watts or more. FCC-ID UQUAT0306\ IC-ID (Industry Canada) §24.232 (a) Base stations are limited to 1640 watts peak equivalent isotropically radiated power (e.i.r.p.) with an antenna height up to 300 meters HAAT. b) Mobile/portable stations are limited to 2 watts e.i.r.p. peak power, ... §22.913 (a) Maximum ERP. The effective radiated power (ERP) of base transmitters and cellular repeaters must not exceed 500 Watts. The ERP of mobile transmitters and auxiliary test transmitters must not exceed 7 Watts. The table below is excerpted from Table 1B of 47 CFR 1.1310 titled “Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure” Frequency Range (MHz) Power Density (mW/cm 2 ) 300 -1500 f/1500 1500 - 100000 1.0 Prediction for Part 22 Maximum radiated power EIRP: 21.8809dBm (154mW) @ 848.8MHz Lowest limit for 850 MHz fixed operations (@20cm) where no routine evaluation is required is § 1.1310: (f/1500)mW/cm 2 =0.5659 mW/cm 2 Calculated at distance of 20cm: Power density = 154 / (4 x pi x 20 2 ) = 0.0306 mW/cm 2 Result: Configuration complies with rules as power density is below MPE limit. Prediction for Part 24 Maximum radiated power EIRP: 31.0942dBm (1290mW) @1850.2MHz Lowest limit for 1900 MHz fixed operations (@20cm) where no routine evaluation is required is § 1.1310 : 1 mW/cm 2 Calculated at distance of 20cm: Power density = 1290 / (4 x pi x 20 2 ) = 0.2566mW/cm 2 Result: Configuration complies with rules as power density is below MPE limit. FCC-ID UQUAT0306\ IC-ID (Industry Canada) Date: 1/8/2007 Name: Peter Mu Title: Project Engineer Company: Cetecom Inc. Address: 411 Dixon Landing Rd, Milpitas, CA 95035, USA Phone: +1 408 586 6221 Email: [email protected]

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PARTS 22 and 24 FCC ID: O9EQ2426-SK Test report no.: G0M20304-7780-T-47 FCC ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, GermanyRegistration number: G0M20304-7780-T-47Page 1 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4Application details 1.5Test item 1.6Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4Test Procedure 3 Test Results 4 RF Power Output, FCC 2.1046 4.1 Test Procedure 4.2 Test Results 5 Radiated Power FCC 22.913, FCC 24.232 5.1 Test Procedure 5.2 Test Results 6 Modulation Deviation Limiting, FCC 2.1047, 22.915(b)(c) 6.1 Test Procedure 6.2 Test Results 7 Audio Filter Characteristics, FCC 22.915(d) 7.1 Test Procedure 7.2 Test Results 8 Emission Limitations, , FCC 2.1049 8.1 Test Procedure 8.2 Test Results 9 Occupied Bandwidth FCC 22.917(b)(d); FCC 2.1049 9.1 Test Procedure 9.2 Test Results 10 Emission in Receiver Critical Band FCC 22.917(f) 10.1Test Procedure 10.2Test results 11 Out of Band Emissions at Antenna Terminals , FCC 2.1051, FCC 22.917(e), FCC 22.917(f), 24.238(a) 11.1. Test Procedure 11.2. Test Results ETS Dr. Genz GmbH, GermanyRegistration number: G0M20304-7780-T-47Page 2 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 12 Field Strength of Spurious Radiation, FCC 2.1053, 24.236 13.1 Test Procedure 12.2 Test Results 13 Line Conducted Emissions, FCC 15.207 13.1 Test Procedure 13.2 Test Results 14 Frequency Stability vs Temperature, FCC 2.1055, 22.355, 24.235 14.1 Test Procedure 14.2 Test Equipment 15 Frequency Stability vs Voltage, FCC 2.1055, 22.355, 24.235 15.1 Test Procedure 15.2 Test Equipment ETS Dr. Genz GmbH, GermanyRegistration number: G0M20304-7780-T-47Page 3 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extractes from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 15.04.2003F. Schulz DateETS-Lab.NameSignature Technical responsibility for area of testing: 15.04.2003Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G0M20304-7780-T-47Page 4 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 ACCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA A CCREDITEDCertificate Number: 1983-01 1.3Details of approval holder Name: Wavecom S.A. Street: 12 Boulevard Garibaldi Town: 92442 Issy Les Moulineaux Cedex Country: France Telephone: +33 1 4629 0800 Fax: +33 1 4629 9357 Contact: Mr. Dan Venturini Telephone: +33 1 4629 0800 ETS Dr. Genz GmbH, GermanyRegistration number: G0M20304-7780-T-47Page 5 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4Application details Date of receipt of application: 14.04.2003 Date of receipt of test item: 14.04.2003 Date of test: 14.04.2003 1.5Test item Description of test item: GSM/GPRS Module Type identification: Q2426Version: 4.0 Serial number: Test model without serial number. Photos: See annex Technical data Frequency range Tx – GSM 850: 824.2 – 848.80 MHz Frequency range Tx – PCS: 1850.2 – 1909.8 MHz Frequency range Rx - GSM 850: 869.2 – 893.8 MHz Frequency range Rx - PCS: 1930.2 – 1989.8 MHz Antenna Gain: -1 dBi Power supply : 3,7 V DC Operating mode: duplex Type of modulation: GMSK (GSM modulation) Emission: GXW Manufacturer: (if applicable) Name: Street: Town: Country: ETS Dr. Genz GmbH, GermanyRegistration number: G0M20304-7780-T-47Page 6 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6Test standards Technical standard : FCC Parts 22, 24, 2, 15 Additional information: Because of using the GSM 850 as an alternative technology in 850 MHz band, not all test cases of FCC Part 22 are required. For testing, the GSM/GPRS Module Q2426 was tested in the Starter Kit as test environment. The .Allgon antenna was used for test purposes only. 2Technical test 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course
of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests performed. 2.2Test environment Temperature: 23 o C Relative humidity content: 20 ...75 % Air pressure: 86 ...103 kPa ETS Dr. Genz GmbH, GermanyRegistration number: G0M20304-7780-T-47Page 7 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3Test equipment utilized No.Test equipmen…

Text truncated - open the document above for the full version.

Bluetooth Qualification Test Facility (BQTF) FCC listed# 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May © Copyright by CETECOM FCC Test Report FCC Part 22,24 / RSS 132,133 FOR: GPS Tracking Device MODEL #: AT0303KE Columbus Nova Technology Group, LLC DBA NovaTracker 11 Commerce Drive. Lobby Floor Cranford, NJ 07016 USA FCC ID: UQUAT0306 TEST REPORT #: NOVA2_001_06001_FCC22_24 DATE: 2006-12-20 Test Report #: NOVA2_001_06001_FCC22_24 Date of Report: 2006-12-20 Page 2 of 50 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. Table of Contents 1 ASSESSMENT .....................................................................................................................................4 EMC & Radio.........................................................................................................................................4 1.1 ADMINISTRATIVE DATA.................................................................................................................5 1.1.1 Identification of the Testing Laboratory Issuing the EMC Test Report .................................5 1.1.2 Identification of the Client......................................................................................................5 1.1.3 Identification of the Manufacturer .........................................................................................5 1.2 EQUIPMENT UNDER TEST (EUT) ....................................................................................................5 1.2.1 Specification of the Equipment under Test .............................................................................6 1.2.2 Identification of the Equipment Under Test (EUT) ................................................................6 1.2.3 Identification of Accessory equipment ...................................................................................6 2 SUBJECT OF INVESTIGATION......................................................................................................7 3 MEASUREMENTS..............................................................................................................................8 3.1 RF POWER OUTPUT........................................................................................................................8 3.1.1 FCC 2.1046 Measurements required: RF power output........................................................8 3.1.2 Limits: ....................................................................................................................................8 3.1.2.1 FCC 22.913 (a) Effective radiated power limits. ...............................................................8 3.1.2.2 FCC 24.232 (b)(c) Power limits. ........................................................................................8 3.1.3 Conducted Output Power Measurement procedure:..............................................................8 3.1.4 Radiated Output Power Measurement procedure:.................................................................9 3.1.5 ERP Results 850 MHz band: ................................................................................................10 3.1.6 EIRP Results 1900 MHz band:.............................................................................................10 3.2 OCCUPIED BANDWIDTH/EMISSION BANDWIDTH.........................................................................11 3.2.1 FCC 2.1049 Measurements required: Occupied bandwidth................................................11 3.2.2 Occupied / emission bandwidth measurement procedure:...................................................11 3.2.3 Occupied / Emission bandwidth results 850 MHz band: .....................................................12 3.3 FREQUENCY STABILITY................................................................................................................12 3.3.1 Limit .....................................................................................................................................12 3.3.2 FREQUENCY STABILITY (GSM-850) ................................................................................13 3.3.3 FREQUENCY STABILITY (PCS-1900) ...............................................................................13 3.4 SPURIOUS EMISSIONS CONDUCTED..............................................................................................13 3.4.1 FCC 2.1051 Measurements required: Spurious emissions at antenna terminals. ...............13 3.4.2 Limits: ..................................................................................................................................13 3.4.2.1 FCC 22.917 Emission limitations for cellular equipment. ..............................................13 3.4.2.2 FCC 24.238 Emission limitations for Broadband PCS equipment. ................................14 3.4.3 Conducted out of band emissions measurement procedure: ................................................14 3.5 SPURIOUS EMISSIONS RADIATED.................................................................................................15 3.5.1 FCC 2.1053 Measurements required: Field strength of spurious radiation........................15 3.5.2 Limits: ..................................................................................................................................15 3.5.2.1 FCC 22.917 Emission limitations for cellular equipment. ..............................................15 3.5.2.2 FCC 24.238 Emission limitations for Broadband PCS equipment. ................................16 3.5.3 Radiated out of band measurement procedure: ......................................…

Text truncated - open the document above for the full version.

PAGE 1 OF 6 Test Setup Photos FOR: GPS Tracking Device MODEL #: AT0303KE Columbus Nova Technology Group, LLC DBA NovaTracker 11 Commerce Drive. Lobby Floor Cranford, NJ 07016 USA FCC ID: UQUAT0306 TEST REPORT #: NOVA2_001_06001_FCC22_24 DATE: 2006-12-20 Bluetooth Qualification Test Facility (BQTF) FCC listed# 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May © Copyright by CETECOM PAGE 2 OF 6 Table of Contents .................................................................................................................................... 3 1ASSESSMENT ..................................................................................................................... 4 2TEST SETUP PHOTOS This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. PAGE 3 OF 6 1 Assessment The following is in compliance with the applicable criteria specified in FCC rules Parts 2, 22 and 24 of Title 47 of the Code of Federal Regulations and in compliance with the applicable criteria specified in Industry Canada rules RSS132 and RSS133. Company Description Model # Columbus Nova Technology Group, LLC DBA NovaTracker GPS Tracking Device AT0303KE Date: 12/20/2006 Name: Peter Mu Title: Project Engineer Company: Cetecom Inc. Address: 411 Dixon Landing Rd, Milpitas, CA 95035, USA Phone: +1 408 586 6221 Email: [email protected] This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. PAGE 4 OF 6 2 TEST SETUP PHOTOS Radiated Spurious Emissions This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. PAGE 5 OF 6 Radiated Spurious Emissions This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. PAGE 6 OF 6 Radiated Spurious Emissions This report shall not be reproduced except in full without the written approval of: CETECOM, Inc.
