UQY-PROX1RFID Module

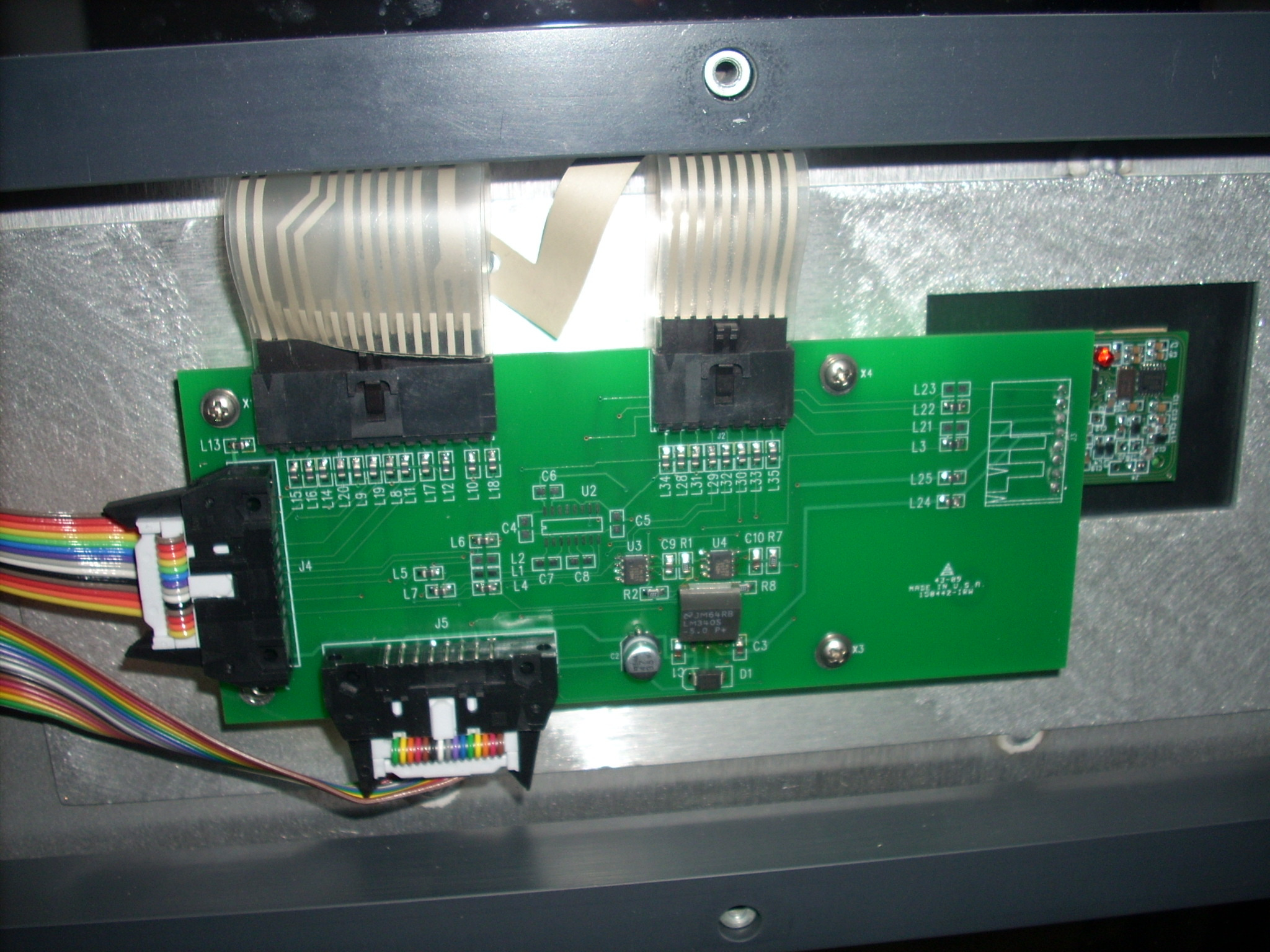

WaveMark, Inc. User Guide/Installation Manual Model #: PROX 1 WaveMark Model #: PROX 1 is a 13.56 MHz RFID ISO 14443A Tag proximity reader intended only for installation as an access control reader within the locking doors on HF1500 and HFH1500 family of cabinets. Do not Modify Changes or modifications not expressly approved by WaveMark, Inc. could void the user’s authority to operate the equipment. End Product Labeling The final end product must be labeled in a visible area with the following: “Contains Transmitter Module FCC ID: UQY-PROX1 (IC: 8182A-PROX1)” or “Contains FCC ID: UQY-PROX1 (IC: 8182A-PROX1)” or similar wording. FCC/IC Notice Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Circuit Block Diagram Manufacturer: TagSense, Inc. Manufacturer part number: Micro-1356 Circuit Description: This device is a reader/writer for RFID tags. (Radio Frequency Identification). Data commands are sent to an external RFID tag via AM modulation of the 13.56 MHz carrier, and the RFID tag responds through passive load modulation of the 13.56 MHz carrier. Since the RFID tag (not shown) is powered by the electromagnetic field produced by the reader device, and the RFID tag does not generate any radio power of its own, the carrier (13.56 MHz) must be left on while the RFID tag responds with data. The EM Microelectronics transceiver IC is used and controlled by the Atmel microcontroller (ATMEGA168 or ATMEGA328P). For interfacing to a PC, serial communication is used. Micro- controller Radio-IC External User Device Data IN/OUT 57600 baud RS 232 Data IN/OUT Loop Antenna 13.56 MHz crystal 48 MHz internal oscillator ATMega328P Microntroller EM4094 Transceiver 13.56 MHz clock

Curtis-Straus LLC, A wholly owned subsidiary of Bureau Veritas Consumer Products Services, Inc. One Distribution Center Circle, Suite# 1, Littleton, MA 01460 Tel: 978.486.8880 Fax: 978.486.8828 www.bureauveritas.com/ee January 7, 2010 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 Curtis-Straus LLC TCB One Distribution Center Circle, #1 Littleton, MA 02702 Re: Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457(d)(2) pertaining to confidential material. WaveMark Inc. requests that the following documents regarding this submission for FCC ID UQY-PROX1 be kept confidential: 1. Schematics The material above contains technical data, which would customarily be guarded from competitors. Sincerely, Mairaj Hussain EMC Supervisor 1/7/10

further notice Curtis-Straus LLC a Bureau Veritas Company at 1 Distribution Center, Littleton, MA 01460, to act on our behalf in dealing This authorization includes, but is not limited to, the signing of form 731.

1.00 2.00 R.05 NOTES: 1. MATERIAL: MYL, WHT-OPAQ, T/C249(20X27 - 2 MIL, V-23, 90# PFW MYL,MAT,#OM100CM(27"X750' - 1MIL,L44 ADH,42#PP-8 IC:8182 A-PROX1 FCC ID:UQY-PROX1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WaveMark Inc. Model #: Prox 1 REVISIONS ZONEREV.DESCRIPTIONDATEAPPROVED ARELEASE FOR PRODUCTION12/18/09JB B ADDED WAVEMARK INC AND MODEL NO. TO UPPER RIGHT CORNER 1/11/2010JB 1.00 2.00 R.05 DOC NO. A 1 1 A 2 2 3 3 4 4 BB C C D D SIZE B REV STANDARD TOLERANCES .XX = .01 .XXX = .005 ANGLES = 1/2 ENGINEER DRAWN PROJECTION CONCENTRICITY .005 TIR ALL MACHINED SURFACES ALL SHARP EDGES .01-.02 THE INFORMATION CONTAINED IN THIS DRAWING IS THE PROPERTY OF WAVEMARK INC AND IS CONFIDENTIAL AND PROPRIETARY TO THE COMPANY. IT IS NOT TO BE COPIED OR REPRODUCED IN WHOLE OR IN PART UNLESS AUTHORIZED BY WAVEMARK INC. FRAC. = 1/32 OF APPROVALSDATE SHEET REV 91-0042B JB 10/24/08 1 1 1:1 B 1 DO NOT SCALE DRAWING UNLESS OTHERWISE SPECIFIED PROPRIETARY NOTICE ALL DIMENSIONS ARE IN INCHES ALL DIMENSIONS APPLY AFTER FINISH 63 MATERIAL: FINISH: TITLE DOC NO. SCALESHEET CHECKED FCC TAGSENSE READER LABEL One Monarch Drive, Littleton, MA 01460

Circuit Block Diagram Manufacturer: TagSense, Inc. Manufacturer part number: Micro-1356 Circuit Description: This device is a reader/writer for RFID tags. (Radio Frequency Identification). Data commands are sent to an external RFID tag via AM modulation of the 13.56 MHz carrier, and the RFID tag responds through passive load modulation of the 13.56 MHz carrier. Since the RFID tag (not shown) is powered by the electromagnetic field produced by the reader device, and the RFID tag does not generate any radio power of its own, the carrier (13.56 MHz) must be left on while the RFID tag responds with data. The EM Microelectronics transceiver IC is used and controlled by the Atmel microcontroller (ATMEGA168 or ATMEGA328P). For interfacing to a PC, serial communication is used. Micro- controller Radio-IC External User Device Data IN/OUT 57600 baud RS 232 Data IN/OUT Loop Antenna 13.56 MHz crystal 48 MHz internal oscillator ATMega328P Microntroller EM4094 Transceiver 13.56 MHz clock

MICRO-1356 Technical Description T T a a g g S S e e n n s s e e , , I I n n c c . . 1035 Cambridge St. Suite 8 http://www.tagsense.com Cambridge, MA 02141 email: [email protected] 617-494-1001 ©2000-2006 TagSense, Inc. Basic Functional Specification T T a a g g S S e e n n s s e e , , I I n n c c . . 1035 Cambridge St. Suite 8 http://www.tagsense.com Cambridge, MA 02141 email: [email protected] 617-494-1001 ©2000-2006 TagSense, Inc MICRO-1356 RADIO MODULE USER APPLICATION BOARD Power Specs: • Operating Voltage – 5 V • Operating Current: o ~30 mA idle o ~120mA transmit Mechancial Specs: • Size: 1.34” x 1.11” • Operating Temperature: -10C – 80C • Humidity: 0 – 90 % (non condensing) The Micro-1356 module is a general- purpose radio module that can be used as a stand-alone RFID reader or it can be c onnected to an external circuit board for use within a . In some configurations, an external antenna is provided as an option. Basic Features Features of the Micro-1356: • •• • Multi protocol: EPC, i-Code, ISO15693, ISO14443A, and Tag-It • •• • Reader can automatically identify the protocol of the tag being read • •• • Functions as both a reader AND a tag emulator for bi-directional near field communication (NFC protocol) • •• • Programmable reader ID code for networking many readers together • •• • Your custom reader settings can be saved in EEPROM so the reader will automatically boot-up in the correct mode • •• • On board EEPROM memory for storing IDs Configurations: Using a jumper, The Micro-1356 can be configured to use the onboard PCB antenna or an external antenna. T T a a g g S S e e n n s s e e , , I I n n c c . . 1035 Cambridge St. Suite 8 http://www.tagsense.com Cambridge, MA 02141 email: [email protected] 617-494-1001 ©2000-2006 TagSense, Inc

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 1 of 14 Test Report Curtis-Straus LLC, a wholly owned subsidiary of BV CPS Report No EJ1561-3 Client Wavemark Rich Leitermann Address 1 Monarch Drive Littleton, MA 01460 Phone (978) 431-1633 Item tested Prox 1 Standards FCC Part 15 Section 15.225 FCC ID UQY-PROX1 FRN 0013630066 Test Dates November 17, 2009 Results As detailed within this report Prepared by Evan Gould– Compliance Engineer Authorized by Mairaj Hussain – EMC Supervisor Issue Date 12/29/09 Conditions of Issue This Test Report is issued subject to the conditions stated in the ‘Conditions of Testing’ section on page 13 of this report. Test Report for Wavemark FCC ID UQY-PROX1 • •• • Report No. EJ1561-3 December 29, 2009 ______________________________________________________________________ ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 2 of 14 Contents Contents..................................................................................................................................2 Summary.................................................................................................................................3 Test Methodology ....................................................................................................................4 Product Tested - Configuration Documentation .......................................................................5 Statement of Conformity ..........................................................................................................6 Test Results ............................................................................................................................7 Fundamental Measurement.....................................................................................................7 Radiated Spurious Emissions ..................................................................................................9 AC Line Conducted Emission Measurements........................................................................10 Frequency Stability Measurements........................................................................................11 Test Equipment Used ............................................................................................................12 Conditions Of Testing ............................................................................................................13 Test Report for Wavemark FCC ID UQY-PROX1 • •• • Report No. EJ1561-3 December 29, 2009 ______________________________________________________________________ Release Control Record Issue No. Reason for change Date Issued 1 Original Release November 20, 2008 _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 3 of 14 Summary On November 16 and 17, 2009 we tested the Prox 1 module for compliance with the following requirements: EMC Emissions: • FCC 47 CFR Part 15 for following tests: • Section 15.225 • Section 15.207 - AC Mains Conducted Emission • Section 15.209 – Spurious Radiated Emission Registration numbers for all open area test sites can be found in the Test Equipment Used Section starting on page 12. The purpose of this test report is to support an application for Limited Modular Approval. Wavemark intends to add the radio module with limited modular approval to the following host chasses: HF1500D HFH1500D The HF1500D was tested as representative of the two host cabinets. Test Report for Wavemark FCC ID UQY-PROX1 • •• • Report No. EJ1561-3 December 29, 2009 ______________________________________________________________________ Release Control Record Issue No. Reason for change Date Issued 1 Original Release November 20, 2008 _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 4 of 14 Test Methodology Radiated emission testing was performed according to the procedures specified in ANSI C63.4 (2003). Emissions were maximized by rotating the system around its vertical axis as well as varying the test antenna’s height and polarity. The EUT was tested in a representative host device HF1500D. A separate test report has been issued to cover the verification requirement of the digital portion of the product. Frequency range investigated: 0.009MHz – 1000MHz Measurement distance: 0.15 - 30MHz Conducted 0.009 – 30MHz 3m (loop antenna) 30MHz – 1000MHz 3m AC Line conducted emissions testing was performed with a 50Ω/50μH LISN. The EUT was tested while installed in the HF1500D host product. The EUT was only tested in floor standing orientation on a rotating turn table. The testing performed in the HF1500D host is representative of the EUT being installed in the other possible host product as well (HFH1500D). This is the case because both of these products use the same material and construction for their sidewalls. The two configurations also do not differ as far as their electrical and/or digital components either. All readings are peak unless otherwise specified on the respective table. Rich Leitermann from Wavemark was present during the testing. The test sample was recei…

Text truncated - open the document above for the full version.

Radiated Emissions Radiated Emissions Conducted Emissions Frequency Stability Frequency Stability
