UTJ-PRX6FPFingerprint Reader RX660

Third Millennium Systems Ltd.

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Jan 22, 2015
Application Purpose: Original Equipment
Date of Application: Jan 22, 2015
Equipment Note: Fingerprint Reader RX660
Frequency Range: 13.56000000 - 13.56000000
Company: Third Millennium Systems Ltd.
Country: United Kingdom

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Third Millennium Systems Ltd 18 / 19 Torfaen Business Centre Panteg Way, New Inn PONTYPOOL NP4 0LS United Kingdom Product Features The ELITE series RX6 advanced biometric fingerprint reader delivers the latest multispectral imaging technology in an uncompromisingly stylish package. The reader is ideal for surface mounting directly to most plain wall finishes. This powerfully secure and innovative reader has a beautifully clean aesthetic and features an RGB LED that can be applied to many applications, e.g. colour coded access levels, migration status or mood lighting. The unit is moulded using tough polycarbonate/ABS plastic and includes a shadow line backplate, a subtle feature that makes the reader appear to float on the wall. 100-02111-G Standard Part Numbers technologies available with this reader available in gloss BLACK only RX660 Advant Specification © 2014 Third Millennium Systems Ltd registered in England & Wales No. 3199053 www.tm-readers.com +44 (0) 1495 751 992 [email protected] third millennium •UK design and manufacture •High gloss finish in BLACK only •Slim profile •RGB LED •Compression sealed electronics •Wide range of output formats •1 year limited warranty •Read range up to 10cm (4 inches) Connection (screw terminal) 1 -+VdcSupply voltage (+5Vdc to +16Vdc) 2 -DATA1 / CLKWiegand or Clock/Data output 3 -DATA0 / DATWiegand or Clock/Data output 4 -GREENGreen LED control input 5 -REDRed LED control input 6 -BUZZERBuzzer control input 7 -TMPR / CPTamper or Card Present output 8 -0VSupply voltage ground 9 -TTL TXTTL transmit line 10 -TTL RXTTL receive line Mechanical Dimensions:149mm x 63mm x 70mm (5.9 x 2.2 x 2.8 inches) Housing:Moulded polycarbonate/ABS with Compression Sealed electronics Mounting:Wall surface Environmental Operating Temperature:-20°C to +60°C Humidity:0 - 100% RHNC (outdoor) 0 - 95% RHNC (indoor) Ingress Protection:IP65 Electrical Voltage:+5Vdc to +16Vdc Current:450mA typical Data Voltage:Rest >4Vdc / Active <1Vdc Data Output:Wiegand, Clock & Data, Custom Outputs Indication:1 RGB LED Sounder:Integral speaker Interfacing The reader supports a wide variety of output formats allowing it to be used in most access control and related applications, e.g. time and attendance, cashless vending etc. The combination of an integral speaker, an RGB LED, three control inputs and a variety of LED/buzzer/external control options provide a flexible platform to give the right user interface configuration for your project. Quality Design Third Millennium has nearly 20 years of award-winning experience in the design and manufacture of RFID technology and the delivery of world class, state-of-the-art access control projects with our many global partners. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired opearation. RX6 36mm 1.4 inches 63mm (2.2 inches) 39mm 1.5 inches 70mm 2.8 inches 83.3mm3.3 inches 120.3mm4.7 inches 149mm5.9 inches

External Photos

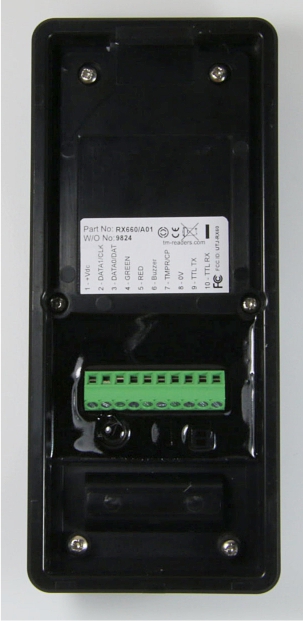

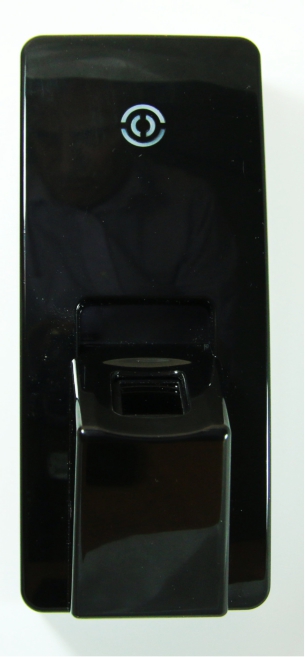

1 2 3 1 KEY RX660 (front image) RX660 (back image) RX660 - BACKPLATE RX660 - Label 2 3 4 4 - part number variable - order number variable *** **** 1 - +Vdc2 - DATA1/CLK3 - DATA0/DAT4 - GREEN5 - RED6 - Buzzer7 - TMPR/CP8 - 0V9 - TTL TX10 - TTL RX FCC ID: UTJ-RX60 RX660/ TITLE versioncommentdatedrawn by SHEET TITLE SUPPORTING DOCUMENTATION for approval RX660 RFID advanced access control reader photographic representation A © Third Millennium Systems Ltd. ALL RIGHTS RESERVED This document, including all information contained therein, is owned by THIRD MILLENNIUM SYSTEMS LTD and must be kept in confidence and used solely for the specified purposes of the owner. This document may not be copied, reproduced or disclosed in whole or in part without the prior written consent of the owner. Copyrights © and Registered Trade Marks ® / TM issued to third parties are acknowledged. PLEASE REPORT ERRORS or OMISSIONS to THIRD MILLENNIUM INCEPTION28/08/14mpn scale(s) drawing No. sheet NTS 100-02251-RX660-A 1 of 1 18/19 Torfaen Business Centre Panteg Way New Inn PONTYPOOL NP4 0LS United Kingdom tel: +44 (0) 1495 751 992 fax: +44 (0) 1495 757 448 www.tm-readers.com 10 0 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 10020 30405060708090100110120130140150160170180

ID Label/Location Info

TITLE versioncommentdatedrawn by SHEET TITLE SUPPORTING DOCUMENTATION for approval RX660 RFID advanced access control reader photographic representation © Third Millennium Systems Ltd. ALL RIGHTS RESERVED This document, including all information contained therein, is owned by THIRD MILLENNIUM SYSTEMS LTD and must be kept in confidence and used solely for the specified purposes of the owner. This document may not be copied, reproduced or disclosed in whole or in part without the prior written consent of the owner. Copyrights © and Registered Trade Marks ® / TM issued to third parties are acknowledged. PLEASE REPORT ERRORS or OMISSIONS to THIRD MILLENNIUM scale(s) drawing No. sheet NTS 100-02251-RX660-D 1 of 1 18/19 Torfaen Business Centre Panteg Way New Inn PONTYPOOL NP4 0LS United Kingdom tel: +44 (0) 1495 751 992 fax: +44 (0) 1495 757 448 www.tm-readers.com A INCEPTION15/10/14mpn Brevised format for TRaC15/10/14mpn Crevised format for TRaC30/10/14mpn 10 0 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 10020 30405060708090100110120130140150160170180 1 2 3 4 1 KEY RX660 (INTERNAL) RX660 (PRX60 PCB bottom face) RX660 (Scanner PCBs top face) RX660 (Scanner PCBs bottom face) RX660 (Facing Product BOX label attached) RX660 (Facing Product READER label attached) 2 3 4 5 6 6 5 Drevised format for TRaC (label ident UTJ ref:)01/12/14mpn

ID Label/Location Info

Internal Photos

TITLE versioncommentdatedrawn by SHEET TITLE SUPPORTING DOCUMENTATION for approval RX660 RFID advanced access control reader photographic representation A © Third Millennium Systems Ltd. ALL RIGHTS RESERVED This document, including all information contained therein, is owned by THIRD MILLENNIUM SYSTEMS LTD and must be kept in confidence and used solely for the specified purposes of the owner. This document may not be copied, reproduced or disclosed in whole or in part without the prior written consent of the owner. Copyrights © and Registered Trade Marks ® / TM issued to third parties are acknowledged. PLEASE REPORT ERRORS or OMISSIONS to THIRD MILLENNIUM INCEPTION15/10/14mpn scale(s) drawing No. sheet NTS 100-02251-RX660-B 1 of 1 18/19 Torfaen Business Centre Panteg Way New Inn PONTYPOOL NP4 0LS United Kingdom tel: +44 (0) 1495 751 992 fax: +44 (0) 1495 757 448 www.tm-readers.com 10 0 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 10020 30405060708090100110120130140150160170180 1 KEY RX660 (INTERNAL) RX660 (PRX60 PCB bottom face) RX660 (Scanner PCBs top face) RX660 (Scanner PCBs bottom face) 2 1 2 3 4 3 4

RF Exposure Info

TRaC Global Test Report: TRA-020447-04-47-01C Appendix G:General SAR test reduction and exclusion guidance KDB 447498 & RSS-102 Section 4.3 General SAR test reduction and exclusion guidance For Standalone SAR exclusion consideration, when the considering SAR exclusion Threshold requirement in KDB 447498 is satisfied standalone SAR evaluation for general population exposure conditions by measurement or numerical simulation is not required. In the frequeQF\UDQJHEHORZ0+]DQGWHVWVHSDUDWLRQGLVWDQFHPPWKH6$5Test Exclusion Threshold will be determined as follows SAR Exclusion Threshold (SARET) SAR Exclusion Threshold= ([Step 1 + Step2] * Step 3a) * Step 3b Step 1 NT =[ (MP/TSD A ) ¥I GHz ] NT=Numeric Threshold (3.0 for 1-g SAR and 7.5 for 10-g SAR) MP =Max Power of channel (mW) (inc tune up) TSD A =Min Test separation Distance or 50mm (whichever is lower) = 50 f GHz =Transmit frequency (or 100MHz if lower) We can transpose this formula to allow us to find the maximum power of a channel allowed and compare this to the measured maximum power. MP=[(NT x TSD A ¥I GHz ] For Distances Greater than 50 mm Step 2 applies Step 2 (TSD B – 50mm) * f (MHz) /150 Where: f MHz =Transmit frequency TSD B =Min Test separation Distance (mm) = 50 Step 3 3a)The power threshold at the corresponding test separation distance at 100 MHz in step 2) is multiplied by [1 + log(100/f (MHz))] for test separation distances > 50 mm and < 200 mm 3b)The power threshold determined by the equation in steps 1 and 2 for 50 mm and 100 MHz is multiplied by ½ for test separation distances PP SARET =({ [ (NT xTSD A ¥f GHz ] + (TSD B – 50) * [100/150] } * (1 + Log [100 / F MHz ])) * 1 / 2 SARET =(^> [ ¥] + (50 – 50) * [100/150] } * (1 + Log [100 / F MHz) ]) * 1 / 2 SARET =(474 * (1 + Log [100 / 13.56)) * 1 / 2 SARET =442.65 mW 40 TRaC Global Test Report: TRA-020447-04-47-01C The calculated output power is 0.00003mW (eirp) is less than the SAR Exclusion Threshold of 468mW, at 5mm test separation distance, for general population and uncontrolled exposure. Therefore standalone SAR evaluation for general population exposure conditions by measurement or numerical simulation is not required. 41

Test Report

AN RADIO TEST REPORT FOR THIRD MILLENNIUM SYSTEMS Ltd ON RX660 DOCUMENT NO.TRA-020447-04-47-01C TRaC Wireless Test Report : TRA-020447-04-47-01C Applicant : Third Millennium Systems Ltd Apparatus : RX660 Specification(s) : CFR47 Part 15 & RSS-210 Purpose of Test : Certification FCCID : UTJ-PRX6FP Authorised by : : Radio Product Manager Issue Date :15 th January 2015 Authorised Copy Number : PDF Total number of pages: 42 TRaC Global Test Report: TRA-020447-04-47-01C Contents Section 1: Introduction 4 1.1 General 4 1.2 Tests Requested By 5 1.3 Manufacturer 5 1.4 Apparatus Assessed 5 1.5 Test Result Summary 6 1.6 Notes Relating To The Assessment 7 1.7 Deviations from Test Standards 7 Section 2: Measurement Uncertainty 8 2.1 Measurement Uncertainty Values 8 Section 3: Modifications 10 3.1 Modifications Performed During Assessment 10 Section 4 General Test Procedures 11 4.1 Radiated Test Setup and Procedures 11 4.2 AC Powerline Conducted Emissions Test Setup and Procedures 12 4.3 Antenna Port Conducted Emissions 12 4.4 Power Supply Variation 13 4.5 Thermal Variation 13 4.6 Time Domain Measurements 13 Appendix A: Formal Emission Test Results 14 A1 Transmitter Intentional Emission Radiated – 15.225(a) 15 A2 Radiated Electric Field Emissions 16 A3 Power Line Conducted Emissions 20 A4 Frequency Stability 22 Appendix B: Supporting Graphical Data 23 Appendix C: Additional Test and Sample Details 30 Appendix D: Additional Information 36 Appendix E: Calculation of the duty cycle correction factor 37 Appendix F: Photographs and Figures 38 Appendix G: General SAR test reduction and exclusion guidance 40 3 TRaC Global Test Report: TRA-020447-04-47-01C Section 1: Introduction 1.1 General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed by: TRaC Global [ ] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone: +44 (0) 1482 801801 Fax: +44 (0) 1482 801806 TRaC Global [X] Unit 1 Pendle Place Skelmersdale West Lancashire, WN8 9PN United Kingdom Telephone: +44 (0) 1695 556666 Fax: +44 (0) 1695 577077 Email: [email protected] Web site: http://www.tracglobal.com Tests performed by: D. Winstanley – A. Tosif Report author: D. Winstanley – A. Tosif This report must not be reproduced except in full without prior written permission from TRaC Global. 4 TRaC Global Test Report: TRA-020447-04-47-01C 1.2 Tests Requested By This testing in this report was requested by : Third Millennium Systems Ltd 18/19 Torfaen Business Centre Panteg Way New Inn Pontypool NP4 0LS 1.3 Manufacturer As Above 1.4 Apparatus Assessed The following apparatus was assessed between 12 th April 2014 – 7 th July 2014: RX660 RFID contactless proximity reader PCB assembly The RX660 RFID contactless proximity readers PCB assembly is contained in the following model variants; RX660 The RX660 is a 13.56 MHz RFID reader with fingerprint recognition. 5 TRaC Global Test Report: TRA-020447-04-47-01C 1.5 Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. Test Type Title 47 of the CFR: Part 15 Subpart (c) RSS-210 Measurement standard Result Spurious Emissions Radiated <1000MHz 15.209 RSS-Gen 7.2.5 ANSI C63.10:2009 Pass Spurious Emissions Radiated >1000MHz 15.209 RSS-Gen 7.2.5 ANSI C63.10:2009 N/A AC Power conducted emissions 15.207 RSS-Gen 7.2.4 ANSI C63.10:2009 Pass Intentional Emission Frequency 15.225(a) RSS-210 A2.6 ANSI C63.10:2009 Pass Intentional Emission Field Strength 15.225(a) RSS-210 A2.6 ANSI C63.10:2009 Pass Intentional Emission Band Occupancy 15.215 (c) RSS-Gen 4.6 ANSI C63.10:2009 Pass Frequency Stability 15.225(e) RSS-210 A2.6 RSS-Gen 4.7 ANSI C63.10:2009 Pass Unintentional Radiated Spurious Emissions Subpart (b) 15.109 RSS-Gen 6.1 ANSI C63.10:2009 Pass Antenna Arrangements Integral: 15.203 RSS-Gen 7.1.2 - Pass Antenna Arrangements External Connector 15.204 RSS-Gen 7.1.2 - N/A Restricted Bands 15.205 RSS-Gen 7.2.2 - Pass Maximum Frequency of Search 15.33 RSS-Gen 4.9 - Pass Extrapolation Factor 15.31(f) RSS-Gen 7.2.7 - Pass Abbreviations used in the above table: CFR : Code of Federal Regulations ANSI : American National Standards Institution REFE : Radiated Electric Field Emissions PLCE : Power Line Conducted Emissions 6 TRaC Global Test Report: TRA-020447-04-47-01C 1.6 Notes Relating To The Assessment With regard to this assessment, the following points should be noted: The results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. Particular operating modes, apparatus monitoring methods and performance criteria required by the standards tested to have been performed except where identified in Section 1.7 of this test report (Deviations from Test Standards). For emissions testing, throughout this test report, “Pass” indicates that the results for the sample as tested were below the specified limit (refer also to Section 2, Measurement Uncertainty). Where relevant, the apparatus was only assessed using the monitoring methods and susceptibility criteria defined in this report. All testing with the exception of testing at the Open Area Test Site was performed under the following environmental conditions: Temperature : 17 to 23 °C Humidity : 45 to 75 % Barometric Pressure : 86 to 106 kPa All dates used in this report are in the format dd/mm/yy. This assessment…
