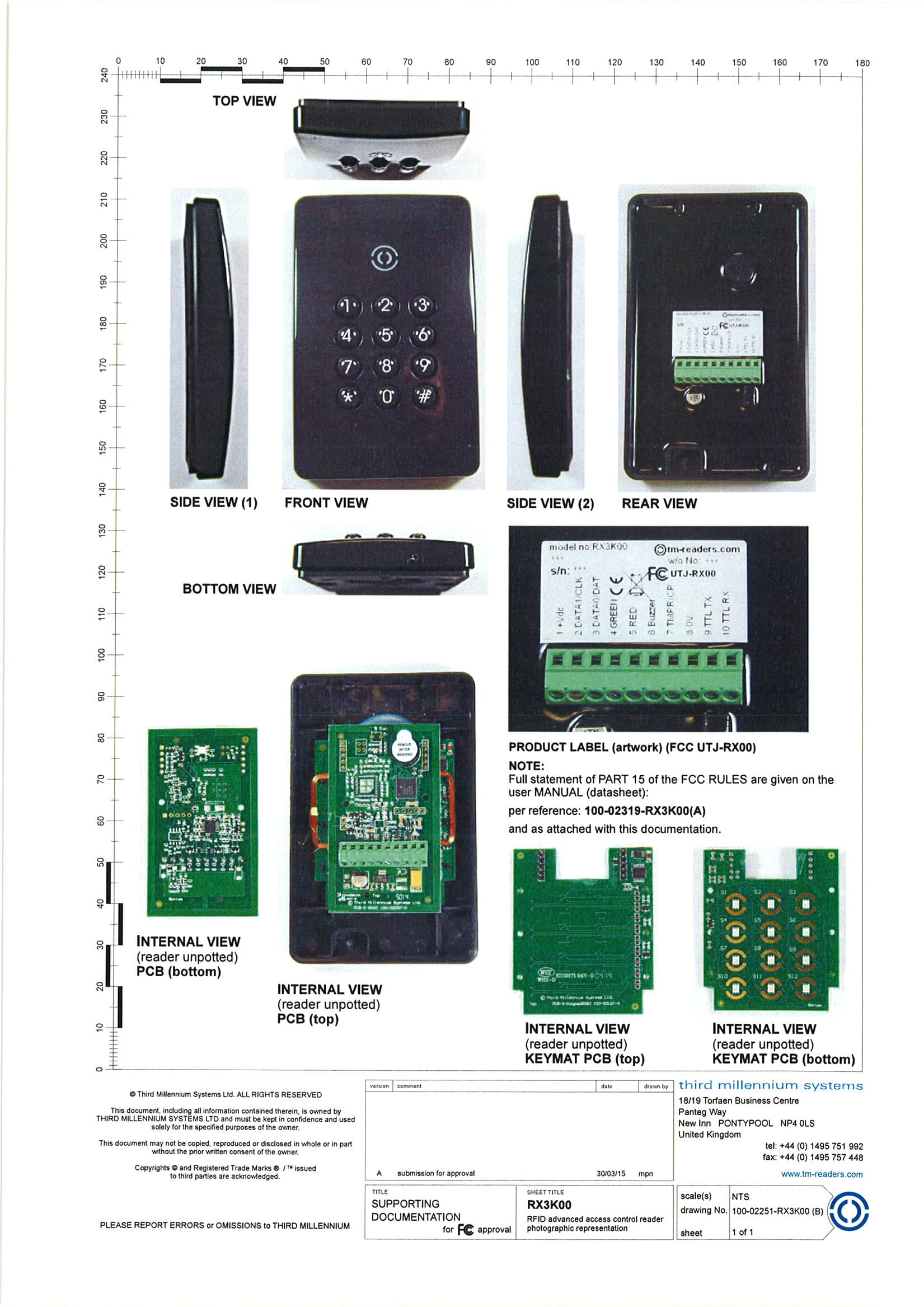

UTJ-RX00125kHz Access Control Reader

Block diagram

UTJ-RX00

AN RADIO TEST REPORT FOR THIRD MILLENNIUM SYSTEMS Ltd ON PRX00 DOCUMENT NO.TRA-012604-47-00-C Total number of pages: 40 TRaC Wireless Test Report : TRA-025998-01-47-00A Applicant : Third Millennium Systems Ltd Apparatus : PRX00 Specification(s) : CFR47 Part 15 Purpose of Test : Certification FCCID :UTJ-RX00 Authorised by : : Radio Product Manager Issue Date :11 th March 2015 Authorised Copy Number : PDF TRaC Global Test Report: TRA-025998-01-47-00A 3 Contents Section 1: Introduction 4 1.1 General 4 1.2 Tests Requested By 5 1.3 Manufacturer 5 1.4 Apparatus Assessed 5 1.5 Test Result Summary 6 1.6 Notes Relating To The Assessment 7 1.7 Deviations from Test Standards 7 Section 2: Measurement Uncertainty 8 2.1 Measurement Uncertainty Values 8 Section 3: Modifications 10 3.1 Modifications Performed During Assessment 10 Section 4 General Test Procedures 11 4.1 Radiated Test Setup and Procedures 11 4.2 AC Powerline Conducted Emissions Test Setup and Procedures 12 4.3 Antenna Port Conducted Emissions 12 4.4 Power Supply Variation 13 4.5 Thermal Variation 13 4.6 Time Domain Measurements 13 Appendix A: Formal Emission Test Results 14 A1 Transmitter Intentional Emission Radiated 15 A2 Occupied Bandwidth 16 A3 Radiated Electric Field Emissions 17 A4 Power Line Conducted Emissions 19 Appendix B: Supporting Graphical Data 22 Appendix C: Additional Test and Sample Details 27 Appendix D: Additional Information 33 Appendix E: Calculation of the duty cycle correction factor 34 Appendix F: Photographs and Figures 35 TRaC Global Test Report: TRA-025998-01-47-00A 4 Section 1: Introduction 1.1 General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed by: TRaC Global [ ] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone: +44 (0) 1482 801801 Fax: +44 (0) 1482 801806 TRaC Global [X] Unit 1 Pendle Place Skelmersdale West Lancashire, WN8 9PN United Kingdom Telephone: +44 (0) 1695 556666 Fax: +44 (0) 1695 577077 Email: [email protected] Web site: http://www.tracglobal.com Tests performed by: D. Winstanley Report author: D. Winstanley This report must not be reproduced except in full without prior written permission from TRaC Global. TRaC Global Test Report: TRA-025998-01-47-00A 5 1.2 Tests Requested By This testing in this report was requested by : Third Millennium Systems Ltd 18/19 Torfaen Business Centre Panteg Way New Inn Pontypool NP4 0LS 1.3 Manufacturer As Above 1.4 Apparatus Assessed The following apparatus was assessed between 27 th February 2015 and 4 th March 2015 PRX00 RFID contactless proximity reader PCB assembly The PRX00 RFID contactless proximity readers PCB assembly is contained in the following model variants; RX300, RX400 and RX3K00. All the referenced variants incorporate identical hardware. The RX300 and RX400 use identical hardware with the variation in housing size only. The RX3K00 incorporates a keypad. TRaC Global Test Report: TRA-025998-01-47-00A 6 1.5 Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. Test Type Title 47 of the CFR: Part 15 Subpart (c) Measurement standard Result Spurious Emissions Radiated <1000MHz 15.209 ANSI C63.10:2009 Pass Spurious Emissions Radiated >1000MHz 15.209 ANSI C63.10:2009 N/A AC Power conducted emissions 15.207 ANSI C63.10:2009 Pass Intentional Emission Frequency 15.209 ANSI C63.10:2009 Pass Intentional Emission Field Strength 15.209 ANSI C63.10:2009 Pass Intentional Emission Band Occupancy 15.215 (c) ANSI C63.10:2009 Pass Unintentional Radiated Spurious Emissions Subpart (b) 15.109 ANSI C63.10:2009 Pass Antenna Arrangements Integral: 15.203 - Pass Antenna Arrangements External Connector 15.204 - N/A Restricted Bands 15.205 - Pass Maximum Frequency of Search 15.33 - Pass Extrapolation Factor 15.31(f) - Pass Abbreviations used in the above table: CFR : Code of Federal Regulations ANSI : American National Standards Institution REFE : Radiated Electric Field Emissions PLCE : Power Line Conducted Emissions TRaC Global Test Report: TRA-025998-01-47-00A 7 1.6 Notes Relating To The Assessment With regard to this assessment, the following points should be noted: The results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. Particular operating modes, apparatus monitoring methods and performance criteria required by the standards tested to have been performed except where identified in Section 1.7 of this test report (Deviations from Test Standards). For emissions testing, throughout this test report, “Pass” indicates that the results for the sample as tested were below the specified limit (refer also to Section 2, Measurement Uncertainty). Where relevant, the apparatus was only assessed using the monitoring methods and susceptibility criteria defined in this report. All testing with the exception of testing at the Open Area Test Site was performed under the following environmental conditions: Temperature : 17 to 23 °C Humidity : 45 to 75 % Barometric Pressure : 86 to 106 kPa All dates used in this report are in the format dd/mm/yy. This assessment has been performed in accordance with the requirements of ISO/IEC 17025. 1.7 Deviations from Test Standards There were no deviations from the standards tested to. TRaC Global Test Report: TRA-025998-01-47-00A 8 Section 2: Measurem…

Text truncated - open the document above for the full version.

TRaC Global Test Report: TRA-025998-01-47-00A Photograph 1 Photograph 2 36 TRaC Global Test Report: TRA-025998-01-47-00A Photograph 3 Photograph 4 37 TRaC Global Test Report: TRA-025998-01-47-00A Photograph 5 Photograph 6 38 TRaC Global Test Report: TRA-025998-01-47-00A Photograph 7 Photograph 8 39
