UTLF6TWO-WAY RADIO

, USER S MANUAL THE USER’S MANUAL User Safety, Training, and General Information READ THIS IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION BEFORE USING YOUR UNIER PORTABLE TWO-WAY RADIO. Compliance with RF Energy Exposure Standards The two-way radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environment at duty cycles of up to 50% talk-50% listen and should be used for occupational use only. In terms of measuring RF energy for compliance with the FCC exposure guidelines, your radio radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. Note: The approved batteries supplied with this radio are rated for a 5-5-90 duty cycle (5% talk-5% listen-90% standby), even though this radio complies with the FCC occupational RF exposure limits at duty cycles of up to 50% talk. Complies with the following of RF energy exposure standards and guidelines: United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1999 Edition International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 Operational Instructions To ensure optimal performance and compliance with the occupational/controlled environment RF energy exposure limits in the above standards and guidelines, users should transmit no more than 50% of the time and always adhere to the following procedures: Hand-held radio operation Hold the radio in a vertical position with the microphone 5 cm away from the lips and let the antenna farther away from your head. Notices to the User •Government law prohibits the operation of unlicensed radio transmitters within the territories under government control. •Illegal operation is punishable by fine or imprisonment or both. •Refer service to qualified technicians only. WARNING: It is important that the operator is aware of and understand hazards common to the operation of any transceiver. Explosive environment(such as gases, dust, fumes, etc). Turn off your transceiver while talking on fuel, or while parked in gasoline service stations. If you require this machine to be developed or some changed, pleased connect with BFDX or your BFDX dealer. FCC Caution: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: _ Reorient or relocate the receiving antenna. _ Increase the separation between the equipment and receiver. _ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. _ Consult the dealer or an experienced radio/TV technician for help. FCC Requirements Your radio must be properly licensed Federal Communications Commission prior to use. Your Wireless dealer can assist you in meeting these requirements. Your dealer will program each radio with your authorized frequencies, signaling codes, etc., and will be there to meet your communications needs as your system expands. Precautions ٛ Only qualified technicians are allowed to maintain this product. ٛ Do not use the radio or charge a battery in explosive areas such as coal gas, dust, steam, etc. ٛ Switch OFF the radio while refueling or parking at gas station. ٛ Do not modify or adjust this radio without permission. ٛ Do not expose the radio to direct sunlight over a long time, nor place it close to heating source. ٛ Do not place the radio in excessively dusty, humid areas, nor on unstable surfaces. Safety: It is important that the operator is aware of and understands hazards common to the operation of any radio. CE Caution: Hereby, UNIER TECHNOLOGY CO., LTD. declares that this Tow-way radio is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC and the COUNCIL RECOMMENDATION of 12 July 1999 on the limitation of exposure by the general public to electromagnetic fields (0 Hz to 300 GHz) (1999/519/EC). A copy of the DoC may be obtained through the following address. 5F, Huahan Innovation Park, Building D, Keyuan Roa, Shenzhen, China 1 1 1 1 1 1 1 1 1 1 Accessories List Accessories Adaptor Battery pack User's Manual Guarantee certification Charger Radio mainframe Antenna Quantity Before using the two-way radio, please read below safety instructions carefully. *When speaking into the microphone, please keep your mouth 2.5cm to 5cm away from microphone. *Use of accessories not originally provided or authorized by UNIER may result in risk of being exposed in the excessive electromagnetism environment without enough protection. *Please using antenna provided or authorized by UNIER. If a damaged antenna comes into contact with your skin, a minor burn can result. Please turn off your radio when you are instructed to do so. *Make sure the radio always keeping more than 15 cm away from heart pacemaker. Please do not use radio when driving. Do not store the radio in the upper of safety airbag or any place…

Text truncated - open the document above for the full version.

BLOCK DIAGRAM D18 D17 X2 7.3728MHz Q25 DTC 114EE Q24 DTC 114EE R LED G LED SW SW SB TX/BUSY LAMP S402 S403 PTT MONI SCLSDA EEPROM IC6 AT24C08 5M 5M CHANNEL SW PLL DATA EPDT CK PLL IC IC1 TB31202 UL ANT ENC 0 123 5C 3C6 5C LOOP FILTER AMP Q2 2SC5108 DEV DEV D5 1SV214 F. CONT F. CONT D2.D4 D1.D3 1SV283 1SV283 TX VCO RX VCO Q4 Q3 2SK1875 2SK1875 Q6 2SC5108 BUFF AMP T/R SW Q5.Q72SJ243UMC4 RX Q8.D6 2SC4617 MA2S111 RIPPLE FILTER 5C AMPQ100 2SC5108 LO. SW 5C D9D13 HSC277 5C 5T AMP Q13 2SC4988 5T DRIVE AMP FINAL AMP Q14 Q15 2SK3475 PD54008 ANT SW LPF D10 HVU131 ANT SW D11D12 HSC277 DET VCC APC 5T SW Q33DTC 114EE APC SW IC10 NJM2904 5T Q35 DTA SW Q34 2SK1824 144EE BPF L45 D304D305. L47 5R 5R 2ST AMP Q20 3SK318 3SK318 BPF D302 D303 L42 Q19 1st MIXER XF1,XF2 MCF 38.85MHz IF AMP Q18 2SC4649 5R 450KHz CF200 CF CD1 DET COIL IF IC IC4 TA31136FN 5R BUSY CHARGE Q28 DTA 114EE RX 5R 5C 5T SW Q9 Q16 DTC 114EE TX SAVE SW Q10DTC 114EE 5M Q26Q27 2SA1362 UMG3N 5T. 5C. REG. B REF 5MC SWQ31DTA 114YE SB 5V REG. IC8 XC6201 T502PR RESET IC2 PST 9140NR UL TI TIBIBUSY BATT APC/TUNE WNRCTO SAVE 5MC5TCWNTCGLEDVCCNSHIFT 5RC AFCO MUTE EP DT CK RLEDBEEPRX TXD RXD READ/WRITE TI TIBI NJM2902V AFCO W/N 5MS 5R VOLUME VR2 VR301 SP MUTE VCC SW BATT POWER SW REVERSR SB VCC MIC D30 1SS372 LIMITER AMP 5T Q36 2SK1824 WIDE/NARROW SW IC9 NJM 2100V HPF 2SC4919 AGC/MUTE MUTE Q1 D31 SW DAN222 DET MIC500 5T LPFQ17 2SC4617 2SC4617 Q32 5T LPF DEV DQT BALANCE TO DEV PROTECTION D14 1SR154 SWQ22 DTC 144EE Q38 SW Q23 2SA1362 DTC 144EE MUTE SW Q39 2SK1588 AUDIO AMP IC5 TA7368F MUTE SW Q21 2SK1824 BASE BAND SECTION IC301 LPF LPF LPF HPFHPF NJM2904V IC300 FLAT AMP 5MS 5R LIMITER DA221 WIDE/NARROW SW Q300 Q301 DTA 144EE IC7 HT46R24 5R Q29 2SC5108 5R 1ST AMP X3 38.4MHz x1 12.8MHz Q9 FS8853-36CL

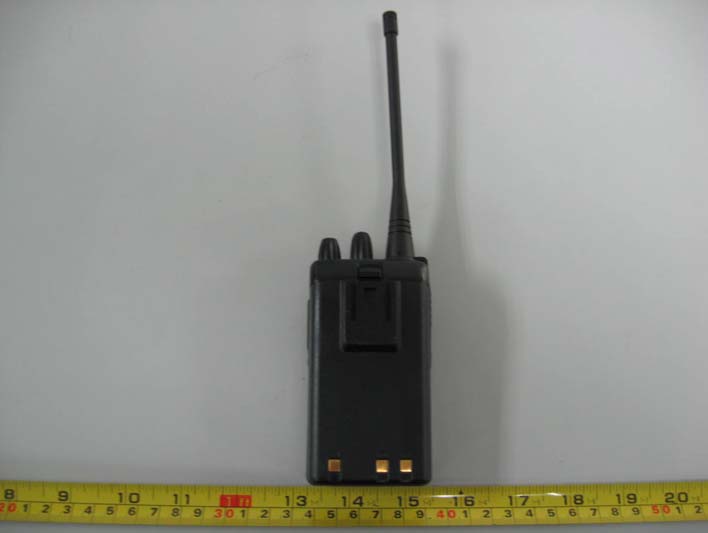

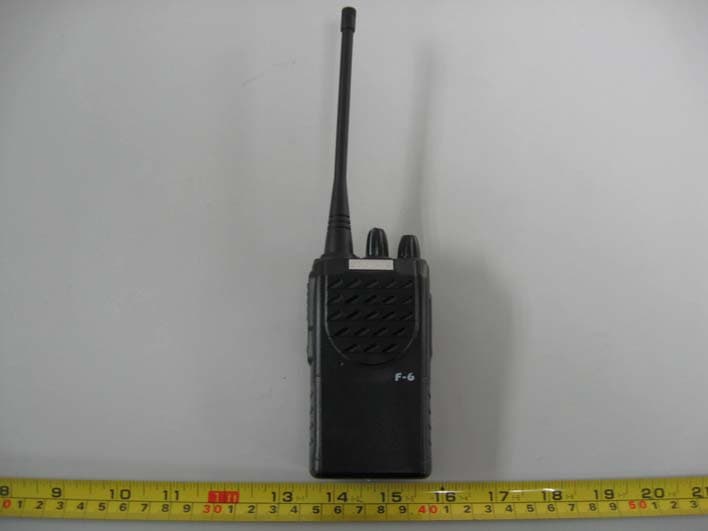

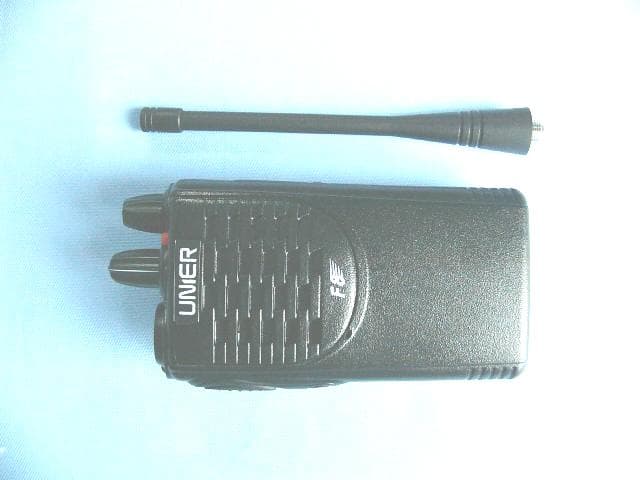

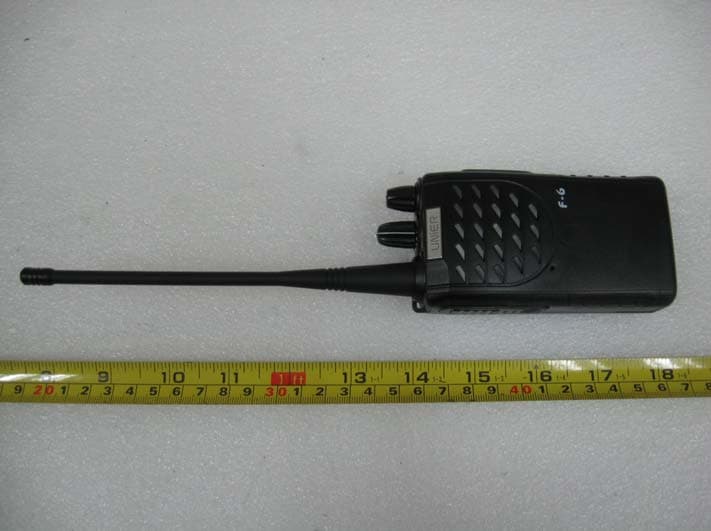

UNIER TECHNOLOGY CO., LTD. MODEL: F6 REPORT NO.: STR07108012I FCC PART 90 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

UNIER TECHNOLOGY CO., LTD. MODEL: F6 REPORT NO.: STR07108012I FCC PART 90 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format Specifications: Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

UNIER TECHNOLOGY CO., LTD. MODEL: F6 REPORT NO.: STR07108012I FCC PART 90 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format Specifications: Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

16 October 2007 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: UTLF6 Dear Sirs: UNIER TECHNOLOGY CO., LTD. requests acceptance of the labeling proposal described below for transceivers bearing FCC identifier UTLF6. The subject transceivers are compact handheld models as shown in figure 1, authorized under 47CFR Part 80 for maritime services. Figure 1 Because the majority of the transceiver housing is composed of display, speaker, operating controls, and a removable battery pack, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery pack is not acceptable because the battery pack is a removable item. For this reason, UNIER TECHNOLOGY CO., LTD. proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. Figure 2 The consumer packaging for these models includes the battery pack as a separate item, NOT installed on the radio. As such, the FCC identifier will be readily visible to the user before the battery pack is installed and whenever the battery pack is removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a "gift box" which does not allow the transceiver to be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), UNIER TECHNOLOGY CO., LTD. will add the FCC identifier " UTLF6" to the outside of the consumer "gift box" packaging. Sincerely,

UNIER TECHNOLOGY CO., LTD. MODEL: F6 REPORT NO.: STR07108012I FCC PART 90 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 UNIER TECHNOLOGY CO., LTD. MODEL: F6 REPORT NO.: STR07108012I FCC PART 90 EUT Housing and Board View 3 Solder Board-Component View 4 UNIER TECHNOLOGY CO., LTD. MODEL: F6 REPORT NO.: STR07108012I FCC PART 90 Solder Board-Component View 5

CIRCUIT DESCRIPTION 1. Frequency Configuration The receiver utilizes double conversion. The first IF is 38.85MHz and the second IF is 450 kHz. The first local oscillator signal is supplied from the PLL circuit. The PLL circuit in the transmitter generates the necessary frequencies. Fig. 1 shows the frequencies. ANT SW RF AMP MIXER 38.85MHZ CF 450KHZ IF SYSTEM AF AMP 38.4MHZ MCF SP ANT X3 multiply TCXO 12.8MHZ PLL VCO MIC AMP MIC RF AMP TX AMP RX:174.85-212.85MHZ TX:136-174MHZ (M) (M) TX/RX:136-174MHZ (M) Fig. 1 Frequency configuration 2. Receiver The frequency configuration of the receiver is shown in Fig. 2. ANT SW BPF RF AMP BPF MIXER XF1 XF2 IF AMP 1ST LOCAL OSC Q20Q19 MCF Q18 ANT TUNE TUNE CF 450KHZ IF SYSTEM 2nd Local X3 multiply TCXO 12.8MHZ AF AMP SP IC301 AQUA Fig. 2 Receiver section 1) Front End (RF AMP) The signal coming from the antenna passes through the transmit/receive switching diode circuit, (D15,D10,D11 and D12) passes through a BPF (L47,L45 and L46), and is amplified by the RF amplifier (Q20).The resulting signal passes through a BPF (L19) and goes to the mixer. These BPFs are adjusted by variable capacitors (TC4 and TC5). The input voltage to the variable capacitor is regulated by voltage output from the microprocessor (IC7). 2) First Mixer The signal from the front end is mixed with the first local oscillator signal generated in the PLL circuit by Q19 to produce a first IF frequency of 38.85 MHz.The resulting signal passes through the XF1,XF2 MCF to cut the adjacent spurious and provide the Opitimun characteristics, such as adjacent frequency selectivity CIRCUIT DESCRIPTION 3) IF Amplifier Circuit The first IF signal is passed through a four-pole monolithic crystal filter (XF1,XF2) to remove the adjacent channel signal. The filtered first IF signal is amplified by the first IF amplifier (Q18) and then applied to the lF system IC (IC4). The IF system IC provides a second mixer, second local oscillator, limiting amplifier, quadrature detector and RSSI (Received Signal Strength Indicator). The second mixer mixes the first IF signal with the 38.4MHz of the second local oscillator output (TCXO X3) and produces the second IF signal of 450kHz.The second IF signal is passed through the ceramic filter (CF200) to remove the adjacent channel signal. The filtered second IF signal is amplified by the limiting amplifier and demodulated by the quadrature detector with the ceramic discriminator (CD1). The demodulated signal is routed to the audio circuit. 4) Wide/Narrow Switching Circuit Narrow and Wide settings can be made for each channel by switching the demodulation level.The WIDE (low level) and NARROW (high level) data is output from IC7, pin 6.When a WIDE (low level) data is received, Q301 turn on. When a NARROW (high level) data is received, Q301 turn off. Q301 turns on/off with the Wide/Narrow data and the IC300 detector output level is switched to maintain a constant output level during wide or narrow signals. 5) Audio Amplifier Circuit The demodulated signal from IC4 goes to AF amplifier through IC301.The signal then goes through an AF volume control , and is routed to an audio power amplifier (IC5) where it is amplified and output to the speaker. 6) Squelch Part of the AF signal from the IC enters the FM IC (IC4) again, and the noise component is amplified and rectified by a filter and an amplifier to produce a DC voltage corresponding to the noise level.The DC signal from the FM IC goes to the analog port of the microprocessor (IC7). IC405 determines whether to output sounds from the speaker by checking whether the input voltage is higher or lower than the preset value. To output sounds from the speaker, IC7 sends a high signal to the SP MUTE line and turns IC302 on through Q39,Q23,Q22,andQ38 . (See Fig. 3) 7) Receive Signalling (1) QT/DQT The output signal from FM IC(IC4) enters the microprocessor(IC7) through IC300. IC7 determines whether the QT or DQT matches the preset value, and controls the SP MUTE and the speaker output sounds according to the squelch results. 2) MSK (Fleet Sync) The MSK input signal from the FM IC goes to pin 10 of IC 300. The signal is demodulated by MSK demodulator in IC 300. The demodulated data goes to the CPU for processing. (3) DTMF The DTMF input signal from the FM IC (IC4) goes to IC300. The decoded information is then processed by the CPU. CIRCUIT DESCRIPTION AF AMP SP FM IC4 IF AMP IC300 AQUA SIGNAL DTMF QT/DQT QT/DQT IN BUSY IC7 CPU AF CONT Q22,Q23,Q38 SW Fig. 3 AF amplifier and squelch 3. PLL Frequency Synthesizer The PLL circuit generates the first local oscillator signal for reception and the RF signal for transmission. 1) PLL The frequency step of the PLL circuit is 2.5, 5, 6.25 or7.5kHz. A 12.8MHz reference oscillator signal is divided at IC1 by a fixed counter to produce an oscillator (VCO) output signal which is buffer amplified by Q2 then divided in IC1 by a programmable counter. The divided signal is compared in phase with the 5 or 6.25kHz reference signal from the phase comparator in IC1. The output signal from the phase comparator is filtered through a low-pass filter and passed to the VCO to control the oscillator frequency. (See Fig. 4) 2) VCO The operating frequency is generated by Q4 in transmit mode and Q3 in receive mode. The oscillator frequency is controlled by applying the VCO control voltage, obtained from the phase comparator, to the varactor diodes (D2 and D4 in transmit mode and D1 and D3 in receive mode). The RX pin is set high in receive mode causing Q7 turn on.The TX pin is set high in transmit mode. The outputs from Q3 and Q4 are amplified by Q6,Q100 and sent to the RF amplifiers. Q2 BUFFER IC2 1/2 Q6 BUFF AMP Q7.4 T/R SW RX TX RX VCO Q3 TX VCO Q4 D2,D4 D1,D3 LPF LPF PLL IC1 1/N 5K/6.25KHZ PHASE COMPARATOR CHARGE PUMP 1/M 5K/6.25KHZ PLL DATA REF OSC X1 12.8MHZ Fig. 4 PLL circuit 3) Unlock Detector CIRCUIT DESCRIPTION If a pulse signal appears at the LD pin of IC1, an unlock condition occurs, and the DC volta…

Text truncated - open the document above for the full version.

DesignatorSpecificationAmountunits Resistor R2, R12, R13, R28_1, R29, R38, R76, R90, R108, R124, R188, R191, R198, R317, C60, R156 RC0402JR-070R16 pcs R78, R83, R3_1, R111, R91,R155RC0402JR-0710R 6pcs R85RC0402JR-0722R1 pcs R104, R109, R190, R128,R121,RC0402JR-0747R5 pcs R56, R96, R159, R215, R14_1RC0402JR-07100R5 pcs R81, *R132, R116, R143RC0402JR-07220R 4pcs R25_1, R27_1, R139, R154RC0402JR-07270R 4pcs R87, R102, R113, R140, R14, R160, R128RC0402JR-07330R 7pcs R5, R7, R99, R36_1, R137RC0402JR-07560R 5pcs R31 RC0402JR-07680R 1pcs R219,R150 RC0402JR-07820R2 pcs R3, R20, R33, R47, R51, R55, R98, R114, R134, R332, R4_1 RC0402JR-071K 11pcs R66, R97, R110, R167RC0402JR-071K5 4pcs R183 RC0402JR-071K8 1pcs R103,R131,R163,R10,R122,R144,R53 RC0402JR-072K2 7pcs R9,R187 RC0402JR-072K7 2pcs C22, R36, R50, R100, R101, R106, R148, R149, R166, R310 RC0402JR-073K3 10pcs R74, R112RC0402JR-073K9 2pcs R23, R24, R25, R27, R32, R48, R105, R500, R501 RC0402JR-074K7 9pcs R303, R308, R320, R321RC0402JR-075K6 4pcs R37, R115RC0402JR-076K8 2pcs R518RC0402JR-078K2 1pcs R15, R35, R79, R165, R180, R182_1, R301, R306, R513 RC0402JR-0710K 9pcs R311RC0402JR-0712K1 pcs R67, R68RC0402JR-0715K2 pcs R49, R168, R307RC0402JR-0718K 3pcs R316RC0402JR-0722K 1pcs R40, R64, R161, R162, R336, R14RC0402JR-0733K6 pcs R11_1, R16, R38_1, R46, R58, R63, R65, R89, R126, R142, R304, R305, R1320, R118, R22, R335, R92 RC0402JR-0747K17 pcs R337, R16RC0402JR-0768K2 pcs R212, R213, R214, R217RC0402JR-0782K4 pcs R318RC0402JR-0791K1 pcs R21, R34, R52, R70, R95, R133, R152, R211, R1313, R1323, R1325, R18 RC0402JR-07100K 12pcs R30, R80, R302, R319, R509, R153RC0402JR-07120K6 pcs R6, R174, R175, R176, R177, R178, R179RC0402JR-07150K7 pcs R72, R151, R210, R1318RC0402JR-07180K4 pcs R17, R315RC0402JR-07220K2 pcs R12_1, R313, R1316RC0402JR-07270K 3pcs R11, R82, R69, R8_1 RC0402JR-07330K 4 pcs R314 RC0402JR-07390K 1 pcs R216, R300, R312RC0402JR-07470K3 pcs RC0402JR-07680K pcs R4, R170, R181, R185, R186, R189, R309RC0402JR-071M 7pcs R41, R164RC0402JR-071M8 2pcs R28RC0603JR-070R1 pcs R141RC0603JR-0747R1 pcs R57, R350RC0603JR-07100R2 pcs F6 Part List 第1页/共5页 DesignatorSpecificationAmountunits F6 Part List *R117 RC0603JR-0715K1 pcs VR3RC0603JR-074K71 pcs *R125RC0603JR-0710K 1pcs VR1RC0603JR-0722K1 pcs R127RC0805JR-070R1 pcs R171, R172, R173RC1206JR-07R393 pcs TH5000603 3KΩ±3％32001 pcs VR2POZ2AN-1-473N-T001 pcs VR301POZ2AN-1-224N-T001 pcs pcs RC1RCA03-4D102JTP1 pcs Cappcs C47, C49C1005C0G1H0R5C2 pcs C40 C1608C0G1H0R75C1 pcs C35C1005C0G1H020C 1pcs *C193C1005C0G1H040C 1pcs C27, C44C1005C0G1H050C 2pcs C29,C160C1005C0G1H060C2 pcs C28 C1005C0G1H080C 1pcs C36 C1005C0G1H090C 1pcs C39_1, C54, C73, C266C1005C0G1H100C4 pcs C111, C190C1005C0G1H120C2 pcs C100C1005C0G1H150J 1pcs C45, C202C1005C0G1H180C 2pcs C167, C176, C118C1005C0G1H300J 3pcs C42_1, C105C1005C0G1H220J 2pcs C9, C14C1005C0G1H270J 2pcs C212, C53, C28_2C1005C0G1H330J 3pcs C10_1 C1005C0G1H470J 1pcs C286, C1338C1005C0G1H560J2 pcs C51_1, C16 C1005C0G1H680J2 pcs C2, C3, C6, C8, C10, C11, C34, C35_1, C89, C208, C247, C24 C1005C0G1H101J12 pcs C26_1 C1005C0G1H121J1 pcs C85, C205, C206C1005X7R1H221K3 pcs C17_1 C1005X7R1H331K1 pcs C62, C228C1005X7R1H681K2 pcs *C186, C25, C74, C81, C84, C87, C97, C109, C110, C112, C121, C125, C129, C133, C134, C146,C152, C157, C184, C194, C203, C223, C236, C246, C248, C249, C250, C260, C262, C271, C132, C137, C28_1 C1005X7R1H471KT 33pcs C7, C27_1, C29_1, C30, C31, C33_1, C43, C46, C50, C52, C55,C57, C58, C59, C78, C88,C92, C101, C103, C108, C114, C116, C119, C120, C123, C143, C158, C175, C178, C181, C183, C192, C199, C214, C265, C1314 C1005X7R1H102KT 36pcs C172, C227C1005X7R1H332K2 pcs C204, C314, C303C1005X7R1H472K3 pcs C1308C1005X7R1H562K1 pcs C41, C48, C122, C128, C170, C189, C191, C201, C210, C217,C218, C232, C251, C252, C255, C256, C63, C98, C141, C229, C302, C306, C307, C308, C271_1, C19, C20 C1005X7R1C103KT 27pcs C304C1005X7R1H183K1 pcs C75, C77, C161C1005X7R1C223K3 pcs 第2页/共5页 DesignatorSpecificationAmountunits F6 Part List C79, C500, C501, C37, C38, C39, C42, C309C1005X7R1C273K 8pcs C1318, C310, C312C1005X7R1C333K3 pcs C71, C226, C1319, C51, C305C1005X7R1C473K5 pcs C1, C4, C13, C17, C32, C58_1, C68, C113, C131, C156, C159, C173, C207, C209, C211, C213, C242, C243, C245, C26, C80, C267, C313 C1005X5R1C104K23 pcs C115, C174, C270C1005Y5V1A474Z3 pcs C180, C179 C1608C0G1H030C2 pcs *C182, C188, C269, C198 C1608C0G1H040C4 pcs C171, C197 C1608C0G1H04R5C2 pcs *C151C1608C0G1H080C1 pcs *C142, *C147, *C154, C135, C149C1608C0G1H100C5 pcs C281C1608C0G1H110C1 pcs C136C1608C0G1H150J1 pcs *C148, *C153C1608C0G1H200J2 pcs *C150, C280C1608C0G1H220J2 pcs *C140C1608C0G1H240J1 pcs C107, C185 C1608C0G1H270J2 pcs C222, C168, C182 C1608C0G1H330J3 pcs C144C1608C0G1H390J1 pcs C145C1608C0G1H560J1 pcs C235C1608C0G1H680J 1pcs C138C1608C0G1H101K 1pcs C83C1608X7R1H471K 1pcs C301C2012X7R1C474K1 pcs C117, C126, C241C2012Y5V1E105Z 3pcs C18, C120.1μF/16V/10% A型 2pcs C152.2μF/10% A型 1pcs C268, C69, C5042.2μF/10V/10% P型 3pcs C33, C5, C564.7μF/10V /10% A型 3pcs C1276.8μF/10V /20% A型1 pcs C163, C300, C82, C23, C139, C177, C200, C311, C76, C259 10μF/10V /20% A型 10pcs C166100μF/10V /20% C型1 pcs TC1, TC2TZVY2Z100A110T002 pcs pcs pcs L18, L27, L29BLM15AG221SN1 3pcs L1_1, L19_1, L25, L10, L41MMZ1608Y121B 5pcs L48, L50, L7, L16BLM21PG221SN14 pcs *L6MLG1608B27NJT0001 pcs L21MLG1608BR10JT000 1pcs L100MLG1608B82NJT000 1pcs L20MLG1608B39NJT000 1pcs L14, L24MLG1608B68NJT000 2pcs L38MLG1608BR18JT000 1pcs L17, L16_1 MLF1608DR22KT 2pcs L4 MLF1608DR47K1 pcs L5 MLF1608DR56KT1 pcs L3 ,R145MLF1608A3R3KT 2pcs L11, L8, L9, L12MLF1608E6R8KT 4pcs L13C2012-22NJ1 pcs L14_1, *L36C2012-33NJ2 pcs L42, L45, L55, L190603CS-56NXJBW4 pcs L390603CS-150NXJV1 pcs L470603CS-47NXJBW1 pcs L30LG HK21252R2J-T1 pcs L371008CS-561XJBC1 pcs 第3页/共5页 DesignatorSpecificationAmountunits F6 Part List L26NL252018T-1R0J1 pcs L2NL252018T-100J1 pcs L35LQH32MN1R0M23L1 pcs *L400.3×2T×1.5TR1 pcs *L20, *L230.3×4T×1.5TR2 pcs L34, L320.3×5T×1.5TR2 pcs L330.3×6T×1.5TR1 pcs…

Text truncated - open the document above for the full version.

TURN UP INFORMATION INTRUMENT: Standard Signal Generator(SSG) 1set Digital Voltmeter 1set Power Meter 1set Frequency counter 1set Distortion meter 1set Spectrum analyzer 1set Oscilloscope 1set Audio Generator (AG) 1set AF Volt Meter 1set Tracking Generator 1set 8Ω Dummy Load 1set Regulated power supply 1set Ammeter 1set Deviation Meter 1set Adjustment: Some items can be adjusted in conventional mode and the others in manual mode Turn the power on to enter conventional mode. Common Section Measurement Adjustment Item Condition Test Instrument TerminalPartMethod Specification/Remarks 1.Setting 1) BATT Terminal Voltage : 7.2V 2) SSG standard Modulation [WIDE]MOD:1kHz,DEV:3kHz [NARROW]MOD:1kHz,DEV:1.5kH z 1)CH : HI TC2 3.6 V ±0.1V 2.VCO Lock voltage RX 2)CH : LO CHECK ≥0.9V 3)CH : HI PTT : ON TC1 3.8 V ±0.1V 3.VCO Lock voltage TX 4)CH : LO PTT : ON Power Meter DVM ANT CV CHECK ≥0.7V Transmitter Section： Measurement Adjustment Item Condition Test Instrument Terminal Test Instrument Terminal Measurement 1. Frequency Adjustment 1）CH : HI 2）PTT : ON Frequency counter ANT VR1 172.875MHz ±50Hz 2. High Power Adjust TEST CH: LO Center HI ( 3 POINT ) BATT Voltage:7.2V PTT : ON 4.7W±0.1W ≤1.6A 3. Low Power Adjust TEST CH: LO Center HI ( 3 points ) BATT terminal Voltage :7.2V PTT : ON Power Meter Ammeter Max deviation adjust [ wide ] TEST CH: Center AG : 1kHz / 120mV Deviation meter filter LPF : 15kHz HPF : OFF PTT : ON 4.6kHz (According to t h lager+,-) ±50Hz Error：3.8~4.8KHz 4. [ narrow] TEST CH : Center PTT : ON Power meter Deviation meter Oscilloscop e AG AF VTVM ANT SP / MIC connecto r Programmin g software : U10 2.3kHz (According to t h lager+,-) ±50Hz DQT Balance adjust [ wide TEST CH: LO MID HI ( 3 POINT ) LPF : 3kHz HPF : OFF PTT : ON 5 . [ narrow ] TEST CH : Center PTT : ON Power mete r Deviation meter Oscilloscop e AG AF VTVM ANT Programming software : U10 Make the demodulation wave into square waves 6. QT deviation adjust [ wide ] TEST CH: LO MID HI ( 3 POINT ) LPF : 3kHz HPF : OFF PTT : ON Power meter Deviation meter Oscilloscop e AG AF VTVM ANT Programming software : U10 0.75kHz ±100Hz [ narrow ] TEST CH : Center PTT : ON 0.35kHz ±100Hz 7. DQT deviation adjust TEST CH : Center Low High ( 3 points ) LPF : 3kHz HPF : OFF PTT : ON 0.75kHz ±100Hz [ narrow ] TEST CH : Center PTT : ON 0.35kHz ±100Hz Receiver Section Measurement Adjustment Item Condition Test Instrument Termi l Part Method Specification/Remarks 1. BPF Wa v e adjust (1)Center frequency Spectrum analyzer setting Center-f : 155MHz Span : 50MHz RBW : 300kHz VBW : 10kHz ATT : 5dB (2)High-edge frequency Spectrum analyzer setting Center-f: 174MHz (3)Low-edge frequency Spectrum analyzer setting Center-f : 136MHz Spectrum analyzer ANT BPF Programming software : U10 Adjust the waveform as shown to the right ) Sensitivity [ wide ] TEST CH : LOW Center High SSG output : -119dBm (0.3μV) SSG MOD : 3.0kHz 2. [ narrow] TEST CH : Center SSG output : -117 dBm (0.4μV) SSG MOD : 1.5kHz check 12dB SINAD or more SQL1 (Threshold) writing [ wide ] TEST CH : Center LOW High SSG output : -123 dBm (0.16μV) SSG MOD : 3.0kHz 3. [narrow ] TEST CH : Center SSG OUTPUT : -122 dBm (0.18μV) SQL9 (Tight writing [ wide ] TEST CH : Center Low High SSG output : -117 dBm (0.3μV) 4. [ narrow ] TEST CH : Center SSG output : -116 dBm (0.35μV) SSG DVM Oscilloscope AF VTVM ANT write Squelch open Error： ±1.5dB 5. BATT Detection Writing BATT Terminal voltage : 5.6V DVM ANT BATT termin al Programming software : U10 writing BATT Terminal voltage : 5.6V

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA C158 1000P C167 30P C176 30P C177 10u 6.3v A0 1 A2 2 A2 3 GND 4 VCC 8 TEST 7 SCL 6 SDA 5 IC6 AT24C08 R95 100K R98 1K 5M R8310 R96100 R971.5K R87330R R81220 C146470P C152 470P 1 1 2 2 D17 GREEN-LED D18 REDLED 2 2 3 3 1 1 Q25 DTC114EE 2 2 3 3 1 1 Q24 DTC114EE VCC C98 103 R70100K 1 1 2 2 S403 MONI RX BUSY BATT ENB DATA CK AFCO BEEP MUTE UL PTT X4 7.3728M RXDTXD 2 2 5 5 8 8 11 11 10 10 7 7 4 4 1 1 K2SW8 5MC R5847K R4 1M TX 5M VCC TXDPTTRXD RXMUTEAFCOTXULENBCKDATA BATTBUSY 5MC BEEP R1632.2K 12 R11330K 1 1 2 2 C223470P C17 0.1u L3 3.3UH L16 L48 3.3UH L503.3UH C2510.01U C2520.01U C255 0.01U C2560.01U PB5 1 PB4 2 PA3 3 PA2 4 PA1 5 PA0 6 PB3 7 PB2 8 PB1 9 PB0 10 PF2 11 PF1 12 PD7 13 PD6 14 PD5 15 PD4 16 GND 17 PF0 18 PC0 19 PC1 20 PC2 21 PC3 22 PC4 23 PC5 24 PC6 25 PC7 26 PD0 27 PD1 28 PD2 29 PD3 30 RESB 31 VCC 32 OSC1 33 OSC2 34 PF7 35 PF6 36 PF5 37 PF4 38 PA7 39 PA6 40 PA5 41 PA4 42 PB7 43 PB6 44 IC7 NC 1 233 2 234 3 VCC 5 236 4 NCSUBGND VCCOUT IC2 PST9140NR 1 / 6 CPU 136MHz - 174MHz W/N C28656P Q40DTC144EE CTCSSOUT CTCSSOUT CTCSSIN CTCSSIN F6-8 A APC/BPF CF W/N R1220 R8220 C89100P C10100P C8100P C11 100P CF APC/BPF C38273 R244.7K C37273 R234.7K C42273 R274.7K C39273 R254.7K VR347K VR147k PF5PF6 MD2MD3 MD1 PF1 1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA R1063.3K C1081000P C109470P Q13 2SC4988 R1101.5K R111 22R R113330R L2468n R1123.9K C110470P L25CZ C111 12P C1141000P Q14 2SK3475 C116 1000P C113 0.1u L26 1uH L27CZ C120 1000P C118 8P C119 1000p *L6 27nH *R12547K R12847R C123 1000P R12647K C121 470P Q152SK3476 C135 10P *C140 27P C136 *C148 C138 *C14222P C145 1000P *C147 10P L32 L33 L34 *C150 18P *C153 15P C14910P *C15112P *C154 7P *C155 NC L35 1u (-81) L28 9T L29 C125470P C1280.01u C1310.1u C126 1u C129 470P ANT 136-174M L302.2uH R139 270 R154 270 L318T C143 1000P C144 22P TX PRE DRIVE T:0.95V C157470P C156 0.1u R1442.2k *R117 10K R118 47k R121 47 C1276.8u10V C235 D13 HSC277TRF D9 HSC277TRF A 1 K 2 D12 HSC277TRF D11HSC277TRF VCO RF VCC L4747N C179 C182 L1956nH C185 27P C184470P C197 L4256N R1312.2k *R132220R C198 C1991000P R133100K R135NC C1781000P C183 1000P 5R C212 33P R146330R R153 680K C2141000P C215 C160 4P C1921000P R140330R L38180NH L370.56UH C190 12P C1910.01u C1890.01U R142 47K C194470P R1452.7K *C1934P *C186 L39150nH R143220R R14147 C170 0.01u C217 0.01u C218 0.01u TP2 R1341K Q18 2SC4649 1 2 3 XF2 1 2 3 XF1 C187 5T C22233P R156 *47K/0R R158*100 C221 *470P L1 *82nH Q29 *2SC5108(Y) VCO RF 5R 5T VCC R160 330R R8522R D15HVU131TRF 14 85 - + + - IC10NJM2904V R1730.39R R1720.39R R1710.39R R174150KR175150K R178150K R179150KR176150K R177150K R180 10K R1811M C247100P C246470P C250470P C249 470P C248 470P Q33DTC114EE Q35 DTA144EE Q34 2SK1824 R184*330R Q203SK318 D 3 G2 2 S 4 G1 1 Q193SK318 R137560R 2 / 6 RF 136MHz - 174MHz *L20 *L40 3T R1270R *L3633nH R123330R R108 0R R10947R C1714.5P C10727P R1980R R280R R157*0R C220*470P R21782k R21282K R213 82K R21482K C2651000P C2694P R210180K C26610P C180 L5556NH C28022P C28111P APC/BPF APC/BPF R89100K 12 C112470P R120180K R4847K F6-8 A *L23 5T D305 ISV305 C168 R152100K C2130.1u Q28DTA144EE OSC1 OSC2 MIXO VCC IFI DEC FILO FILI 8 IF QUAD IFO RSSI NDET NREC E MIXI IC4 TA31136FN R151180K C205220PC206220P R743.9KR72180K R1493.3K C2044700P C1740.47u R1483.3K C20218P C203470P C2070.1u 1 1 5 5 2 2 3 3 4 4 CF200LTM450FW R7810 C20010u 6.3v C2010.01u C208100P R1501.5K C2100.01u C2110.1u C2090.1u C6647P C6747P C6533P 12 X3 38.4MHz RXAUDIO R471K CD1 JTBM450C24 C130.1u BUSY RXAUDIO R1910R R19047R BUSY D303 ISV305 A 1 K 2 D302 ISV305 R1701M R1851M L41 C1811000P VCC C288P C35 2P C369P C27 5P C296P L20 39N L14 68nH C921000P C86 1000P C911000P MIX 12 R105 1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA E 1 c 3 b 2 Q272SA1362 C117 1u 1 2 R99 560 C115 0.47u C137470p C1240.47uR82330k R114 1k C132470p Q262SA1362 C13910u 6…

Text truncated - open the document above for the full version.
