UTLF8TWO-WAY RADIO

Operational Instructions To ensure optimal performance and compliance with the occupational/controlled environment RF energy exposure limits in the above standards and guidelines, users should transmit no more than 50% of the time and always adhere to the following procedures: Hand-held radio operation Hold the radio in a vertical position with the microphone 5 cm away from the lips and let the antenna farther away from your head. Notices to the User Government law prohibits the operation of unlicensed radio transmitters within the territories under government control. Illegal operation is punishable by fine or imprisonment or both. Refer service to qualified technicians only. WARNING: It is important that the operator is aware of and understand hazards common to the operation of any transceiver. Explosive environment(such as gases, dust, fumes, etc). Turn off your transceiver while talking on fuel, or while parked in gasoline service stations.

CONFIDENTIALITY FORM Date: February 2, 2007 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. Unier Technology Co., Ltd. would like the following documents regarding this submission for FCC ID: UTLF8 to be kept confidential. 1. Schematic 2. Block Diagram 3. Operational Description frequency table 4. Operational Description circuit description 5. Parts List&Tune Up Info parts list 6. Parts List&Tune Up Info tuning procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Victoria Wu / Manager

CONFIDENTIALITY FORM Date: February 2, 2007 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: UTLF8. Gentlemen: This equipment meets the requirements of FCC Rules. Parts 90.203(e) and (g) as applicable.. Programming of this product’s transmit frequency(450.075MHz ~ 469.875MHz) & power(<3.8W) can only be performed by the manufacture, the operator can not program transmit frequency & power using the external operation controls. Sincerely, Victoria Wu / Manager

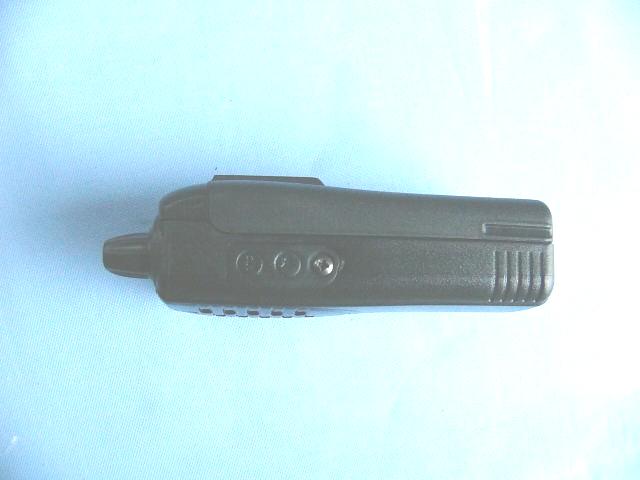

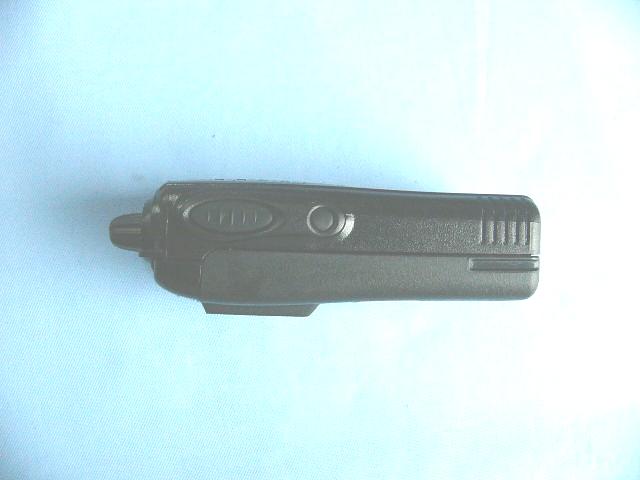

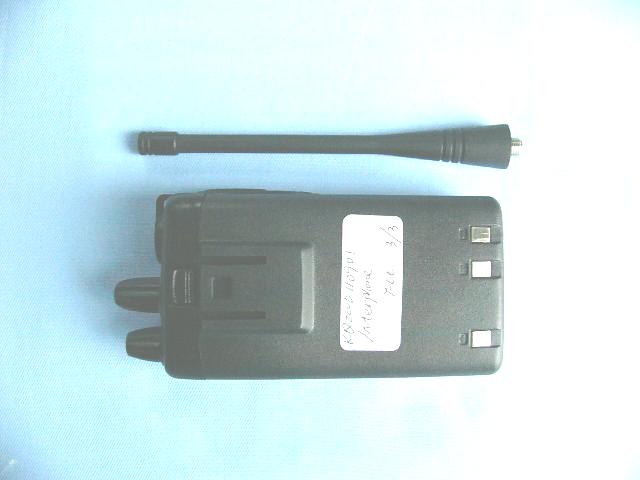

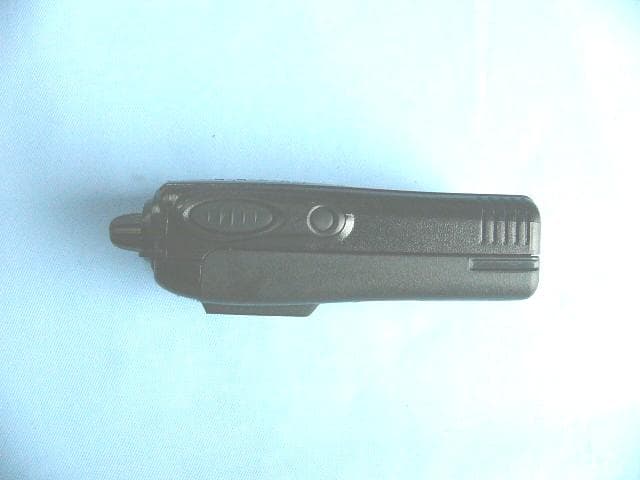

Applicant: Unier Technology Co., Ltd. FCC ID: UTLF8 EUT top view EUT bottom view

Applicant: Unier Technology Co., Ltd. FCC ID: UTLF8 Proposed Label Location on EUT EUT Bottom View/Proposed FCC ID Label Location Unier Mark Model: F8 Two-Way Radio , Made in China FCC ID: UTLF8 This device complies with Part 90 of the FCC Rules. Operation is subject to the condition that device does not cause harmful interference. Restricted to occupational use to satisfy FCC RF exposure limits. See user manual for operation requirements.

Applicant: Unier Technology Co., Ltd. FCC ID: UTLF8 EUT inside whole view Main board component side

The test report consists 32 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Ke Mei Ou Laboratory Corporation. The test result in the report only applied to the tested sample. FCC TEST REPORT Under FCC Part 90, Paragraph 90.210: 2004 Prepared For : Unier Technology Co., Ltd. 5F, Huahan Innovation Park, Building D, Keyuan Road, Shenzhen, China December 13, 2006 FCC ID: UTLF8 EUT: Two-Way Radio Model: F8 Report Type: Original Report Test Engineer: Jacky Huang Test Date: November16, 2006 Review By: Apollo Liu / Manager Ke Mei Ou Laboratory Co., Ltd. 7A, Jiaxiangge, Jiahuixincheng, No.3027, Shennan Rd., Futian, Shenzhen, Guangdong, P.R.China. Zip Code: 518033 Tel: + 86 755 83642690 Fax: + 86 755 83297077 www.kmolab.com FEDERAL COMMUNICATIONS COMMISSION Registration Number: 125782 INDUSTRY CANADA Registration Number: IC4986 Unier Technology Co., Ltd. FCC ID: UTLF8 FCC ID Report Report #: KSZ2006110901J Page 2 of 32 TABLE OF CONTENTS 1. General Information..................................................................................................................................................................................................3 1. 1 Notes....................................................................................................................................................................................................................3 1. 2 Testing Laboratory...............................................................................................................................................................................................3 1. 3 Details of Applicant..............................................................................................................................................................................................3 1. 4 Application Details...............................................................................................................................................................................................3 1. 5 Test Item...............................................................................................................................................................................................................3 1. 6 Test Standards......................................................................................................................................................................................................3 2. Technical Test Results................................................................................................................................................................................................4 2. 1 Summary of Test Results......................................................................................................................................................................................4 2. 2 EUT Modifications...............................................................................................................................................................................................4 3. Technical Characteristics Test...................................................................................................................................................................................5 3. 1 Conducted Emission Test.....................................................................................................................................................................................5 3.1.1 Test Equipment...................................................................................................................................................................................................5 3.1.2 Test Procedure....................................................................................................................................................................................................5 3.1.3 Test Setup...........................................................................................................................................................................................................5 3.1.4 Configuration of the EUT...................................................................................................................................................................................6 3.1.5 EUT Operating Condition..................................................................................................................................................................................6 3.1.6 Conducted Power Line Emission Limits............................................................................................................................................................6 3.1.7 Conducted Power Line Test Result.....................................................................................................................................................................6 3. 2 RF Output Power..................................................................................................................................................................................................7 3.2.1 Test Equipment...................................................................................................................................................................................................7 3.2.2 Test Procedure....................................................................................................................................................................................................7 3.2.3 Test Setup....................................................................................................................................................................................…
