UU3FC302U2DFC-302 Data Radio

S henzhen Friendcom Technology Development Co., Ltd. FC-302 Data Radio User Manual Address: 6/F,17 Building, Guangqian Industrial Park, Longzhu Road, Xili Town, Nanshan Shenzhen, China Tel:+86-755-86026600 +86-755-23230518 Fax:+86-755-86026300 E-mail: [email protected] Website: http://www.friendcom.cn SHENZHEN FRIENDCOM TECHNOLOGY DEVELOPMENT CO.,LTD S henzhen Friendcom Technology Development Co., Ltd. 1 C ontent 1 Product Description.................................................................................................................................................2 2 Technical Specifications......................................................................................................................................... 3 3 Interfaces of the Radio...........................................................................................................................................4 3.1 Interface for Voice Transmission.................................................................................................................6 3.2 Interface for data transmission.....................................................................................................................7 3.3 Modem Option for Data Communication....................................................................................................7 4 Application Instruction............................................................................................................................................8 4.1 Hardware Installation...................................................................................................................................8 4.2 Operation Instruction................................................................................................................................. 10 5 Maintenance and Repair........................................................................................................................................18 5.1 Dimensions.................................................................................................................................................18 5.2 Removing & Replacing the Upper Cover..................................................................................................19 5.3 Removing & Replacing the Power Board & Modem Board & Shield Plate............................................ 19 5.4 Removing & Replacing the Main Board................................................................................................... 20 5.5 Repairable/Replaceable Parts List............................................................................................................. 21 6 Accessories Available...........................................................................................................................................22 Appendix:.................................................................................................................................................................23 S henzhen Friendcom Technology Development Co., Ltd. 2 1 Product Description FC-302 is a synthesized 5-watt FM transceiver module, which is designed for data transportation and voice communication. For the voice communication, it can support selected pre-emphasis, squelch and audio amplifier. The radio is PLL(Phase Lock Loop Synthesizer) /microprocessor controlled with optional GMSK modem. The application of two-point modulation with good low-frequency response in the radio also makes it a competitive choice for 9600bps rate data application. Compact dimension and wide range DC support make it flexible to use. Features: • CE, FCC& AS/NZS 4295: 2004 certified • Programmable 16 channels with Dip-Switch • Configurable power save feature • Optional external channel configuration • GMSK modem • CTCSS/DCS • Fast start-up time: 5ms • SQ programmable via PC • Pocsag Modulation • PC programmable & Software tune & Calibration Applications: • Industrial telemetry & wireless remote control • Gas and oil flow monitoring • Electricity, water and gas utilities • Earthquake, weather, environmental protection and urban lighting control • Vehicle tracking and asset tracking systems • Water monitoring, waste water management and irrigation control • Railway, police, army automation system • Aerial defense and fire alarm system • Wireless Paging system FM& option S henzhen Friendcom Technology Development Co., Ltd. 3 2 Technical Specifications General Specification Working Frequency 450MHz～490MHz Channel Spacing6.25KHz/12.5KHz Programmable Modulation TypeFM, GMSK Number of Channels16 Nominal Working Voltage12V DC Extreme Working Voltage 9.5 V～16V DC Storage Temperature -40°C～+80°C Operating Temperature -30°C～+65°C Current Consumption Standby ＜100mA Transmit 5 watts RF Power ＜1.5A Transmit 1 watt RF Power ＜1A TX to RX Attack Time ＜5ms RX to TX attack time ＜5ms Frequency Error ＜2.5ppm Antenna ConnectorBNC 50Ω External interfaceDB15(optionalmale interface) Transmitter Specification RF Power 6.25KHz Channel Spacing 1W/2W Programmable 12.5KHz Channel Spacing 1W/2W/3W/4W/5W Programmable Frequency Deviation 6.25KHz Channel Spacing ＜1.25KHz 12.5KHz Channel Spacing ＜2.5KHz Subsonic0.5KHz Adjacent Channel Power 6.25KHz Channel Spacing ＜-60dBc 12.5KHz Channel Spacing ＜-70dBc Conducted Spurious Emission ＜1GHz,＜-36dBm ＞1GHz,＜-30dBm Modulation Sensitivity Voice8~15mV Data80~130mV TX SNR 6.25KHz Channel Spacing ＞30dB 12.5KHz Channel Spacing ＞40dB S henzhen Friendcom Technology Development Co., Ltd. 4 R eceiver Specification RX Sensitivity (12dB SINAD) ＜-119dBm Extreme＜-115dBm ACS ＞70dB Image Rejection ＞70dB IF Rejection ＞70dB Spurious Rejection ＞70dB Intermodulation Suppression ＞65dB Conducted Spurious Emission ＜-57dBm Receiving Audio Distortion ＜5% RX SNR 6.25KHz Channel Spacing ＞30dB 12.5KHz Channel Spacing ＞40dB Audio Output Power0.5W @ 8Ωload 3 Interfacesofthe Radio DB-15 are our basic interfaces of FC-302 radio. D…

Text truncated - open the document above for the full version.

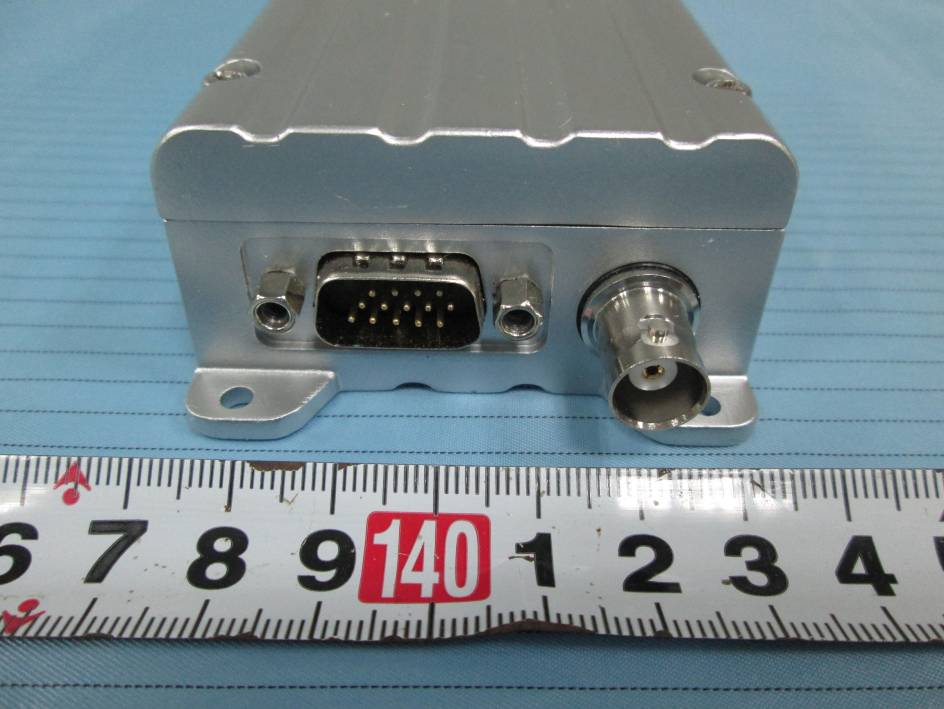

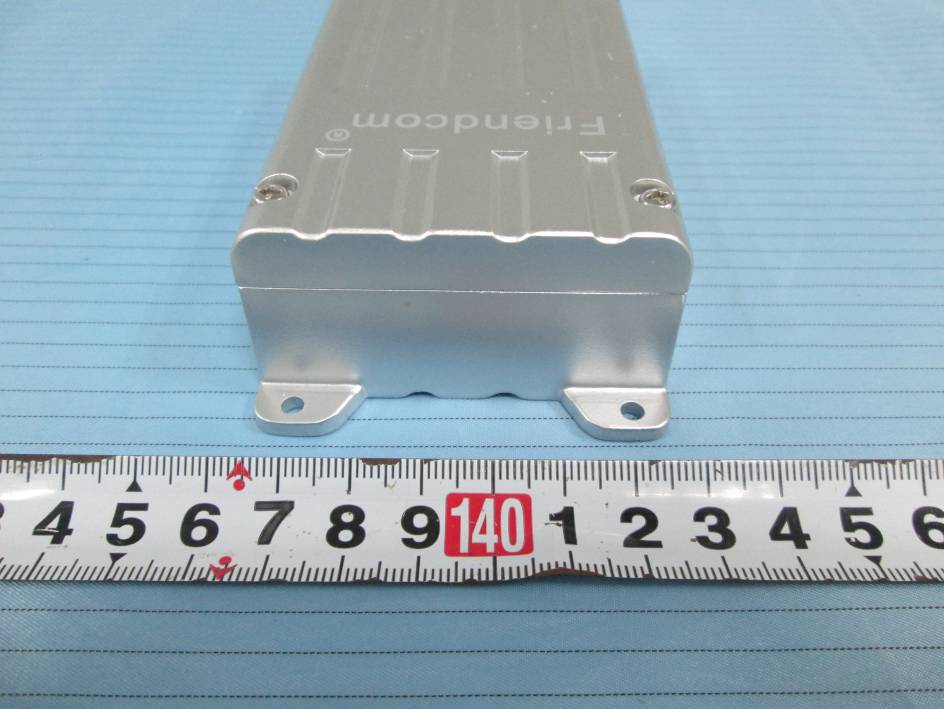

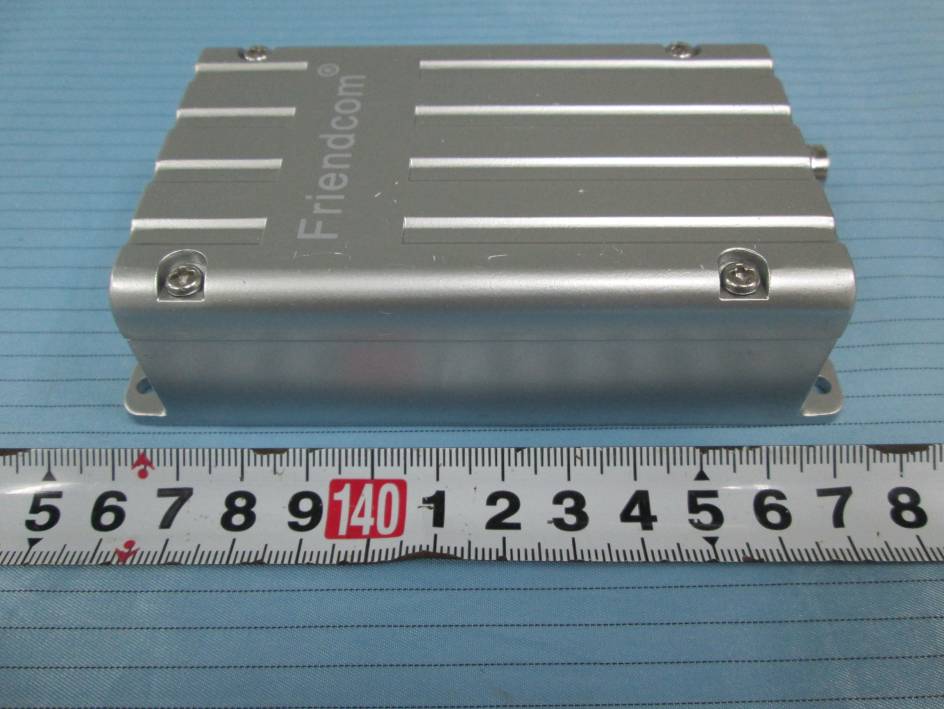

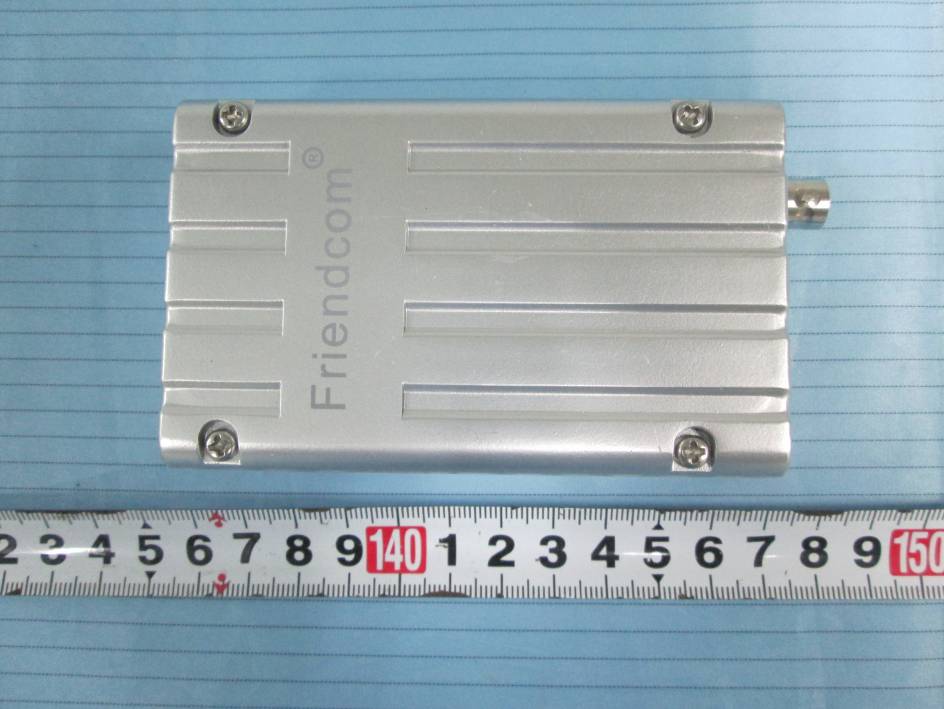

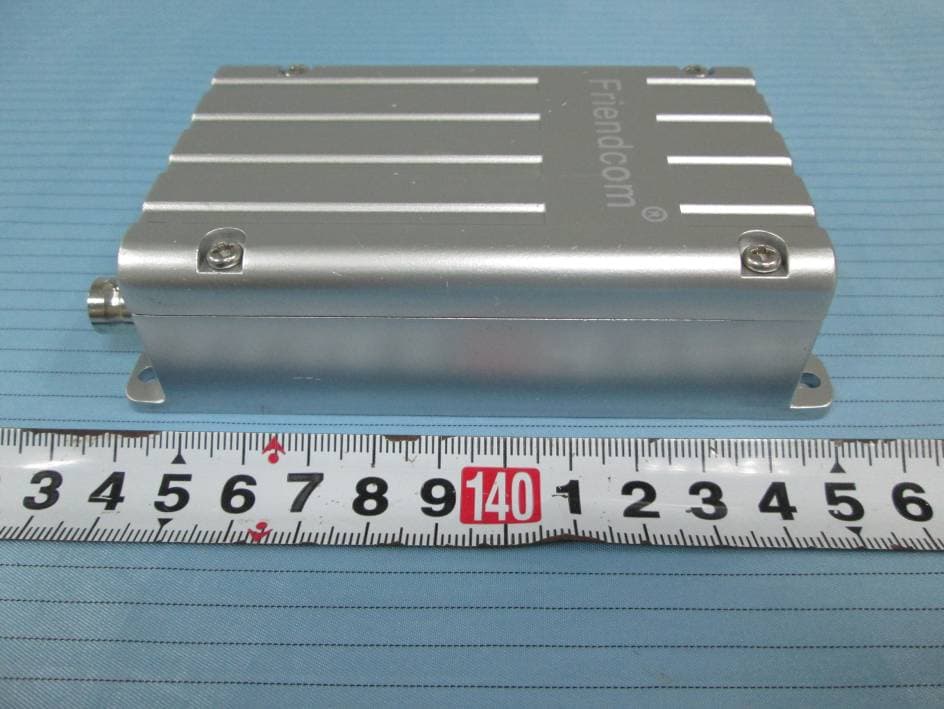

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left Side View EUT – Right Side View

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT –Cover off View 1 EUT –Cover off View 2 Power Board GMSK Board EUT –Cover off View 3 EUT – FC-302-GMSK Board Top View EUT – FC-302-GMSK Board Bottom View EUT – FC-302-M V1.4.1 Board Top View EUT – FC-302-M V1.4.1 Board Top Shielding Off View EUT – FC-302-M V1.4.1 Board Bottom View EUT – FC-302-M V1.4.1 Board Bottom Shielding Off View EUT – FC-302-PWR V1.1 Board Top View EUT – FC-302-PWR V1.1 Board Top Shielding Off View EUT – FC-302-PWR V1.1 Board Bottom View

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ151030001-00 FCC PART 90 Page 8 of 41 FCC §15.247 (i) & §1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247 (i) and subpart 1.1307 (b)(1), 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Result Calculated Formulary: Predication of MPE limit at a given distance S = 2 4R PG  S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Frequency (MHz) Antenna Gain Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm) (mW) 470.0125 5.0 3.16 37.5 5623.4 100 0.14 0.31 Note: To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 100cm from nearby persons. Result: Compliance

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 90 TEST REPORT For Shenzhen Friendcom Technology Development Co., Ltd. 6/F, 17 Building, Guangqian Industrial Park, Longzhu Road, Xili Town, Nanshan, Shenzhen, China FCC ID: UU3FC302U2D Report Type: Original Report Product Type: FC-302 Data Radio Test En gineer: Candy Li Re port Number: RSZ151030001-00 Re port Date: 2015-11-19 Reviewed B y: Jimmy Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ151030001-00 FCC PART 90 Page 2 of 41 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 EXTERNAL I/O CABLE .................................................................................................................................................. 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 FCC §15.247 (i) & §1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) .............................. 8 APPLICABLE STANDARD .............................................................................................................................................. 8 RESULT ........................................................................................................................................................................ 8 FCC §2.1046 & §90.205 - RF Output Power ............................................................................................................... 9 APPLICABLE STANDARD .............................................................................................................................................. 9 TEST PROCEDURE ........................................................................................................................................................ 9 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................................... 9 TEST DATA .................................................................................................................................................................. 9 FCC §2.1047 & §90.207 - MODULATION CHARACTERISTIC .......................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 11 TEST PROCEDURE ...................................................................................................................................................... 11 TEST DATA ................................................................................................................................................................ 11 FCC §2.1049 & §90.209 & §90.210 – OCCUPIED BANDWIDTH & EMISSION MASK ................................... 19 APPLICABLE STANDARD ............................................................................................................................................ 19 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 20 TEST PROCEDURE ...................................................................................................................................................... 20 TEST DATA ...................................................................................................................................…
