UU5-03112109SBLUETOOTH CAR KIT

●Bluetooth® Portable Carkit 1. Introduction Bluetooth wireless technology is an international standard for short range wireless communication. It allows you to establish a wireless connection within a range of 10 meters between this headset and mobile phone. This hands-free car kit has advanced human interface , and its sound quality is similar to a hard-wired system. The internal DSP adjust its parameter automatically to get the best voice quality. 2. Product out looking V- . l o V + .lo r ek aepS eno hp o rc iM Y esDE L N o ●While an incoming call, the car kit rings, and press “Yes” to answer the call. f.Reject an coming call ●While an incoming call, press “No” to reject the call. g.Terminate a call. ●During an active call, press “No” to terminate.． h.Voice Transfer between carkit and phone, while an on-going call ●Press “Yes” for 3 seconds to transfer voice between the car kit and your mobile phone, during an on-going call, for your privacy. i. Adjusting the Volume ●Press “Vol (+) button” for higher volume in talking mode. ●Press “Vol (-) button” for lower volume in talking mode. j.Mute ●Press and hold “Vol (-) button” to enable Mic mute function in during an on-going call. ●Press and hold “Vol (+) button” to disable Mic mute function in during an on-going call. 4. Store numbers from receiving list: You can store 2 numbers in this carkit, from receiving call. a.You have to be in the ”no link” mode. b.Press V- for 3 seconds to store the last receiving number on V-. c.Press V+ for 3 seconds to store the last receiving number on V+. 3. How to use it 1.Position: you can put the car kit on aSun visor bDash board of your car cOffice/home for conference 2. Open the microphone: you should open the microphone when you use it, and face the microphone to your mouth. 3. General Function description a.Power on: Plug the power cable to the device. b.Pairing: ●Turn on the Bluetooth device on your phone. ●During No link mode, press and hold “Yes” and “No” together to enter the pairing mode. ●Reference to your mobile phone user manual, you can find the Bluetooth device from the phone, and key in the password: “1234”. If you don’t like to pair, just press “No” to escape the pairing mode. c.Connect to the phone: Usually, it links to your phone automatically. If not, during No link mode, press “Yes” to link to the linked phone. d.Disconnect the carkit and mobile phone ●During the connection mode, press “Yes” for 3 seconds to disconnect. e.Answer 5. Make a call from memory a.On Linked mode, press “V-“ for 3 seconds to call the number stored on V- position. b.On Linked mode, press “V+“ for 3 seconds to call the number stored on V+ position. 6. Trouble shooting a. anytime the carkit doesn’t perform right, un-Plug the power cable, and press “No” for 3 seconds to restart the device. b. If you still cannot solve problem, Press “V-“ and “No” together, for 3 seconds. It will reset the device to the factory status. Be careful you will lose every data in the carkit, after doing the factory reset. 7. LED status sutat S DE L d e R DEL e ulB n o r e w oP nO k n i l oN f fo k n iL h sa l fw ol S g n i r iaP dno c es hca e ni se m it 3 hsa lF llac g n imo c nI hsalf kciuQ g n iklat n os yawlA 3.使用說明 1. 擺設位置 : 使用者可置放藍芽於可攜式車用免持聽筒 的位置 壹、 夾在遮陽板上。 貳、 放在儀表板上。 叁、 辦公室/家用。 2. 打開麥克風 : 當使用藍芽可攜式車用免持聽筒時，將麥克風打開並須 直接面向使用者嘴部。 3. 功能說明 ： 壹 、 開機 : 關機狀態時，將本裝置插入點菸頭即可開機。 貳 、 配對 : ◆ 開啟手機內的藍芽裝置。 ◆ 未連線狀態時，同時按壓住 "Yes" & "No"鍵可進入 配對模式。 ◆ 參考手機使用說明書，可自手機內發現藍芽裝置， 然後輸入密碼 : 1234。若無需配對，按"No"鍵即可 退出配對模式。 參 、 連線至手機 : 通常藍芽可攜式車用免持聽筒會自動 與手機連線。若未自動連上，在未連線狀態時，按 "Yes"鍵可連結上欲連線手機。 肆 、 中斷藍芽可攜式車用免持聽筒與手機間的連線 : 連線狀態中，按 "Yes"鍵三秒鐘可中斷連線。 伍 、 接聽 : ◆來電時，藍芽可攜式車用免持聽筒鈴響提示， 按 "Yes"鍵可接聽來電 。 陸 、 拒接來電 : ◆來電時，按下"No"鍵可拒絕接聽。 柒 、 掛斷 : ◆通話中，按下"No"鍵可中止通話。 捌、 通話中，聲音可在手機與藍芽可攜式車用免持聽筒 間移轉 : ◆為了使用者隱私，在通話中只需按 "Yes"鍵三秒鐘， 即可讓聲音在手機與藍芽可攜式車用免持聽筒間移轉。 玖、 調整音量 : ◆通話模式中，按?"V+"鍵可提高音量。 ◆通話模式中，按?"V- "鍵可降低音量。 拾、 靜音 : ◆正在進行通話中，按壓?住"V- "鍵使麥克風進入 靜音功能。 ◆正在進行通話中，按壓?住"V+"鍵使麥克風退出 靜音功能。 4.自已接聽名單儲存號碼 : 使用者可在藍芽可攜式車用免 持聽筒中，自已接來電名單儲存2組電話號碼。 壹 、 使用者必須在未連線狀態下。 貳 、 按"V- "鍵三秒鐘，可儲存最後一通接聽的來電號碼 於第一個記憶位置"V- "。 叁 、 按"V+"鍵三秒鐘，可儲存最後一通接聽的來電號碼 於第二個記憶位置"V+"。 1. 產品介紹 藍芽無線技術是一種國際間標準的短距無線通訊技術。 可在十公尺的距離內，提供在手機與本藍芽車用免持聽 筒建立無線通訊。 此藍芽可攜式車用免持聽筒擁有最優異人機介面，其聲 音品質與硬體連線系統相近。由於內建聲音數位處理器 (DSP)來自動調整參數，故能提供絕佳的聲音品質。 2. 產品外觀 筒 聽持 免 用車式攜可芽 藍 音音量量增增強強 喇喇 叭叭 音音 量量 減減 弱弱 麥麥克克風風 掛掛斷斷 DEL 接接聽聽 USER MANUALUSER MANUAL 使 用 說 明 書 5.自記憶名單撥打號碼 壹 、 在連線狀態時，按"V-"鍵三秒鐘進入第一個記憶位 置"V- " ，可撥打此組號碼。 貳 、 在連線狀態時，按"V+"鍵三秒鐘進入第二個記憶位 置"V+ "，可撥打此組號碼。 6. 疑難排解 壹 、 當本免持聽筒裝置運作異常時，拔除點菸頭電源線 接頭，按"No"鍵三秒鐘重新啟動本裝置。 貳 、 假若照上列方式執行後仍無法解決問題，請一起按 住"V- "鍵和"No"鍵三秒鐘。本免持聽筒裝置將會回 復原廠設定。注意：在執行回復原廠設定後，將會 遺失裝置中所有記錄資料。 7.LED狀態顯示 態狀 色紅 D EL 燈 色藍 DE L 燈 機開亮燈 線連未暗燈 線連動閃速慢，亮燈 對配 次三動閃秒每，亮燈 電來動閃速快，亮燈 中話通亮燈 Bluetooth Bluetooth

Date: 2007/7/10 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

August 13, 2007 Federal Communications Commission Authorization and Evaluation Division FCC ID: UU5-03112109S Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

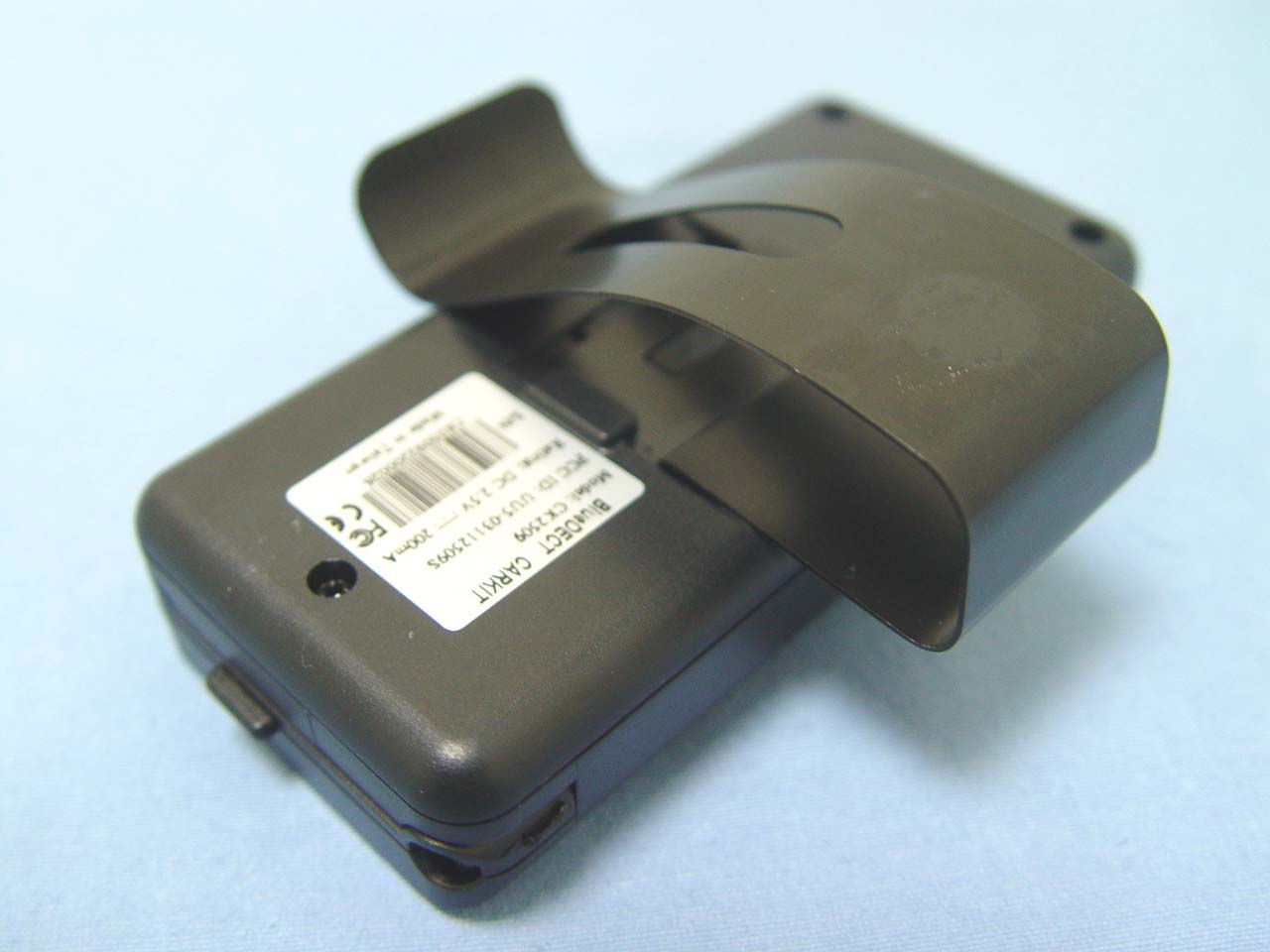

Compliance Certification Services Inc. Report No.: 70427002 Date of Issue: August 14, 2007 Page 1 Total Page: 3 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT

BLUETOOTH CAR KIT Model: CK2109 FCC ID : UU5-03112109S Rating: DC : 5V,200mA S/N：XXXXXXXXXX BlueDECT Technology Corp.

Compliance Certification Services Inc. Report No.: 70427002 Date of Issue: August 14, 2007 Page 2 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Multilayer Chip Antenna Compliance Certification Services Inc. Report No.: 70427002 Date of Issue: August 14, 2007 Page 3 Rev.00

ACX Adv anced Ceram ic X Mark L W T a Dimensions 5.00.2 2.00.2 1.00.2 0.50.3 Application of AT5020 Series Multilayer Chip Antenna Features ™ Monolithic SMD with small, low-profile and light-weight type. ™ Wide bandwidth Applications ™Bluetooth/Wireless LAN/Home RF ™ISM band 2.4GHz applications Part Number AT 5020 - B 2R8 HAA ‡ ghfe dc c Type AT : Antenna d Dimensions ( L × W ) 5.0× 2.0 mm e Material Code B f Frequency Range 2R8=2800MHz g Specification Code HAA h Packaging T: Tape & Reel B: Bulk Terminal Configuration No. Terminal Name No. Terminal Name c Feeding Point d NC d c Dimensions and Recommended PC Board Pattern Unit : mm a W T L ACX Adv anced Ceram ic X Signal feed in 1mm 3.5mm 1.8nH 2.2pF 3.9pF 0.5mm 4.1mm 3.9mm 8.5mm 1.8mm *Line width should be designed to match 50Ω characteristic impedance, depending on PCB material and thickness. Typical Electrical Characteristics (T=25 o C) ™ Test Board 11.5mm 53mm 7mm No Ground 10mm Antenna 21.5mm 60mm Matching Circuit Ground ACX Adv anced Ceram ic X ™Return Loss ACX Adv anced Ceram ic X Radiation Patterns XZ cut @2.45GHz Vertical Horizontal YZ cut @2.45GHz Vertical Horizontal XZ-V/XZ-H YZ-V/YZ-H XY cut @2.45GHz Vertical Horizontal Z 270 o 0 o X Y XY-cut scanning direction Y 270 o 0 o X Z XZ-cut scanning direction Y X 0 o 270 Z YZ-cut scanning direction 180 180 180 o XY-V/XY-H 90 o 90 o 90 o ACX Adv anced Ceram ic X Maximum & Average Gain (dBi) XY-V XY-H XZ-V XZ-H YZ-V YZ-H Maximum -12.04 -0.3 -5.21 -5.84 -7.83 -0.21 Average -17.22 -4.99 -10.01 -10.9 -10.51 -5.75 Advanced Ceramic X Corp. 16 Tzu Chiang Road, Hsinchu Industrial District Hsinchu Hsien 303, Taiwan TEL:886-3-5987008 FAX:886-3-5987001 E-mail: [email protected] http://www.acxc.com.tw

Compliance Certification Services Inc. Report No.: 70427002-RP1 FCC ID: UU5-03112109S Date of Issue: August 14, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 48 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For BLUETOOTH CAR KIT Model: CK2109 Trade Name: BlueDECT Issued to BlueDECT Technology Corp. 10F-2, No. 2, Lane 258, Rueiguang Road, Neihu District, Taipei 114, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 70427002-RP1 FCC ID: UU5-03112109S Date of Issue: August 14, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.....................................................................................................3 2. EUT DESCRIPTION...........................................................................................................................4 3. TEST METHODOLOGY....................................................................................................................5 3.1 EUT CONFIGURATION.....................................................................................................................5 3.2 EUT EXERCISE.................................................................................................................................5 3.3 GENERAL TEST PROCEDURES..........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.....................................................6 3.5 DESCRIPTION OF TEST MODES........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION...................................................................................8 4.2 MEASUREMENT EQUIPMENT USED......................................................................................8 5. FACILITIES AND ACCREDITATIONS ...........................................................................................9 5.1 FACILITIES ......................................................................................................................................9 5.2 EQUIPMENT.....................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS..................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST........................................................................................11 6.1 SETUP CONFIGURATION OF EUT....................................................................................................11 6.2 SUPPORT EQUIPMENT ............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 PEAK POWER.................................................................................................................................12 7.2 BAND EDGES MEASUREMENT .............................................................................................13 7.3 PEAK POWER SPECTRAL DENSITY.................................................................................................18 7.4 FREQUENCY SEPARATION....................................................................................................21 7.5 NUMBER OF HOPPING FREQUENCY ...................................................................................23 7.6 TIME OF OCCUPANCY (DWELL TIME)................................................................................25 7.7 SPURIO US EMISSIONS .............................................................................................................32 7.8 POWERLINE CONDUCTED EMISSIONS............................................................................................42 APPENDIX I RADIO FREQUENCY EXPOSURE ................................................................................45 APPENDIX II PHOTOGRAPHS OF TEST SETUP ...............................................................................46 Compliance Certification Services Inc. Report No.: 70427002-RP1 FCC ID: UU5-03112109S Date of Issue: August 14, 2007 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: BlueDECT Technology Corp. 10F-2, No. 2, Lane 258, Rueiguang Road, Neihu District, Taipei 114, R.O.C. Equipment Under Test: BLUETOOTH CAR KIT Trade Name: BlueDECT Model: CK2109 Date of Test: July 26 ~ August 8, 2007 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Johnny Liu Amanda Wu Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 70427002-RP1 FCC ID: UU5-03112109S Date of Iss…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 70427002-RP1 FCC ID: UU5-03112109S Date of Issue: August 14, 2007 Page 46 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SETUP PHOTO Compliance Certification Services Inc. Report No.: 70427002-RP1 FCC ID: UU5-03112109S Date of Issue: August 14, 2007 Page 47 Rev. 00 RADIATED EMISSION SETUP PHOTOS Compliance Certification Services Inc. Report No.: 70427002-RP1 FCC ID: UU5-03112109S Date of Issue: August 14, 2007 Page 48 Rev. 00 POWERLINE CONDUCTED EMISSIONS SETUP PHOTOS
