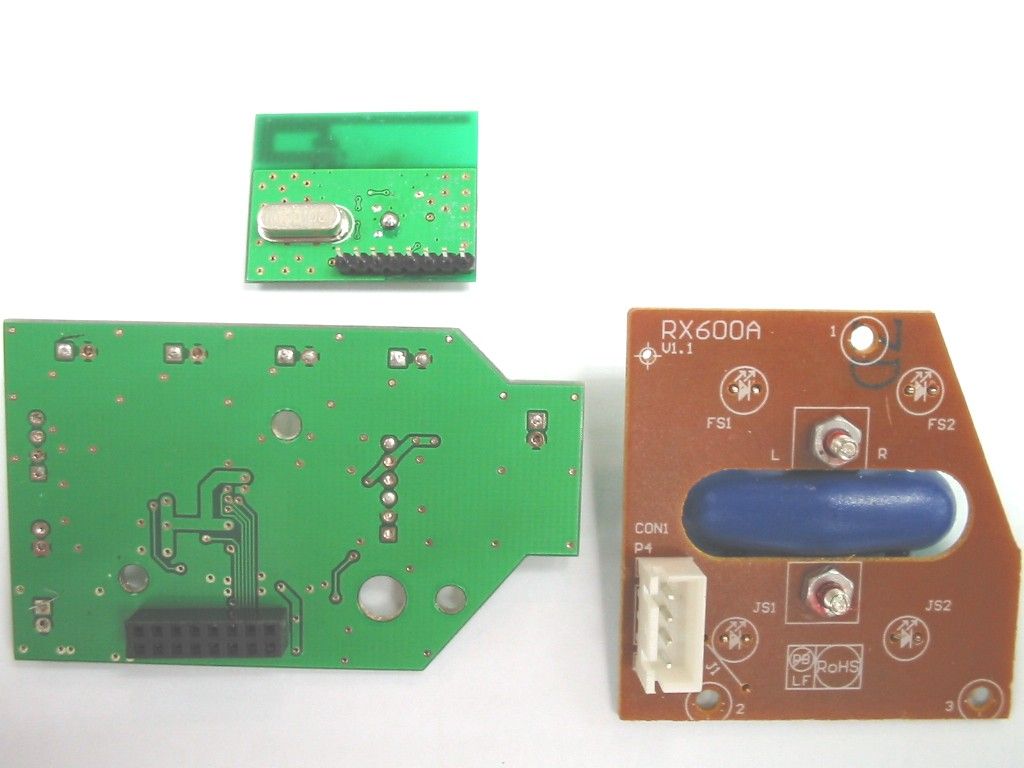

T X Module ( UZ2400 ) IC GPC41A2 Button Keys 4 X 1.5V battery Crystal 20MHz

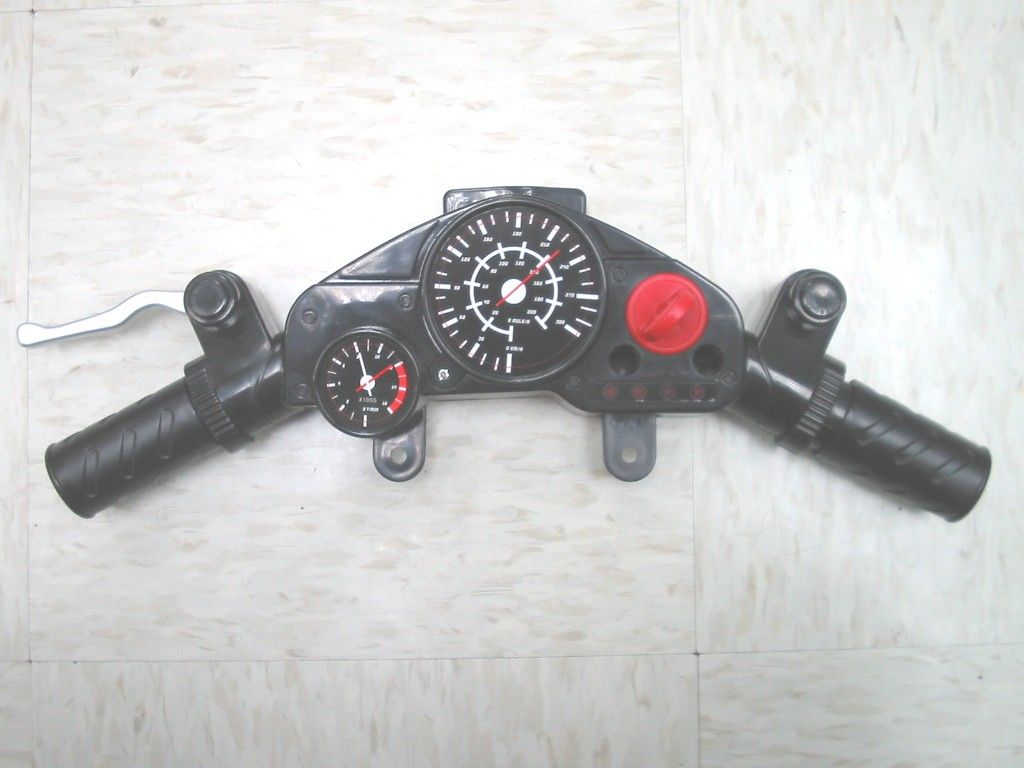

Operation Description for JG5000 Super Motor The JG5000 Super Motor is Radio Control TV game play set. There are powered by 4 x V 1.5V AA size batteries and the radio frequency channel is 2.450GHz. The transmission technique is Spread Spectrum which used DSSS method. There are 4 control triggers on the EUT. When the trigger is pressed once, it will transmit different radio control signal to receiver for control and play the game on TV. Referring to the transmitter circuit design, the circuit description is listed below: - X1 and associated circuit act as crystal for UZ2400. - UZ2400 and associated circuit act as 2.450GHz RF module. - GPC41A2 and associated circuit act as encoder.
TEST REPORT Report No. : AG029556-001 Date : 2006 December 16 Page 1 of 11 FCC ID: UU8-JG5001 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LG211875(2) Client : Lexibook America 19591 NE10 AV Bay E - FL33179 Miami Beach Miami Beach, FL 33180 United States Sample Description : One(1) submitted sample(s) stated to be Super Motor TV Game of Model No. JG5000US Radio Frequency : 2.4G Hz Transmitter Rating : 4 x 1.5V AA size batteries No. of submitted sample : Two (2) set(s) *** Date Received : 2006 November 07 Test Period : 2006 November 07 β 2006 Nov 13 Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-05 Edition) ANSI C63.4 β 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : ____________________________________________________ Danny Chui Deputy Manager - EL. Division TEST REPORT Report No. : AG029556-001 Date : 2006 December 16 Page 2 of 11 FCC ID: UU8-JG5001 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information............................................................................................................................. 3 1.1 General Description ..................................................................................................................... 3 1.2 Location of the test site ................................................................................................................ 4 1.3 List of measuring equipment........................................................................................................ 5 2 Description of the radiated emission test ............................................................................................. 6 2.1 Test Procedure ............................................................................................................................. 6 2.2 Test Result ................................................................................................................................... 6 2.3 Radiated Emission Measurement Data ........................................................................................ 7 3 Description of the Line-conducted Test............................................................................................... 8 3.1 Test Procedure ............................................................................................................................. 8 3.2 Test Result ................................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data ..................................................... 8 4 Photograph ........................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission....................... 9 4.2 Photographs of the External and Internal Configurations of the EUT......................................... 9 5 Supplementary document................................................................................................................... 10 5.1 Bandwidth .................................................................................................................................. 10 5.2 Duty cycle .................................................................................................................................. 10 5.3 Transmission time ...................................................................................................................... 10 6 Appendices......................................................................................................................................... 11 TEST REPORT Report No. : AG029556-001 Date : 2006 December 16 Page 3 of 11 FCC ID: UU8-JG5001 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for Super Motor TV Game. It operates at 2.45 GHz which is controlled by UZ2400 module. The EUT is powered by 4 x 1.5V AA size batteries and there are four control triggers in the EUT. When it switched on and press trigger keys once, it will transmit the radio signal to receiver. The brief circuit description is listed as follows: - U2 2400 and associated circuit act as RF module. - Crystal 20MHz and associated circuit act as oscillator. - GPC41A2 and associated circuit act as encoder. TEST REPORT Report No. : AG029556-001 Date : 2006 December 16 Page 4 of 11 FCC ID: UU8-JG5001 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1.2 Location of the test site Radiated emissionβ¦
Text truncated - open the document above for the full version.
Job No.: _______________ WF-EL-EMC-15 Edition 1 2006 April 12 Page of Bandwidth Plot Bandwidth 1
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.45 GHz - 2.45 GHz | - |
