MY FIRST DIGITAL PLAYER WITH MICS MON PREMIER LECTEUR MUSICAL AVEC MICROS MP320series MODE D’EMPLOI INSTRUCTION MANUAL MANUAL DE INSTRUCCIONES INSTRUCTIONS RELATIVES À LA SÉCURITÉ FRANÇAIS LIRE LES INSTRUCTIONS SUIVANTES AVANT TOUTE UTILISATION DE L’APPAREIL. Lisez attentivement et suivez ces instructions afin d’utiliser au mieux toutes les fonctions qu’offre cet appareil. Merci de noter qu’il s’agit de précautions générales qui peuvent ne pas s’appliquer à votre unité. 1. Lisez ces instructions avant toute utilisation ou connexion de l’appareil. 2. Conservez ces instructions en bon état. Tenez bien compte des mises en garde. Suivez les instructions. 3. Conservez ce mode d’emploi pour des besoins futurs. 4. N’utilisez pas cet appareil près de l’eau ou à proximité d’objets remplis d’eau tels que les vases. A conserver à l’abri de l’humidité. 5. Ne placez jamais d’objets enflammés, tels que des bougies allumées, sur l’appareil. 6. L’aération ne doit pas être bloquée en obturant les sorties d’aération. 7. Utilisez uniquement les attaches/accessoires recommandés par le fabricant. 8. Utilisez les pièces de remplacement recommandées par le fabricant. 9. Installez en respectant les consignes du fabricant. 10.Placez l’appareil dans un lieu aéré, sur une surface plate, dure et stable. Ne pas exposer à une température supérieure à 40°C. L’appareil doit être positionné de sorte à laisser un espace de 10 cm à l’avant et à l’arrière et de 5 cm sur les côtés. 11.Appuyez délicatement sur les boutons. Une pression trop forte pourrait endommager l’appareil. 12.Respectez l’environnement : éliminez les piles par l’entremise des points de collecte prévus à cet effet. 13.Assurez-vous toujours que le produit est débranché de toute source d’alimentation avant de le déplacer ou nettoyer. Pour nettoyer l’appareil, utilisez uniquement un chiffon sec. 14.Débranchez l’appareil lors d’orages ou lorsque vous ne l’utilisez pas pendant une longue période. 15.Aucune pièce de ce produit ne peut être réparée par l’utilisateur. Seul un personnel de service qualifié peut s’en charger. Portez l’appareil à l’atelier de réparation électronique de votre choix pour manutention ou réparation. 16.Ne laissez JAMAIS personne, et en particulier les enfants, mettre des objets dans les trous, dans les fentes ou dans toute autre ouverture de l’appareil – cela pourrait causer une électrocution. 17.Ne montez pas cet appareil sur un mur ou un plafond. 18.Ne placez pas cet appareil à proximité de TV, haut-parleurs ou tout autre objet à fort champ magnétique. 19.Ne laissez pas l’appareil sans surveillance lorsqu’il est en marche. 20.Garder une distance minimale autour de l’appareil pour une aération suffisante . 21.Il convient de ne pas obstruer les ouvertures d’aération par des objets tels que journaux, nappes, rideaux, etc. 22.L’appareil est destiné à être utilisé sous un climat tempéré et/ou tropical . 23.Les piles doivent être jetées de façon conforme. Les déposer dans des bacs de collecte prévus afin de protéger l’environnement. AVERTISSEMENT: Tous les matériaux d’emballage, comme le scotch, les feuilles en plastique, les ficelles et les étiquettes ne font pas partie du produit et doivent être jetés. Le lecteur fonctionne avec un câble de charge USB (inclus) ou un adaptateur d’alimentation USB (non inclus) 5V, 1A. Entrée : 100~240V, 50/60 Hz. Alimentation secteur 1. Assurez-vous que l’appareil soit éteint. 2. Insérez une extrémité du câble USB dans le port de charge micro USB (15) situé à l’arrière de l’appareil. 3. Branchez l’autre extrémité du câble USB à votre ordinateur en marche ou à un adaptateur d’alimentation USB connecté à une prise murale. La LED à côté du port de charge micro USB s’allumera lors de la mise en charge de l’appareil. 4. Une fois le chargement terminé, la LED s’éteindra. Note: Le câble USB sert uniquement à charger l’appareil et ne permet en aucun cas le transfert de données. AVERTISSEMENT: - Danger d’explosion si la batterie est mal remplacée. Veillez à ne la remplacer qu’avec une batterie identique ou équivalente. - La batterie ne doit pas être exposée à de fortes chaleurs, telles que la lumière du soleil, le feu ou toute autre chose de semblable. ALIMENTATION EMPLACEMENT DES TOUCHES 1. Poignée 2. Boutons Enregistrement 3. Bouton MODE 4. Bouton précédent 5. Bouton suivant 6. Bouton LECTURE/PAUSE 7. Bouton VOL – 8. Bouton VOL + 9. Bouton Effets Lumineux 10. Bouton ON/OFF micro 11. Bouton changement de voix 12. Haut-parleur 13. Port USB pour lecture audio 14. Entrée auxiliaire 15. Port micro USB d’alimentation 16. Bouton Marche/Arrêt 17. Prise casque 18. Port pour carte micro SD/TF 19. Compartiment de rangement FONCTIONS & MODES MODES Votre lecteur musical inclut 4 modes : Sans fil, USB, carte TF et Aux-in. Pour les Modes USB et carte TF, mettez l’appareil en marche et insérez une carte TF ou une clé USB (non incluses) dans le port adéquat et l’appareil lira automatiquement le contenu. En mode Aux-in, les boutons lecture / pause, Précédent et Suivant de l’appareil sont désactivés. Utilisez les commandes de votre lecteur audio pour un meilleur contrôle de la musique. En mode sans fil (Bluetooth) 1. Mettez l’appareil en marche et appuyez sur le bouton de sélection du mode pour choisir le mode Bluetooth®. Vous verrez apparaître à l’écran. 2. Activez la fonction Bluetooth® de votre lecteur audio et assurez-vous d’être visible. 3. Confirmez l’appairage ou sélectionnez le nom de l’appareil (MP320), pour connecter votre appareil au lecteur MP3. 4. Une fois le lecteur et l’appareil connectés, un signal sonore retentira. Note : Certains lecteurs de musique ne sont pas entièrement compatibles avec les commandes audio sans fil. Il est possible que les boutons lecture / pause, précédant et suivant sur le lecteur musical ne fonctionnent pas ou que le lecteur de musique s’éteigne. Nous vous conseillons d’utiliser les boutons de lecture de votre lecteur de musique. La marque et les logos Bluetooth® sont des marques déposées app…

Text truncated - open the document above for the full version.

Lexibook America C/O NATXIS PRAMEX INTERNATIONAL -NORTH AMERICA 1251 avenue of the Americas 34th floor, New York 10020, New York, United States Agent Authorization Company: Lexibook America Address: C/O NATXIS PRAMEX INTERNATIONAL -NORTH AMERICA 1251 avenue of the Americas 34th floor, New York 10020, New York, United States Product Name: Digital Player - UNICORN Model Number(s): MP320UNIZ Product Description: Digital Player - UNICORN We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jul.23, 2021 Name: Terry Tang Title: Managing Director Company: Lexibook America

Lexibook America C/O NATXIS PRAMEX INTERNATIONAL -NORTH AMERICA 1251 avenue of the Americas 34th floor, New York 10020, New York, United States Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jul.23, 2021 Subject; Request for Confidentiality FCC ID: UU8-MP320 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Terry Tang Title: Managing Director

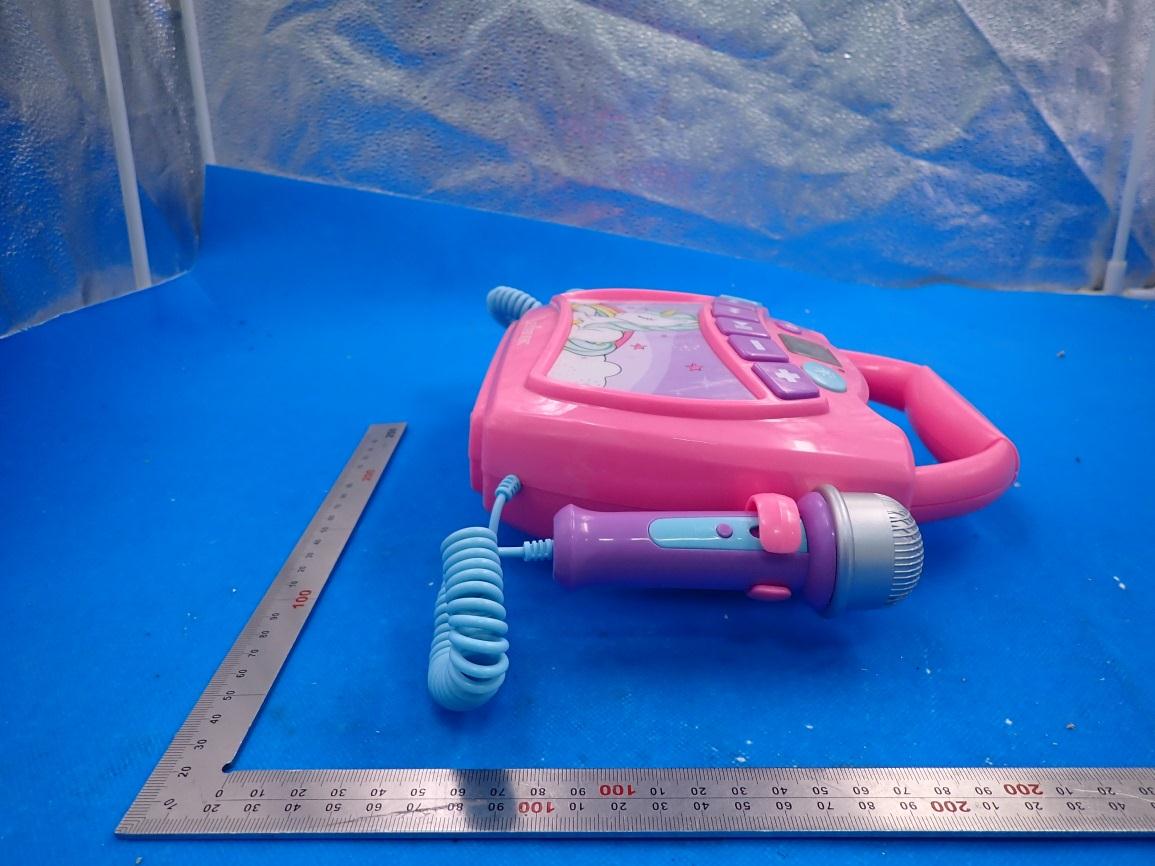

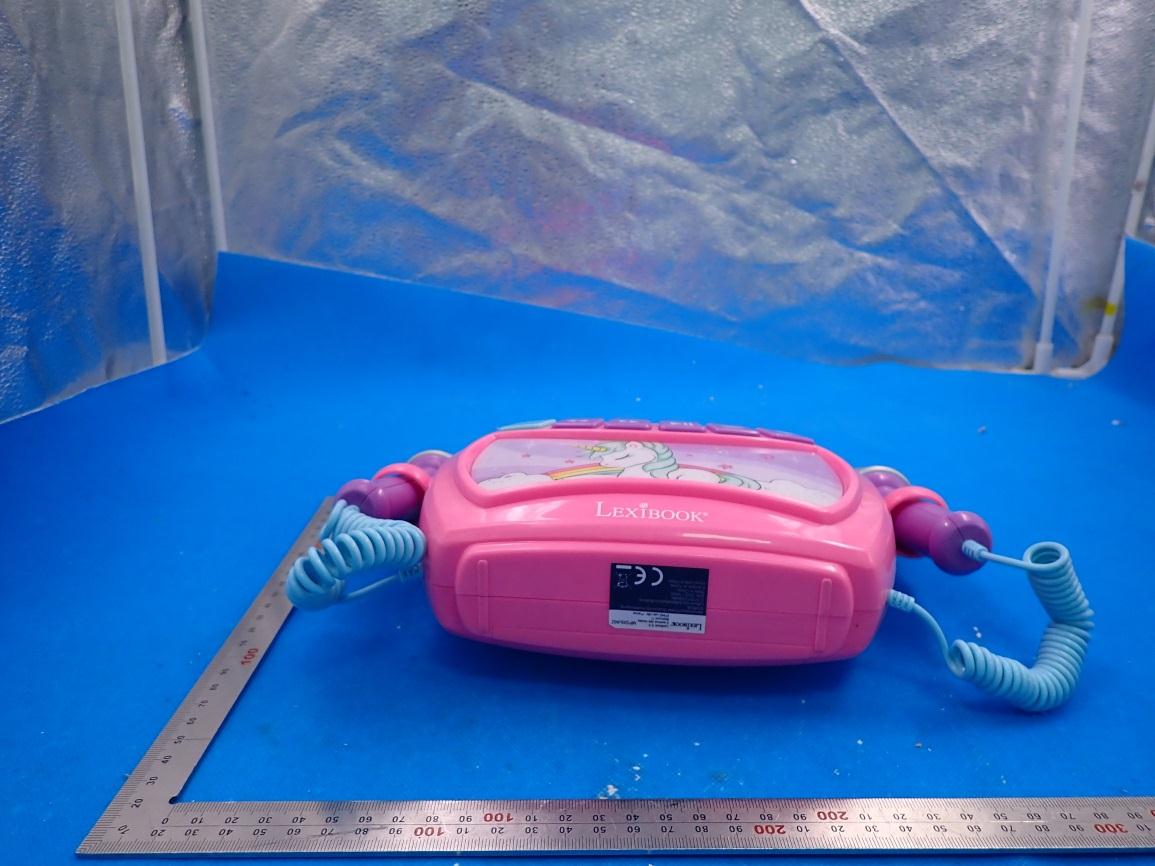

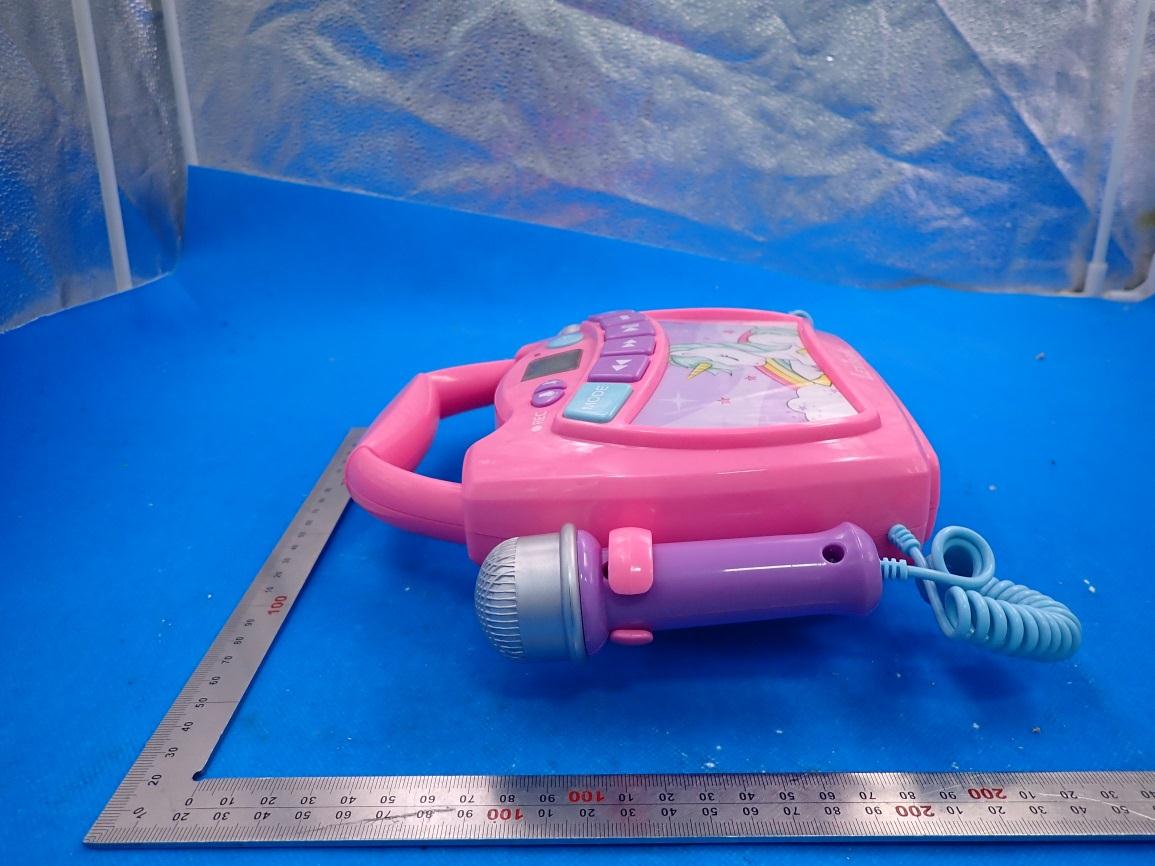

External Photos ALL VIEW OF EUT EXTERNAL VIEW-1 OF EUT EXTERNAL VIEW-2 OF EUT EXTERNAL VIEW-3 OF EUT EXTERNAL VIEW-4 OF EUT EXTERNAL VIEW-5 OF EUT EXTERNAL VIEW-6 OF EUT EXTERNAL VIEW-7 OF EUT EXTERNAL VIEW-8 OF EUT

FCC ID Label Location 10mm*20mm FCC ID: UU8-MP320 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT INTERNAL VIEW-8 OF EUT INTERNAL VIEW-9 OF EUT INTERNAL VIEW-10 OF EUT Antenna INTERNAL VIEW-11 OF EUT

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Digital Player - UNICORN Model Name MP320UNIZ FCC ID UU8-MP320 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION P t =0.149dBm=1.035mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(1.035mW /5mm) .[√2.402GHz)]=0.321<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 81 FCC Test Report Report No.: AGC02862210508FE03 FCC ID : UU8-MP320 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Digital Player - UNICORN BRAND NAME : LEXIBOOK MODEL NAME : MP320UNIZ APPLICANT : Lexibook America DATE OF ISSUE : Jul. 23, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC02862210508FE03 Page 2 of 81 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jul. 23, 2021 Valid Initial Release Report No.: AGC02862210508FE03 Page 3 of 81 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH .............................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ......................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ......................................................... 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................... 8 2.7. TEST METHODOLOGY ............................................................................................................................. 8 2.8. SPECIAL ACCESSORIES ......................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................................. 8 2.10. ANTENNA REQUIREMENT..................................................................................................................... 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................................................. 10 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 11 5.1. CONFIGURATION OF EUT SYSTEM ...................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 11 6. TEST FACILITY .............................................................................................................................................. 12 7. PEAK OUTPUT POWER ................................................................................................................................ 13 7.1. MEASUREMENT PROCEDURE ............................................................................................................. 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 14 8. 20DB BANDWIDTH ........................................................................................................................................ 19 8.1. MEASUREMENT PROCEDURE ............................................................................................................. 19 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 19 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 20 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 25 9.1. MEASUREMENT PROCEDURE ............................................................................................................. 25 Report No.: AGC02862210508FE03 Page 4 of 81 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 25 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 25 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 25 10. RADIATED EMISSION ................................................................................................................................. 46 10.1. MEASUREMENT PROCEDURE ........................................................................................................... 46 10.2. TEST SETUP ......................................................................................................................................... 48 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 49 10.4. TEST RESULT........................................................................................................................................ 49 11. NUMBER OF HOPPING FREQUENCY ...............................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC02862210508FE03 Page 38 of 81 Test_Graph_EDR_ANT1_2480_3Mbps_Reference Level Test_Graph_EDR_ANT1_2480_3Mbps_Lower Band Emissions Report No.: AGC02862210508FE03 Page 39 of 81 Test_Graph_EDR_ANT1_2480_3Mbps_Higher Band Emissions Report No.: AGC02862210508FE03 Page 40 of 81 Test Graphs of Band Edge Emissions in Non-Restricted Frequency Bands Test_Graph_BR_ANT1_2402_1Mbps_Lower Band Edge Emissions Test_Graph_BR_ANT1_2480_1Mbps_Higher Band Edge Emissions Report No.: AGC02862210508FE03 Page 41 of 81 Test_Graph_BR_HOP_ANT1_NA_1Mbps_Lower Band Edge Emissions Test_Graph_BR_HOP_ANT1_NA_1Mbps_Higher Band Edge Emissions Report No.: AGC02862210508FE03 Page 42 of 81 Test_Graph_EDR_ANT1_2402_2Mbps_Lower Band Edge Emissions Test_Graph_EDR_ANT1_2480_2Mbps_Higher Band Edge Emissions Report No.: AGC02862210508FE03 Page 43 of 81 Test_Graph_EDR_HOP_ANT1_NA_2Mbps_Lower Band Edge Emissions Test_Graph_EDR_HOP_ANT1_NA_2Mbps_Higher Band Edge Emissions Report No.: AGC02862210508FE03 Page 44 of 81 Test_Graph_EDR_ANT1_2402_3Mbps_Lower Band Edge Emissions Test_Graph_EDR_ANT1_2480_3Mbps_Higher Band Edge Emissions Report No.: AGC02862210508FE03 Page 45 of 81 Test_Graph_EDR_HOP_ANT1_NA_3Mbps_Lower Band Edge Emissions Test_Graph_EDR_HOP_ANT1_NA_3Mbps_Higher Band Edge Emissions Report No.: AGC02862210508FE03 Page 46 of 81 10. RADIATED EMISSION 10.1. MEASUREMENT PROCEDURE 1. The EUT was placed on the top of the turntable 0.8 or 1.5 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emission, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function with specified bandwidth under Maximum Hold Mode. 6. For emissions above 1GHz, use 1MHz RBW and 3MHz VBW for peak reading. Place the measurement antenna away from each area of the EUT determined to be a source of emissions at the specified measurement distance, while keeping the measurement antenna aimed at the source of emissions at each frequency of significant emissions, with polarization oriented for maximum response. The measurement antenna may have to be higher or lower than the EUT, depending on the radiation pattern of the emission and staying aimed at the emission source for receiving the maximum signal. The final measurement antenna elevation shall be that which maximizes the emissions. The measurement antenna elevation for maximum emissions shall be restricted to a range of heights of from 1 m to 4 m above the ground or reference ground plane. 7. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum values. 8.If the emissions level of the EUT in peak mode was 3 dB lower than the average limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method for below 1GHz. 9. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 10. In case the emission is lower than 30MHz, loop antenna has to be used for measurement and the recorded data should be QP measured by receiver. High - Low scan is not required in this case. Report No.: AGC02862210508FE03 Page 47 of 81 The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Start ~Stop Frequency 1GHz~26.5GHz 1MHz/3MHz for Peak, 1MHz/3MHz for Average Receiver Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Report No.: AGC02862210508FE03 Page 48 of 81 10.2. TEST SETUP Radiated Emission Test-Setup Frequency Below 30MHz RADIATED EMISSION TEST SETUP 30MHz-1000MHz RADIATED EMISSION TEST SETUP ABOVE 1000MHz Report No.: AGC02862210508FE03 Page 49 of 81 10.3. LIMITS AND MEASUREMENT RESULT 15.209 Limit in the below table has to be followed Frequencies (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(kHz) 300 0.490~1.705 24000/F(kHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 Note: All modes were tested for restricted band radiated emission, the test records reported below are the worst result compared to other modes. 10.4. TEST RESULT Radiated emission below 30MHz The amplitude of spurious emissions from 9kHz to 30MHz which are attenuated more than 20 dB below the permissible value need not be reported. Report No.: AGC02862210508FE03 Page 50 of 81 Radiated emission from…

Text truncated - open the document above for the full version.

Report No.: AGC02862210508FE03 Page 71 of 81 APPENDIX B: PHOTOGRAPHS OF EUT ALL VIEW OF EUT EXTERNAL VIEW-1 OF EUT Report No.: AGC02862210508FE03 Page 72 of 81 EXTERNAL VIEW-2 OF EUT EXTERNAL VIEW-3 OF EUT Report No.: AGC02862210508FE03 Page 73 of 81 EXTERNAL VIEW-4 OF EUT EXTERNAL VIEW-5 OF EUT Report No.: AGC02862210508FE03 Page 74 of 81 EXTERNAL VIEW-6 OF EUT EXTERNAL VIEW-7 OF EUT Report No.: AGC02862210508FE03 Page 75 of 81 EXTERNAL VIEW-8 OF EUT INTERNAL VIEW-1 OF EUT Report No.: AGC02862210508FE03 Page 76 of 81 INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT Report No.: AGC02862210508FE03 Page 77 of 81 INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT Report No.: AGC02862210508FE03 Page 78 of 81 INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT Report No.: AGC02862210508FE03 Page 79 of 81 INTERNAL VIEW-8 OF EUT INTERNAL VIEW-9 OF EUT Antenna Report No.: AGC02862210508FE03 Page 80 of 81 INTERNAL VIEW-10 OF EUT INTERNAL VIEW-11 OF EUT ----END OF REPORT---- Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of law without its prior written consent, unless required by the relevant governmental authorities, laws or court orders. 4. The non-CMA report issued by AGC is only permitted to be used by the client as internal reference use and shall not be used for public demonstration purpose. 5. In the event of the improper use of the report as determined by the Company, the Company reserves the right to withdraw it, and to adopt any other additional remedies which may be appropriate. 6. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Company. 7. The Company will not be liable for or accept responsibility for any loss or damage however arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 8.Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior to submitting the sample for testing. 9. The Company is not responsible for recalling the electronic version of the original report when any revision is made to them. The Client assumes the responsibility to providing the revised version to any interested party who uses them. 10. Subject to the variable length of retention time for test data and report stored hereinto as otherwise specifically required by individual accreditation authorities, the Company will only keep the supporting test data and information of the test report for a period of six years. The data and information will be disposed of after the aforementioned retention period has elapsed. Under no circumstances shall we provide any data and information which has been disposed of after retention period. Under no circumstances shall we be liable for damage of any kind, including (but not limited to) compensatory damages, lost profits, lost data, or any form of special, incidental, indirect, consequential or punitive damages of any kind, whether based on breach of contract of warranty, tort (including negligence), product liability or otherwise, even if we are informed in advance of the possibility of such damages.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz CONDUCTED EMISSION TEST SETUP CONDUCTED TEST SETUP
