UU8-RC50-1EXTREME CROSSLANDE (R)

Note: Please keep this instruction manual, it contains important information. This product is covered by our 3-month warranty. For any claim under the warranty or after sale service, please contact your distributor and present a valid proof of purchase. Our warranty covers any manufacturing material and workmanship defect, with the exception of any deterioration arising from the non-observance of the instruction manual or from any careless action implemented on this item (such as dismantling, exposition to heat and humidity, etc.). It is recommended to keep the packaging for any further reference. In a bid to keep improving our services, we could implement modification on the colours and the details of the prod- uct shown on the packaging. WARNING! Not suitable for children under 3 years. Choking Hazard - Small parts. Reference: RC50_10 © Lexibook® FCC NOTICE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable pro- tection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be deter- mined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. WARNING: Changes of modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. Made in China, Shantou. Lexibook S.A. 6 avenue des Andes Bâtiment 11 91940 Les Ulis France Lexibook Limited Unit 8-9, 4th Floor Kenning Industrial Building 19 Wang Hoi Road Kowloon Bay, Kowloon Hong Kong format: Leaflet (A3 size, Double Sides Printing ) Environmental Protection: Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste! Please actively support the conservation of resources and help protect the environment by returning this appliance to a collection centre (if available). ©Disney Instruction manual Mode d’emploi Manual de instrucciones RC50_10 ENGLISH PLEASE READ BEFORE OPERATING THIS EQUIPMENT. Before using the unit, be sure to read all operating instructions carefully. Please note that these are general precautions and may not pertain to your unit. 1. Read this Instruction Manual before you attempt to connect or operate the appliance. 2. Keep these instructions in good condition. Heed all warnings. Follow all instructions. 3. Save this Instruction Manual for future reference. 4. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the product. Dry location use only. 5. No naked flame source, such as candles, should be placed on the product. 6. Children should be supervised to ensure that they do not play with the appliance. 7. Ventilation should not be impeded by covering the ventilation openings. 8. Only use accessories, which are specified by the manufacturer. 9. Use replacement parts, which are specified by the manufacturer. 10. Install the unit in accordance with the manufacturer’s instructions. 11. Place the unit where there is good ventilation. Place the system on a flat, hard and stable surface. Do not expose to temperatures above 104°F. Allow at least 4 inches clearance from the rear and the top of the unit and 2 inches from each side. 12. Press the players buttons gently. Pressing them too hard can damage the player. 13. Dispose of used batteries in an environmental-responsible manner. 14. Always ensure that the product is unplugged from the electrical outlet before moving or cleaning. Clean it with dry cloth only. 15. Turn off the product during lightning, storms or when it will not be used for long periods of time. 16. This product has no user-serviceable parts. Do not attempt to repair this product yourself. Only qualified service personnel should perform servicing. Take the product to the electronics repair shop of your choice for inspection and repair. 17. NEVER let anyone, especially children, push anything into holes, slots or any other openings in the unit’s casing as this could result in a fatal electric shock. 18. Don’t mount this product on a wall or ceiling. 19. Do not place the unit near TVs, speakers and other objects that generate strong magnetic fields. 20. Do not leave the unit unattended when it is in use. 21. Keep minimum distances around the apparatus for sufficient ventilation. 22. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc. 23. The use of apparatus in moderate climates. 24. Batteries should be disposed properly. Take them to the collection container in order to protect the environment. SAFETY INSTRUCTIONS POWER SUPPLY Your RC car operates with a 6.0V Ni-MH rechargeable battery pack (5 x 1.2VAAA), 600mAh (included), that can be charged with the 5.0 V 2.0A USB charging cable or adaptor plug (not included). The remote control operates with 2 x 1.5V AA/LR6 batteries (not included). The watch remote control operates with a built-in 3.7V 150mAh re…

Text truncated - open the document above for the full version.

June 09, 2020 Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement Lexibook America FCC ID: UU8-RC50-1 To Whom It May Concern: We, Lexibook America hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number (UU8-RC50-1) under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is (2020-06-09). The Limited Agency Agreement expires until further notice, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, [Signature] Lexibook America Contact person: Terry Tang

FCC ID Label Location 10mm*7mm FCC ID: UU8-RC50-1

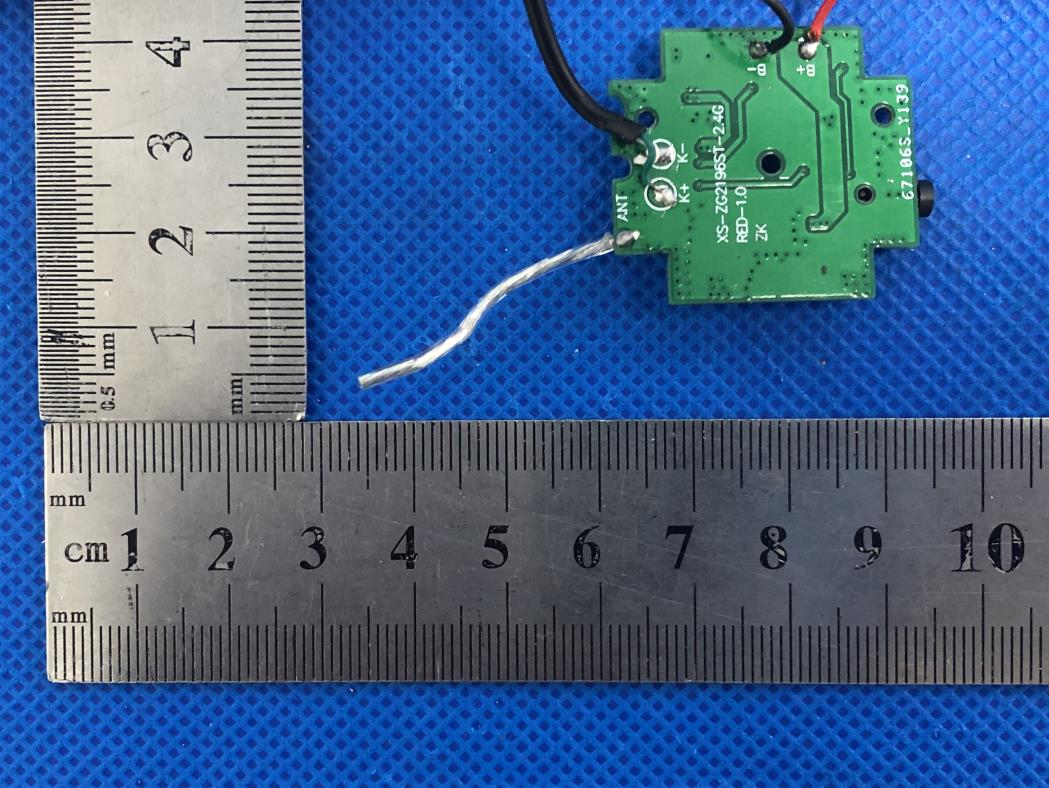

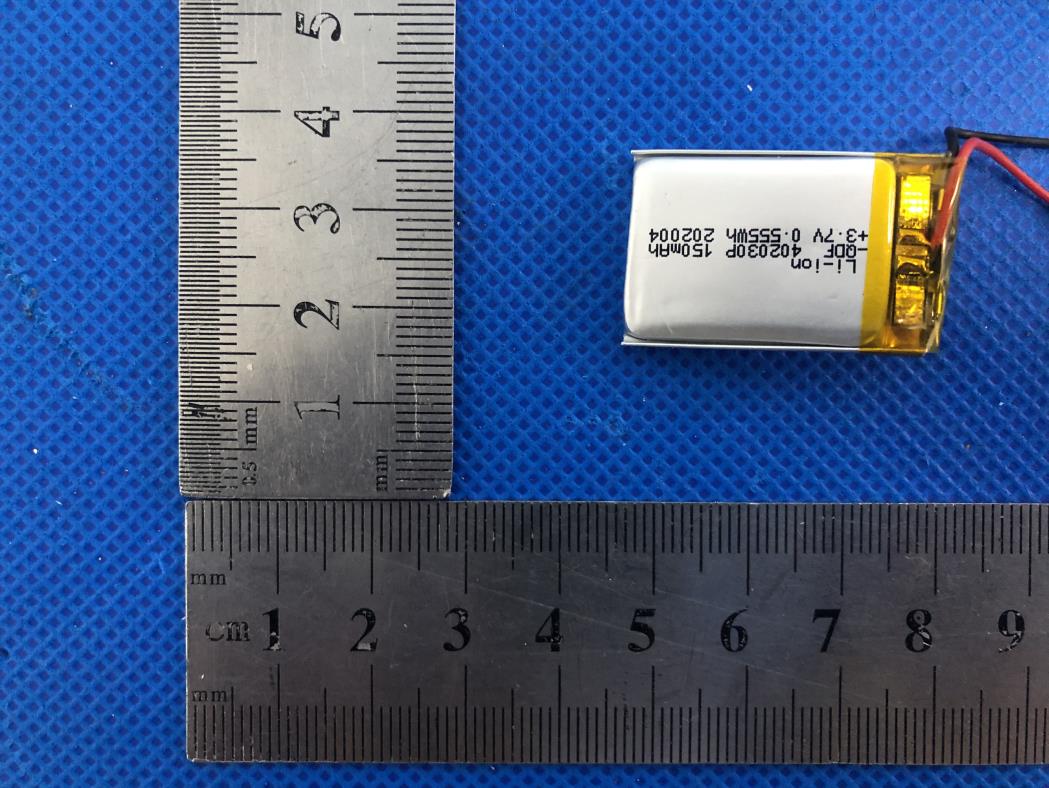

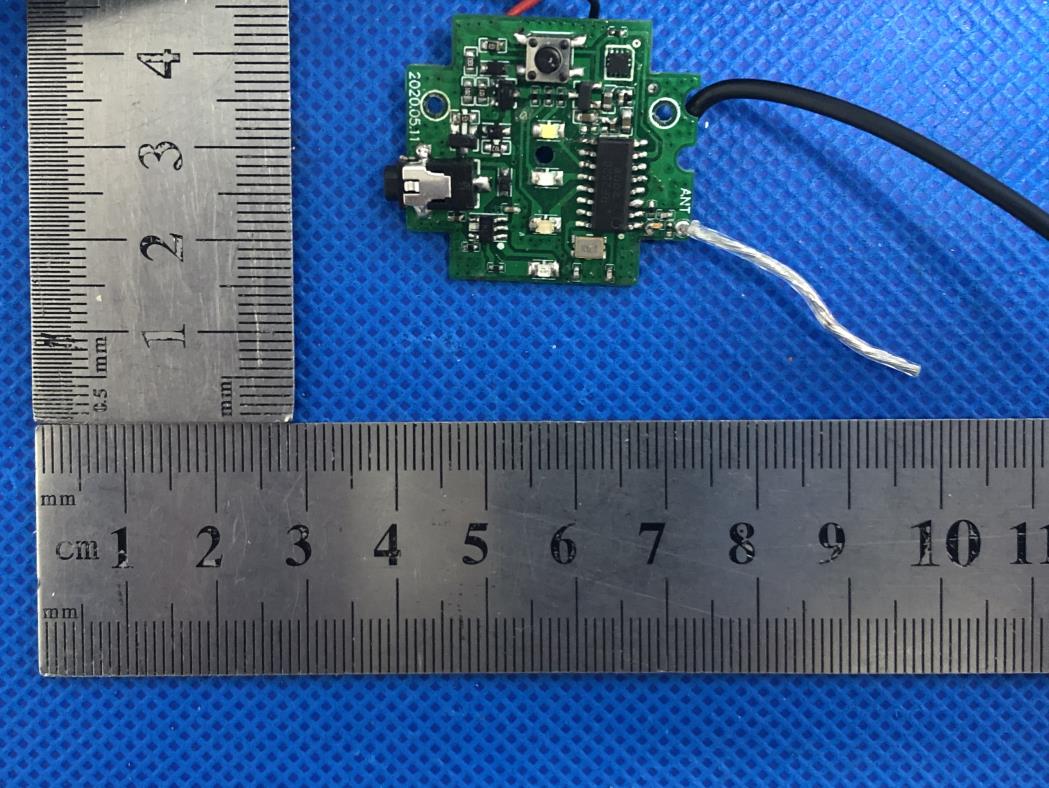

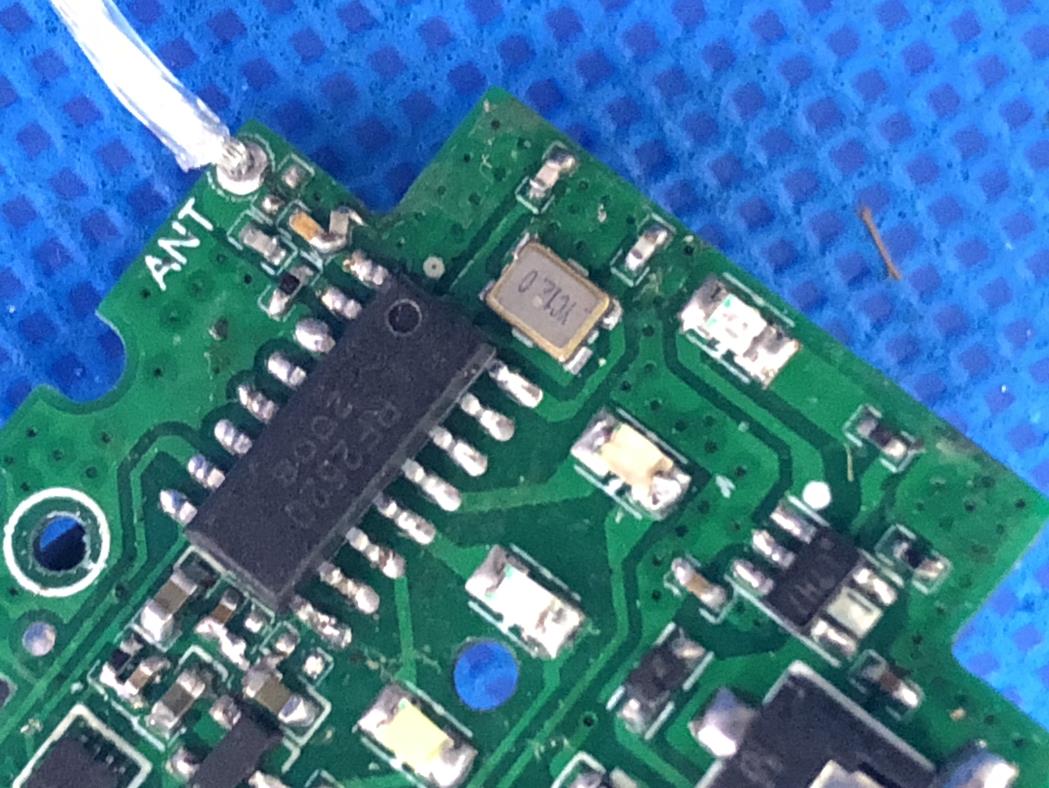

Internal Photos OPEN VIEW OF EUT-1 INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT Antenna INTERNAL VIEW-3 OF EUT VIEW OF BATTERY

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description EXTREME CROSSLANDE Ⓡ Model Name RC50 FCC ID UU8-RC50-1 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION P t =3.165dBm=2.07mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(2.07mW /5mm) .[√2.473(GHz)]= 0.65<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 47 FCC Test Report Report No.: AGC02862200503FE02 FCC ID : UU8-RC50-1 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : EXTREME CROSSLANDE Ⓡ BRAND NAME : LEXIBOOK MODEL NAME : RC50 APPLICANT : Lexibook America DATE OF ISSUE : Jun. 09, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC02862200503FE02 Page 2 of 47 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jun. 09, 2020 Valid Initial Release Report No.: AGC02862200503FE02 Page 3 of 47 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ............................................................................................................... 5 2.GENERAL INFORMATION ............................................................................................................................. 6 2.1PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 2.3 RELATED SUBMITTAL(S)/GRANT(S) ..................................................................................................... 7 2.4TEST METHODOLOGY ............................................................................................................................ 7 2.5 SPECIAL ACCESSORIES ........................................................................................................................ 7 2.6 EQUIPMENT MODIFICATIONS ............................................................................................................... 7 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 8 4. DESCRIPTION OF TEST MODES ................................................................................................................. 9 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 10 5.1 CONFIGURATION OF TESTED SYSTEM .............................................................................................. 10 5.2 EQUIPMENT USED IN TESTED SYSTEM ............................................................................................. 10 5.3. SUMMARY OF TEST RESULTS ............................................................................................................ 10 6. TEST FACILITY ........................................................................................................................................... 11 7. PEAK OUTPUT POWER ............................................................................................................................. 12 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 12 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 13 8. 6 DB BANDWIDTH ...................................................................................................................................... 15 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 15 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 15 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 17 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 17 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 17 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 17 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 17 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ....................................................... 22 Report No.: AGC02862200503FE02 Page 4 of 47 10.1 MEASUREMENT PROCEDURE .......................................................................................................... 22 10.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 22 10.3 MEASUREMENT EQUIPMENT USED ................................................................................................. 22 10.4 LIMITS AND MEASUREMENT RESULT .............................................................................................. 22 11. RADIATED EMISSION ............................................................................................................................... 24 11.1. MEASUREMENT PROCEDURE ......................................................................................................... 24 11.2. TEST SETUP ....................................................................................................................................... 25 11.3. LIMITS AND MEASUREMENT RESULT ............................................................................................. 26 11.4. TEST RESULT .........................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC02862200503FE02 Page 34 of 47 EUT EXTREME CROSSLANDE Ⓡ Model Name RC50 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC02862200503FE02 Page 35 of 47 EUT EXTREME CROSSLANDE Ⓡ Model Name RC50 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical PK AV RESULT: PASS Note: The factor had been edited in the “Input Correction” of the Spectrum Analyzer. So the Amplitude of test plots is equal to Reading level plus the Factor in dB. Use the A dB(μV) to represent the Amplitude. Use the F dB(μV/m) to represent the Field Strength. So A=F. Report No.: AGC02862200503FE02 Page 36 of 47 APPENDIX A: PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ Report No.: AGC02862200503FE02 Page 37 of 47 APPENDIX B: PHOTOGRAPHS OF EUT ALL VIEW OF EUT TOP VIEW OF EUT Report No.: AGC02862200503FE02 Page 38 of 47 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Report No.: AGC02862200503FE02 Page 39 of 47 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.: AGC02862200503FE02 Page 40 of 47 RIGHT VIEW OF EUT OPEN VIEW OF EUT-1 Report No.: AGC02862200503FE02 Page 41 of 47 INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT Antenna Report No.: AGC02862200503FE02 Page 42 of 47 INTERNAL VIEW-3 OF EUT VIEW OF BATTERY ----END OF REPORT----

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ
